Kids Video Walkie Talkie User Manual Im po rt a nt Sa f ety Warning s For ages 3‒12. Do not disassemble. Risk of electric shock. Silicone antenna: Choking hazard if bitten/swallowed. Keep away from water (baths, pools). Use only USB-C cable. Do not overcharge (max 10hrs). Appeara nce & F unct io n Descript io n 1 Food-grade Silicone Antenna 2 Rotatable Camera Lens: 8.0 Megapixels (8MP) Sensor: 300,000 Pixels 3 Display: 2.0-inch IPS Full-View Screen 4 Switch Screens 5 Send Emojis 6 Switch Camera 7 20x30mm Big Speaker 8 Lanyard Loop 9 Video Button 10 USB-C Charging Port 11 Volume + 12 Volume - 13 ON/OFF 1 4 1000mAh Upgraded Large Battery P ro d uct O v erv iew Enjoy safe, fun communication with our Kids Visual Walkie Talkie! video calls, and emoji sharing. See below for details. Basic Operation Guide 3. Char ging In st ructi on s - Charge when low battery is prompted. 4. The First 3 Buttons - Connect USB-C cable to device and 5V charger/computer. - Left: Switch front/rear cameras - Middle: Send emojis - Right: Switch screen size Rotata ble Camera Packa ge In cludes 2 X Video Walkie Talkies 1 X 2-IN-1 USB-C Charging Cable 2 X Hanging Ropes 1 X User Manual 1 X Gift Box Battery & Usage Details Battery Capacity: 1000mAh Charging Time: 6 hours Standby Time: 10 days Usage Time: 5-6 hours Working Distance: 120-450 meters 1. Power On/Off - On: Slide the ON/OFF switch up (screen lights up). 2. Video Call - Two walkie talkies turn on automatically and connect to each other. - Off: Slide the ON/OFF switch down (screen turns off). - Press and hold Video Button to speak; release when done. Pairing Notes Each pair of walkie talkies is pre-paired. They can only connect one-to-one and cannot be used with other walkie talkies. Im portan t No te This device is not waterproof. Keep it away from water to avoid damage. Warranty Inform ation 12-month warranty from purchase. Contact customer service for quality issues (excluding man-made damage). See packaging/Amazon store for contact. Thank you for your support! Hope your child enjoys it. Made in china Swit ch fron t/ r e a r c a m e r a s 9 10 2 1 11 12 13 8 Lens: 8.0 Megapixels (8MP) Sensor: 300,000 Pixels 14 3 6 5 4 7 FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Shenzhen Lingkun Technology Co., Ltd. Room 504, Building 3, No.343 Jihua Road Shuijing Community, Jihua Subdistrict, Longgang District, Shenzhen City, Guangdong Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/05/19 U.S. Agent Designation Shenzhen Lingkun Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BV6P-VWT-26): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Phone of U.S. agent: (626) 588-8039 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Shenzhen Lingkun Technology Co., Ltd.with the FRN [0038437356] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Xuena Zou Manager Shenzhen Lingkun Technology Co., Ltd. Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

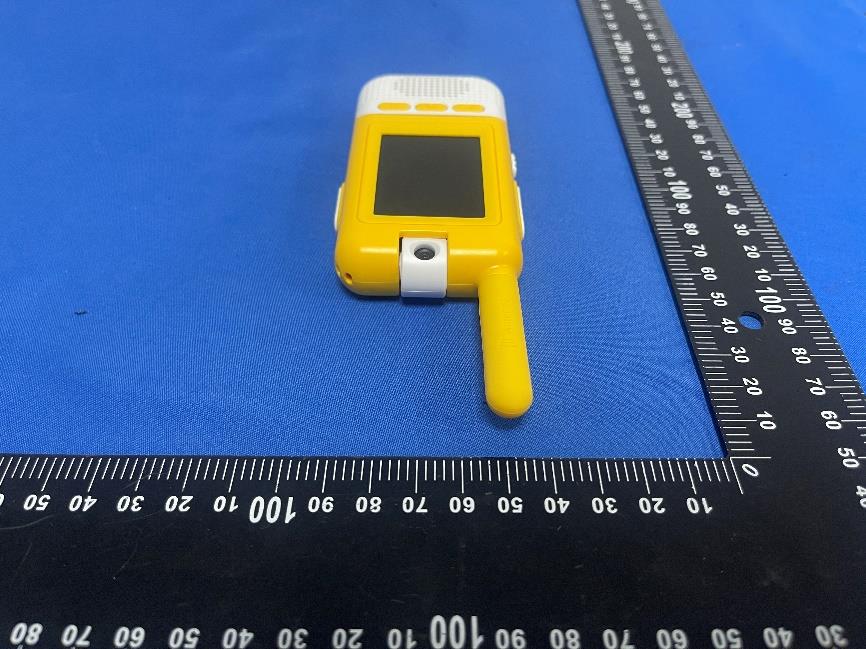

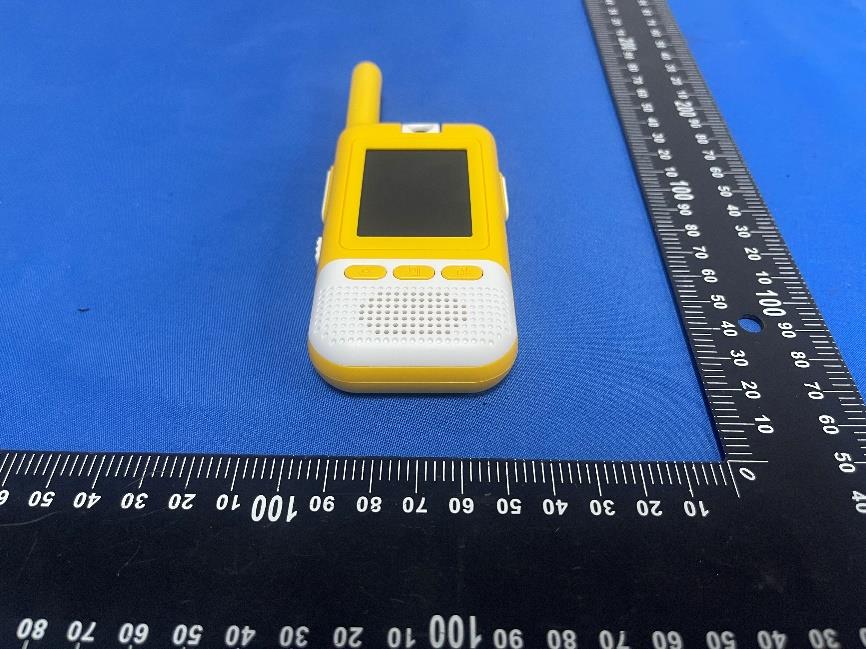

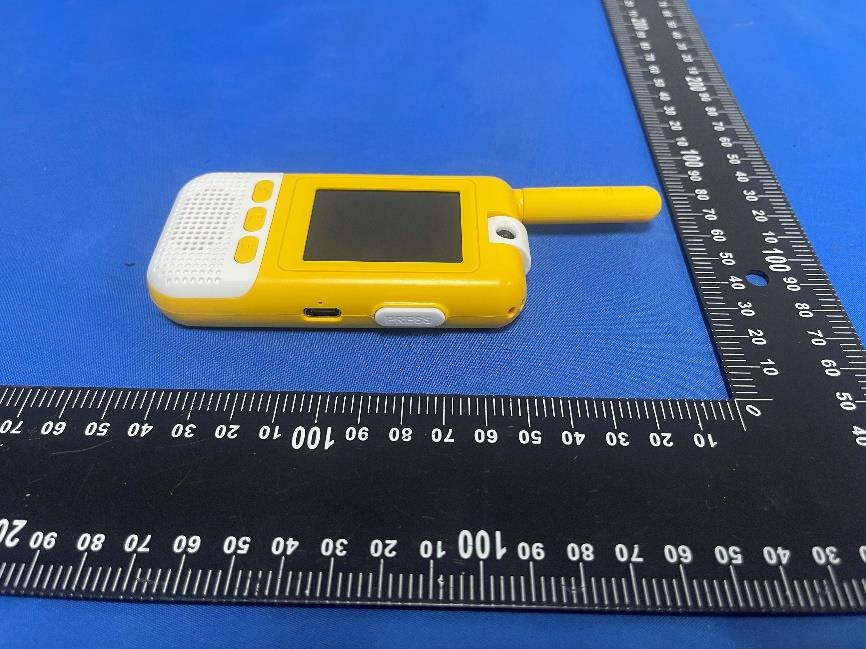

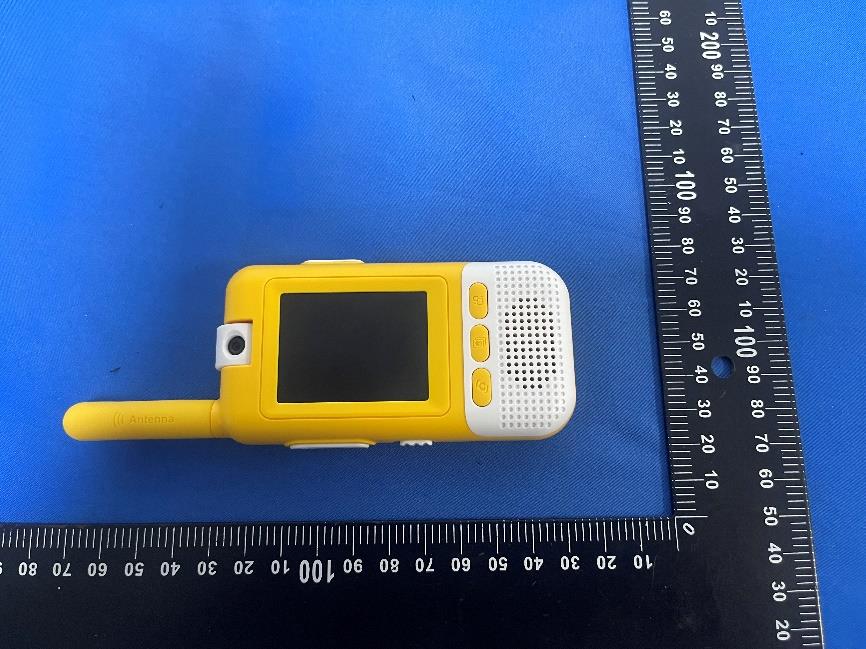

FCC ID: 2BV6P-VWT-26 External Photos of the EUT FCC ID: 2BV6P-VWT-26 FCC ID: 2BV6P-VWT-26
