2BV6R-R8RV Door Lock

RV Lock Voice Version - Operation Manual I. Functions and Features Supports password, remote control, and Bluetooth unlocking. Based on low-power Bluetooth technology, allows unlocking and user management via mobile app. Supports virtual password to prevent password leakage from prying eyes. Real-time battery level detection with low-battery warning. II. Performance Parameters ItemSpecification Power supply4 × AA alkaline batteries Low-battery alarm< 4.75 V Emergency power5 V (Type-C USB) Standby currentApprox. 100 μA KeypadCapacitive touch 12-key (0-9, *, #) Keypad backlightWhite Maximum user capacity100 Virtual passwordUp to 30 digits Operating temperature-20°C ~ 65°C Operating humidity10% ~ 90%, non-condensing ESD immunityContact discharge ±8 kV, air discharge ±15 kV III. Product Functions and Operation When no users are registered, any password with 6 or more digits can unlock the lock. After a password is registered, illegal passwords will not unlock it. If no administrator has been registered in the smart lock, you can use the default administrator password 123456 to enter the add mode. If an administrator has already been registered, you must first verify the administrator before entering the add mode. 1. Installation Settings Input the switch code to select language: Chinese (7100#), English (7101#) 2. Initialization Settings Press and hold the initialization button for 10 seconds; the lock will restore to factory default state. In the initial state, any fingerprint, password with 6 or more digits, or card can unlock the door. The default administrator password is 123456, which becomes invalid automatically after a user is added. 3. Adding Users The first three added users are administrators; subsequent users are ordinary users. The valid password length is 6–10 digits. Enter the same password twice to complete adding a user. 4. Deleting Users The first administrator cannot be deleted. 5. Volume Settings After entering the volume setting operation, only keys 1, 2, 3, and 0 are valid; other keys have no effect. 6. Auto-Lock Settings Enter 5 for 5 seconds, enter 1800 for 1800 seconds (30 minutes). Enter 0 to disable auto-lock. After disabling auto-lock, use the # key to lock the door manually. 7. Aging Mode When the system is in the initial state, enter 9000# to activate aging mode. After an administrator has been registered, aging mode cannot be entered. In aging mode, the system cycles through the aging process; fingerprint, keypad, and card operations are all disabled. Power the device off and on again to exit aging mode. 8. Physical Button Operation (Rear Handle Buttons) SET button: Long press to restore factory settings and clear all data (10 short beeps followed by one long beep indicates success). DIP switch: Enables or disables the remote control function. Pairing button: Long press for 1 second to start or stop remote control pairing (valid only when the DIP switch is in the ON position). 9. Low-Voltage Warning and External Power 1. When the lock battery voltage is too low, the system announces “Please replace the battery” each time it is unlocked. Please replace the battery as soon as possible. 2. If the battery is completely depleted and the lock cannot be operated, use a 5 V USB power supply on the outside for emergency unlocking. 10. Incorrect Trial Alarm After 5 consecutive incorrect user entries, the system locks for 120 seconds. During the lockout period, the system does not respond to any operation. 11. Anti-Peeping Password For example, if the password is 123456, you can enter 96581234562875 – adding some extraneous digits before and after the actual password – and then press # to confirm. The maximum total input length is 20 digits. 12. Mobile App Download and Connection Download the “Tuya Smart” or “Smart Life” app from the app store, or scan the QR code below for download. APP Registration If you do not have an account, you can register or log in via SMS verification code. Tap “Create New Account” to enter the registration page. Follow the prompts to obtain an SMS verification code and set a password. If you already have an account, tap “Log in with existing account”. Login supports password, verification code, and social account login. APP Interface The image below shows the main interface of the app with various smart home devices configured. In the app main interface – under the “My Home” tab, you can select a home, add devices, check the current home weather, launch scenes, and control smart devices. Tapping a smart device under “All Devices” opens the device operation panel, which covers all functions supported by the app for that device. Note: The image mentioned above is not included in this text version. Please refer to the app after installation. Adding via Bluetooth 1. Enter add mode and then enable Tuya pairing. 2. Open the mobile app; the phone will automatically search for the device. Tap to add it. 3. For Bluetooth-enabled locks, it is recommended to prioritize user setup through the mobile app. 4. After connecting via Bluetooth, the first administrator can only be added through the mobile app. End of Operation Manual FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this…

Text truncated - open the document above for the full version.

Sky Star Union Co., Limited Covered Equipment Certification Attestation Letter 5/20/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BV6R-R8 Sky Star Union Co., Limited (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Sky Star Union Co., Limited (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sky Star Union Co., Limited (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Jiaxing Deng Title: Manager Company Name: Sky Star Union Co., Limited Date: 5/20/2026

Sky Star Union Co., Limited U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: May 20, 2026 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BV6R-R8 Sky Star Union Co., Limited (“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Company Name: Sky Star Union Co., Limited FRN: 0038437596 Address: RM 8311 8/F, JC TOWER NO.91 WAI YIP STREET, KWUN TONG, HONG KONG Signature: Contact Person: Jiaxing Deng Tel: +86-13536722964 Email: [email protected]

Sky Star Union Co., Limited Model Difference Statement FCC ID: 2BV6R-R8 DATE: May 20, 2026 Dear Sir/Madam, Added models R18, R68, R58, R88, R98 basis of the original product R8.The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Sincerely, Name: Jiaxing Deng Company name: Sky Star Union Co., Limited Address: RM 8311 8/F, JC TOWER NO.91 WAI YIP STREET, KWUN TONG, HONG KONG

DATE: May 20, 2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen CCUT Quality Technology Co., Ltd. (1F, Building 35, Changxing Technology Indstrl Park Changzhen Community, Yutang Street,Shenzhen,China) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Sky Star Union Co., Limited (RM 8311 8/F, JC TOWER NO.91 WAI YIP STREET, KWUN TONG, HONG KONG). <Signature> Name: Jiaxing Deng Title: Manager Company: Sky Star Union Co., Limited

Date: May 20, 2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Jiaxing Deng Title: Manager Company: Sky Star Union Co., Limited

DATE: May 20, 2026 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BV6R-R8 Product Name: RV Door Lock Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Jiaxing Deng Title: Manager Company: Sky Star Union Co., Limited

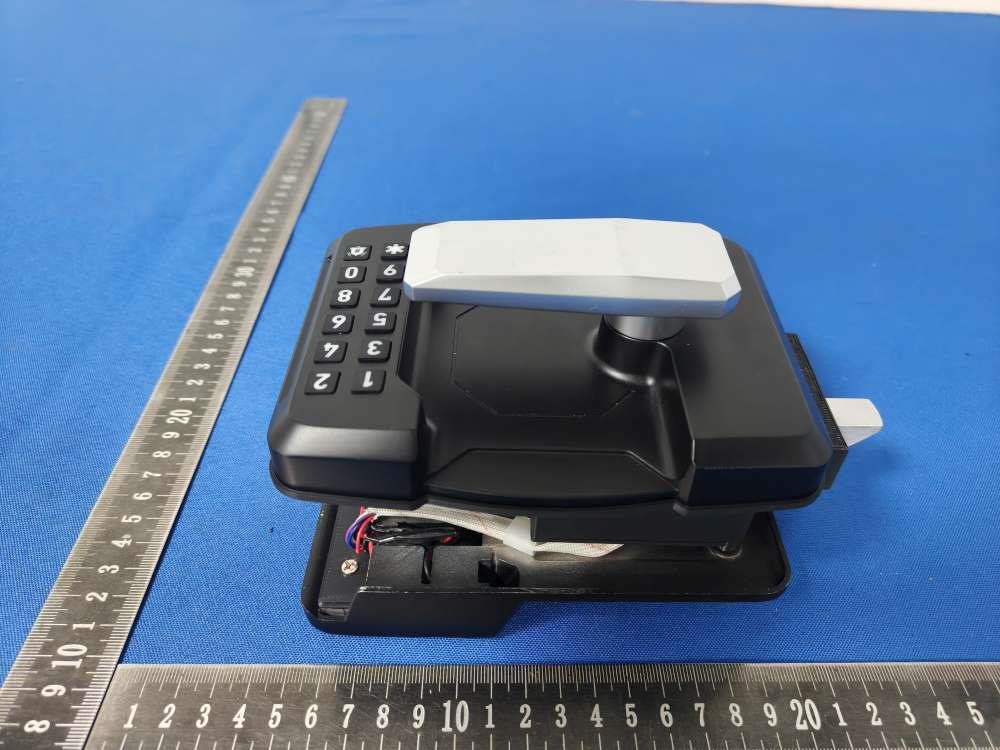

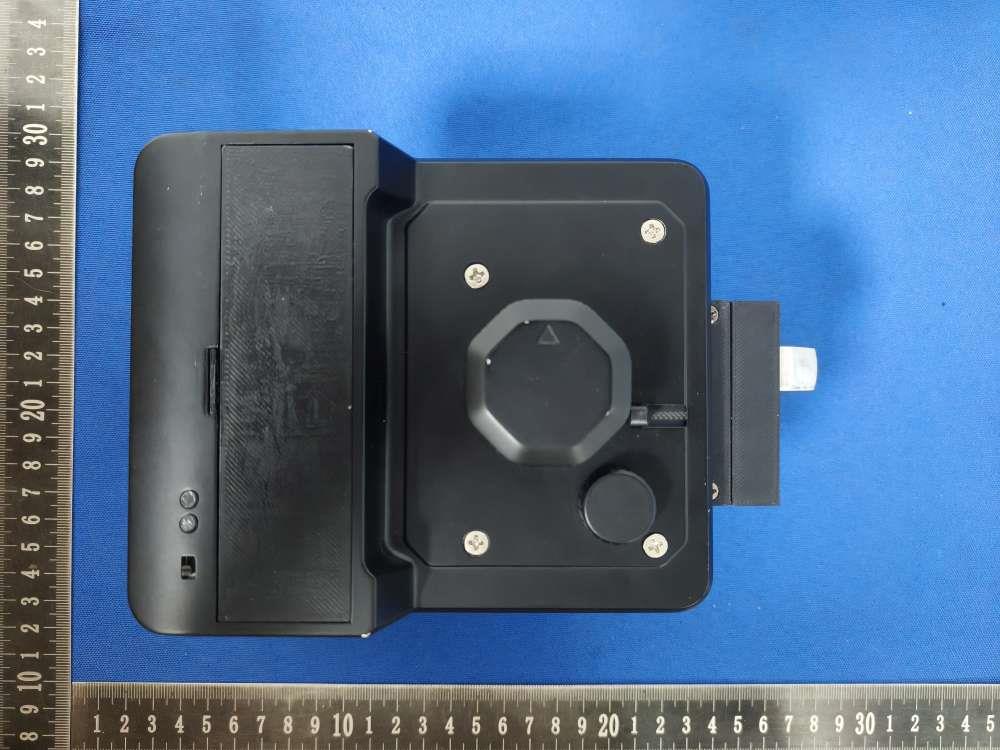

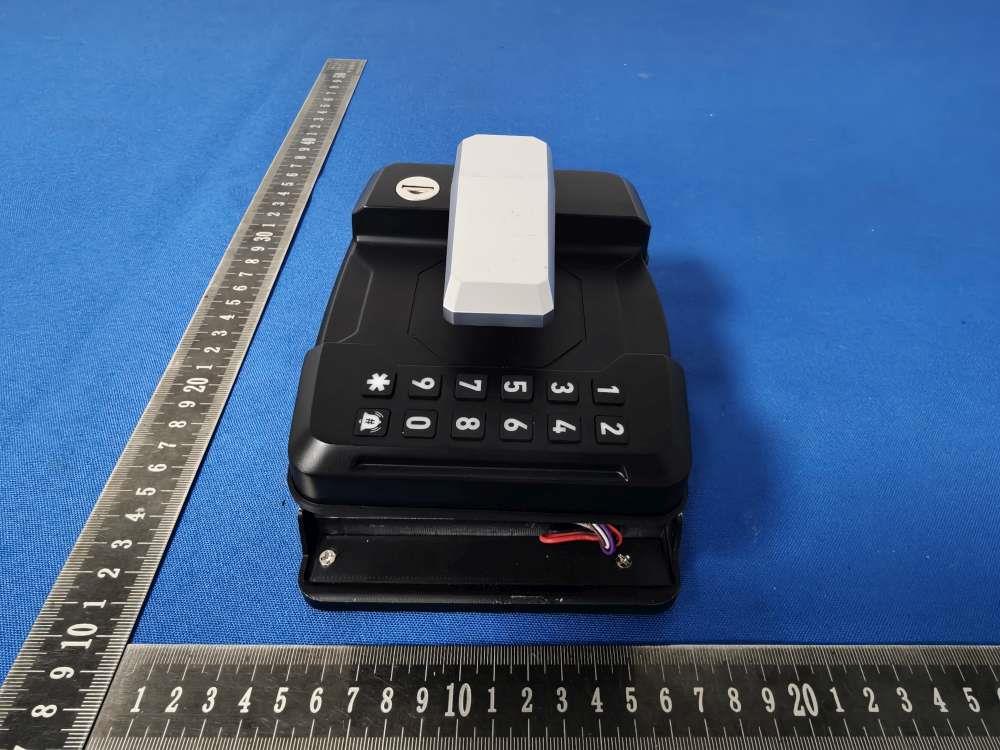

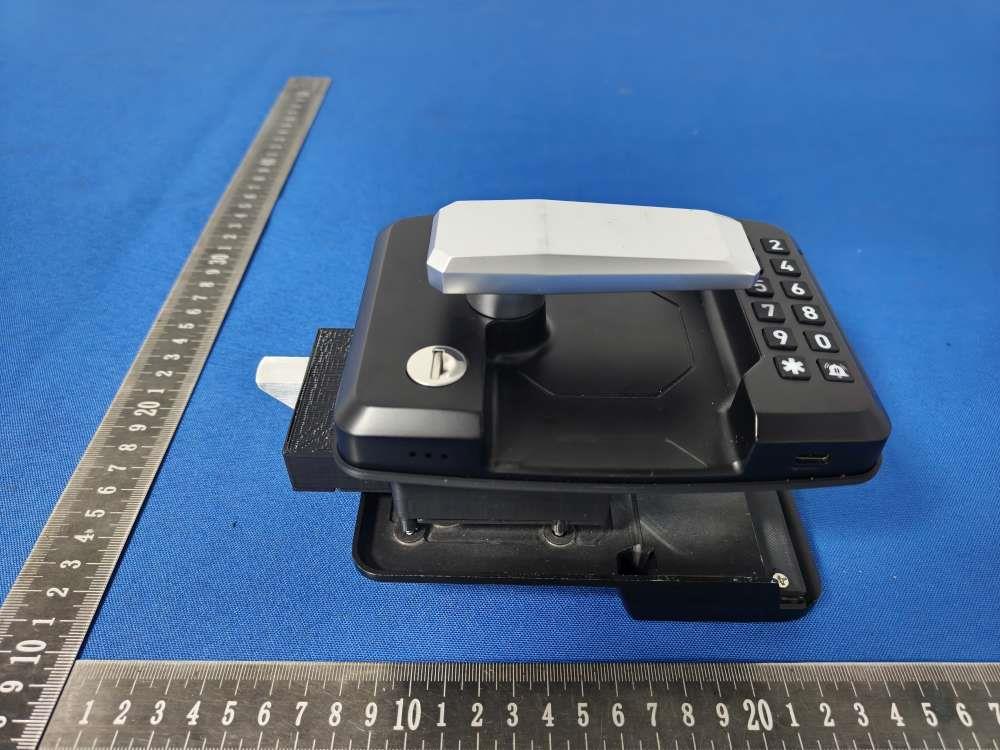

Report No: SSP26050079-1E FCC ID: 2BV6R-R8 Annex of Test Report Annex A. EUT External Photos Model: R8 EUT View 1 EUT View 2 Report No: SSP26050079-1E FCC ID: 2BV6R-R8 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP26050079-1E FCC ID: 2BV6R-R8 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP26050079-1E FCC ID: 2BV6R-R8 Annex of Test Report EUT View 7 EUT View 8

Report No: SSP26050079-1E FCC ID: 2BV6R-R8 Annex of Test Report Annex D. Label and Inf ormation FCC Label Sample FCC Labe Size: 28mm * 8mm FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location Label Location

Report No: SSP26050079-1E FCC ID: 2BV6R-R8 Annex of Test Report Annex B. EUT Internal Photos Model: R8 EUT Internal View 1 EUT Internal View 2 Receive Antenna Report No: SSP26050079-1E FCC ID: 2BV6R-R8 Annex of Test Report EUT Internal View 3 EUT Internal View 4 BT ANT Report No: SSP26050079-1E FCC ID: 2BV6R-R8 Annex of Test Report EUT Internal View 5 EUT Internal View 6 Report No: SSP26050079-1E FCC ID: 2BV6R-R8 Annex of Test Report EUT Internal View 7 EUT Internal View 8

FCC ID: 2BV6R-R8 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BLE Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 1.64 1(±1) 2 1.58 2402 5 0.489749 3.0 So a SAR test is not required

Report No: SSP26050079-1E FCC Test Report Page 1 of 33 FCC TEST REPORT FCC ID: 2BV6R-R8 Report No. : SSP26050079-1E Applicant : Sky Star Union Co., Limited Product Name : RV Door Lock Model Name : R8 Test Standard : FCC Part 15.247 Date of Issue : 2026-05-20 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP26050079-1E FCC Test Report Page 2 of 33 Test Report Basic Information Applicant..................................: Sky Star Union Co., Limited Address of Applicant...............: RM 8311 8/F, JC TOWER NO.91 WAI YIP STREET, KWUN TONG, HONG KONG Manufacturer..........................: Zhongshan Ansoo Hardware Products Co., Ltd. Address of Manufacturer........: No. 57 Donggang Avenue, Xiaolan Town, Zhongshan City, Guangdong Province, China Product Name.........................: RV Door Lock Brand Name.............................: SawHero Main Model..............................: R8 Series Models..........................: R18, R68, R58, R88, R98 Test Standard..........................: FCC Part 15 Subpart C KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.4-2014 ANSI C63.10-2020 Date of Test .............................: 2026-05-11 to 2026-05-19 Test Result...............................: PASS Tested By ................................: (Walker Wu) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP26050079-1E FCC Test Report Page 3 of 33 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 22 6.1 Standard and Limit.............................................................................................................................................. 22 6.2 Test Procedure.................................................................................................................................................... 22 6.3 Test Data and Results .......................................................................................................................................... 22 7. Maximum Peak Conducted Output Power ..............…

Text truncated - open the document above for the full version.

2.4G-2.48 G频段板载PIFA天线测试报告 2.4G-2.48G Inverted F Antenna Specification Frequency (MHz) Peak Gain (dBi) Average Gain (dBi) VSWR Impedance (Q) Antenna Type Polarization Manufacture Address: Test equipment 2400 — 2480 2. 210 > — 5.5 <3. 2 50Q PCB Antenna Linear ZHUHAI JIELI TECHNOLOGY CO.,LTD No.333 Kexing Road, Nanping Science Park, Xiangzhou District, Zhuhai HWA — TECH Antenna Photo & Length (mm) (15.7mm * 5.3mm) 天线无源 S 参数 ： Antenna passive S -parameters: 驻波比(VSWR)、 回波损耗(R e turnLo ss) 及 史密斯圆图(Smith) 5071(Networlc Anol 天线效率 及 增益 ： Antenna effi飞iencyand gain� Frequency (MHz) Gain (dBi) Effciency (%) AverageGain (dBi) Efficiency (dB) 2400 2.210 59. 39% -2.915-2.263 2410 1. 603 49. 11% -3.883-3.088 2420 1. 295 46.04% -4.014 -3.369 2430 0.388 36.89% —4.91 —4.331 2440 0. 18734.00% -5.276-4.685 2450 0.02 31. 71% -5.431 -4.988 2460 0.507 34.88% -5.02 -4.575 2470 0.291 31. 89% -5.323-4.963 2480 0.429 32.89% -5. 195-4.83 Average 0. 7839.64% —4.66 —4. 12 Peak 2.210 59. 39% -2.915-2.263 天 线 2 400MHz 2D-Theta Pattern @) (9 () €) 口 ··- •••• ， 1 @(!)000 Parameters Graph兀bl, 2D-Theta T阳'"" 0 '沁""" 0 叩.. 0 "'"" 0 斤勺芯阮,,aoo•M氏A叩'"'叽吨。 .. ,... ， 七 ，， 妨 口., 口22.rn创'"""' 022.SO<"心l 022.Soo<,, 口""""''"团 口"''"'"' P.l<Sfoca, 口meoaZo,a, 口mMrn, 口,,._,,,., 口叨eoazooa, 口叨"""" 口"'"" 口"""'『"'""' 口"'"�肛., 口"'""'' 口"'"°'辽'"回 口mom虹l 口BS.oca, 口mm叩''""' 口"'"'巾"' 天 线 2400MHz2D-Phi Pattern '"汀'""'"' @> S O CD 口c比 心 应叫 � · l 0(!)®00 加""" 0 '归.... 0 """'" 0 """" 0 ,, 四S如釭砌 •M,a心g中 巾叩'" Parameter< Graph 1bl 2D-Ph, R叩rt 令 t 心 妨 今 屯 口灿 口'"""'00田 口"'"'"' 口Ofo切l 口"""位"""' 口SOVe,Oral "'"'"'" 口的"""'""'" 口60Vee,ral 口的'""' □ 的"""瓦""' 口的Vert«al 口叨'""' 口120Soo7o""' 口120Vect虹1 口"°'""' 口'"""呕"""' 口'""百t虹l 口lSOfo团 口'"' 2400MHz 3D-Total Pattern '"汀'""'"' @ e O CD口·--�- 而 一 ·l 0eeoo 扣""'" o Th叹.. 缸' "'"'" ' "'"" ' "心s. 如2颂 ..,. 心···••=•' ' Par ,rr屯tersGraph T 1bl 30 ,oport 2 4 ` v x 2 4 ` Y x . : � s,mmoo ; ''"田叩'""''2'00 0 '"'·'°"'叩，压,.('Bm);0 TO'ldBm); -2.263 '"'"•I-OS飞dBm);0.000 '"'"令1-l�ldBm),0000 o,;"(dBm); 2.BB ,0°''�'"""'"''·'°' H依,�勺jd0);-2.2S Effid�sS%l, 59.l9% s,ortTTm• 202s-oumrn.•• S,o,Time202S02-2H'5'6;4T -20 r.m, 沁'"'"'"'"-"''"'

Report No: SSP26050079-1E FCC ID: 2BV6R-R8 Annex of Test Report Annex C. Test Photos Conducted Emission Test View 1 Radiated Emission Test View Below 1GHz Report No: SSP26050079-1E FCC ID: 2BV6R-R8 Annex of Test Report Radiated Emission Test View Above 1GHz
