2BV6T-SHC350Thermostat

Smart Home Control SHC350 Wi-Fi Thermostat Installation Guide & User Manual Get The Most Out of Your New Thermostat Download The GoTemp Home App 23 Compatibility Thermostat Installation Initial Setup Advanced Settings Troubleshooting Wiring Diagrams 4 6 11 20 23 25 Table of Contents Thermostat Main Screen Icons Temperature Setpoints The Smart Home Control SHC350 Thermostat is compatible with the majority of 24V heating and cooling equipment to help you save energy and money. Easily control your home's temperature from the full color 5” touchscreen display, the GoTemp Home App or your voice with the Smart Home Control Alexa Smart Home Skill and your Alexa-enabled smart devices or with Google Assistant. Connectivity Connect to your HVAC equipment from anywhere Programmable Follows preset or user-defined schedules Compatibility Compatible with majority of HVAC systems (requires C-wire) Enabled Smart Devices Compatible Works with Google Assistant or Amazon Alexa HVAC Filter Reminder Get alerts when its time to replace your system's filter Meet the Smart Home Control (SHC350 Thermostat) Installation GuideSHC350 Device User Manual 31 32 34 GoTemp Home App User Manual Additional Features GoTemp Home App App Main Screen Overview Setpoint(s) on the App Schedule Overview Alexa Google Assistant Warranty & Legal 35 35 36 37 Thermostat Overview Unit Operating Mode Fan Accessory Additional Information 39 40 41 42 44 44 44 App Menu Overview Mode Device Messages Temperature 46 48 50 2 Weather Access your local forecast from your thermostat 5” Full-Color Touch Screen Large screen for ease-of-use and offline access 45 Compatibility XA C-wire (common wire) is required to power the unit Two wire systems are not supported. If a C-wire is not readily available, we recommend you seek professional support from your local contractor. XThe Smart Home Control SHC350 Wi-Fi Thermostat works with most 24V systems, including gas, oil, propane, electric, forced air, variable speed, heat pump and radiant. XFor conventional (gas/oil/electric): Heat Only, Cool Only,and Combined Heat & Cool. For heat-pump systems: Up To 4-Heat & 2-Cool. The thermostat cannot support XLine voltage thermostats XElectric baseboard heaters XProprietary communicating thermostats XMillivolt systems XRemote sensors Professional installation is recommended for the following systems XDual Fuel systems (Heat Pump combined with a Furnace) XWhole-home humidifiers and dehumidifiers Included in the box XSHC350 Wi-Fi Thermostat XScrews (2) and Anchors (2) XFlathead Screwdriver XWire Labels XJumper Wire XUser Guide XCustomer Support Card Tools you will need XMedium Phillips screwdriver (for attaching the Wall Plate to the wall) XSmartphone (for taking pictures of the existing wiring) XGoTemp Home App (For registering your device) Tools you may need XNeedle-Nose Pliers (for pulling wires from the wall) XDrill with 7/32” Drill Bit (for mounting wall anchors) XWire Stripper (for cutting and stripping wires) XMultimeter (for testing circuit power and continuity) XPen or Pencil (for preventing wires from falling into the wall) Installation Overview Once you have everything you need, let’s get started! Thermostat ModelPart Number SHC350 Thermostat S1-TSHC350 Wall Plate, Screws & Wall AnchorsS1-8733948984 67 Thermostat Installation Turn OFF power Turn off all power to your HVAC (Heating, Ventilation, and Air Conditioning) system by using the master equipment switch or circuit breaker box. Confirm that your system is off One way to do this is to try to adjust the temperature on your old thermostat. If you don’t hear the system turn on within 5 minutes, air does not come out from the vents or the old thermostat does not even power on, then you have successfully turned off the power to your system. Step 1Step 2 Make sure your old thermostat Does Not Contain Line Voltage Wiring If you see any of these wire nuts, unfortunately the SHC350 may not work with your system. If you are unsure or would like to discuss your options, please contact a professional. Step 3 WARNING: Failure to turn off the power may result in electrical shock and/or damage to the equipment. Remove the old thermostat from the old wall plate Take a picture of the existing wiring Make sure that you can clearly read the terminal labels and see which wires are connected to which terminals from your photo. You will need to reference this photo later during the initial setup. Note: You can also use the wire labels we have provided you to correctly label each wire based on the terminal where it is connected. Step 4 ONOFF Y2W2GWCYRRC EL AUX GOBCYRRC OLD WALL PLATE OLD THERMOSTAT Y2W2GWCYRRC EL AUX GOBCYRRC Confirm you have a C-wire connected to your old thermostat wall plate If you do not have a C-wire connected to your old thermostat, please contact a professional for further assistance to determine if the SHC350 Thermostat is compatible with your system. Step 5 Y2W2GWCYRRC EL AUX GOBCYRRC Y2W2GWCYRRC ELGOBCYRRC Disconnect the wires from the old thermostat and remove the wall plate using a screwdriver Some thermostats will also require you to use a screwdriver to disconnect the wires. After the wires are disconnected and the wall plate removed, we recommend wrapping a pen or pencil around the wires to prevent them from falling back into the wall. Step 6 Step 7 Pull thermostat wires through the hole in the center of the SHC350 wall plate and mark the location of the mounting screws It is recommended to use the SHC350 Wall Plate as a reference guide to mark the mounting holes and ensure that all holes and unpainted surfaces are covered. 89 Drill and insert wall anchors (if necessary) Drill two 7/32” holes where you marked the location of the mounting screws and then insert the wall anchors provided into these mounting holes. Check if the wall plate is level and insert screws Make sure your new SHC350 wall plate is level and insert the included screws from the package. Mount your ne…

Text truncated - open the document above for the full version.

(BHC Residential & Light Commercial LLC) (2026.05.25) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID:2BV6T-SHC350) [BHC Residential & Light Commercial LLC] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) Theresa Gillette (BHC Residential & Light Commercial LLC) (2026.05.25) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID:2BV6T-SHC350) [BHC Residential & Light Commercial LLC] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Theresa Gillette

Rev1/26/2023 BHCResidential&LightCommercialLLC [BHCResidential&LightCommercialLLC][BHCResidential&LightCommercialLLC] [TheresaGillette FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:2026-05-19 Ref:AttestationStatementsPart2.911(d)(7)Filing FCCID:2BV6T-SHC350 ApplicantFRN:0038377628 [BHCResidential&LightCommercialLLC]certifiesthat,asofthedateofthefilingoftheapplication, [BHCResidential&LightCommercialLLC]isourdesignatedU.S.agentforserviceofprocessforthe abovereferencedFCCID. [BHCResidential&LightCommercialLLC]acceptstomaintainanagentfornolessthanoneyearafter thegranteehasterminatedallmarketingandimportationortheconclusionofanyCommission-related proceedinginvolvingtheequipment. [BHCResidential&LightCommercialLLC]accepts,asofthedateofthefilingoftheapplication,the obligationofthedesignatedU.S.agentforserviceofprocessfortheabovereferencedFCCID. DesignatedU.S.AgentInformation: CompanyName:BHCResidential&LightCommercialLLC FRN:0038377628 Address:3110N.MeadSt.Wichita,KS67219UnitedStates ContactPerson:TheresaGillette Phone:(316)832-6522 Email:[email protected] Sincerely, ApplicantInformation: CompanyName:BHCResidential&LightCommercialLLC FRN:0038377628 Address:3110N.MeadSt.Wichita,KS67219UnitedStates ContactPerson:TheresaGillette Phone:(316)832-6522 Email:[email protected] ][TheresaGillette]

BHC Residential & Light Commercial LLC 2026.05.25 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Thermostat Trademark: N/A MODEL : SHC350 FCC ID : 2BV6T-SHC350 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Theresa Gillette /Engineering Manager Contact information / address: 3110 N. Mead St. Wichita, KS 67219 United States

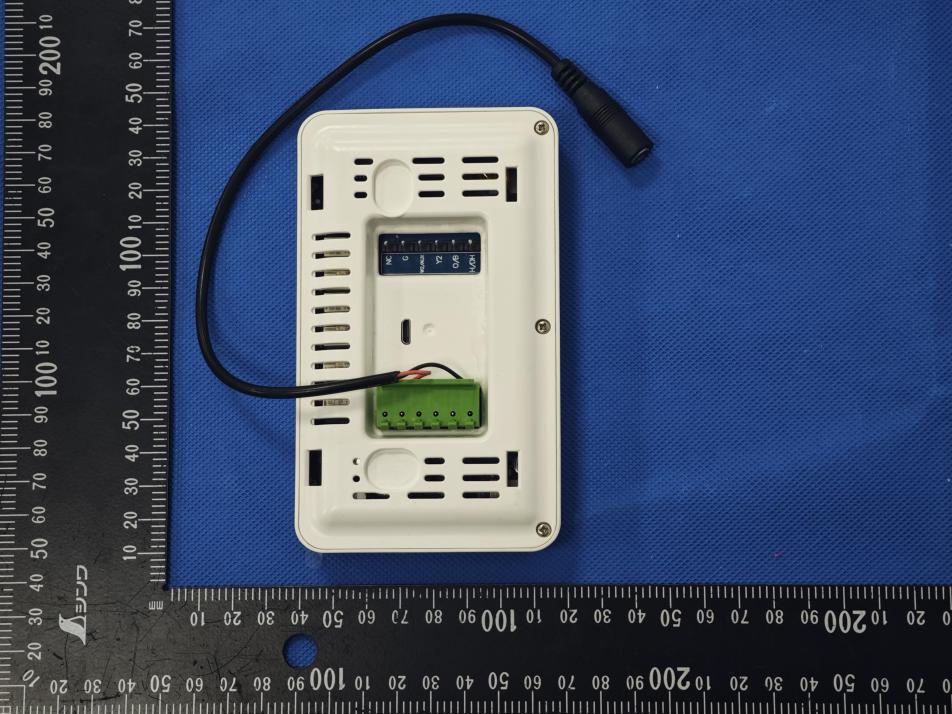

EFGX26050305-IE-01-External Photos 1 / 4 External Photos Model Name: SHC350 EFGX26050305-IE-01-External Photos 2 / 4 EFGX26050305-IE-01-External Photos 3 / 4 EFGX26050305-IE-01-External Photos 4 / 4

FCC ID:2BV6T-SHC350 Label location

EFGX26050305-IE-01-Internal Photos 1 / 7 Internal Photos Model Name: SHC350 EFGX26050305-IE-01-Internal Photos 2 / 7 Antenna EFGX26050305-IE-01-Internal Photos 3 / 7 EFGX26050305-IE-01-Internal Photos 4 / 7 EFGX26050305-IE-01-Internal Photos 5 / 7 EFGX26050305-IE-01-Internal Photos 6 / 7 EFGX26050305-IE-01-Internal Photos 7 / 7

Radiofrequency radiation exposure evaluation: mobile devices RESULT : Pass Test Specification Test item : Thermostat Identification / Type No. : SHC350 FCC ID : 2BV6T-SHC350 Test standard : CFR47 FCC Part 2: Section 2.1091 CFR47 FCC Part 1: Section 1.1310 FCC KDB Publication 447498 D04 ➢ FCC requirements FCC requirement: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20cm normally can be maintained between the user and the device. MPE Calculation Method according to KDB 447498 D04 a) EUT RF Exposure Evaluation operations, Worst Case mode Test Mode Conducted Power (dBm) Conducted Power (mW) ERP (dBm) ERP (mW) Minimum Separation Distances (cm) Limit (mW) 2.4GHz band Wi-Fi 13.96 24.89 13.76 23.77 20 3060

Page 1 of 27 EUROFINS ELECTRICAL TESTING SERVICE (SHENZHEN) CO., LTD. RADIO TEST - REPORT FCC Compliance Test Report for Product name: Thermostat Model name: SHC350 FCC ID: 2BV6T-SHC350 Test Report Number: EFGX26050305-1E-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Phone: +86-0755-829118671 Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8 Fax: +86-0755-82910749 Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Page 2 of 27 Content 1 General Information 3 1.1 Notes 3 1.2 Testing laboratory 4 1.3 Details of applicant 4 1.4 Details of manufacturer 4 1.5 Details of Factory 4 1.6 Application details 5 1.7 Test item 5 1.8 Test standards 6 2 Technical test 7 2.1 Summary of test results 7 2.2 Test environment 7 2.3 Measurement uncertainty 7 2.4 Test mode 8 2.5 Test equipment utilized 9 2.6 Auxiliary equipment used during test 10 2.7 Test software information 10 2.8 Test setup 11 2.9 Test results 13 3 Technical Requirement 14 3.1 Conducted emission AC power port 14 3.2 Duty cycle 15 3.3 6dB bandwidth 16 3.4 99% Occupied Bandwidth 17 3.5 DTS fundamental emission output power 18 3.6 Power spectral density 21 3.7 Conducted Band Edge & Conducted Spurious Emissions 24 3.8 Spurious emissions & Restricted Band 25 4 Test Setup Photos 27 5 External Photos 27 6 Internal Photos 27 7 Appendix 27 Test Report No.: EFGX26050305-1E-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8, Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Page 3 of 27 1 General Information 1.1 Notes The results of this test report relate exclusively to the item tested as specified in chapter “Description of test item” and are not transferable to any other test items. Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. is not responsible for any generalisations and conclusions drawn from this report. Any modification of the test item can lead to invalidity of test results and this test report may therefore be not applicable to the modified test item. The test report may only be reproduced or published in full. Reproducing or publishing extracts of the report requires the prior written approval of the Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. This document is subject to the General Terms and Conditions and the Testing and Certification System of Eurofins Electrical Testing Service (Shenzhen) Co., Ltd., available on request or accessible at www.eurofins.com. Operator 2026-05-18 Bruce Zheng / Project Engineer Date Eurofins-Lab. Name / Title Signature Technical responsibility for area of testing: 2026-05-18 Albert Xu / Lab Manager Date Eurofins-Lab. Name / Title Signature Test Report No.: EFGX26050305-1E-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8, Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Page 4 of 27 1.2 Testing laboratory Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8, Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Telephone : +86-755-82911867 Fax : +86-755-82910749 The Laboratory has passed the Accreditation by the American Association for Laboratory Accrediation (A2LA). The Accreditation number is 5376.01 The Laboratory has been listed by industry Canada to perform electromagnetic emission measurements, The CAB identifier is CN0088 1.3 Details of applicant Name : BHC Residential & Light Commercial LLC Address : 3110 N. Mead St. Wichita, KS 67219 United States Telephone : (316) 832-6522 Fax : (316) 832-6522 1.4 Details of manufacturer Name : GVS Smart Co., Ltd Address : 3th Floor, Building 5, No.9, 4th Lanyu St., Huangpu District, Guangzhou, China Telephone : N/A Fax : N/A 1.5 Details of Factory Name : GVS Smart Co., Ltd Address : 3th Floor, Building 5, No.9, 4th Lanyu St., Huangpu District, Guangzhou, China Telephone : N/A Fax : N/A Test Report No.: EFGX26050305-1E-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8, Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Page 5 of 27 1.6 Application details Date of receipt of application : 2026-05-14 Date of receipt of test item : 2026-05-14 Date of test : 2026-05-14 to 2026-05-18 Date of issue : 2026-05-18 1.7 Test item Product type : Thermostat Model name : SHC350 Brand : N/A Sample ID : 260514-43-001 Serial number : N/A Ratings : AC 24V Test voltage : AC 24V Hardware Version : V1.0 Software / Firmware Version : V1.0.0 Additional information : N/A RadioTechnical data Frequency Range : 2412MHz – 2462MHz Radio Tech. : WLAN (IEEE 802.11 b, g, n) Modulation : OFDM/DSSS Antenna type : Internal Antenna Maximum antenna gain : 2.7 dBi Additional information : N/A The above sample(s) and sample information was/were submitted and identified on behalf of the applicant. Eurofins assures objectivity and impartiality of the test, and fulfills the obligation of confidentiality for applicant’s commercial information and technical documents. Test Report No.: EFGX26050305-1E-01-E02 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8, Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Page 6 of 27 1.8 Test standards Test Standards FCC Part 15 Subpart C PART 15 - RADIO FREQUENCY DEVICES Subpart C - Intentional Radiators Test Method 1: ANSI C63.4-2014, American National Standard for Methods of Measurement of Radio-Noise Emis- sions from Low-Voltage Electrical and Electronic Equipment in the…

Text truncated - open the document above for the full version.

EFGX26050305-1E-01-E02_appendix 1 / 110 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.040 2407.080 2417.120 0.5 PASS 11B Ant1 2437 9.440 2432.520 2441.960 0.5 PASS 11B Ant1 2462 10.080 2457.040 2467.120 0.5 PASS 11G Ant1 2412 16.440 2403.840 2420.280 0.5 PASS 11G Ant1 2437 16.480 2428.800 2445.280 0.5 PASS 11G Ant1 2462 16.360 2453.840 2470.200 0.5 PASS 11N20SISO Ant1 2412 17.480 2403.280 2420.760 0.5 PASS 11N20SISO Ant1 2437 17.560 2428.240 2445.800 0.5 PASS 11N20SISO Ant1 2462 17.520 2453.280 2470.800 0.5 PASS 11N40SISO Ant1 2422 35.920 2404.080 2440.000 0.5 PASS 11N40SISO Ant1 2437 35.920 2419.080 2455.000 0.5 PASS 11N40SISO Ant1 2452 35.920 2434.080 2470.000 0.5 PASS EFGX26050305-1E-01-E02_appendix 2 / 110 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2437-PASS 11B-Ant1-2462-PASS EFGX26050305-1E-01-E02_appendix 3 / 110 11G-Ant1-2412-PASS 11G-Ant1-2437-PASS 11G-Ant1-2462-PASS EFGX26050305-1E-01-E02_appendix 4 / 110 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2437-PASS 11N20SISO-Ant1-2462-PASS EFGX26050305-1E-01-E02_appendix 5 / 110 11N40SISO-Ant1-2422-PASS 11N40SISO-Ant1-2437-PASS 11N40SISO-Ant1-2452-PASS EFGX26050305-1E-01-E02_appendix 6 / 110 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.042 2405.4795 2418.5215 --- --- 11B Ant1 2437 13.003 2430.4826 2443.4856 --- --- 11B Ant1 2462 13.022 2455.4744 2468.4964 --- --- 11G Ant1 2412 16.840 2403.5811 2420.4211 --- --- 11G Ant1 2437 16.822 2428.6357 2445.4577 --- --- 11G Ant1 2462 16.881 2453.5655 2470.4465 --- --- 11N20SISO Ant1 2412 17.651 2403.2008 2420.8518 --- --- 11N20SISO Ant1 2437 17.671 2428.1912 2445.8622 --- --- 11N20SISO Ant1 2462 17.623 2453.1967 2470.8197 --- --- 11N40SISO Ant1 2422 36.147 2403.9640 2440.1110 --- --- 11N40SISO Ant1 2437 36.160 2419.0023 2455.1623 --- --- 11N40SISO Ant1 2452 36.100 2433.9645 2470.0645 --- --- EFGX26050305-1E-01-E02_appendix 7 / 110 Test Graphs 11B-Ant1-2412 11B-Ant1-2437 11B-Ant1-2462 EFGX26050305-1E-01-E02_appendix 8 / 110 11G-Ant1-2412 11G-Ant1-2437 11G-Ant1-2462 EFGX26050305-1E-01-E02_appendix 9 / 110 11N20SISO-Ant1-2412 11N20SISO-Ant1-2437 11N20SISO-Ant1-2462 EFGX26050305-1E-01-E02_appendix 10 / 110 11N40SISO-Ant1-2422 11N40SISO-Ant1-2437 11N40SISO-Ant1-2452 EFGX26050305-1E-01-E02_appendix 11 / 110 Appendix C: Maximum conducted output power Test Result Average Test Mode Antenna Frequency [MHz] Average power [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Gain [dBi] EIRP [dBm] EIRP Limit [dBm] Verdict 11B Ant1 2412 11.93 100.00 0.00 11.93 ≤30 2.70 14.63 ≤36.00 PASS 11B Ant1 2437 13.40 100.00 0.00 13.40 ≤30 2.70 16.1 ≤36.00 PASS 11B Ant1 2462 13.96 100.00 0.00 13.96 ≤30 2.70 16.66 ≤36.00 PASS 11G Ant1 2412 12.45 99.46 0.02 12.47 ≤30 2.70 15.15 ≤36.00 PASS 11G Ant1 2437 12.68 99.46 0.02 12.70 ≤30 2.70 15.38 ≤36.00 PASS 11G Ant1 2462 12.67 99.64 0.02 12.69 ≤30 2.70 15.37 ≤36.00 PASS 11N20SI SO Ant1 2412 10.25 99.41 0.03 10.28 ≤30 2.70 12.95 ≤36.00 PASS 11N20SI SO Ant1 2437 10.49 99.41 0.03 10.52 ≤30 2.70 13.19 ≤36.00 PASS 11N20SI SO Ant1 2462 11.02 99.41 0.03 11.05 ≤30 2.70 13.72 ≤36.00 PASS 11N40SI SO Ant1 2422 9.97 98.32 0.07 10.04 ≤30 2.70 12.67 ≤36.00 PASS 11N40SI SO Ant1 2437 10.02 98.80 0.05 10.07 ≤30 2.70 12.72 ≤36.00 PASS 11N40SI SO Ant1 2452 10.22 98.80 0.05 10.27 ≤30 2.70 12.92 ≤36.00 PASS EIRP= Average power+ Antenna gain Antenna gain: 2.70 dBi Result= DC Factor+ Average power Detector: Average EFGX26050305-1E-01-E02_appendix 12 / 110 Test Graphs AVG 11B-Ant1-2412-PASS 11B-Ant1-2437-PASS 11B-Ant1-2462-PASS EFGX26050305-1E-01-E02_appendix 13 / 110 11G-Ant1-2412-PASS 11G-Ant1-2437-PASS 11G-Ant1-2462-PASS EFGX26050305-1E-01-E02_appendix 14 / 110 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2437-PASS 11N20SISO-Ant1-2462-PASS EFGX26050305-1E-01-E02_appendix 15 / 110 11N40SISO-Ant1-2422-PASS 11N40SISO-Ant1-2437-PASS 11N40SISO-Ant1-2452-PASS EFGX26050305-1E-01-E02_appendix 16 / 110 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency [MHz] Average Result [dBm/3-100kH z] Duty Cycle [%] Factor Result [dBm/3-100k Hz] Limit [dBm/3 kHz] Verdict 11B Ant1 2412 -16.22 100.00 0.00 -16.22 ≤8.00 PASS 11B Ant1 2437 -11.67 100.00 0.00 -11.67 ≤8.00 PASS 11B Ant1 2462 -10.78 100.00 0.00 -10.78 ≤8.00 PASS 11G Ant1 2412 -13.62 99.46 0.02 -13.6 ≤8.00 PASS 11G Ant1 2437 -12.74 99.46 0.02 -12.72 ≤8.00 PASS 11G Ant1 2462 -12.62 99.64 0.02 -12.6 ≤8.00 PASS 11N20SISO Ant1 2412 -17.18 99.41 0.03 -17.15 ≤8.00 PASS 11N20SISO Ant1 2437 -17.21 99.41 0.03 -17.18 ≤8.00 PASS 11N20SISO Ant1 2462 -16.46 99.41 0.03 -16.43 ≤8.00 PASS 11N40SISO Ant1 2422 -17.23 99.20 0.03 -17.2 ≤8.00 PASS 11N40SISO Ant1 2437 -17.56 98.80 0.05 -17.51 ≤8.00 PASS 11N40SISO Ant1 2452 -16.92 98.80 0.05 -16.87 ≤8.00 PASS Result=Average Result+Factor Detector: Average EFGX26050305-1E-01-E02_appendix 17 / 110 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2437-PASS 11B-Ant1-2462-PASS EFGX26050305-1E-01-E02_appendix 18 / 110 11G-Ant1-2412-PASS 11G-Ant1-2437-PASS 11G-Ant1-2462-PASS EFGX26050305-1E-01-E02_appendix 19 / 110 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2437-PASS 11N20SISO-Ant1-2462-PASS EFGX26050305-1E-01-E02_appendix 20 / 110 11N40SISO-Ant1-2422-PASS 11N40SISO-Ant1-2437-PASS 11N40SISO-Ant1-2452-PASS EFGX26050305-1E-01-E02_appendix 21 / 110 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Frequency [MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 4.38 -44.36 ≤-25.62 PASS 11B Ant1 High 2462 5.18 -46.79 ≤-24.83 PASS 11G Ant1 Low 2412 7.29 -30.13 ≤-22.71 PASS 11G Ant1 High 2462 0.50 -45.26 ≤-29.5 PASS 11N20SISO Ant1 Low 2412 -1.10 -41.32 ≤-31.1 PASS 11N20SISO Ant1 High 2462 -0.98 -46.44 ≤-30.98 PASS 11N40SISO Ant1 Low 2422 -4.31 -40.87 ≤-34.31 PASS 11N40SISO Ant1 High 2452 -4.42 -42.58 ≤-34.42 PASS EFGX26050305-1E-01-E02_appendix 22 / 110 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2462-PASS 11…

Text truncated - open the document above for the full version.

EFGX26050305-1E-01-E02_appendix 25 / 110 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 0~Reference 1.93 1.93 --- PASS 11B Ant1 2412 30~1000 1.93 -51.16 ≤-28.07 PASS 11B Ant1 2412 1000~25000 1.93 -44.98 ≤-28.07 PASS 11B Ant1 2437 0~Reference 5.07 5.07 --- PASS 11B Ant1 2437 30~1000 5.07 -51.18 ≤-24.93 PASS 11B Ant1 2437 1000~25000 5.07 -44.27 ≤-24.93 PASS 11B Ant1 2462 0~Reference 5.00 5.00 --- PASS 11B Ant1 2462 30~1000 5.00 -50.64 ≤-25 PASS 11B Ant1 2462 1000~25000 5.00 -43.47 ≤-25 PASS 11G Ant1 2412 0~Reference 0.69 0.69 --- PASS 11G Ant1 2412 30~1000 0.69 -50.96 ≤-29.31 PASS 11G Ant1 2412 1000~25000 0.69 -43.69 ≤-29.31 PASS 11G Ant1 2437 0~Reference -1.73 -1.73 --- PASS 11G Ant1 2437 30~1000 -1.73 -50.86 ≤-31.73 PASS 11G Ant1 2437 1000~25000 -1.73 -44.03 ≤-31.73 PASS 11G Ant1 2462 0~Reference -1.42 -1.42 --- PASS 11G Ant1 2462 30~1000 -1.42 -51.19 ≤-31.42 PASS 11G Ant1 2462 1000~25000 -1.42 -44.32 ≤-31.42 PASS 11N20SISO Ant1 2412 0~Reference -4.31 -4.31 --- PASS 11N20SISO Ant1 2412 30~1000 -4.31 -51.59 ≤-34.31 PASS 11N20SISO Ant1 2412 1000~25000 -4.31 -44.53 ≤-34.31 PASS 11N20SISO Ant1 2437 0~Reference -4.02 -4.02 --- PASS 11N20SISO Ant1 2437 30~1000 -4.02 -50.58 ≤-34.02 PASS 11N20SISO Ant1 2437 1000~25000 -4.02 -44.79 ≤-34.02 PASS 11N20SISO Ant1 2462 0~Reference -4.07 -4.07 --- PASS 11N20SISO Ant1 2462 30~1000 -4.07 -50.79 ≤-34.07 PASS 11N20SISO Ant1 2462 1000~25000 -4.07 -44.35 ≤-34.07 PASS 11N40SISO Ant1 2422 0~Reference -6.30 -6.30 --- PASS 11N40SISO Ant1 2422 30~1000 -6.30 -50.52 ≤-36.3 PASS 11N40SISO Ant1 2422 1000~25000 -6.30 -43.88 ≤-36.3 PASS 11N40SISO Ant1 2437 0~Reference -5.43 -5.43 --- PASS 11N40SISO Ant1 2437 30~1000 -5.43 -51.06 ≤-35.43 PASS 11N40SISO Ant1 2437 1000~25000 -5.43 -44.48 ≤-35.43 PASS 11N40SISO Ant1 2452 0~Reference -5.61 -5.61 --- PASS 11N40SISO Ant1 2452 30~1000 -5.61 -50.72 ≤-35.61 PASS 11N40SISO Ant1 2452 1000~25000 -5.61 -43.98 ≤-35.61 PASS EFGX26050305-1E-01-E02_appendix 26 / 110 Test Graphs 11B-Ant1-2412-0~Reference-PASS 11B-Ant1-2412-30~1000-PASS 11B-Ant1-2412-1000~25000-PASS EFGX26050305-1E-01-E02_appendix 27 / 110 11B-Ant1-2437-0~Reference-PASS 11B-Ant1-2437-30~1000-PASS 11B-Ant1-2437-1000~25000-PASS EFGX26050305-1E-01-E02_appendix 28 / 110 11B-Ant1-2462-0~Reference-PASS 11B-Ant1-2462-30~1000-PASS 11B-Ant1-2462-1000~25000-PASS EFGX26050305-1E-01-E02_appendix 29 / 110 11G-Ant1-2412-0~Reference-PASS 11G-Ant1-2412-30~1000-PASS 11G-Ant1-2412-1000~25000-PASS EFGX26050305-1E-01-E02_appendix 30 / 110 11G-Ant1-2437-0~Reference-PASS 11G-Ant1-2437-30~1000-PASS 11G-Ant1-2437-1000~25000-PASS EFGX26050305-1E-01-E02_appendix 31 / 110 11G-Ant1-2462-0~Reference-PASS 11G-Ant1-2462-30~1000-PASS 11G-Ant1-2462-1000~25000-PASS EFGX26050305-1E-01-E02_appendix 32 / 110 11N20SISO-Ant1-2412-0~Reference-PASS 11N20SISO-Ant1-2412-30~1000-PASS 11N20SISO-Ant1-2412-1000~25000-PASS EFGX26050305-1E-01-E02_appendix 33 / 110 11N20SISO-Ant1-2437-0~Reference-PASS 11N20SISO-Ant1-2437-30~1000-PASS 11N20SISO-Ant1-2437-1000~25000-PASS EFGX26050305-1E-01-E02_appendix 34 / 110 11N20SISO-Ant1-2462-0~Reference-PASS 11N20SISO-Ant1-2462-30~1000-PASS 11N20SISO-Ant1-2462-1000~25000-PASS EFGX26050305-1E-01-E02_appendix 35 / 110 11N40SISO-Ant1-2422-0~Reference-PASS 11N40SISO-Ant1-2422-30~1000-PASS 11N40SISO-Ant1-2422-1000~25000-PASS EFGX26050305-1E-01-E02_appendix 36 / 110 11N40SISO-Ant1-2437-0~Reference-PASS 11N40SISO-Ant1-2437-30~1000-PASS 11N40SISO-Ant1-2437-1000~25000-PASS EFGX26050305-1E-01-E02_appendix 37 / 110 11N40SISO-Ant1-2452-0~Reference-PASS 11N40SISO-Ant1-2452-30~1000-PASS 11N40SISO-Ant1-2452-1000~25000-PASS EFGX26050305-1E-01-E02_appendix 38 / 110 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency [MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Factor 11B Ant1 2412 19.00 19.00 100.00 0.00 11B Ant1 2437 19.00 19.00 100.00 0.00 11B Ant1 2462 19.00 19.00 100.00 0.00 11G Ant1 2412 5.48 5.51 99.46 0.02 11G Ant1 2437 5.49 5.52 99.46 0.02 11G Ant1 2462 5.49 5.51 99.64 0.02 11N20SISO Ant1 2412 5.08 5.11 99.41 0.03 11N20SISO Ant1 2437 5.08 5.11 99.41 0.03 11N20SISO Ant1 2462 5.08 5.11 99.41 0.03 11N40SISO Ant1 2422 2.47 2.49 99.20 0.03 11N40SISO Ant1 2437 2.47 2.50 98.80 0.05 11N40SISO Ant1 2452 2.46 2.49 98.80 0.05 EFGX26050305-1E-01-E02_appendix 39 / 110 Test Graphs NTNV-11B-Ant1-2412 NTNV-11B-Ant1-2437 NTNV-11B-Ant1-2462 EFGX26050305-1E-01-E02_appendix 40 / 110 NTNV-11G-Ant1-2412 NTNV-11G-Ant1-2437 NTNV-11G-Ant1-2462 EFGX26050305-1E-01-E02_appendix 41 / 110 NTNV-11N20SISO-Ant1-2412 NTNV-11N20SISO-Ant1-2437 NTNV-11N20SISO-Ant1-2462 EFGX26050305-1E-01-E02_appendix 42 / 110 NTNV-11N40SISO-Ant1-2422 NTNV-11N40SISO-Ant1-2437 NTNV-11N40SISO-Ant1-2452 EFGX26050305-1E-01-E02_appendix 43 / 110 Appendix H: Emissions in Restricted Bands Test Result Mode: b-2412 Final Data List NO. Freq. [MHz] Factor [dB] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2310.0000 4.67 42.39 74.00 31.61 40.47 54.00 13.53 150 159 Horizontal PASS 2 2320.3400 4.91 44.28 74.00 29.72 40.79 54.00 13.21 150 308 Horizontal PASS 3 2344.7600 4.98 44.50 74.00 29.50 42.96 54.00 11.04 150 271 Horizontal PASS 4 2363.7900 4.94 44.34 74.00 29.66 41.99 54.00 12.01 150 286 Horizontal PASS 5 2378.7500 5.06 44.61 74.00 29.39 43.30 54.00 10.70 150 27 Horizontal PASS 6 2390.0000 4.95 44.10 74.00 29.90 41.47 54.00 12.53 150 209 Horizontal PASS EFGX26050305-1E-01-E02_appendix 44 / 110 Final Data List NO. Freq. [MHz] Factor [dB] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2310.0000 4.67 42.49 74.00 31.51 40.09 54.00 13.91 150 131 Vertical PASS 2 2321.9900 4.88 44.33 74.00 29.67 41.80 54.00 12.20 150 346 Vertical PASS 3 2344.4300 4.97 44.95 74.00 29.05 43.27 54.00 10.73 150 256 Vertical PASS 4 2364.4500 4.…

Text truncated - open the document above for the full version.

EFGX26050305-1E-01-E02_appendix 49 / 110 Mode: G-2462 Final Data List NO. Freq. [MHz] Factor [dB] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2483.5000 5.46 49.81 74.00 24.19 49.62 54.00 4.38 200 360 Horizontal PASS 2 2485.6835 5.49 50.01 74.00 23.99 49.98 54.00 4.02 100 242 Horizontal PASS 3 2490.0160 5.57 49.78 74.00 24.22 49.67 54.00 4.33 100 248 Horizontal PASS 4 2491.2150 5.55 49.00 74.00 25.00 48.93 54.00 5.07 100 242 Horizontal PASS 5 2495.6275 5.56 49.99 74.00 24.01 49.90 54.00 4.10 100 235 Horizontal PASS 6 2500.0000 5.50 46.00 74.00 28.00 45.89 54.00 8.11 100 245 …
