2BVC3DJ-VEND100Vending Machine

ACCU-Drop LLC

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Apr 24, 2026
Application Purpose: Original Equipment
Equipment Note: Vending Machine
Frequency Range: 2402.00000000 - 2480.00000000
Company: ACCU-Drop LLC
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Dongji Automatic Vending Machine Manual ◆ All rights reserved by Dongji Company. No reproduction or distribution without permission. ◆ User Manual Model: DJ-VEND-100 GUANGDONG DONGJI INTELLIGENT DEVICE CO.,LTD. Dongji Automatic Vending Machine Manual ◆ All rights reserved by Dongji Company. No reproduction or distribution without permission. ◆ - 1 - Catalogue User Manual .......................................................................................................................................................................................... - 1 - Table of Contents .................................................................................................................................................................................. - 1 - Preface .................................................................................................................................................................................................. - 1 - Equipment Peripheral Layout Requirements .................................................................................................................................... - 2 - I. Cabling Requirements ............................................................................................................................................................... - 2 - II. Ground Wire ............................................................................................................................................................................ - 2 - III. Rain Protection ....................................................................................................................................................................... - 2 - IV. Dehumidification ................................................................................................................................................................... - 2 - V. Screen ...................................................................................................................................................................................... - 2 - Chapter 1 Introduction .......................................................................................................................................................................... - 2 - 1. Cabinet parameters: ..................................................................................................................................................................... - 2- 2. Cabinet Performance Overview ................................................................................................................................................... - 2 - Chapter 2 Handling and Installation ..................................................................................................................................................... - 2 - 1. Precautions for handling and moving: ........................................................................................................................................ - 2 - 2. Unpacking the Machine: ............................................................................................................................................................. - 2 - 3. Machine placement: .................................................................................................................................................................... - 2 - Chapter 3 Pre-sales Preparation ............................................................................................................................................................ - 5 - 1. Introduction to the Structure of Vending Machine ....................................................................................................................... - 7 - 2. Machine Commissioning .............................................................................................................................................................. - 8 - 3. Invetory Replenishment Specification Requirements ................................................................................................................... - 8 - 4. System Update and Testing ...................................................................................................................................................... - 9 - Chapter 4 Motor Operation and Maintenance ....................................................................................................................................... - 9 - 1. Applicable Environment ........................................................................................................................................................ - 10 - 2. Basic Performance.................................................................................................................................................................. - 12 - Chapter 5: Overall Maintenance and Care .......................................................................................................................................... - 11 - 1.1. Cleaning .............................................................................................................................................................................. - 12 - 1.2. Frequently Asked Questions and Troubleshootin ............................................................................................................... - 12 - Chapter 6: Introduction to Equipment Terminal App Functions......................................................................................................... - 12 - 1. User Purchase/Usage Guide ....................................................................................................................................................... - 13 - 2. Equipment Parameter Setting Function .................................................................................................…

Text truncated - open the document above for the full version.

RF Exposure Info

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No. ................. : FCC ID. ......................................... : GTS20251203023-1-06 2BVC3DJ-VEND100 Compiled by ( position+printed name+signature): File administrators Peter Xiao Supervised by ( position+printed name+signature): Test Engineer Evan Ouyang Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Mar.13, 2026 Representative Laboratory Name ....................................................... : Shenzhen Global Test Service Co.,Ltd. Address ......................................... : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : ACCU-Drop LLC Address ............................................ : 590 N. Sierra Way, San Bernardino, CA 92410 Test specification ........................ : Standard ........................................ : 47CFR §1.1310 Basis and purpose 47CFR §2.1091 Radiofrequency radiation exposure evaluation: mobile devices TRF Originator .............................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................. : Vending Machine Trade Mark .................................... : N/A Manufacturer ................................. : Guangdong Dongji Intelligent Device Co. Ltd Model/Type reference ................... : DJ-VEND-100 Listed Models .............................. : DJ-VEND-200, DJ-VEND-300, DJ-VEND-600 Hardware Version ........................ : N/A Software Version ........................... : N/A Rating ............................................ : AC 110.0-220.0V, 50/60Hz Result ............................................ : PASS Report No.:GTS20251203023-1-06 Page 2 of 16 T E S T R E P O R T Test Report No. : GTS20251203023-1-06 Mar.13, 2026 ______________________________________________________________________________________________ Date of issue Equipment under Test : Vending Machine Model /Type : DJ-VEND-100 Listed model : DJ-VEND-200, DJ-VEND-300, DJ-VEND-600 Applicant : ACCU-Drop LLC Address : 590 N. Sierra Way, San Bernardino, CA 92410 Manufacturer : Guangdong Dongji Intelligent Device Co. Ltd. Address : No. 30, Duruan Middle Rd., Duruan Town, Pengjiang District, Jiangmen, Guangdong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.:GTS20251203023-1-06 Page 3 of 16 Contents 1. SUMMARY ................................................................................................................................................................. 4 1.1 EUT CONFIGURATION ........................................................................................................................................................ 4 1.2 PRODUCT DESCRIPTION ..................................................................................................................................................... 4 2. TEST ENVIRONMENT ................................................................................................................................................. 6 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 6 2.2 TEST FACILITY .................................................................................................................................................................. 6 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 6 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 6 3. METHOD OF MEASUREMENT .................................................................................................................................... 7 3.1 APPLICABLE STANDARD ...................................................................................................................................................... 7 3.2 REQUIREMENT ................................................................................................................................................................. 7 3.3 LIMIT ............................................................................................................................................................................. 7 3.4 MPE CALCULATION METHOD ............................................................................................................................................. 8 3.5 ANTENNA INFORMATION ................................................................................................................................................... 8 4. CONDUCTED POWER RESULTS ................................................................................................................................... 9 5. MANUFACTUR…

Text truncated - open the document above for the full version.

Test Setup Photos

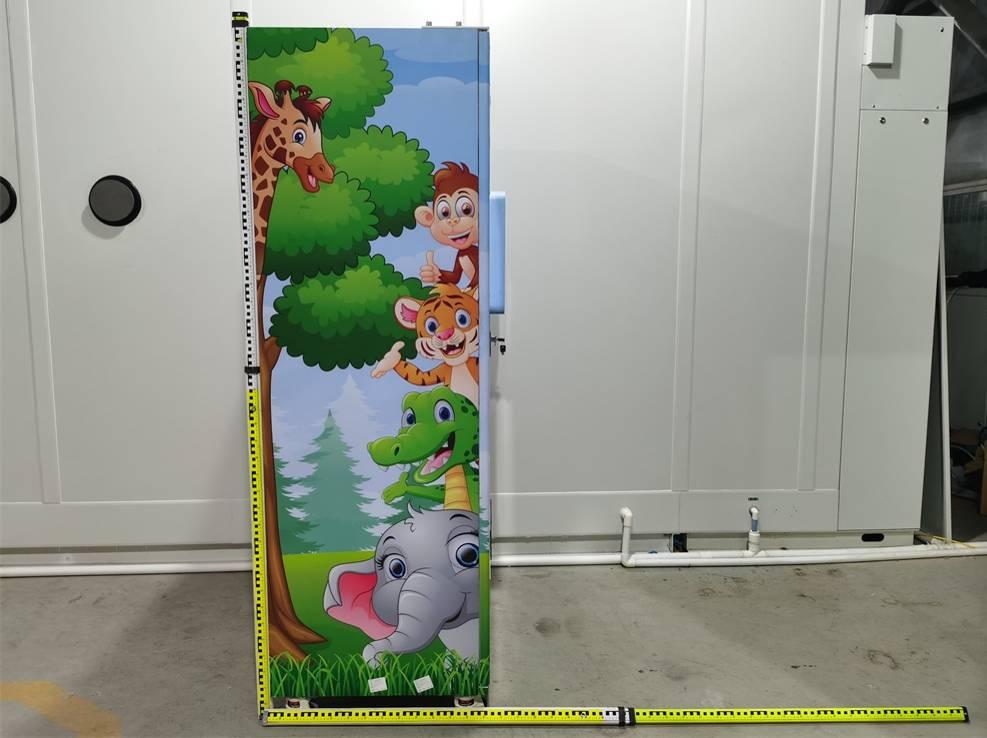

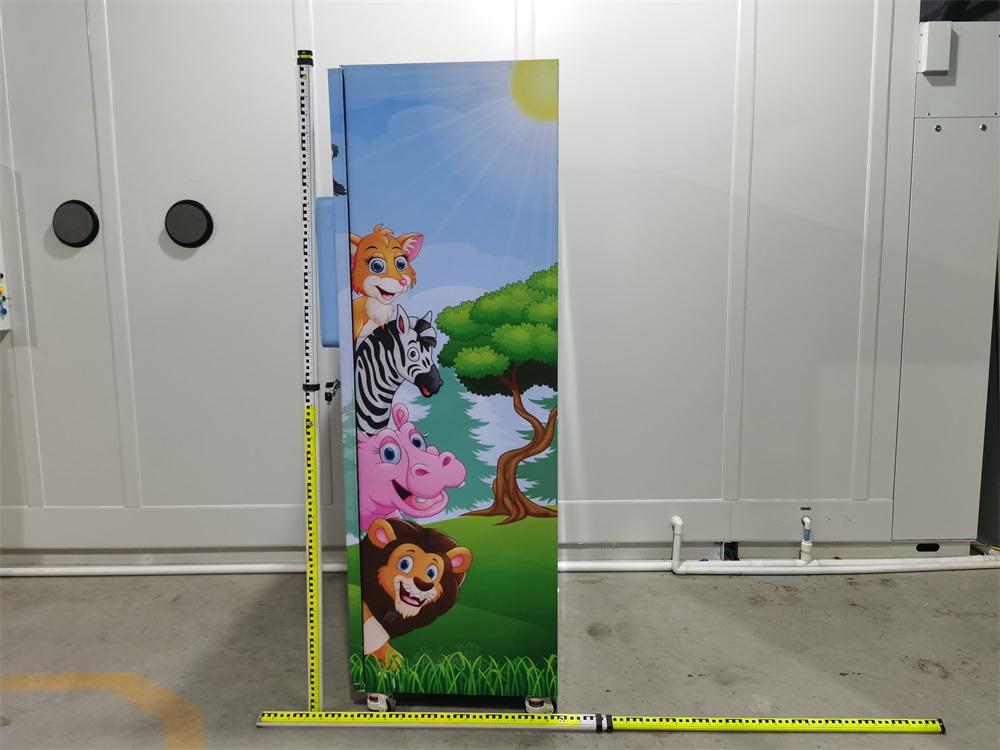

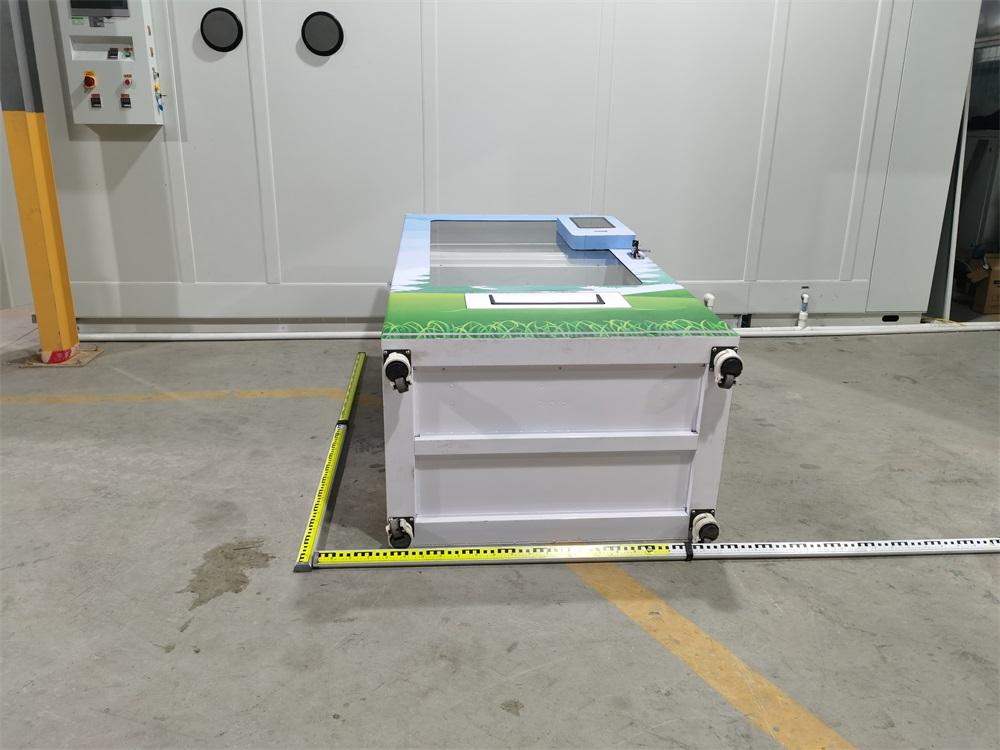

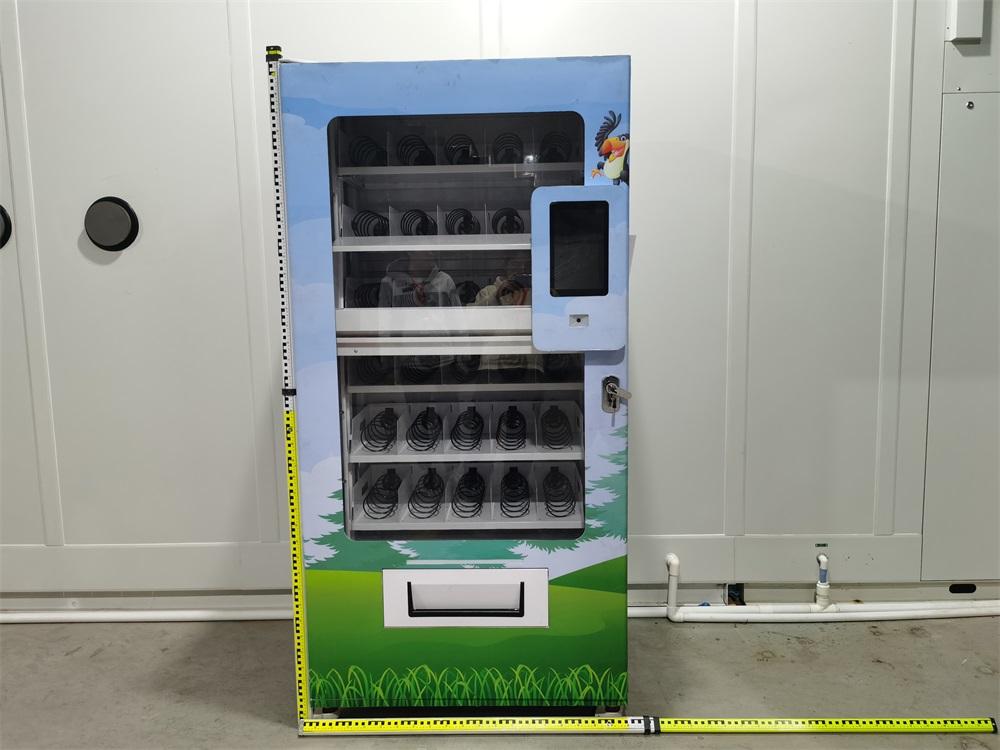

FCC ID: 2BVC3DJ-VEND100 _______________________________________________________________________________________________ Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 FCC ID: 2BVC3DJ-VEND100 _______________________________________________________________________________________________ Page 2 of 2 Photo of Conducted Emission Measurement Fig. 4 Fig. 5

Test Report

FCCID:2BVC3DJ-VEND100 35 Appendix C.6:Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -0.57 -0.57 --- PASS 30~1000 -0.57 -61.11 ≤-20.57 PASS 1000~26500 -0.57 -47.79 ≤-20.57 PASS 2437 Reference -0.13 -0.13 --- PASS 30~1000 -0.13 -60.39 ≤-20.13 PASS 1000~26500 -0.13 -47.67 ≤-20.13 PASS 2462 Reference 0.93 0.93 --- PASS 30~1000 0.93 -60.84 ≤-19.07 PASS 1000~26500 0.93 -47.08 ≤-19.07 PASS 11G Ant1 2412 Reference -5.93 -5.93 --- PASS 30~1000 -5.93 -58.52 ≤-25.93 PASS 1000~26500 -5.93 -47.72 ≤-25.93 PASS 2437 Reference -4.82 -4.82 --- PASS 30~1000 -4.82 -58.41 ≤-24.82 PASS 1000~26500 -4.82 -47.74 ≤-24.82 PASS 2462 Reference -3.86 -3.86 --- PASS 30~1000 -3.86 -59.99 ≤-23.86 PASS 1000~26500 -3.86 -45.67 ≤-23.86 PASS 11N20SISO Ant1 2412 Reference -5.47 -5.47 --- PASS 30~1000 -5.47 -58.25 ≤-25.47 PASS 1000~26500 -5.47 -47.32 ≤-25.47 PASS 2437 Reference -4.09 -4.09 --- PASS 30~1000 -4.09 -59.71 ≤-24.09 PASS 1000~26500 -4.09 -47.31 ≤-24.09 PASS 2462 Reference -4.65 -4.65 --- PASS 30~1000 -4.65 -59.49 ≤-24.65 PASS 1000~26500 -4.65 -47.42 ≤-24.65 PASS 11N40SISO Ant1 2422 Reference -8.32 -8.32 --- PASS 30~1000 -8.32 -59.43 ≤-28.32 PASS 1000~26500 -8.32 -47.55 ≤-28.32 PASS 2437 Reference -7.06 -7.06 --- PASS 30~1000 -7.06 -60.31 ≤-27.06 PASS 1000~26500 -7.06 -46.53 ≤-27.06 PASS 2452 Reference -7.09 -7.09 --- PASS 30~1000 -7.09 -60.78 ≤-27.09 PASS 1000~26500 -7.09 -46.92 ≤-27.09 PASS FCCID:2BVC3DJ-VEND100 36 11AX20SISO Ant1 2412 Reference -5.35 -5.35 --- PASS 30~1000 -5.35 -60.41 ≤-25.35 PASS 1000~26500 -5.35 -47.67 ≤-25.35 PASS 2437 Reference -5.17 -5.17 --- PASS 30~1000 -5.17 -59.53 ≤-25.17 PASS 1000~26500 -5.17 -47.26 ≤-25.17 PASS 2462 Reference -3.44 -3.44 --- PASS 30~1000 -3.44 -60.67 ≤-23.44 PASS 1000~26500 -3.44 -47.33 ≤-23.44 PASS 11AX40SISO Ant1 2422 Reference -8.26 -8.26 --- PASS 30~1000 -8.26 -60.07 ≤-28.26 PASS 1000~26500 -8.26 -47.09 ≤-28.26 PASS 2437 Reference -7.91 -7.91 --- PASS 30~1000 -7.91 -59.93 ≤-27.91 PASS 1000~26500 -7.91 -47.54 ≤-27.91 PASS 2452 Reference -7.34 -7.34 --- PASS 30~1000 -7.34 -60.28 ≤-27.34 PASS 1000~26500 -7.34 -47.15 ≤-27.34 PASS FCCID:2BVC3DJ-VEND100 37 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 FCCID:2BVC3DJ-VEND100 38 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 FCCID:2BVC3DJ-VEND100 39 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 FCCID:2BVC3DJ-VEND100 40 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference FCCID:2BVC3DJ-VEND100 41 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference FCCID:2BVC3DJ-VEND100 42 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 FCCID:2BVC3DJ-VEND100 43 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 FCCID:2BVC3DJ-VEND100 44 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 FCCID:2BVC3DJ-VEND100 45 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 FCCID:2BVC3DJ-VEND100 46 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference FCCID:2BVC3DJ-VEND100 47 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference FCCID:2BVC3DJ-VEND100 48 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 FCCID:2BVC3DJ-VEND100 49 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 FCCID:2BVC3DJ-VEND100 50 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 FCCID:2BVC3DJ-VEND100 51 11N40SISO_Ant1_2452_1000~26500 11AX20SISO_Ant1_2412_0~Reference 11AX20SISO_Ant1_2412_30~1000 FCCID:2BVC3DJ-VEND100 52 11AX20SISO_Ant1_2412_1000~26500 11AX20SISO_Ant1_2437_0~Reference FCCID:2BVC3DJ-VEND100 53 11AX20SISO_Ant1_2437_30~1000 11AX20SISO_Ant1_2437_1000~26500 11AX20SISO_Ant1_2462_0~Reference FCCID:2BVC3DJ-VEND100 54 11AX20SISO_Ant1_2462_30~1000 11AX20SISO_Ant1_2462_1000~26500 FCCID:2BVC3DJ-VEND100 55 11AX40SISO_Ant1_2422_0~Reference 11AX40SISO_Ant1_2422_30~1000 11AX40SISO_Ant1_2422_1000~26500 FCCID:2BVC3DJ-VEND100 56 11AX40SISO_Ant1_2437_0~Reference 11AX40SISO_Ant1_2437_30~1000 FCCID:2BVC3DJ-VEND100 57 11AX40SISO_Ant1_2437_1000~26500 11AX40SISO_Ant1_2452_0~Reference 11AX40SISO_Ant1_2452_30~1000 FCCID:2BVC3DJ-VEND100 58 11AX40SISO_Ant1_2452_1000~26500 FCCID:2BVC3DJ-VEND100 59 Appendix C.7: Duty Cycle Test Result TestMode Antenna Frequency [MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] 1/T Factor [KHz] 11B Ant1 2412 12.23 12.37 98.87 0.05 0.08 2437 12.23 12.39 98.71 0.06 0.08 2462 12.23 12.40 98.63 0.06 0.08 11G Ant1 2412 2.03 2.18 93.12 0.31 0.49 2437 2.03 2.20 92.27 0.35 0.49 2462 2.03 2.20 92.27 0.35 0.49 11N20SISO Ant1 2412 1.90 2.05 92.68 0.33 0.53 2437 1.89 2.05 92.20 0.35 0.53 2462 1.88 2.07 90.82 0.42 0.53 11N40SISO Ant1 2422 0.93 1.11 83.78 0.77 1.08 2437 0.93 1.11 83.78 0.77 1.08 2452 0.93 1.10 84.55 0.73 1.08 11AX20SISO Ant1 2412 1.45 1.63 88.96 0.51 0.69 2437 1.45 1.63 88.96 0.51 0.69 2462 1.45 1.63 88.96 0.51 0.69 11AX40SISO Ant1 2422 0.75 0.93 80.65 0.93 1.33 2437 0.74 0.93 79.57 0.99 1.35 2452 0.75 0.93 80.65 0.93 1.33 FCCID:2BVC3DJ-VEND100 60 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCCID:2BVC3DJ-VEND100 61 11G_Ant1_2412 11G_Ant1_2437 FCCID:2BVC3DJ-VEND100 62 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCCID:2BVC3DJ-VEND100 63 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCCID:2BVC3DJ-VEND100 64 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 FCCID:2BVC3DJ-VEND100 65 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 FCCID:2BVC3DJ-VEND100 66 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 FCCID:2BVC3DJ-VEND100 67 FCCID:2BVC3DJ-VEND100 68 Appendix C.8:Emissions in Restricted Bands Test Result TestMode Antenna ChName Frequency [MHz] Detector Freq [MHz] Result [dBm] Limit [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -48.7 ≤-41.20 46.50 ≤54 PASS AV 2310.010 -48.7 ≤-41.20 46.50 ≤54 PAS…

Text truncated - open the document above for the full version.

Test Report

FCCID:2BVC3DJ-VEND100 1 Case No. : GTS20251203023-1-03 Ambient Condition: 21°C,52%RH, Test Date:2026.1.22-2026.3.12Test Engineer:Evan ouyang Appendix C.1: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 8.200 2407.880 2416.080 0.5 PASS 2437 8.240 2432.880 2441.120 0.5 PASS 2462 8.240 2457.880 2466.120 0.5 PASS 11G Ant1 2412 16.400 2403.720 2420.120 0.5 PASS 2437 16.600 2428.680 2445.280 0.5 PASS 2462 16.400 2453.760 2470.160 0.5 PASS 11N20SISO Ant1 2412 17.800 2403.000 2420.800 0.5 PASS 2437 17.600 2428.200 2445.800 0.5 PASS 2462 17.760 2453.120 2470.880 0.5 PASS 11N40SISO Ant1 2422 36.720 2403.520 2440.240 0.5 PASS 2437 37.120 2418.440 2455.560 0.5 PASS 2452 36.400 2433.760 2470.160 0.5 PASS 11AX20SISO Ant1 2412 19.080 2402.480 2421.560 0.5 PASS 2437 19.000 2427.480 2446.480 0.5 PASS 2462 19.040 2452.480 2471.520 0.5 PASS 11AX40SISO Ant1 2422 37.920 2402.960 2440.880 0.5 PASS 2437 37.840 2418.280 2456.120 0.5 PASS 2452 37.440 2433.200 2470.640 0.5 PASS FCCID:2BVC3DJ-VEND100 2 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCCID:2BVC3DJ-VEND100 3 11G_Ant1_2412 11G_Ant1_2437 FCCID:2BVC3DJ-VEND100 4 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCCID:2BVC3DJ-VEND100 5 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCCID:2BVC3DJ-VEND100 6 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 FCCID:2BVC3DJ-VEND100 7 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 FCCID:2BVC3DJ-VEND100 8 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 FCCID:2BVC3DJ-VEND100 9 FCCID:2BVC3DJ-VEND100 10 Appendix C.2: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 12.574 2405.6753 2418.2493 --- --- 2437 12.749 2430.6252 2443.3742 --- --- 2462 12.829 2455.5637 2468.3927 --- --- 11G Ant1 2412 17.802 2402.9756 2420.7776 --- --- 2437 17.848 2427.9867 2445.8347 --- --- 2462 17.797 2453.0165 2470.8135 --- --- 11N20SISO Ant1 2412 18.951 2402.4552 2421.4062 --- --- 2437 18.864 2427.6089 2446.4729 --- --- 2462 18.923 2452.5173 2471.4403 --- --- 11N40SISO Ant1 2422 37.302 2403.1867 2440.4887 --- --- 2437 37.450 2418.2318 2455.6818 --- --- 2452 37.207 2433.4578 2470.6648 --- --- 11AX20SISO Ant1 2412 19.505 2402.2493 2421.7543 --- --- 2437 19.486 2427.2800 2446.7660 --- --- 2462 19.564 2452.1941 2471.7581 --- --- 11AX40SISO Ant1 2422 38.363 2402.8215 2441.1845 --- --- 2437 38.279 2417.8547 2456.1337 --- --- 2452 38.332 2432.8735 2471.2055 --- --- FCCID:2BVC3DJ-VEND100 11 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCCID:2BVC3DJ-VEND100 12 11G_Ant1_2412 11G_Ant1_2437 FCCID:2BVC3DJ-VEND100 13 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCCID:2BVC3DJ-VEND100 14 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCCID:2BVC3DJ-VEND100 15 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 FCCID:2BVC3DJ-VEND100 16 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 FCCID:2BVC3DJ-VEND100 17 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 FCCID:2BVC3DJ-VEND100 18 FCCID:2BVC3DJ-VEND100 19 Appendix C.3: Maximum conducted output power Test Result -CHP TestMode Antenna Frequency [MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 11.61 ≤30.00 PASS 2437 12.14 ≤30.00 PASS 2462 12.82 ≤30.00 PASS 11G Ant1 2412 13.60 ≤30.00 PASS 2437 14.45 ≤30.00 PASS 2462 15.22 ≤30.00 PASS 11N20SISO Ant1 2412 13.57 ≤30.00 PASS 2437 14.38 ≤30.00 PASS 2462 15.21 ≤30.00 PASS 11N40SISO Ant1 2422 13.29 ≤30.00 PASS 2437 14.40 ≤30.00 PASS 2452 14.75 ≤30.00 PASS 11AX20SISO Ant1 2412 14.23 ≤30.00 PASS 2437 15.01 ≤30.00 PASS 2462 15.75 ≤30.00 PASS 11AX40SISO Ant1 2422 13.87 ≤30.00 PASS 2437 14.90 ≤30.00 PASS 2452 15.17 ≤30.00 PASS FCCID:2BVC3DJ-VEND100 20 Appendix C.4: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -9.46 ≤8.00 PASS 2437 -3.13 ≤8.00 PASS 2462 1.65 ≤8.00 PASS 11G Ant1 2412 -18.62 ≤8.00 PASS 2437 -18.10 ≤8.00 PASS 2462 -17.20 ≤8.00 PASS 11N20SISO Ant1 2412 -17.22 ≤8.00 PASS 2437 -17.32 ≤8.00 PASS 2462 -16.53 ≤8.00 PASS 11N40SISO Ant1 2422 -22.27 ≤8.00 PASS 2437 -21.07 ≤8.00 PASS 2452 -20.54 ≤8.00 PASS 11AX20SISO Ant1 2412 -18.92 ≤8.00 PASS 2437 -18.30 ≤8.00 PASS 2462 -17.36 ≤8.00 PASS 11AX40SISO Ant1 2422 -22.28 ≤8.00 PASS 2437 -20.78 ≤8.00 PASS 2452 -21.72 ≤8.00 PASS FCCID:2BVC3DJ-VEND100 21 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCCID:2BVC3DJ-VEND100 22 11G_Ant1_2412 11G_Ant1_2437 FCCID:2BVC3DJ-VEND100 23 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCCID:2BVC3DJ-VEND100 24 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCCID:2BVC3DJ-VEND100 25 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 FCCID:2BVC3DJ-VEND100 26 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 FCCID:2BVC3DJ-VEND100 27 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 FCCID:2BVC3DJ-VEND100 28 FCCID:2BVC3DJ-VEND100 29 Appendix C.5:Band edge measurements Test Result TestMode Antenna ChName Frequency [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 0.76 -45.41 ≤-19.24 PASS High 2462 2.11 -48.67 ≤-17.89 PASS 11G Ant1 Low 2412 -4.50 -33.26 ≤-24.5 PASS High 2462 -2.99 -46.25 ≤-22.99 PASS 11N20SISO Ant1 Low 2412 -4.77 -32.07 ≤-24.77 PASS High 2462 -3.06 -45.7 ≤-23.06 PASS 11N40SISO Ant1 Low 2422 -8.07 -36.26 ≤-28.07 PASS High 2452 -6.67 -45.89 ≤-26.67 PASS 11AX20SISO Ant1 Low 2412 -4.54 -31.14 ≤-24.54 PASS High 2462 -3.12 -45.52 ≤-23.12 PASS 11AX40SISO Ant1 Low 2422 -8.09 -35.79 ≤-28.09 PASS High 2452 -6.86 -44.4 ≤-26.86 PASS FCCID:2BVC3DJ-VEND100 30 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 FCCID:2BVC3DJ-VEND100 31 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 FCCID:2BVC3DJ-VEND100 32 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 FCCID:2BVC3DJ-VEND100 33 11AX20SISO_Ant1_Low_2412 11AX20SISO_Ant1_High_2462 FCCID:2BVC3DJ-VEND100 34 11AX40SISO_Ant1_Low_2422 11AX40SISO_Ant1_High_2452

Test Report

FCCID:2BVC3DJ-VEND100 1 Case No. : GTS20251203023-1-02 Ambient Condition: 21 °C, 52 %RH According Standard: ■Part15C Test Date:2026.1.22-2026.3.12Test Engineer: Evan ouyang Appendix B.1: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE Ant1 2402 0.652 2401.676 2402.328 0.5 PASS 2440 0.664 2439.672 2440.336 0.5 PASS 2480 0.656 2479.668 2480.324 0.5 PASS FCCID:2BVC3DJ-VEND100 2 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCCID:2BVC3DJ-VEND100 3 FCCID:2BVC3DJ-VEND100 4 Appendix B.2: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE Ant1 2402 1.0432 2401.4769 2402.5201 --- --- 2440 1.0364 2439.4816 2440.5180 --- --- 2480 1.0400 2479.4800 2480.5200 --- --- FCCID:2BVC3DJ-VEND100 5 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCCID:2BVC3DJ-VEND100 6 FCCID:2BVC3DJ-VEND100 7 Appendix B.3: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE Ant1 2402 8.18 ≤30 PASS 2440 8.63 ≤30 PASS 2480 8.44 ≤30 PASS FCCID:2BVC3DJ-VEND100 8 Appendix B.4: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE Ant1 2402 -8.99 ≤8.00 PASS 2440 -8.40 ≤8.00 PASS 2480 -8.63 ≤8.00 PASS FCCID:2BVC3DJ-VEND100 9 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCCID:2BVC3DJ-VEND100 10 FCCID:2BVC3DJ-VEND100 11 Appendix B.5:Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE Ant1 Low 2402 6.33 -28.37 ≤-13.67 PASS High 2480 6.81 -48.35 ≤-13.19 PASS FCCID:2BVC3DJ-VEND100 12 Test Graphs BLE_Ant1_Low_2402 BLE_Ant1_High_2480 FCCID:2BVC3DJ-VEND100 13 Appendix B.6:Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE Ant1 2402 Reference 7.02 7.02 --- PASS 30~1000 7.02 -60.88 ≤-12.98 PASS 1000~26500 7.02 -39.92 ≤-12.98 PASS 2440 Reference 7.47 7.47 --- PASS 30~1000 7.47 -60.93 ≤-12.53 PASS 1000~26500 7.47 -40.8 ≤-12.53 PASS 2480 Reference 7.33 7.33 --- PASS 30~1000 7.33 -60.73 ≤-12.67 PASS 1000~26500 7.33 -41.03 ≤-12.67 PASS FCCID:2BVC3DJ-VEND100 14 Test Graphs BLE_Ant1_2402_0~Reference BLE_Ant1_2402_30~1000 BLE_Ant1_2402_1000~26500 FCCID:2BVC3DJ-VEND100 15 BLE_Ant1_2440_0~Reference BLE_Ant1_2440_30~1000 FCCID:2BVC3DJ-VEND100 16 BLE_Ant1_2440_1000~26500 BLE_Ant1_2480_0~Reference BLE_Ant1_2480_30~1000 FCCID:2BVC3DJ-VEND100 17 BLE_Ant1_2480_1000~26500 FCCID:2BVC3DJ-VEND100 18 Appendix B.7: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] Duty Cycle Factor[dB] 1/T Factor[KHz] BLE Ant1 2402 2.13 2.50 0.8520 85.20 0.70 0.47 2440 2.13 2.50 0.8520 85.20 0.70 0.47 2480 2.12 2.50 0.8480 84.80 0.72 0.47 FCCID:2BVC3DJ-VEND100 19 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCCID:2BVC3DJ-VEND100 20 FCCID:2BVC3DJ-VEND100 21 Appendix B.8:Emissions in Restricted Bands Test Result TestMode Antenna ChName Freq (MHz) Detector Freq [MHz] Result [dBm] Limit [dBm] Result [dBuV/m ] Limit [dBuV/m] Verdict BLE Ant1 Low 2402 AV 2310.000 -49.35 ≤-41.20 45.85 ≤54 PASS AV 2389.145 -47.65 ≤-41.20 47.55 ≤54 PASS AV 2390.000 -48.57 ≤-41.20 46.63 ≤54 PASS Peak 2310.000 -42.48 ≤-21.20 52.72 ≤74 PASS Peak 2321.315 -39.05 ≤-21.20 56.15 ≤74 PASS Peak 2390.000 -42.33 ≤-21.20 52.87 ≤74 PASS High 2480 AV 2483.500 -43.28 ≤-41.20 51.92 ≤54 PASS AV 2483.520 -43.28 ≤-41.20 51.92 ≤54 PASS AV 2500.000 -48.57 ≤-41.20 46.63 ≤54 PASS Peak 2483.500 -37.48 ≤-21.20 57.72 ≤74 PASS Peak 2483.600 -36.7 ≤-21.20 58.50 ≤74 PASS Peak 2500.000 -41.5 ≤-21.20 53.70 ≤74 PASS Note： 1. The Antenna Gain is compensated in the graph. 2. The Duty Cycle Factor and RBW Factor is compensated in the graph. 3. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. FCCID:2BVC3DJ-VEND100 22 Test Graphs BLE_Ant1_Low_2402_AV BLE_Ant1_Low_2402_Peak BLE_Ant1_High_2480_AV FCCID:2BVC3DJ-VEND100 23 BLE_Ant1_High_2480_Peak

Test Report

Text truncated - open the document above for the full version.

Contact Information

Applicant

Byron Webster(CEO)

[email protected]Fax: 9092254882

Technical Contact

FCC US Agent, LLCTim Payne

[email protected]

3722 Illinois Avenue · Saint Charles, Illinois, 60174 · United States

Test Firm

SHENZHEN GLOBAL TEST SERVICE CO., LTD.Simon Hu

[email protected]

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	7.30 mW
2	15C	2.41 GHz - 2.46 GHz	37.60 mW

Confidentiality

Long Term

Grant Notes

Power listed is the maximum conducted output power. This device contains 20 and 40 MHz signal bandwidth. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
