2BVC7-20977171-USPortable Bluetooth speaker

MANUAL MODE Short press for switching among BT.TF CARD, USB. LINE IN, FM Long press to enter light mode 2 Play the previous musio under BT.TF card and USB mode, Play previous radio station under FM mode. 3 Short press for music play/pause Long press for radio station automatic searching under FM mode. 4 Play to next music under BT.TF card and USB mode Play next radio station under FM mode. 5.DC 5V Charge Jack for built in battery. When DC 5V cable plugs in, The LED Iights up 6.AUX AUX IN can connect to PC, mp3, Phone, or CD walkman 7.OFF/ON Speaker power off / Speaker power on 8.USB Port Support USB and can play MP3 and WAV format music in U disk 9.TF card Port Support TF CARD and can play MP3 and WAV format music In CARD 10.Mic Plug the microphone input the port to enjoy the music 11.BT Connection -Power on the product or press MODE button to enter into BT mode. -Open mobile devices(Cell phones.computers,etc.) in BT mode, search for BT devices ,when it appears the item pairing name (BT SPEAKER) -After the device has been paired successfully for the first time, it will connect automatically around 10 seconds to the devices which connected before when next time use.(Note: Each product could connect to one bluetooth device only.) FCC Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that mayin cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - -Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter . This device must operate with a minimum distance of 20 cm between the radiator and user body.

Local Representative Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(7), of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC IDModel name 2BVC7-20977171-US20977171-US, 18016432-US We hereby acknowledge as follows: i.both signees confirm that the point of contact accepts responsibility to act as a US- American Representative on behalf of the applicant ii.the point of contact provides the physical U.S. address and email as listed below iii.both parties maintain the requirements of this agreement for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. iv.An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. US-American Point of ContactApplicant/Approval Holder Signature Date: 2026-03-30 Signature Date: 2026-03-30 Company Name:Mars Business Consulting, LLCHong Kong Easton Technology Co., Limited FRN:00337906840038197901 Contact Name:Jessie PengQin Yang Address: 8932 Mission Dr, Unit 207, Rosemead, California 91770, United States FLAT/RM 511 5/F MING SANG INDUSTRIAL BUILDING 19-21 HING YIP ST KWUN TONG KL Phone:(858) 905-021813530366579 Email:[email protected]@163.com

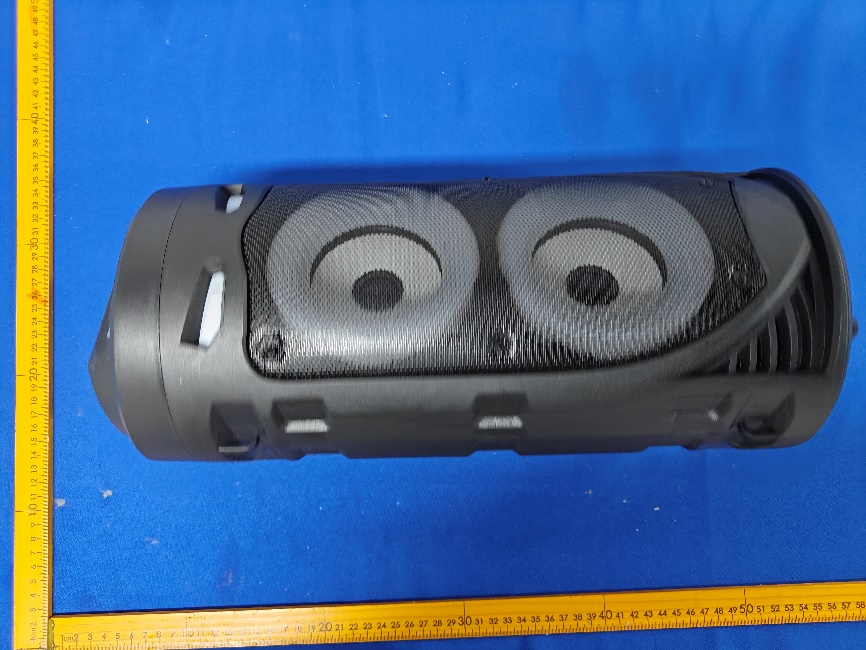

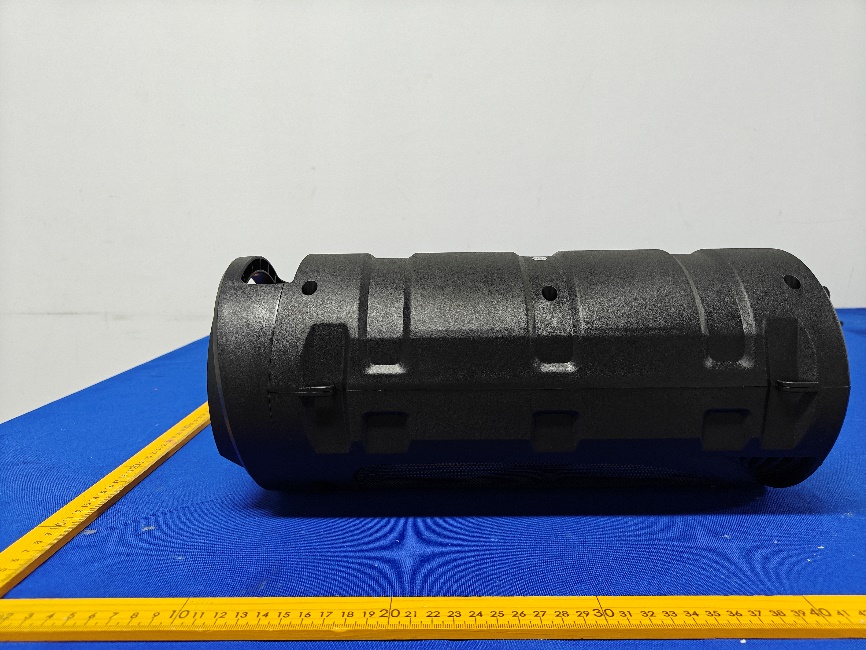

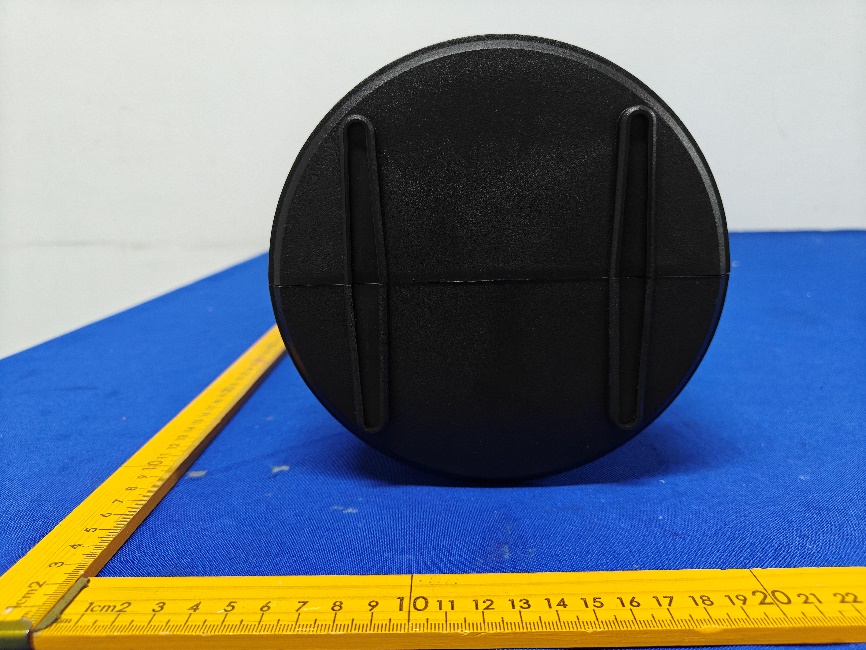

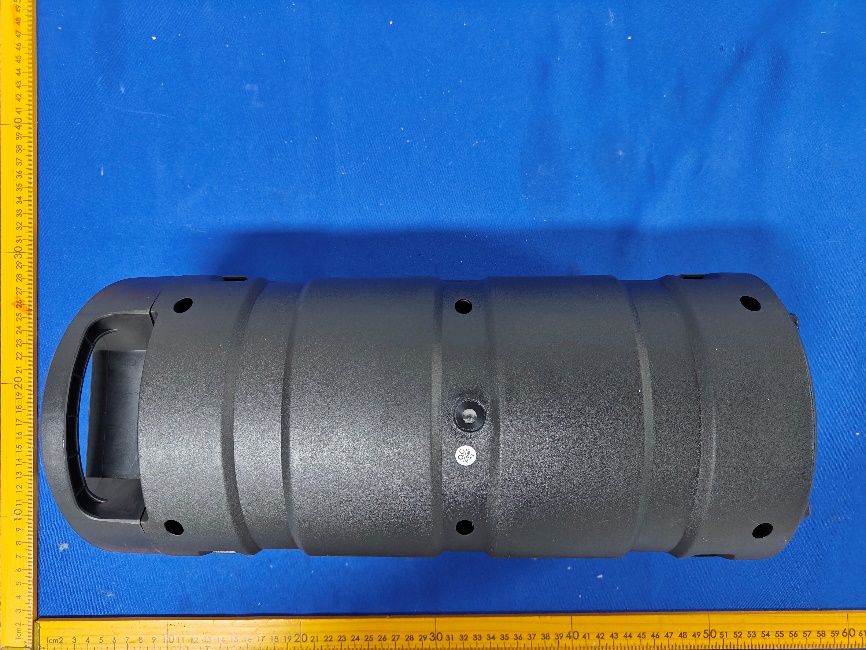

Page 1 of 3 FCC ID: 2BVC7-20977171-US External photos Page 2 of 3 FCC ID: 2BVC7-20977171-US Page 3 of 3 FCC ID: 2BVC7-20977171-US

Label FCC ID: 2BVC7-20977171-US

Page 1 of 3 2BVC7-20977171-US Internal photos RX FM Page 2 of 3 2BVC7-20977171-US PCB ANT Page 3 of 3 2BVC7-20977171-US

Page 1 of 7 Report No.: AiTSZ-260317076FW2 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. RF Exposure evaluation Product Name : Portable Bluetooth speaker Brand Name : N/A Model : 20977171-US Series Model : 18016432-US FCC ID : 2BVC7-20977171-US Applicant : Hong Kong Easton Technology Co., Limited Address : FLAT/RM 511 5/F MING SANG INDUSTRIAL BUILDING 19-21 HING YIP ST KWUN TONG KL Manufacturer : Hong Kong Easton Technology Co., Limited Address : FLAT/RM 511 5/F MING SANG INDUSTRIAL BUILDING 19-21 HING YIP ST KWUN TONG KL Standard(s) : 47CFR §1.1310, 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt : Mar.17, 2026 Date of Test : Mar.17, 2026~ Mar.24, 2026 Issued Date : Mar.30, 2026 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 7 Report No.: AiTSZ-260317076FW2 Report Revise Record Report Version Issued Date Notes M0 Mar.30, 2026 Initial Release Page 3 of 7 Report No.: AiTSZ-260317076FW2 Contents 1 GENERAL INFORMATION .......................................................................................................................................... 4 1.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 4 1.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 METHOD OF MEASUREMENT ................................................................................................................................... 6 2.1 APPLICABLE STANDARD.................................................................................................................................................. 6 2.2 EVALUATION METHOD AND LIMIT .................................................................................................................................... 6 2.3 MANUFACTURING TOLERANCE ........................................................................................................................................ 7 2.4 EVALUATION RESULT ..................................................................................................................................................... 7 2.5 CONCLUSION ............................................................................................................................................................... 7 Page 4 of 7 Report No.: AiTSZ-260317076FW2 1 GENERAL INFORMATION 1.1 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 25°C Relative Humidity: 55 % Air Pressure: 101 kPa 1.2 General Description of EUT Product Name: Portable Bluetooth speaker Model/Type reference: 20977171-US Serial Model: 18016432-US Model difference: All models are same as the samples except model name, all the models are electrical identical same mechanical structure and design. Power Supply: DC 5V from external circuit Hardware Version: N/A Software Version: N/A Sample(s) Status: AiTSZ-260317076-1(Normal sample) AiTSZ-260317076-2(Engineer sample) Bluetooth LE: Supported type: Bluetooth BR/EDR Modulation: GFSK, π/4DQPSK, 8DPSK Operation frequency: 2402MHz~2480MHz Channel number: 79 Channel separation: 1MHz Antenna type: PCB antenna Antenna gain: 2.338dBi Remark: The above DUT's information was declared by manufacturer. For more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 5 of 7 Report No.: AiTSZ-260317076FW2 1.3 Test Facility Test Laboratory: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 31737 A2LA-Lab Cert. No.: 7133.01 Guangdong Asia Hongke Test Technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in comp…

Text truncated - open the document above for the full version.

Page 1 of 36 Report No.: AiTSZ-260317076FW1 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : Portable Bluetooth speaker Brand Name : N/A Model : 20977171-US Series Model : 18016432-US FCC ID : 2BVC7-20977171-US Applicant : Hong Kong Easton Technology Co., Limited Address : FLAT/RM 511 5/F MING SANG INDUSTRIAL BUILDING 19-21 HING YIP ST KWUN TONG KL Manufacturer : Hong Kong Easton Technology Co., Limited Address : FLAT/RM 511 5/F MING SANG INDUSTRIAL BUILDING 19-21 HING YIP ST KWUN TONG KL Standard(s) : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Receipt : Mar.17, 2026 Date of Test : Mar.17, 2026~ Mar.24, 2026 Issued Date : Mar.30, 2026 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 36 Report No.: AiTSZ-260317076FW1 Report Revise Record Report Version Issued Date Notes M0 Mar.30, 2026 Initial Release Page 3 of 36 Report No.: AiTSZ-260317076FW1 Contents 1 TEST SUMMARY ....................................................................................................................................................... 4 1.1 TEST STANDARDS ......................................................................................................................................................... 4 1.2 TEST SUMMARY ........................................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 GENERAL INFORMATION .......................................................................................................................................... 6 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3 DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4 SPECIAL ACCESSORIES ................................................................................................................................................... 8 2.5 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 8 3 TEST CONDITIONS AND RESULTS ............................................................................................................................ 10 3.1 CONDUCTED EMISSIONS TEST ....................................................................................................................................... 10 3.2 RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 13 3.3 MAXIMUM PEAK OUTPUT POWER................................................................................................................................. 20 3.4 20DB BANDWIDTH ..................................................................................................................................................... 21 3.5 OCCUPIED BANDWIDTH ............................................................................................................................................... 22 3.6 FREQUENCY SEPARATION ............................................................................................................................................. 23 3.7 NUMBER OF HOPPING FREQUENCY ................................................................................................................................. 24 3.8 TIME OF OCCUPANCY (DWELL TIME) .............................................................................................................................. 25 3.9 OUT-OF-BAND EMISSIONS ........................................................................................................................................... 26 3.10 PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .......................................................................................................... 28 3.11 ANTENNA REQUIREMENT ............................................................................................................................................. 29 4 TEST SETUP PHOTOGRAPHS OF EUT ....................................................................................................................... 30 5 PHOTOS OF EUT ...................................…

Text truncated - open the document above for the full version.

2.4G-2.48G频段板载PIFA天线测试报告 2.4G-2.48GInvertedFAntennaSpecification SPECIFICATIONS Frequency（MHz）2400-2480 PeakGain（dBi）2.338 AverageGain（dBi）＞-5.5 VSWR＜3.2 Impedance（Ω）50Ω AntennaTypePlannarInvertedF Antennaon board PolarizationLinear ManufactureZHUHAIJIELITECHNOLOGYCO.,LTD Address: No.333KexingRoad,NanpingSciencePark,XiangzhouDistrict, Zhuhai TestequipmentHWA-TECH AntennaPhoto& Length(mm) 天线无源S参数： AntennapassiveS-parameters: 驻波比（ VSWR ）、回波损耗（ ReturnLoss ）及史密斯圆图（ Smith ） 天线效率及增益： Antennaefficiencyandgain ： Frequency（MHz）Gain（dBi）Effciency（%）AverageGain（dBi）Efficiency（dB） 24002.33859.39%-2.915-2.263 24101.60349.11%-3.883-3.088 24201.29546.04%-4.014-3.369 24300.38836.89%-4.91-4.331 24400.18734.00%-5.276-4.685 24500.0231.71%-5.431-4.988 24600.50734.88%-5.02-4.575 24700.29131.89%-5.323-4.963 24800.42932.89%-5.195-4.83 Average0.7839.64%-4.66-4.12 Peak2.33859.39%-2.915-2.263 天线2400MHz2D-ThetaPattern 天线2400MHz2D-PhiPattern 2400MHz3D-TotalPattern

Page 1 of 54 Report No.: AiTSZ-260317076FW1 Appendix RF test data for BT Page 2 of 54 Report No.: AiTSZ-260317076FW1 1. Bandwidth 1.1 Test Result 1.1.1 OBW Mode TX Type Frequency (MHz) Packet Type ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.744 / Pass 2441 DH5 1 0.745 / Pass 2480 DH5 1 0.751 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.147 / Pass 2441 2DH5 1 1.150 / Pass 2480 2DH5 1 1.141 / Pass 8DPSK SISO 2402 3DH5 1 1.154 / Pass 2441 3DH5 1 1.146 / Pass 2480 3DH5 1 1.150 / Pass 1.1.2 20dB BW Mode TX Type Frequency (MHz) Packet Type ANT 20dB Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.846 / Pass 2441 DH5 1 0.849 / Pass 2480 DH5 1 0.847 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.276 / Pass 2441 2DH5 1 1.274 / Pass 2480 2DH5 1 1.277 / Pass 8DPSK SISO 2402 3DH5 1 1.294 / Pass 2441 3DH5 1 1.297 / Pass 2480 3DH5 1 1.280 / Pass Page 3 of 54 Report No.: AiTSZ-260317076FW1 1.2 Test Graph 1.2.1 OBW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 4 of 54 Report No.: AiTSZ-260317076FW1 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 5 of 54 Report No.: AiTSZ-260317076FW1 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 6 of 54 Report No.: AiTSZ-260317076FW1 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Page 7 of 54 Report No.: AiTSZ-260317076FW1 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 8 of 54 Report No.: AiTSZ-260317076FW1 1.2.2 20dB BW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 9 of 54 Report No.: AiTSZ-260317076FW1 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 10 of 54 Report No.: AiTSZ-260317076FW1 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 11 of 54 Report No.: AiTSZ-260317076FW1 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Page 12 of 54 Report No.: AiTSZ-260317076FW1 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 13 of 54 Report No.: AiTSZ-260317076FW1 2. Maximum Conducted Output Power 2.1 Test Result 2.1.1 Power Mode TX Type Frequency (MHz) Packet Type Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit GFSK SISO 2402 DH5 -0.09 <=20.97 Pass 2441 DH5 1.89 <=20.97 Pass 2480 DH5 1.40 <=20.97 Pass Pi/4DQPSK SISO 2402 2DH5 -0.67 <=20.97 Pass 2441 2DH5 1.30 <=20.97 Pass 2480 2DH5 0.78 <=20.97 Pass 8DPSK SISO 2402 3DH5 -0.72 <=20.97 Pass 2441 3DH5 1.25 <=20.97 Pass 2480 3DH5 0.74 <=20.97 Pass Note1: Antenna Gain: Ant1: 2.338dBi; Page 14 of 54 Report No.: AiTSZ-260317076FW1 2.2 Test Graph 2.2.1 Power GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 15 of 54 Report No.: AiTSZ-260317076FW1 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 16 of 54 Report No.: AiTSZ-260317076FW1 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 17 of 54 Report No.: AiTSZ-260317076FW1 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Page 18 of 54 Report No.: AiTSZ-260317076FW1 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 19 of 54 Report No.: AiTSZ-260317076FW1 3. Carrier Frequency Separation 3.1 Test Result 3.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Channel Separation (MHz) 20dB Bandwidth (MHz) Limit (MHz) Verdict GFSK SISO HOPP DH5 1.000 0.849 >=0.849 Pass Pi/4DQPSK SISO HOPP 2DH5 0.994 1.277 >=0.851 Pass 8DPSK SISO HOPP 3DH5 1.003 1.297 >=0.865 Pass Page 20 of 54 Report No.: AiTSZ-260317076FW1 3.2 Test Graph 3.2.1 Ant1 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 21 of 54 Report No.: AiTSZ-260317076FW1 8DPSK_3DH5_HOPP_Ant1_NTNV Page 22 of 54 Report No.: AiTSZ-260317076FW1 4. Number of Hopping Frequencies 4.1 Test Result 4.1.1 HoppNum Mode TX Type Frequency (MHz) Packet Type Num of Hopping Frequencies Verdict ANT1 Limit GFSK SISO HOPP DH5 79 >=15 Pass Pi/4DQPSK SISO HOPP 2DH5 79 >=15 Pass 8DPSK SISO HOPP 3DH5 79 >=15 Pass Page 23 of 54 Report No.: AiTSZ-260317076FW1 4.2 Test Graph 4.2.1 HoppNum GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 24 of 54 Report No.: AiTSZ-260317076FW1 8DPSK_3DH5_HOPP_Ant1_NTNV Page 25 of 54 Report No.: AiTSZ-260317076FW1 5. Time of Occupancy (Dwell Time) 5.1 Test Result 5.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Duration of Single Pulse (ms) Observation Period (s) Num of Pulse in Observation Period Dwell Time (ms) Limit (ms) Verdict GFSK SISO HOPP DH1 0.378 31.600 320 120.960 <=400 Pass DH3 1.634 31.600 160 261.440 <=400 Pass DH5 2.898 31.600 95 275.310 <=400 Pass Pi/4DQPSK SISO HOPP 2DH1 0.388 31.600 319 123.772 <=400 Pass 2DH3 1.652 31.600 163 269.276 <=400 Pass 2DH5 2.900 31.600 98 284.200 <=400 Pass 8DPSK SISO HOPP 3DH1 0.402 31.600 320 128.640 <=400 Pass 3DH3 1.638 31.600 160 262.080 <=400 Pass 3DH5 2.902 31.600 109 316.318 <=400 Pass Page 26 of 54 Report No.: AiTSZ-260317076FW1 5.2 Test Graph 5.2.1 Ant1 GFSK_DH1_HOPP_Ant1_NTNV GFSK_DH1_HOPP_Ant1_NTNV Page 27 of 54 Report No.: AiTSZ-260317076FW1 GFSK_DH3_HOPP_Ant1_NTNV GFSK_DH3_HOPP_Ant1_NTNV Page 28 of 54 Report No.: AiTSZ-260317076FW1 GFSK_DH5_HOPP_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV Page 29 of 54 Report No.: AiTSZ-260317076FW1 Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Page 30 of 54 Report No.: AiTSZ-260317076FW1 Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV Page 31 of 54 Report No.: AiTSZ-260317076FW1 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 32 of 54 Report No.: AiTSZ-260317076FW1 8DPSK_3DH1_HOPP_Ant1_NTNV 8DPSK_3DH1_HOPP_Ant1_NTNV Page 33 of 54 Report No.: AiTSZ-260317076FW1 8DPSK_3DH3_HOPP_Ant1_NTNV 8DPSK_3DH3_HOPP_Ant1_NTNV Page 34 of 54 Report No.: AiTSZ-260317076FW1 8DPSK_3DH5_HOPP_Ant1_NTNV 8DPSK_3DH5_HOPP_Ant1_NTNV Page 35 of 54 Report No.: AiTSZ-260317076FW1 6. Unwanted Emissions In Non-restricted Frequency Bands 6.1 Test Result 6.1.1 Ref Mode TX Type Frequency (MHz) Packet Type ANT Level of Reference (dBm) GFSK SISO 2402 DH5 1 -0.54 2441 DH5 1 1.39 2480 DH5 1 0.93 HOPP DH5 1 1.78 1.78 Pi/4DQPSK SISO 2402 2DH5 1 …

Text truncated - open the document above for the full version.

Page 43 of 54 Report No.: AiTSZ-260317076FW1 8DPSK_3DH5_HOPP_Ant1_NTNV Page 44 of 54 Report No.: AiTSZ-260317076FW1 6.2.2 CSE GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_LCH_2402MHz_Ant1_NTNV Page 45 of 54 Report No.: AiTSZ-260317076FW1 GFSK_DH5_MCH_2441MHz_Ant1_NTNV GFSK_DH5_HCH_2480MHz_Ant1_NTNV Page 46 of 54 Report No.: AiTSZ-260317076FW1 GFSK_DH5_HCH_2480MHz_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV Page 47 of 54 Report No.: AiTSZ-260317076FW1 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 48 of 54 Report No.: AiTSZ-260317076FW1 Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Page 49 of 54 Report No.: AiTSZ-260317076FW1 Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 50 of 54 Report No.: AiTSZ-260317076FW1 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 51 of 54 Report No.: AiTSZ-260317076FW1 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV Page 52 of 54 Report No.: AiTSZ-260317076FW1 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 53 of 54 Report No.: AiTSZ-260317076FW1 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV 8DPSK_3DH5_HOPP_Ant1_NTNV Page 54 of 54 Report No.: AiTSZ-260317076FW1 8DPSK_3DH5_HOPP_Ant1_NTNV ********************** End of Report **********************

Page 1 of 2 FCC ID: 2BVC7-20977171-US Conducted Emission Radiated Emission Page 2 of 2 FCC ID: 2BVC7-20977171-US RF
