2BVCO-YADINGLBHC001Remote control

Operation manual of Magic Lantern APP Afte, the softw, 「e Is Installed and downloaded successfully,cllck apk to lnstall.Afte, the installation is complete,the following style of p,og,am icon will appea『on the desktop Remote Control Instruction Manual 8 令 88® Y 0 ＠ ＠＠＠ ． 尸:,� 想 ＇ ，烹配 ， 哑 CCD C.M> 恤，三 品血·• Off light Pattern+ pattern- Speed+ Turn to the limit and flash white light prompt Static single color shortcut button Press to display the corresponding color r;med 1 hours off 1;ghts r;med 4 hou『S off l;ghts Rhythm 1 24Key 8 Automatic loop ON light Bdghtness+ Tum to the llmlt and flash white light pmmpt Speed- Tum to the llmlt and 什ashwhite light pmmpt B,lghtness- Tum to the Tlmlt and flash white light pmmpt Timed 2 hours off l;ghts wh;te r;med 8 hours off l;ghts Set up Lock the remote 1 Rhythm 2 Pull out the insulator to use 1.1 Overview The Magic Lantern is a mobile app that controls the LED lamp belt through apple or Android mobile phone Through the mobile app,you can easily and quickly control the color.brightness and color temperature of the LED light belt.You can also set various flashing modes, and make the LED light belt move with the music rhythmJust keep the LED light band powered on, turn on the mobile phone Magic Lotus lamp app intelligent control software.connect one or more LED light band controllers through Bluetooth, so as to realize various settings and control of multiple LED light bands. Operation is very simple.easy to learn and use 1.2 Features Adjust color LED strips with 60,000 colors to change color and brightness and ad丿ust monochrome LED stips to change brightness and color temperature , Play mobile music or turn on a sound playback deviceyou can let the light change th, color and brightness with the rhythm of music.the music rhythm beautiful Inside multiple setting mode for color change and control LED strips without mobile Long distance control with omni-directional antenna,and many-to-many group control mode Quick and easy automatic connection 1.3 Performance Magic Lantern APP has good ease of use and compatibility.The actual testing and verification of hundreds of mobile phones is compatible with the current market Most smartphones.APPis small and convenientit consumes less system resources, so the requirements of the mobile configuration are low.Control delay is small,the operation feel good.light control is smooth with people's visual sense 2.0perating Environm�nt This APP program requ,res phones of system above Andriod 4.3 and iOS 8.0 Mob仆e phone configuration is not hmited 3. Jnstuctions Note And「oid version and iOS version download and use the same method, here in the Android version as an example. 3. 1 APP Download , Scan the QR code iOS and Android systems can download the"Magic Lantern"APP by scanning the QR code.Open the browser or other tools with"Scan QRcode"function scan the' Magic Lantern" QR code as below 3.2 App Operation (1) Click on the Magic lantern APP icon.enter the APP page: Chck to show the lamp l"t Sw,tc,1"ecolo, wh氏l DisplaytheRGB .. lce Click ,o maooal adicstmeot., 切 Cll<k to ,hlh the loterla<e 一一一·御臧血"" " ｀肥髯. "'� (2)A仕erentering the APP interface, if Bluetooth is not enabled,"Allow Magic Lantern to Bluetooth'" Click[Allow) (3) Switch to color and brightness intertace ( 4) Click to show the lamp list,view lamp list Bl,etooth'"'o rnaaect altec�acchfocde,ic5 lampllst Starns of d�ice moo红tioo CIiek 10 display selllog• 如 Lamp ,�l<h b,1100 Adj,stthe colo, Cl,cksq"a代,co ,to adj"stthernlM (5) Click to RGB manual adjustment view: 23 4 (6)Sw;tch to the mode ;nterface (8) sw;tch to the m;crophone rhythm ;nterlace (9) sw;tch to the t;m;ng ;nterfacec Pattemda,,;r,c,t,oo Slid, "P acd dowc to adj,st the mode aode, thernrr,ctcat勾OOJ S1,de adj,stmeot s peed (7) sw;tch to the musk rhythm ;nterface Mosl, 巾ythm th,oogh c,11 phooe mlaophooe Switch phooe m叮ophooe aod e,temalm盯ophooe Set th,1;m,ofLight-Oa Set the 1;m, of Ught�Off: (10) sw;tch to the mod;fy p;n sequence ;nte什ace: 。 飞，·aci,e( 已 Pce,,o,s沁og,Paose/Play , Ne.t soog ． 8 0 0 Sw,tchplayback mode Set Red llght SetG,.,, light 父tdiff可'"'巾ythm Sot Bl,o hght Mos;,ust M"'i<巾ythm th,o,ghthe mic,ophooe o八the p,od,<t Swlt<h phooe m叮ophooe aod•�•mal ml<tophooe Chaoge the父osltl"tyof MIC to m,t<h the ,o""d nm;og L;ght-oo bcttoo Set the llghtlag cyde r.m;og ught-off b,noo Set thehght-off cycle Our Mission We are devoted to offer customers better user e,periences with smart and connected technology. We trust the power of users, work hand in hand with our users to improve the quality of life Customer Service 30-day m oney-back gua「antee for any reason For 30 days after the date of purchase, return your undamaged product and receive a full refund for ANY reason 1 2-month war「anty fmquality-『elated issues For 12 months after the date of purchase.We take care of all quality-related issues with a REPLACEMENT OR FULL REFUND Please contact us in time if you have any questions. And you will receive a response within 24 h ours. We will gl adly assist you! FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: ( 1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. No te: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. T his equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installa…

Text truncated - open the document above for the full version.

Local Representative Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(7), of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BVCO-YADINGLBHC001 YaDingLBHC001 We hereby acknowledge as follows: i. both signees confirm that the point of contact accepts responsibility to act as a US- American Representative on behalf of the applicant ii. the point of contact provides the physical U.S. address and email as listed below iii. both parties maintain the requirements of this agreement for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. iv. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. US-American Point of Contact Applicant/Approval Holder Signature Date: 2026-4-7 Signature Date: 2026-4-7 Company Name: GLOCERTS TECHNOLOGY INC ZhongShanShi YaDingZhaoMing KeJi Co.,Ltd. FRN: 0036339737 0038190518 Contact Name: Huiying Fan Liang Zhou Addres: 19784 SUNKISSED RIDGE DR, RIVERSIDE, CA 92507 FuQingErLu2HaoZhiEr,DaMingGon gYeYuanEDong3LouZhiEr,HengLan Zhen,ZhongShanShi,GuangDongSh eng,China Phone: (626) 588-8039 18676163896 Email: [email protected] [email protected]

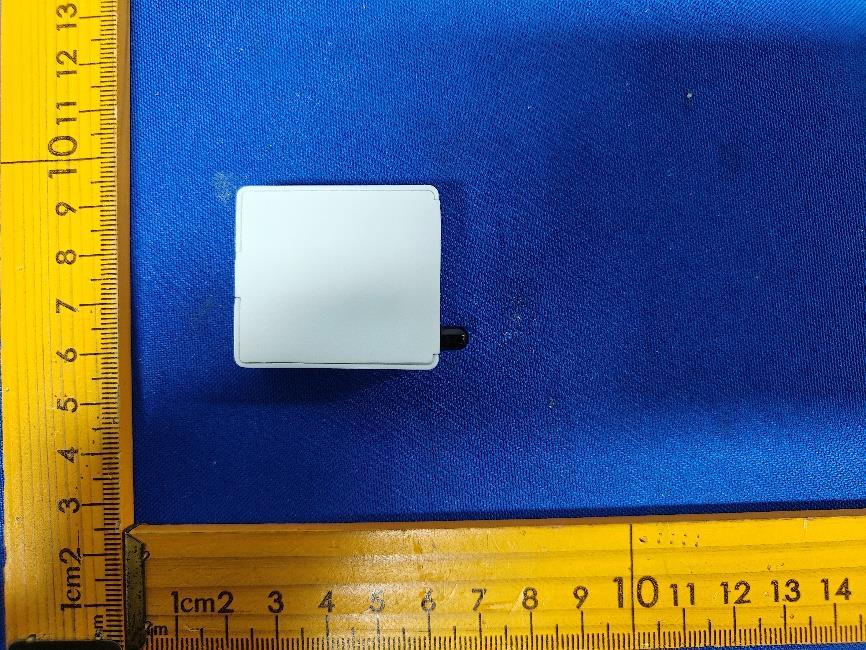

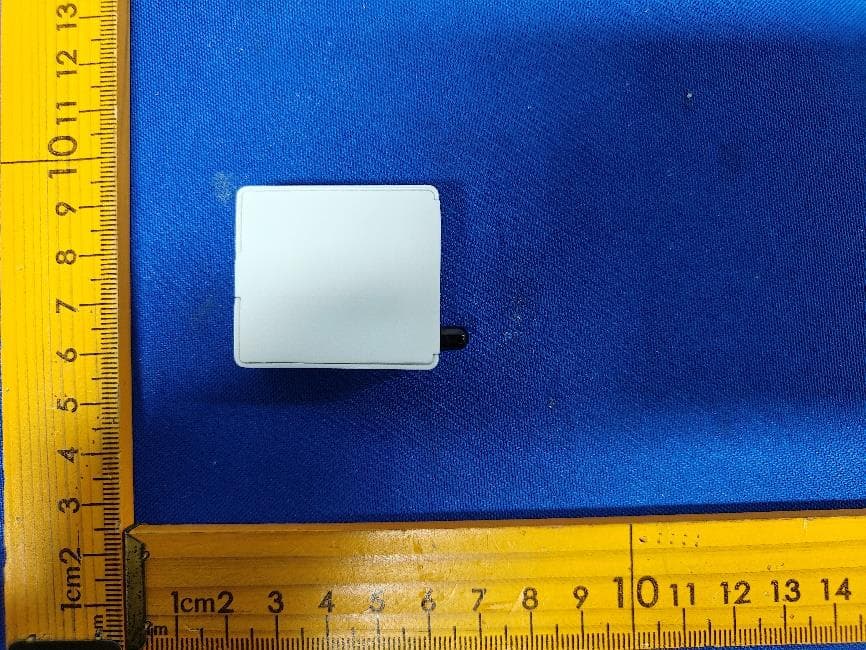

Page 1 of 3 FCC ID: 2BVCO-YADINGLBHC001 External Photos Page 2 of 3 FCC ID: 2BVCO-YADINGLBHC001 Page 3 of 3 FCC ID: 2BVCO-YADINGLBHC001

Label FCC ID: 2BVCO-YADINGLBHC001

Page 1 of 2 FCC ID: 2BVCO-YADINGLBHC001 Internal Photos Page 2 of 2 FCC ID: 2BVCO-YADINGLBHC001 PCB ANT

Page 1 of 8 Report No.: AiTSZ-260312024FW2 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. RF Exposure evaluation Product Name : Remote control Brand Name : ATHONO Model : YaDingLBHC001 Series Model : N/A FCC ID : 2BVCO-YADINGLBHC001 Applicant : ZhongShanShi YaDingZhaoMing KeJi Co.,Ltd. Address : FuQingErLu2HaoZhiEr,DaMingGongYeYuanEDong3LouZhiEr, HengLanZhen,ZhongShanShi,GuangDongSheng,China Manufacturer : ZhongShanShi YaDingZhaoMing KeJi Co.,Ltd. Address : FuQingErLu2HaoZhiEr,DaMingGongYeYuanEDong3LouZhiEr, HengLanZhen,ZhongShanShi,GuangDongSheng,China Standard(s) : 47CFR §1.1310, 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt : Mar. 12, 2026 Date of Test : Mar. 12, 2026~ Mar. 31, 2026 Issued Date : Mar. 31, 2026 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 8 Report No.: AiTSZ-260312024FW2 Report Revise Record Report Version Issued Date Notes M0 Mar. 31, 2026 Initial Release Page 3 of 8 Report No.: AiTSZ-260312024FW2 Contents 1 GENERAL INFORMATION .......................................................................................................................................... 4 1.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 4 1.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 METHOD OF MEASUREMENT ................................................................................................................................... 6 2.1 APPLICABLE STANDARD.................................................................................................................................................. 6 2.2 LIMIT ......................................................................................................................................................................... 6 2.3 MPE CALCULATION METHOD ......................................................................................................................................... 7 2.4 MANUFACTURING TOLERANCE ........................................................................................................................................ 7 2.5 STANDALONE MPE RESULT ............................................................................................................................................ 8 2.6 CONCLUSION ............................................................................................................................................................... 8 Page 4 of 8 Report No.: AiTSZ-260312024FW2 1 GENERAL INFORMATION 1.1 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 25°C Relative Humidity: 55 % Air Pressure: 101 kPa 1.2 General Description of EUT Product Name: Remote control Model/Type reference: YaDingLBHC001 Serial Model: N/A Power Ratings DC 24V from adapter Adapter information: MODEL: HXS-2420 INPUT: AC100-240V 50/60Hz OUTPUT: DC 24V2A Hardware Version: N/A Software Version: N/A Sample(s) Status: AiTSZ-260312024-1(Normal sample) AiTSZ-260312024-2(Engineer sample) Bluetooth LE: Supported type: Bluetooth LE 1M/2M Modulation: GFSK Operation frequency: 2402MHz~2480MHz Channel number: 40 Channel separation: 2MHz Antenna type: PCB Antenna Antenna gain: 0dBi Remark: The above DUT's information was declared by manufacturer. For more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 5 of 8 Report No.: AiTSZ-260312024FW2 1.3 Test Facility Test Laboratory: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 31737 A2LA-Lab Cert. No.: 7133.01 Guangdong Asia Hongke Test Technology Limited has been accred…

Text truncated - open the document above for the full version.

Page 1 of 31 Report No.: AiTSZ-260312024FW1 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : Remote control Brand Name : ATHONO Model : YaDingLBHC001 Series Model : N/A FCC ID : 2BVCO-YADINGLBHC001 Applicant : ZhongShanShi YaDingZhaoMing KeJi Co.,Ltd. Address : FuQingErLu2HaoZhiEr,DaMingGongYeYuanEDong3LouZhiEr, HengLanZhen,ZhongShanShi,GuangDongSheng,China Manufacturer : ZhongShanShi YaDingZhaoMing KeJi Co.,Ltd. Address : FuQingErLu2HaoZhiEr,DaMingGongYeYuanEDong3LouZhiEr, HengLanZhen,ZhongShanShi,GuangDongSheng,China Standard(s) : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Receipt : Mar. 12, 2026 Date of Test : Mar. 12, 2026~ Mar. 31, 2026 Issued Date : Mar. 31, 2026 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 31 Report No.: AiTSZ-260312024FW1 Report Revise Record Report Version Issued Date Notes M0 Mar. 31, 2026 Initial Release Page 3 of 31 Report No.: AiTSZ-260312024FW1 Contents 1 TEST SUMMARY ....................................................................................................................................................... 4 1.1 TEST STANDARDS ......................................................................................................................................................... 4 1.2 TEST SUMMARY ........................................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 GENERAL INFORMATION .......................................................................................................................................... 6 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3 DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4 SPECIAL ACCESSORIES ................................................................................................................................................... 8 2.5 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 8 3 TEST CONDITIONS AND RESULTS ............................................................................................................................ 10 3.1 CONDUCTED EMISSIONS TEST ....................................................................................................................................... 10 3.2 RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 13 3.3 MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................................... 20 3.4 POWER SPECTRAL DENSITY .......................................................................................................................................... 21 3.5 6DB BANDWIDTH ....................................................................................................................................................... 22 3.6 OUT-OF-BAND EMISSIONS ........................................................................................................................................... 23 3.7 ANTENNA REQUIREMENT ............................................................................................................................................. 25 4 TEST SETUP PHOTOGRAPHS OF EUT ....................................................................................................................... 26 5 PHOTOS OF EUT ..................................................................................................................................................... 27 Page 4 of 31 Report No.: AiTSZ-260312024FW1 1 TEST SUMMARY 1.1 Test Standards The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ANSI C63.10: 2020: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, …

Text truncated - open the document above for the full version.

Antenna describe 1. Antenna describe: Antenna plate PCB ANTENNA Make name/model name PDT-002 Antenna gain 0dBi Frequency range 2.4GHZ-2.483GHZ Connector type direct Manufacturer Name: DONGGUANG XIAOKE INDUSTRLES.CO.,LTD Manufacture Address: NO. 227, DONGCHENG SECTION, GUANDONG ROAD, DONGCHENG STREET, DONGGUAN CITY,CHINA 2.External view drawing: Picture of antenna Antenna Dimensions L1 2.15 mm L2 1.20 mm L3 1.95 mm W1 0.35 mm W2 0.35 mm D1 1.25 mm D2 1.65 mm D3 0.50 mm 3.Antenna Radiation Pattern

Page 1 of 30 Report No.: AiTSZ-260312024FW1 Appendix RF test data for BLE Page 2 of 30 Report No.: AiTSZ-260312024FW1 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 2.123 2.500 84.92 0.71 0.03 2440 2.124 2.501 84.93 0.71 0.03 2480 2.124 2.501 84.93 0.71 0.03 2M SISO 2402 1.065 1.874 56.83 2.45 0.03 2440 1.065 1.875 56.80 2.46 0.03 2480 1.065 1.875 56.80 2.46 0.03 Page 3 of 30 Report No.: AiTSZ-260312024FW1 1.2 Test Graph 1.2.1 Ant1 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 4 of 30 Report No.: AiTSZ-260312024FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 5 of 30 Report No.: AiTSZ-260312024FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 6 of 30 Report No.: AiTSZ-260312024FW1 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.027 / Pass 2440 1 1.028 / Pass 2480 1 1.028 / Pass 2M SISO 2402 1 2.065 / Pass 2440 1 2.071 / Pass 2480 1 2.072 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.667 >=0.5 Pass 2440 1 0.667 >=0.5 Pass 2480 1 0.666 >=0.5 Pass 2M SISO 2402 1 1.204 >=0.5 Pass 2440 1 1.251 >=0.5 Pass 2480 1 1.251 >=0.5 Pass Page 7 of 30 Report No.: AiTSZ-260312024FW1 2.2 Test Graph 2.2.1 OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 8 of 30 Report No.: AiTSZ-260312024FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 9 of 30 Report No.: AiTSZ-260312024FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 10 of 30 Report No.: AiTSZ-260312024FW1 2.2.2 6dB BW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 11 of 30 Report No.: AiTSZ-260312024FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 12 of 30 Report No.: AiTSZ-260312024FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 13 of 30 Report No.: AiTSZ-260312024FW1 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 -2.28 <=30 Pass 2440 -1.27 <=30 Pass 2480 -0.68 <=30 Pass 2M SISO 2402 -2.23 <=30 Pass 2440 -1.22 <=30 Pass 2480 -0.63 <=30 Pass Note1: Antenna Gain: Ant1: 0.00dBi; Page 14 of 30 Report No.: AiTSZ-260312024FW1 3.2 Test Graph 3.2.1 Power 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 15 of 30 Report No.: AiTSZ-260312024FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 16 of 30 Report No.: AiTSZ-260312024FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 17 of 30 Report No.: AiTSZ-260312024FW1 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit 1M SISO 2402 -2.44 <=8 Pass 2440 -1.42 <=8 Pass 2480 -0.87 <=8 Pass 2M SISO 2402 -3.56 <=8 Pass 2440 -2.48 <=8 Pass 2480 -1.93 <=8 Pass Note1: Antenna Gain: Ant1: 0.00dBi; Page 18 of 30 Report No.: AiTSZ-260312024FW1 4.2 Test Graph 4.2.1 PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 19 of 30 Report No.: AiTSZ-260312024FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 20 of 30 Report No.: AiTSZ-260312024FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 21 of 30 Report No.: AiTSZ-260312024FW1 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 -2.45 2440 1 -1.44 2480 1 -0.86 2M SISO 2402 1 -3.53 2440 1 -2.53 2480 1 -1.93 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 -2.45 -22.45 Pass 2440 1 -1.44 -21.44 Pass 2480 1 -0.86 -20.86 Pass 2M SISO 2402 1 -3.53 -23.53 Pass 2440 1 -2.53 -22.53 Pass 2480 1 -1.93 -21.93 Pass Page 22 of 30 Report No.: AiTSZ-260312024FW1 5.2 Test Graph 5.2.1 Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 23 of 30 Report No.: AiTSZ-260312024FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 24 of 30 Report No.: AiTSZ-260312024FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 25 of 30 Report No.: AiTSZ-260312024FW1 5.2.2 CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV Page 26 of 30 Report No.: AiTSZ-260312024FW1 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Page 27 of 30 Report No.: AiTSZ-260312024FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 28 of 30 Report No.: AiTSZ-260312024FW1 2M_LCH_2402MHz_Ant1_NTNV 2M_MCH_2440MHz_Ant1_NTNV Page 29 of 30 Report No.: AiTSZ-260312024FW1 2M_HCH_2480MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 30 of 30 Report No.: AiTSZ-260312024FW1 6. Form731 6.1 Test Result 6.1.1 Form731 Lower Freq (MHz) High Freq (MHz) MAX Power (W) MAX Power (dBm) 2402 2480 0.0009 -0.63 ********************** End of Report **********************
