Worldwide Telecommunications, Inc. 4505 Las Virgenes Rd Suite 115 Calabasas California United States Date: 2026-5-20 FCC ID: 2BVF8WTI5500 Model Number: 5500, 5510, 5516, 5519, 5520, 5530, 5540, 5550, 5560, 5570, 5580, 5590 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Worldwide Telecommunications, Inc. , declare that this EUT (FCC ID: 2BVF8WTI5500) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title: Robert Gilbert/President Company: Worldwide Telecommunications, Inc. Address: 4505 Las Virgenes Rd Suite 115 Calabasas California United States Phone: (818) 878-9457 Fax: E-Mail: [email protected]

Worldwide Telecommunications, Inc. Add: 4505 Las Virgenes Rd Suite 115 Calabasas California United States Date: 2026-5-20 FCC ID: 2BVF8WTI5500 Dear Sir/Madam, We, Worldwide Telecommunications, Inc. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number and colour is different for these model. So the tests were performed on model 5500 and the test results for the main test model can cover the listed models.: Product name: Industrial Router Model no.: 5500, 5510, 5516, 5519, 5520, 5530, 5540, 5550, 5560, 5570, 5580, 5590 Sincerely, Name/Title Robert Gilbert/President Company: Worldwide Telecommunications, Inc. Address: 4505 Las Virgenes Rd Suite 115 Calabasas California United States Phone: (818) 878-9457 Fax: E-Mail: [email protected]

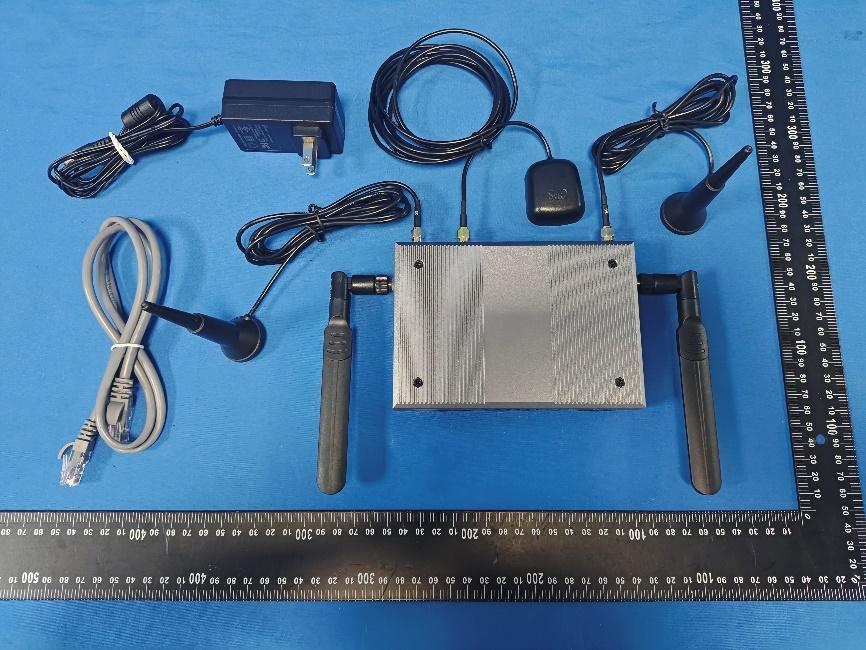

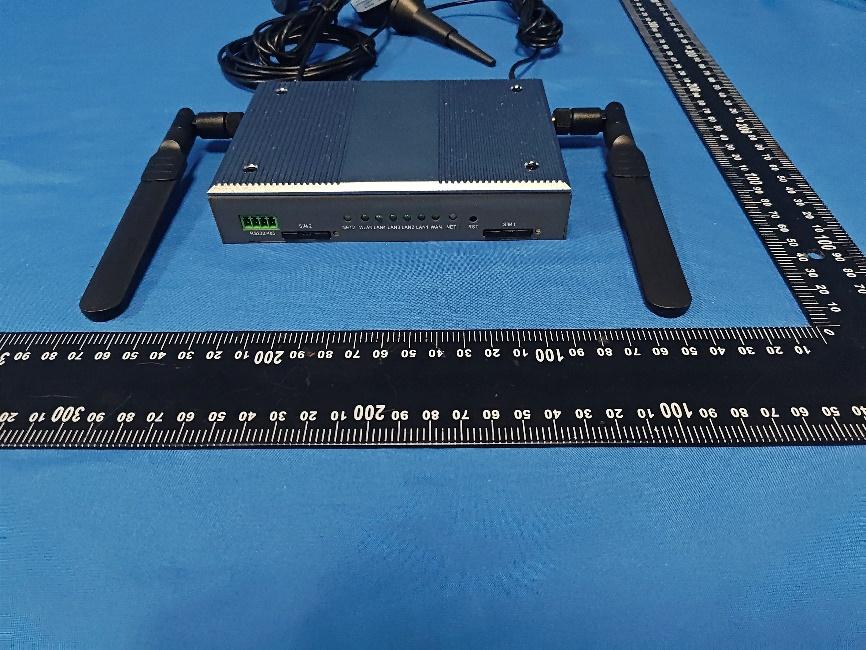

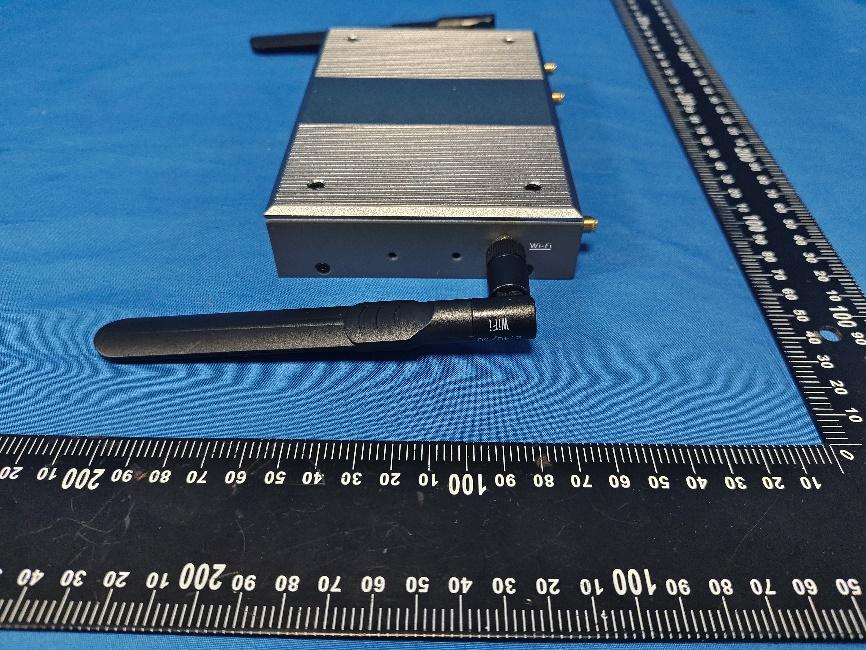

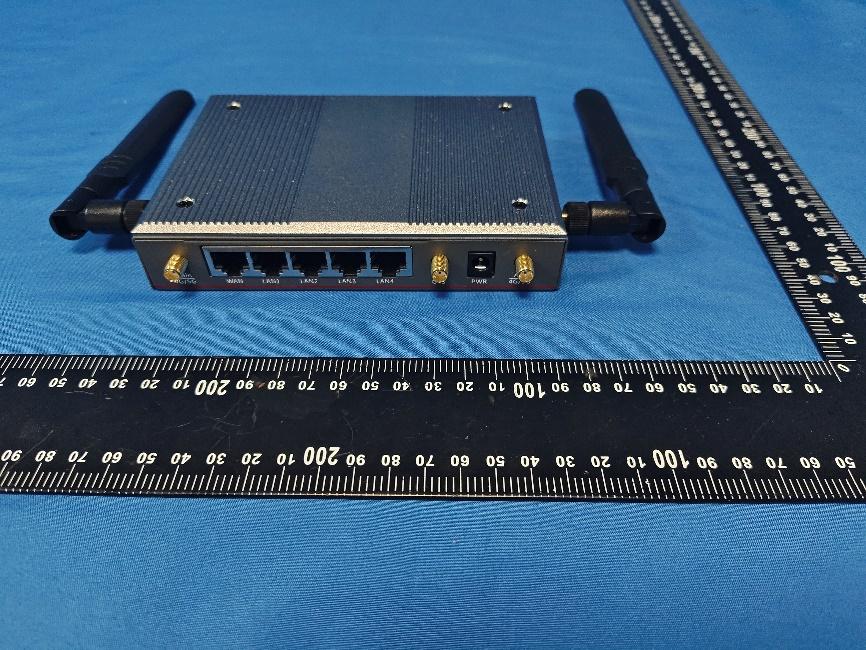

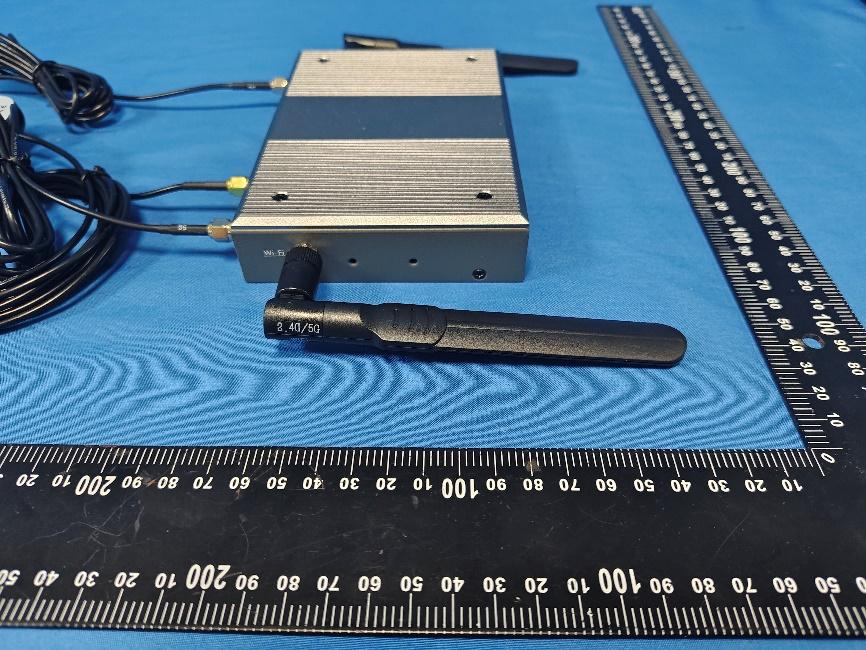

FCC ID:2BVF8WTI5500 External Photos of the EUT Diversity LTE/NR Antenna Main LTE/NR Antenna WIFI Antenna 1 GPS RX Antenna WIFI Antenna 2 FCC ID:2BVF8WTI5500 FCC ID:2BVF8WTI5500

Label and Location 5500 Name: Industrial Router Model: 5500 Band: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/30/ 38/40/41/48/66/70/71/77/78/79 Power: 12V 2A Port: 5xLAN,RS485 IP: 192.168.10.1 Login: admin/admin Contain FCC ID:XMR2024RG255CGL FCC ID:2BVF8WTI5500 HOMTECS M2M TECHNOLOGY COMPANY LIMITED 201, F5 Building, TCL Science Park, NO.1001, Zhongshan Park Road, Shuguang Community, Xili Street,Nanshan District, Shenzhen Importer：Worldwide Telecommunications Inc Importer address:4505 Las Virgenes Road, Suite 115, Calabasas, California 91302, United States Made in China Label and Location

FCC ID:2BVF8WTI5500 Internal Photos of the EUT FCC ID:2BVF8WTI5500 FCC ID:2BVF8WTI5500 FCC ID:2BVF8WTI5500 FCC ID:2BVF8WTI5500

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : CTA26042702503 2BVF8WTI5500 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : May 13, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Worldwide Telecommunications, Inc. Address............................................ : 4505 Las Virgenes Rd Suite 115 Calabasas, CA 91302 Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Industrial Router Trade Mark ....................................... : N/A Manufacturer .................................... : HOMTECS M2M TECHNOLODY COMPANY LIMITED Model/Type reference ...................... : 5500 Listed Models ................................... : 5510, 5516, 5519, 5520, 5530, 5540, 5550, 5560, 5570, 5580, 5590 Rating ............................................... : Input:12V2A Result ............................................... : PASS Report No.: CTA26042702503 Page 2 of 11 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Industrial Router Model /Type : 5500 Listed Models : 5510, 5516, 5519, 5520, 5530, 5540, 5550, 5560, 5570, 5580, 5590 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. So the tests were performed on model 5500 and the test results for the main test model can cover the listed models. Applicant : Worldwide Telecommunications, Inc. Address : 4505 Las Virgenes Rd Suite 115 Calabasas, CA 91302 Manufacturer : HOMTECS M2M TECHNOLODY COMPANY LIMITED Address : 201, F5 Building, TCL Science Park, NO.1001,Zhongshan Park Road, Shuguang Community,Xili Street,Nanshan District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26042702503 Page 3 of 11 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks .................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................ 6 2.4 Modifications ........................................................................................................... 6 3 TEST ENVIRONMENT ....................................................................................................... 7 3.1 Address of the test laboratory ................................................................................. 7 3.2 Test Facility ............................................................................................................. 7 3.3 Statement of the measurement uncertainty ............................................................ 7 4 Test limit .............................................................................................................................. 8 4.1 Requirement ........................................................................................................... 8 4.2 MPE Calculation Method ........................................................................................ 8 4.3 Conducted Power Results ...................................................................................... 9 4.4 Manufacturing tolerance ....................................................................................... 11 4.5 Standalone MPE Result ........................................................................................ 11 4.6 Simultaneous Transmission for MPE Result ........................................................ 11 5 Conclusion .................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BVF8WTI5500 Company : Worldwide Telecommunications, Inc. EUT : Industrial Router Model Number : 5500 Report No. : CTA26042702501 Reviewed By : Eric Wang 2 FCC Appendix RF Test Data for 2.4GWIFI Antenna 1 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.200 2406.960 2417.160 0.5 PASS 2437 10.200 2431.920 2442.120 0.5 PASS 2462 10.200 2456.920 2467.120 0.5 PASS 11G Ant1 2412 16.160 2403.880 2420.040 0.5 PASS 2437 15.880 2429.080 2444.960 0.5 PASS 2462 15.720 2454.080 2469.800 0.5 PASS 11N20SISO Ant1 2412 16.200 2404.120 2420.320 0.5 PASS 2437 16.960 2428.520 2445.480 0.5 PASS 2462 15.960 2453.880 2469.840 0.5 PASS 11N40SISO Ant1 2422 35.520 2404.480 2440.000 0.5 PASS 2437 35.280 2419.800 2455.080 0.5 PASS 2452 35.680 2434.320 2470.000 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.416 2405.3185 2418.7345 --- --- 2437 13.409 2430.3153 2443.7243 --- --- 2462 13.428 2455.2999 2468.7279 --- --- 11G Ant1 2412 16.807 2403.6414 2420.4484 --- --- 2437 16.813 2428.6301 2445.4431 --- --- 2462 16.791 2453.6246 2470.4156 --- --- 11N20SISO Ant1 2412 17.881 2403.0890 2420.9700 --- --- 2437 17.903 2428.0589 2445.9619 --- --- 2462 17.870 2453.0825 2470.9525 --- --- 11N40SISO Ant1 2422 36.049 2404.0752 2440.1242 --- --- 2437 36.027 2419.1059 2455.1329 --- --- 2452 36.067 2434.0686 2470.1356 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Frequency[MHz] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 12.06 ≤30.00 PASS 2437 12.26 ≤30.00 PASS 2462 12.45 ≤30.00 PASS 11G Ant1 2412 12.05 ≤30.00 PASS 2437 12.20 ≤30.00 PASS 2462 12.23 ≤30.00 PASS 11N20SISO Ant1 2412 11.70 ≤30.00 PASS 2437 12.16 ≤30.00 PASS 2462 12.15 ≤30.00 PASS 11N40SISO Ant1 2422 12.26 ≤30.00 PASS 2437 12.42 ≤30.00 PASS 2452 12.52 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -13.03 ≤8.00 PASS 2437 -13.72 ≤8.00 PASS 2462 -13.79 ≤8.00 PASS 11G Ant1 2412 -19.83 ≤8.00 PASS 2437 -19.56 ≤8.00 PASS 2462 -19.11 ≤8.00 PASS 11N20SISO Ant1 2412 -20.31 ≤8.00 PASS 2437 -19.12 ≤8.00 PASS 2462 -19.13 ≤8.00 PASS 11N40SISO Ant1 2422 -22.07 ≤8.00 PASS 2437 -21.54 ≤8.00 PASS 2452 -22.20 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 0.10 -53.99 ≤-19.91 PASS High 2462 0.37 -56.47 ≤-19.63 PASS 11G Ant1 Low 2412 -4.31 -36.25 ≤-24.31 PASS High 2462 -4.46 -57.41 ≤-24.46 PASS 11N20SIS O Ant1 Low 2412 -4.57 -35.22 ≤-24.57 PASS High 2462 -4.33 -57.33 ≤-24.33 PASS 11N40SIS O Ant1 Low 2422 -7.88 -35.9 ≤-27.88 PASS High 2452 -7.59 -56.65 ≤-27.59 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 23 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 24 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 25 26 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -0.94 -0.94 --- PASS 30~1000 -0.94 -67.57 ≤-20.94 PASS 1000~26500 -0.94 -55.86 ≤-20.94 PASS 2437 Reference -0.14 -0.14 --- PASS 30~1000 -0.14 -67.92 ≤-20.14 PASS 1000~26500 -0.14 -55.82 ≤-20.14 PASS 2462 Reference -0.56 -0.56 --- PASS 30~1000 -0.56 -66.96 ≤-20.56 PASS 1000~26500 -0.56 -55.64 ≤-20.56 PASS 11G Ant1 2412 Reference -5.42 -5.42 --- PASS 30~1000 -5.42 -68.13 ≤-25.42 PASS 1000~26500 -5.42 -55.29 ≤-25.42 PASS 2437 Reference -4.95 -4.95 --- PASS 30~1000 -4.95 -67.6 ≤-24.95 PASS 1000~26500 -4.95 -55.73 ≤-24.95 PASS 2462 Reference -5.26 -5.26 --- PASS 30~1000 -5.26 -67.54 ≤-25.26 PASS 1000~26500 -5.26 -55.18 ≤-25.26 PASS 11N20SISO Ant1 2412 Reference -4.70 -4.70 --- PASS 30~1000 -4.70 -68.31 ≤-24.7 PASS 1000~26500 -4.70 -55.7 ≤-24.7 PASS 2437 Reference -4.24 -4.24 --- PASS 30~1000 -4.24 -66.66 ≤-24.24 PASS 1000~26500 -4.24 -55.86 ≤-24.24 PASS 2462 Reference -4.48 -4.48 --- PASS 30~1000 -4.48 -67.2 ≤-24.48 PASS 1000~26500 -4.48 -55.24 ≤-24.48 PASS 11N40SISO Ant1 2422 Reference -7.98 -7.98 --- PASS 30~1000 -7.98 -67.8 ≤-27.98 PASS 1000~26500 -7.98 -56.18 ≤-27.98 PASS 2437 Reference -8.28 -8.28 --- PASS 30~1000 -8.28 -67.43 ≤-28.28 PASS 1000~26500 -8.28 -55.89 ≤-28.28 PASS 2452 Reference -7.66 -7.66 --- PASS 30~1000 -7.66 -67.9 ≤-27.66 PASS 1000~26500 -7.66 -55.23 ≤-27.66 PASS 27 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 28 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 29 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 30 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 31 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 32 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 33 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 34 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000

35 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 36 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 37 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 38 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 39 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 40 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 41 11N40SISO_Ant1_2452_1000~26500 42 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.35 8.40 99.40 0.03 0.12 2437 8.35 8.40 99.40 0.03 0.12 2462 8.35 8.40 99.40 0.03 0.12 11G Ant1 2412 0.14 0.19 73.68 1.33 7.14 2437 0.15 0.20 75.00 1.25 6.67 2462 0.15 0.20 75.00 1.25 6.67 11N20SISO Ant1 2412 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.23 78.26 1.06 5.56 2462 0.18 0.22 81.82 0.87 5.56 11N40SISO Ant1 2422 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.23 78.26 1.06 5.56 2452 0.18 0.22 81.82 0.87 5.56 43 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 44 11G_Ant1_2412 11G_Ant1_2437 45 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 46 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 47 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 48 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequen cy[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -59.67 4.74 0.03 40.3 ≤54 PASS AV 2389.440 -57.9 4.74 0.03 42.07 ≤54 PASS AV 2390.000 -58.1 4.74 0.03 41.87 ≤54 PASS Peak 2310.000 -51.62 4.74 0.00 48.32 ≤74 PASS Peak 2361.750 -48.05 4.74 0.00 51.89 ≤74 PASS Peak 2390.000 -49.52 4.74 0.00 50.42 ≤74 PASS High 2462 AV 2483.500 -58.5 4.74 0.03 41.47 ≤54 PASS AV 2485.980 -57.57 4.74 0.03 42.4 ≤54 PASS AV 2500.000 -59.07 4.74 0.03 40.9 ≤54 PASS Peak 2483.500 -49.58 4.74 0.00 50.36 ≤74 PASS Peak 2485.210 -48.49 4.74 0.00 51.45 ≤74 PASS Peak 2500.000 -49.21 4.74 0.00 50.73 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -59.78 4.74 1.33 41.49 ≤54 PASS AV 2376.050 -58.7 4.74 1.33 42.57 ≤54 PASS AV 2390.000 -59.27 4.74 1.33 42 ≤54 PASS Peak 2310.000 -52.5 4.74 0.00 47.44 ≤74 PASS Peak 2388.400 -48.17 4.74 0.00 51.77 ≤74 PASS Peak 2390.000 -50.58 4.74 0.00 49.36 ≤74 PASS High 2462 AV 2483.500 -59.2 4.74 1.25 41.99 ≤54 PASS AV 2493.900 -58.28 4.74 1.25 42.91 ≤54 PASS AV 2500.000 -58.7 4.74 1.25 42.49 ≤54 PASS Peak 2483.500 -51.2 4.74 0.00 48.74 ≤74 PASS Peak 2495.110 -48.28 4.74 0.00 51.66 ≤74 PASS Peak 2500.000 -50.26 4.74 0.00 49.68 ≤74 PASS 11N20SI SO Ant1 Low 2412 AV 2310.000 -60.12 4.74 1.06 40.88 ≤54 PASS AV 2383.720 -58.58 4.74 1.06 42.42 ≤54 PASS AV 2390.000 -60.06 4.74 1.06 40.94 ≤54 PASS Peak 2310.000 -53.18 4.74 0.00 46.76 ≤74 PASS Peak 2387.360 -48.99 4.74 0.00 50.95 ≤74 PASS Peak 2390.000 -51.56 4.74 0.00 48.38 ≤74 PASS High 2462 AV 2483.500 -58.54 4.74 0.87 42.27 ≤54 PASS AV 2490.270 -58.35 4.74 0.87 42.46 ≤54 PASS AV 2500.000 -59.12 4.74 0.87 41.69 ≤54 PASS Peak 2483.500 -50.47 4.74 0.00 49.47 ≤74 PASS Peak 2489.610 -47.72 4.74 0.00 52.22 ≤74 PASS Peak 2500.000 -50.79 4.74 0.00 49.15 ≤74 PASS 49 11N40SI SO Ant1 Low 2422 AV 2310.000 -60.07 4.74 1.06 40.93 ≤54 PASS AV 2389.850 -57.16 4.74 1.06 43.84 ≤54 PASS AV 2390.000 -57.5 4.74 1.06 43.5 ≤54 PASS Peak 2310.000 -52.88 4.74 0.00 47.06 ≤74 PASS Peak 2387.000 -48.37 4.74 0.00 51.57 ≤74 PASS Peak 2390.000 -49.06 4.74 0.00 50.88 ≤74 PASS High 2452 AV 2483.500 -58.64 4.74 0.87 42.17 ≤54 PASS AV 2486.000 -58 4.74 0.87 42.81 ≤54 PASS AV 2500.000 -58.98 4.74 0.87 41.83 ≤54 PASS Peak 2483.500 -49.23 4.74 0.00 50.71 ≤74 PASS Peak 2484.875 -47.32 4.74 0.00 52.62 ≤74 PASS Peak 2500.000 -51.16 4.74 0.00 48.78 ≤74 PASS Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 50 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 51 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 52 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 53 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 54 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak 11N40SISO_Ant1_Low_2422_AV 55 11N40SISO_Ant1_Low_2422_Peak 11N40SISO_Ant1_High_2452_AV 56 11N40SISO_Ant1_High_2452_Peak 57 FCC Appendix RF Test Data for 2.4GWIFI Antenna 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant2 2412 10.240 2406.920 2417.160 0.5 PASS 2437 10.200 2431.920 2442.120 0.5 PASS 2462 10.200 2456.920 2467.120 0.5 PASS 11G Ant2 2412 15.680 2404.080 2419.760 0.5 PASS 2437 15.640 2429.040 2444.680 0.5 PASS 2462 15.760 2454.080 2469.840 0.5 PASS 11N20SISO Ant2 2412 16.960 2403.680 2420.640 0.5 PASS 2437 17.080 2428.480 2445.560 0.5 PASS 2462 17.160 2453.440 2470.600 0.5 PASS 11N40SISO Ant2 2422 35.760 2404.320 2440.080 0.5 PASS 2437 35.200 2419.640 2454.840 0.5 PASS 2452 35.680 2434.320 2470.000 0.5 PASS 58 Test Graphs 11B_Ant2_2412 11B_Ant2_2437 11B_Ant2_2462 59 11G_Ant2_2412 11G_Ant2_2437 60 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 61 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422 62 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 63 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant2 2412 13.426 2405.3139 2418.7399 --- --- 2437 13.420 2430.3064 2443.7264 --- --- 2462 13.431 2455.2986 2468.7296 --- --- 11G Ant2 2412 16.801 2403.6343 2420.4353 --- --- 2437 16.913 2428.5461 2445.4591 --- --- 2462 16.894 2453.6103 2470.5043 --- --- 11N20SISO Ant2 2412 17.861 2403.1048 2420.9658 --- --- 2437 17.855 2428.0801 2445.9351 --- --- 2462 17.869 2453.0785 2470.9475 --- --- 11N40SISO Ant2 2422 36.058 2404.1243 2440.1823 --- --- 2437 36.057 2419.0898 2455.1468 --- --- 2452 36.023 2434.1300 2470.1530 --- -…

Text truncated - open the document above for the full version.

66 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 67 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422 68 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 69 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Frequency[MHz] Result [dBm] Limit [dBm] Verdict 11B Ant2 2412 11.77 ≤30.00 PASS 2437 12.08 ≤30.00 PASS 2462 12.16 ≤30.00 PASS 11G Ant2 2412 12.12 ≤30.00 PASS 2437 12.19 ≤30.00 PASS 2462 12.45 ≤30.00 PASS 11N20SISO Ant2 2412 12.00 ≤30.00 PASS 2437 12.33 ≤30.00 PASS 2462 12.30 ≤30.00 PASS 11N40SISO Ant2 2422 12.45 ≤30.00 PASS 2437 12.62 ≤30.00 PASS 2452 12.66 ≤30.00 PASS 70 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant2 2412 -13.33 ≤8.00 PASS 2437 -13.60 ≤8.00 PASS 2462 -14.27 ≤8.00 PASS 11G Ant2 2412 -18.95 ≤8.00 PASS 2437 -18.70 ≤8.00 PASS 2462 -18.95 ≤8.00 PASS 11N20SISO Ant2 2412 -18.64 ≤8.00 PASS 2437 -19.03 ≤8.00 PASS 2462 -18.10 ≤8.00 PASS 11N40SISO Ant2 2422 -22.23 ≤8.00 PASS 2437 -21.04 ≤8.00 PASS 2452 -22.24 ≤8.00 PASS 71 Test Graphs 11B_Ant2_2412 11B_Ant2_2437 11B_Ant2_2462 72 11G_Ant2_2412 11G_Ant2_2437 73 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 74 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422 75 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 76 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant2 Low 2412 -0.22 -53.46 ≤-20.22 PASS High 2462 -0.10 -57.09 ≤-20.1 PASS 11G Ant2 Low 2412 -4.36 -37.52 ≤-24.36 PASS High 2462 -4.34 -57.87 ≤-24.34 PASS 11N20SIS O Ant2 Low 2412 -4.53 -36.09 ≤-24.53 PASS High 2462 -4.40 -57.43 ≤-24.4 PASS 11N40SIS O Ant2 Low 2422 -7.64 -35.71 ≤-27.64 PASS High 2452 -7.35 -56.55 ≤-27.35 PASS 77 Test Graphs 11B_Ant2_Low_2412 11B_Ant2_High_2462 11G_Ant2_Low_2412 78 11G_Ant2_High_2462 11N20SISO_Ant2_Low_2412 79 11N20SISO_Ant2_High_2462 11N40SISO_Ant2_Low_2422 11N40SISO_Ant2_High_2452 80 81 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant2 2412 Reference -1.12 -1.12 --- PASS 30~1000 -1.12 -67.12 ≤-21.12 PASS 1000~26500 -1.12 -55.04 ≤-21.12 PASS 2437 Reference -1.01 -1.01 --- PASS 30~1000 -1.01 -67.48 ≤-21.01 PASS 1000~26500 -1.01 -55.18 ≤-21.01 PASS 2462 Reference -0.75 -0.75 --- PASS 30~1000 -0.75 -67.64 ≤-20.75 PASS 1000~26500 -0.75 -55.85 ≤-20.75 PASS 11G Ant2 2412 Reference -4.92 -4.92 --- PASS 30~1000 -4.92 -67.57 ≤-24.92 PASS 1000~26500 -4.92 -55.23 ≤-24.92 PASS 2437 Reference -6.89 -6.89 --- PASS 30~1000 -6.89 -66.93 ≤-26.89 PASS 1000~26500 -6.89 -54.7 ≤-26.89 PASS 2462 Reference -4.07 -4.07 --- PASS 30~1000 -4.07 -67.69 ≤-24.07 PASS 1000~26500 -4.07 -55.74 ≤-24.07 PASS 11N20SISO Ant2 2412 Reference -5.08 -5.08 --- PASS 30~1000 -5.08 -67.41 ≤-25.08 PASS 1000~26500 -5.08 -55.71 ≤-25.08 PASS 2437 Reference -4.90 -4.90 --- PASS 30~1000 -4.90 -67.41 ≤-24.9 PASS 1000~26500 -4.90 -55.33 ≤-24.9 PASS 2462 Reference -5.13 -5.13 --- PASS 30~1000 -5.13 -68.17 ≤-25.13 PASS 1000~26500 -5.13 -55.47 ≤-25.13 PASS 11N40SISO Ant2 2422 Reference -8.07 -8.07 --- PASS 30~1000 -8.07 -64.71 ≤-28.07 PASS 1000~26500 -8.07 -55.38 ≤-28.07 PASS 2437 Reference -7.81 -7.81 --- PASS 30~1000 -7.81 -64.8 ≤-27.81 PASS 1000~26500 -7.81 -55.78 ≤-27.81 PASS 2452 Reference -7.45 -7.45 --- PASS 30~1000 -7.45 -67.46 ≤-27.45 PASS 1000~26500 -7.45 -56.06 ≤-27.45 PASS 82 Test Graphs 11B_Ant2_2412_0~Reference 11B_Ant2_2412_30~1000 11B_Ant2_2412_1000~26500 83 11B_Ant2_2437_0~Reference 11B_Ant2_2437_30~1000 84 11B_Ant2_2437_1000~26500 11B_Ant2_2462_0~Reference 11B_Ant2_2462_30~1000 85 11B_Ant2_2462_1000~26500 11G_Ant2_2412_0~Reference 86 11G_Ant2_2412_30~1000 11G_Ant2_2412_1000~26500 11G_Ant2_2437_0~Reference 87 11G_Ant2_2437_30~1000 11G_Ant2_2437_1000~26500 88 11G_Ant2_2462_0~Reference 11G_Ant2_2462_30~1000 11G_Ant2_2462_1000~26500 89 11N20SISO_Ant2_2412_0~Reference 11N20SISO_Ant2_2412_30~1000 90 11N20SISO_Ant2_2412_1000~26500 11N20SISO_Ant2_2437_0~Reference 11N20SISO_Ant2_2437_30~1000 91 11N20SISO_Ant2_2437_1000~26500 11N20SISO_Ant2_2462_0~Reference 92 11N20SISO_Ant2_2462_30~1000 11N20SISO_Ant2_2462_1000~26500 11N40SISO_Ant2_2422_0~Reference 93 11N40SISO_Ant2_2422_30~1000 11N40SISO_Ant2_2422_1000~26500 94 11N40SISO_Ant2_2437_0~Reference 11N40SISO_Ant2_2437_30~1000 11N40SISO_Ant2_2437_1000~26500 95 11N40SISO_Ant2_2452_0~Reference 11N40SISO_Ant2_2452_30~1000 96 11N40SISO_Ant2_2452_1000~26500 97 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant2 2412 8.36 8.40 99.52 0.02 0.12 2437 8.35 8.40 99.40 0.03 0.12 2462 8.35 8.40 99.40 0.03 0.12 11G Ant2 2412 0.15 0.19 78.95 1.03 6.67 2437 0.15 0.19 78.95 1.03 6.67 2462 0.15 0.20 75.00 1.25 6.67 11N20SISO Ant2 2412 0.18 0.23 78.26 1.06 5.56 2437 0.17 0.22 77.27 1.12 5.88 2462 0.18 0.23 78.26 1.06 5.56 11N40SISO Ant2 2422 0.18 0.22 81.82 0.87 5.56 2437 0.18 0.23 78.26 1.06 5.56 2452 0.18 0.23 78.26 1.06 5.56 98 Test Graphs 11B_Ant2_2412 11B_Ant2_2437 11B_Ant2_2462

99 11G_Ant2_2412 11G_Ant2_2437 100 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 101 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422 102 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 103 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequenc y[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant2 Low 2412 AV 2310.000 -59.99 4.74 0.02 39.97 ≤54 PASS AV 2389.440 -57.59 4.74 0.02 42.37 ≤54 PASS AV 2390.000 -57.91 4.74 0.02 42.05 ≤54 PASS Peak 2310.000 -52.47 4.74 0.00 47.47 ≤74 PASS Peak 2388.790 -47.75 4.74 0.00 52.19 ≤74 PASS Peak 2390.000 -49.72 4.74 0.00 50.22 ≤74 PASS High 2462 AV 2483.500 -57.95 4.74 0.03 42.02 ≤54 PASS AV 2486.530 -57.8 4.74 0.03 42.17 ≤54 PASS AV 2500.000 -59.08 4.74 0.03 40.89 ≤54 PASS Peak 2483.500 -48.82 4.74 0.00 51.12 ≤74 PASS Peak 2498.520 -47.82 4.74 0.00 52.12 ≤74 PASS Peak 2500.000 -51.29 4.74 0.00 48.65 ≤74 PASS 11G Ant2 Low 2412 AV 2310.000 -59.39 4.74 1.03 41.58 ≤54 PASS AV 2389.310 -58.44 4.74 1.03 42.53 ≤54 PASS AV 2390.000 -59.19 4.74 1.03 41.78 ≤54 PASS Peak 2310.000 -51.73 4.74 0.00 48.21 ≤74 PASS Peak 2328.990 -48.04 4.74 0.00 51.9 ≤74 PASS Peak 2390.000 -50.55 4.74 0.00 49.39 ≤74 PASS High 2462 AV 2483.500 -58.99 4.74 1.25 42.2 ≤54 PASS AV 2494.450 -58.32 4.74 1.25 42.87 ≤54 PASS AV 2500.000 -58.74 4.74 1.25 42.45 ≤54 PASS Peak 2483.500 -50.22 4.74 0.00 49.72 ≤74 PASS Peak 2491.480 -47.91 4.74 0.00 52.03 ≤74 PASS Peak 2500.000 -51.06 4.74 0.00 48.88 ≤74 PASS 11N20SI SO Ant2 Low 2412 AV 2310.000 -59.69 4.74 1.06 41.31 ≤54 PASS AV 2389.180 -58.55 4.74 1.06 42.45 ≤54 PASS AV 2390.000 -59.44 4.74 1.06 41.56 ≤54 PASS Peak 2310.000 -51.76 4.74 0.00 48.18 ≤74 PASS Peak 2347.190 -48.61 4.74 0.00 51.33 ≤74 PASS Peak 2390.000 -51.61 4.74 0.00 48.33 ≤74 PASS High 2462 AV 2483.500 -58.55 4.74 1.06 42.45 ≤54 PASS AV 2489.610 -58.25 4.74 1.06 42.75 ≤54 PASS AV 2500.000 -58.72 4.74 1.06 42.28 ≤54 PASS Peak 2483.500 -51.74 4.74 0.00 48.2 ≤74 PASS Peak 2486.310 -48.48 4.74 0.00 51.46 ≤74 PASS Peak 2500.000 -51.44 4.74 0.00 48.5 ≤74 PASS 104 11N40SI SO Ant2 Low 2422 AV 2310.000 -59.62 4.74 0.87 41.19 ≤54 PASS AV 2387.300 -57.65 4.74 0.87 43.16 ≤54 PASS AV 2390.000 -58.09 4.74 0.87 42.72 ≤54 PASS Peak 2310.000 -52.06 4.74 0.00 47.88 ≤74 PASS Peak 2389.250 -47.98 4.74 0.00 51.96 ≤74 PASS Peak 2390.000 -50.28 4.74 0.00 49.66 ≤74 PASS High 2452 AV 2483.500 -58.17 4.74 1.06 42.83 ≤54 PASS AV 2485.375 -57.26 4.74 1.06 43.74 ≤54 PASS AV 2500.000 -58.93 4.74 1.06 42.07 ≤54 PASS Peak 2483.500 -50.02 4.74 0.00 49.92 ≤74 PASS Peak 2484.375 -47.09 4.74 0.00 52.85 ≤74 PASS Peak 2500.000 -51.47 4.74 0.00 48.47 ≤74 PASS Note： 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 105 Test Graphs 11B_Ant2_Low_2412_AV 11B_Ant2_Low_2412_Peak 11B_Ant2_High_2462_AV 106 11B_Ant2_High_2462_Peak 11G_Ant2_Low_2412_AV 107 11G_Ant2_Low_2412_Peak 11G_Ant2_High_2462_AV 11G_Ant2_High_2462_Peak 108 11N20SISO_Ant2_Low_2412_AV 11N20SISO_Ant2_Low_2412_Peak 109 11N20SISO_Ant2_High_2462_AV 11N20SISO_Ant2_High_2462_Peak 11N40SISO_Ant2_Low_2422_AV 110 11N40SISO_Ant2_Low_2422_Peak 11N40SISO_Ant2_High_2452_AV 111 11N40SISO_Ant2_High_2452_Peak

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26042702501 2BVF8WTI5500 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : May 13, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ...................…
