2BVHG-JB-SC-C1Smart Gateway PTZ Camera
Shenzhen Jianbao Technology Co., Ltd.
Click to zoom
Application Details
- Equipment Class
- NII - Unlicensed National Information Infrastructure TX
- Date of Grant
- Apr 15, 2026
- Application Purpose
- Original Equipment
- Equipment Note
- Smart Gateway PTZ Camera
- Frequency Range
- 5180.00000000 - 5240.00000000
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Attestation Statements
Rev1/26/2023 ShenzhenJianbaoTechnologyCo.,Ltd. FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:2026-04-14 Ref:AttestationStatementsPart2.911(d)(5)(i)Filing FCCID:2BVHG-JB-SC-C1 ShenzhenJianbaoTechnologyCo.,Ltd.certifiesthattheequipmentforwhichauthorizationissoughtis not“covered”equipmentprohibitedfromreceivinganequipmentauthorizationpursuanttosection 2.903oftheFCCrules. ShenzhenJianbaoTechnologyCo.,Ltd.certifiesthattheequipmentforwhichauthorizationissought doesnotincludecybersecurityoranti-virussoftwareproducedorprovidedbyKasperskyLab,Inc.orany ofitssuccessorsandassignees,includingequipmentwithintegratedKasperskyLab,Inc.(oranyofits successorsandassignees)cybersecurityoranti-virussoftwarepursuanttoDA-24-886andKDB986446 D01CoveredEquipmentGuidancesectionB(2a). Deviceisinherentlycompliantbasedonhardwarelimitationsorsoftwarecontrols. or ASoftwareBillofMaterials(SBOM)isprovidedtotheTCBforreview,and Theend-userorthirdpartiescannotinstalladditionalsoftwareonthisdevice. Sincerely, (Applicantsignature) (JingJiang)
Attestation Statements
Rev1/26/2023 ShenzhenJianbaoTechnologyCo.,Ltd. FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:2026-04-14 Ref:AttestationStatementsPart2.911(d)(5)(ii)Filing FCCID:2BVHG-JB-SC-C1 ShenzhenJianbaoTechnologyCo.,Ltd.certifiesthat,asofthedateofthefilingoftheapplication,the applicantisnotidentifiedontheCoveredList(asaspecificallynamedentityoranyofitssubsidiariesor affiliates)asanentityproducing“covered”equipment. Sincerely, (Applicantsignature) (JingJiang)

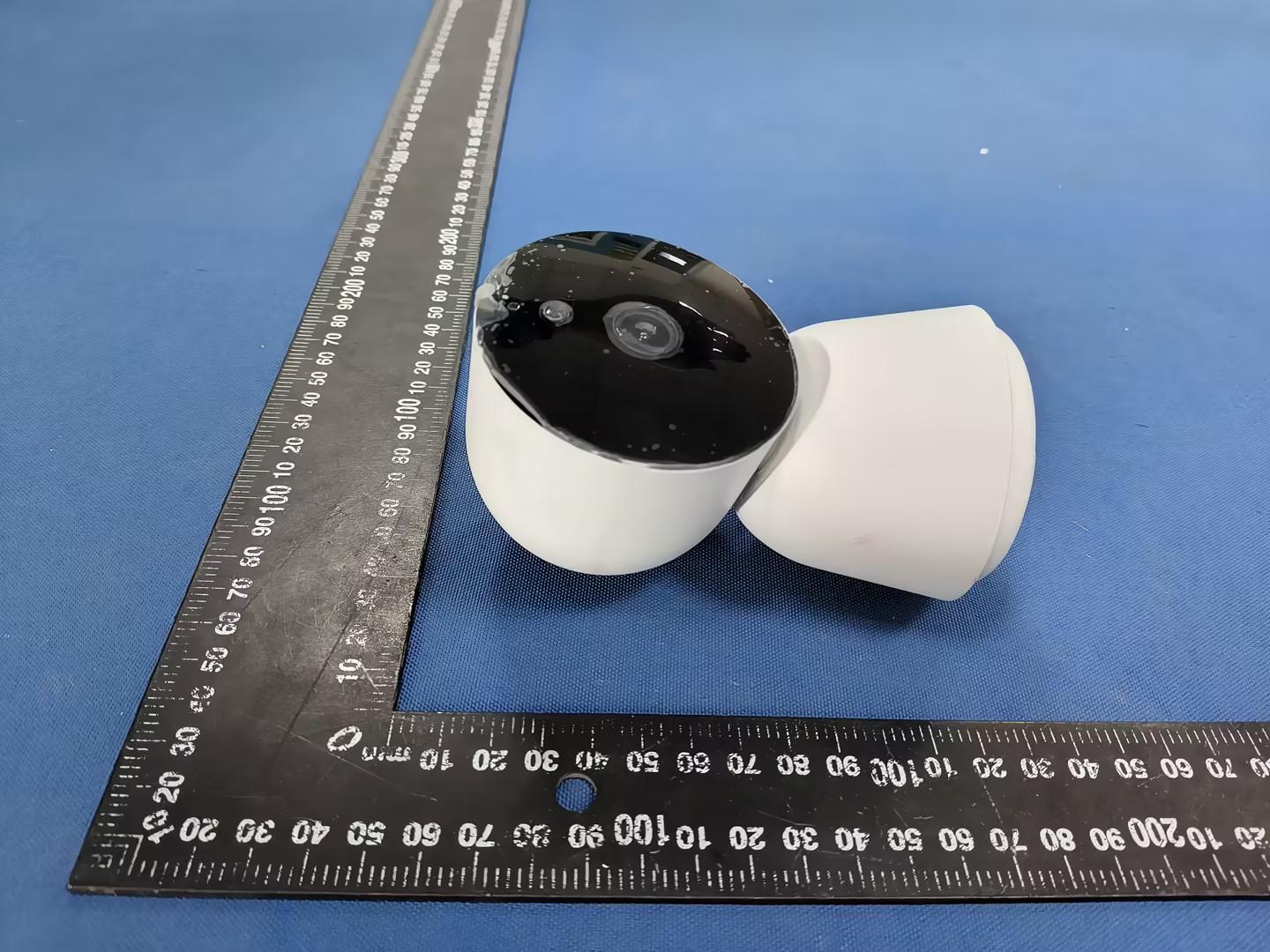

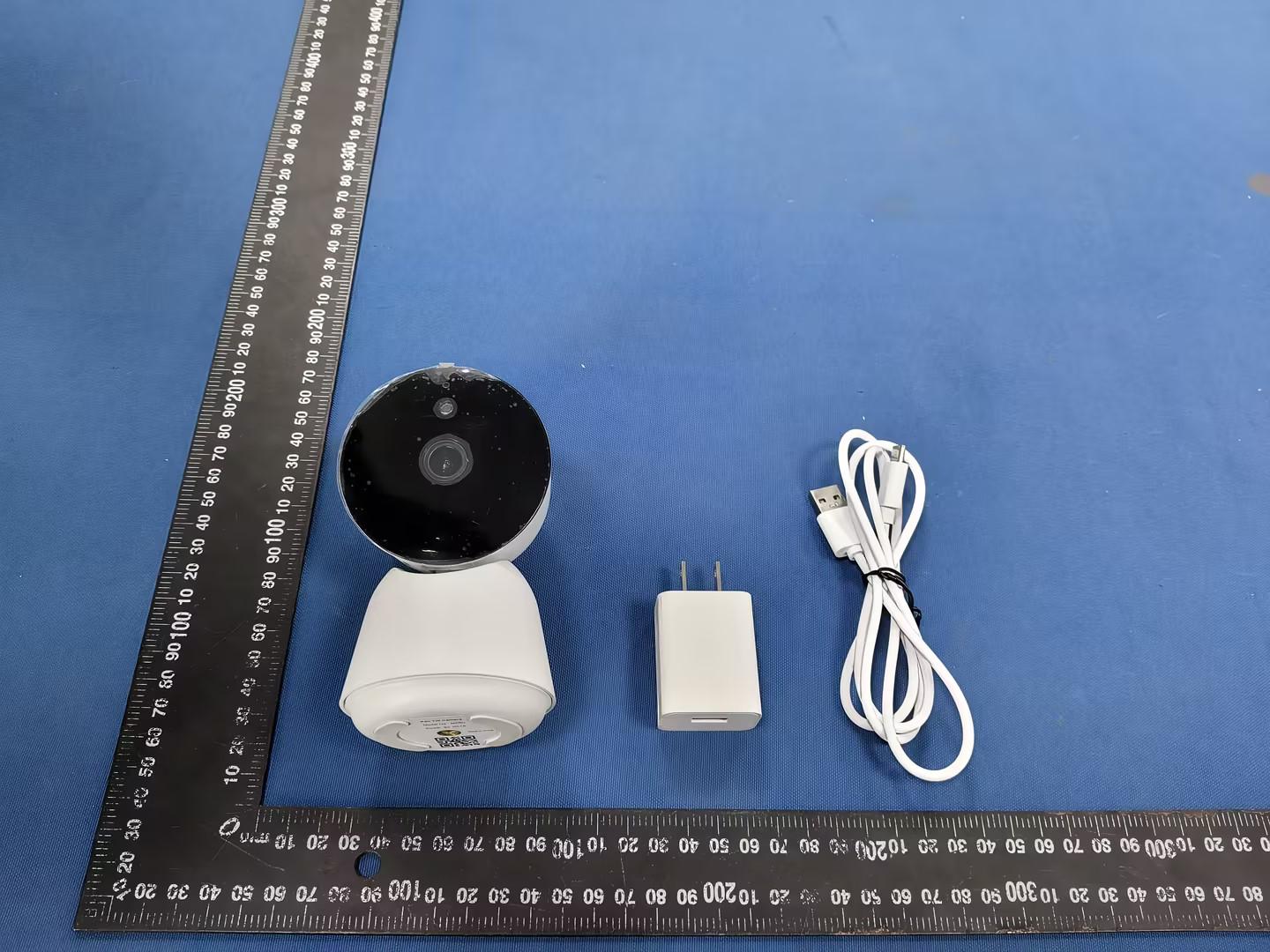

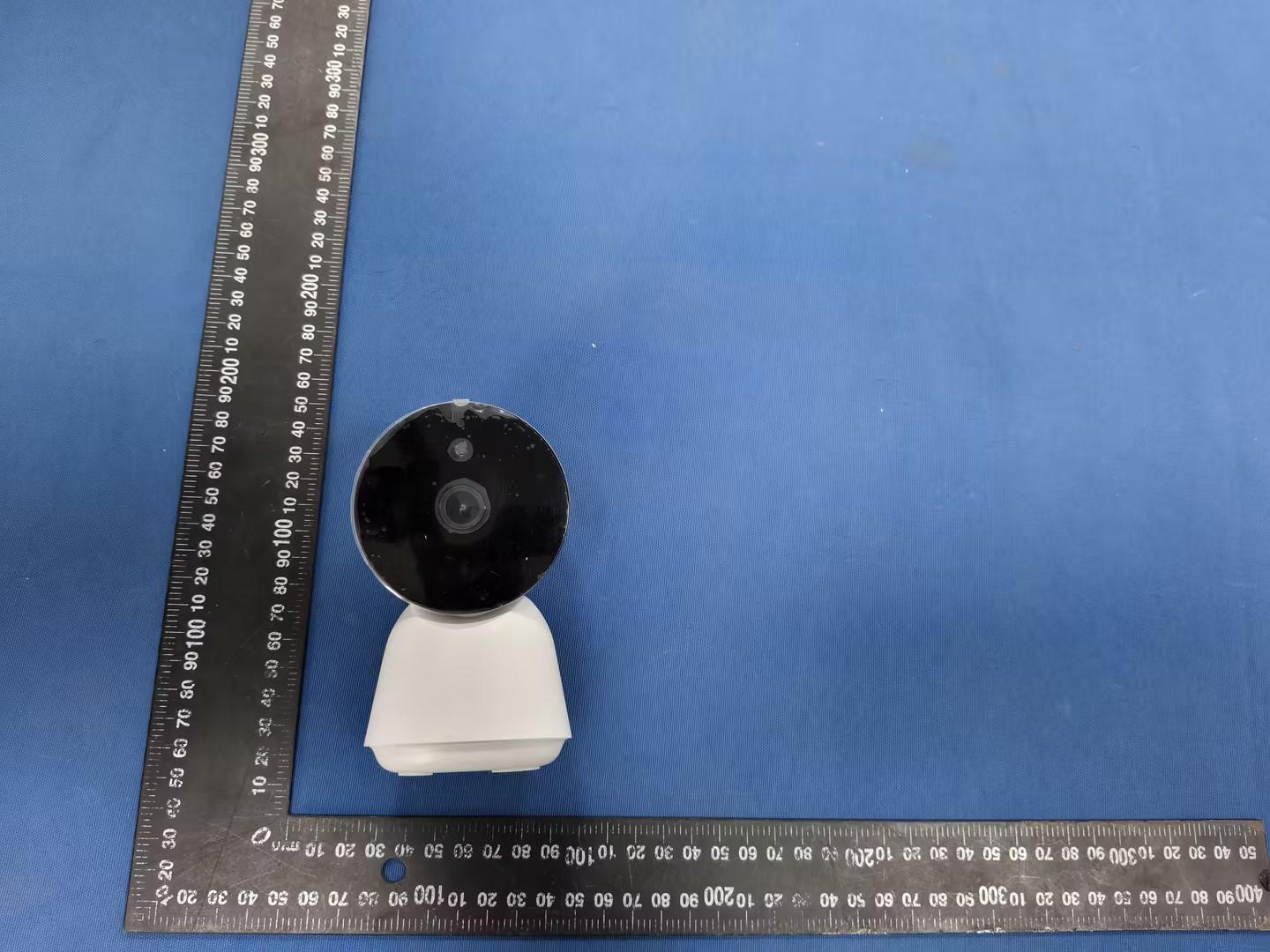

External Photos
FCCID:2BVHG-JB-SC-C1 ExternalPhotosoftheEUT Fig.1 Fig.2 FCCID:2BVHG-JB-SC-C1 Fig.3 Fig.4 FCCID:2BVHG-JB-SC-C1 Fig.5 Fig.6 FCCID:2BVHG-JB-SC-C1 Fig.7 Fig.8
ID Label/Location Info
FCCID:2BVHG-JB-SC-C1 labelandlocation Fig.1 FCCID:2BVHG-JB-SC-C1 SmartGatewayPTZCamera Model:JB-SC-C1 Input:DC5V ShenzhenJianbaoTechnologyCo.,Ltd.​ 38.1mm 15.2mm
Internal Photos
FCCID:2BVHG-JB-SC-C1 InternalPhotosoftheEUT Fig.1 Fig.2 FCCID:2BVHG-JB-SC-C1 Fig.3 Fig.4 BT&WIFI Antenna FCCID:2BVHG-JB-SC-C1 Fig.5 Fig.6 FCCID:2BVHG-JB-SC-C1 Fig.7
RF Exposure Info
ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd. 101#,BuildingK&BuildingT,TheSecondIndustrialZone,JiazitangCommunity, FenghuangStreet,GuangmingDistrict,Shenzhen,China RFExposureevaluation ReportReferenceNo........................: FCCID.................................................: GRCTR260302005-04 2BVHG-JB-SC-C1 Compiledby (position+printedname+signature) .. : TestingEngineerJimmyWang Supervisedby (position+printedname+signature)..: ProjectEngineerKelleyZhang Approvedby (position+printedname+signature)..: ManagerZhihuiDeng Dateofissue ......................................... :Apr.02,2026 TestingLaboratoryName ................ :ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd. Address ................................................. : 101#,BuildingK&BuildingT,TheSecondIndustrialZone, JiazitangCommunity,FenghuangStreet,GuangmingDistrict, Shenzhen,China Applicant’sname...............................:ShenzhenJianbaoTechnologyCo.,Ltd.​ Address.................................................: Unit1611,BlockB,YouchengBusinessBuilding,MinzhiAvenue, LonghuaDistrict,ShenzhenCity Testspecification..............................: Standard ................................................ : 47CFR§2.1091 KDB447498D01v06 ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.isacknowledgedascopyrightownerand sourceofthematerial.ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.takesno responsibilityforandwillnotassumeliabilityfordamagesresultingfromthereader'sinterpretationofthe reproducedmaterialduetoitsplacementandcontext. Testitemdescription........................:SmartGatewayPTZCamera TradeMark ............................................ : / Manufacturer ......................................... : ShenzhenJianbaoTechnologyCo.,Ltd.​ Model/Typereference.........................: JB-SC-C1 ListedModels ...................................... : JB-SC-C2,JB-SC-C3,JB-SC-C4,JB-SC-C5,JB-SC-C6,JB-SC- C7,JB-SC-C8,JB-SC-C9,JB-SC-C10,JB-SC-C11,MP6E HardwareVersion...............................:V1.0 SoftwareVersion .................................. :SP551KC Frequency .............................................. From2402MHzto2480MHz,5180MHz-5240MHz Ratings...................................................:DC5VPoweredbyadapter Result.....................................................:PASS ReportNo.:GRCTR260302005-04Page2of10 TESTREPORT EquipmentunderTest:SmartGatewayPTZCamera Model/Type:JB-SC-C1 ListedModels:JB-SC-C2,JB-SC-C3,JB-SC-C4,JB-SC-C5,JB-SC-C6,JB- SC-C7,JB-SC-C8,JB-SC-C9,JB-SC-C10,JB-SC-C11,MP6E Applicant : ShenzhenJianbaoTechnologyCo.,Ltd.​ Address: Unit1611,BlockB,YouchengBusinessBuilding,Minzhi Avenue,LonghuaDistrict,ShenzhenCity Manufacturer : ShenzhenJianbaoTechnologyCo.,Ltd.​ Address: Unit1611,BlockB,YouchengBusinessBuilding,Minzhi Avenue,LonghuaDistrict,ShenzhenCity TestResult : PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:GRCTR260302005-04Page3of10 Contents 1.SUMMARY...............................................................................................................................................4 1.1.GeneralRemarks.........................................................................................................................................4 1.2.ProductDescription....................................................................................................................................4 1.3.EquipmentUnderTest................................................................................................................................5 1.4.ShortdescriptionoftheEquipmentunderTest(EUT)............................................................................5 1.5.EUTconfiguration........................................................................................................................................5 1.6.Modifications................................................................................................................................................5 2.TESTENVIRONMENT.......................................................................................................................6 2.1.Addressofthetestlaboratory...................................................................................................................6 2.2.TestFacility..................................................................................................................................................6 2.3.Environmentalconditions...........................................................................................................................6 2.4.Statementofthemeasurementuncertainty.............................................................................................6 3.METHODOFMEASUREMENT.....................................................................................................8 3.1.ApplicableStandard....................................................................................................................................8 3.2.Limit...............................................................................................................................................................8 3.3.MPECalculationMethod.............................................................................................................................8 3.4.AntennaInformation....................................................................................................................................9 3.5.ManufacturingTolerance............................................................................................................................9 4.EVALUATIONRESULT....................................................................................…
Text truncated - open the document above for the full version.
Test Report
ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd. 101#,BuildingK&BuildingT,TheSecondIndustrialZone,JiazitangCommunity, FenghuangStreet,GuangmingDistrict,Shenzhen,China FCCPART15SUBPARTCTESTREPORT FCCPART15SUBPARTE15.407 ReportReferenceNo........................: FCCID.................................................: GRCTR260302005-03 2BVHG-JB-SC-C1 Compiledby (position+printedname+signature) .. : TestingEngineerJimmyWang Supervisedby (position+printedname+signature)..: ProjectEngineerKelleyZhang Approvedby (position+printedname+signature)..: ManagerZhihuiDeng Dateofissue ......................................... :Apr.02,2026 TestingLaboratoryName ................ :ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd. Address.................................................: 101#,BuildingK&BuildingT,TheSecondIndustrialZone, JiazitangCommunity,FenghuangStreet,GuangmingDistrict, Shenzhen,China Applicant’sname...............................:ShenzhenJianbaoTechnologyCo.,Ltd.​ Address ................................................. : Unit1611,BlockB,YouchengBusinessBuilding,MinzhiAvenue, LonghuaDistrict,ShenzhenCity Testspecification..............................: Standard................................................:FCCPart15SubpartE15.407 ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.isacknowledgedascopyrightownerand sourceofthematerial.ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.takesno responsibilityforandwillnotassumeliabilityfordamagesresultingfromthereader'sinterpretationofthe reproducedmaterialduetoitsplacementandcontext. Testitemdescription ........................ :SmartGatewayPTZCamera TradeMark............................................: / Manufacturer.........................................: ShenzhenJianbaoTechnologyCo.,Ltd.​ Model/Typereference.........................: JB-SC-C1 ListedModels......................................: JB-SC-C2,JB-SC-C3,JB-SC-C4,JB-SC-C5,JB-SC-C6,JB-SC- C7,JB-SC-C8,JB-SC-C9,JB-SC-C10,JB-SC-C11,MP6E FirmwareVersion ................................. :V1.0 HardwareVersion................................:SP551KC Modulation...........................................:OFDM Frequency..............................................From5180MHz-5240MHz Ratings...................................................:DC5VPoweredbyadapter Result ..................................................... :PASS ReportNo.:GRCTR260302005-03Page 2 of 54 TESTREPORT EquipmentunderTest:SmartGatewayPTZCamera Model/Type:JB-SC-C1 ListedModels: JB-SC-C2,JB-SC-C3,JB-SC-C4,JB-SC-C5,JB-SC-C6,JB- SC-C7,JB-SC-C8,JB-SC-C9,JB-SC-C10,JB-SC-C11, MP6E Applicant:ShenzhenJianbaoTechnologyCo.,Ltd.​ Address: Unit1611,BlockB,YouchengBusinessBuilding,Minzhi Avenue,LonghuaDistrict,ShenzhenCity Manufacturer:ShenzhenJianbaoTechnologyCo.,Ltd.​ Address : Unit1611,BlockB,YouchengBusinessBuilding,Minzhi Avenue,LonghuaDistrict,ShenzhenCity TestResult:PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:GRCTR260302005-03Page 3 of 54 Contents 1TESTSTANDARDS..............................................................................................................................4 2SUMMARY.................................................................................................................................................5 2.1GeneralRemarks..........................................................................................................................................5 2.2ProductDescription.....................................................................................................................................5 2.3EquipmentUnderTest.................................................................................................................................6 2.4ShortdescriptionoftheEquipmentunderTest(EUT).............................................................................6 2.5EUTconfiguration.........................................................................................................................................6 2.6EUToperationmode.....................................................................................................................................6 2.7BlockDiagramofTestSetup.......................................................................................................................6 2.8RelatedSubmittal(s)/Grant(s)...................................................................................................................7 2.9Modifications.................................................................................................................................................7 3TESTENVIRONMENT........................................................................................................................8 3.1Addressofthetestlaboratory....................................................................................................................8 3.2TestFacility...................................................................................................................................................8 3.3Environmentalconditions............................................................................................................................8 3.4TestDescription............................................................................................................................................8 3.5Statementofthemeasurementuncertainty..............................................................................................9 3.6EquipmentsUsedduringtheTest............................................................................................................10 4TESTCONDITIONSANDRESULTS.............................…
Text truncated - open the document above for the full version.
Test Report
ReportNo.:GRCTR260302005-03Page 31 of 54 4.4MaximumConductedAverageOutputPower TESTCONFIGURATION EUT PowerSensor TESTPROCEDURE AccordingtoKDB789033D02GeneralUNIITestProceduresNewRulesv01SectionE3Measurementusing aPowerMeter(PM): a.MeasurementsmaybeperformedusingawidebandRFpowermeterwithathermocoupledetectoror equivalentifalloftheconditionslistedbelowaresatisfied 1.TheEUTisconfiguredtotransmitcontinuouslyortotransmitwithaconstantdutycycle 2.AtalltimeswhentheEUTistransmitting,itmustbetransmittingatitsmaximumpowercontrollevel. 3.Theintegrationperiodofthepowermeterexceedstherepetitionperiodofthetransmittedsignalbyat leastafactoroffive. b.Ifthetransmitterdoesnottransmitcontinuously,measurethedutycycle,x,ofthetransmitteroutput signalasdescribedinsectionII.B c.Measuretheaveragepowerofthetransmitter.Thismeasurementisanaverageoverboththeonandoff periodsofthetransmitter. AdjustthemeasurementindBmbyadding10log(1/x)wherexisthedutycycle(e.g.,10log(1/0.25)iftheduty cycleis25percent). LIMIT Accordingto§15.407(a):Themaximumoutputpowershouldbenotexceedfollow: FrequencyRange(MHz)Limit 5150-5250 Fixed:1Watt(30dBm) Mobileandportable:250mW(23.98dBm) 5250-5350250mW(23.98dBm) 5470-5725250mW(23.98dBm) 5725-58501Watt(30dBm) Note:Themaximume.i.r.patanyelevationangleabove30degreesasmeasuredfromthehorizonmustnot exceed125mW(21dBm) ReportNo.:GRCTR260302005-03Page 32 of 54 TestResults Test Mode Frequency[M Hz] Channel Power [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit[dBm]Verdict 11A518012.0494.500.2512.29≤23.98PASS 11A520013.1692.790.3213.48≤23.98PASS 11A524011.8391.960.3612.19≤23.98PASS 11N20SISO518011.9291.870.3712.29≤23.98PASS 11N20SISO520013.1292.310.3513.47≤23.98PASS 11N20SISO524011.6495.050.2211.86≤23.98PASS 11N40SISO519012.5784.680.7213.29≤23.98PASS 11N40SISO52309.2984.680.7210.01≤23.98PASS 11AC20SISO518011.9392.790.3212.25≤23.98PASS 11AC20SISO520013.0293.690.2813.30≤23.98PASS 11AC20SISO524011.6092.790.3211.92≤23.98PASS 11AC40SISO519012.5184.820.7213.23≤23.98PASS 11AC40SISO52309.2585.710.679.92≤23.98PASS 11AC80SISO52109.3475.411.2310.57≤23.98PASS ReportNo.:GRCTR260302005-03Page 33 of 54 4.5PowerSpectralDensity TESTCONFIGURATION EUT SPECTRUM ANALYZER TESTPROCEDURE AccordingtoKDB789033D02GeneralUNIITestProceduresNewRulesv01F:Therulesrequires “maximumpowerspectraldensity”measurementswheretheintentistomeasurethemaximumvalueofthe timeaverageofthepowerspectraldensitymeasuredduringaperiodofcontinuoustransmission a.CreateanaveragepowerspectrumfortheEUToperatingmodebeingtestedbyfollowingtheinstructions insectionII.E.2.formeasuringmaximumconductedoutputpowerusingaspectrumanalyzerorEMI receiver:selecttheappropriatetestmethod(SA-1,SA-2,SA-3,oralternativestoeach)andapplyitupto, butnotincluding,thesteplabeled,“Computepower...”.(Thisprocedureisrequiredevenifthemaximum conductedoutputpowermeasurementwasperformedusingapowermeter,methodPM.) b.Usethepeaksearchfunctionontheinstrumenttofindthepeakofthespectrumandrecorditsvalue. c.Makethefollowingadjustmentstothepeakvalueofthespectrum,ifapplicable: 1.IfMethodSA-2orSA-2Alternativewasused,add10log(1/x),wherexisthedutycycle,tothepeakof thespectrum. 2.)IfMethodSA-3AlternativewasusedandthelinearmodewasusedinstepII.E.2.g)(viii),add1dBto thefinalresulttocompensateforthedifferencebetweenlinearaveragingandpoweraveraging. d.TheresultistheMaximumPSDover1MHzreferencebandwidth. e.Fordevicesoperatinginthebands5.15-5.25GHz,5.25-5.35GHz,and5.47-5.725GHz,theabove proceduresmakeuseof1MHzRBWtosatisfydirectlythe1MHzreferencebandwidthspecifiedin§ 15.407(a)(5).Fordevicesoperatingintheband5.725-5.85GHz,therulesspecifyameasurement bandwidthof500kHz.Manyspectrumanalyzersdonothave500kHzRBW,thusanarrowerRBWmay needtobeused.TherulespermittheuseofaRBWslessthan1MHz,or500kHz,“providedthatthe measuredpowerisintegratedoverthefullreferencebandwidth”toshowthetotalpoweroverthe specifiedmeasurementbandwidth(i.e.,1MHz,or500kHz).Ifmeasurementsareperformedusinga reducedresolutionbandwidth(<1MHz,or<500kHz)andintegratedover1MHz,or500KHzbandwidth, thefollowingadjustmentstotheproceduresapply: 1.SetRBW≥1/T,whereTisdefinedinsectionII.B.l.a). 2.SetVBW≥3RBW. 3.IfmeasurementbandwidthofMaximumPSDisspecifiedin500kHz,add10log(500kHz/RBW)tothe measuredresult,whereasRBW(<500KHz)isthereducedresolutionbandwidthofthespectrum analyzersetduringmeasurement. 4.IfmeasurementbandwidthofMaximumPSDisspecifiedin1MHz,add10log(1MHz/RBW)tothe measuredresult,whereasRBW(<1MHz)isthereducedresolutionbandwidthofspectrumanalyzer setduringmeasurement. 5.Caremustbetakentoensurethatthemeasurementsareperformedduringaperiodofcontinuous transmissionorarecorrectedupwardfordutycycle. Note:Asapracticalmatter,itisrecommendedtousereducedRBWof100KHzforthesections5.c)and 5.d)above,sinceRBW=100KHzisavailableonnearlyallspectrumanalyzers. f.AdjustthemeasurementindBmbyadding10log(1/x)wherexisthedutycycle(e.g.,10log(1/0.25)ifthe dutycycleis25percent). LIMIT Accordingto§15.407(a):Themaximumoutputpowershouldbenotexceedfollow: FrequencyRange(MHz)Limit 5150-5250 OtherthenMobileandportable:17dBm/MHz Mobileandportable:11dBm/MHz 5250-535011dBm/MHz 5470-572511dBm/MHz 5725-585030dBm/500kHz ReportNo.:GRCTR260302005-03Page 34 of 54 TestResults TypeBandsChannel PowerSpectralDensity (dBm/MHz) Limit (dBm/MHz) Result 802.11aU-NII1 361.76 11Pass 402.66 481.44 802.11n (HT20) U-NII1 361.52 402.36 480.86 802.11n (HT40) U-NII1 38-0.38 46-3.78 802.11ac (VHT20) U-NII1 361.49 402.39 481.03 802.11ac (VHT40) U-NII1 38-0.42 46-4.06 802.11ac (VHT80) U-NII142-5.18 ReportNo.:GRCTR260302005-03Page 35 of 54 Testplotasfollows 802.11a802.11n(HT20) U-NII1U-NII1 CH36CH36 CH40CH40 CH48CH48 ReportNo.:GRCTR260302005-03Page 36 of 54 802.11n(HT40)802.11ac(VHT20) U-NII1U-NII1 CH38CH36 CH46CH40 CH48 ReportNo.:GRCTR260302005-03Page 37 of 54 802.11ac(VHT40)802.11ac(VHT80) U-NII1U-NII1 CH38CH42 CH46 ReportNo.:GRCTR260302005-03Page 38 of 54 4.6EmissionBandwidth(26dBBandwidth) TESTCONFIGURATION EUT SPECTRUM ANALYZER TESTPROCEDURE AccordingtoKDB789033D02GeneralUNIITestProceduresNewRulesv01foroneofthefollowin…
Text truncated - open the document above for the full version.
Test Report
Antennaspec FCCID:2BVHG-JB-SC-C1 1.AntennaDescription: AntennatypeMetalSMDAntenna ModelSK2630M2458-T05 Frequencyrange2400MHz~2500MHz,5150MHz~5250MHz ManufacturerShenzhenTianlianlingTechnologyCo.,Ltd. AddressNo.5D,5thFloor,BuildingL,2ndLane,LiuxianRoad, District71,Bao'anDistrict,ShenzhenCity 2.AntennaPhoto: Unit:mm 3.AntennaEfficiencyandGain Frequency(MHz) Efficiency (dBi) Gain(dBi)Efficiency(%) 2400-4.041.1242.70% 2410-3.822.8243.23% 2420-4.181.0258.10% 2430-4.061.1754.60% 2440-3.513.0053.14% 2450-3.951.7056.09% 2460-3.982.3337.28% 2470-3.790.7262.13% 2480-3.722.2555.23% 2490-3.662.5241.09% 2500-4.121.2945.62% 5150-3.772.7458.29% 5200-3.703.0048.92% 5250-3.731.2051.62% 4.AntennaRadiationPattern 2400MHz2450MHz2500MHz 5150MHz5200MHz5250MHz 2450MHz 5250MHz
Test Setup Photos
FCCID:2BVHG-JB-SC-C1 TestSetupPhotosoftheEUT TestSetupPhoto(s)ofRadiatedEmissionsMeasurement Adapter1:DCT07W050100US-C1 Fig.1 Fig.2 FCCID:2BVHG-JB-SC-C1 TestSetupPhoto(s)ofConductedEmissionsMeasurement Fig.3 TestSetupPhoto(s)ofRadiatedEmissionsMeasurement Adapter2:DY3510X-05-05 Fig.4 FCCID:2BVHG-JB-SC-C1 Fig.5 TestSetupPhoto(s)ofConductedEmissionsMeasurement Fig.6 FCCID:2BVHG-JB-SC-C1 TestSetupPhoto(s)ofRFMeasurement Fig.7
Contact Information
Applicant
Jing Jiang
[email protected]Fax: +86-18848451618
Technical Contact
MIRAMONT SOLUTIONS LLCWenyi Wang
19 GEORGETOWN, IRVINE, CA 92612 United States · United States
Test Firm
Shenzhen GUOREN Certification Technology Service CSam Wang
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15E | 5.18 GHz - 5.24 GHz | 22.28 mW |
