2BVJG-XHD-P501Game controller

XHD-P501 Bluetooth Controller User Manual Product Overview XHD-PS501 is a Bluetooth controller with a built-in high-performance Bluetooth chip for stable connectivity . Supports PS5/PC(Dinput/Xinput),on PC need use a date cable. Standard keys：PS，， ， ↑， ↓， ←， →， ，L1，L2，L3， R1，R2， R3 ，TOUCH，Turbo，SET，ML / MR 1. This controller has stable performance and a high cost-performance ratio, and it supports any software version of the PS5 console. 2. Bluetooth 5.3 can be connected to the console . 3. The controller control can operate within a distance of 10 meters with no delay. 4. It has a 6-axis sensor function composed of 3D acceleration sensor and gyroscope sensor functions. 5. Equipped with RGB LED color channel indication, it is convenient to distinguish different users. 6. The Bluetooth connection method is the same as the original . 7. Support USB lithium battery charging. 8. Supports a 3.5mm TRRS stereo audio jack for connecting headphones and microphones 9. Support dual-point capacitive touchpad 10. Supports wired connection with the console, and also supports wired and Bluetooth audio functions. 11. Support for speaker function. 12. Does not support MAC or Android functions. Choose to use the standard PS5 functions (the same as the original functions, which can work on a PC via a driver and on systems with Windows 10 or above) A wider operating voltage range, extremely low sleep current, operating voltage and current: 3.7V - 50mA, USB input voltage and current: 5.2V - 1000mA Connection Method 1.When using the controller for the first time, it needs to be connected to the main unit with a data cable. For subsequent reconnection, use Bluetooth connection and press the HOME(PS) button to reconnect. 2.Connect the PC device : Default mode: D-INPUT mode ,the indicator light of the controller is blue. It can be switched to X-INPUT mode by holding down the SHARE and OPTIONS keys simultaneously for 3 seconds, and the indicator light is green) PC display name： D-INPUT mode（PS5 wired--DualSenes Wireless Controller) X-input：Xbox 360 Controller for Windows Macro Programming Setting 1) There is a SET button and two programming button: ML/MR 2）Assignable buttons： , L1/L2/L3, R1/R2/R3, D-pad, and analog sticks. 3）Each programming button can record a button action or a combination (up to 16 actions) 4）Setting steps： Hold Set button to enter programming mode (LED blinks). Press target buttons and press ML to confirm (LED stays on; motors vibrate when it is set). 5）Clearance： Hold Set button to enter writing mode, the channel light will flash. Then press ML/MR again without any input, the written actions will be cleared, the channel light keeps on. Note: When entering program mode, if user has no any action in 10 seconds, it will quit the mode and back to previous step. Turbo function： 1）Modes: Manual Turbo → Auto Turbo → Cancel (cycle via T + Target Button). Press and hold the T key and add the corresponding function key. The corresponding function key enables manual continuous shooting. Press the same combination again and the corresponding function key to achieve the automatic continuous release function. Press the same combination again and the corresponding function key to cancel the continuous sending function. Assignable buttons： , L1, L2, R1, R2，current channel light will flash quickly when turbo is activated. 2）Speed Adjustment: Press and hold the T key + right joystick (up to full)/(down to full) to adjust the turbo speed. When the setting is successful, the motor will vibrate to prompt. The speeds are: 5Hz - 12Hz - 20Hz. The default is 12Hz when powered on, and there is a memory function when powered off. Vibration Function (Supported on PS5, PC (X-INPUT)) 1)After each connection or setting, the motor will vibrate 0.5 second to indicate. 2)Vibration Tensity Levels: 100%- 50% - 30% - 0%(close), (default to be 50%). 3)Adjustment: Press and hold the T key and the left joystick (up to full)/(down to full) to increase or decrease the motor vibration intensity. A vibration prompt will be given when the current intensity is set successfully. The vibration intensity switching cycle is: 50% - 30% - 0% - 100% - 50% - 30%. There is a memory function when the device is turned off. RGB LED Indicators 1.PS5: The light of the first connected controller is blue. Player 1: Blue; Player 2: Red; Player 3: Green; Player 4: Pink. (The corresponding light is distributed by the order of connection.) 2.PC: X-input：Channel light is green D-input: Channel light is blue 3.Charging status(The colors of the upper and lower 2 lights remain consistent at any time): When playing: top 2 lights keep on, bottom 2 lights breath. All 4 lights keep on after full charged. When not connecting: 4 lights breath. Lights off when full charged. 4、Turbo and programming indicator light: when connecting, top 2 leds keep on, the bottom 2 work as indicator light for turbo and programming. Sleep mode After the controller is successfully connected, set the sleep/shutdown time in the power-saving section of the Settings page. If the controller is not operated at all, it will automatically sleep/shut down at the set time, usually 10 minutes /30 minutes /60 minutes. Manual Disconnect Find the accessory in the Settings on the main page, and then turn off the Bluetooth of the accessory to disconnect the controller from the console. Motion/Touch Features Motion sensing and touchpad functions are supported on PS5. Voice/Speaker Support Compatible with PS5 voice chat and speaker output. Hardware Reset When abnormal mistakes occur, such as key button in disorder, system crashed, or fail to connect, user can reset controller by inserting a slender pin into the Reset hole on the back (a click will be heard). After reset successfully, the controller will power off. Resetting will not change any setting of the controller (programs/vibration intensity/turbo) Calibration: （1）If the controller has just been assembled and has not been calibrated, when the USB i…

Text truncated - open the document above for the full version.

Bonvir (Dongguan) Electronics Co.,LTD. No.6 Mingxing street Hengliu Shatian Dongguan Guangdong, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/04/03 U.S. Agent Designation Bonvir (Dongguan) Electronics Co.,LTD. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BVJG-XHD-P501): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Phone of U.S. agent: (626) 588-8039 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Bonvir (Dongguan) Electronics Co.,LTD. with the FRN [0038249371] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Yaqin Xu Manager Bonvir (Dongguan) Electronics Co.,LTD. Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

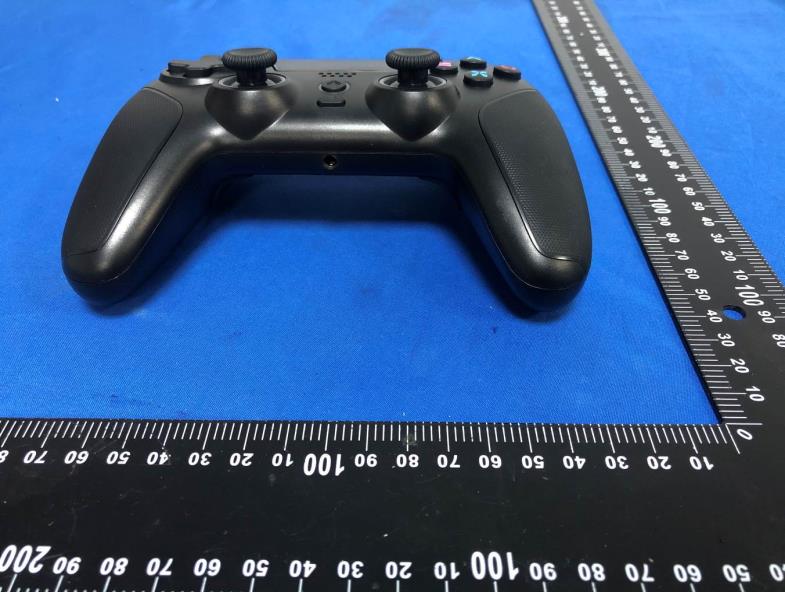

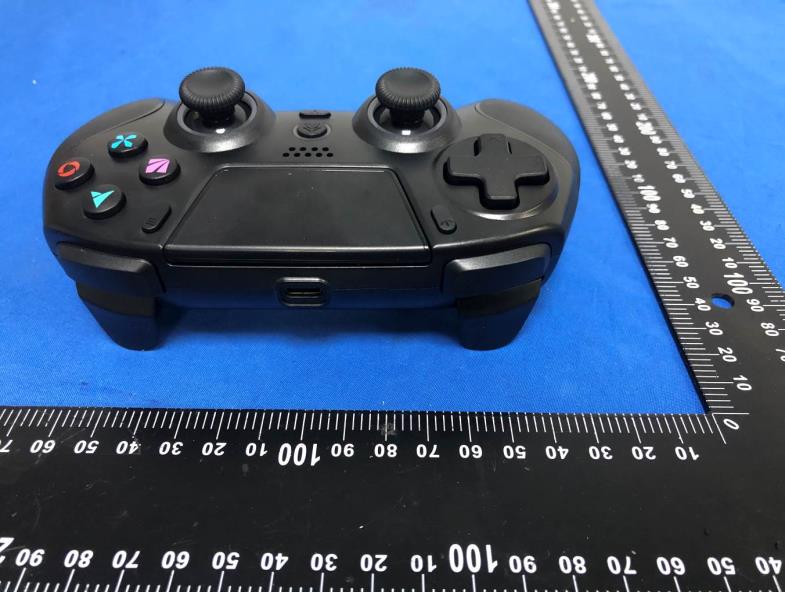

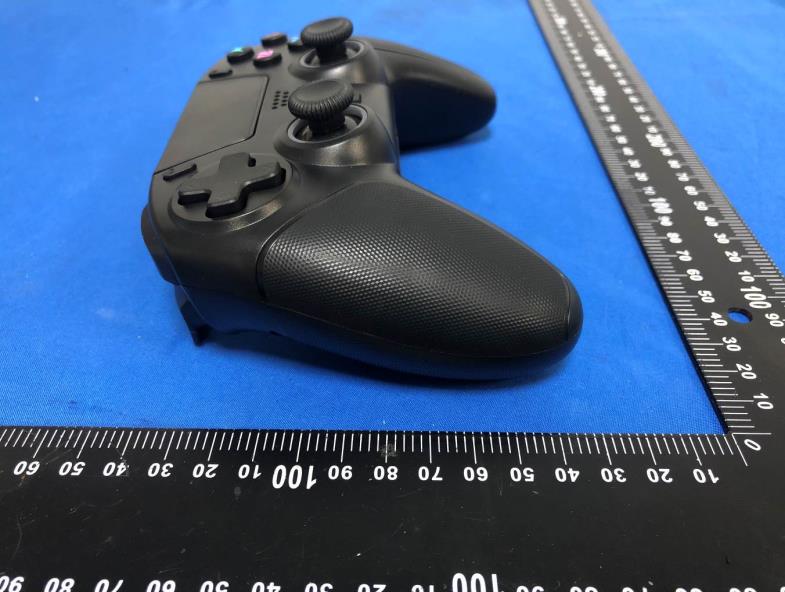

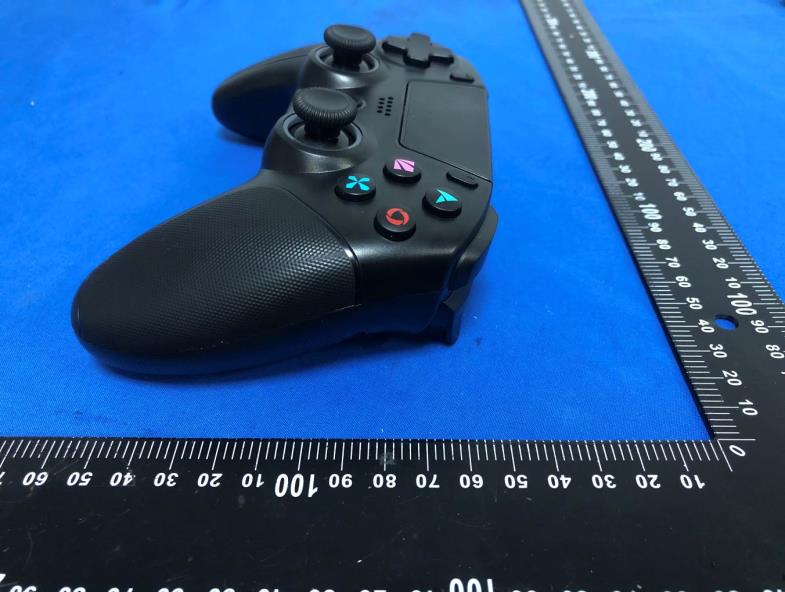

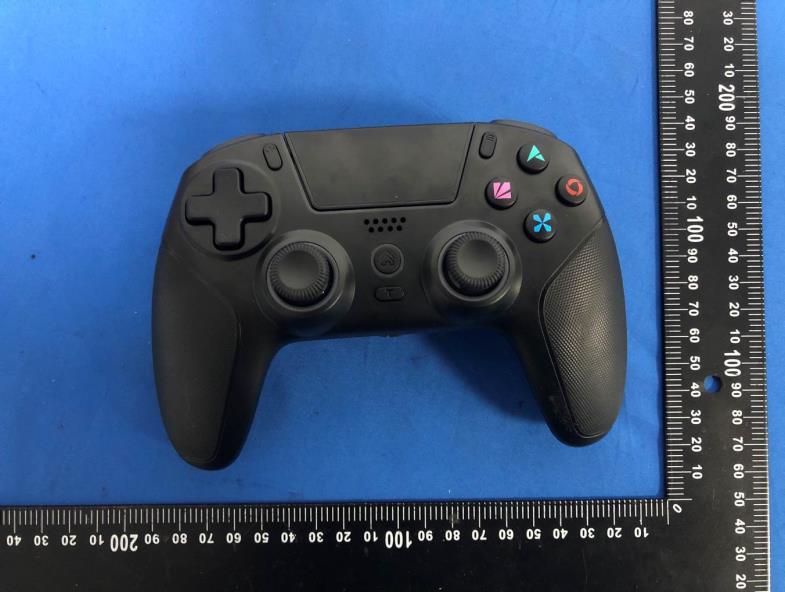

FCC ID: 2BVJG-XHD-P501 External Photos of the EUT FCC ID: 2BVJG-XHD-P501

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BVJG-XHD-P501

FCC ID: 2BVJG-XHD-P501 Internal Photos of the EUT FCC ID: 2BVJG-XHD-P501 BT ANT FCC ID: 2BVJG-XHD-P501

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID. ............................................ : CTA26032602003 2BVJG-XHD-P501 Compiled by ( position+printed name+signature).. : File administrators Zoey Cao Supervised by ( position+printed name+signature).. : Project Engineer Ace Chai Approved by ( position+printed name+signature).. : RF Manager Eric Wang Date of issue ..................................... : Apr. 03, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Bonvir (Dongguan) Electronics Co.,LTD. Address ............................................ : No.6 Mingxing street Hengliu Shatian Dongguan Guangdong, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Game controller Trade Mark ....................................... : N/A Manufacturer .................................... : Bonvir (Dongguan) Electronics Co.,LTD. Model/Type reference ...................... : XHD-P501 Listed Models ................................... : Refer to page 2 Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA26032602003 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Game controller Model /Type : XHD-P501 Listed Models : XHD-P502, XHD-P503, XHD-9017, XHD-9018V1, XHD-9018V2, XHD-9018V3 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Bonvir (Dongguan) Electronics Co.,LTD. Address : No.6 Mingxing street Hengliu Shatian Dongguan Guangdong, China Manufacturer : Bonvir (Dongguan) Electronics Co.,LTD. Address : No.6 Mingxing street Hengliu Shatian Dongguan Guangdong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26032602003 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 8 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA26032602003 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Ba…

Text truncated - open the document above for the full version.

Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 1/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. Antenna specification Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 2/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. Antenna model: MP341 V1.0 APPlications ※Bluetooth Home RF ※ISM band 2.4GHz applications 1.Dimensions 2.Specifications number Item Specifications 1 Working Central Frequency 2441 MHz 2 Band Width (2402-2480)MHz 3 Gain 0dBi 4 VSWR ≤2.0 5 Antenna type PCB antenna 6 Azimuth Beam width Omni‐directional 7 Impedance 50ohm 8 Modulation mode GFSK ‣Company Name Shenzhen Innosystem Technology Ltd ‣Company address F2 Building 3 Shenzhen Software Park Technology Middle 2 Rd Gao Xin Science & Technology Park North, S.Z Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 3/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. 3.simulation parameter ① VSWR Mkr1: 2397MHz 1.47 Mkr2: 2450MHz 1.51 Mkr3: 2482 MHz 1.59 Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 4/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. ②Smith Char Mkr1: 2397MHz 73.4 Mkr2: 2450MHz 62.7 Mkr3: 2482MHz 66.8 Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 5/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. ③Return Loss Mkr1: 2397MHz -15 Mkr2: 2450MHz -18 Mkr3: 2482 MHz -16 Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 6/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. ④Smith Char Mkr1: 2400MHz 1.234 Mkr2: 2500MHz 1.051Mkr3: 2600MHz 1.322 Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 7/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. ⑤Return Loss Mkr1: 2400MHz -19.59 Mkr2: 2450MHz -27.70Mkr3: 2500MHz -31.97 Mkr4: 2550MHz -21.83 ` Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 8/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. ⑥Phase Mkr1: 2400MHz -54.89 Mkr2: 2500MHz -82.03 Mkr3: 2600MHz -102.6 Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 9/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. 4. Radiation Pattems XY-plane XZ-plane YZ-plane Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 10/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved.  3DRadiation pattern

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA26032602001 2BVJG-XHD-P501 Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Apr. 03, 2026 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: Bonvir (Dongguan) Electronics Co.,LTD. Address ...........................................: No.6 Mingxing street Hengliu Shatian Dongguan Guangdong, China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Game controller Trade Mark ......................................: N/A Manufacturer ...................................: Bonvir (Dongguan) Electronics Co.,LTD. Model/Type reference .....................: XHD-P501 Listed Models ..................................: Refer to page 2 Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: DC 3.7V From battery and DC 5.0V From external circuit Result ..............................................: PASS Report No.: CTA26032602001 Page 2 of 34 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Game controller Model /Type : XHD-P501 Listed Models : XHD-P502, XHD-P503, XHD-9017, XHD-9018V1, XHD-9018V2, XHD-9018V3 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Bonvir (Dongguan) Electronics Co.,LTD. Address : No.6 Mingxing street Hengliu Shatian Dongguan Guangdong, China Manufacturer : Bonvir (Dongguan) Electronics Co.,LTD. Address : No.6 Mingxing street Hengliu Shatian Dongguan Guangdong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26032602001 Page 3 of 34 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions ..........................................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BLE FCC ID : 2BVJG-XHD-P501 Company : Bonvir (Dongguan) Electronics Co.,LTD. EUT : Game controller Model Number : XHD-P501 Report No. : CTA26032602001 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.648 2401.692 2402.340 0.5 PASS 2440 0.648 2439.688 2440.336 0.5 PASS 2480 0.624 2479.692 2480.316 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0003 2401.5190 2402.5193 --- --- 2440 1.0077 2439.5158 2440.5235 --- --- 2480 1.0053 2479.5161 2480.5214 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -3.44 ≤30 PASS 2440 -3.72 ≤30 PASS 2480 -3.78 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -19.28 ≤8.00 PASS 2440 -19.54 ≤8.00 PASS 2480 -19.73 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -3.64 -52.97 ≤-23.64 PASS High 2480 -3.79 -55.31 ≤-23.79 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -5.02 -5.02 --- PASS 30~1000 -5.02 -67.7 ≤-25.02 PASS 1000~26500 -5.02 -51.9 ≤-25.02 PASS 2440 Reference -4.44 -4.44 --- PASS 30~1000 -4.44 -67.51 ≤-24.44 PASS 1000~26500 -4.44 -47.62 ≤-24.44 PASS 2480 Reference -4.21 -4.21 --- PASS 30~1000 -4.21 -68.17 ≤-24.21 PASS 1000~26500 -4.21 -46.79 ≤-24.21 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.62 0.6613 66.13 1.80 --- --- 2440 0.41 0.62 0.6613 66.13 1.80 --- --- 2480 0.41 0.62 0.6613 66.13 1.80 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21 22 Appendix H: Emissions in Restricted Bands Test Result TestMode Antenna ChName Freq(MHz) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -60.07 2.00 1.80 38.93 ≤54 PASS AV 2371.925 -58.5 2.00 1.80 40.50 ≤54 PASS AV 2390.000 -59.55 2.00 1.80 39.45 ≤54 PASS Peak 2310.000 -51.72 2.00 0.00 45.48 ≤74 PASS Peak 2335.595 -48.17 2.00 0.00 49.03 ≤74 PASS Peak 2390.000 -50.91 2.00 0.00 46.29 ≤74 PASS High 2480 AV 2483.500 -57.92 2.00 1.80 41.08 ≤54 PASS AV 2484.400 -57.77 2.00 1.80 41.23 ≤54 PASS AV 2500.000 -59.3 2.00 1.80 39.70 ≤54 PASS Peak 2483.500 -49.43 2.00 0.00 47.77 ≤74 PASS Peak 2483.920 -46.02 2.00 0.00 51.18 ≤74 PASS Peak 2500.000 -51.89 2.00 0.00 45.31 ≤74 PASS Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 23 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV 24 BLE_1M_Ant1_High_2480_Peak

FCC ID: 2BVJG-XHD-P501 Test Setup Photos of the EUT FCC ID: 2BVJG-XHD-P501
