2BVN2-B58ACar Refrigerator

Guangdong Minghua Auto Equipment Technology Co., Ltd.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: May 13, 2026
Application Purpose: Original Equipment
Equipment Note: Car Refrigerator
Frequency Range: 2402.00000000 - 2480.00000000
Company: Guangdong Minghua Auto Equipment Technology Co., Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

GuangdongMinghuaAutoEquipmentTechnologyCo.,Ltd. No.9-26,EastofChangxingRoad,Jun'anCommunity,Jun'anTown,ShundeDistrict,Foshan City,GuangdongProvince,P.R.China. Tel:13929125008 SeriesModelsDescription FCCID:2BVN2-B58A Date:May11,2026 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Towhomitmayconcern: Thedevice(ProductName:CarRefrigerator)ModelsName:B58A,C31,E12, S12,S22,J9,J9D,C18,C18WH,G18,G18T,C23,C25,C25WH,C22,C29,J20, J23,J25,J30,J20D,J23D,J25D,J30D,J38,J42,J45,J53,J57,J60,J38D, J45D,J53D,J60D,S30,S40,S50,E30,E40,E50,T35,T45,T55,T35K,T45K, T55K,X30,X40,X50,X30K,X40K,X50K,X30KD,X40KD,X50KD,P38,P48,P58, P38D,P48D,P58D,D31,D31A,D62,M91,M101,M75,M95,M100,M85,B35IM, B35IMD,B38,B48,B58,B38D,B48D,B58D,B38A,B48A,B38B,B48B,B58B, F22,F29,F28,F38,F48,F25K,F32K,F42K,M55,M60,M50,M45,M40,A25, A35,A40,A50,N12,N18,N20,G18D,G12D,G18TD,G12TD,E31S,E41S,E51S, K30,K40,K50,M05,T35S,T45S,T55S,TC-06,TC-06A,M35,M25,A22,A30, G12,K30K,K40K,K50K,K35,K45,K55,K35K,K45K,K55K,G25,G25D,R50, R65,R85,R110,L20,L30,L40,L50,L60,L75,L95,H35K,H45K,H55K,D31B, C20,C27,G10,G14,G14D,L22,L30,L45,L65,L75,L84,L95,G14.Allproduct modelsaredifferentinshellcolor,capacityandmodelnaming.Everything elseisexactlythesame. Sincerely, YigangGao/Manager

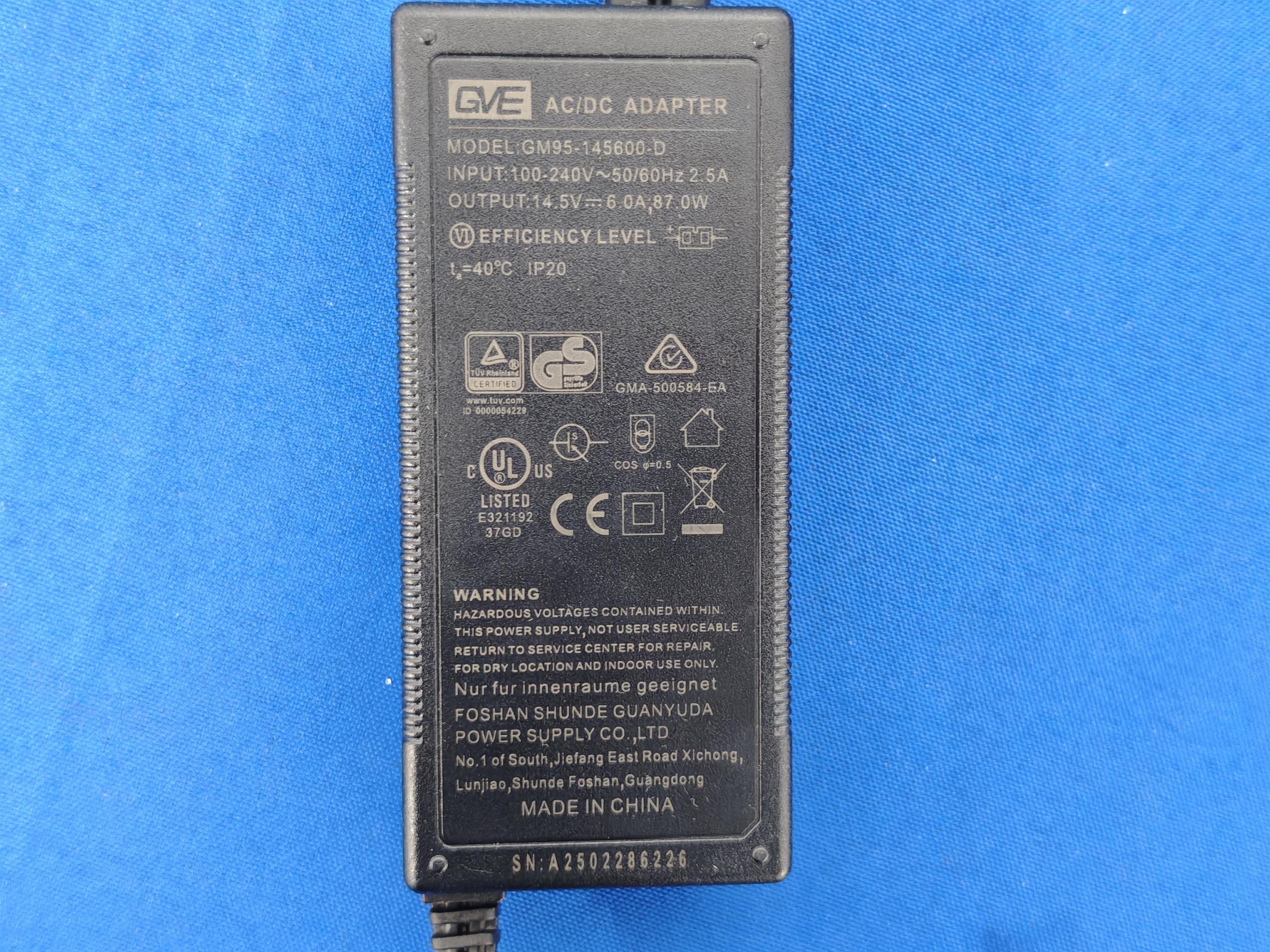

External Photos

FCCID:2BVN2-B58APage 1 of 5 ReportNo.:CTL2602061011-WF ExternalPhotosofEUT FCCID:2BVN2-B58APage 2 of 5 ReportNo.:CTL2602061011-WF FCCID:2BVN2-B58APage 3 of 5 ReportNo.:CTL2602061011-WF FCCID:2BVN2-B58APage 4 of 5 ReportNo.:CTL2602061011-WF FCCID:2BVN2-B58APage 5 of 5 ReportNo.:CTL2602061011-WF

ID Label/Location Info

FCCID:2BVN2-B58APage 1 of 1 ReportNo.:CTL2602061011-WF FCCIDLabelInformation Labellocation: Model:B58A FCCID:2BVN2-B58A Thisdevicecomplieswithpart15oftheFCCRules.Operationis subjecttothefollowingtwoconditions:(1)Thisdevicemaynot causeharmfulinterference,and(2)thisdevicemustacceptany interferencereceived,includinginterferencethatmaycause undesiredoperation.

Internal Photos

FCCID:2BVN2-B58APage 1 of 7 ReportNo.:CTL2602061011-WF InternalPhotosofEUT FCCID:2BVN2-B58APage 2 of 7 ReportNo.:CTL2602061011-WF BLEAntenna FCCID:2BVN2-B58APage 3 of 7 ReportNo.:CTL2602061011-WF FCCID:2BVN2-B58APage 4 of 7 ReportNo.:CTL2602061011-WF FCCID:2BVN2-B58APage 5 of 7 ReportNo.:CTL2602061011-WF FCCID:2BVN2-B58APage 6 of 7 ReportNo.:CTL2602061011-WF FCCID:2BVN2-B58APage 7 of 7 ReportNo.:CTL2602061011-WF

RF Exposure Info

ShenzhenCTLTestingTechnologyCo.,Ltd. Tel:+86-755-89486194E-Mail:[email protected] RFExposureevaluation ReportReferenceNo.....................:CTL2602061011-WFH Compiledby: (position+printedname+signature) GaryGao Testedby: (position+printedname+signature) HappyGuo Approvedby: (position+printedname+signature) IvanXie ProductName ................................. : CarRefrigerator Model/Typereference .................... :B58A ListModel(s) .................................... :Refertopage2 TradeMark ....................................... : N/A FCCID...............................................: 2BVN2-B58A Applicant’sname...........................: GuangdongMinghuaAutoEquipmentTechnologyCo.,Ltd. Addressofapplicant.....................: No.9-26,EastofChangxingRoad,Jun'anCommunity,Jun'an Town,ShundeDistrict,FoshanCity,GuangdongProvince,P. R.China. Testspecification...........................: Standard............................................: 47CFR§1.1310 47CFR§2.1091 KDB447498D01GeneralRFExposureGuidancev06 TRFOriginator..................................: ShenzhenCTLTestingTechnologyCo.,Ltd. MasterTRF ....................................... :Dated2017-01 Dateofreceiptoftestitem..........: February10,2026 DateofTest....................................: February10,2026-March3,2026 DateofIssue .................................... : March17,2026 Result................................................: Pass ShenzhenCTLTestingTechnologyCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenCTLTestingTechnologyCo.,Ltd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenCTLTestingTechnologyCo.,Ltd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. V1.0Page2of13ReportNo.:CTL2602061011-WFH TESTREPORT TestReportNo.:CTL2602061011-WFH March17,2026 Dateofissue ProductName: CarRefrigerator SampleNo:CTL260206101001,CTL260206101002, CTL260206101003 Model/Type: B58A ListedModels : C31,E12,S12,S22,J9,J9D,C18,C18WH,G18,G18T, C23,C25,C25WH,C22,C29,J20,J23,J25,J30,J20D, J23D,J25D,J30D,J38,J42,J45,J53,J57,J60,J38D, J45D,J53D,J60D,S30,S40,S50,E30,E40,E50,T35, T45,T55,T35K,T45K,T55K,X30,X40,X50,X30K, X40K,X50K,X30KD,X40KD,X50KD,P38,P48,P58, P38D,P48D,P58D,D31,D31A,D62,M91,M101,M75, M95,M100,M85,B35IM,B35IMD,B38,B48,B58, B38D,B48D,B58D,B38A,B48A,B38B,B48B,B58B, F22,F29,F28,F38,F48,F25K,F32K,F42K,M55,M60, M50,M45,M40,A25,A35,A40,A50,N12,N18,N20, G18D,G12D,G18TD,G12TD,E31S,E41S,E51S,K30, K40,K50,M05,T35S,T45S,T55S,TC-06,TC-06A, M35,M25,A22,A30,G12,K30K,K40K,K50K,K35, K45,K55,K35K,K45K,K55K,G25,G25D,R50,R65, R85,R110,L20,L30,L40,L50,L60,L75,L95,H35K, H45K,H55K,D31B,C20,C27,G10,G14,G14D,L22, L30,L45,L65,L75,L84,L95,G14 Applicant: GuangdongMinghuaAutoEquipmentTechnologyCo., Ltd. Address : No.9-26,EastofChangxingRoad,Jun'anCommunity, Jun'anTown,ShundeDistrict,FoshanCity,Guangdong Province,P.R.China. Manufacturer: GuangdongMinghuaAutoEquipmentTechnologyCo., Ltd. Address : No.9-26,EastofChangxingRoad,Jun'anCommunity, Jun'anTown,ShundeDistrict,FoshanCity,Guangdong Province,P.R.China. Thetestresultspresentedinthisreportrelateonlytotheobjecttested. Thisreportshallnotbereproduced,exceptinfull,withoutthewrittenapprovaloftheissuingtesting laboratory. Thedevice(ProductName:CarRefrigerator)ModelsName:B58A,C31,E12,S12,S22,J9,J9D,C18, C18WH,G18,G18T,C23,C25,C25WH,C22,C29,J20,J23,J25,J30,J20D,J23D,J25D,J30D,J38,J42, V1.0Page3of13ReportNo.:CTL2602061011-WFH J45,J53,J57,J60,J38D,J45D,J53D,J60D,S30,S40,S50,E30,E40,E50,T35,T45,T55,T35K,T45K, T55K,X30,X40,X50,X30K,X40K,X50K,X30KD,X40KD,X50KD,P38,P48,P58,P38D,P48D,P58D, D31,D31A,D62,M91,M101,M75,M95,M100,M85,B35IM,B35IMD,B38,B48,B58,B38D,B48D,B58D, B38A,B48A,B38B,B48B,B58B,F22,F29,F28,F38,F48,F25K,F32K,F42K,M55,M60,M50,M45,M40, A25,A35,A40,A50,N12,N18,N20,G18D,G12D,G18TD,G12TD,E31S,E41S,E51S,K30,K40,K50, M05,T35S,T45S,T55S,TC-06,TC-06A,M35,M25,A22,A30,G12,K30K,K40K,K50K,K35,K45,K55, K35K,K45K,K55K,G25,G25D,R50,R65,R85,R110,L20,L30,L40,L50,L60,L75,L95,H35K,H45K, H55K,D31B,C20,C27,G10,G14,G14D,L22,L30,L45,L65,L75,L84,L95,G140.Allproductmodelsare differentinshellcolor,capacityandmodelnaming.Everythingelseisexactlythesame. V1.0Page4of13ReportNo.:CTL2602061011-WFH **ModifiedHistory** RevisionDescriptionIssuedDataReportNo.Remark Version1.0InitialTestReportReleaseMarch17,2026CTL2602061011-WFHTracyQi V1.0Page5of13ReportNo.:CTL2602061011-WFH Contents 1GENERALINFORMATION..................................................................................................................................................6 1.1ENVIRONMENTALCONDITIONS................................................................................................................................................6 1.2PRODUCTDESCRIPTION.........................................................................................................................................................6 1.3TESTFACILITY......................................................................................................................................................................7 1.4STATEMENTOFTHEMEASUREMENTUNCERTAINTY......................................................................................................................7 2METHODOFMEASUREMENT...........................................................................................................................................9 2.1APPLICABLESTANDARD..........................................................................................................................................................9 2.2EVALUATIONMETHODANDLIMIT...........................................................................................................................................9 3CONDUCTEDPOWERRESULTS.........................................................................................................................…

Text truncated - open the document above for the full version.

Test Report

ReportNo.:RFI-LAB-RF-202305-EE29-1 QP030-E41 Page1of10 TestingReport CustomerName:FoshanAlpicoolElectricApplianceCo.,LTD. ProductName:CarRefrigeratorPCB SampleModel:ZGW51 ReferenceStandard:GB/T9410-2008;ANSI/IEEEStd149-2021 IssueDate:2023.5.31 Engineer:Date: Auditor:Date: Approver:Date: ReportNo.:RFI-LAB-RF-202305-EE29-1 QP030-E41 Page2of10 Version VersionNo.DateDescriptionFormulateApproval A02023.5.31Forthefirsttime,formulateJacksonEason Contents 1.GeneralInformation.........................................................................................................................3 1.1Generalinformationoftestinginstitutions...........................................................................3 1.2Testingprinciple...................................................................................................................3 1.3Testequipment......................................................................................................................4 1.4Testenvironment...................................................................................................................4 1.5Statement..............................................................................................................................4 2.SampleInformation.........................................................................................................................5 2.1Clientinformation.................................................................................................................5 2.2DescriptionofEUT(S)..........................................................................................................5 2.3EUTappearance....................................................................................................................6 2.4EUTsetupphotooffreespaceOTAtesig............................................................................6 3.TestResults......................................................................................................................................7 3.1Teststandard.........................................................................................................................7 3.2Testuncertainty.....................................................................................................................7 3.3Testdata................................................................................................................................8 3.3.1VSWRparameters.....................................................................................................8 3.3.2VSWRdata................................................................................................................8 3.3.3Typicalfreespaceefficiencyandgain......................................................................8 3.3.4Typicalfreespaceradiationpattern...........................................................................9 （Thefollowingisblank）..............................................................................................................10 ReportNo.:RFI-LAB-RF-202305-EE29-1 QP030-E41 Page3of10 1.GeneralInformation 1.1Generalinformationoftestinginstitutions Name ShenzhenRFI-LABCommunicationTechnologyCo.,Ltd. Address 10/FA,LingyunBld,LiufangRd,BaoanDistrict,SZ Tel / E-mail / Equipment AlltheequipmentusedinthereportisfixedinZoneB,WestSideof1/F,Building1, TingweiIndustrialPark,No.6LiufangRoad,Bao'anDistrict,Shenzhen 1.2Testingprinciple ReportNo.:RFI-LAB-RF-202305-EE29-1 QP030-E41 Page4of10 1.3Testequipment EquipmentModelNo.SerialNo.Manufacturer Calibration date Next calibration date OTATest System RayZone-5000 RFI-LAB-RF -D00 GTS2023.3.142025.3.13 Network Analyzer E5071C RFI-LAB-RF -D01 KEYSIGHT2023.5.112024.5.10 Network Analyzer E5071C RFI-LAB-RF -C02 KEYSIGHT2023.5.112024.5.10 1.4Testenvironment Temperature 24.2°C Humidity 58%RH Pressure 100.11kPa 1.5Statement (1)Thetestresultsinthereportareonlyapplicabletothetestedsamplesandthetestedsamples workundertheenvironmentdescribedinthereport. (2)OnlyShenzhenRFI-LABCommunicationTechnologyCo.,Ltd.havetherighttomodifythe report,andthemodificationinformationshallbeannotatedintherevisionform. (3)Anyobjectiontothisreportshallberaisedwithin30daysafterformalconfirmationofthe report. (4)Thisreportisinvalidifthereisanyevidencethatthesampleinformationprovidedisfalsified. (5)Thereportisinvalidwithoutthesignatureoftheauditorandapprover. ReportNo.:RFI-LAB-RF-202305-EE29-1 QP030-E41 Page5of10 2.SampleInformation 2.1Clientinformation Name FoshanAlpicoolElectricApplianceCo.,LTD. Address 13A,XinlongRoad,ShilongJiyueIndustrialZoneXintangVillage, LunjiaoTown,ShundeDistrict,Foshan,Guangdong,China Contacts / Tel / E-mail / Manufacturer / 2.2DescriptionofEUT(S) ProductName CarRefrigeratorPCB SampleModel ZGW51 AntennaSize / SerialNo. / AntennaType PCBAntenna TestItem VSWR;Antennagain;Efficiency;Radiationpattern FrequencyRange 2400-2500MHz ReceivedDate 2023.5.29 TestDate 2023.5.30 Remark / ReportNo.:RFI-LAB-RF-202305-EE29-1 QP030-E41 Page6of10 2.3EUTappearance 2.4EUTsetupphotooffreespaceOTAtesig Planform Frontview ReportNo.:RFI-LAB-RF-202305-EE29-1 QP030-E41 Page7of10 3.TestResults 3.1Teststandard NameParameterMethodStandardno. Mobile communication antenna Antennagain Genericspecification forantennasusedinthe mobilecommunications GB/T 9410-2008 Radiationpattern VSWR Antenna Radiationefficiency IEEEStandardTest ProceduresforAntennas ANSI/IEEEStd 149-2021 Gainanddirectivity 3.2Testuncertainty TheuncertaintywascalculatedonthebasisoftheGUMpublishedbyISO,usingthe inclusionfactorofK=2andthe95%confidenceleveltoexpresstheextended uncertainty. ItemUncertainty VSWR±0.3 Antennagain±0.72dB Radiationefficiency±0.72dB ReportNo.:RFI-LAB-RF-202305-EE29-1 QP030-E41 Page8of10 3.3Testdata 3.3.1VSWRparameters 3.3.2VSWRdata 3.3.3Typicalfreespaceefficiencyandgain Frequency/MHz 240024502500 VSWR 7.06416.61406.1924 Frequency/MHz 24002410242024302440245024602470248024902500 PeakGain/dBi -2.41-2.54-2.56-2…

Text truncated - open the document above for the full version.

Test Report

ShenzhenCTLTestingTechnologyCo.,Ltd. Tel:+86-755-89486194E-mail:[email protected] TESTREPORT 47CFRPart15,SubpartC15.247 ReportReferenceNo.....................:CTL2602061011-WF Compiledby: (printedname+signature) GaryGao Reviewedby: (printedname+signature) HappyGuo Approvedby: (printedname+signature) IvanXie ProductName.................................: CarRefrigerator Model/Typereference....................:B58A ListModel(s)..................................:Refertopage2 TradeMark.......................................: N/A FCCID ............................................... : 2BVN2-B58A Applicant’sname...........................: GuangdongMinghuaAutoEquipmentTechnologyCo.,Ltd. Addressofapplicant ..................... : No.9-26,EastofChangxingRoad,Jun'anCommunity,Jun'an Town,ShundeDistrict,FoshanCity,GuangdongProvince,P. R.China. Testspecification ........................... : Standard............................................:47CFRPart15,SubpartC15.247:Operationwithinthebands 902-928MHz,2400-2483.5MHzand5725-5850MHz. TRFOriginator..................................: ShenzhenCTLTestingTechnologyCo.,Ltd. MasterTRF.......................................:Dated2011-01 Dateofreceiptoftestitem .......... : February10,2026 DateofTestDate............................: February10,2026-March3,2026 DateofIssue....................................: March17,2026 Result ................................................ : Pass ShenzhenCTLTestingTechnologyCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenCTLTestingTechnologyCo.,Ltd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenCTLTestingTechnologyCo.,Ltd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. V1.0Page2of45ReportNo.:CTL2602061011-WF TESTREPORT TestReportNo.:CTL2602061011-WF March17,2026 Dateofissue EquipmentunderTest: CarRefrigerator SampleNo:CTL260206101001,CTL260206101002, CTL260206101003 Model/Type: B58A ListedModels : C31,E12,S12,S22,J9,J9D,C18,C18WH,G18,G18T, C23,C25,C25WH,C22,C29,J20,J23,J25,J30,J20D, J23D,J25D,J30D,J38,J42,J45,J53,J57,J60,J38D, J45D,J53D,J60D,S30,S40,S50,E30,E40,E50,T35, T45,T55,T35K,T45K,T55K,X30,X40,X50,X30K, X40K,X50K,X30KD,X40KD,X50KD,P38,P48,P58, P38D,P48D,P58D,D31,D31A,D62,M91,M101,M75, M95,M100,M85,B35IM,B35IMD,B38,B48,B58, B38D,B48D,B58D,B38A,B48A,B38B,B48B,B58B, F22,F29,F28,F38,F48,F25K,F32K,F42K,M55, M60,M50,M45,M40,A25,A35,A40,A50,N12,N18, N20,G18D,G12D,G18TD,G12TD,E31S,E41S, E51S,K30,K40,K50,M05,T35S,T45S,T55S,TC-06, TC-06A,M35,M25,A22,A30,G12,K30K,K40K,K50K, K35,K45,K55,K35K,K45K,K55K,G25,G25D,R50, R65,R85,R110,L20,L30,L40,L50,L60,L75,L95, H35K,H45K,H55K,D31B,C20,C27,G10,G14,G14D, L22,L30,L45,L65,L75,L84,L95,G14 Applicant: GuangdongMinghuaAutoEquipmentTechnology Co.,Ltd. Address : No.9-26,EastofChangxingRoad,Jun'anCommunity, Jun'anTown,ShundeDistrict,FoshanCity,Guangdong Province,P.R.China. Manufacturer: GuangdongMinghuaAutoEquipmentTechnology Co.,Ltd. Address : No.9-26,EastofChangxingRoad,Jun'anCommunity, Jun'anTown,ShundeDistrict,FoshanCity,Guangdong Province,P.R.China. TestresultPass* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedpage5. V1.0Page3of45ReportNo.:CTL2602061011-WF Thetestresultspresentedinthisreportrelateonlytotheobjecttested. Thisreportshallnotbereproduced,exceptinfull,withoutthewrittenapprovaloftheissuingtesting laboratory. Thedevice(ProductName:CarRefrigerator)ModelsName:B58A,C31,E12,S12,S22,J9,J9D,C18, C18WH,G18,G18T,C23,C25,C25WH,C22,C29,J20,J23,J25,J30,J20D,J23D,J25D,J30D,J38,J42, J45,J53,J57,J60,J38D,J45D,J53D,J60D,S30,S40,S50,E30,E40,E50,T35,T45,T55,T35K,T45K, T55K,X30,X40,X50,X30K,X40K,X50K,X30KD,X40KD,X50KD,P38,P48,P58,P38D,P48D,P58D, D31,D31A,D62,M91,M101,M75,M95,M100,M85,B35IM,B35IMD,B38,B48,B58,B38D,B48D,B58D, B38A,B48A,B38B,B48B,B58B,F22,F29,F28,F38,F48,F25K,F32K,F42K,M55,M60,M50,M45,M40, A25,A35,A40,A50,N12,N18,N20,G18D,G12D,G18TD,G12TD,E31S,E41S,E51S,K30,K40,K50, M05,T35S,T45S,T55S,TC-06,TC-06A,M35,M25,A22,A30,G12,K30K,K40K,K50K,K35,K45,K55, K35K,K45K,K55K,G25,G25D,R50,R65,R85,R110,L20,L30,L40,L50,L60,L75,L95,H35K,H45K, H55K,D31B,C20,C27,G10,G14,G14D,L22,L30,L45,L65,L75,L84,L95,G14.Allproductmodelsare differentinshellcolor,capacityandmodelnaming.Everythingelseisexactlythesame. V1.0Page4of45ReportNo.:CTL2602061011-WF **ModifiedHistory** RevisionsDescriptionIssuedDataReportNo.Remark Version1.0InitialTestReportReleaseMarch17,2026CTL2602061011-WFTracyQi V1.0Page5of45ReportNo.:CTL2602061011-WF TableofContentsPage 1.SUMMARY.......................................................................................................................................................................6 1.1.TESTSTANDARDS............................................................................................................................................................6 1.2.TESTDESCRIPTION...............................................................................................................................................................6 1.3.TESTFACILITY.....................................................................................................................................................................7 1.4.STATEMENTOFTHEMEASUREMENTUNCERTAINTY.....................................................................................................................7 2.GENERALINFORMATION.................................................................................................................................................9 2.1.ENVIRONMENTALCONDITIONS...............................................................................................................................................9 2.2.GENERALDESCRIPTIONOFEUT.............................................................................................................................................9 2.3.DESCRIPTIO…

Text truncated - open the document above for the full version.

Test Report

ShenzhenCTLTestingTechnologyCo.,Ltd. Fl.A1,Bldg.A3,No.2533GuanGuangRoad,FenghuangCommunity FenghuangStreet,GuangmingDistrictShenzhen,Guangdong,People’sRepublicofChina Tel:+86-755-89486194E-mail:[email protected] AnnexforBluetoothLowEnergy TestReportNo.:CTL2602061011-WF TABLEOFCONTENTS 1.DutyCycle...............................................................................................................................................2 2.Bandwidth................................................................................................................................................5 3.MaximumConductedOutputPower.....................................................................................................10 4.MaximumPowerSpectralDensity........................................................................................................13 5.UnwantedEmissionsInNon-restrictedFrequencyBands...................................................................16 AnnexforBluetoothLowEnergyTestReportNo.:CTL2602061011-WF FCCID:2BVN2-B58A Page2/21 1.DutyCycle 1.1TestResult 1.1.1Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) DutyCycle (%) DutyCycle CorrectionFactor(dB) Max.DC Variation(%) 1MSISO 24022.1432.49985.750.670.00 24402.1462.50185.810.6612.69 24802.1432.49985.750.670.03 AnnexforBluetoothLowEnergyTestReportNo.:CTL2602061011-WF FCCID:2BVN2-B58A Page3/21 1.2TestGraph 1.2.1Ant1 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2602061011-WF FCCID:2BVN2-B58A Page4/21 1M_HCH_2480MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2602061011-WF FCCID:2BVN2-B58A Page5/21 2.Bandwidth 2.1TestResult 2.1.1OBW Mode TX Type Frequency (MHz) ANT 99%OccupiedBandwidth(MHz) Verdict ResultLimit 1MSISO 240211.028/Pass 244011.032/Pass 248011.028/Pass 2.1.26dBBW Mode TX Type Frequency (MHz) ANT 6dBBandwidth(MHz) Verdict ResultLimit 1MSISO 240210.658>=0.5Pass 244010.668>=0.5Pass 248010.663>=0.5Pass AnnexforBluetoothLowEnergyTestReportNo.:CTL2602061011-WF FCCID:2BVN2-B58A Page6/21 2.2TestGraph 2.2.1OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2602061011-WF FCCID:2BVN2-B58A Page7/21 1M_HCH_2480MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2602061011-WF FCCID:2BVN2-B58A Page8/21 2.2.26dBBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2602061011-WF FCCID:2BVN2-B58A Page9/21 1M_HCH_2480MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2602061011-WF FCCID:2BVN2-B58A Page10/21 3.MaximumConductedOutputPower 3.1TestResult 3.1.1Power Mode TX Type Frequency (MHz) MaximumPeakConductedOutputPower(dBm) Verdict ANT1Limit 1MSISO 2402-0.92<=30Pass 2440-0.22<=30Pass 2480-0.34<=30Pass Note1:AntennaGain:Ant1:-2.41dBi; Note2:RFCableloss=0.5dB Note3:ThetestresultsincludeRFCableloss. AnnexforBluetoothLowEnergyTestReportNo.:CTL2602061011-WF FCCID:2BVN2-B58A Page11/21 3.2TestGraph 3.2.1Power 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2602061011-WF FCCID:2BVN2-B58A Page12/21 1M_HCH_2480MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2602061011-WF FCCID:2BVN2-B58A Page13/21 4.MaximumPowerSpectralDensity 4.1TestResult 4.1.1PSD Mode TX Type Frequency (MHz) MaximumPSD(dBm) Verdict ANT1Limit 1MSISO 2402-1.16<=8Pass 2440-0.58<=8Pass 2480-0.61<=8Pass Note1:AntennaGain:Ant1:-2.41dBi; Note2:RFCableloss=0.5dB Note3:ThetestresultsincludeRFCableloss. AnnexforBluetoothLowEnergyTestReportNo.:CTL2602061011-WF FCCID:2BVN2-B58A Page14/21 4.2TestGraph 4.2.1PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2602061011-WF FCCID:2BVN2-B58A Page15/21 1M_HCH_2480MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2602061011-WF FCCID:2BVN2-B58A Page16/21 5.UnwantedEmissionsInNon-restrictedFrequencyBands 5.1TestResult 5.1.1Ref Mode TX Type Frequency (MHz) ANT LevelofReference (dBm) 1MSISO 24021-1.16 24401-0.57 24801-0.61 5.1.2CSE Mode TX Type Frequency (MHz) ANT LevelofReference (dBm) Limit (dBm) Verdict 1MSISO 24021-0.57-20.57Pass 24401-0.57-20.57Pass 24801-0.57-20.57Pass AnnexforBluetoothLowEnergyTestReportNo.:CTL2602061011-WF FCCID:2BVN2-B58A Page17/21 5.2TestGraph 5.2.1Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2602061011-WF FCCID:2BVN2-B58A Page18/21 1M_HCH_2480MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2602061011-WF FCCID:2BVN2-B58A Page19/21 5.2.2CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2602061011-WF FCCID:2BVN2-B58A Page20/21 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV AnnexforBluetoothLowEnergyTestReportNo.:CTL2602061011-WF FCCID:2BVN2-B58A Page21/21 1M_HCH_2480MHz_Ant1_NTNV

Test Setup Photos

FCCID:2BVN2-B58APage 1 of 4 ReportNo.:CTL2602061011-WF TestSetupPhotosoftheEUT FCCID:2BVN2-B58APage 2 of 4 ReportNo.:CTL2602061011-WF FCCID:2BVN2-B58APage 3 of 4 ReportNo.:CTL2602061011-WF FCCID:2BVN2-B58APage 4 of 4 ReportNo.:CTL2602061011-WF

Contact Information

Applicant

Yigang Gao(Manager)

[email protected]Fax: /

Technical Contact

HOORAY INDUSTRY LLCCindy Wu

[email protected]

1408 Pinon Place, Fullerton, · United States

Test Firm

Shenzhen CTL Testing Technology Co., Ltd.Tracy Qi

[email protected]

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	1.00 mW

Confidentiality

Long Term

Grant Notes

Output Power listed is peak conducted. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
