2BVO3-AVL-WD860Digital signage

Shenzhen Avlink Technology Co., Ltd
Digital signage - FCC ID 2BVO3-AVL-WD860 - Shenzhen Avlink Technology Co., Ltd
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Apr 28, 2026
Application Purpose
Original Equipment
Equipment Note
Digital signage
Frequency Range
2402.00000000 - 2480.00000000
Company
Shenzhen Avlink Technology Co., Ltd
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

WINDOW FACING DISPLAY USER MANUAL FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF Exposure Statement To maintain compliance with FCC'S RF Exposure guidelines, This equipment should be installed and operated with minimum 20cm between the radiator and your body. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. 2 INDEX ENGLISH ............................................................................................................................................ 3 1. IMPORTANT INFORMATION ................................................................................................... 3 2. SAFETY PRECAUTIONS, MAINTENANCE AND RECOMMENDED USES ................................... 4 2.1. RECOMMENDED USES ........................................................................................................ 5 2.2. ERGONOMICS ..................................................................................................................... 6 2.3. CLEANING THE LCD PANEL ................................................................................................. 6 2.4. CLEANING THE CABINET ..................................................................................................... 6 2.5. MAINTENANCE ................................................................................................................... 6 3. INSTALLATION ......................................................................................................................... 7 3.1. CEILING MOUNTING ........................................................................................................... 7 3.2. WALL MOUNTING .............................................................................................................. 7 4. OUTLINE DIMENSIONS AND DRAWINGS ............................................................................... 8 5. TECHNICAL PARAMETERS ....................................................................................................... 9 6. DISPLAY SCHEMATIC DIAGRAM .............................................................................................. 9 3 ENGLISH 1. IMPORTANT INFORMATION TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONECT THE POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit. This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems. CAUTION: Please use the power cord provided with this monitor in accordance with the table below. If a power cord is not supplied with this equipment, please contact your supplier. For all other cases, please use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your country. Plug type North America Europe U.K. Chinese Japanese Plug shape Region U.S.A / Canada Taiwan EU U.K. China Japan Voltage 120* 110 230 230 220 100 * When operating the monitor with its AC 125-240V power supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used. 4 NOTE: This product can only be serviced in the country where it was purchased. Use the power cord which has BSMI mark at both ends when you use this monitor in Taiwan. • The intended primary use of this product is as an Information Technical Equipment in an office or domestic environment. • The product is intended to be Connected to a computer and is not intended for the display of television broadcast signals. 2. SAFETY PRECAUTIONS, MAINTENANCE AND RECOMMENDED USES FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND USING THE MULTI-FUNCTION MONI…

Text truncated - open the document above for the full version.

Attestation Statements

Shenzhen Avlink Technology Co., Ltd Covered Equipment Certification Attestation Letter 4/22/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BVO3-AVL-WD860 Shenzhen Avlink Technology Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shenzhen Avlink Technology Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Shenzhen Avlink Technology Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Alice Zhang Title: Manager Company Name: Shenzhen Avlink Technology Co., Ltd Date: 4/22/2026

Attestation Statements

Shenzhen Avlink Technology Co., Ltd U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: April 22, 2026 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BVO3-AVL-WD860 Shenzhen Avlink Technology Co., Ltd(“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Shenzhen Avlink Technology Co., Ltd FRN: 0038305280 Address: 203, Building 1, No. 21, Lianteng Road, Loucun Community, Xinhu Street, Guangming District, Shenzhen, 518106, Guangdong, China Signature: Contact Person: Alice Zhang Tel: +8613113688179 Email: [email protected]

Cover Letter(s)

DATE: April 22, 2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen CCUT Quality Technology Co., Ltd. (1F, Building 35, Changxing Technology Indstrl Park Changzhen Community, Yutang Street, Shenzhen, China) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Shenzhen Avlink Technology Co., Ltd (203, Building 1, No. 21, Lianteng Road, Loucun Community, Xinhu Street, Guangming District, Shenzhen, 518106, Guangdong, China). <Signature> Name: Alice Zhang Title: Manager Applicant Company: Shenzhen Avlink Technology Co., Ltd

Cover Letter(s)

Date: April 22, 2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Alice Zhang Title: Manager Company: Shenzhen Avlink Technology Co., Ltd

Cover Letter(s)

DATE: April 22, 2026 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BVO3-AVL-WD860 Product Name: Digital signage Product Model: AVL-WD860 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Alice Zhang Title: Manager Company: Shenzhen Avlink Technology Co., Ltd

Cover Letter(s)

Shenzhen Avlink Technology Co., Ltd Model Difference Statement DATE: April 22, 2026 FCC ID: 2BVO3-AVL-WD860 Dear Sir/Madam, Added models AVL-WD750, AVL-WD650, AVL-ID157R, AVL-ID236R, AVL-ID215, AVL-ID860, AVL-OD550, AVL-ID220S, AVL-ID332S, AVL-ID320 basis of the original product AVL-WD860. The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Sincerely, Name: Alice Zhang Title: Manager Company name: Shenzhen Avlink Technology Co., Ltd Address: 203, Building 1, No. 21, Lianteng Road, Loucun Community, Xinhu Street, Guangming District, Shenzhen, 518106, Guangdong, China

External Photos

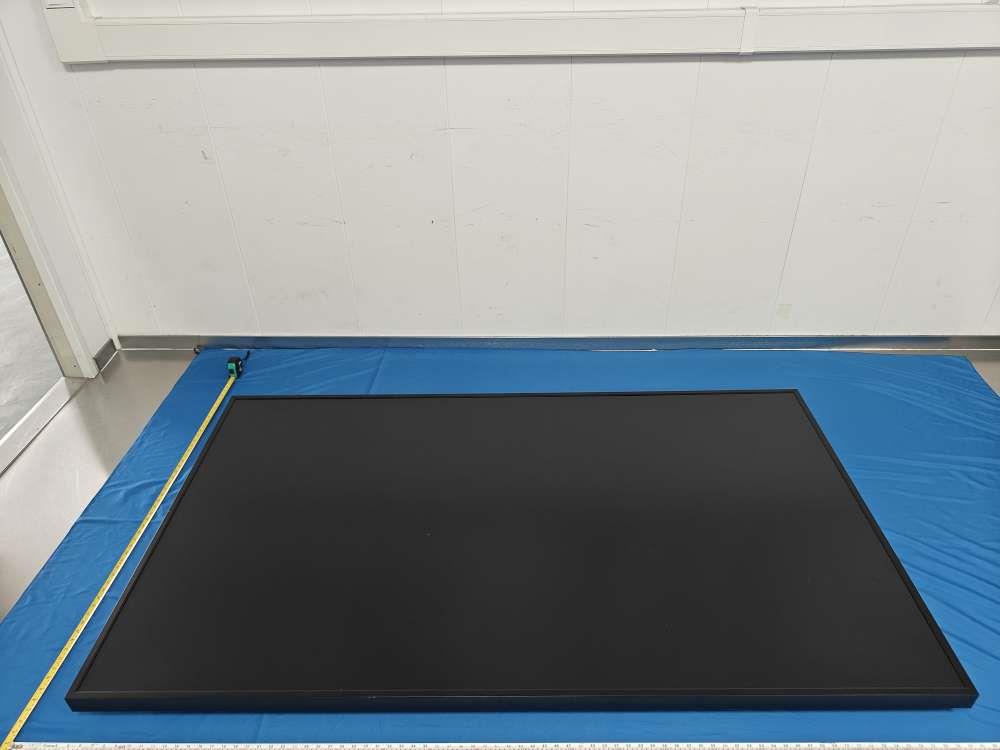

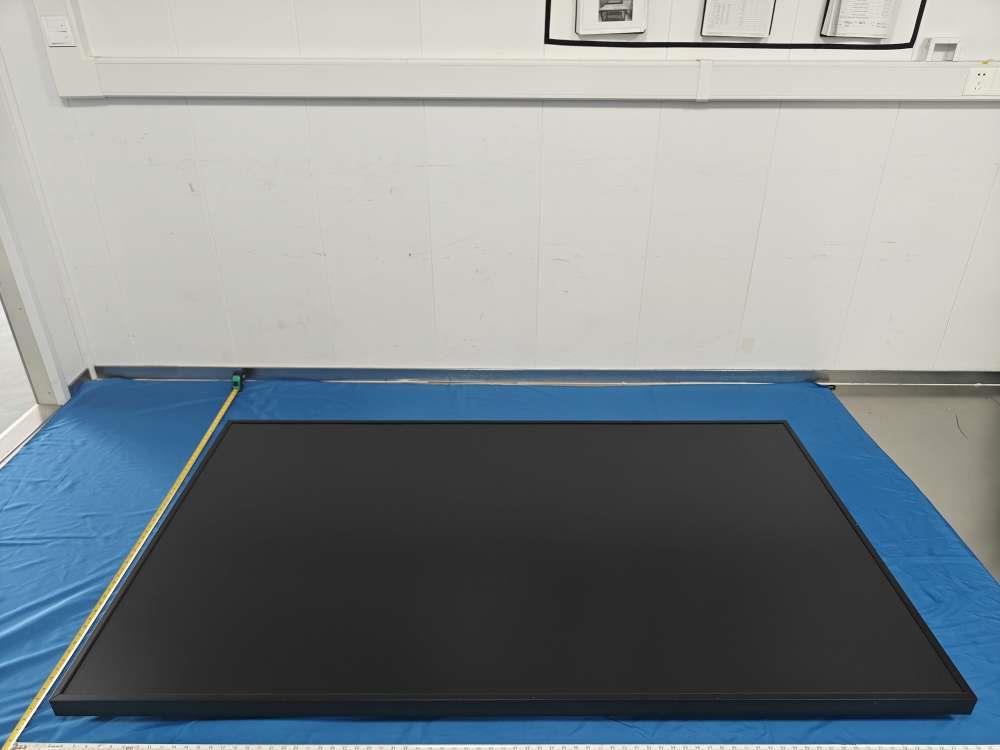

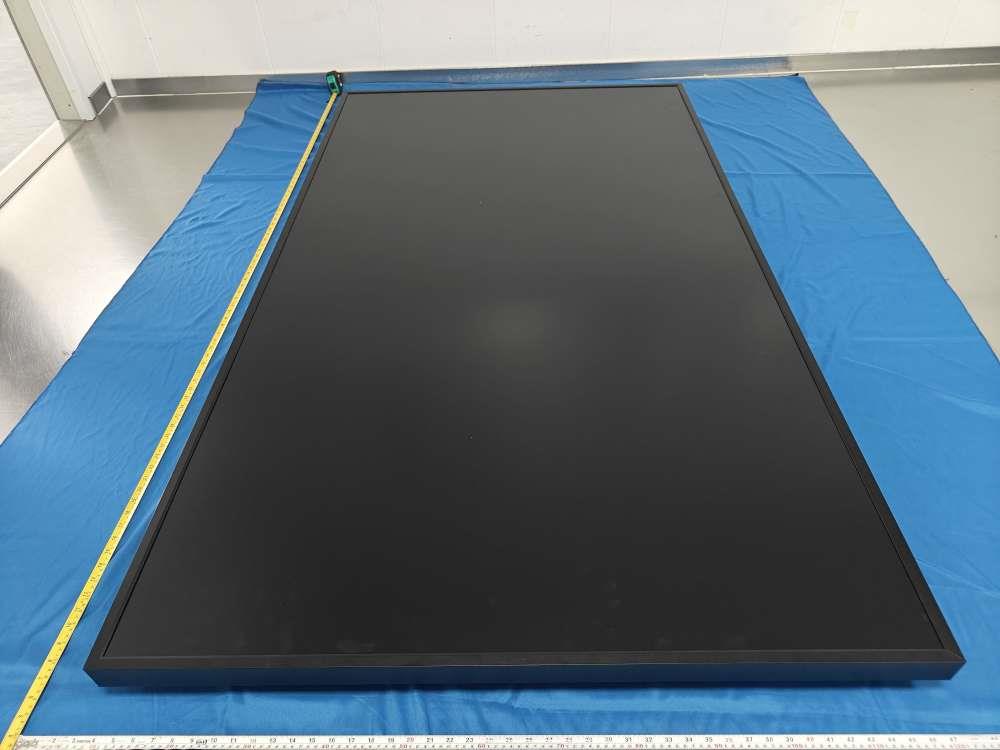

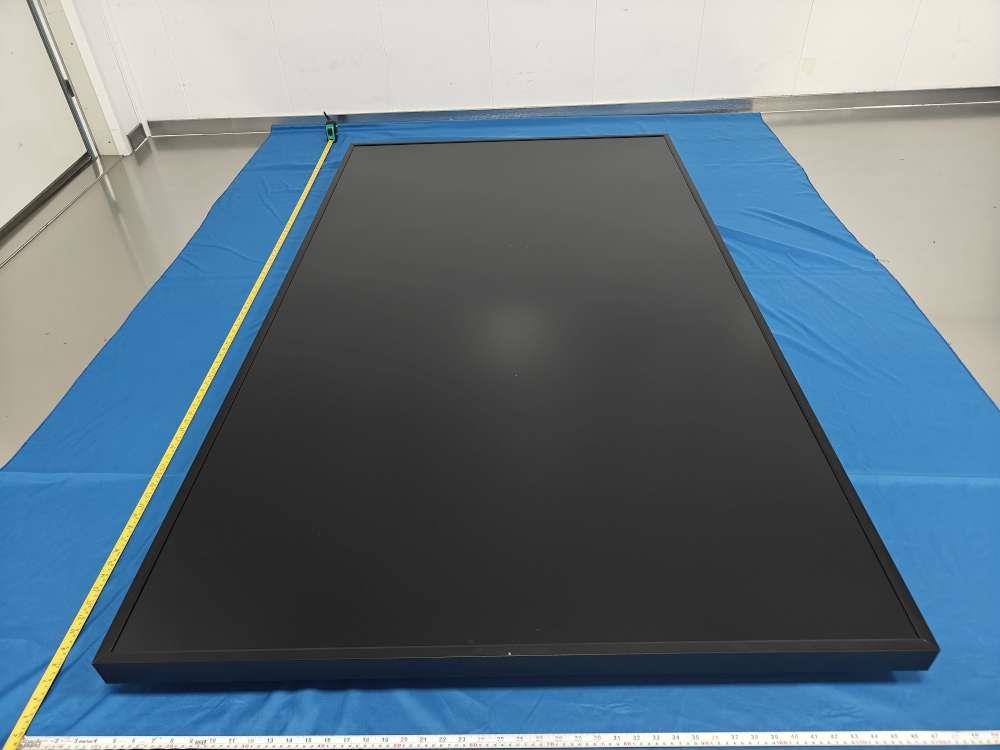

Report No: SSP26040017-1&2&3E FCC ID: 2BVO3-AVL-WD860 Annex of Test Report Annex A. EUT External Photos Model : AVL-WD860 EUT View 1 EUT View 2 Report No: SSP26040017-1&2&3E FCC ID: 2BVO3-AVL-WD860 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP26040017-1&2&3E FCC ID: 2BVO3-AVL-WD860 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP26040017-1&2&3E FCC ID: 2BVO3-AVL-WD860 Annex of Test Report EUT View 7 EUT View 8

ID Label/Location Info

Report No: SSP26040017-1&2&3E FCC ID: 2BVO3-AVL-WD860 Annex of Test Report Annex D. Label and Inf ormation FCC Label Sample Label Size: 5cm*2.5cm FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

Internal Photos

Report No: SSP26040017-1&2&3E FCC ID: 2BVO3-AVL-WD860 Annex of Test Report Annex B. EUT Internal Photos EUT Internal View 1 EUT Internal View 2 Report No: SSP26040017-1&2&3E FCC ID: 2BVO3-AVL-WD860 Annex of Test Report EUT Internal View 3 EUT Internal View 4 ANT Location Report No: SSP26040017-1&2&3E FCC ID: 2BVO3-AVL-WD860 Annex of Test Report EUT Internal View 5 EUT Internal View 6 Report No: SSP26040017-1&2&3E FCC ID: 2BVO3-AVL-WD860 Annex of Test Report EUT Internal View 7 EUT Internal View 8 Report No: SSP26040017-1&2&3E FCC ID: 2BVO3-AVL-WD860 Annex of Test Report EUT Internal View 9 EUT Internal View 10 Report No: SSP26040017-1&2&3E FCC ID: 2BVO3-AVL-WD860 Annex of Test Report EUT Internal View 11 EUT Internal View 12 Report No: SSP26040017-1&2&3E FCC ID: 2BVO3-AVL-WD860 Annex of Test Report EUT Internal View 13 EUT Internal View 14 Integral ANT

RF Exposure Info

FCC ID: 2BVO3-AVL-WD860 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm2) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f2) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f2) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2, Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation 2.4G Wi-Fi Mode Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11b 19.65 91.62 0.0289 1.0 PASS BR+EDR Mode Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 8DPSK 8.14 6.52 0.0021 1.0 PASS BLE Mode Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result GFSK 5.82 3.82 0.0012 1.0 PASS Calculations for simultaneously transmit Mode Ratios Result Limit Result 802.11b 0.0289 0.0322 1 PASS 8DPSK 0.0021 GFSK 0.0012 Remark: 2.4G antenna gain=2dBi Ratios = Power Density / Power density Limit So a SAR test is not required

Test Report

Report No: SSP26040017-3E FCC Test Report Page 1 of 49 FCC TEST REPORT FCC ID: 2BVO3-AVL-WD860 Report No. : SSP26040017-3E Applicant : Shenzhen Avlink Technology Co., Ltd Product Name : Digital signage Model Name : AVL-WD860 Test Standard : FCC Part 15.247 Date of Issue : 2026-04-22 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP26040017-3E FCC Test Report Page 2 of 49 Test Report Basic Information Applicant..................................: Shenzhen Avlink Technology Co., Ltd Address of Applicant...............: 203, Building 1, No. 21, Lianteng Road, Loucun Community, Xinhu Street, Guangming District, Shenzhen, 518106, Guangdong, China Manufacturer..........................: Shenzhen Avlink Technology Co., Ltd Address of Manufacturer........: 203, Building 1, No. 21, Lianteng Road, Loucun Community, Xinhu Street, Guangming District, Shenzhen, 518106, Guangdong, China Product Name.........................: Digital signage Brand Name.............................: - Main Model..............................: AVL-WD860 Series Models..........................: AVL-WD750, AVL-WD650, AVL-ID157R, AVL-ID236R, AVL-ID215, AVL-ID860, AVL-OD550, AVL-ID220S, AVL-ID332S, AVL-ID320 Test Standard..........................: FCC Part 15 Subpart C KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.4-2014 ANSI C63.10-2020 Date of Test .............................: 2026-04-09 to 2026-04-15 Test Result...............................: PASS Tested By ................................: (Tate Chen) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP26040017-3E FCC Test Report Page 3 of 49 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 22 6.1 Standard and Limit.............................................................................................................................................. 22 6.2 Test Procedure..................................................................................................................................................…

Text truncated - open the document above for the full version.

Test Report

Report No: SSP26040017-1E FCC Test Report Page 1 of 38 FCC TEST REPORT FCC ID: 2BVO3-AVL-WD860 Report No. : SSP26040017-1E Applicant : Shenzhen Avlink Technology Co., Ltd Product Name : Digital signage Model Name : AVL-WD860 Test Standard : FCC Part 15.247 Date of Issue : 2026-04-22 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP26040017-1E FCC Test Report Page 2 of 38 Test Report Basic Information Applicant..................................: Shenzhen Avlink Technology Co., Ltd Address of Applicant...............: 203, Building 1, No. 21, Lianteng Road, Loucun Community, Xinhu Street, Guangming District, Shenzhen, 518106, Guangdong, China Manufacturer..........................: Shenzhen Avlink Technology Co., Ltd Address of Manufacturer........: 203, Building 1, No. 21, Lianteng Road, Loucun Community, Xinhu Street, Guangming District, Shenzhen, 518106, Guangdong, China Product Name.........................: Digital signage Brand Name.............................: - Main Model..............................: AVL-WD860 Series Models..........................: AVL-WD750, AVL-WD650, AVL-ID157R, AVL-ID236R, AVL-ID215, AVL-ID860, AVL-OD550, AVL-ID220S, AVL-ID332S, AVL-ID320 Test Standard..........................: FCC Part 15 Subpart C KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.4-2014 ANSI C63.10-2020 Date of Test .............................: 2026-04-09 to 2026-04-15 Test Result...............................: PASS Tested By ................................: (Tate Chen) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP26040017-1E FCC Test Report Page 3 of 38 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 22 6.1 Standard and Limit.............................................................................................................................................. 22 6.2 Test Procedure..................................................................................................................................................…

Text truncated - open the document above for the full version.

Test Report

Page 1 of 3 1. General Inf ormation 1.1 Antenna Information Manufacturer: Shenzhen Avlink Technology Co., Ltd Address of Manufacturer: 203, Building 1, No. 21, Lianteng Road, Loucun Community, Xinhu Street, Guangming District, Shenzhen, 518106, Guangdong, China Product Name: 2.4GHz Antenna Model Name: AVL-WD860 Frequency Range: 2400MHz - 2500MHz Type of Antenna: Integral Antenna Antenna Gain: 2dBi (Max.) Impedance: 50 ohm Antenna View: Length * Width (110mm * 10mm) Page 2 of 3 2. Antenna Specification inf ormation 2.1 Gain Frequency Peak Gain (dBi) Polarity 2400MHz 2 Horizontal 2400MHz 1.28 Vertical 2450MHz 1.12 Horizontal 2450MHz 1.34 Vertical 2500MHz 1.45 Horizontal 2500MHz 1.78 Vertical Page 3 of 3 2.2 Radiation Pattern View

Test Setup Photos

Report No: SSP26040017-1&2&3E FCC ID: 2BVO3-AVL-WD860 Annex of Test Report Annex C. Tes…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Alice Zhang
[email protected]Fax: +8613113688179

Technical Contact

CLF Import and Export LimitedDavid Chen
[email protected]Fax: +1 949 254 2565

1312 17th Street #692, Denver, CO 80202 · Denver, Colorado, 80202 · United States

Test Firm

Shenzhen CCUT Quality Technology Co., Ltd.Lahm Peng
[email protected]

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz3.82 mW
215C2.41 GHz - 2.46 GHz92.26 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted. This device supports 20 and 40MHz bandwidth operation.
