1 FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

(MONSTERA SRL) (2026/8/18) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BVOB-JA27) [MONSTERA SRL] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the 2026/8/4 of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) HU SHUJIE (MONSTERA SRL) (2026/8/18) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BVOB-JA27) [MONSTERA SRL] (“the applicant”) certifies that, as of the 2026/8/4 of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) HU SHUJIE

MONSTERA SRL VIA APPIA NUOVA 669-00179 ROMA ITALY 2026/8/19 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION EUT NAME: Wireless Earphones Trademark: JIC MODEL: JA27, JA27-WHITE, JA27-BLACK, JA27-LILAC FCC ID: 2BVOB-JA27 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Technology Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title: HU SHUJIE / Manager Contact information / address: VIA APPIA NUOVA 669-00179 ROMA ITALY

MONSTERA SRL VIA APPIA NUOVA 669-00179 ROMA ITALY 2026/8/18 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Wireless Earphones Trademark: JIC MODEL: JA27, JA27-WHITE, JA27-BLACK, JA27-LILAC FCC ID: 2BVOB-JA27 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title: HU SHUJIE / Manager Contact information / address: VIA APPIA NUOVA 669-00179 ROMA ITALY

MONSTERA SRL VIA APPIA NUOVA 669-00179 ROMA ITALY 2026/8/18 EUT NAME: Wireless Earphones Trademark: JIC MODEL: JA27, JA27-WHITE, JA27-BLACK, JA27-LILAC FCC ID: 2BVOB-JA27 All the models have the same circuitry and radio frequency modules, only the model names are different. Client’s signature: Client’s name / title: HU SHUJIE / Manager Contact information / address: VIA APPIA NUOVA 669-00179 ROMA ITALY

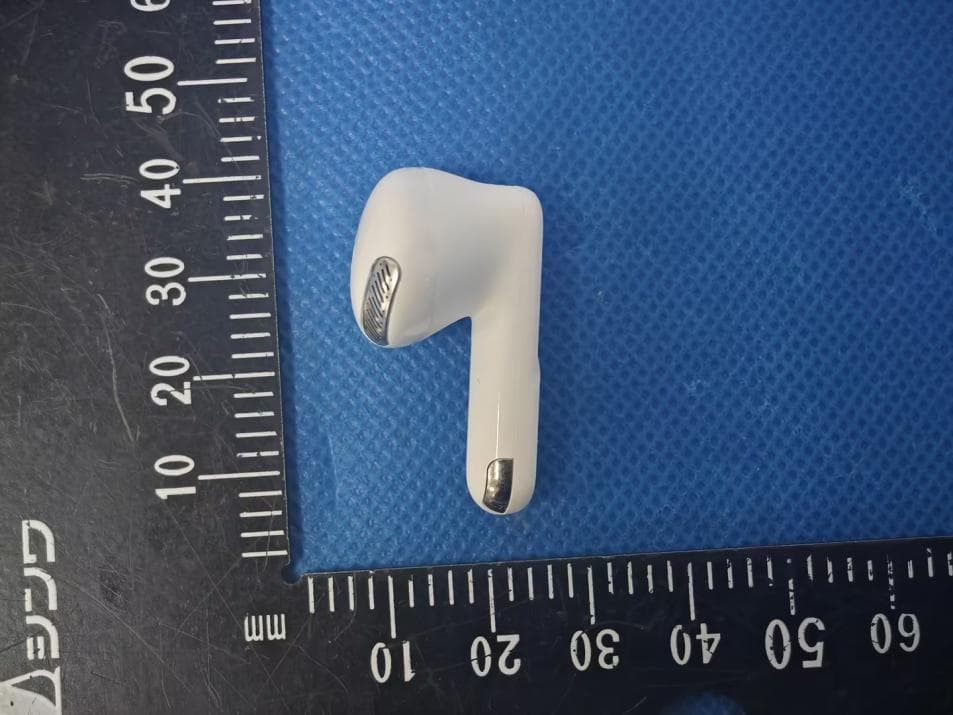

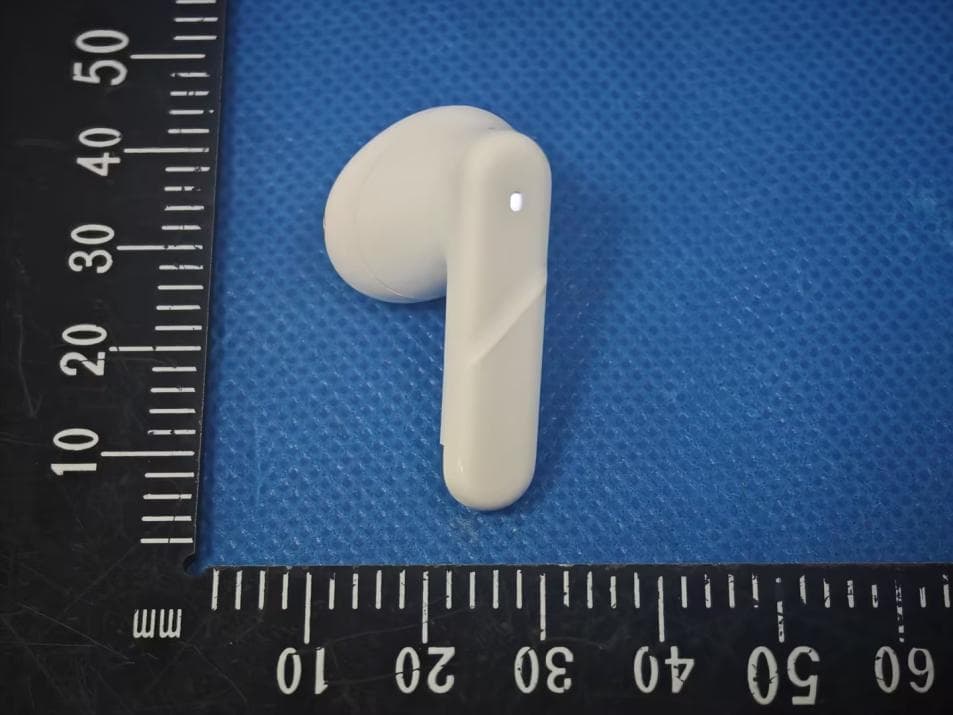

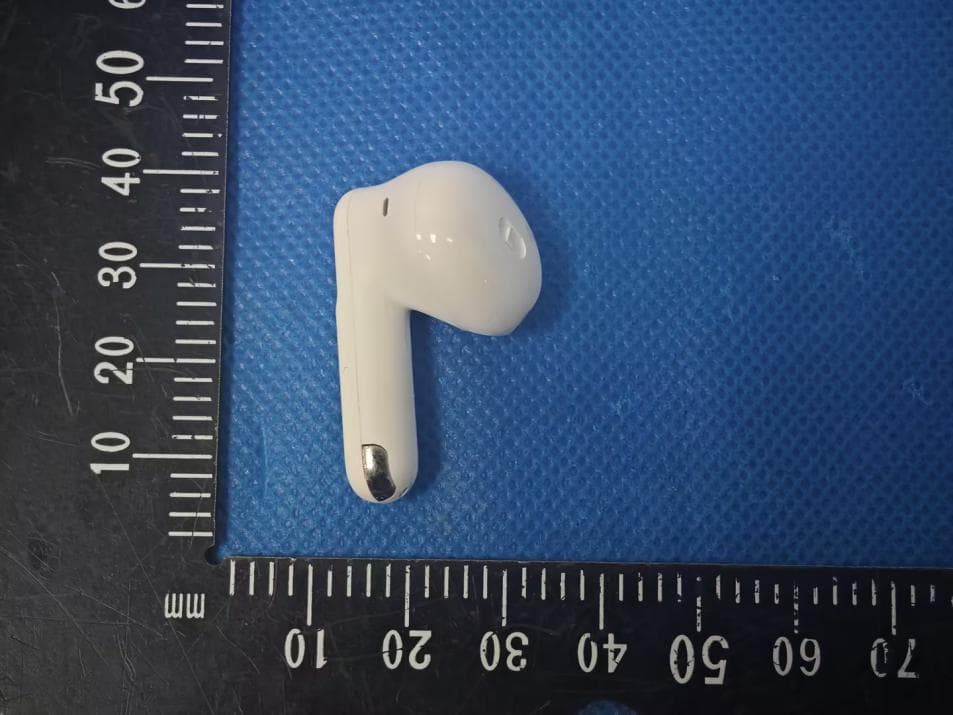

Report No.: BCTC2606579346E External Photos Report No.: BCTC2606579346E Report No.: BCTC2606579346E

FCC ID: 2BVOB-JA27 Size: 12*1mm Label location

Report No.: BCTC2606579346E Internal Photos Report No.: BCTC2606579346E Antenna

FCC ID: 2BVOB-JA27 RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison Mode Modulation Frequency (MHz) Max. Power (dBm) Tune-up Power (dBm) Tune-up Power (mW) Test Distance (mm) Result Exclusion Thresholds for 1-g SAR Bluetooth 8DPSK 2402 3.09 3.5 2.24 5 0.69 3.0

No.：BCTC/KJ-RF-ICT-001 Page 1 of 87 Edition：B.1 TEST REPORT Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC2606579346E Applicant: MONSTERA SRL Product Name: Wireless Earphones Test Model: JA27 Tested Date: 2026-06-04 to 2026-06-29 Issued Date: 2026-06-29 Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 2 of 87 Edition：B.1 FCC ID: 2BVOB-JA27 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Technology Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Wireless Earphones Trademark: JIC Model/Type Reference: JA27 JA27-WHITE, JA27-BLACK, JA27-LILAC Prepared For: MONSTERA SRL Address: Via Appia Nuova 669 Roma Italy 00179 Manufacturer: MONSTERA SRL Address: Via Appia Nuova 669 Roma Italy 00179 Prepared By: Shenzhen BCTC Technology Co., Ltd. Address: Room 101M, Unit 1, Building1, Pengyuan, No.18, Lilang Road, Shanglilang, Nanwan Subdistrict, Longgang District, Shenzhen, Guangdong, China. Sample Received Date: 2026-06-04 Sample Tested Date: 2026-06-04 to 2026-06-29 Report No.: BCTC2606579346E Test Standards FCC Part15.247 ANSI C63.10-2020 Test Results PASS Remark: This is Bluetooth Classic radio test report. Prepared by : Reviewer by : Approved by: Louis Zeng /Editor Mike Zheng / Supervisor Sewen Guo/Manager Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 3 of 87 Edition：B.1 Table of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information and Test Setup ...................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement and Restricted Bands of Operation ...... 26 8.1 Block Diagram Of Test Setup .............................................................................. 26 8.2 Limit .................................................................................................................... 26 8.3 Test procedure .................................................................................................... 27 8.4 EUT operating Conditions ................................................................................... 27 8.5 Test Result .......................................................................................................... 28 9. Spurious RF Conducted Emissions ..................................................................... 29 9.1 Block Diagram Of Test Setup .............................................................................. 29 9.2 Limit .................................................................................................................... 29 9.3 Test procedure .................................................................................................... 29 9.4 Test Result .......................................................................................................... 30 10. 20 dB Bandwidth ................................................................................................. 51 …

Text truncated - open the document above for the full version.

Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 48 of 87 Edition：B.1 Band Edge(Hopping) NVNT 2-DH5 2480MHz Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2480MHz Hopping Emission Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 49 of 87 Edition：B.1 Band Edge(Hopping) NVNT 3-DH5 2402MHz Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2402MHz Hopping Emission Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 50 of 87 Edition：B.1 Band Edge(Hopping) NVNT 3-DH5 2480MHz Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2480MHz Hopping Emission Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 51 of 87 Edition：B.1 10. 20 dB Bandwidth 10.1 Block Diagram Of Test Setup 10.2 Limit N/A 10.3 Test procedure 1. Set RBW = 30kHz. 2. Set the video bandwidth (VBW) ≥ 3 x RBW. 3. Detector = Peak. 4. Trace mode = max hold. 5. Sweep = auto couple. 6. Allow the trace to stabilize. 7. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 52 of 87 Edition：B.1 10.4 Test Result Condition Mode Frequency (MHz) -20 dB Bandwidth (MHz) Verdict NVNT 1-DH1 2402 0.952 Pass NVNT 1-DH1 2441 0.953 Pass NVNT 1-DH1 2480 0.943 Pass NVNT 2-DH1 2402 1.318 Pass NVNT 2-DH1 2441 1.258 Pass NVNT 2-DH1 2480 1.268 Pass NVNT 3-DH5 2402 1.290 Pass NVNT 3-DH5 2441 1.276 Pass NVNT 3-DH5 2480 1.302 Pass Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 53 of 87 Edition：B.1 Test Graphs -20dB Bandwidth NVNT 1-DH5 2402MHz -20dB Bandwidth NVNT 1-DH5 2441MHz Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 54 of 87 Edition：B.1 -20dB Bandwidth NVNT 1-DH5 2480MHz -20dB Bandwidth NVNT 2-DH5 2402MHz Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 55 of 87 Edition：B.1 -20dB Bandwidth NVNT 2-DH5 2441MHz -20dB Bandwidth NVNT 2-DH5 2480MHz Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 56 of 87 Edition：B.1 -20dB Bandwidth NVNT 3-DH5 2402MHz -20dB Bandwidth NVNT 3-DH5 2441MHz Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 57 of 87 Edition：B.1 -20dB Bandwidth NVNT 3-DH5 2480MHz Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 58 of 87 Edition：B.1 11. Maximum Peak Output Power 11.1 Block Diagram Of Test Setup 11.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(1) Peak Output Power 0.125 watt or 21dBm 2400-2483.5 PASS 11.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 2MHz. VBW = 6MHz. Sweep = auto; Detector Function = Peak. 3. Keep the EUT in transmitting at lowest, medium and highest channel individually. Record the max value. 11.4 Test Result Condition Mode Frequency (MHz) Conducted Power (dBm) Limit (dBm) Verdict NVNT 1-DH1 2402 1.82 21 Pass NVNT 1-DH1 2441 0.19 21 Pass NVNT 1-DH1 2480 -0.86 21 Pass NVNT 2-DH1 2402 2.68 21 Pass NVNT 2-DH1 2441 0.91 21 Pass NVNT 2-DH1 2480 -0.07 21 Pass NVNT 3-DH5 2402 3.09 21 Pass NVNT 3-DH5 2441 1.50 21 Pass NVNT 3-DH5 2480 0.43 21 Pass Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 59 of 87 Edition：B.1 Test Graphs Power NVNT 1-DH5 2402MHz Power NVNT 1-DH5 2441MHz Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 60 of 87 Edition：B.1 Power NVNT 1-DH5 2480MHz Power NVNT 2-DH5 2402MHz Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 61 of 87 Edition：B.1 Power NVNT 2-DH5 2441MHz Power NVNT 2-DH5 2480MHz Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 62 of 87 Edition：B.1 Power NVNT 3-DH5 2402MHz Power NVNT 3-DH5 2441MHz Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 63 of 87 Edition：B.1 Power NVNT 3-DH5 2480MHz Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 64 of 87 Edition：B.1 12. Hopping Channel Separation 12.1 Block Diagram Of Test Setup 12.2 Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 0.125W. 12.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 2.0MHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section Submit this plot. 12.4 Test Result Condition Mode Hopping Freq1 (MHz) Hopping Freq2 (MHz) HFS (MHz) Limit (MHz) Verdict NVNT 1-DH1 2401.990 2402.989 0.999 0.635 Pass NVNT 1-DH1 2440.993 2441.980 0.987 0.632 Pass NVNT 1-DH1 2478.987 2479.989 1.002 0.629 Pass NVNT 2-DH1 2401.993 2402.989 0.996 0.873 Pass NVNT 2-DH1 2440.990 2441.995 1.005 0.800 Pass NVNT 2-DH1 2478.993 2479.989 0.996 0.845 Pass NVNT 3-DH5 2401.990 2402.992 1.002 0.860 Pass NVNT 3-DH5 2440.984 2441.992 1.008 0.792 Pass NVNT 3-DH5 2478.993 2479.992 0.999 0.868 Pass Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 65 of 87 Edition：B.1 Test Graphs CFS NVNT 1-DH5 2402MHz CFS NVNT 1-DH5 2441MHz Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 66 of 87 Edition：B.1 CFS NVNT 1-DH5 2480MHz CFS NVNT 2-DH5 2402MHz Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 67 of 87 Edition：B.1 CFS NVNT 2-DH5 2441MHz CFS NVNT 2-DH5 2480MHz Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 68 of 87 Edition：B.1 CFS NVNT 3-DH5 2402MHz CFS NVNT 3-DH5 2441MHz Report No.:BCTC2606579346E No.：B…

Text truncated - open the document above for the full version.

2.4GHz 2012 Chip Antenna: RANT2012F245X07 Dimension(mm) L2.05+-0.10 W1.20+-0.10 T0.65+-0.10 No.TerminalName 1Feeding/GNG 2GND Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT2012F245X07 (A)(B)(C)(D)(E)(F) (A)ProductTypeChipAntenna (B)SizeCode2.0x1.2mm(+-0.2mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=07 ElectricalSpecification WorkingFrequencyRange2400~2484MHz Bandwidth84(Min.) PeakGain2.7 dBi (Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature( °C )-40~85 °C ResistancetoSolderingHeats 10sec.(@280°C) TerminationNi/Au(Leadless) ThespecificationisdefinedonEVB. DimensionandTerminalConfiguration 咏成國際科技有限公司電話 :13530576606 RAINInternationalTechnologyCo.,Ltd. 7/F,BuildingF,ZhichuangPark,Tong'an,Gushu,Shenzhen 2.4GHz 2012 Chip Antenna: RANT2012F245X07 EvaluationBoardReference PCBDimensionAntennaLayoutReferenceUnit:mm ElectricalCharacteristics ReturnLoss ReturnLoss&Radiation 1 Frequency(MHz) S11(dB) 2400-10.77 2450-24.81 2484-10.243 Radiation Z Y X 2400MHz2500MH 2450MHz z Efficiency70.56%75.25%71.01% 2.4GHz 2012 Chip Antenna: RANT2012F245X07 TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 20127”5K/Reel 9.0±0.5 60±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTDP PaperType2012 1.50±0.202.30±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.101.57±0.104.0±0.1 ReliabilityTabl 2.4GHz 2012 Chip Antenna: RANT2012F245X07 e TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 2.4GHz 2012 Chip Antenna: RANT2012F245X 2.4GHz 2012 Chip Antenna: RANT2012F245X07 07 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 1NewDatashee2022/10/15t

Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 85 of 87 Edition：B.1 16. EUT Test Setup Photographs Conducted emissions Report No.:BCTC2606579346E No.：BCTC/KJ-RF-ICT-001 Page 86 of 87 Edition：B.1 Radiated Measurement Photos
