ISC-SX1262-B An advanced LoRa Module DATASHEET Version: V2.2 ISC-SX1262-B IndieSemiC Private Limited II Datasheet Revision history: Revision Description Date 1.0 − Initial Release 25/11/2025 2.0 − Restructured datasheet − Added FAQ − Power Consumption data − Reflow Diagram 04/06/2026 2.1 − Updated FAQs 08/07/2026 2.2 − Added Shield Image 27/08/2026 ISC-SX1262-B IndieSemiC Private Limited III Datasheet Table of Content 1. Description ....................................................................................................................... 1 2. Features ............................................................................................................................ 2 3. Applications ...................................................................................................................... 3 4. Block Diagram ................................................................................................................... 4 5. Module Pin-out .................................................................................................................. 4 6. PCB Footprint .................................................................................................................... 6 7. Pin Descriptions ................................................................................................................ 7 8. Electrical Specifications .................................................................................................... 8 9. LoRaWAN ......................................................................................................................... 9 10. Installation of Antenna .................................................................................................... 9 11. Power Consumption Analysis:....................................................................................... 10 12. Reflow Diagram: ............................................................................................................ 12 13. FAQs: ............................................................................................................................ 13 Contact & Support: ............................................................................................................. 15 ISC-SX1262-B IndieSemiC Private Limited IV Datasheet List of Tables: Table 1- Pin Descriptions ...................................................................................................... 7 Table 2- Maximum Rating ...................................................................................................... 8 Table 3- Operating Ratings.................................................................................................... 8 Table 4 - Power Consumption.............................................................................................. 11 Table 5 - Reflow Rate .......................................................................................................... 12 ISC-SX1262-B IndieSemiC Private Limited V Datasheet List of Figures: Figure 1- ISC-SX1262-B ......................................................................................................... 1 Figure 2- Block Diagram........................................................................................................ 4 Figure 3- Module Pinout (back view) ...................................................................................... 4 Figure 4- Pin Diagram (back view) ......................................................................................... 5 Figure 5- Pin Diagram (front view) ......................................................................................... 5 Figure 6 - PCB Footprint ........................................................................................................ 6 Figure 7- Sleep Mode ........................................................................................................... 10 Figure 8- TX current profile ................................................................................................. 11 Figure 9- RX Current profile ................................................................................................ 11 Figure 10- Reflow Graph ..................................................................................................... 12 Figure 11- Connection Diagram........................................................................................... 13 ISC-SX1262-B IndieSemiC Private Limited 1 Datasheet Figure 1- ISC-SX1262- 1.Description ISC-SX1262-B is a LoRa series module designed and developed by INDIESEMIC. The module is used for ultra-long-range extended frequency communication. Its radio frequency chip SX1262 mainly uses LoRa™remote modem, whichisused for ultra- long range extended frequency communication. the ISC-SX1262-B can transmit up to +18.87dBm with highly efficient integrated power amplifiers. The devices support LoRa® and Long Range FHSS modulation for LPWAN use cases and (G)FSK modulation for legacy use cases. The device ishighly configurable to meet different application requirements utilizing the global LoRaWAN® standard or proprietary protocols. The devices are designed to comply with the physical layer requirements of the LoRaWAN specification released by the LoRa Alliance®. B ISC-SX1262-B IndieSemiC Private Limited 2 Datasheet 2. Features Semtech SX1262 Sub-GHz LoRa Transceiver - Frequency range: 150 MHz to 960 MHz - LoRa®, (G)FSK and Long Range FHSS (LR-FHSS) modulation support - LoRa spreading factors SF5 to SF12 - Programmable coding rates for optimized range and robustness - RSSI measurement and packet status monitoring - Support for public and private LoRaWAN® networks - Long Range FHSS support for enhanced network capacity and robustness - Integrated DC-DC converter and LDO regulator support RF Performance -Up to +18.87 dBm transmit po wer -Receiver sensitivity: o Up to -148 dbm (LoRa, SF12) o Up to…

Text truncated - open the document above for the full version.

INDIESEMICPRIVATELIMITED 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification–EquipmentType Companyname: INDIESEMICPRIVATELIMITED Address: A-1101,B-1101,TheFirst,B/HKeshavbaugPartyPlot,Vastrapur,Ahmedabad,Ahmedabad, Gujarat,380015 ProductName: ISC-SX1262-BModule FCCID:2BVP2ISC-SX1262-B Model(s):ISC-SX1262-B 2.911(d)(5)(i)EquipmentType We,[ INDIESEMICPRIVATELIMITED ](“theapplicant”)certifythattheequipmentforwhich authorizationissoughtthroughcertificationisnot:  Prohibitedfromreceivinganequipmentauthorizationpursuantto§2.903;oftheFCCrules.  Identifiedasanequipmenttypeinthe“CoveredList” NOTE1 Yourssincerely, Name:SummerNiDate:2026-08-20 Title:Manager NOTE1 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

INDIESEMICPRIVATELIMITED 2.911(d)(5)(ii)ApplicantAttestationv1.2 Section2.911(d)(5)(ii)Certification–Applicant(CoveredList) Companyname: INDIESEMICPRIVATELIMITED Address: A-1101,B-1101,TheFirst,B/HKeshavbaugPartyPlot,Vastrapur,Ahmedabad,Ahmedabad, Gujarat,380015 ProductName: ISC-SX1262-BModule FCCID:2BVP2ISC-SX1262-B Model(s):ISC-SX1262-B 2.911(d)(5)(ii)Applicantfiling We,[ INDIESEMICPRIVATELIMITED ](“theapplicant”)certifythat,asofthedateofthefilingofthe application,theapplicantisnotidentified NOTE1 onthe“CoveredList” NOTE2 ,establishedpursuantto §1.50002ofthischapter,asanentityproducingcoveredcommunicationsequipment. Yourssincerely, Name:SummerNiDate:2026-08-20 Title:Manager NOTE1 Deleteoptionnotapplicabletothisapplication. NOTE2 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

INDIESEMIC PRIVATE LIMITED Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 [2026-08-20] U.S. Agent Designation [INDIESEMIC PRIVATE LIMITED] acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BVP2ISC-SX1262-B): Name and company of U.S. agent: [GLOCERTS TECHNOLOGY INC] Physical U.S. address of agent: [19784 SUNKISSED RIDGE DR, RIVERSIDE, CA 92507] FRN of U.S. agent: [0036339737] Email address of U.S. agent: [[email protected]] Telephone of U.S.agent: (626) 588-8039 [GLOCERTS TECHNOLOGY INC] acknowledges their obligation to accept service of process on behalf of [INDIESEMIC PRIVATE LIMITED]. [INDIESEMIC PRIVATE LIMITED] with the FRN [0038310520] accepts its obligation to maintain an agent for service of process in the United States for no less than 1 year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Signature [Summer Ni] [Huiying Fan] [Manager] [Director] [INDIESEMIC PRIVATE LIMITED] [GLOCERTS TECHNOLOGY INC]

INDIESEMICPRIVATELIMITED OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:2026-08-20 Subject;RequestforLongTermConfidentiality FCCID:2BVP2ISC-SX1262-B ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,weare requestingtheCommissiontowithholdthefollowingattachment(s)asconfidentialdocumentsfrom publicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredasproprietary informationinoperationoftheequipment.Thepublicdisclosureofthesedocumentsmightbeharmfulto ourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram OperationalDescription Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatandcorrespondenceduring thecertificationreviewprocesscannotbegrantedasconfidentialdocumentsandthisinformationwillbe availableforpublicreviewoncethegrantofequipmentauthorizationisissued. Sincerely, Signature: Name:SummerNi Title:Manager

INDIESEMICPRIVATELIMITED FCCModularApprovalRequestRev3.0 FederalCommunicationsCommission EquipmentAuthorizationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:2026.8.20 Subject;ModularTransmitterApplication Companyname:INDIESEMICPRIVATELIMITED FCCID:2BVP2ISC-SX1262-B DearSir/Madam, ThisletterincludestheFCCapplicationrequirementsforModularTransmitterApprovalRequest for;- FCCKDB996369D01‘ModuleCertificationGuidev02;and FCCKDB996369D03OEMManualv01 Inaccordancewith47CFR15.212ModularTransmittersandKDB996369D01‘ModuleEquip AuthGuidev02’.FCCID:2BVP2ISC-SX1262-Bhasbeenexaminedagainstthefollowing requirements. Requirementper15.212andKDB996369D01ExplanationfromGrantee (donotwriteyes/no,butexplainwhyproduct complies/howitisachieved) Theradioelementsmusthavetheradiofrequencycircuitry shielded.Physicalcomponentsandtuningcapacitor(s)maybe locatedexternaltotheshield,butmustbeonthemodule assembly. Yes Theradioportionofthismoduleis shielded,pleaseseeexhibitionEUTphotos. Themodulemusthavebufferedmodulation/datainputstoensure thatthedevicewillcomplywithPart15requirementswithanytype ofinputsignal. Yes Themodulehasbuffermodulation/data inputs. Themodulemustcontainpowersupplyregulationonthemodule. Yes Themodulehasitsownpowersupply regulation.Pleaseseethesch. Themodulemustcontainapermanentlyattachedantenna,or containauniqueantennaconnector,andbemarketedand operatedonlywithspecificantenna(s),per§§15.203,15.204(b), 15.204(c),15.212(a),2.929(b). Yes Therequirementsofantenna andspuriousemissionhavebeen fulfilled.PleaserefertotheTestReport exhibition. Themodulemustdemonstratecomplianceinastand-alone configuration. Yes PleaserefertotheSetupPhoto exhibitionforthestand-alonetest configuration. ThemodulemustbelabeledwithitspermanentlyaffixedFCCID label,oruseanelectronicdisplay(seeKDBPublication784748). Yes TheModulewillbelabeledwithitsown FCCID,andtheinstructiononthe labelingruleoftheendproducthasbeen statedintheUserManualofthis module.PleaserefertotheLabeland UserManualexhibition. INDIESEMICPRIVATELIMITED FCCModularApprovalRequestRev3.0 Themodulemustcomplywithallspecificrulesapplicabletothe transmitter,includingalltheconditionsprovidedintheintegration instructionsbythegrantee. Yes TherequiredFCCrulehasbeenfulfilled andalltheinstructionsformaintaining compliancehavebeenclearlystatedin theUserManual. ThemodulemustcomplywithRFexposurerequirements Yes PleasereferexhibitionRFExposurefor thecomplianceofMPERFexposure rule. IntegrationInstructionsforhostproductmanufacturers ThefollowingitemsaresubmittedinsupportofapplicationforModularTransmitterFCCIDas notedaboveasrequiredbytheFCCKDB996369D03OEMManualv01. Theseitemsareprovidedasintegrationinstructionsforhostproductmanufacturers(e.g.,OEM instructionmanual)tousewhenintegratingamoduleinahostproduct. AnyrequirementsthatarenotapplicabletotheModuleareasindicatedbelow. SummaryofrequirementsandChecklist. RefertotheKDBfordescriptionofthecompleterequirements; KDB RefSect RequirementsofKDB996369D03UserManualPageNumber reference 2.2ListofapplicableFCCrules8 2.3Summarizethespecificoperationaluseconditions8 2.4Limitedmoduleprocedures8 2.5Traceantennadesigns8 2.6RFexposureconsiderations8 2.7Antennas8 2.8Labelandcomplianceinformation9 2.9Informationontestmodesandadditionaltesting requirements 9 2.10Additionaltesting,Part15SubpartBdisclaimer9 Name:SummerNi Title:Manager Signatureofapplicant

LetterofAuthorization Company:INDIESEMICPRIVATELIMITED Address:A-1101,B-1101,TheFirst,B/HKeshavbaugPartyPlot,Vastrapur,Ahmedabad, Ahmedabad,Gujarat,380015 ProductName:ISC-SX1262-BModule ModelNumber:ISC-SX1262-B FCCIdentifier:2BVP2ISC-SX1262-B WeauthorizeMiCOMLabsInc,575BoulderCourt,Pleasanton,California94566,USA,toactonour behalfonallmattersconcerningtheabovenamedequipment. AnyindividualwithinMiCOMLabsisauthorizedtoactonourbehalfandtakeactionontheapplication. WedeclarethatMiCOMLabsInc,575BoulderCourt,Pleasanton,California94566,USA,isallowedto forwardallinformationrelatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.AnyandallactscarriedoutbyMiCOMLabs onourbehalfshallhavethesameeffectasactsofourown. Name:SummerNiDate:2026-08-20 Title:Manager

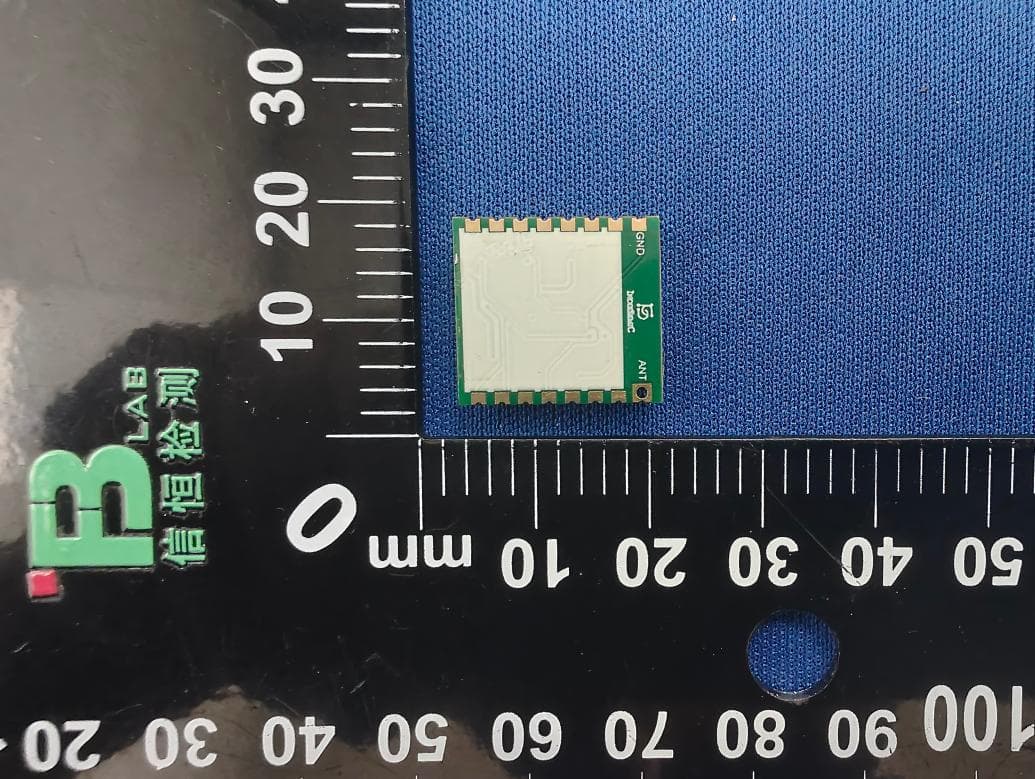

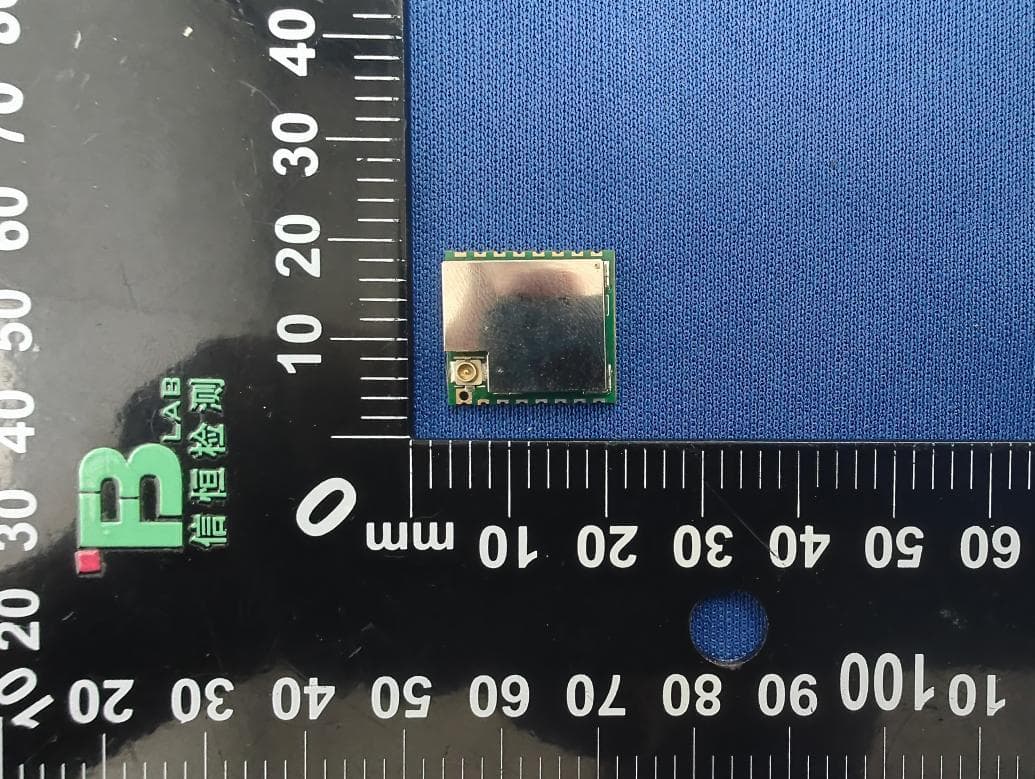

FCC ID: 2BVP2ISC-SX1262-B Report Number: BTF260617R01301 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 1 of 2 BTF Testing Lab (Shenzhen) Co., Ltd. Plant 101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, Guangdong, China Email: [email protected] Tel: +86-755-23146130 http://www.btf-lab.com Version: 1/00 Appendix II External Photos FCC ID: 2BVP2ISC-SX1262-B Report Number: BTF260617R01301 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 2 of 2 BTF Testing Lab (Shenzhen) Co., Ltd. Plant 101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, Guangdong, China Email: [email protected] Tel: +86-755-23146130 http://www.btf-lab.com Version: 1/00
