2BVPC-VT1931Wonder Tap Reading Pen

VT1931 WonderTapReadingPen 使用说明书 用户手册·中文版 WonderEarlyLearning 1开关机2音量加3音量减4指示灯5USB孔6喇叭孔 VT1931WonderTapReadingPen·使用说明书 WonderEarlyLearning| 2 一、产品规格 产品名称智能点读笔 产品型号VT1931 产品尺寸123.3×27×21mm 外观材质ABS+PC、PC 电池容量500mAh/3.7V 输入规格5V/1A 充电接口Type-C 充电时间约2小时 持续工作约4小时 供电方式Type-C 以上数据来自新创深蓝实验室，实际参数会因产品或其它因素而有所差异。 二、按键使用说明 电源键长按开机/关机；播放状态下短按暂停/播放 音量加(+)短按音量增大 音量减(-)短按音量减小；WIFI模式下长按打开WIFI模块 指示灯开机后指示灯在不同状态显示不同颜色 USB孔Type-C接口，用于充电或联机 三、使用方法 |3.1开机/关机 VT1931WonderTapReadingPen·使用说明书 WonderEarlyLearning| 3 1.开机 长按电源键，听到开机提示音后松开即可开机。 2.关机 开机状态下，长按电源键，听到关机提示音后松开即可关机。 3.自动关机 机器无操作5分钟后将自动关机，以节省电量。 4.重置 长按电源键10秒可重置设备，恢复出厂设置。 4.重置设备 长按电源键10秒，听到提示音后松开，设备将恢复出厂设置。 |3.2点读 开机状态下，手握笔，笔头朝下，将笔头孔垂直放置于图书或卡片的感应区域上，即可听到对应的语音 内容。 |3.3音量调节 •短按【音量加】键，音量逐步增大。 •短按【音量减】键，音量逐步减小。 |3.4MP3播放 通过点读卡片/书本上的功能图标来控制音乐播放： •点MP3图标→进入或退出MP3模式 •点上一曲图标→切换至上一首 •点下一曲图标→切换至下一首 •点播放/暂停图标，或短按电源键→播放/暂停 |3.5录音功能 录音功能默认关闭。点击对应的【开启功能码】后，即可进行奇偶录音。 |3.6WIFI配网 VT1931WonderTapReadingPen·使用说明书 WonderEarlyLearning| 4 WIFI功能默认关闭，按如下步骤开启与配网： 1.开启WIFI功能 在2秒内依次点击点码64576+64577即可开启WIFI功能；再次执行相同操作可关闭。 2.打开WIFI模块 WIFI功能开启后，长按【音量减】键，待指示灯闪烁后，WIFI模块正式启动。 3.扫码配网 用手机扫描说明书内的二维码，进入微信小程序，按以下步骤操作： -在弹出界面点【直接进入】，然后点【蓝牙配网】 -输入当前手机连接热点的密码 -点【搜索蓝牙设备】，搜到点读笔后会自动填入设备栏 -点【蓝牙设备配网】，连接成功后将听到提示音：网络连接成功，你可以唤醒我了；同时指示灯 颜色发生变化 注：关机后如需再次联网，须重新长按【音量减】打开WIFI模块。已配网设备重启后会自动重连；未配网设备需 重新扫码操作。 四、充电说明 •使用随附的Type-C数据线连接5V/1A的充电器进行充电。 •充电时请轻插、轻拔充电线，避免用力过猛损坏接口。 •充电过程中指示灯亮起；充电完成后指示灯熄灭或变色。 •闲置不用时，建议将电量充满后再存放，以延长电池寿命。 五、保修服务政策 •正常保修范围： -消费者通过合法渠道购买的产品，出现非人为损坏的性能故障，享受包修/包退/包换（三 包）服务。 •以下情况不在三包范围内： -未经授权的维修、误用、碰撞、疏忽、滥用、进液、事故、改动或不正确使用。 -撕毁/涂改产品标贴。 VT1931WonderTapReadingPen·使用说明书 WonderEarlyLearning| 5 六、安全及注意事项 •请勿在高温或高湿度环境中使用本产品。 •使用和存放时注意防水、防潮、防摔。 •请勿擅自拆解或维修本产品，否则将丧失保修资格。 •本公司持续改善产品品质，规格如有变更恕不另行通知，请以实物为准。 VT1931WonderTapReadingPen·使用说明书 WonderEarlyLearning| 6 七、保修卡 保修卡 /WARRANTYCARD 姓名 Name 联系方式 Contact 电话 Phone 购买日期 PurchaseDate 机身编号 SerialNumber 产品型号 ModelNumberVT1931 购买地点 Purchase Location 购买价格 PurchasePrice 家庭住址 Address 邮编 ZIP/PostalCode VT1931WonderTapReadingPen·使用说明书 WonderEarlyLearning| 7 VT1931 WonderTapReadingPen UserManual EnglishEdition WonderEarlyLearning 1PowerButton2VolumeUp(+)3VolumeDown(-) 4IndicatorLight5USBPort6speaker VT1931WonderTapReadingPen|UserManual WonderEarlyLearning| 8 1.ProductSpecifications ProductNameSmartReadingPen ModelNumberVT1931 Dimensions123.3x27x21mm MaterialABS+PC,PC BatteryCapacity500mAh/3.7V InputSpecs5V/1A ChargingPortType-C ChargingTimeApprox.2hours ContinuousUseApprox.4hours PowerSupplyType-C SpecificationsarebasedonXinchuangShenlanLabtesting.Actualperformancemayvarydependingonusage conditions. 2.ButtonGuide PowerButtonLongpresstopoweron/off;shortpresstopause/playduringplayback VolumeUp(+)Shortpresstoincreasevolume VolumeDown(-)Shortpresstodecreasevolume;longpresstoactivateWi-Fimodule IndicatorLightDisplaysdifferentcolorsdependingondevicestatus USBPortType-CportforchargingorPCconnection 3.HowtoUse |3.1PoweringOn/Off 1.PowerOn PressandholdthePowerbuttonuntilyouhearthestartupsound,thenrelease. 2.PowerOff Whilepoweredon,pressandholdthePowerbuttonuntilyouheartheshutdownsound,then release. 3.AutoPower-Off Thedevicewillautomaticallyshutdownafter5minutesofinactivitytoconservebattery. 4.Reset VT1931WonderTapReadingPen|UserManual WonderEarlyLearning| 9 PressandholdthePowerbuttonfor10secondstoresetthedevicetofactorysettings. 4.FactoryReset PressandholdthePowerbuttonfor10seconds.Releasewhenyouheartheprompttone.The devicewillresettofactorysettings. |3.2Point-Reading Whilepoweredon,holdthepenwiththetippointingdownward.Placethetipperpendicularlyontothe designatedareaofacompatiblebookorcardtohearthecorrespondingaudio. |3.3VolumeControl •ShortpresstheVolumeUp(+)buttontoincreasevolume. •ShortpresstheVolumeDown(-)buttontodecreasevolume. |3.4MP3Playback Usethefunctioniconsoncompatiblecardsorbookstocontrolmusicplayback: •TaptheMP3icontoenterorexitMP3mode. •TapthePreviousTrackicontogototheprevioussong. •TaptheNextTrackicontogotothenextsong. •TapthePlay/Pauseicon,orshortpressthePowerbutton,toplayorpause. |3.5RecordingFunction Recordingisdisabledbydefault.Tapthecorrespondingactivationcodeonacompatiblecardto enabletherecordingfeature. |3.6Wi-FiSetup Wi-Fiisdisabledbydefault.Followthestepsbelowtoconnect: 1.EnableWi-Fi Within2seconds,tappointcodes64576then64577toenableWi-Fi.Repeattodisable. 2.ActivateWi-FiModule OnceWi-Fiisenabled,longpresstheVolumeDown(-)button.Theindicatorlightwillflashwhen theWi-Fimoduleisactive. 3.PairviaQRCode ScantheQRcodeinthismanualwithyoursmartphonetoopentheWeChatMiniProgram,then followthesesteps: -Tap"EnterDirectly"thenselect"BluetoothPairing." -EnterthepasswordfortheWi-Finetworkyourphoneisconnectedto. -Tap"SearchBluetoothDevices."Thepenwillappearandauto-fillinthedevicefield. -Tap"BluetoothDevicePairing."Onsuccess,youwillhear:"Networkconnected.Youcanwake menow."Theindicatorlightwillalsochangecolor. Note:Afterpoweringoff,youmustlongpressVolumeDown(-)againtoreactivatetheWi-Fimodule.Previously pairednetworkswillreconnectautomatically;newnetworksrequirere-pairingviatheQRcode. VT1931WonderTapReadingPen|UserManual WonderEarlyLearning| 10 4.ChargingInstructions •UsetheincludedType-Ccablewitha5V/1Acharger. •Insertandremovethechargingcablegentlytoavoiddamagingtheport. •Theindicatorlightstaysonwhilechargingandturnsofforchangescolorwhenfullycharged. •Forlong-termstorage,fullychargethedevicebeforeputtingitawaytopreservebatteryhealth. 5.WarrantyPolicy •Coveredunderwarranty: -Productspurchasedthroughauthorizedchannelsthatexperiencenon-user-induced performancefailuresarecoveredbyourReturn,Repair,andReplacement(3R)guarantee. •Notcoveredunderwarranty: -Unauthorizedrepairs,misuse,impactdamage,negligence,abuse,liquiddamage,accidents, modifications,orincorrectusage. -Removalordefacementofproductlabelsorserialnumberstickers. 6.Safety&Precautions •Donotusethisproductinhigh-temperatureorhigh-humidityenvironments. •Keepthedeviceawayfromwater,moisture,andphysicalimpacts. •Donotattempttodisassembleorrepairthedeviceyourself.Doingsowillvoidthewarranty. •Productspecificationsaresubjecttocha…

Text truncated - open the document above for the full version.

Rev 1/26/2023 Wonder Early Learning Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 04-27-2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BVPC-VT1931 [Wonder Early Learning] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Wonder Early Learning] certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (Applicant signature) (Applicant printed name) Xiuling Liu Rev 1/26/2023 Wonder Early Learning Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 04-27-2026 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BVPC-VT1931 [Wonder Early Learning] certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Xiuling Liu

Wonder Early Learning U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: April 27, 2026 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BVPC-VT1931 Wonder Early Learning(“the applicant”) certifies that, as of the date of the filing of the application, Wonder Early Learning (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. Wonder Early Learning ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: Wonder Early Learning FRN: 0038305819 Address: 8780 19TH ST #193,ALTA LOMA CA 91701 USA Signature: Contact Person: Xiuling Liu Tel: 1 (909)5789657 Email: [email protected] Applicant Wonder Early Learning FRN: 0038305819 Address: 8780 19TH ST #193,ALTA LOMA CA 91701 USA Signature: Contact Person: Xiuling Liu Tel: 1 (909)5789657 Email: [email protected]

Wonder Early Learning Date: April 27, 2026 Product Model Number: EVA FCC ID: 2BVPC-VT1931 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following:  Testing  Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. By: Xiuling Liu Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: 1 (909)5789657 On behalf of: Wonder Early Learning

Wonder Early Learning Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: April 27, 2026 Subject; Request for Confidentiality FCC ID: 2BVPC-VT1931 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Xiuling Liu Title: Manager

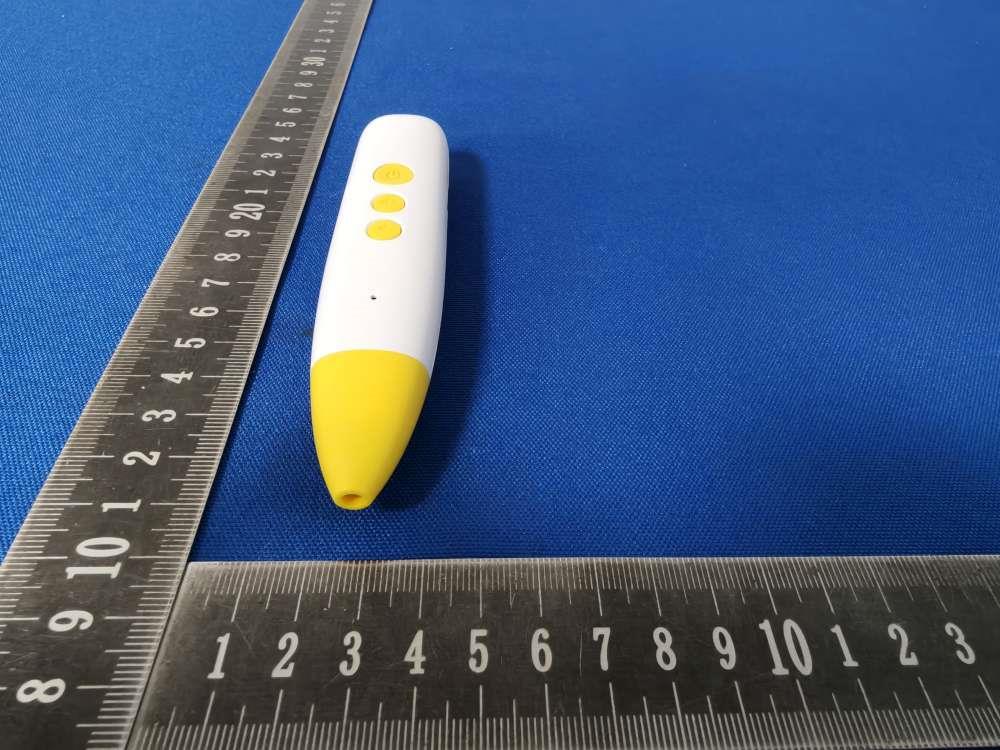

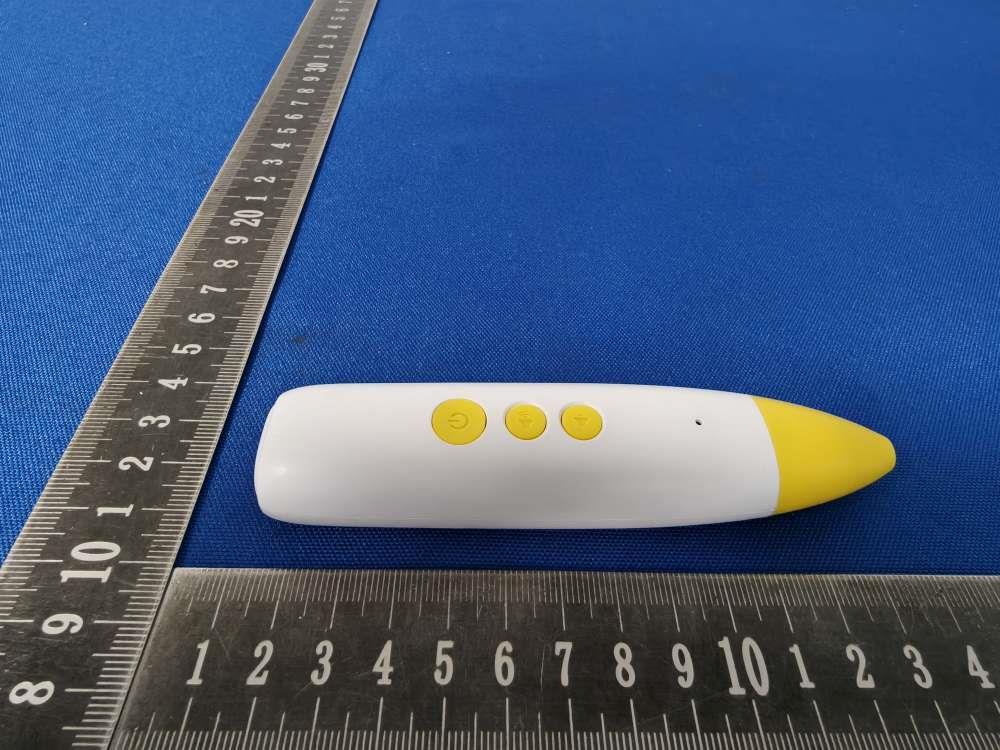

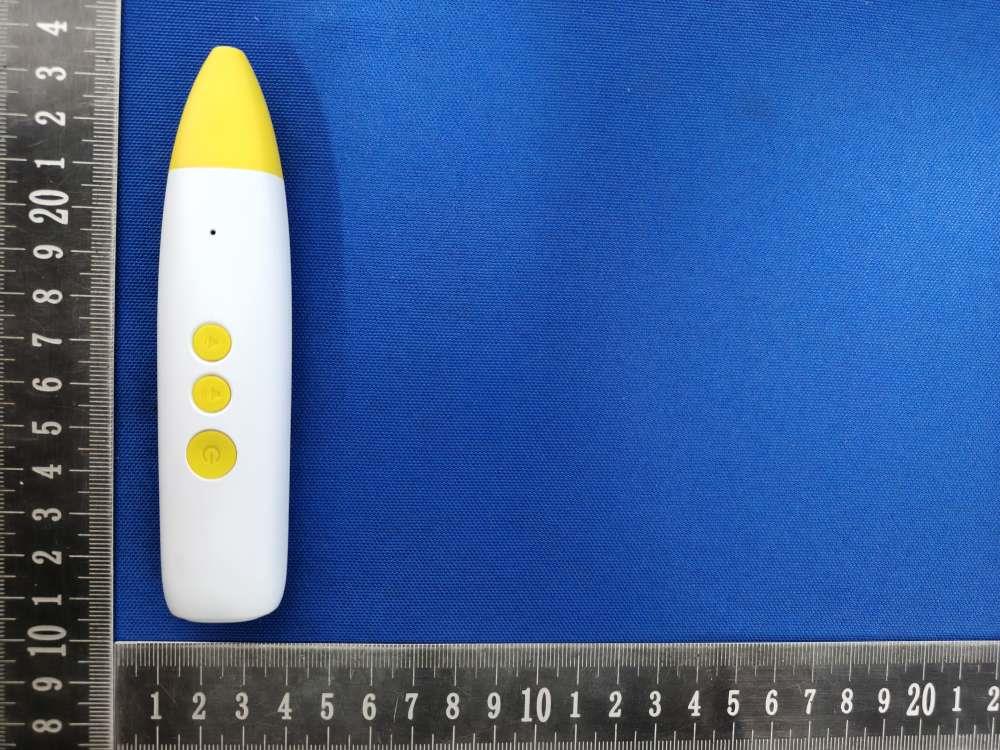

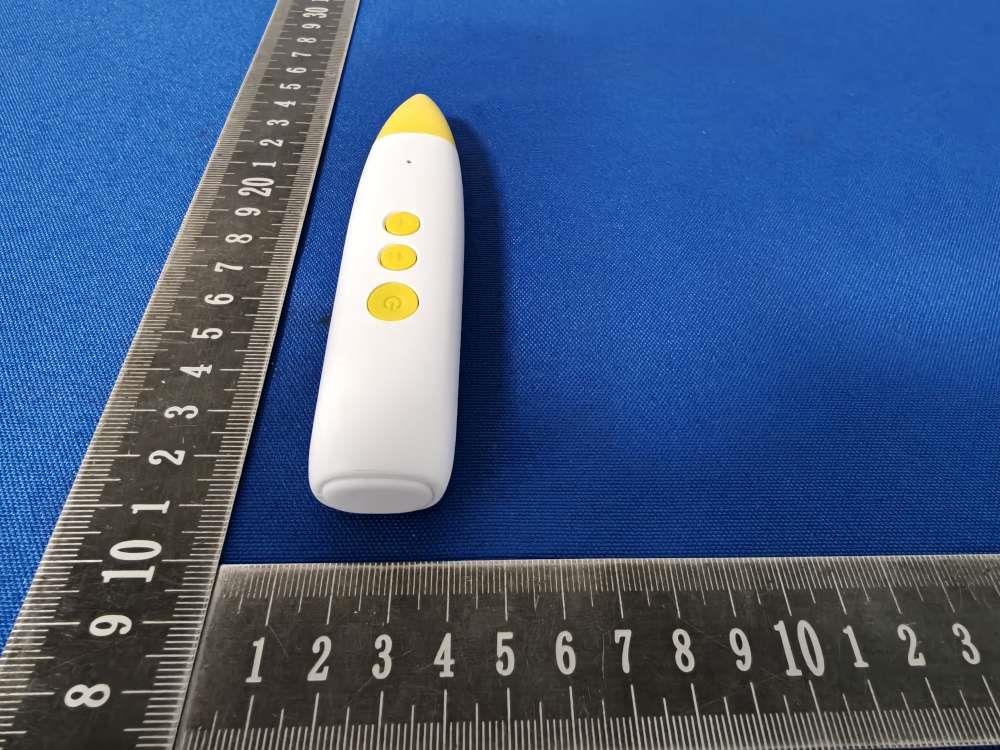

Report No: SSP26040346-1&2E FCC ID: 2BVPC-VT1931 Annex of Test Report Annex A. EUT External Photos Model: VT1931 EUT View 1 EUT View 2 Report No: SSP26040346-1&2E FCC ID: 2BVPC-VT1931 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP26040346-1&2E FCC ID: 2BVPC-VT1931 Annex of Test Report EUT View 5 EUT View 6

Report No: SSP26040346-1&2E FCC ID: 2BVPC-VT1931 Annex of Test Report Annex D. Label and Inf ormation FCC Label Sample Label Size: 16mm*8mm FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location Label Location

Report No: SSP26040346-1&2E FCC ID: 2BVPC-VT1931 Annex of Test Report Annex B. EUT Internal Photos Model: VT1931 EUT Internal View 1 EUT Internal View 2 Report No: SSP26040346-1&2E FCC ID: 2BVPC-VT1931 Annex of Test Report EUT Internal View 3 EUT Internal View 4 Report No: SSP26040346-1&2E FCC ID: 2BVPC-VT1931 Annex of Test Report EUT Internal View 5 EUT Internal View 6 FPCB ANT

FCC ID: 2BVPC-VT1931 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BR+EDR Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit -0.97 0(±1) 1 1.26 2402 5 0.39056 3.0 For 2.4GWiFi Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 7.08 7(±1) 8 6.31 2437 5 1.97009 3.0 Remark: antenna gain= 1.69dBi. The device can transmit with 2.4G WI-FI and Bluetooth BR+EDR simultaneously. Calculations for simultaneously transmit Mode Ratios Result Limit Result BR+EDR 0.13019 0.78689 1 PASS 2.4G Wi-Fi 0.65670 Ratios = Power Density / Power density Limit So a SAR test is not required

Manager: Zhang Changhua Version: V1 Date: 2026-01-15 Telephone: 0755-85263741 Company Address: Room 5D, Building L, No. 26, 2nd Lane, Liuxian Road, District 71, Bao'an District, Shenzhen City company website address：http://www.tll-skylink.com Skyline Test Report Project name：VT1931 Company: Shenzhen Tianlian Ling Technology Co., Ltd. Type of Antenna: FPCB Antenna development environment 1.2G/3G communication microwave test chamber, 2.4G microwave test chamber communication products 2. CMW500 3. Agilent Network Analyzer 4. Hewlett-Packard Network Analyzer 5. GPS101, etc. And the accompanying instruments and equipment research and development equipment Customized service for you 客户名称 ModelType of Antenna Jin Wen Tong VT1931 FPCB Antenna Frequency Antenna 2400MHz-2500MHz L1 / L2/ L3/ antenna terminals L1 L2 L3 Module end product picture Align the antenna and stick the red line marking at the bone position edge. Antenna size： Length * Width: 56mm * 21mm 2.4G 2.4G Fre （MHz ） Eff （%） (dB) Gain (dBi) 2400 36.330.38 2410 37.10.67 2420 37.220.87 2430 38.360.78 2440 40.960.94 2450 42.751.13 2460 43.81.17 2470 44.141.25 2480 44.691.49 2490 46.041.66 2500 36.331.69 Antenna gain 802.11b : 11MBps TestWifi 2G TRP Result1611 Frequency (MHz)241224372462 TRP(dBm)12.1812.9513.7 TestWifi 2G TIS Result1611 Frequency (MHz)241224372462 TIS(dBm)-84.67-84.12-84.41 THANK YOU PPT模板下载：www.1ppt.com/moban/ 行业PPT模板： www.1ppt.com/hangye/ 节日PPT模板：www.1ppt.com/jieri/ PPT素材下载： www.1ppt.com/sucai/ PPT背景图片：www.1ppt.com/beijing/ PPT图表下载： www.1ppt.com/tubiao/ 优秀PPT下载：www.1ppt.com/xiazai/ PPT教程： www.1ppt.com/powerpoint/ Word教程： www.1ppt.com/word/ Excel教程： www.1ppt.com/excel/ 资料下载：www.1ppt.com/ziliao/ PPT课件下载： www.1ppt.com/kejian/ 范文下载：www.1ppt.com/fanwen/ 试卷下载：www.1ppt.com/shiti/ 教案下载：www.1ppt.com/jiaoan/ PPT论坛：www.1ppt.cn

Report No: SSP26040346-1E FCC Test Report Page 1 of 51 FCC TEST REPORT FCC ID: 2BVPC-VT1931 Report No. : SSP26040346-1E Applicant : Wonder Early Learning Product Name : Wonder Tap Reading Pen Model Name : VT1931 Test Standard : FCC Part 15.247 Date of Issue : 2026-04-27 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP26040346-1E FCC Test Report Page 2 of 51 Test Report Basic Information Applicant..................................: Wonder Early Learning Address of Applicant...............: 8780 19TH ST #193,ALTA LOMA CA 91701 USA Manufacturer..........................: Shenzhen Xinchuangshenlan Deep Blue Electronics Co., Ltd. Address of Manufacturer........: 100-5F/502&602, Langkou Industrial Park, Langkou Community, Dalang Subdistrict, Longhua District, Shenzhen, China Product Name.........................: Wonder Tap Reading Pen Brand Name.............................: - Main Model..............................: VT1931 Series Models..........................: - Test Standard..........................: FCC Part 15 Subpart C ANSI C63.4-2014 ANSI C63.10-2020 Date of Test .............................: 2026-04-14 to 2026-04-23 Test Result...............................: PASS Tested By ................................: (Walker Wu) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP26040346-1E FCC Test Report Page 3 of 51 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 22 6.1 Standard and Limit.............................................................................................................................................. 22 6.2 Test Procedure.................................................................................................................................................... 22 6.3 Test Data and Results .......................................................................................................................................... 22 7. Frequency Hopping System ....................................................…

Text truncated - open the document above for the full version.

Report No: SSP26040346-1&2E FCC ID: 2BVPC-VT1931 Annex of Test Report Annex C. Test Photos Conducted Emission Test View 1 Radiated Emission Test View Below 1GHz Report No: SSP26040346-1&2E FCC ID: 2BVPC-VT1931 Annex of Test Report Radiated Emission Test View Above 1GHz
