2BVPF-SP01A1USScriben NotePen

T虹hnlcarspeclflcatlons Product Name Al smart voice 「eco「de「 Dimensions 15 2mmx9 6mm M R ( i e A cr co m o g h , e o n n t e Built-in Silicon Microphone Array rding) Bluetooth BLE Bluetooth 5 0 WiFi 24G Mobile System Android 8.0/ ios 13 O and above APK language Supports mu血pielanguages, defautt is Chinese support APK Sup nd po m rts a voice transcription, summarization, m , app1ng, Al smart Q&A USB cha「g1ngport Standard d T a ype-C male connector, supports ata transmission and export. Sta「ageMed旧 Built-in Memory Battery 3.7V l 90mAh polymer battery Continuous Approximately 19 hours Reco「ding Time Charging叮me Approximate ff 2 hours ( using a SV lA charger) Recording Format WAV/OPUS Recording QuaLity WAV 25 6kbps OPUS 32Kbps Operating -5 ° (➔ 45 ° c Temperature comp Su ute syste pp r o o m rted pe s rating WINDOWS XP/VIST A/WINDOWS 10/Windows 11 and above FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. *RF warning for Portable device: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

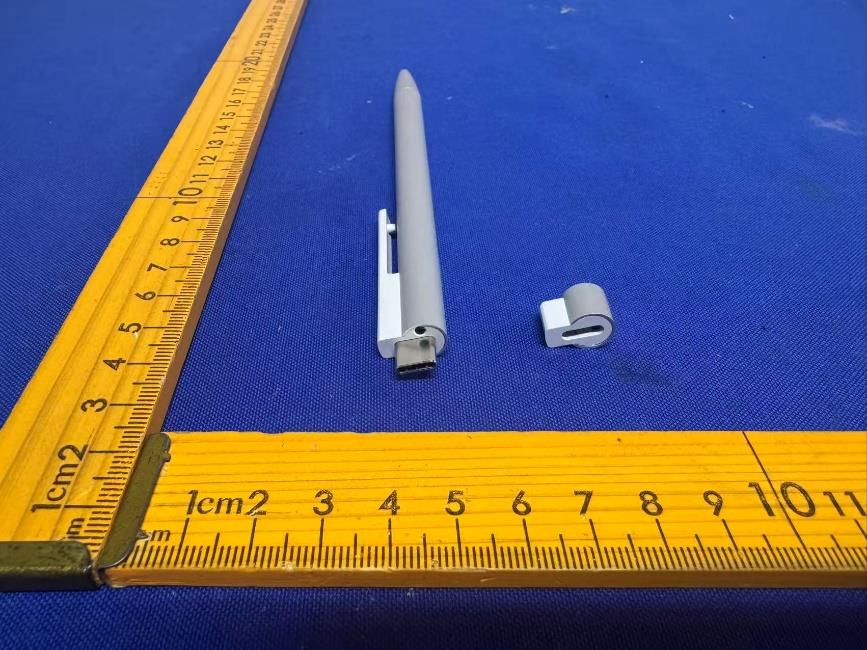

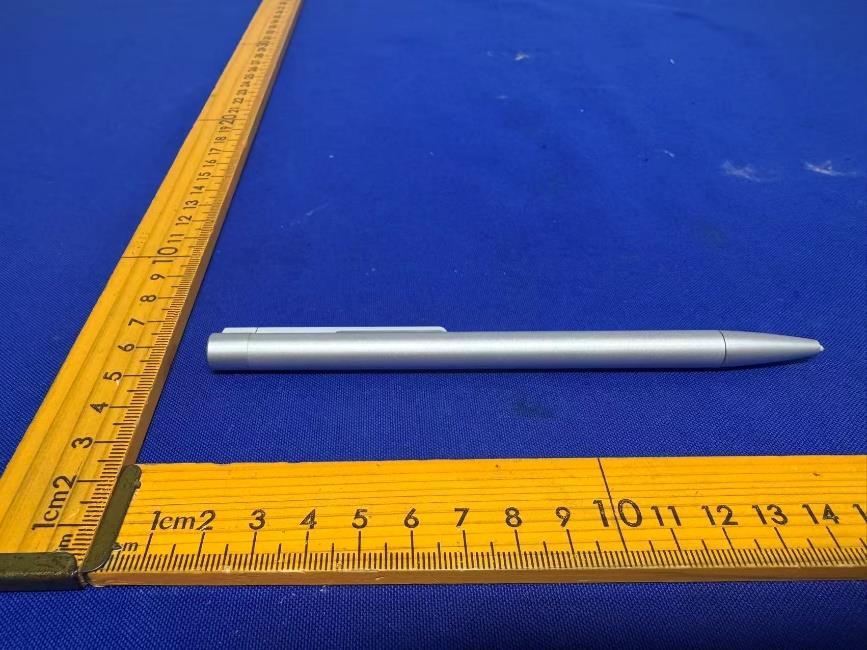

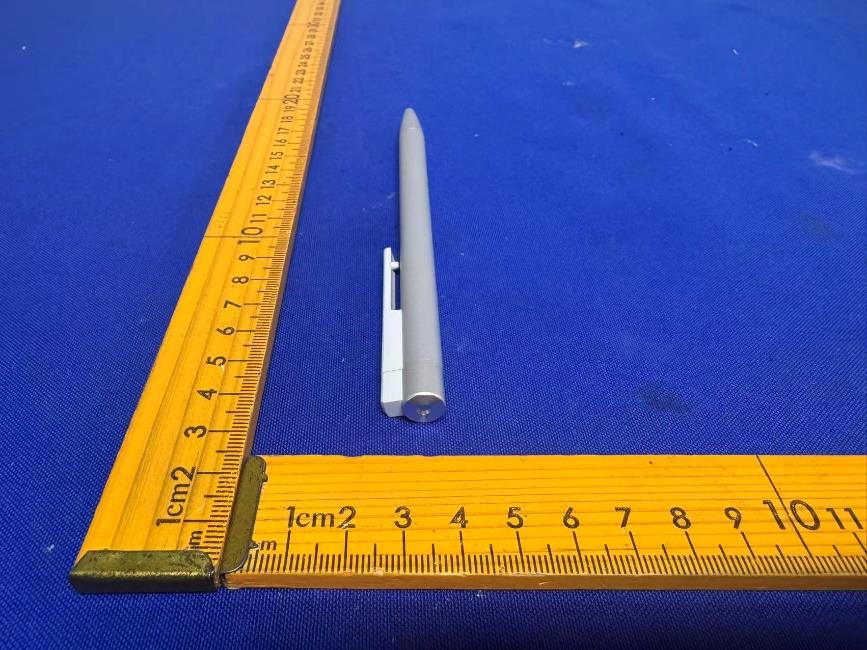

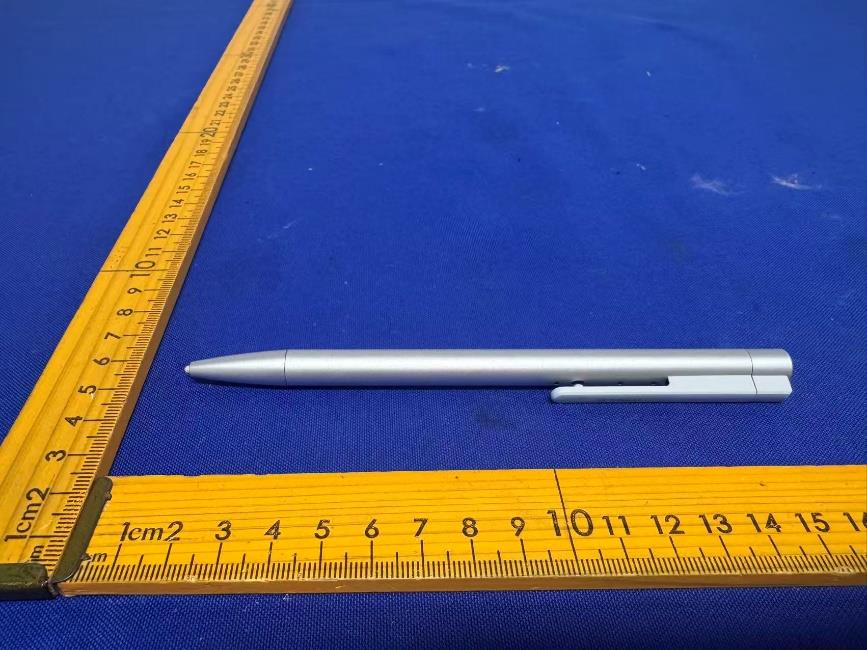

Page 1 of 3 FCC ID: 2BVPF-SP01A1US External photos Page 2 of 3 FCC ID: 2BVPF-SP01A1US Page 3 of 3 FCC ID: 2BVPF-SP01A1US

Label FCC ID: 2BVPF-SP01A1US

Page 1 of 3 FCC ID: 2BVPF-SP01A1US Internal photos Page 2 of 3 FCC ID: 2BVPF-SP01A1US Page 3 of 3 FCC ID: 2BVPF-SP01A1US Chip ANT

Page 1 of 8 Report No.: AiTSZ-260414026FW3 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. RF Exposure evaluation Product Name : Scriben NotePen Brand Name : Scriben Model : SP01 Series Model : N/A FCC ID : 2BVPF-SP01A1US Applicant : Sleepmind, Inc. Address : 111B S Governors Ave STE 34830, Dover, DE 19904 Manufacturer : Sleepmind, Inc. Address : 111B S Governors Ave STE 34830, Dover, DE 19904 Standard(s) : 47CFR §1.1310, 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt : Apr 14, 2026 Date of Test : Apr 14, 2026~ Apr 17, 2026 Issued Date : Apr 20, 2026 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 8 Report No.: AiTSZ-260414026FW3 Report Revise Record Report Version Issued Date Notes M0 Apr 20, 2026 Initial Release Page 3 of 8 Report No.: AiTSZ-260414026FW3 Contents 1 GENERAL INFORMATION .......................................................................................................................................... 4 1.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 4 1.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 METHOD OF MEASUREMENT ................................................................................................................................... 6 2.1 APPLICABLE STANDARD.................................................................................................................................................. 6 2.2 EVALUATION METHOD AND LIMIT .................................................................................................................................... 6 2.3 MANUFACTURING TOLERANCE ........................................................................................................................................ 7 2.4 EVALUATION RESULT ..................................................................................................................................................... 8 2.5 CONCLUSION ............................................................................................................................................................... 8 Page 4 of 8 Report No.: AiTSZ-260414026FW3 1 GENERAL INFORMATION 1.1 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 25°C Relative Humidity: 55 % Air Pressure: 101 kPa 1.2 General Description of EUT Product Name: Scriben NotePen Model/Type reference: SP01 Serial Model: N/A Power Supply: DC 3.7V from battery or DC 5V from external circuit Hardware Version: N/A Software Version: N/A Sample(s) Status: AiTSZ-260414026-1(Normal sample) AiTSZ-260414026-2(Engineer sample) Bluetooth LE: Supported type: Bluetooth LE 1M/2M Modulation: GFSK Operation frequency: 2402MHz~2480MHz Channel number: 40 Channel separation: 2MHz Antenna type: Chip antenna Antenna gain: 2.70dBi 2.4G WIFI: Supported type: 802.11b/802.11g /802.11n(HT20) Modulation: 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM Operation frequency: 802.11b/802.11g/802.11n(H20): 2412MHz~2462MHz Channel number: 802.11b/802.11g/802.11n(H20): 11 Channel separation: 5MHz Antenna type: Chip antenna Antenna gain: 2.70dBi Remark: The above DUT's information was declared by manufacturer. For more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 5 of 8 Report No.: AiTSZ-260414026FW3 1.3 Test Facility Test Laboratory: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 31737 A2LA-Lab Cert. No.: 7133.01 Guangdong Asia Hongke Test Technology Limited has been accredited by A2LA for technical compe…

Text truncated - open the document above for the full version.

Page 1 of 32 Report No.: AiTSZ-260414026FW1 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : Scriben NotePen Brand Name : Scriben Model : SP01 Series Model : N/A FCC ID : 2BVPF-SP01A1US Applicant : Sleepmind, Inc. Address : 111B S Governors Ave STE 34830, Dover, DE 19904 Manufacturer : Sleepmind, Inc. Address : 111B S Governors Ave STE 34830, Dover, DE 19904 Standard(s) : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Receipt : Apr 14, 2026 Date of Test : Apr 14, 2026~ Apr 17, 2026 Issued Date : Apr 20, 2026 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 32 Report No.: AiTSZ-260414026FW1 Report Revise Record Report Version Issued Date Notes M0 Apr 20, 2026 Initial Release Page 3 of 32 Report No.: AiTSZ-260414026FW1 Contents 1 TEST SUMMARY ....................................................................................................................................................... 4 1.1 TEST STANDARDS ......................................................................................................................................................... 4 1.2 TEST SUMMARY ........................................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 GENERAL INFORMATION .......................................................................................................................................... 6 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3 DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4 SPECIAL ACCESSORIES ................................................................................................................................................... 8 2.5 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 8 3 TEST CONDITIONS AND RESULTS ............................................................................................................................ 10 3.1 CONDUCTED EMISSIONS TEST ....................................................................................................................................... 10 3.2 RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 13 3.3 MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................................... 20 3.4 POWER SPECTRAL DENSITY .......................................................................................................................................... 21 3.5 6DB BANDWIDTH ....................................................................................................................................................... 22 3.6 OUT-OF-BAND EMISSIONS ........................................................................................................................................... 23 3.7 ANTENNA REQUIREMENT ............................................................................................................................................. 25 4 TEST SETUP PHOTOGRAPHS OF EUT ....................................................................................................................... 26 5 PHOTOS OF EUT ..................................................................................................................................................... 27 Page 4 of 32 Report No.: AiTSZ-260414026FW1 1 TEST SUMMARY 1.1 Test Standards The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ANSI C63.10: 2020: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spreda Spectrum System, and Hybrid System Devices Operating Under Section 15.247 of the FCC Rules 1.2 Test Summary Test Item Section in 47 CFR Result A…

Text truncated - open the document above for the full version.

Page 1 of 27 Report No.: AiTSZ-260414026FW2 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : Scriben NotePen Brand Name : Scriben Model : SP01 Series Model : N/A FCC ID : 2BVPF-SP01A1US Applicant : Sleepmind, Inc. Address : 111B S Governors Ave STE 34830, Dover, DE 19904 Manufacturer : Sleepmind, Inc. Address : 111B S Governors Ave STE 34830, Dover, DE 19904 Standard(s) : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Receipt : Apr 14, 2026 Date of Test : Apr 14, 2026~ Apr 17, 2026 Issued Date : Apr 20, 2026 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 27 Report No.: AiTSZ-260414026FW2 Report Revise Record Report Version Issued Date Notes M0 Apr 20, 2026 Initial Release Page 3 of 27 Report No.: AiTSZ-260414026FW2 Contents 1 TEST SUMMARY ....................................................................................................................................................... 4 1.1 TEST STANDARDS ......................................................................................................................................................... 4 1.2 TEST SUMMARY ........................................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 GENERAL INFORMATION .......................................................................................................................................... 6 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3 DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4 SPECIAL ACCESSORIES ................................................................................................................................................... 8 2.5 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 8 3 TEST CONDITIONS AND RESULTS ............................................................................................................................ 10 3.1 CONDUCTED EMISSIONS TEST ....................................................................................................................................... 10 3.2 RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 13 3.3 MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................................... 20 3.4 POWER SPECTRAL DENSITY .......................................................................................................................................... 21 3.5 6DB BANDWIDTH ....................................................................................................................................................... 22 3.6 OUT-OF-BAND EMISSIONS ........................................................................................................................................... 23 3.7 ANTENNA REQUIREMENT ............................................................................................................................................. 25 4 TEST SETUP PHOTOGRAPHS OF EUT ....................................................................................................................... 26 5 PHOTOS OF THE EUT............................................................................................................................................... 27 Page 4 of 27 Report No.: AiTSZ-260414026FW2 1 TEST SUMMARY 1.1 Test Standards The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ANSI C63.10: 2020: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spreda Spectrum System, and Hybrid System Devices Operating Under Section 15.247 of the FCC Rules 1.2 Test Summary Test Item Section in 47 CFR Result Ante…

Text truncated - open the document above for the full version.

2.4GHz 3216 Chip Antenna: RANT3216F245X07 _ Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT3216F24507 (A)(B)(C)(D)(F X (E)) ElectricalSpecification DimensionandTerminalConfiguration No.TerminalName 1Feeding/GNG 2GND/Feeding (A)ProductTypeChipAntenna (B)SizeCode 3.2x1.6mm( ± 0.2mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=07 WorkingFrequencyRange2400~2500MHz Bandwidth120MHz(Min.) PeakGain2.7 dBi (Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature( °C )-40~85 °C ResistancetoSolderingHeats 10sec.(@280 °C ) TerminationNi/Au(Leadless) Dimension(mm) L 3.20±0.20 W 1.60±0.20 T 0.85±0.20 Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. Yongcheng International Technology Co., Ltd. 2.4GHz 3216 Chip Antenna: RANT3216F245X07 _ 1 EvaluationBoardReference PCBDimensionAntennaLayoutReference Unit:mm ElectricalCharacteristics ReturnLoss&Radiation ReturnLoss Frequency(MHz) S11(dB) 2400-10.50 2450-30.62 2500-11.47 Radiation 2400MHz2450MHz2500MHz Efficiency82.52%85.26%83.01% X Y Z Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz 3216 Chip Antenna: RANT3216F245X07 _ TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 32167”4K/Reel 9.0±0.5 60±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTψDP PaperType3216 1.90±0.203.50±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.10 1.50±0.10 4.0±0.1 Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. _ 2.4GHz 3216 Chip Antenna: RANT3216F245X07 Reliability Table TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz 3216 Chip Antenna: RANT3216F245X07 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12019/03/01NewDatasheet 2Add2Dradiationcharacteristi2022/02/22c Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen.

Page 1 of 29 Report No.: AiTSZ-260414026FW2 Appendix RF test data for BLE Page 2 of 29 Report No.: AiTSZ-260414026FW2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 0.119 0.625 19.04 7.20 0.03 2440 0.118 0.625 18.88 7.24 0.03 2480 0.119 0.625 19.04 7.20 0.00 2M SISO 2402 0.083 0.625 13.28 8.77 0.03 2440 0.083 0.625 13.28 8.77 0.03 2480 0.082 0.624 13.14 8.81 0.03 Page 3 of 29 Report No.: AiTSZ-260414026FW2 1.2 Test Graph 1.2.1 Ant1 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 4 of 29 Report No.: AiTSZ-260414026FW2 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 5 of 29 Report No.: AiTSZ-260414026FW2 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 6 of 29 Report No.: AiTSZ-260414026FW2 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.027 / Pass 2440 1 1.020 / Pass 2480 1 1.017 / Pass 2M SISO 2402 1 2.043 / Pass 2440 1 2.038 / Pass 2480 1 2.031 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.508 >=0.5 Pass 2440 1 0.509 >=0.5 Pass 2480 1 0.512 >=0.5 Pass 2M SISO 2402 1 0.862 >=0.5 Pass 2440 1 0.850 >=0.5 Pass 2480 1 0.877 >=0.5 Pass Page 7 of 29 Report No.: AiTSZ-260414026FW2 2.2 Test Graph 2.2.1 OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 8 of 29 Report No.: AiTSZ-260414026FW2 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 9 of 29 Report No.: AiTSZ-260414026FW2 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 10 of 29 Report No.: AiTSZ-260414026FW2 2.2.2 6dB BW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 11 of 29 Report No.: AiTSZ-260414026FW2 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 12 of 29 Report No.: AiTSZ-260414026FW2 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 13 of 29 Report No.: AiTSZ-260414026FW2 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 2.10 <=30 Pass 2440 1.66 <=30 Pass 2480 1.44 <=30 Pass 2M SISO 2402 1.99 <=30 Pass 2440 1.62 <=30 Pass 2480 1.35 <=30 Pass Note1: Antenna Gain: Ant1: 2.70dBi; Page 14 of 29 Report No.: AiTSZ-260414026FW2 3.2 Test Graph 3.2.1 Power 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 15 of 29 Report No.: AiTSZ-260414026FW2 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 16 of 29 Report No.: AiTSZ-260414026FW2 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 17 of 29 Report No.: AiTSZ-260414026FW2 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit 1M SISO 2402 1.90 <=8 Pass 2440 1.51 <=8 Pass 2480 1.33 <=8 Pass 2M SISO 2402 1.49 <=8 Pass 2440 1.17 <=8 Pass 2480 0.88 <=8 Pass Note1: Antenna Gain: Ant1: 2.70dBi; Page 18 of 29 Report No.: AiTSZ-260414026FW2 4.2 Test Graph 4.2.1 PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 19 of 29 Report No.: AiTSZ-260414026FW2 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 20 of 29 Report No.: AiTSZ-260414026FW2 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 21 of 29 Report No.: AiTSZ-260414026FW2 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 1.89 2440 1 1.51 2480 1 1.34 2M SISO 2402 1 1.39 2440 1 1.12 2480 1 0.80 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 1.89 -18.11 Pass 2440 1 1.51 -18.49 Pass 2480 1 1.34 -18.66 Pass 2M SISO 2402 1 1.39 -18.61 Pass 2440 1 1.12 -18.88 Pass 2480 1 0.80 -19.20 Pass Page 22 of 29 Report No.: AiTSZ-260414026FW2 5.2 Test Graph 5.2.1 Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 23 of 29 Report No.: AiTSZ-260414026FW2 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 24 of 29 Report No.: AiTSZ-260414026FW2 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 25 of 29 Report No.: AiTSZ-260414026FW2 5.2.2 CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV Page 26 of 29 Report No.: AiTSZ-260414026FW2 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Page 27 of 29 Report No.: AiTSZ-260414026FW2 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 28 of…

Text truncated - open the document above for the full version.
