2BVPM-AC3100AC3100 series remote control

AC3101-05B AC3100 series remote control 1.Remote Control Quick Matching 2.Setting Limits (”admin” mode) press the motor "M" button for 2”,The motor rotates back and forth once,The motor enters the matching state, Valid for 60 seconds Long press "S" for 2” The motor will rotate back and forth once . Match successfully The switch selects “admin" mode admin user admin user admin user admin user admin user Make sure the motor is ON. STEP 1STEP 2STEP 3STEP 4STEP 5 In Admin mode, curtain operation will switch between inching operation and continuous operation, so as to set the stroke more accurately. (The operation mode is the same, take a motor as an example) To ”user” mode Limits setup successful, normal use Step 2: Set Lower Limits Use the front button of the transmitter to stop the curtain at the desired down travel point press for 2 seconds , motor rotation once,Lower limit is set. Use the front button of the transmitter to stop the curtain at the required up travel point press for 2 seconds , motor rotation once,upper limit is set. Step 1: Set Upper Limits Select the channel you want to match 123 45 DC： 3V（AAA*2） Transmitting Power：10mW Launching Distance：30m Working Temperature：-10°C~55°C Wireless Frequency: 433.92MHz admin user 123 45 Back Open Confirm Close Confirm AAA “S”key Selector Switch 5-Channel Remote Control AC3101-05B Open Dimmer Stop Close Open the back cover Channel Push This device complies with Part 15 of the FCC rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. I. Battery Type Reference This product is compatible with 3V button batteries (such as CR2032, etc.; please indicate the exact model based on the actual product specification). Use only standard, branded batteries that meet relevant safety and quality standards to ensure reliable performance and safe operation. II. Battery Polarity Orientation The battery compartment is marked with “+” (positive) and “–” (negative) symbols. Install the button battery with its positive side facing the “+” mark and the negative side facing the “–” mark. Incorrect installation may cause the product to malfunction or become damaged. III. Battery Replacement Instructions Turn off the product power (if equipped with a power switch). Open the battery compartment cover according to the product structure (e.g., snap-on, screw-on, etc.). Remove the depleted battery carefully (you may use a small tool to gently pry it out, avoiding damage to the compartment). Insert a new 3V button battery, ensuring correct polarity alignment. Close the battery compartment cover securely to ensure proper sealing. IV. Safe Disposal of Used Batteries Used button batteries contain hazardous substances such as heavy metals. Do not dispose of them with household waste. Collect and deliver them to designated local battery recycling stations or qualified waste disposal facilities for professional handling to prevent environmental or health hazards. V. Warning – Do Not Charge Non-Rechargeable Batteries Warning: Do not attempt to charge non-rechargeable button batteries. This product is designed only for disposable button batteries of the specified model. Charging non-rechargeable batteries may result in leakage, overheating, fire, or explosion. The manufacturer assumes no responsibility for any damage or injury caused by such improper use. VI. Handling Leaking Batteries If battery leakage occurs, take the following immediate actions: Wear rubber gloves to avoid direct contact with the leaking electrolyte. Carefully remove the leaking battery and place it in a non-metallic container filled with dry sand or absorbent material. Use a dry cloth or paper towel to gently wipe off any leakage inside the battery compartment. Then rinse the cloth or paper towel with clean water to remove any remaining electrolyte. Dispose of the leaking battery following the safe disposal guidelines above. Do not reuse it. Check whether the product shows signs of corrosion or damage. If so, discontinue use and contact the manufacturer or qualified service personnel for inspection. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development (ISED) Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The device has been evaluated to meet general RF exposure requ…

Text truncated - open the document above for the full version.

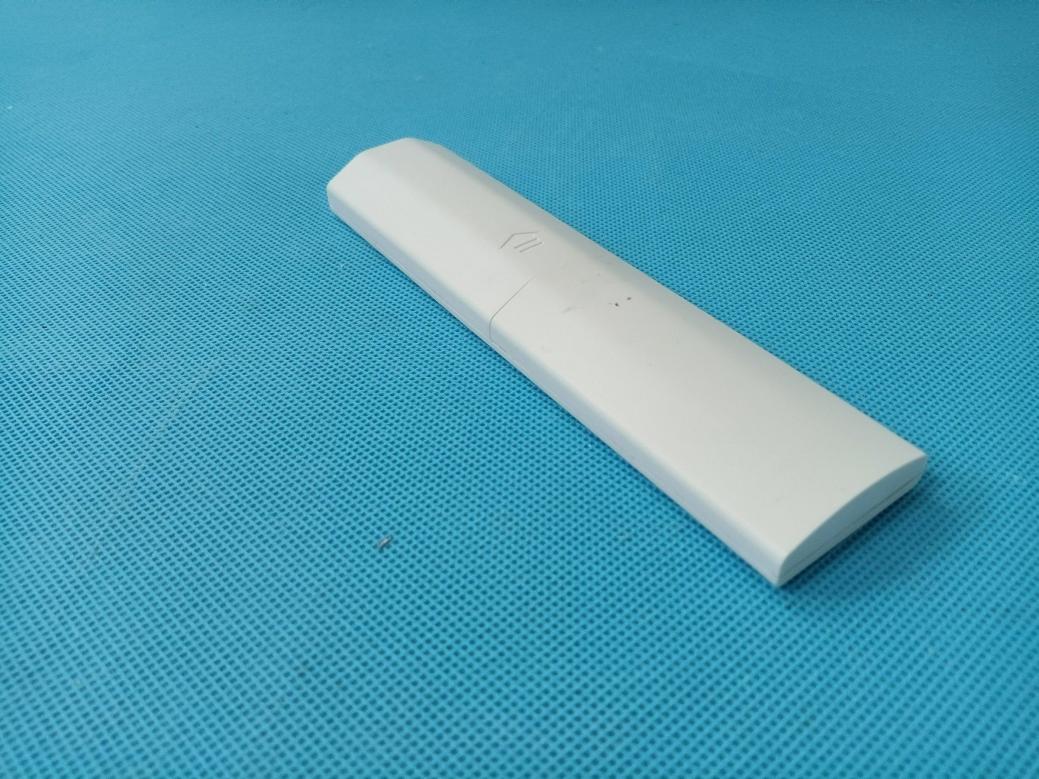

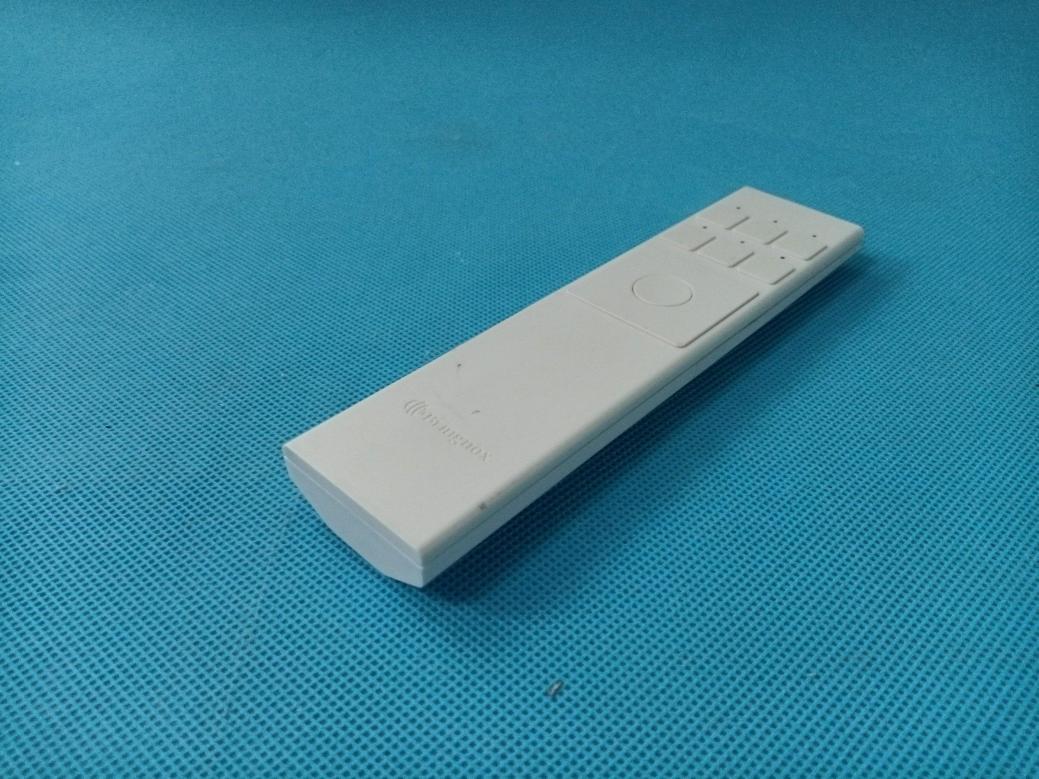

ReportNo.:CISRR26041536601 Page 31 of 34 8.EXTERNALANDINTERNALPHOTOS 8.1.ExternalPhotos ReportNo.:CISRR26041536601 Page 32 of 34

Label Size:50mm*15mm Productname:AC3100seriesremotecontrol ModelName:AC3101-05B FCCID:2BVPM-AC3100 LabelLocation

ReportNo.:CISRR26041536601 Page 33 of 34 8.2.InternalPhotos ANT ReportNo.:CISRR26041536601 Page 34 of 34 ------Endofthereport-----

ReportNo.: CISRR26041536602 Reporttemplateversion:CISE-TR-001-A0Page:1of5 TESTREPORT RFExposureEvaluation ReportNo.: CISRR26041536602 ProjectNo.: CISR260415366 FCCID:2BVPM-AC3100 Applicant:BringnoxSmartHomeINC Address:30NGouldStSteNSheridan,WY82801,US Manufacturer: NingboSunfreeMotorTechnologyCo.,Ltd Address: 202,No.418,QihangNorthRoad,YinzhouDistrict,Ningbo,China ProductName: AC3100seriesremotecontrol TradeMark:- Model/Typereference:AC3101-05B ListedModel(s):AC3101-XX*XX=0~9*=A~Z Standard: 47CFRPart15.231 Issuedate: April23,2026 Testresult:Complied Reviewedby:MorganTan Approvedby:HansHu Thetestresultsrelateonlytothetestedsamples. ThetestreportshouldnotbereproducedexceptinfullwithoutthewrittenapprovalofShenzhenBangceTesting TechnologyCo.,Ltd. ReportNo.: CISRR26041536602 Reporttemplateversion:CISE-TR-001-A0Page:2of5 1.APPLICABLESTANDARD 47CFRPart2.1093:Radiofrequencyradiationexposureevaluation:portabledevices ANSIC95.1–2019:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadioFrequency ElectromagneticFields,3kHzto300GHz. FCCKDBpublication447498D01GeneralRFExposureGuidancev06:MobileandPortableDevicesRF ExposureProceduresandEquipmentAuthorizationPolicies. 47CFRPart1.1307:Actionsthatmayhaveasignificantenvironmentaleffect,forwhichEnvironmental Assessments(EAs)mustbeprepared. 2.REPORTVERSION VersionNo.IssuedateDescription 00April23,2026Original ReportNo.: CISRR26041536602 Reporttemplateversion:CISE-TR-001-A0Page:3of5 3.RADIOSPECIFICATIONDESCRIPTION Modulationtype:FSK Operationfrequency:433.92MHz TransmissionType:ManualTransmission Note:PleaserefertoRFreportfordetailedtechnicalspecifications 4.SIMULTANEOUSTRANSMISSIONANALYSIS ThesedevicesuseasingletransmittermoduleandantennaforbothSRD. ReportNo.: CISRR26041536602 Reporttemplateversion:CISE-TR-001-A0Page:4of5 5.TESTRESULT 5.1.Standalonetransmission Limit: KDB447498D01v06,Clause4.3.1a) For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-g SARtestexclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparation distance,mm)]*[√f(GHz)]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation31The resultisroundedtoonedecimalplaceforcomparison Thevalues3.0and7.5arereferredtoasnumericthresholdsinstepb)below Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mm, andfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmaccordingto4.1f)isappliedtodetermine SARtestexclusion. Result: Passed TestData Radio type Frequency (GHz) MaximumEIRP #1 (dBm) Maximumtune-upEIRP #2 (dBm) Minimumdistance (mm) Evaluated value LimitResult FSK0.43392-17.04-1650.00333.00PASS Note #1:ThisvaluecomesfromtheRFtestreport. FieldStrength:78.11dBuV/m@3m; EIRP=E-104.7+20logD=78.11-104.7+20log3=-17.04dBm #2:Thisvalueisdeclaredbytheapplicant. ReportNo.: CISRR26041536602 Reporttemplateversion:CISE-TR-001-A0Page:5of5 5.2.Simultaneoustransmission Limit: KDB447498D01v06,Clause4.3.2,47CFRPart1.1307 InthecaseofxedRFsourcesoperatinginthesametime-averagingperiod,orof multiplemobileorportableRFsourceswithinadeviceoperatinginthesametime averagingperiod,ifthesumofthefractionalcontributionstotheapplicablethresholds islessthanorequalto1asindicatedinthefollowingequation. Where a=numberoffxed,mobile,orportableRFsourcesclaimingexemptionusingparagraph (b)(3)(i)(B)ofthissectionforP,includingexistingexempttransmittersandthosebeing added. b=numberoffxed,mobile,orportableRFsourcesclaimingexemptionusingparagraph (b)(3)(i)(C)ofthissectionforThresholdERP,includingexistingexempttransmittersand thosebeingadded. c=numberofexistingfixed,mobile,orportableRFsourceswithknownevaluationforthespeci edminimumdistanceincludingexistingevaluatedtransmitters. P j =theavailablemaximumtime-averagedpowerortheERP,whicheverisgreater,forxed, mobile,orportableRFsourceiatadistancebetween0.5cmand40cm(inclusive). P th,j =theexemptionthresholdpower(P)accordingtoparagraph(b)(3)(i)(B)ofthissectionfor xed,mobile,orportableRFsourcei. ERP j =theERPoffixed,mobile,orportableRFsourcej. ERP th,j =exemptionthresholdERPforfixed,mobile,orportableRFsourcej,atadistanceofat leastλ/2πaccordingtotheapplicableformulaofparagraph(b)(3)(i)(C)ofthissection. Evaluated k =themaximumreportedSARorMPEoffixed,mobile,orportableRFsourcekeither inthedeviceoratthetransmittersitefromanexistingevaluationatthelocationofexposure. ExposureLimit k =eitherthegeneralpopulation/uncontrolledmaximumpermissibleexposure (MPE)orspecicabsorptionrate(SAR)limitforeachxed,mobile,orportableRFsourcek, asapplicablefrom§1.1310ofthischapter. Result:NotApplicable --------EndofReport--------

Antenna data sheet Ma nufac tue r:Jiangxi Fa nlis heng E lec tronics Co., Ltd. Addre ss:Ele ctroplating Concentrat ed Control Zone, Chengxi Industr ial Park , Jishu i County, Ji'an City , Jiangxi Pr ovince ANT Name:PCB Ant ANT Model:AC2211Peak Gain:-10dBi 3 1.Projectdescription 1.1Theoperatingfrequencyis 433-533MHz 1.2ThisreportisforNingboSunfreeMotorTechnology CompanyLimiTedofthePCBAntenna. 2.Designspecification AgilentNetworkanalyzer ETSAMS8500OTA Chamber 4 3.Electricalperformancetestdataofantenna

ReportNo.:CISRR26041536601 Thetestresultsrelateonlytothetestedsamples. ThetestreportshouldnotbereproducedexceptinfullwithoutthewrittenapprovalofShenzhenBangce TestingTechnologyCo.,Ltd. Page1of29 TESTREPORT ReportNo.CISRR26041536601 ProjectNo.CISR260415366 FCCID2BVPM-AC3100 ApplicantBringnoxSmartHomeINC Address30NGouldStSteNSheridan,WY82801,US ManufacturerNingboSunfreeMotorTechnologyCo.,Ltd Address202,No.418,QihangNorthRoad,YinzhouDistrict,Ningbo,China ProductNameAC3100seriesremotecontrol Trademark- Model/TypereferenceAC3101-05B ListedModel(s)AC3101-XX*XX=0~9*=A~Z Standard 47CFRPart15.231 DateofsamplereceiptApril17,2026 TestdateApril17,2026toApril23,2026 IssuedateApril23,2026 TestresultComplied Reviewedby:MorganTan Approvedby:HansHu ReportNo.:CISRR26041536601 Page 2 of 29 Contents 1.STANDARDANDAPPLICABLETESTMETHODS........................................................................................3 2.REPORTVERSION..........................................................................................................................................3 3.TESTDESCRIPTION.......................................................................................................................................4 4.SUMMARY........................................................................................................................................................5 4.1.ProductDescription*..................................................................................................................................5 4.2.RadioSpecificationDescription*..............................................................................................................5 4.3.ModificationofEUT.....................................................................................................................................5 4.4.Deviationfromstandards...........................................................................................................................5 4.5.TestingSite...................................................................................................................................................5 5.TESTCONFIGURATION.................................................................................................................................7 5.1.Testfrequencylist.......................................................................................................................................7 5.2.Descriptionsoftestmode...........................................................................................................................7 5.3.Testsampleinformation.............................................................................................................................7 5.4.Environmentalconditions...........................................................................................................................7 5.5.Statementofthemeasurementuncertainty.............................................................................................7 5.6.EquipmentUsedduringtheTest................................................................................................................8 6.TESTRESULTS.............................................................................................................................................10 6.1.EvaluationResults(Evaluation)...............................................................................................................10 6.1.1.Antennarequirement..............................................................................................................................10 6.2.RadioSpectrumMatterTestResults(RF)...............................................................................................11 6.2.1.20dBBandwidth......................................................................................................................................11 6.2.2.DwellTime...............................................................................................................................................14 6.2.3.DutyCycle...............................................................................................................................................16 6.2.4.FieldStrengthofTheFundamentalSignal..........................................................................................19 6.2.5.RadiatedEmission(below1GHz)..........................................................................................................22 6.2.6.RadiatedEmission(above1GHz).........................................................................................................26 ReportNo.:CISRR26041536601 Page 3 of 29 1.STANDARDANDAPPLICABLETESTMETHODS Thetestswereperformedaccordingtofollowingstandards: 47CFRPart15.231:Periodicoperationintheband40.66-40.70MHzandabove70MHz ANSIC63.10-2020:AmericanNationalStandardofProceduresforComplianceTestingofUnlicensed WirelessDevices. 2.REPORTVERSION VersionNo.IssuedateDescription 00April23,2026Original ReportNo.:CISRR26041536601 Page 4 of 29 3.TESTDESCRIPTION No.TestItemStandardRequirementResult 1Antennarequirement47CFR15.203Pass 220dBBandwidth47CFR15.231(c)Pass 3DwellTime47CFR15.231(a)(1)&(a)(2)Pass 4DutyCycle47CFR15.231(b)&(e)Pass 5 FieldStrengthofTheFundamental Signal 47CFR15.231(b)Pass 6RadiatedEmission(below1GHz)47CFR15.231Pass 7RadiatedEmission(above1GHz)47CFR15.231Pass Note: ‒Themeasurementuncertaintyisnotincludedinthetestresult. ReportNo.:CISRR26041536601 Page 5 of 29 4.SUMMARY 4.1.ProductDescription* Mainunitinformation: ProductName:AC3100seriesremotecontrol Trademark:- ModelNo.:AC3101-05B ListedModel(s):AC3101-XX*XX=0~9*=A~Z Modeldifference: Thedifferencebetweendifferentmodelsisthatinthisapplication,dueto differentsaleschannelsanddifferentmodelnames. Powersupply:DC3V Hardwareversion:AC3101-05DV1.0 Softwareversion:AC3101-05B/A00 Accessoryunit(AU)information: AU-1DC3V(2*AAAsizebattery) 4.2.RadioSpecificationDescription…

Text truncated - open the document above for the full version.

ReportNo.:CISRR26041536601 Page 30 of 34 7.TESTSETUPPHOTOS FieldStrengthofTheFundamentalSignal RadiatedEmission(above1GHz) RadiatedEmission(below1GHz)
