2BVRT-OVOAIROVO Air Wireless Headphone

Arv Commerce Limited 701 TILLERY STREET UNIT 12 1420, AUSTIN, Texas, 78702 United States Attestation Statements Not Covered Entity Applicant & Not Covered Equipment To: Federal Communications Commission Date: May. 8, 26 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) & (ii) FCC ID: 2BVRT-OVOAIR Arv Commerce Limited (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List, established pursuant to § 1.50002 of reference chapter, as an entity producing “covered” communication equipment. The equipment for which authorization is sought is not “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List that prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely yours, Applicant Signature Printed Name: Rahma Abed Title: CEO Address: 701 TILLERY STREET UNIT 12 1420, AUSTIN, Texas, 78702 United States Tel.: (254) 454-4848 Email: [email protected]

Arv Commerce Limited 701 TILLERY STREET UNIT 12 1420, AUSTIN, Texas, 78702 United States 1 | P a g e Attestation Statements To: Federal Communications Commission Date: May. 8, 26 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Attestation of Compliance with FCC Covered List Software Requirements FCC ID: 2BVRT-OVOAIR Product Name: OVO Air Wireless Headphone This letter serves as an attestation that the equipment identified above ☐ is / ☒ is not (select one) "covered" software as defined under the Federal Communications Commission (FCC) Covered List requirements, as outlined in FCC 22-84 and KDB 986446. Specifically, the undersigned certifies that the equipment for which authorization is sought: 1. Does not contain cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors, assignees, parents, subsidiaries, affiliates, or any entity that has rebranded or relabeled software produced by the aforementioned entities. 2. Does not have the capability to store, run, or deliver any software identified on the FCC Covered List, including but not limited to cybersecurity and anti-virus software. To support this attestation, the appendix evaluation documentation has been prepared and is included in the certification filing. This attestation is based on a thorough evaluation of the device's design, functionality, and software environment. The undersigned affirms that the information provided is accurate and complete to the best of their knowledge. Sincerely yours, Applicant Signature Printed Name: Rahma Abed Title: CEO Address: 701 TILLERY STREET UNIT 12 1420, AUSTIN, Texas, 78702 United States Tel.: (254) 454-4848 Email: [email protected] Arv Commerce Limited 701 TILLERY STREET UNIT 12 1420, AUSTIN, Texas, 78702 United States 2 | P a g e Evaluation regarding to the Covered List Software: Compliance Methodology Evaluation Process Results Device is Inherent compliance ☒ The Chipset(s) used is limited to run the Cybersecurity or anti-virus software. Compliance ☒ The Memory used is limited to run the Cybersecurity or anti-virus software. Compliance ☒ There is storage capacity limitation for store or install the Cybersecurity or anti-virus software. Compliance ☒ Operating system used is limited to run, install or deliver the Cybersecurity or anti-virus software. Compliance Device is not Inherent compliance ☐ Evaluation Based on Software Bill of Materials (SBoM) See attached “SBoM“ Note:The SBoM content is limited to the scope of covered list software (e.g. antivirus and cybersecurity software). ☐ Evaluation Based on Scan for Software on the device ☐ Evaluation Based on Filesystem scan ☐ Evaluation Based on Running software check

Arv Commerce Limited Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 5/8/2026 U.S. Agent Designation Arv Commerce Limited acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BVRT-OVOAIR): Name and company of U.S. agent: Arv Commerce Limited Physical U.S. address of agent: 701 TILLERY STREET UNIT 12 1420, AUSTIN, Texas, 78702 United States FRN of U.S. agent: 0038329660 Email address of U.S. agent: [email protected] Arv Commerce Limited acknowledges their obligation to accept service of process on behalf of Arv Commerce Limited. Arv Commerce Limited with the FRN 0038329660accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Rahma Abed CEO Arv Commerce Limited 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Arv Commerce Limited 701 TILLERY STREET UNIT 12 1420, AUSTIN, Texas, 78702 United States Date: 2026/5/8 Dear Sir/Madam, We, Arv Commerce Limited, Hereby declares the following statement, PCB board, circuit, structure and internal of these model(s) are the same, Only model name is different for these model: Product name: OVO Air Wireless Headphone FCC ID: 2BVRT-OVOAIR Model no.: OVO Air, OVO Sincerely, Name/Title： Rahma Abed / CEO Company: Arv Commerce Limited Address: 701 TILLERY STREET UNIT 12 1420, AUSTIN, Texas, 78702 United States Phone: (254) 454-4848 Fax: N/A E-Mail: [email protected]

Arv Commerce Limited 701 TILLERY STREET UNIT 12 1420, AUSTIN, Texas, 78702 United States May 8, 2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for: FCC ID: 2BVRT-OVOAIR Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request permanent confidential treatment of the exhibits accompanying this certification application as outlined below : ⎯ Block Diagram ⎯ Schematics ⎯ Operational Description The above exhibits contain trade secrets and/or proprietary information that are not publicly available and materials that the Applicant has spent considerable efforts in developing. Public disclosure of these may be harmful to the Applicant and give an unfair advantage to competitors on the market. Pursuant to DA 04-1705, the applicant also requests temporary confidential treatment of the exhibits outlined below for a period of 45 days from the date of equipment authorization and prior to marketing in the United States to prevent the premature release of any sensitive information. Applicant is aware of their responsibility to notify DERYCOM in the event information regarding the product or the product is made available to the public before the requested period has expired. ⎯ User Manual ⎯ Internal Photos Sincerely, Title: CEO Address: 701 TILLERY STREET UNIT 12 1420, AUSTIN, Texas, 78702 United States Tel.: (254) 454-4848 Email: [email protected]

Arv Commerce Limited 701 TILLERY STREET UNIT 12 1420, AUSTIN, Texas, 78702 United States May 8, 2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization for FCC ID: 2BVRT-OVOAIR I, the undersigned, hereby authorize Shenzhen Tongzhou Testing Co.,Ltd. to act on our behalf in all matters relating to this application for equipment certification. Any act carried out by Shenzhen Tongzhou Testing Co.,Ltd. shall have the same effect as our own and I acknowledge that all responsibility for complying with the terms and conditions of certification, as specified by DERYCOM CERTIFICATION SERVICES, INC., still resides with Arv Commerce Limited. We certify that we are not subject to a denial of federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862, and that no party to the application, as defined in 47 CFR §1.2002(b), is subject to a denial of federal benefits that includes FCC benefits pursuant to that section. Sincerely, Rahma Abed CEO Tel: (254) 454-4848 Fax: N/A Email: [email protected]

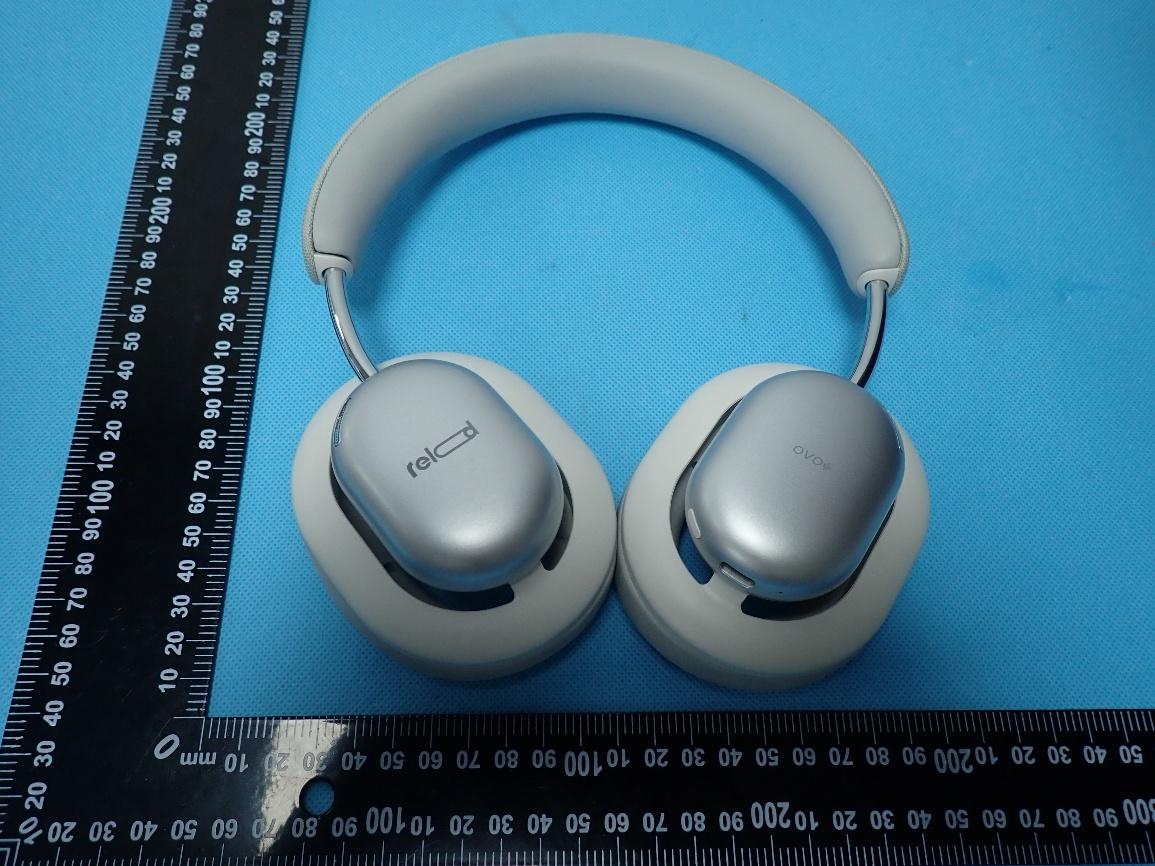

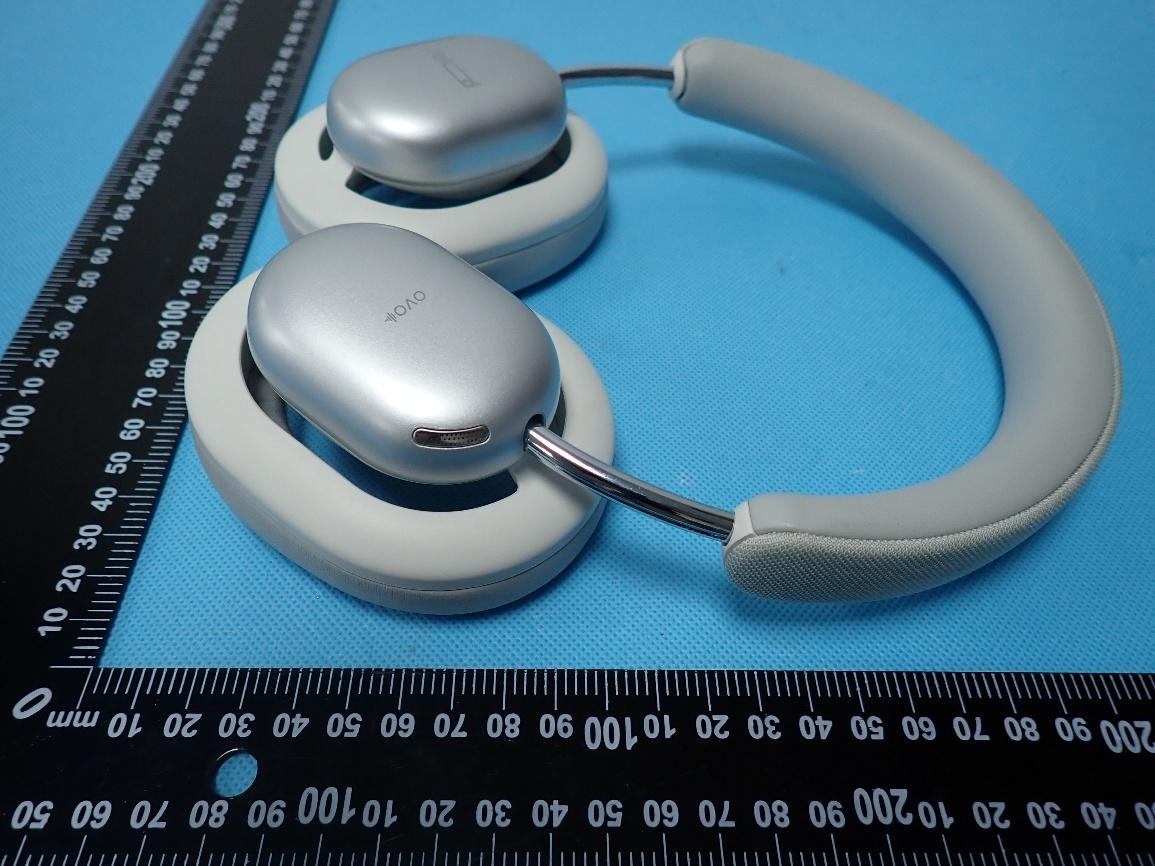

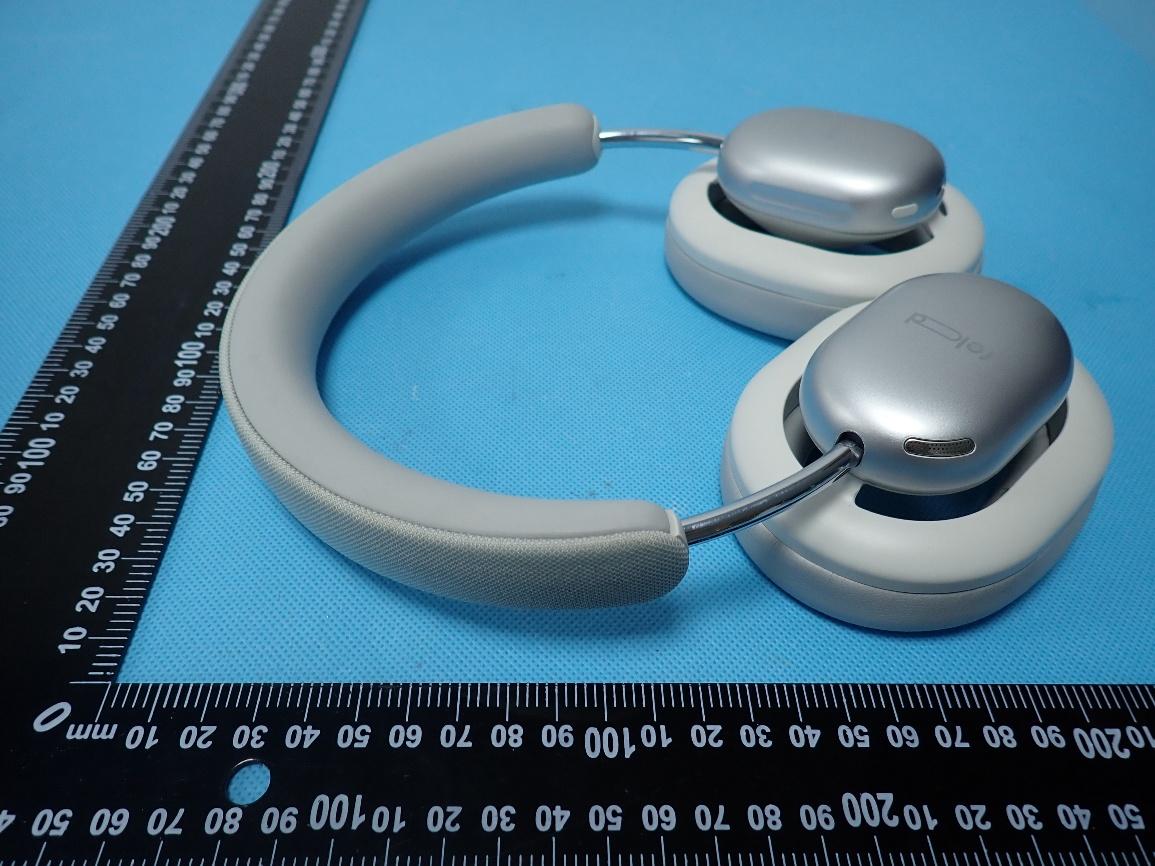

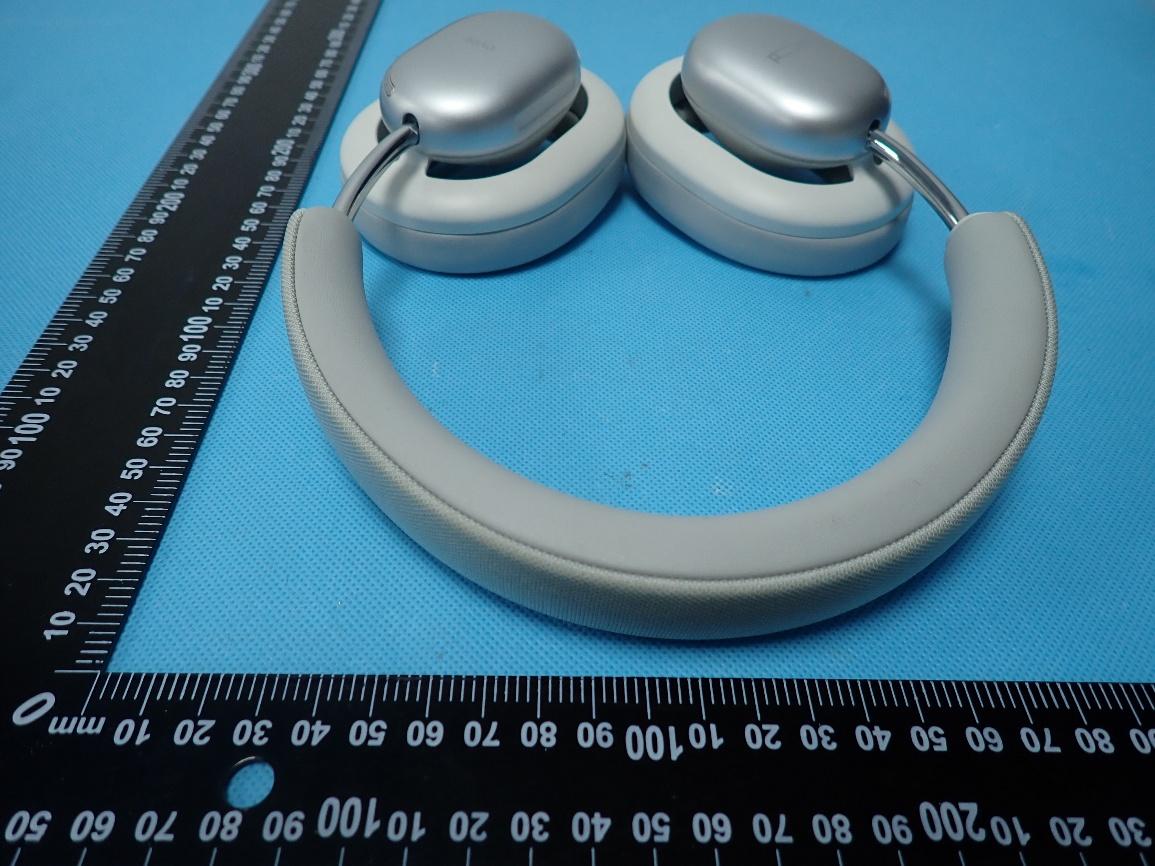

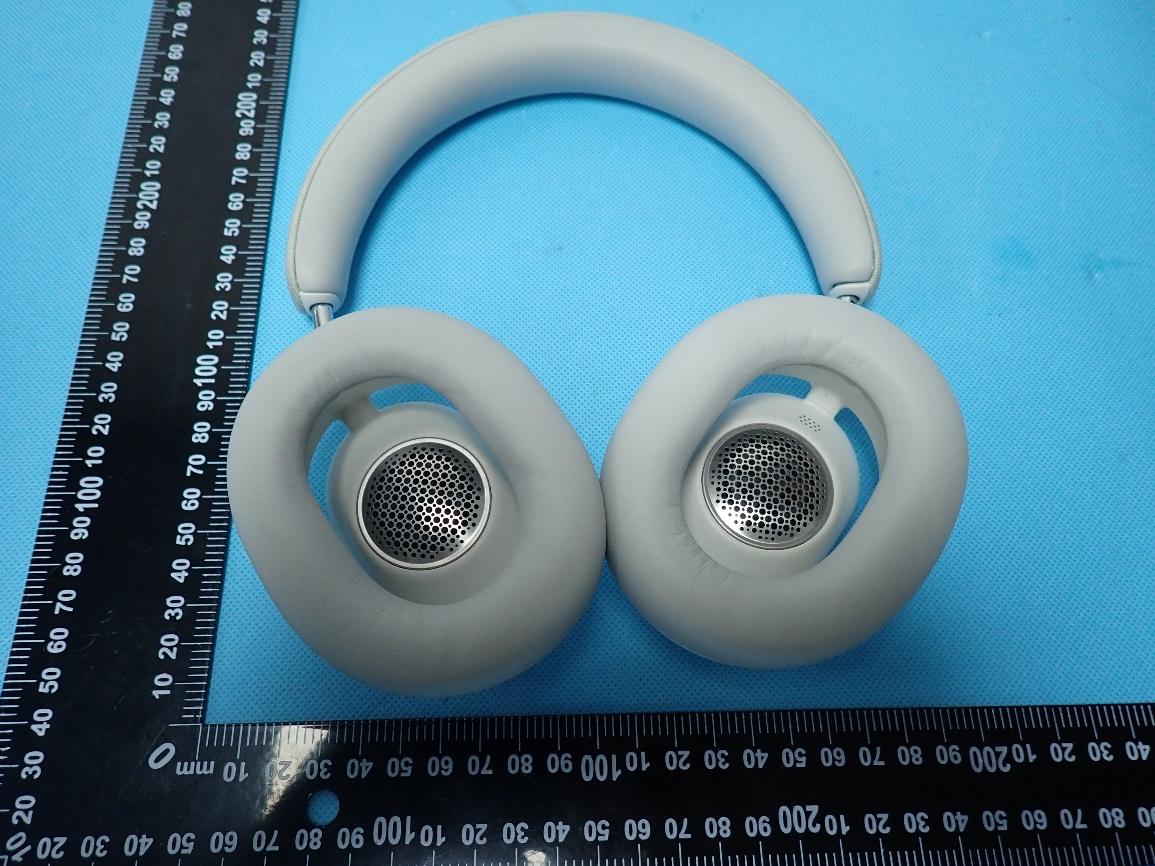

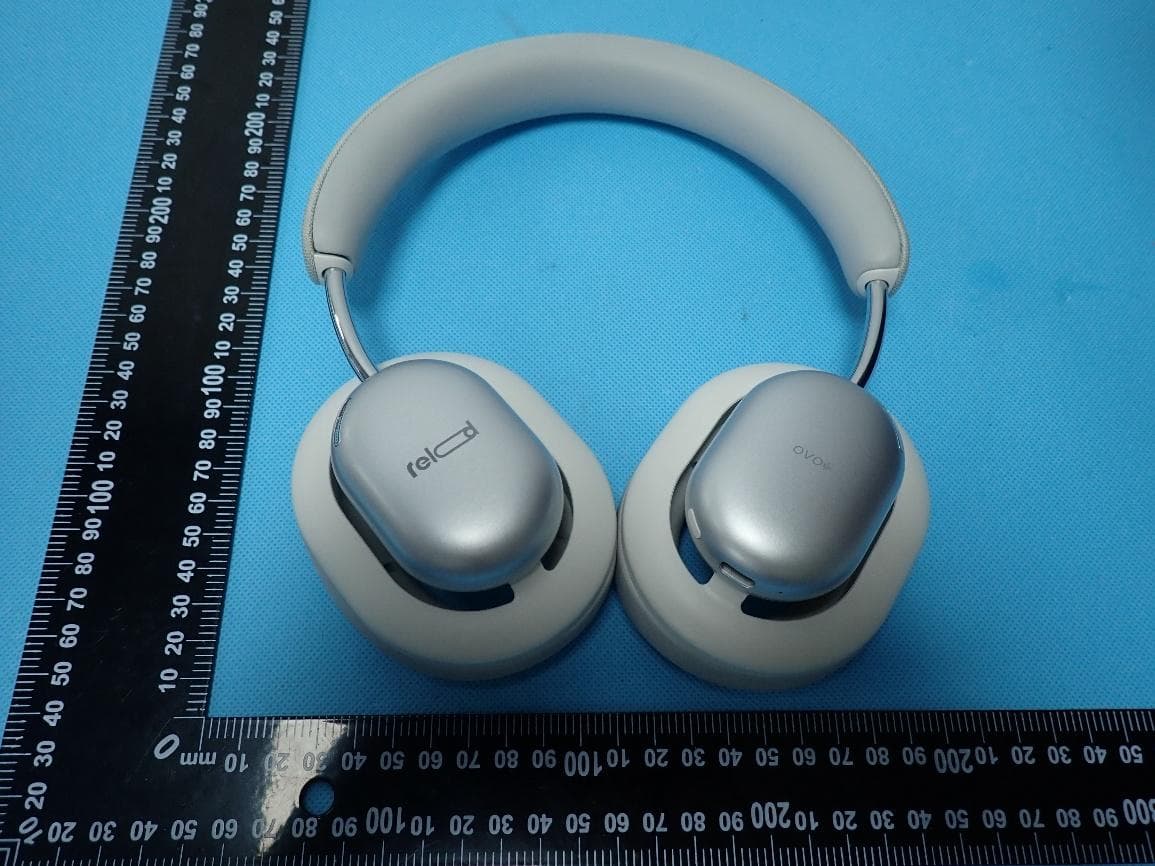

Report No.: TZ0022260402PH02 Page 1 of 3 External Photographs of EUT External Photo 1 External Photo 2 Report No.: TZ0022260402PH02 Page 2 of 3 External Photo 3 External Photo 4 Report No.: TZ0022260402PH02 Page 3 of 3 External Photo 5 External Photo 6

The size of the label is 30mm*25mm with White forecolor. The size of the logo is 5mm*5mm. Label Location \ FCC ID: 2BVRT-OVOAIR

FCC ID: 2BVRT-OVOAIR Page 1 of 2 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). FCC ID: 2BVRT-OVOAIR Page 2 of 2 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Results RF Exposure at Separation distance (cm): 0.5 Mode Antenna Frequency [MHz] Conducted Power [dBm] Manufacturing tolerance Antenna Gain [dBi] Max of ERP and Conducted Power including Tune Up SAR- based exemption threshold Pth [mW] Target Power [dBm] Tolerance ±[dB] [dBm] [mW] DH5 Ant1 2402 -1.16 -1.5 1 1.68 -0.5 0.89 2.79 DH5 Ant1 2441 -0.66 -1 1 1.68 0 1.00 2.75 DH5 Ant1 2480 -0.91 -1.5 1 1.68 -0.5 0.89 2.72 2DH5 Ant1 2402 -0.39 -1 1 1.68 0 1.00 2.79 2DH5 Ant1 2441 -0.01 -0.5 1 1.68 0.5 1.12 2.75 2DH5 Ant1 2480 -0.22 -0.5 1 1.68 0.5 1.12 2.72 Max of ERP and Conducted Power including Tune Up (dBm) = Max Conducted Tune Up Power(dBm) and Max Conducted Tune Up Power(dBm) + Antenna Gain(dBi)-2.15), whichever is greater. The Maximum Erp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

Product specification Quick Reference Date XHL-RF02 Frequenc Range 2402 ~ 24888888 0MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.35 (Input pwr – loss pwr) Peak EIRP(d Bm) 1.35 Directivity (dBi) 1.68 (all direction antenna) Efficiency (dB) 6 0.2 % Gain (dBi) -0.52 (Avg Gain XY-plane) Maximum Gain (dBi)1.68 (XY-plane) Minimum Gain (dBi)-0.48 (XY-plane) Avg. Gain (dBi)-0.435(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical & Horizontal V . S .W . R < 1.4 All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.35-0.481.68-3.831.11-2.996 0.2 % Model Retum Loss The Environment of Antenna Radiation Pattem 3D radiation pattern diagram XY-plane XZ-plane YZ-plane

Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 1 of 38 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: OVO Air Wireless Headphone Trade Mark: RELOD Test Model: OVO Air FCC ID: 2BVRT-OVOAIR Environmental Conditions Temperature: 23.5°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Max Zhang NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result Test Mode Antenna Frequency [MHz] 20db EBW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict DH5 Ant1 2402 0.957 2401.529 2402.486 --- --- DH5 Ant1 2441 0.957 2440.535 2441.492 --- --- DH5 Ant1 2480 0.963 2479.526 2480.489 --- --- 2DH5 Ant1 2402 1.323 2401.334 2402.657 --- --- 2DH5 Ant1 2441 1.269 2440.376 2441.645 --- --- 2DH5 Ant1 2480 1.317 2479.340 2480.657 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 2 of 38 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 3 of 38 DH5-Ant1-2480 2DH5-Ant1-2402 Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 4 of 38 2DH5-Ant1-2441 2DH5-Ant1-2480 Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 5 of 38 Appendix B: Occupied Channel Bandwidth Test Result Test Mode Antenna Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict DH5 Ant1 2402 0.87796 2401.5578 2402.4357 --- --- DH5 Ant1 2441 0.85179 2440.5684 2441.4202 --- --- DH5 Ant1 2480 0.87020 2479.5637 2480.4339 --- --- 2DH5 Ant1 2402 1.1836 2401.4040 2402.5876 --- --- 2DH5 Ant1 2441 1.1959 2440.4017 2441.5976 --- --- 2DH5 Ant1 2480 1.1803 2479.4065 2480.5868 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 6 of 38 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 7 of 38 DH5-Ant1-2480 2DH5-Ant1-2402 Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 8 of 38 2DH5-Ant1-2441 2DH5-Ant1-2480 Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 9 of 38 Appendix C: Maximum peak conducted output power Test Result Test Mode Antenna Frequency [MHz] Conducted Peak Power [dBm] Conducted Limit [dBm] Verdict DH5 Ant1 2402 -1.16 ≤30 PASS DH5 Ant1 2441 -0.66 ≤30 PASS DH5 Ant1 2480 -0.91 ≤30 PASS 2DH5 Ant1 2402 -0.39 ≤20.97 PASS 2DH5 Ant1 2441 -0.01 ≤20.97 PASS 2DH5 Ant1 2480 -0.22 ≤20.97 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 10 of 38 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 11 of 38 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 12 of 38 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 13 of 38 Appendix D: Carrier frequency separation Test Result Test Mode Antenna Frequency [MHz] Result [MHz] Limit [MHz] Verdict DH5 Ant1 Hop 1 ≥0.963 PASS 2DH5 Ant1 Hop 0.982 ≥0.882 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 14 of 38 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 15 of 38 Appendix E: Time of occupancy Test Result Test Mode Antenna Frequency [MHz] Burst Width [ms] TotalHops [Num] Result [s] Limit [s] Verdict DH5 Ant1 Hop 2.887 130 0.375 ≤0.4 PASS 2DH5 Ant1 Hop 2.891 70 0.202 ≤0.4 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 16 of 38 Test Graphs DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 17 of 38 2DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 18 of 38 Appendix F: Number of hopping channels Test Result Test Mode Antenna Frequency [MHz] Result [Num] Limit [Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 19 of 38 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 20 of 38 Appendix G: Band edge measurements Test Result Test Mode Antenna Ch.Name Frequency [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -1.78 -47.56 ≤-21.78 PASS DH5 Ant1 High 2480 -1.42 -47.92 ≤-21.42 PASS DH5 Ant1 Low Hop_2402 -1.66 -48.84 ≤-21.66 PASS DH5 Ant1 High Hop_2480 -1.67 -44.78 ≤-21.67 PASS 2DH5 Ant1 Low 2402 -1.57 -48.32 ≤-21.57 PASS 2DH5 Ant1 High 2480 -1.34 -47.25 ≤-21.34 PASS 2DH5 Ant1 Low Hop_2402 -6.39 -48.97 ≤-26.39 PASS 2DH5 Ant1 High Hop_2480 -2.14 -47.58 ≤-22.14 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 21 of 38 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 22 of 38 DH5-Ant1-Hop_2402-PASS DH5-Ant1-Hop_2480-PASS Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 23 of 38 2DH5-Ant1-2402-PASS 2DH5-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 24 of 38 2DH5-Ant1-Hop_2402-PASS 2DH5-Ant1-Hop_2480-PASS Appendix Test Data of the Report No.: TZ0022260402FRF01 Page 25 of 38 Appendix H: Conducted Spurious Emission Test Result Test Mode Antenna Frequency [MHz] Freq. Range [MHz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 0~Reference -2.40 -2.40 --- PASS DH5 Ant1 2402 30~1000 -2.40 -52.9 ≤-22.4 PASS DH5 Ant1 2402 1000~26500 -2.40 -27.63 ≤-22.4 PASS DH5 Ant1 2441 0~Reference -1.72 -1.72 --- PASS DH5 Ant1 2441 30~1000 -1.72 -52.12 ≤-21.72 PASS DH5 Ant1 2441 1000~26500 -1.72 -27.46 ≤-21.72 PASS DH5 Ant1 2480 0~Reference -2.11 -2.11 --- PASS DH5 Ant1 2480 30~1000 -2.11 -52.37 ≤-22.11 PASS DH5 Ant1 2480 1000~26500 -2.11 -26.81 ≤-22.11 PASS 2DH5 Ant1 2402 0~Reference -1.71 -1…

Text truncated - open the document above for the full version.

Report No.: TZ0022260402FRF01 Page 1 of 35 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report apply only to the specific sample(s) tested under stated test conditions. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. TEST REPORT Report Number : TZ0022260402FRF01 Product Name : OVO Air Wireless Headphone Model/Type reference : OVO Air, OVO FCC ID : 2BVRT-OVOAIR Prepared for : Arv Commerce Limited 701 TILLERY STREET UNIT 12 1420, AUSTIN, Texas, 78702 United States Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Standards : FCC CFR Title 47 Part 15C, ANSI C63.10-2020+Cor. 1-2023 Date of Test : 2026-04-23 ~ 2026-04-28 Date of Issue : 2026-04-29 Prepared by : Lena Wen Reviewed by : Allen Lai Approved by : Max Zhang (Authorized Officer) Report No.: TZ0022260402FRF01 Page 2 of 35 ** Report Revise Record ** Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2026-04-29 Valid Initial release Report No.: TZ0022260402FRF01 Page 3 of 35 TABLE OF CONTENTS 1. G E N E R A L I N F O R M A T I O N ........................................................ 4 1.1. Client Information ................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................... 4 1.3. Wireless Function Tested in this Report .............................................................................. 4 1.4. EUT configuration ................................................................................................................... 5 1.5. Description of Test Facility .................................................................................................... 5 1.6. Statement of the Measurement Uncertainty ......................................................................... 5 1.7. Measurement Uncertainty ...................................................................................................... 6 1.8. Description of Test Modes ..................................................................................................... 6 1.9. Frequency of Channels .......................................................................................................... 7 2. T E S T M E T H O D O L O G Y ............................................................ 8 2.1. EUT Configuration .................................................................................................................. 8 2.2. EUT Exercise ........................................................................................................................... 8 2.3. Test Sample ............................................................................................................................. 8 3. S Y S T E M T E S T C O N F I G U R A T I O N .............................................. 9 3.1. Justification ............................................................................................................................. 9 3.2. EUT Exercise Software ........................................................................................................... 9 3.3. Special Accessories ............................................................................................................... 9 3.4. Block Diagram/Schematics .................................................................................................... 9 3.5. Equipment Modifications ....................................................................................................... 9 3.6. Test Setup ................................................................................................................................ 9 4. S U M M A R Y O F T E S T R E S U L T S ................................................ 10 5. M E A S U R E M E N T R E S U L T S ...................................................... 11 5.1. Maximum Peak Conducted Output Power ......................................................................... 11 5.2. Frequency Separation and 20 dB Bandwidth .................................................................... 12 5.3. Number of Hopping Frequency ........................................................................................... 13 5.4. Time of Occupancy (Dwell Time) ......................................................................................... 14 5.5. Conducted Spurious Emissions and Band Edges Test .................................................... 16 5.6. Restricted Band Emission Limit .......................................................................................... 17 5.7. AC Power line conducted emissions .................................................................................. 26 5.8. Band-edge measurements for radiated emissions ........................................................... 29 5.9. Pseudorandom frequency hopping sequence ................................................................... 32 5.10. Antenna requirement ............................................................................................................ 33 6. S U M M A R Y O F T E S T E Q U I P M E N T ............................................ 34 7. T E S T S E T U P P H O T O G R A P H S ................................................. 35 8. E X T E R N A L P H O T O S O F T H E E U T ............................................ 35 9. I N T E R I O R …

Text truncated - open the document above for the full version.

Report No.: TZ0022260402PH01 Page 1 of 2 Test Setup Photos of the EUT Conducted Emission Radiated Emission Below 1GHz Report No.: TZ0022260402PH01 Page 2 of 2 Radiated Emission Above 1GHz RF Conducted Test
