2BVT2-PCCS1212-inch Column Speaker

PCCS12 User Manual Safety Precautions : Fiying and installation of this speaker cabinet must be carried out by qualified personnel following the approved safety standards. Do not attempt to clean the plastic enclosure with solvents or petrochemical based cleaners. Do not place objects which are sources of heat on the speaker cabinet such as lighting equipment or smoke machines. Do not expose the speaker cabinet to direct rain or stand in water. Liquid getting into the box will risk a short circuit and will be hazardous. Do not stack the speaker cabinet in a manner that could cause injury should a cabinet become dislodge. Additional precautions for Auto-amplified devices of the series. Before installation, ensure that the voltage and frequency of power outlet match the power requirements of the loudspeaker. Disconnect from main power before to make connections in the loudspeaker. Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the power-cord come into contact with other cables. Only handle the power-cord by the plug. In case to replace the fuse, it must be changed by identical rate and dimensions. Attention Before connecting or operating your new loudspeaker, please study the accompanying instruction manual paying special attention to the operating precautions and wiring procedure. This symbol on the product or on Its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical an electronic equipment By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. Pag. 1 Panel posterior Pag. 2 Functions 1. Type C Port 2. USB/DSP SET: For inserting the USB drive/DSP drive 3. MUSIC MENU:The loudspeaker integrates the following DSP-based EQ sound presets and control the volume 4. Mode Selection and Playback Control: Use the “Mode” switch to toggle between USB/SD and Bluetooth modes. Use the play/pause, stop, repeat, previous/rewind and next/forward knobs to take full control of your music playback 5. Channel 1 volume controller 6. Signal LED indicates the presence of audio signals at any of the connected inputs 7. Channel 2 volume controller 8. Signal LED indicates the presence of audio signals at any of the connected inputs 9. Channel 3 volume controller 10. Signal LED indicates the presence of audio signals at any of the connected inputs 11. Channel 4 volume controller 12. Signal LED indicates the presence of audio signals at any of the connected inputs 13. Channel 5 volume controller 14. Signal LED indicates the presence of audio signals at any of the connected inputs 15. Mic / Line 1 Input Sensitivity Selector: Use this switch to change the input sensitivity between mic and line. The mic mode is ideal to connect a dynamic microphone. Note: Do not use a microphone in the line mode. Doing so may damage your equipment. 16. Mic / Line 1: This combo XLR-Jack input accepts both mic and line-level signals from various sources. 17. AUX IN 18.19. This is a stereo RCA line input to connect devices such as CD/media players, iPods, MP3 players and DJ mixers etc. 20. This is a stereo RCA line input to connect devices such as CD/media players, iPods, MP3 players and DJ mixers etc. 21. Power Switch: Use this switch to power the speaker ON or OFF. 22. Power Cord Input: Use the supplied cord to power up the speaker. Kindly check and match the Voltage requirement indicated on the rating plate of the unit. Connect the power cord only to a mains socket outlet with a protective earthing connection. l Pag. 3 FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

NINGBO ZS ACOUSTIC CO.,LTD ROOM 6, 5TH FLOOR, SIMING EAST RD NO 11, YINJIANG TOWN, HAISHU DISTRICT, NINGBO CITY, ZHEJIANG, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/04/24 U.S. Agent Designation NINGBO ZS ACOUSTIC CO.,LTD acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BVT2-PCCS12): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Phone of U.S. agent: (626) 588-8039 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of NINGBO ZS ACOUSTIC CO.,LTD with the FRN [0038339818] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature yuanfang Yan Manager NINGBO ZS ACOUSTIC CO.,LTD Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

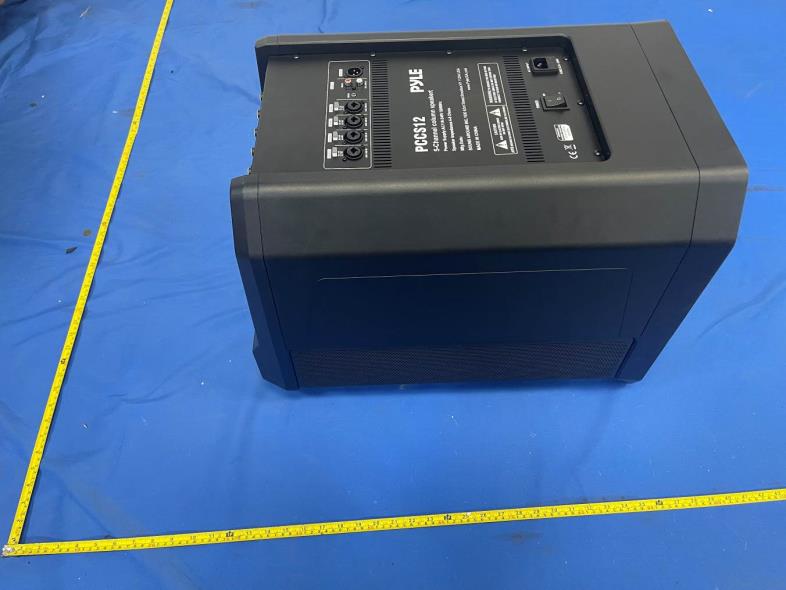

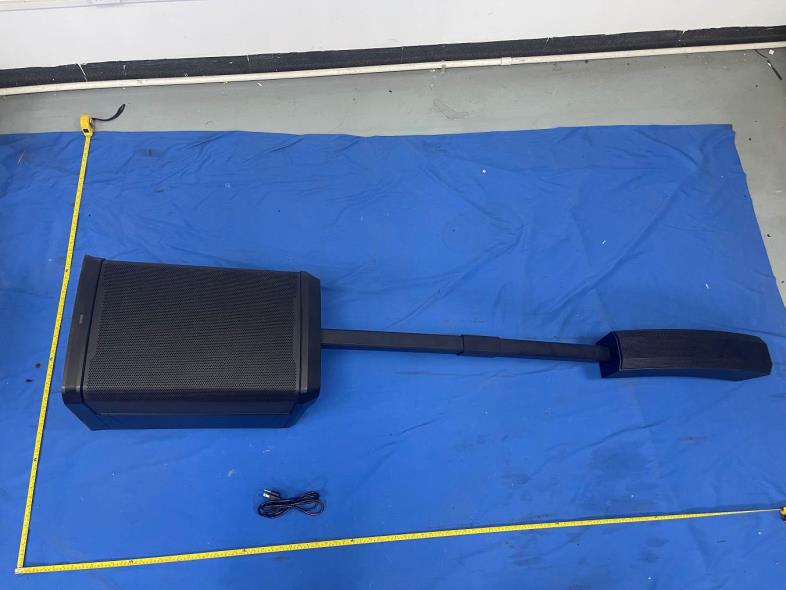

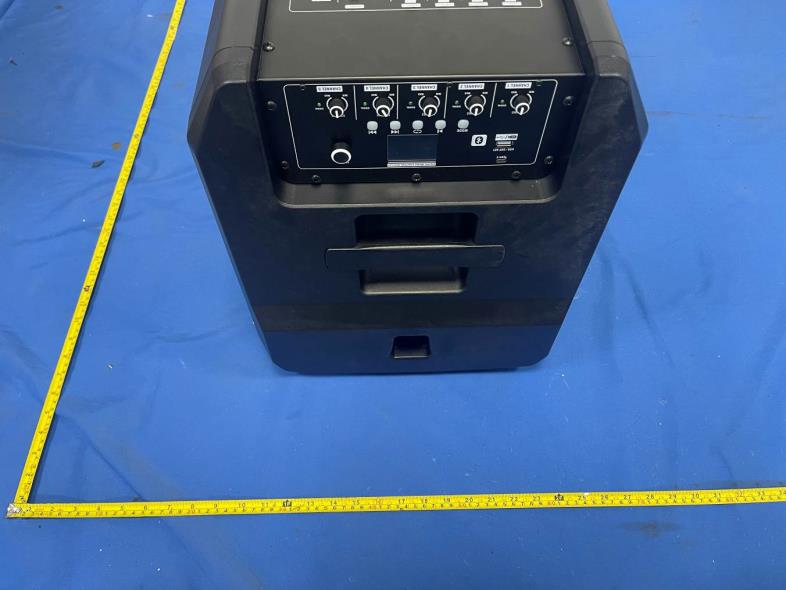

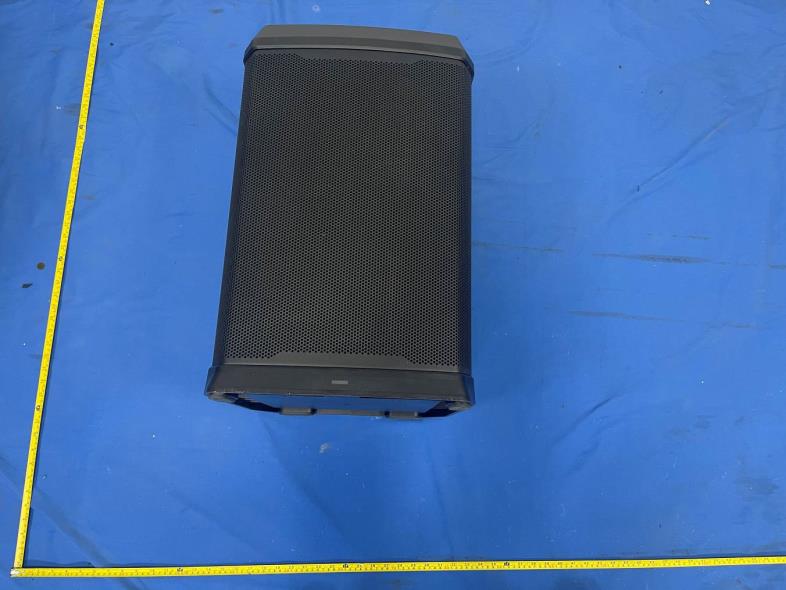

FCC ID: 2BVT2-PCCS12 External Photos of the EUT FCC ID: 2BVT2-PCCS12 FCC ID: 2BVT2-PCCS12

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BVT2-PCCS12

FCC ID: 2BVT2-PCCS12 Internal Photos of the EUT FCC ID: 2BVT2-PCCS12 FCC ID: 2BVT2-PCCS12 FCC ID: 2BVT2-PCCS12 FCC ID: 2BVT2-PCCS12 BT ANT FCC ID: 2BVT2-PCCS12

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. .................... : FCC ID. ........................................... : CTA26040700903 2BVT2-PCCS12 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Apr. 13, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : NINGBO ZS ACOUSTIC CO.,LTD Address ........................................... : ROOM 6, 5TH FLOOR, SIMING EAST RD NO 11, YINJIANG TOWN, HAISHU DISTRICT, NINGBO CITY, ZHEJIANG, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : 12-inch Column Speaker Trade Mark ....................................... : PYLE Manufacturer .................................... : KANGZHENG ACOUSTICS (ZHEJAING) CO.,LTD Model/Type reference ...................... : PCCS12 Listed Models ................................... : N/A Rating ............................................... : Input: 110V-240V~, 50/60Hz Result ............................................... : PASS Report No.: CTA26040700903 Page 2 of 9 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : 12-inch Column Speaker Model /Type : PCCS12 Listed Models : N/A Applicant : NINGBO ZS ACOUSTIC CO.,LTD Address : ROOM 6, 5TH FLOOR, SIMING EAST RD NO 11, YINJIANG TOWN, HAISHU DISTRICT, NINGBO CITY, ZHEJIANG, China Manufacturer : KANGZHENG ACOUSTICS (ZHEJAING) CO.,LTD Address : No. 9, Yafeng Road, Changle Town, Shengzhou City, Shaoxing City, Zhejiang Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26040700903 Page 3 of 9 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 7 3.1 Address of the test laboratory .................................................................................. 7 3.2 Test Facility .............................................................................................................. 7 3.3 Statement of the measurement uncertainty ............................................................. 7 4 Test limit .............................................................................................................................. 8 4.1 Requirement ............................................................................................................ 8 4.2 MPE Calculation Method ......................................................................................... 8 4.3 Conducted Power Results ....................................................................................... 8 4.4 Manufacturing tolerance .......................................................................................... 9 4.5 Standalone MPE Result ........................................................................................... 9 4.6 Simultaneous Transmission for MPE Result ........................................................... 9 5 Conclusion ........................................................................................................................... 9 Report No.: CTA26040700903 Page 4 of 9 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:cta@…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PCB antenna Model PCCS12 Frequency range 2400-2500MHz Manufacturer NINGBO ZS ACOUSTIC CO.,LTD Address ROOM 6, 5TH FLOOR, SIMING EAST RD NO 11, YINJIANG TOWN, HAISHU DISTRICT, NINGBO CITY, ZHEJIANG, China ANT Peak Gain 0.86 dBi 2. Antenna Photo: Length: 15.47mm Width: 6.09mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA26040700902 2BVT2-PCCS12 Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Apr. 13, 2026 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: NINGBO ZS ACOUSTIC CO.,LTD Address ...........................................: ROOM 6, 5TH FLOOR, SIMING EAST RD NO 11, YINJIANG TOWN, HAISHU DISTRICT, NINGBO CITY, ZHEJIANG, China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : 12-inch Column Speaker Trade Mark ......................................: PYLE Manufacturer ...................................: KANGZHENG ACOUSTICS (ZHEJAING) CO.,LTD Model/Type reference .....................: PCCS12 Listed Models ..................................: N/A Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: Input: 110V-240V~, 50/60Hz Result ..............................................: PASS Report No.: CTA26040700902 Page 2 of 29 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : 12-inch Column Speaker Model /Type : PCCS12 Listed Models : N/A Applicant : NINGBO ZS ACOUSTIC CO.,LTD Address : ROOM 6, 5TH FLOOR, SIMING EAST RD NO 11, YINJIANG TOWN, HAISHU DISTRICT, NINGBO CITY, ZHEJIANG, China Manufacturer : KANGZHENG ACOUSTICS (ZHEJAING) CO.,LTD Address : No. 9, Yafeng Road, Changle Town, Shengzhou City, Shaoxing City, Zhejiang Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26040700902 Page 3 of 29 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Summary of measurement results ........................................................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BLE FCC ID : 2BVT2-PCCS12 Company : NINGBO ZS ACOUSTIC CO.,LTD EUT : 12-inch Column Speaker Model Number : PCCS12 Report No. : CTA26040700902 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.612 2401.692 2402.304 0.5 PASS 2440 0.640 2439.696 2440.336 0.5 PASS 2480 0.660 2479.684 2480.344 0.5 PASS BLE_2M Ant1 2402 1.136 2401.444 2402.580 0.5 PASS 2440 1.096 2439.448 2440.544 0.5 PASS 2480 1.080 2479.452 2480.532 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 5 BLE_2M_Ant1_2480 6 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0042 2401.5164 2402.5206 --- --- 2440 1.0140 2439.5169 2440.5309 --- --- 2480 1.0021 2479.5256 2480.5277 --- --- BLE_2M Ant1 2402 2.0135 2401.0271 2403.0406 --- --- 2440 1.9939 2439.0295 2441.0234 --- --- 2480 2.0102 2479.0318 2481.0420 --- --- 7 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 8 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 9 BLE_2M_Ant1_2480 10 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -3.16 ≤30 PASS 2440 -3.41 ≤30 PASS 2480 -3.47 ≤30 PASS BLE_2M Ant1 2402 -6.37 ≤30 PASS 2440 -6.57 ≤30 PASS 2480 -6.74 ≤30 PASS 11 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -18.95 ≤8.00 PASS 2440 -19.11 ≤8.00 PASS 2480 -19.14 ≤8.00 PASS BLE_2M Ant1 2402 -22.63 ≤8.00 PASS 2440 -23.93 ≤8.00 PASS 2480 -22.96 ≤8.00 PASS 12 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 13 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 14 BLE_2M_Ant1_2480 15 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -3.22 -55.61 ≤-23.22 PASS High 2480 -3.49 -53.86 ≤-23.49 PASS BLE_2M Ant1 Low 2402 -6.57 -40.73 ≤-26.57 PASS High 2480 -7.08 -56.21 ≤-27.08 PASS 16 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 BLE_2M_Ant1_Low_2402 17 BLE_2M_Ant1_High_2480 18 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -4.11 -4.11 --- PASS 30~1000 -4.11 -68.01 ≤-24.11 PASS 1000~26500 -4.11 -47.85 ≤-24.11 PASS 2440 Reference -4.26 -4.26 --- PASS 30~1000 -4.26 -67.48 ≤-24.26 PASS 1000~26500 -4.26 -45.92 ≤-24.26 PASS 2480 Reference -4.34 -4.34 --- PASS 30~1000 -4.34 -67.92 ≤-24.34 PASS 1000~26500 -4.34 -47.34 ≤-24.34 PASS BLE_2M Ant1 2402 Reference -6.70 -6.70 --- PASS 30~1000 -6.70 -67.76 ≤-26.7 PASS 1000~26500 -6.70 -55.04 ≤-26.7 PASS 2440 Reference -7.98 -7.98 --- PASS 30~1000 -7.98 -68.54 ≤-27.98 PASS 1000~26500 -7.98 -55.65 ≤-27.98 PASS 2480 Reference -9.23 -9.23 --- PASS 30~1000 -9.23 -67.67 ≤-29.23 PASS 1000~26500 -9.23 -51.51 ≤-29.23 PASS 19 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 20 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 21 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 22 BLE_1M_Ant1_2480_1000~26500 BLE_2M_Ant1_2402_0~Reference 23 BLE_2M_Ant1_2402_30~1000 BLE_2M_Ant1_2402_1000~26500 BLE_2M_Ant1_2440_0~Reference 24 BLE_2M_Ant1_2440_30~1000 BLE_2M_Ant1_2440_1000~26500 25 BLE_2M_Ant1_2480_0~Reference BLE_2M_Ant1_2480_30~1000 BLE_2M_Ant1_2480_1000~26500 26 27 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.62 0.6613 66.13 1.80 --- --- 2440 0.41 0.62 0.6613 66.13 1.80 --- --- 2480 0.41 0.62 0.6613 66.13 1.80 --- --- BLE_2M Ant1 2402 0.23 0.62 0.3710 37.10 4.31 --- --- 2440 0.23 0.62 0.3710 37.10 4.31 --- --- 2480 0.23 0.62 0.3710 37.10 4.31 --- --- 28 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 29 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 30 BLE_2M_Ant1_2480 31 Appendix H: Emissions in Restricted Bands Test Result TestMode Antenna ChName Freq(MHz) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -59.99 2.00 1.80 39.01 ≤54 PASS AV 2376.440 -58.66 2.00 1.80 40.34 ≤54 PASS AV 2390.000 -59.45 2.00 1.80 39.55 ≤54 PASS Peak 2310.000 -52.87 2.00 0.00 44.33 ≤74 PASS Peak 2372.345 -48.94 2.00 0.00 48.26 ≤74 PASS Peak 2390.000 -50.95 2.00 0.00 46.25 ≤74 PASS High 2480 AV 2483.500 -57.83 2.00 1.80 41.17 ≤54 PASS AV 2484.000 -57.57 2.00 1.80 41.43 ≤54 PASS AV 2500.000 -58.7 2.00 1.80 40.30 ≤54 PASS Peak 2483.500 -51.25 2.00 0.00 45.95 ≤74 PASS Peak 2484.960 -46.88 2.00 0.00 50.32 ≤74 PASS Peak 2500.000 -50.18 2.00 0.00 47.02 ≤74 PASS BLE_2M Ant1 Low 2402 AV 2310.000 -60.44 2.00 4.31 41.07 ≤54 PASS AV 2381.690 -58.7 2.00 4.31 42.81 ≤54 PASS AV 2390.000 -59.68 2.00 4.31 41.83 ≤54 PASS Peak 2310.000 -51.48 2.00 0.00 45.72 ≤74 PASS Peak 2363.420 -48.59 2.00 0.00 48.61 ≤74 PASS Peak 2390.000 -51.19 2.00 0.00 46.01 ≤74 PASS High 2480 AV 2483.500 -58.72 2.00 4.31 42.79 ≤54 PASS AV 2484.080 -58.55 2.00 4.31 42.96 ≤54 PASS AV 2500.000 -59.82 2.00 4.31 41.69 ≤54 PASS Peak 2483.500 -51.97 2.00 0.00 45.23 ≤74 PASS Peak 2495.280 -48.73 2.00 0.00 48.47 ≤74 PASS Peak 2500.000 -52.52 2.00 0.00 44.68 ≤74 PASS Note： The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 32 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV 33 BLE_1M_Ant1_High_2480_Peak BLE_2M_Ant1_Low_2402_AV 34 BLE_2M_Ant1_Low_2402_Peak BLE_2M_Ant1_High_2480_AV BLE_2M_Ant1_High_2480_Peak 35

FCC ID: 2BVT2-PCCS12 Test Setup Photos of the EUT FCC ID: 2BVT2-PCCS12
