2BVT5-CMI4240CMi4240

Introduction CMi4240 is a meter connectivity device mounted inside a Kamstrup MULTICAL® 403/603/803 heating/cooling meter, en- abling meter data to be sent to a server via a LoRaWAN® network. CMi4240 can be retrofitted into deployed meters and is suitable for applications requiring long-range wireless data transmission. The device is easily configured using the Elvaco OTC mobile app. For a complete description of the product, or for information in other languages, visit the Elvaco AB support website https:// support.elvaco.com. Mounting the product CMi4240 can be used in a Kamstrup MULTICAL® 403/603/803 heating/cooling meter (check the support site for a complete compatibility list). If the product is not mounted in the meter upon delivery, it is easily installed by following the procedure below: Caution This is an electrostatic-sensitive product. Observe the necessary ESD protective measures when installing the product. 1.Open the meter housing. 2.Apply ESD precautions. Make sure you are grounded (e.g., by touching the meter’s metal pipe or a metal part which is electrically connected to it). 3.Install the device. Hold the device by the outer edges and gently press it into position in an available slot in the meter. 4.Attach the LoRaWAN® antenna. Route the antenna ca- ble using the guiding pins in the meter housing. Connect the antenna to the MCX connector on the device. Caution When using an external antenna, make sure to mount it at least 0,5 meters away from the meter to avoid interference. 5.Close the lid of the meter. When closed, the device will receive power from the meter. Activating the product Note Before activating the device, and trying to join a LoRaWAN® net- work, make sure the LoRaWAN® network server in use is prepared with necessary device- and security-related information. Security keys for Elvaco devices can be accessed in Elvaco EVO, Elvaco EVO Login. Upon delivery, the device is set to inactive mode, which means no messages will be transmitted from it before being activated. It can be activated in two ways: via the buttons on the meter, or via the Elvaco OTC App: Activation via the meter buttons •On MULTICAL® 403, press and hold both buttons on the front of the meter until “CALL” is displayed. •On MULTICAL® 603 and MULTICAL® 803, press and hold the two arrow buttons on the front of the meter until “CALL” is displayed. Activation via the Elvaco OTC App 1.Open the Elvaco OTC app (available for Android and iOS). 2.Scan the device (make sure NFC is enabled on the phone). 3.Go to Apply mode. 4.Set the power mode to Active. 5.Select Apply settings. 6.Scan the device to apply new settings. To verify that it has been activated, go to Inspect, scan the device, and make sure that power mode is set to Active. NFC scanning position MULTICAL® 403: Place the phone in the center of the raised sec- tion on the back of the meter. MULTICAL® 603: The meter has two slots: • Left slot: Middle of the raised back section • Right slot: Right side of the raised back section MULTICAL® 803: Open the meter and place the phone close to the device. Joining the LoRaWAN® network When activated, the device will attempt to join a LoRaWAN® network. If it fails, it will perform retries until it succeeds. The time between each attempt will increase for every attempt until it’s performed once per day. A new join attempt cycle can be manually triggered by deactivating and activating the device using the Elvaco OTC App. When the device has joined a LoRaWAN® network, meter data will initially be transmitted every minute (regardless of transmit interval settings) in order to set the right data rate. After three minutes of calibration, the device will start deliv- ering meter data using its configured settings. By using the Elvaco OTC App, you can verify that the device is successfully communicating with the meter (“Meter communication”) and is connected to the LoRaWAN® network (“Network joined”). LoRaWAN® end-device activation Before being able to transmit data over a LoRaWAN® network, the device must be personalized and activated. This can be done in two ways: Over-the-air activation (OTAA) or Activation by Personalization (ABP). For security reasons, Elvaco strong- ly recommends using OTAA, where all network keys are gen- erated each time the device joins the LoRaWAN® network. In contrast, for ABP, all keys are set manually and stay con- stant over time. The tables below list the required information depending on the activation mode. In OTAA mode Device EUI16-digit unique identification number (not configurable). CMi4240Quick Manual Version 1.1 Application key The application key of each device is generated by Elva- co and used in OTAA mode to generate network keys when it joins the LoRaWAN® network. JoinEUISets the identification number of the join server. The identification number is set to a default value in all de- vices. The default value is presented in Elvaco OTC configuration options. In ABP mode Device EUI16-digit unique identification number (not configurable). Application session key Used for payload encryption and decryption. Network ses- sion key Used by both the device and the network server. Technical specifications MechanicsValue Dimensions (W x H x D)90 x 12 x 35 mm Weight33 g MountingIn available slot of Kamstrup MUL- TICAL® 403/603/803 External antenna connectorMCX Electrical connectionsValue Supply voltagePowered via the meter. Electrical characteristicsValue Nominal voltage3.0 VDC Power consumption (max)50 mA Power consumption (sleep mode)2.5 μA Environmental specificationsValue Operating temperature+5 - +55 ºC Operating humidity0 - 93 % RH, no condensation Operating altitude2000 m Pollution degreeDegree 1 Usage environmentIndoors Storage temperature-20 - 60 ºC Radio characteristicsValue Frequency915 MHz Output power20 dBm Receiver sensitivity-135 dBm LoRaWAN® characteristicsValue Device classClass A, bi-directional LoRaWAN® version1.0.2 Regional parametersUS915 ActivationOTAA or ABP D…

Text truncated - open the document above for the full version.

Elvaco AB Kabelgatan 12, Kungsbacka 43437 Hallands län, Sweden Date: 05/11/26 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BVT5-CMI4240 Agent Authorization To whom it may concern, We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of product model CMi4240. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Sincerely,

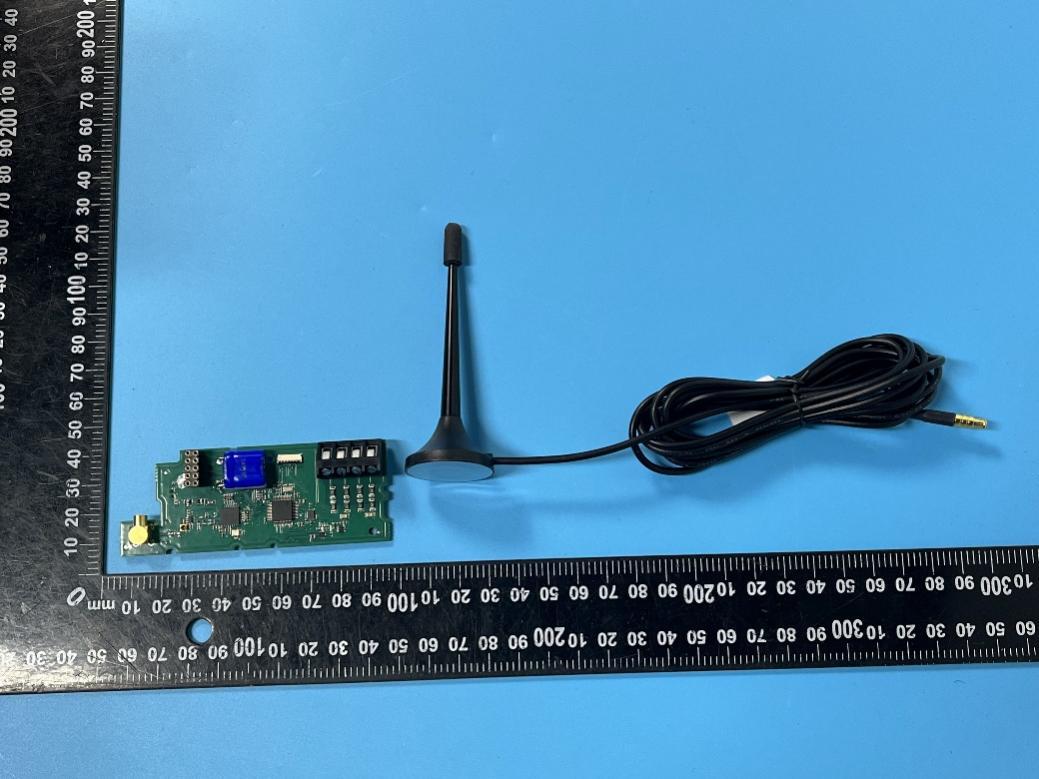

ReferenceNo.:WTX26X03056907WPage2of7 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EXHIBIT2-EUTEXTERNALPHOTOGRAPHS EUTView1 EUTView2

Reference No.: WTX26X03056907WPage 1 of 7 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: Both of the product label and the packaging label are shown above. Proposed Label Location on EUT FCCIDLabel Location

ReferenceNo.:WTX26X03056907WPage3of7 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EXHIBIT3-EUTINTERNALPHOTOGRAPHS Solder Board-Component View1 Solder Board-Component View2 ReferenceNo.:WTX26X03056907WPage4of7 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn AntennaView Antenna

1.RFExposureRequirements 1.1GeneralInformation ClientInformation Applicant:ElvacoAB Addressofapplicant:Kabelgatan12,43437Kungsbacka,Hallandslän,Sweden Manufacturer:ElvacoAB Addressofmanufacturer:Kabelgatan12,43437Kungsbacka,Hallandslän,Sweden GeneralDescriptionofEUT: ProductName:CMi4240 TradeName:/ ModelNo.:CMi4240 AddingModel(s):/ RatedVoltage:DC3.0V BatteryCapacity:/ PowerAdapter:/ FCCID:2BVT5-CMI4240 EquipmentType:Mobiledevice TechnicalCharacteristicsofEUT: SRD900MHz(Hopping) FrequencyRange:902.3-914.9MHz RFOutputPower:18.15dBm(Conducted) Modulation:GFSK QuantityofChannels:64 ChannelSeparation:200kHz TypeofAntenna:Externalantenna AntennaGain:0.97dBi SRD900MHz(DTS) FrequencyRange:903MHz-914.2MHz RFOutputPower:19.30dBm(Conducted) Modulation:GFSK QuantityofChannels:8 ChannelSeparation:1600kHz TypeofAntenna:Externalantenna AntennaGain:0.97dBi 1.2TestFacility Addressofthetestlaboratory Laboratory:WaltekTestingGroup(Shenzhen)Co.,Ltd. Address:1/F.,Room101,Building1,HongweiIndustrialPark,Liuxian2ndRoad,Block70Bao'anDistrict, Shenzhen,Guangdong,China FCC–RegistrationNo.:125990 WaltekTestingGroup(Shenzhen)Co.,Ltd.EMCLaboratoryhasbeenregisteredandfullydescribedina reportfiledwiththeFCC(FederalCommunicationsCommission).TheacceptanceletterfromtheFCCismain tainedinourfiles.TheDesignationNumberisCN5010,andTestFirmRegistrationNumberis125990. IndustryCanada(IC)RegistrationNo.:11464A The3mSemi-anechoicchamberofWaltekTestingGroup(Shenzhen)Co.,Ltd.hasbeenregisteredby CertificationandEngineeringBureauofIndustryCanadaforradioequipmenttestingwithRegistrationNo.: 11464AandtheCABidentifierisCN0057. 1.3RFExposureExemption Accordingto§1.1307(b)(3)andKDB447498D04InterimGeneralRFExposureGuidancev01,system operatingundertheprovisionsofthissectionshallbeoperatinginamannerthatthepublicisnotexposedto radiofrequencyenergylevelinexcesslimitformaximumpermissibleexposure. OptionA:FCCRulePart1.1307(b)(3)(i)(A):Theavailablemaximumtime-averagedpowerisnomorethan 1mW,regardlessofseparationdistance. OptionB:FCCRulePart1.1307(b)(3)(i)(B):Theavailablemaximumtime-averagedpoweroreffective radiatedpower(ERP),whicheverisgreater,islessthanorequaltothethresholdP th (mW)describedinthe followingformula.P th isgivenby: OptionC:FCCRulePart1.1307(b)(3)(i)(C):Theminimumseparationdistance(Rinmeters)fromthebodyof anearbypersonforthefrequency(finMHz)atwhichthesourceoperates,theERP(watts)isnomorethanthe calculatedvalueprescribedforthatfrequency.Rmustbeatleastλ/2π,whereλisthefree-spaceoperating wavelengthinmeters. SingleRFSourcesSubjecttoRoutineEnvironmentalEvaluation RFSourcefrequency(MHz)ThresholdERP(watts) 0.3-1.341,920R 2 1.34-303,450R 2 /f 2 30-3003.83R 2 300-1,5000.0128R 2 f 1,500-100,00019.2R 2 ForMultipleRFsources:FCCRulePart1.1307(b)(3)(ii): (A)Theavailablemaximumtime-averagedpowerofeachsourceisnomorethan1mWandthereisa separationdistanceoftwocentimetersbetweenanyportionofaradiatingstructureoperatingandthe nearestportionofanyotherradiatingstructureinthesamedevice,exceptifthesumofmultiplesourcesis lessthan1mWduringthetime-averagingperiod,inwhichcasetheymaybetreatedasasinglesource (separationisnotrequired). (B)InthecaseoffixedRFsourcesoperatinginthesametime-averagingperiod,orofmultiplemobileor portableRFsourceswithinadeviceoperatinginthesametimeaveragingperiod,ifthesumofthe fractionalcontributionstotheapplicablethresholdsislessthanorequalto1asindicatedinthefollowing equation. 1.4CalculatedResult Radio Access Technology Prediction Frequency Output Power Antenna Gain Duty Cycle Tune-Up Time-AveragedPower ERP (MHz)(dBm)(dBi)(%)(dBm)(dBm) SRD 900MHz (Hopping) 902.318.150.97100 19.0017.82 SRD 900MHz (DTS) 90319.300.97100 20.0018.82 Frequency Option Min.DistanceMax.PowerExposureLimit Ratio Result (MHz)(cm)(dBm)(mW)(mW)Pass/Fail 902.3C20.0017.8260.53461.980.13Pass 903C20.0018.8276.21462.340.16 Pass Note:1.Time-AveragedPower=OutputPower*DutyCycle;ERP=Time-AveragedPower+Antenna gain-2.15dB 2.OptionA,BandCrefersasclause1.2. 3.ForoptionB,Max(time-averagedpower,effectiveradiatedpower(ERP))convertstoMax.Power.For optionC,ERPconvertstoMax.Power; 4.ForoptionB,P th (mW)convertstoExposureLimit(mW);ForoptionC,ERP(W)convertstoExposure Limit(mW). 5.Ratio=Tune-UpERP(mW)/ExposureLimit(mW) ModeforSimultaneousMulti-bandTransmission: RadioAccess Technology Ratio1Ratio2 Simultaneous Ratio Limit Result Pass/Fail ------------ Note:Can’ttransmitatthesametime. Result:Pass

WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 1 of 40 TESTREPORT ReferenceNo.......................:WTX26X03056907W002 FCCID....................................:2BVT5-CMI4240 Applicant...............................:ElvacoAB Address.................................:Kabelgatan12,43437Kungsbacka,Hallandslän,Sweden Manufacturer........................:ThesameasApplicant Address.................................:ThesameasApplicant ProductName......................:CMi4240 ModelNo...............................:CMi4240 Standards..............................:FCCPart15.247 DateofReceiptsample .....: 2026-03-10 DateofTest...........................:2026-03-16to2026-03-27 DateofIssue ........................: 2026-03-31 TestReportFormNo.......... : WTX_Part15_247W TestResult............................:Pass Remarks: Theresultsshowninthistestreportreferonlytothesample(s)tested,thistestreportcannotbe reproduced,exceptinfull,withoutpriorwrittenpermissionofthecompany.Thereportwouldbeinvalidwithout specificstampoftestinstituteandthesignaturesofapprover. PreparedBy: WaltekTestingGroup(Shenzhen)Co.,Ltd. Address:1/F.,Room101,Building1,HongweiIndustrialPark,Liuxian2ndRoad, Block70Bao'anDistrict,Shenzhen,Guangdong,China Tel.:+86-755-33663308Fax.:+86-755-33663309Email:[email protected] Testedby:Approvedby: MikeShi/ProjectEngineerJasonSu/Manager ReferenceNo.:WTX26X03056907W002 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 2 of 40 TABLEOFCONTENTS 1.GENERALINFORMATION........................................................................................................................................4 1.1PRODUCTDESCRIPTIONFOREQUIPMENTUNDERTEST(EUT)............................................................................4 1.2TESTSTANDARDS.....................................................................................................................................................5 1.3TESTMETHODOLOGY...............................................................................................................................................5 1.4TESTFACILITY..........................................................................................................................................................5 1.5EUTSETUPANDTESTMODE.................................................................................................................................6 1.6MEASUREMENTUNCERTAINTY.................................................................................................................................7 1.7TESTEQUIPMENTLISTANDDETAILS......................................................................................................................8 2.SUMMARYOFTESTRESULTS.............................................................................................................................12 3.ANTENNAREQUIREMENT.....................................................................................................................................13 3.1STANDARDAPPLICABLE.........................................................................................................................................13 3.2EVALUATIONINFORMATION....................................................................................................................................13 4.POWERSPECTRALDENSITY...............................................................................................................................14 4.1STANDARDAPPLICABLE.........................................................................................................................................14 4.2TESTSETUPBLOCKDIAGRAM...............................................................................................................................14 4.3TESTPROCEDURE..................................................................................................................................................14 4.4SUMMARYOFTESTRESULTS/PLOTS....................................................................................................................14 5.DTSBANDWIDTH......................................................................................................................................................15 5.1STANDARDAPPLICABLE.........................................................................................................................................15 5.2TESTSETUPBLOCKDIAGRAM...............................................................................................................................15 5.3TESTPROCEDURE..................................................................................................................................................15 5.4SUMMARYOFTESTRESULTS/PLOTS....................................................................................................................15 6.RFOUTPUTPOWER................................................................................................................................................16 6.1STANDARDAPPLICABLE.........................................................................................................................................16 6.2TESTSETUPBLOCKDIAGRAM...............................................................................................................................16 6.3TESTPROCEDURE..................................................................................................................................................16 6.4SUMMARYOFTESTRESULTS/PLOTS....................................................................................................................16 7.FIELDSTRENGTHOFSPURIOUSEMISSIONS.................................................................................................17 7.1STANDARDAPPLICABLE..........................................................................................................................…

Text truncated - open the document above for the full version.

WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 1 of 11 TESTREPORT ReferenceNo.......................:WTX26X03070060W Applicant...............................:ElvacoAB Address.................................:Kabelgatan12,43437Kungsbacka,Hallandslän,Sweden Manufacturer........................:ElvacoAB Address .................................: Kabelgatan12,43437Kungsbacka,Hallandslän,Sweden ProductName ......................: CMi4240ExternalAntenna ModelNo... ............................: CMi4240ExternalAntenna Standards..............................:ANSI/IEEE149-2021 DateofReceiptsample.....:2026-03-26 DateofTest...........................:2026-03-25to2026-03-26 DateofIssue........................:2026-03-27 TestReportFormNo. ......... : WTX_IEEE149 TestResult ............................: Pass Remarks: Theresultsshowninthistestreportreferonlytothesample(s)tested,thistestreportcannotbe reproduced,exceptinfull,withoutpriorwrittenpermissionofthecompany.Thereportwouldbeinvalidwithout specificstampoftestinstituteandthesignaturesofapprover. PreparedBy: WaltekTestingGroup(Shenzhen)Co.,Ltd. Address:1/F.,Room101,Building1,HongweiIndustrialPark,Liuxian2ndRoad, Block70Bao'anDistrict,Shenzhen,Guangdong,China Tel.:+86-755-33663308Fax.:+86-755-33663309Email:[email protected] Testedby:Approvedby: MikeShi/ProjectEngineerJasonSu/Manager ReferenceNo.:WTX25X12337828W WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 2 of 11 TABLEOFCONTENTS 1.GENERALINFORMATION.......................................................................................................................................4 1.1PRODUCTDESCRIPTIONFOREQUIPMENTUNDERTEST(EUT).................................................................................4 2.SUMMARYOFTESTRESULTS...............................................................................................................................5 3.ANTENNATESTCONFIGURATIONS.....................................................................................................................6 3.1TESTLOCATION.........................................................................................................................................................6 3.1TESTENVIRONMENTS.................................................................................................................................................6 3.2TESTEQUIPMENTLIST...............................................................................................................................................6 3.3MEASUREMENTUNCERTAINTY..................................................................................................................................6 3.4TESTSETUP................................................................................................................................................................6 4.ANTENNATESTRESULT..........................................................................................................................................7 4.1GAINANDEFFICIENCY...............................................................................................................................................7 4.2RADIATIONPATTERN2DVIEW...................................................................................................................................8 4.3RADIATIONPATTERN3DVIEW.................................................................................................................................10 EXHIBIT1-TESTSETUPPHOTOGRAPHS............................................................................................................11 ReferenceNo.:WTX25X12337828W WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 3 of 11 Reportversion VersionNo.DateofissueDescription Rev.002026-03-27Original /// ReferenceNo.:WTX25X12337828W WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 4 of 11 1...GENERALINFORMATION 1.1ProductDescriptionforEquipmentUnderTest(EUT) GeneralDescriptionofEUT ProductName:CMi4240ExternalAntenna TradeName:/ ModelNo.:CMi4240ExternalAntenna AddingModel(s):/ Note:Thetestdataisgatheredfromaproductionsample,providedbythemanufacturer. TechnicalCharacteristicsofEUT FrequencyRange:900-930MHz GainofAntenna:0.97dBi(Max.) TypeofAntenna: ExternalAntenna Size:30mm*91mm Wirelength:2.5M Dimension: ReferenceNo.:WTX25X12337828W WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 5 of 11 2.SUMMARYOFTESTRESULTS StandardsDescriptionofTestItemResult ANSI/IEEE149-2021 IEEERecommendedPracticeforAntenna Measurements Compliant N/A:notapplicable ReferenceNo.:WTX25X12337828W WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 6 of 11 3.AntennaTestConfigurations 3.1TestLocation Name:ShenzhenMorlabCommunicationsTechnologyCo.,Ltd. Address: FL.1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad,Block67, BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China 3.1TestEnvironments EnvironmentsParameterTemperatureVoltageHumidit NTNV25C--50% 3.2TestEquipmentList DescriptionManufacturerModelSerialNumberCal.DateDue.Date AnechoicChamberETSAMS8923Q22252023-06-092028-06-08 RFSwitchETSEMCenter251211// Vectornetwork analyzer R&SZNB81014132025-07-152026-07-14 3.3MeasurementUncertainty Theuncertaintyiscalculatedusingthemethodssuggestedinthe“GuidetotheExpressionofUncertaintyin Measurement"(GUM)publishedbyISO.Whenthetestresultisacriticalvalue,wewillusethemeasurement uncertaintygivethejudgmentresultbasedonthe95%Confidenceintervals. 3.4TestSetup ReferenceNo.:WTX25X12337828W WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 7 of 11 4.AntennaTestResult 4.1GainandEfficiency Fre(MHz)Eff(dB)Eff(%)Gain(dBi) 900-5.4028.81-1.51 901-5.2729.72-1.37 902-5.1330.66-1.09 903-5.0331.41-1.03 904-4.9432.10-0.88 905-4.8033.10-0.56 906-4.6234.49-0.28 907-4.4136.22-0.07 908-4.2337.800.06 909-4.1138.810.21 910-4.0439.450.33 911-3.9540.270.48 912-3.8041.680.60 913-3.6443.210.66 914-3.5344.380.76 915-3.…

Text truncated - open the document above for the full version.

ReferenceNo.:WTX26X03056907WPage5of7 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EXHIBIT4-TESTSETUPPHOTOGRAPHS RadiationEmissionTest Setup(Below30MHz) RadiationEmissionTest Setup(30MHzto1GHz) ReferenceNo.:WTX26X03056907WPage6of7 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn RadiationEmissionTest Setup(1GHzto18GHz) RadiationEmissionTest Setup(closeup) ReferenceNo.:WTX26X03056907WPage7of7 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn RadioTestSetupView *****ENDOFREPORT*****
