  3. 2BVTZ-MRF24G29

2BVTZ-MRF24G292.4G WiFi antenna

CHAUVET & SONS, LLC
2.4G WiFi antenna - FCC ID 2BVTZ-MRF24G29 - CHAUVET & SONS, LLC
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 11, 2026
Application Purpose
Original Equipment
Equipment Note
2.4G WiFi antenna
Frequency Range
2412.00000000 - 2462.00000000
Company
CHAUVET & SONS, LLC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗
↗

Cover Letter(s)

↗
↗

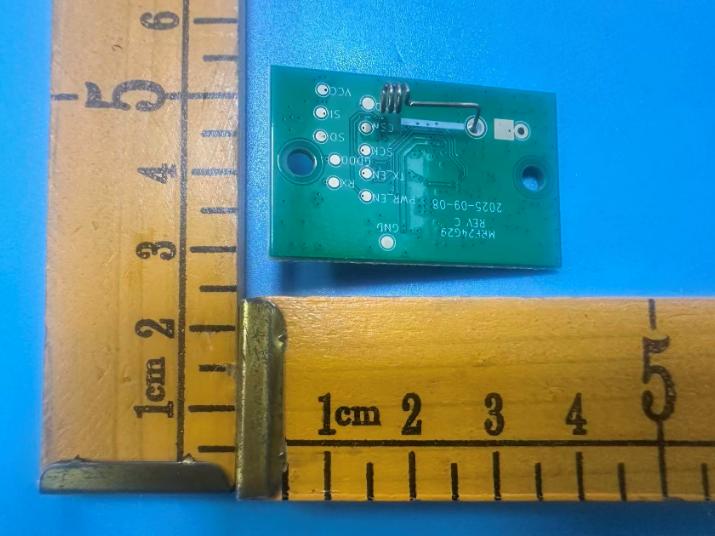

External Photos

↗

ID Label/Location Info

↗

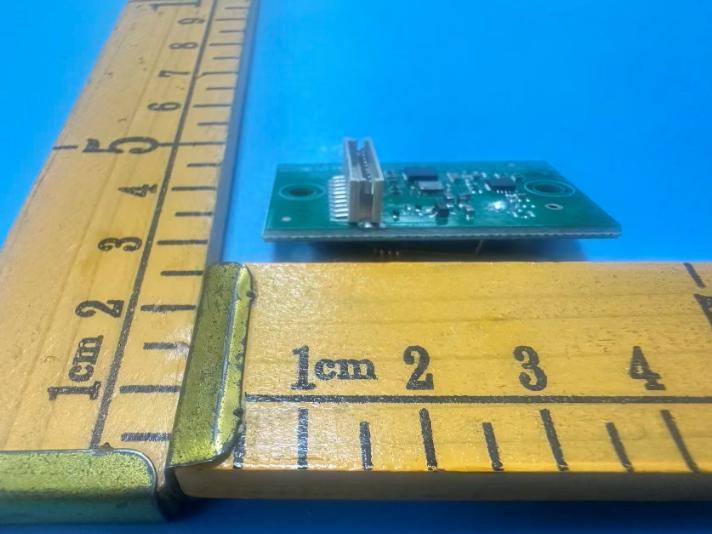

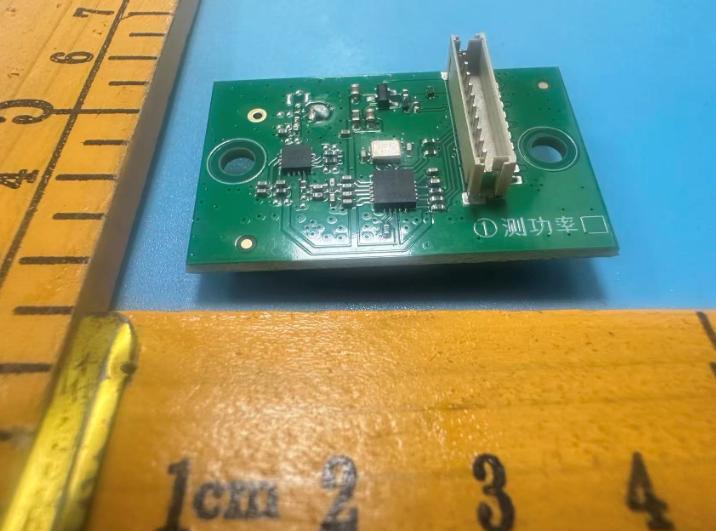

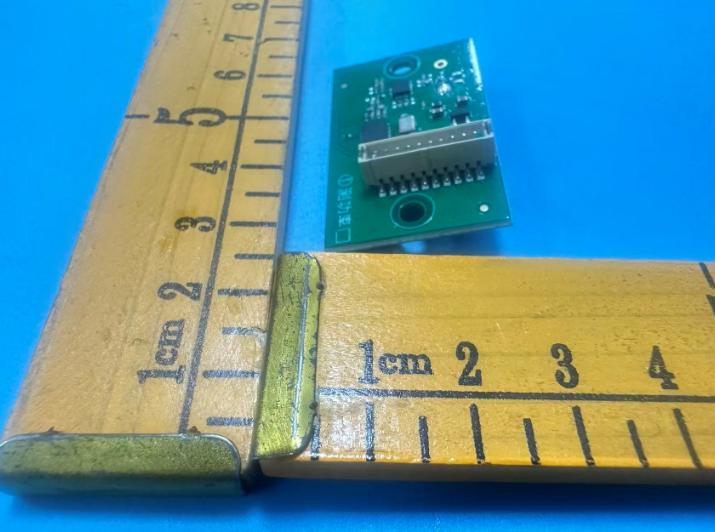

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

CC250019dBmModuleSpecification Model:MRF24G29 FCCID:2BVTZ-MRF24G29 ImportantNotice CHAUVET&SONS,LLCreservestherighttomakechangestoitsproductsortodiscontinueany integratedcircuitproductorservicewithoutnotice.CHAUVET&SONS,LLCintegratedcircuit productsarenotdesigned,intended,authorized,orwarrantedtobesuitableforusein life‐supportapplications,devicesorsystemsorothercriticalapplications.UseofCHAUVET& SONS,LLCproductsinsuchapplicationsisunderstoodtobefullyattheriskofthecustomer. RevisionHistory Rev.NoHistoryIssueDateRemark 1.0InitialReleaseSep2022 1.GeneralDescription TheMRF24G29isdesignedfor2.4GHzISMbandwirelessapplicationsusingTICC2500 FSKtransceiver.ThismodulehasanintegratedSpringAntenna,andtheRFtransceiveris integratedwithahighlyconfigurablebasebandmodem.Themodemsupports802.11b/g/n modulationformatsandhasaconfigurabledatarateupto500kBaud. 2.ElectricalSpecification ItemSpecificationRemark SupplyVoltage+3.3V CurrentConsumption<10uA@SLEEPMODE 30mA@RXmode(500KBaud) 130mA@TXmode+19dBmoutputpower Frequency2400-2483MHzISMband TXPower+19dBm/+1dBm/-2dBm RxSensitivity-104dBmat2.4KBaud1%packeterrorrate Modulation802.11b:DSSS(CCK,DQPSK,DBPSK); 802.11g:OFDM(BPSK,QPSK,16QAM,64QAM); 802.11n(HT20andHT40):OFDM(BPSK,QPSK, 16QAM,64QAM) Interface10pin1.5mmheader MechanicalDimensions40mm(L)x25mm(W)x6.4mm(H) OperatingTemperature -10°C~60°C 3.Interface PinNo.PinNameCommentNote 1VINRFModuleSupply VoltageInput +3.3V 2GNDGround 3SISPIDataIN 4CSNSPIChipSelection 5SO(GDO1)SPIDataout 6SCLKSPIClock 7GDO0GeneralPurposeI/O0 8TX_ENPAON/OFF 9RX_ENLNAON/OF 10PWR_ENPOWERON/OF OperatingLogicNote: •RX_EN=1:LNAON;RX_EN=0:LNAOFF •TX_EN=1:PAON;TX_EN=0:PAOFF •RX_EN=0,TX_EN=0:StandbyMode •PWR_EN=0:POWERON;PWR_EN=1:POWEROFF 4.ApplicationScenarios SmartLEDlamps/Decorativelightingproducts Wirelessdimmingsystems/RGB/RGBWlightingcontrollers Stage,entertainment,andcommerciallightingcontrolsystems Smarthomelightingequipmentandwirelessindustriallighting 5.ControlPanelDescription ButtonFunction <MENU>Exitsfromthecurrentmenuorfunction <UP>Navigatesupwardsthroughthemenulistand increasesthenumericvalue <DOWN>Navigatesdownwardsthroughthemenulistand decreasesthenumericvalue <ENTER>Enablesthecurrentlydisplayedmenuorsets thecurrentlyselectedvalue 6.ModulePackagingInformation MechanicalOutlineDimensions:40mm(L)x25mm(W)x6.4mm(H) FCCStatement: ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovide reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This equipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalled andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio communications.However,thereisnoguaranteethatinterferencewillnotoccurina particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,the userisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing measures: —Reorientorrelocatethereceivingantenna. —Increasetheseparationbetweentheequipmentandreceiver. —Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiverisconnected. —Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Warning: Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser’sauthoritytooperatetheequipment. NOTE: Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowing twoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevice mustacceptanyinterferencereceived,includinginterferencethatmaycauseundesired operation. TheequipmentcomplieswithFCCRadiationexposurelimitsetforthforuncontrolled environment.Thisequipmentshouldbeinstalledandoperatedwithminimumdistance 20cmbetweentheradiatorandyourbody.

External Photos

FCCID:2BVTZ-MRF24G29 FCCID:2BVTZ-MRF24G29 FCCID:2BVTZ-MRF24G29 FCCID:2BVTZ-MRF24G29

ID Label/Location Info

LabelLocation: Model:2.4GWiFiantenna FCCID:2BVTZ-MRF24G29

Internal Photos

FCCID:2BVTZ-MRF24G29

RF Exposure Info

PredictionofMPEatagivendistance ProductName: 2.4GWiFiantenna ModelNo: MRF24G29-DFImodules FCCID:2BVTZ-MRF24G29 1.RFExposureEvaluation FCCKDB447498D01GeneralRFExposureGuidancev06:MobileandPortableDevice, RFExposure,EquipmentAuthorizationProcedures. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices. 2.Limits Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironmentimpactofhumanexposure toradiofrequency(RF)radiationasspecifiedin1.1307(b) 2.TestProcedure Equationfrompage18ofOETBulletin65,Edition97-01 Where: S=powerdensity P=powerinputtotheantenna G=numericgainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecentreofradiationoftheantenna EUTRFEXPOSURE Frequenc y (MHz) Maximu m Output power (dBm) Tuneup Produc epower Maximu mpeak output power (dBm) Output power to antenn a (mW) Antenn a Gain (dBi) Antenna Gain (numeric ) Distanc e (cm) Result (mW/cm2) Limitsfor General Population/ Uncontrolle d Exposure (mW/cm2) 2.4GWIFI 241214.4915±11639.81132.00200.0158031 Note:Justtheworstcasemodewasshowninreport.
