2BVU2-888-700-105RF MODULE

User’s Guide -RF Module This handbook contains important security measures and the correct use of the product information. In order to avoid accident, please make sure to reading the manual carefully before use the device. 1 Attention: This instruction contains the correct use of the product information, in order to avoid accidents. Please make sure to reading the manual carefully before use the device. • Do not use alcohol, diluents or any other chemicals to clean the surface, otherwise, it will be corroded and even damaged. • Please don’t be in high temperature, moisture or very dust place. • Please choose the appropriate volume. Use headphones should not be too big volume, if feel tinnitus, lower the volume or stop using it. • When the device in the format or ongoing upload and download file, please don’t suddenly disconnect, this could cause application error. • USB just only be used for data transmission. • Performance and functionality of the product may be different if the version of software and hardware is different. Any change will be without notice. Our company reserves the right to improve the products. • If you have any questions about the tablet, please contact with us. Attempt to disassemble the product may damage it and avoid your warranty. Users will be responsible for all the consequences caused by disassembling. Main Functions: • Based on the Android 11 operating system and supports WiFi function. • Supports MP3/AAC/OGG/WAV for audio. • Supports automatic browse for picture in JPG/BMP/JPEG/GIF. • Supports AVI/3GP/MP4/MKV/MOV/TS/FLV and up to 2160P for video. • Supports OTG function, external mouse and keyboard. Operational Description: ⚫ Description The product is based on Rockchips 3568 processor chipset platform with Android OS 11 The majority of Multi-Function Monitor circuitry consists of fifteen device chipsets, and these chipsets ate divided into different function sub-system or units. 2 RK3568 is ahigh-performance and low power quad-core application processor designed for personal mobile internet device and AIoT equipments. Many embedded powerful hardware engines provide optimized performance for high- end application. RK3568 supports almost full-format H.264 decoder by 4K@60FPS, H.265 decoder by 4K@60fps, also support H.264/H.265 encoder by 1080p@60fps, high- quality JPEG encoder/decoder, and special image preprocessor and postprocessor. Embedded 3D GPU makes rk3568 completely compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1 . Special 2D hardware engine will maximize display performance and provide very smoothly operation. The build-in NPU supports INT8/INT16/FP16/BFP16 hybrid operation. In addition, with its strong compatibility, network models based on a series of frameworks such as TensorFlow/MXNet/PyTorch/Caffe can be easily converted. RK3568 has high-performance dual channel external memory interface (DDR3/DDR3L/DDR4 /LPDDR3/LPDDR4/LPDDR4X) capable of sustaining demanding memory bandwidth, also provides a complete set of peripheral interface to support very flexible applications. For WLAN : CPU send uplink data over USB-bus to AP6256, AP6256 modulate it to generate RF signals over a frequency range of 2.400 GHz~2.4835GHz and 5.18GHz~5.240GHz, and amplify RF signal is by inter amplifier, then send it to the WIFI antenna through the FIR filter. In the other way, antenna receiver signals from the air, send them to the AP6256, AP6256 demodulate signals and transfer useful data back to the CPU. Use 37.4MHz clock. ⚫Port function Description •DC Port: +12V DC Power Socket. 2.5mm barrel type. •USB Port: You can use it connect to USB Device. •Audio Port: You can use it connect to 3.5mm socket audio devices. •HDMI Port: You can use it connect to HD video display. •USB Port: just only be used for data transmission. •Micro Card Socket: Adds additional storage to tablet. •Ethernet Socket: Ethernet network port. •USB OTG Port: Use it connect to PC debug. •LVDS Port: You can use it connect to LVDS interface LCD panel. •EDP Port: You can use it connect to EDP interface LCD panel. WI-FI CONNECTION AND STORE ID SETTINGS 9 1 3 When you connect to a monitor via the HDMI interface or to a screen via the LVDS and EDP interfaces, you will see the following interface Click on the hot link. Use your mobile phone to scan this QR code. 4 2 The LCD Monitor displays the interface as shown in the figure. This Wi-Fi name is for reference only. Use your mobile phone to scan this QR code. The LCD Monitor displays the interface as shown in the figure. 10 5 Click on this link. 8 Waiting for Wi-Fi connection. Click on "WIFI SETUP" on your mobile phone. 7 6 The LCD Monitor displays the interface as shown in the figure. Enter your network name and password. The LCD Monitor displays the interface as shown in the figure. Click on "STORE ID" on your mobile phone. Enter your Retailer Name and Store ID. The LCD Monitor displays the interface as shown in the figure. 11 10 Click "back" to return. 9 Wi-Fi connection successful. The LCD Monitor displays the interface as shown in the figure. 11 12 12 13 Retailer and Store ID set up successfully. The LCD Monitor displays the interface as shown in the figure. CMS INSTRUCTIONS 13 Logging into the Website. Access URL: http://8.153.72.25:9999/login Username: apple Password: 123456 Switch between Chinese and English. 1 2 14 3 Change user password. Opens the User Center panel, containing Logout. Enter the new password and repeat to confirm the new password. 15 4 Device Statistics Data Page Introduction Statistics Again: Re-run statistics. Select a start time and end time, then click "Statistics Again" to generate statistics for that period. The area within the green box is the statistics data display area. 16 5 Reboot: Sends a restart command to the display. 1 2 17 6 Shows all Content versions for this project, as well as the Content upload area. 1 2 3 18 7 1 2 3 Upgrade Version: Select the desired target version from the dropdown menu. Upgrade:…

Text truncated - open the document above for the full version.

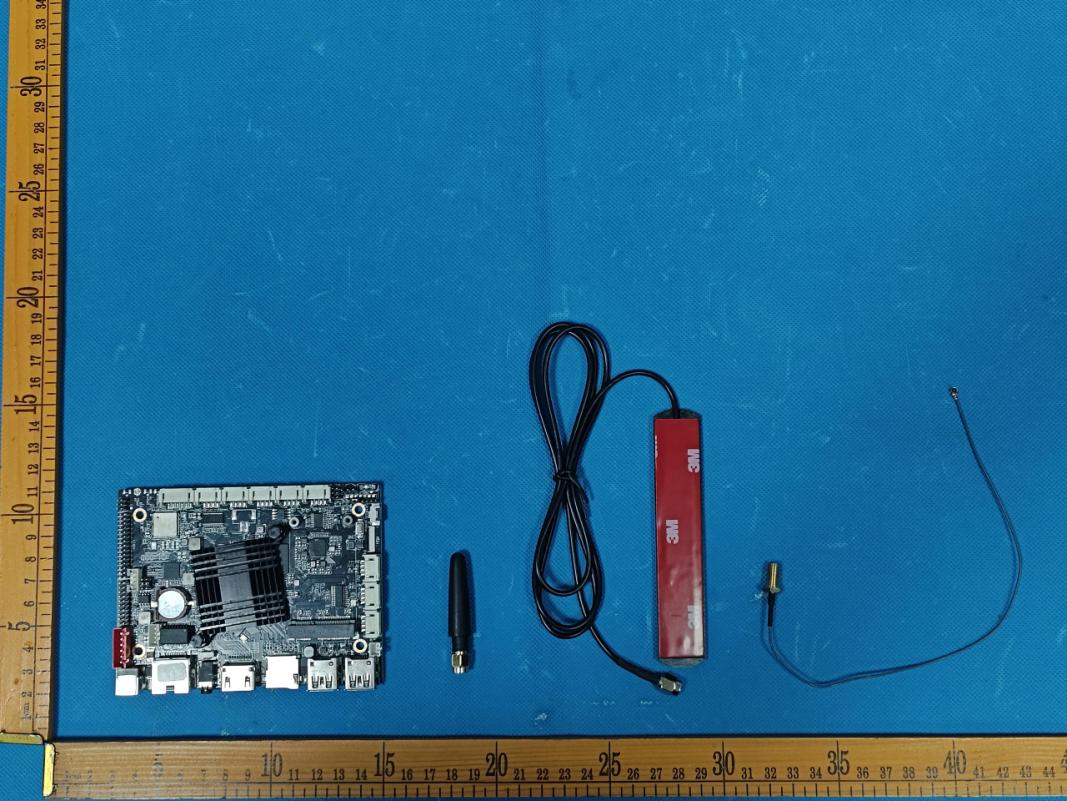

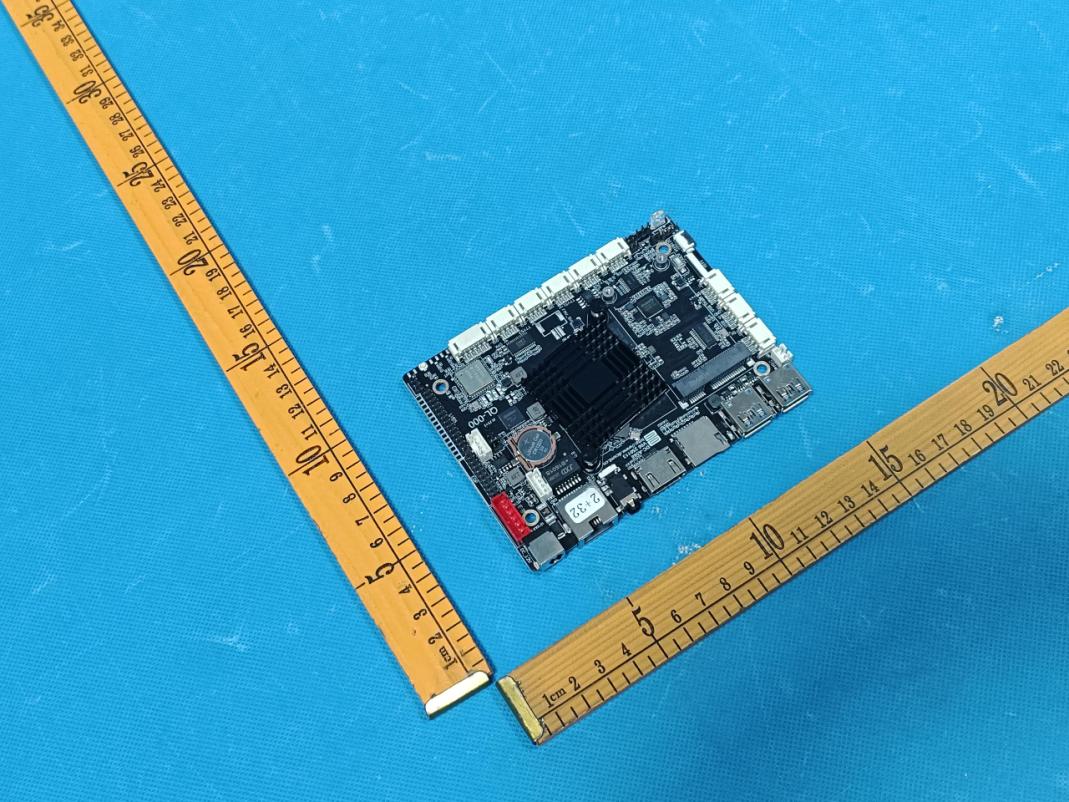

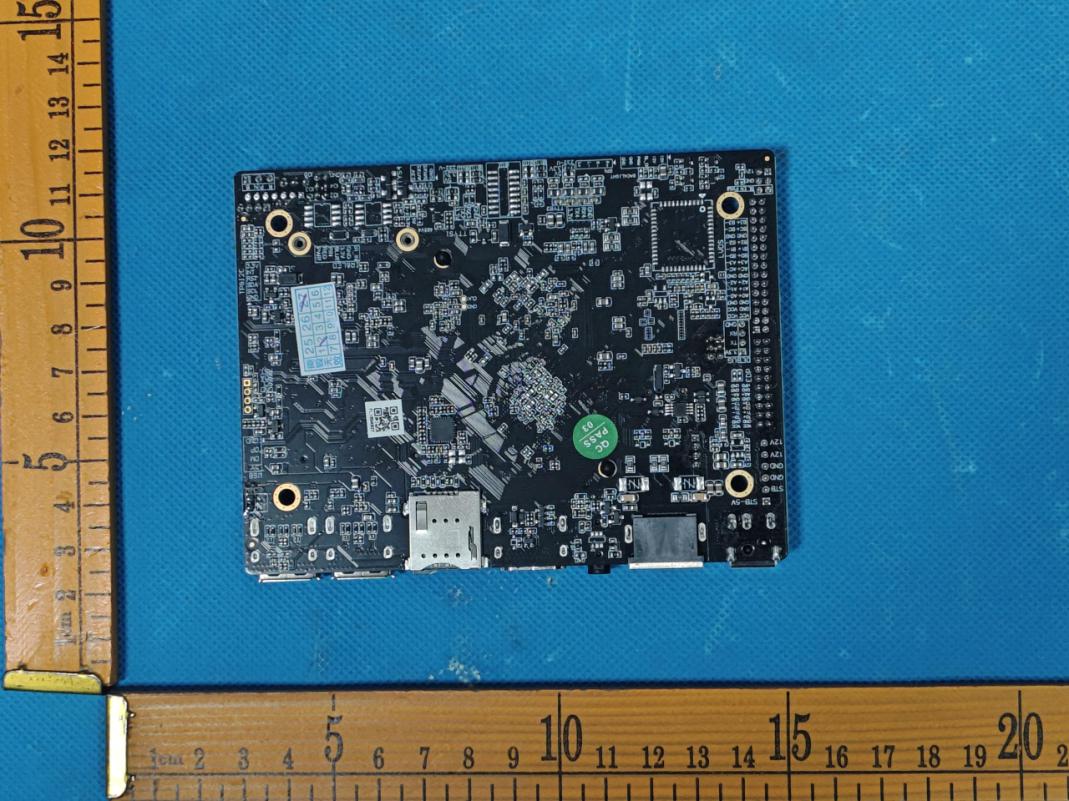

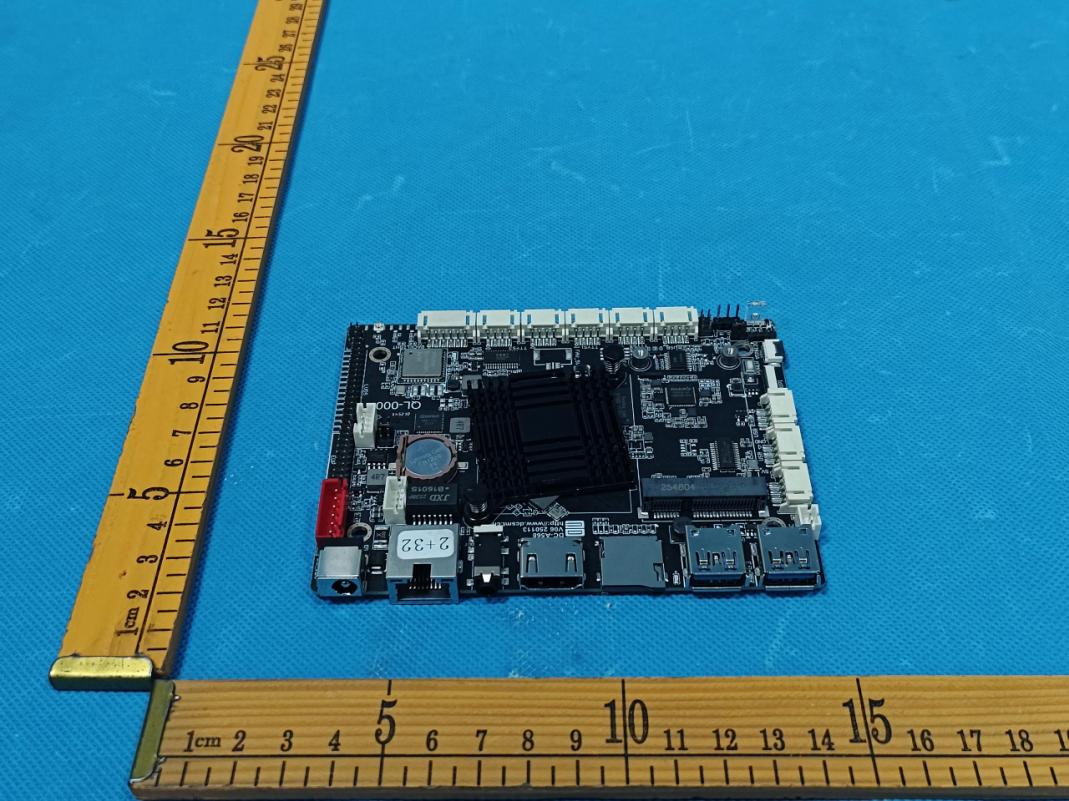

Page 1 of 6 FCC ID: 2BVU2-888-700-105 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com External Photos of the EUT Fig. 1 Fig. 2 Ant1 Ant2 Page 2 of 6 FCC ID: 2BVU2-888-700-105 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 3 Fig. 4 Page 3 of 6 FCC ID: 2BVU2-888-700-105 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 5 Fig. 6 Page 4 of 6 FCC ID: 2BVU2-888-700-105 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 7 Fig. 8 Page 5 of 6 FCC ID: 2BVU2-888-700-105 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 9 Fig. 10 Page 6 of 6 FCC ID: 2BVU2-888-700-105 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 11

Page 1 of 1 FCC ID: 2BVU2-888-700-105 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com LABEL AND LOCATION (Size: L3.0cm x 1.5cm) Label Location

Page 1 of 5 FCC ID: 2BVU2-888-700-105 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Internal Photos of the EUT Fig. 1 Fig. 2 Page 2 of 5 FCC ID: 2BVU2-888-700-105 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 3 Fig. 4 Page 3 of 5 FCC ID: 2BVU2-888-700-105 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 5 Fig. 6 Page 4 of 5 FCC ID: 2BVU2-888-700-105 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 7 Fig. 8 Page 5 of 5 FCC ID: 2BVU2-888-700-105 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 9

Page 1 of 11 FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com RF Exposure Evaluation For Jiaxing VIRA Display Limited RF MODULE Test Model: 888-700-105 Prepared for : Jiaxing VIRA Display Limited Address : Bldg.5 #3288 Zhongshan RD(W) Xiuzhou Industrial Park Jiaxing Zhejiang 314000 China Prepared by : Guangzhou LCS Compliance Testing Laboratory Ltd. Address : No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel : (+86) 020-39166689 Fax : (+86) 020-39166619 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : April 24, 2026 Number of tested samples : 2 Sample No. : C260422001 -1, C260422001 -2 Serial number : Prototype Date of Test : April 24, 2026 ~ May 20, 2026 Date of Report : May 21, 2026 Page 2 of 11 FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com RF Exposure Evaluation Report Reference No. ................. : LCSC04226007EC Date of Issue ................................... : May 21, 2026 Testing Laboratory Name ............ : Guangzhou LCS Compliance Testing Laboratory Ltd. Address ........................................... : No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Jiaxing VIRA Display Limited Address ........................................... : Bldg.5 #3288 Zhongshan RD(W) Xiuzhou Industrial Park Jiaxing Zhejiang 314000 China Test Specification Standard ......................................... : FCC KDB publication 447498 D01 General RF Exposure Guidance v06 FCC CFR 47 part1 1.1310 FCC CFR 47 part2 2.1091 Test Report Form No. ................... : TRF-4-E-214 A/0 TRF Originator ................................ : Guangzhou LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Guangzhou LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Guangzhou LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Guangzhou LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : RF MODULE Trade Mark ...................................... : LYNX INNOVATION Test Model ...................................... : 888-700-105 Ratings ............................................ : Please Refer to Page 6 Result ........................................... : PASS Compiled by: Supervised by: Approved by: Lifeng Le/ File administrators Justin Zhu/ Technique Director Gavin Liang/ Manager Page 3 of 11 FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com RF Exposure Evaluation Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSC04226007EC May 21, 2026 Date of issue EUT......................................... : RF MODULE Test Model............................... : 888-700-105 Applicant............................... : Jiaxing VIRA Display Limited Address.................................. : Bldg.5 #3288 Zhongshan RD(W) Xiuzhou Industrial Park Jiaxing Zhejiang 314000 China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Jiaxing VIRA Display Limited Address................................... : Bldg.5 #3288 Zhongshan RD(W) Xiuzhou Industrial Park Jiaxing Zhejiang 314000 China Telephone............................... : / Fax.......................................... : / Factory................................... : Jiaxing VIRA Display Limited Address................................... : Bldg.5 #3288 Zhongshan RD(W) Xiuzhou Industrial Park Jiaxing Zhejiang 314000 China Telephone............................... : / Fax.......................................... : / Page 4 of 11 FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Revision History Report Version Issue Date Revision Content Revised By 000 May 21, 2026 Initial Issue --- Page 5 of 11 FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EC Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com TABLE OF CONTENTS Description Page 1 . P R O D U C T I N F O R M A T ION ................................................................... 6 2 . E V A L U A T I O N M E T H O D ...................................................................... 7 3 . L I M I T ............................................................................................. 7 4 . M P E C A L C U L A T I O N ME T H O D ..........…

Text truncated - open the document above for the full version.

嘉兴市穿云电子科技有限公司 网址： www.pydgps.com Chuanyun Electron Technology Co.,Ltd E-mail: [email protected] 浙江 嘉兴市 东栅工业园富润路 741 号 Mobile： 13157329290 联系人：李小龙 TEST REPORT Product Name 2.4G-5G SMA Antenna Model No. BY-2400-5800-01-01 Prepared By 嘉兴市穿云电子科技有限公司 Date of Test 2026 - 01 -04 Project Enginner 纪红平 Approved by 李小龙 Test Result： No. 741, Furun Road, Dongzha Industrial Park, Jiaxing City, Zhejiang Province 嘉兴市穿云电子科技有限公司 网址： www.pydgps.com Chuanyun Electron Technology Co.,Ltd E-mail: [email protected] 浙江 嘉兴市 东栅工业园富润路 741 号 Mobile： 13157329290 联系人：李小龙 嘉兴市穿云电子科技有限公司 网址： www.pydgps.com Chuanyun Electron Technology Co.,Ltd E-mail: [email protected] 浙江 嘉兴市 东栅工业园富润路 741 号 Mobile： 13157329290 联系人：李小龙 嘉兴市穿云电子科技有限公司 网址： www.pydgps.com Chuanyun Electron Technology Co.,Ltd E-mail: [email protected] 浙江 嘉兴市 东栅工业园富润路 741 号 Mobile： 13157329290 联系人：李小龙 5G 测试数据表 嘉兴市穿云电子科技有限公司 网址： www.pydgps.com Chuanyun Electron Technology Co.,Ltd E-mail: [email protected] 浙江 嘉兴市 东栅工业园富润路 741 号 Mobile： 13157329290 联系人：李小龙 嘉兴市穿云电子科技有限公司 网址： www.pydgps.com Chuanyun Electron Technology Co.,Ltd E-mail: [email protected] 浙江 嘉兴市 东栅工业园富润路 741 号 Mobile： 13157329290 联系人：李小龙

Antenna Study 1 Address: Building 79, New Sun Industrial City, Lin Village Community, Tangxia Town, Dongguan (Dongguan Company) Phone: 0769-81777126 Room 106, Building 3, Lenton Technology Park, No. 500 Qiuyi Road, Binjiang District, Hangzhou (Hangzhou Branch) Fax: 0769-81777125 Room 106, Liuxian Second Road No. 47, LiuXian New Industrial Park, Bao'an District, Shenzhen (Shenzhen Company) Website: www.ubuant.com ØClient Name: Jiaxing VIRA Display Limited ØProject Name：Dual-Band Antenna ØModel：BY-2400-04 ØDebugging frequency band: 2.4G+5.8G ØValuation date：2026.06.02 2 Testing 3D microwave darkroom(6m*6m*6m) Testing environment Y X Z 3 Antenna •Antenna name: 2.4G+5.8G •Covers ：2400/5850MHz 4 S Parameter_Return Loss&VSWR-Smith 5 Efficiency and Gain Frequency ID1 2 3 4 5 6 7 8 9 10 11 Frequency (MHz)2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0 Gain (dBi)1.00 0.51 0.01 -0.03 -0.14 0.01 0.63 0.47 -0.50 -1.47 -1.71 Efficiency (%)40.92 38.82 38.20 37.64 37.62 37.45 39.42 35.42 30.14 27.41 25.79 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 5150.0 5200.0 5250.0 5300.0 5350.0 5400.0 5450.0 5500.0 5550.0 5600.0 5650.0 5700.0 5750.0 5800.0 5850.0 3.02 2.64 1.84 2.10 1.73 1.54 1.13 0.24 0.43 -0.91 -0.98 -1.11 -1.68 -1.75 -2.41 35.42 34.43 34.01 35.06 32.69 30.02 29.91 24.90 26.62 21.78 21.19 22.75 20.66 20.41 18.55 860.0MHz Total, Eff: 1.2%Back View860.0MHz Total(E1-XZ), Max= -15.90dBi860.0MHz Total(E2-YZ), Max= -15.55dBiTotal(H-XY), Max= -18.96dBi, CirD=12.13 -15.09 -16.93 -18.78 -20.62 -22.46 -24.3 -26.14 -27.99 -29.83 -31.67 -33.51 -35.35 -37.2 -39.04 -40.88 -42.72 -44.57 -46.41 861.0MHz Total, Eff: 1.2%Back View861.0MHz Total(E1-XZ), Max= -16.10dBi861.0MHz Total(E2-YZ), Max= -15.75dBiTotal(H-XY), Max= -19.03dBi, CirD=11.98 -15.29 -17.13 -18.97 -20.82 -22.66 -24.5 -26.34 -28.18 -30.03 -31.87 -33.71 -35.55 -37.4 -39.24 -41.08 -42.92 -44.76 -46.61 862.0MHz Total, Eff: 1.1%Back View862.0MHz Total(E1-XZ), Max= -16.22dBi862.0MHz Total(E2-YZ), Max= -15.96dBiTotal(H-XY), Max= -19.15dBi, CirD=11.84 -15.48 -17.32 -19.16 -21.01 -22.85 -24.69 -26.53 -28.37 -30.22 -32.06 -33.9 -35.74 -37.58 -39.43 -41.27 -43.11 -44.95 -46.79 863.0MHz Total, Eff: 1.1%Back View863.0MHz Total(E1-XZ), Max= -16.33dBi863.0MHz Total(E2-YZ), Max= -16.15dBiTotal(H-XY), Max= -19.26dBi, CirD=11.65 -15.68 -17.52 -19.36 -21.2 -23.04 -24.89 -26.73 -28.57 -30.41 -32.25 -34.1 -35.94 -37.78 -39.62 -41.47 -43.31 -45.15 -46.99 864.0MHz Total, Eff: 1.1%Back View864.0MHz Total(E1-XZ), Max= -16.44dBi864.0MHz Total(E2-YZ), Max= -16.36dBiTotal(H-XY), Max= -19.39dBi, CirD=11.42 -15.88 -17.73 -19.57 -21.41 -23.25 -25.09 -26.94 -28.78 -30.62 -32.46 -34.31 -36.15 -37.99 -39.83 -41.67 -43.52 -45.36 -47.2 865.0MHz Total, Eff: 1.0%Back View865.0MHz Total(E1-XZ), Max= -16.60dBi865.0MHz Total(E2-YZ), Max= -16.58dBiTotal(H-XY), Max= -19.55dBi, CirD=11.21 -16.1 -17.94 -19.79 -21.63 -23.47 -25.31 -27.15 -29 -30.84 -32.68 -34.52 -36.37 -38.21 -40.05 -41.89 -43.73 -45.58 -47.42 866.0MHz Total, Eff: 1.0%Back View866.0MHz Total(E1-XZ), Max= -16.80dBi866.0MHz Total(E2-YZ), Max= -16.82dBiTotal(H-XY), Max= -19.71dBi, CirD=10.99 -16.34 -18.19 -20.03 -21.87 -23.71 -25.55 -27.4 -29.24 -31.08 -32.92 -34.76 -36.61 -38.45 -40.29 -42.13 -43.97 -45.82 -47.66 867.0MHz Total, Eff: 1.0%Back View867.0MHz Total(E1-XZ), Max= -17.05dBi867.0MHz Total(E2-YZ), Max= -17.07dBiTotal(H-XY), Max= -19.90dBi, CirD=10.84 -16.6 -18.44 -20.29 -22.13 -23.97 -25.81 -27.65 -29.5 -31.34 -33.18 -35.02 -36.86 -38.71 -40.55 -42.39 -44.23 -46.08 -47.92 868.0MHz Total, Eff: 0.9%Back View868.0MHz Total(E1-XZ), Max= -17.33dBi868.0MHz Total(E2-YZ), Max= -17.34dBiTotal(H-XY), Max= -20.07dBi, CirD=10.89 -16.87 -18.71 -20.55 -22.4 -24.24 -26.08 -27.92 -29.76 -31.61 -33.45 -35.29 -37.13 -38.97 -40.82 -42.66 -44.5 -46.34 -48.18 869.0MHz Total, Eff: 0.9%Back View869.0MHz Total(E1-XZ), Max= -17.63dBi869.0MHz Total(E2-YZ), Max= -17.62dBiTotal(H-XY), Max= -20.27dBi, CirD=10.93 -17.14 -18.98 -20.82 -22.67 -24.51 -26.35 -28.19 -30.03 -31.88 -33.72 -35.56 -37.4 -39.24 -41.09 -42.93 -44.77 -46.61 -48.46 870.0MHz Total, Eff: 0.8%Back View870.0MHz Total(E1-XZ), Max= -17.96dBi870.0MHz Total(E2-YZ), Max= -17.90dBiTotal(H-XY), Max= -20.45dBi, CirD=11.01 -17.42 -19.26 -21.11 -22.95 -24.79 -26.63 -28.47 -30.32 -32.16 -34 -35.84 -37.69 -39.53 -41.37 -43.21 -45.05 -46.9 -48.74 871.0MHz Total, Eff: 0.8%Back View871.0MHz Total(E1-XZ), Max= -18.34dBi871.0MHz Total(E2-YZ), Max= -18.25dBiTotal(H-XY), Max= -20.72dBi, CirD=11.08 -17.78 -19.63 -21.47 -23.31 -25.15 -26.99 -28.84 -30.68 -32.52 -34.36 -36.2 -38.05 -39.89 -41.73 -43.57 -45.41 -47.26 -49.1 872.0MHz Total, Eff: 0.7%Back View872.0MHz Total(E1-XZ), Max= -18.67dBi872.0MHz Total(E2-YZ), Max= -18.58dBiTotal(H-XY), Max= -20.99dBi, CirD=11.10 -18.13 -19.97 -21.81 -23.66 -25.5 -27.34 -29.18 -31.03 -32.87 -34.71 -36.55 -38.39 -40.24 -42.08 -43.92 -45.76 -47.6 -49.45 873.0MHz Total, Eff: 0.7%Back View873.0MHz Total(E1-XZ), Max= -19.02dBi873.0MHz Total(E2-YZ), Max= -18.91dBiTotal(H-XY), Max= -21.25dBi, CirD=11.23 -18.5 -20.34 -22.19 -24.03 -25.87 -27.71 -29.56 -31.4 -33.24 -35.08 -36.92 -38.77 -40.61 -42.45 -44.29 -46.13 -47.98 -49.82 874.0MHz Total, Eff: 0.6%Back View874.0MHz Total(E1-XZ), Max= -19.33dBi874.0MHz Total(E2-YZ), Max= -19.25dBiTotal(H-XY), Max= -21.52dBi, CirD=11.30 -18.86 -20.7 -22.54 -24.38 -26.22 -28.07 -29.91 -31.75 -33.59 -35.43 -37.28 -39.12 -40.96 -42.8 -44.65 -46.49 -48.33 -50.17 875.0MHz Total, Eff: 0.6%Back View875.0MHz Total(E1-XZ), Max= -19.60dBi875.0MHz Total(E2-YZ), Max= -19.60dBiTotal(H-XY), Max= -21.78dBi, CirD=11.45 -19.21 -21.05 -22.89 -24.74 -26.58 -28.42 -30.26 -32.1 -33.95 -35.79 -37.63 -39.47 -41.31 -43.16 -45 -46.84 -48.68 -50.53 876.0MHz Total, Eff: 0.5%Back View876.0MHz Total(E1-XZ), Max= -19.85dBi876.0MHz Total(E2-YZ), Max= -19.93dBiTotal(H-XY), Max= -22.02dBi, CirD=11.53 -19.56 -21.4 -23.24 -25.08 -26.93 -28.77 -30.61 -32.45 -34.3 -36.14 -37.98 -39.82 -41.66 -43.51 -45.35 -47.19 -49.03 -50.87 877.0MHz Total, Eff: 0…

Text truncated - open the document above for the full version.

Page 1 of 47FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Appendix A RF Test Data for 2.4GWIFI (Conducted Measurement) Product Name: RF MODULE Test Model: 888-700-105 Environmental Conditions Temperature: 24.1  C Relative Humidity:53.5% ATM Pressure:100.0 kPa Test Engineer:Zhang hai Supervised by:Fengliu Tang Page 2 of 47FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.1 DTS Bandwidth Test Result TestModeAntennaFrequency[MHz] DTS BW [MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict 11BAnt1 24129.1202407.4002416.5200.5PASS 24378.7602432.4402441.2000.5PASS 24629.2002457.4002466.6000.5PASS 11GAnt1 241216.1202403.9602420.0800.5PASS 243715.9602429.0002444.9600.5PASS 246216.0002454.0402470.0400.5PASS 11N20SISOAnt1 241217.0002403.5202420.5200.5PASS 243717.1602428.4002445.5600.5PASS 246216.4402453.9602470.4000.5PASS Note :offset=System attenuation +cabal loss Page 3 of 47FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Page 4 of 47FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11G_Ant1_2412 11G_Ant1_2437 Page 5 of 47FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11G_Ant1_2462 11N20SISO_Ant1_2412 Page 6 of 47FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Page 7 of 47FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Page 8 of 47FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.2 Maximum Average conducted output power Test Result Average TestModeAntenna Frequency [MHz] Measured Power DC Factor [dB] AV Power [dBm] Conducted Limit[dBm] Verdict 11BAnt1 241213.600.3413.94≤30.00PASS 243713.960.3414.30≤30.00PASS 246214.220.3414.56≤30.00PASS 11GAnt1 241212.011.7613.77≤30.00PASS 243711.772.1413.91≤30.00PASS 246212.191.7613.95≤30.00PASS 11N20SISOAnt1 241211.672.1413.81≤30.00PASS 243711.821.7613.58≤30.00PASS 246211.842.1413.98≤30.00PASS Note :offset=System attenuation +cabal loss Page 9 of 47FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.3 Maximum power spectral density Test Result TestModeAntennaFrequency[MHz] Measured PSD [dBm/30kHz] DC Factor [dB] Result[dBm/30kHz]Limit[dBm/3kHz]Verdict 11BAnt1 2412-9.30.34-8.96≤8.00PASS 2437-8.40.34-8.06≤8.00PASS 2462-7.820.34-7.48≤8.00PASS 11GAnt1 2412-11.371.76-9.61≤8.00PASS 2437-11.492.14-9.35≤8.00PASS 2462-11.041.76-9.28≤8.00PASS 11N20SISOAnt1 2412-11.352.14-9.21≤8.00PASS 2437-11.691.76-9.93≤8.00PASS 2462-10.862.14-8.72≤8.00PASS Note :offset=System attenuation +cabal loss Page 10 of 47FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Page 11 of 47FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11G_Ant1_2412 11G_Ant1_2437 Page 12 of 47FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11G_Ant1_2462 11N20SISO_Ant1_2412 Page 13 of 47FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Page 14 of 47FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Page 15 of 47FCC ID: 2…

Text truncated - open the document above for the full version.

Page 33 of 47FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Page 34 of 47FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.6 Duty Cycle Test Result TestModeAntennaFrequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] xFactor 11BAnt1 24120.730.7992.410.34 24370.730.7992.410.34 24620.740.8092.500.34 11GAnt1 24120.120.1866.671.76 24370.110.1861.112.14 24620.120.1866.671.76 11N20SISOAnt1 24120.110.1861.112.14 24370.120.1866.671.76 24620.110.1861.112.14 Note :offset=System attenuation +cabal loss Page 35 of 47FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Page 36 of 47FCC ID: 2BVU2-888-700-105 Report No.: LCSC04226007EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: ww…
