2BVV5-NB15Laptop

ERA CREATION INTERNATIONAL DEVELOPMENT LIMITED Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 [June 18, 2026] U.S. Agent Designation [ERA CREATION INTERNATIONAL DEVELOPMENT LIMITED] acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought FCC ID: 2BVV5-NB15 Name and company of U.S. agent: [GLOCERTS TECHNOLOGY INC] Physical U.S. address of agent: [19784 SUNKISSED RIDGE DR, RIVERSIDE, CA 92507] FRN of U.S. agent: [0036339737] Email address of U.S. agent: [[email protected]] Telephone of U.S.agent: (626) 588-8039 [GLOCERTS TECHNOLOGY INC] acknowledges their obligation to accept service of process on behalf of [ERA CREATION INTERNATIONAL DEVELOPMENT LIMITED]. [ERA CREATION INTERNATIONAL DEVELOPMENT LIMITED] with the FRN [0038354478] accepts its obligation to maintain an agent for service of process in the United States for no less than 1 year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Signature [Haoyang Liu] [Huiying Fan] [Manager] [Director] [ERA CREATION INTERNATIONAL DEVELOPMENT LIMITED] [GLOCERTS TECHNOLOGY INC]

ERA CREATION INTERNATIONAL DEVELOPMENT LIMITED (June 17, 2026) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2BVV5-NB15 [ERA CREATION INTERNATIONAL DEVELOPMENT LIMITED] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) Haoyang Liu ERA CREATION INTERNATIONAL DEVELOPMENT LIMITED (June 17, 2026) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2BVV5-NB15 [ERA CREATION INTERNATIONAL DEVELOPMENT LIMITED] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Haoyang Liu

ERA CREATION INTERNATIONAL DEVELOPMENT LIMITED Model Difference Data：June 17, 2026 Product description: Laptop Model name: NB15, NB15S, NB15B, NB15G, NB15R Trade Name: N/A FCC ID: 2BVV5-NB15 All the model are the same circuit and RF module, only the model names and appearance colors are different. Regards Sincerely Client’s signature : Client’s name / title : Haoyang Liu（Manager） Contact information / address：18/F S.B COMMERCIAL BLDG478 NATHAN ROAD KL Hong Kong, China

ERA CREATION INTERNATIONAL DEVELOPMENT LIMITED (June 17, 2026) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Laptop / NB15, NB15S, NB15B, NB15G, NB15R / FCC ID: 2BVV5-NB15 ) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☒ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Haoyang Liu Title: Manager

ERA CREATION INTERNATIONAL DEVELOPMENT LIMITED (June 17, 2026) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Haoyang Liu Title: Manager

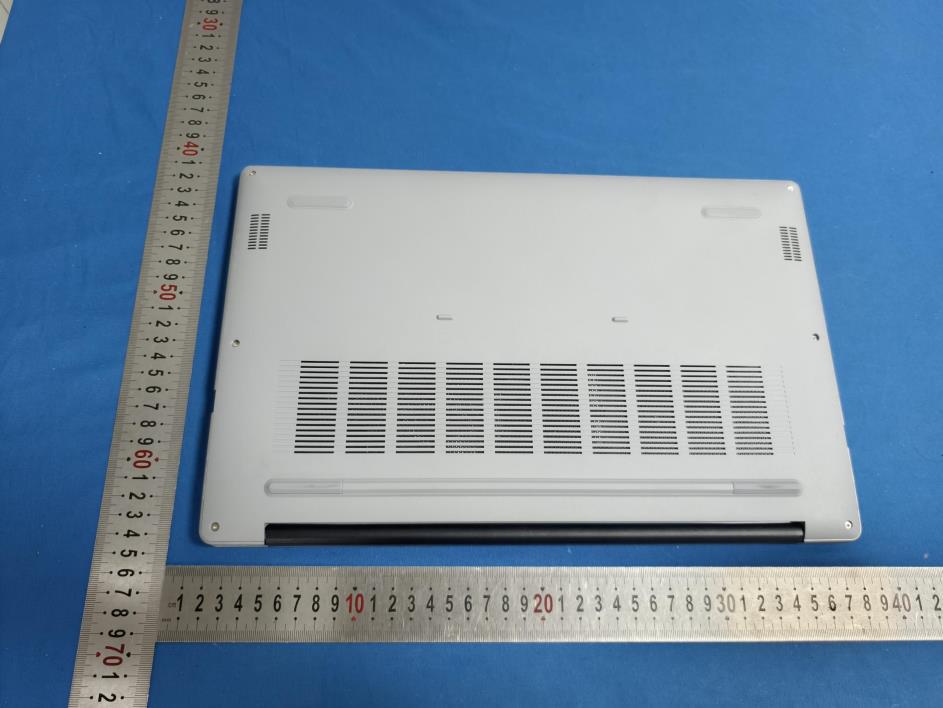

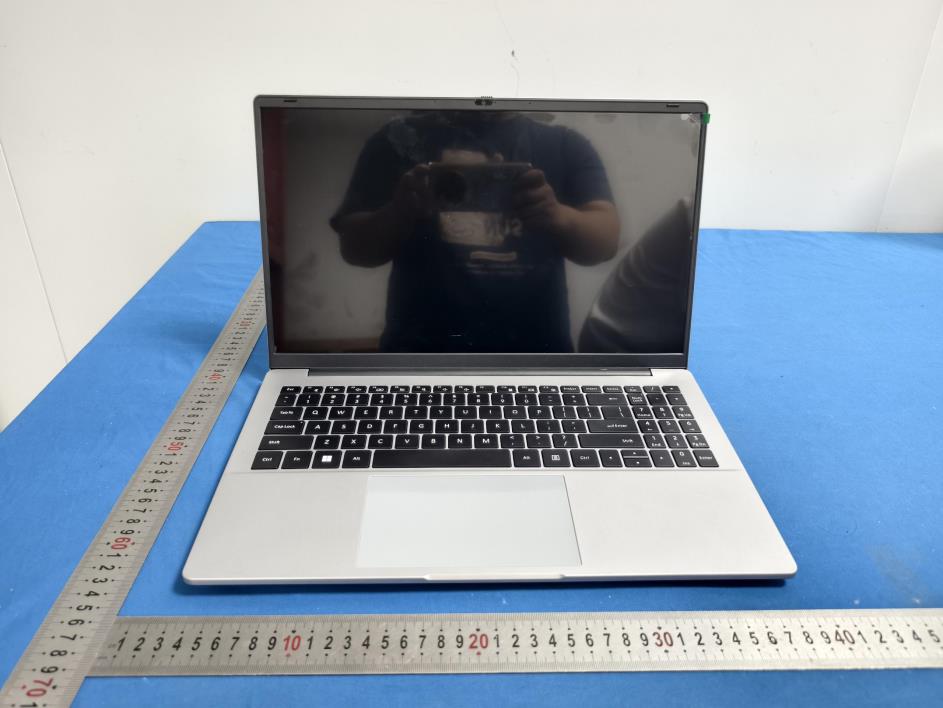

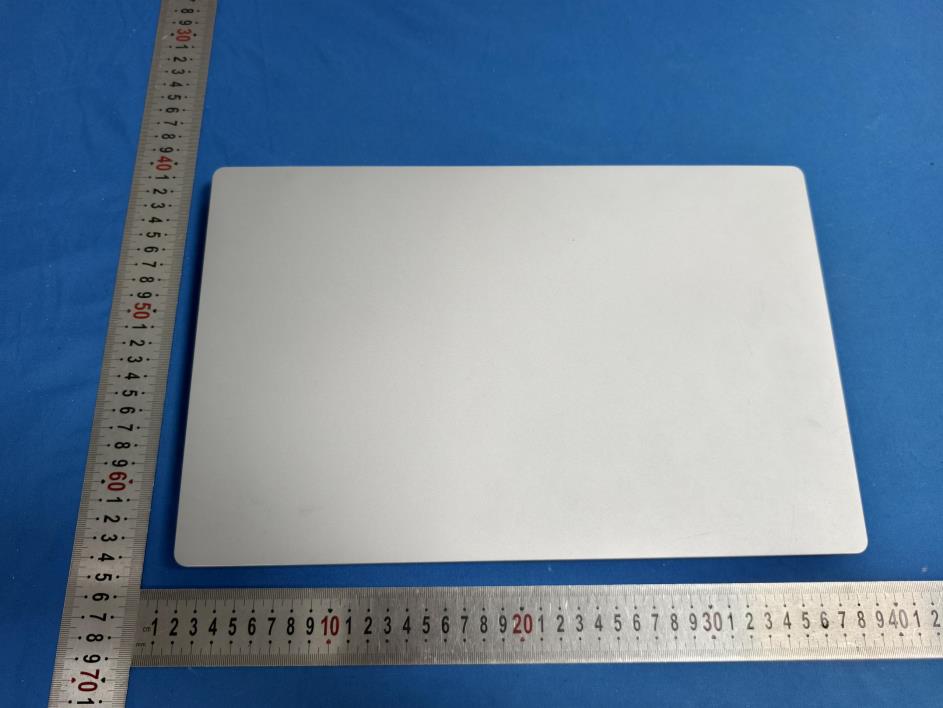

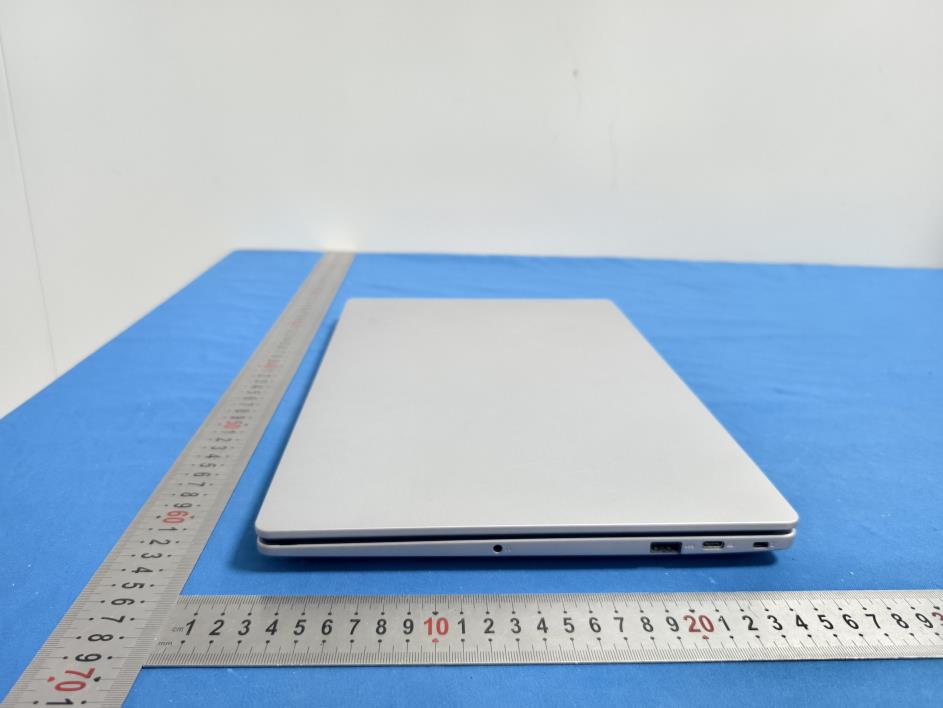

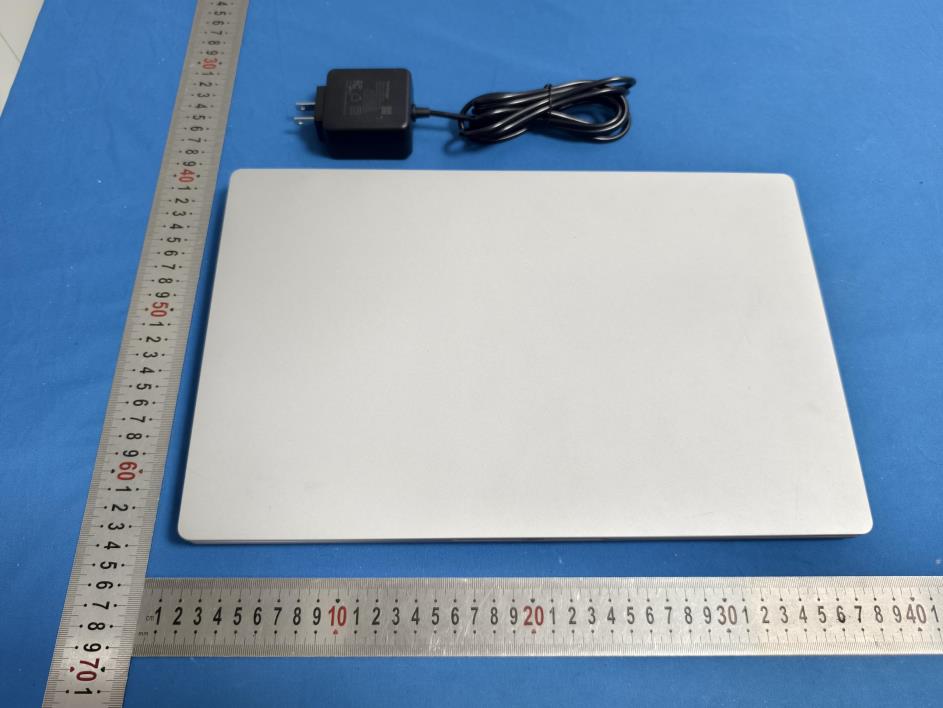

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 4 Model: NB15 External Photos Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 4

2026/04/22 V1.0 深圳卓创智能科技有限公司 NB15 铭牌贴纸 N156P85 张贴位置示意图 N����/欧/美规-UC-��W/灰色 型号为： NB�� �+��� 规格要求 铭牌贴纸（来料空白） 尺寸：50x20mm（公差+0/-0.2mm)R=1mm 材质：50#肖银龙PTE 颜色：肖银龙 备注:本图纸为信息贴模板，实际请根据实际出货信息制作。 SN:编码信息为N1585Z0264+流水号(5位) 例:项目为N156P85编码为:N1585Z026400001 扫描内容为:N1585Z026400001 FCCID/IC :按贴纸模板资料为准 SN号：N1585Z026400001 50mm 20mm Product Name: Laptop Model: NB15 INPUT:15V 3A FCC I D: 2BVV5-NB15 SN:N1585Z026400001 IC:35534-NB15 Manufacturer: Era Creation International Development Limited Product Name: Laptop Model: NB15 INPUT:15V 3A FCC I D: 2BVV5-NB15 SN:N1585Z026400001 IC:xxxxx-xx Manufacturer: Era Creation International Development Limited

Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 53 TEST REPORT Compiled by: Reviewed by: Approved by: Zhang Mao cheng Martin Feng Rita Xiao / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Laptop FCC ID: 2BVV5-NB15 Trademark: N/A Model Number: NB15, NB15S, NB15B, NB15G, NB15R Prepared For: ERA CREATION INTERNATIONAL DEVELOPMENT LIMITED Address: 18/F S.B COMMERCIAL BLDG478 NATHAN ROAD KL Hong Kong, China Manufacturer: ERA CREATION INTERNATIONAL DEVELOPMENT LIMITED Address: 18/F S.B COMMERCIAL BLDG478 NATHAN ROAD KL Hong Kong, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Apr. 21, 2026 Sample tested Date: Apr. 21, 2026 to Jun. 05, 2026 Issue Date: Jun. 05, 2026 Report No.: CTB26042105601RH05 Test Standards FCC 47 CFR Part2(2.1093), FCC 47 CFR Part1(1.1310) FCC 47 CFR Part1(1.1307), ANSI/IEEE C95.1-2019 IEEE 1528-2013 & Published RF Exposure KDB Procedures Test Results PASS Remark: This is SAR test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB26042105601RH05 Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 53 Contents Page 1 COVER PAGE ......................................................................................................................................... 1 CONTENTS ....................................................................................................................................................................... 2 1. VERSION .................................................................................................................................................................. 4 2. PRODUCT INFORMATION AND TEST SETUP............................................................................................... 5 2.1 PRODUCT INFORMATION ................................................................................................................................... 5 3 EQUIPMENT USED DURING TEST ................................................................................................................... 7 3.1 EQUIPMENT LIST ............................................................................................................................................... 7 3.2 TEST EQUIPMENT CALIBRATION ....................................................................................................................... 8 4 SAR INTRODUCTION ........................................................................................................................................... 9 4.1 INTRODUCTION .................................................................................................................................................. 9 4.2 SAR DEFINITION ............................................................................................................................................... 9 5 SAR MEASUREMENT SETUP ........................................................................................................................... 10 5.1 SAR MEASUREMENT SETUP .................................................................................................................... 10 5.2 DASY5 E-FIELD PROBE SYSTEM .................................................................................................................... 11 5.3 PROBE SPECIFICATION ..................................................................................................................................... 11 5.4 ISOTROPIC E-FIELD PROBE .............................................................................................................................. 11 5.5 PHANTOMS ...................................................................................................................................................... 12 5.6 DEVICE HOLDER .............................................................................................................................................. 12 6 SAR TEST PROCEDURE .................................................................................................................................... 13 6.1 SCANNING PROCEDURE ................................................................................................................................... 13 6.2 EXTRAPOLATION ............................................................................................................................................. 16 6.3 TEST POSITION – BODY CONFIGURATIONS .................................................................................................... 16 7 EXPOSURE LIMIT ............................................................................................................................................... 17 7.1 UNCONTROLLED ENVIRONMENT ..................................................................................................................... 17 7.2 CONTROLLED ENVIRONMENT .......................................................................................................................... 17 8 SYSTEM AND LIQUID VALIDATION ............................................................................................................. 18 8.1 SYSTEM VALIDATION............................…

Text truncated - open the document above for the full version.

Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 98 TEST REPORT Compiled by: Reviewed by: Approved by: Kai Chen Martin Feng Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. The tested sample(s) and the sample information are provided by the applicant. The authenticity, accuracy, and completeness of the provided information are the sole responsibility of the applicant. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The result decision rules of our laboratory are based solely on the direct comparison between the actual measured values of test results and the standard limits, without considering the measurement uncertainty.“” indicates the testing items were fulfilled by subcontracted lab. “” indicates the items are not in CNAS accreditation scope. Test item description: Laptop FCC ID: 2BVV5-NB15 Trademark(s): N/A Model/Type reference: NB15, NB15S, NB15B, NB15G, NB15R Applicant’s name: ERA CREATION INTERNATIONAL DEVELOPMENT LIMITED Address: 18/F S.B COMMERCIAL BLDG478 NATHAN ROAD KL Hong Kong, China Manufacturer: ERA CREATION INTERNATIONAL DEVELOPMENT LIMITED Address: 18/F S.B COMMERCIAL BLDG478 NATHAN ROAD KL Hong Kong, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an Dis trict, Shenzhen, Guangdong, China Sample Received Date: Apr. 21, 2026 Sample tested Date: Apr. 21, 2026 to Jul. 02, 2026 Issue Date: Jul. 02, 2026 Report No.: CTB26042105601RF04 Test Standards FCC CFR Title 47 Part 15 Subpart E Section 15.407 Test Results PASS Remark: This is WIFI-5GHz band radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB26042105601RF04 Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 98 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ....................................................................................................................... 4 2. TEST SUMMARY .......................................................................................................... 5 3. MEASUREMENT UNCERTAINTY .............................................................................. 6 4. PRODUCT INFORMATION AND TEST SETUP ....................................................... 7 4.1 Product Information ................................................................................................................. 7 4.2 Test Setup Configuration ....................................................................................................... 7 4.3 Support Equipment .................................................................................................................. 7 4.5 Test Mode .................................................................................................................................. 8 4.6 Test Environment ..................................................................................................................... 9 5. TEST FACILITY AND TEST INSTRUMENT USED ............................................... 10 5.1 Test Facility.............................................................................................................................. 10 5.2 Test Instrument Used ........................................................................................................... 10 6. AC POWER LINE CONDUCTED EMISSION ......................................................... 13 6.1 Block Diagram Of Test Setup ............................................................................................. 13 6.2 Limit ........................................................................................................................................... 13 6.3 Test procedure ........................................................................................................................ 13 6.4 Test Result ............................................................................................................................... 15 7. RADIATED SPURIOUS EMISSIONS ...................................................................... 17 7.1 Block Diagram Of Test Setup ............................................................................................. 17 7.2 Limit ........................................................................................................................................... 17 7.3 Test procedure ........................................................................................................................ 18 7.4 Test Result ............................................................................................................................... 19 8. BAND EDGE ............................................................................................................... 29 8.1 Block Diagram Of Test Setup ............................................................................................. 29 8.2 Limit ........................................................................................................................................... 29 8.3 Test procedure ........................................................................................................................ 29 8.4 Test Result ............................................................................................................................... 30 9. CONDUCTED OUTPUT POWER ............................................................................ 42 9.1 Block Diagram Of Test Setup ............................................................................................. 42 9.2 Limit ............…

Text truncated - open the document above for the full version.

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB26042105601RF04 Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 53 of 98 802.11ac(VHT40)-5755 802.11ac(VHT40)-5795 802.11ac(VHT80)-5775 802.11n(HT20)-5745 802.11n(HT20)-5785 802.11n(HT20)-5825 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB26042105601RF04 Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 54 of 98 5802.11n(HT40)-5755 802.11n(HT40)-5795 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB26042105601RF04 Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 55 of 98 10. EMISSION BANDWIDTH& OCCUPIED BANDWIDTH 10.1 Block Diagram Of Test Setup 10.2 Limits (1) For the band 5.15-5.25 GHz. (iv) For mobile and portable client devices in the 5.15-5.25 GHz band, the maximum conducted output power over the frequency band of operation shall not exceed 250 mW provided the maximum antenna gain does not exceed 6 dBi. In addition, the maximum power spectral density shall not exceed 11 dBm in any 1 megahertz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. (2) For the 5.25-5.35 GHz and 5.47-5.725 GHz bands, the maximum conducted output power over the frequency bands of operation shall not exceed the lesser of 250 mW or 11 dBm + 10 log B, where B is the 26 dB emission bandwidth in megahertz. In addition, the maximum power spectral density shall not exceed 11 dBm in any 1 megahertz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. (3) For the band 5.725-5.85 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W. In addition, the maximum power spectral density shall not exceed 30 dBm in any 500-kHz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. However, fixed point-to-point U-NII devices operating in this band may employ transmitting antennas with directional gain greater than 6 dBi without any corresponding reduction in transmitter conducted power. Fixed, point-to-point operations exclude the use of point-to-multipoint systems, omnidirectional applications, and multiple collocated transmitters transmitting the same information. The operator of the U-NII device, or if the equipment is professionally installed, the installer, is responsible for ensuring that systems employing high gain directional antennas are used exclusively for fixed, point-to-point operations. (e) Within the 5.725-5.85 GHz band, the minimum 6 dB bandwidth of U-NII devices shall be at least 500 kHz. 10.3 Test Procedure According to KDB789033 D02v02r01 sectionE, the following is the measurement procedure. 1. Emission Bandwidth (EBW) a) Set RBW = approximately 1% of the emission bandwidth. b) Set the VBW > RBW. c) Detector = Peak. d) Trace mode = max hold. e) Measure the maximum width of the emission that is 26 dB down from the maximum of the emission. Compare this with the RBW setting of the analyzer. Readjust RBW and repeat measurement as needed until the RBW/EBW ratio is approximately 1%. 2. Minimum Emission Bandwidth for the band 5.725−5.85 GHz Section 15.407(e) specifies the minimum 6 dB emission bandwidth of at least 500 kHz for the band 5.725−5.85 GHz. The following procedure shall be used for measuring this bandwidth: a) Set RBW = 100 kHz. b) Set the video bandwidth (VBW) ≥ 3 * RBW. EUT Radio Test System Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB26042105601RF04 Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 56 of 98 c) Detector = Peak. d) Trace mode = max hold. e) Sweep = auto couple. f) Allow the trace to stabilize. g) Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. Note: The automatic bandwidth measurement capability of a spectrum analyzer or EMI receiver may be employed if it implements the functionality described in this section. For devices that use channel aggregation refer to III.A and III.C for determining emission bandwidth. D. 99% Occupied Bandwidth The 99% occupied bandwidth is the frequency bandwidth such that, below its lower and above its upper frequency limits, the mean powers are each equal to 0.5% of the total mean power of the given emission. Measurement of the 99% occupied bandwidth is required only as a condition for using the optional band-edge measurement techniques described in II.G.3.d). Measurements of 99% occupied bandwidth may also optionally be used in lieu of the EBW to define the minimum frequency range over which the 789033 D02 General UNII Test Procedures New Rules v02r01 Page 4 spectrum is integrated when measuring maximum conducted output power as described in II.E. However, the EBW must be measured to determine bandwidth dependent limits on maximum conducted output power in accordance with Section 15.407(a). The following procedure shall be used for measuring (99%) power bandwidth: 1. Set center frequency to the nominal EUT channel center frequency. 2. Set span = 1.5 times to 5.0 times the OBW. 3. Set RBW = 1% to 5% of the OBW 4. Set VBW ≥ 3 * RBW 5. Video averaging is not permitted. Where practical, a sample detection and single sweep mode shall be used. Otherwise, peak detection and max hold mode (until the trace stabilizes) shall be used. 6. Use the 99% power bandwidth function of the instrument (if available). 7. I…

Text truncated - open the document above for the full version.

深圳卓创智能科技有限公司 供应商名称：深圳市亿圣邦科技有限公司 供应商内部料号：WIFIMAIN:SLK-ZC-2516Y-L-370IV-B-1.13 WIFIAUX:SLK-ZC-2516Y2-R-300IV-G-1.13 卓创机型：N156P85-GB51P 卓创料号：CWW-0000D03-01/CWW-0000G03-01 物料型号：天线/FPC天线/线径1.13mm线长370mm/4代端子/带背胶/黑色 /SLK-ZC-2516Y-L-370IV-B-1.13/亿圣邦 天线/FPC天线/线径1.13mm线长300mm/4代端子/带背胶/灰色 /SLK-ZC-2516Y2-R-300IV-G-1.13/亿圣邦 签核原因：□首次封样□升级改善□替代料 提供材料：1.  产品图纸2.  规格书3.  材质说明4.  可靠性试验报告5.  QA 检验报告6.  物料清单7.  RoHS报告8.  包装方式9.  电子档承认 书 备注： 承认书一式五份签字盖章（封面+骑缝章） 2024年01版 供应商确认 单位制作结构工程电子工程品质审核 签章马侦洲刘才亮刘顺郭亮 卓创确认 单位项目结构电子品质日期 签章 卓创意见 临时样品:□限量使用(数量)___□不予采用 正式样品:□批量使用□限量使用(数量)___□不予采用 限量或不予使用理由: 项目经理签字： 样品规格承认 深圳市亿圣邦科技有限公司第 1 页 深圳市亿圣邦科技有限公司 样品承认书 SPECIFICATIONFORAPPROVAL 公司名称（客户填写）：深圳卓创智能科技有限公司 物料代码（客户填写）： 规格型号（客户填写）：N156P85-GB51P 承认日期（客户填写）： 供应商名称（SLK填写）：深圳市亿圣邦科技有限公司 供应商规格型号（SLK填写）：WIFIMAIN:SLK-ZC-2516Y-L-370IV-B-1.13 WIFIAUX:SLK-ZC-2516Y2-R-300IV-G-1.13 供应商名称:深圳市亿圣邦科技有限公司 供应商地址:深圳市宝安区深圳前湾硬科技产业园C栋101 电话：18025305599电话：18666299104 承认签章 供应商承认（SLK填写栏）深圳卓创智能科技有限公司 工程师审核批准工程师审核批准 刘顺黄震林美财 盖章签署盖章签署 日期 2026-04-11 日期 批示：□接受□有条件接受 备注（客户填写）： 深圳市亿圣邦科技有限公司第 2 页 WIFIMAINAntenna(2516Y) 1.ExplanationofProductnumber: SLK-ZC-2516Y-L-370IV-B-1.13 12345 ProductCode: (1)Customer: ZC:卓创 (2)Project: 2516Y:SLK-ZC-2516Y(WIFIMAINantenna) (3)WeldingPosition L:Left (4)CableLength: 370IV:370*1.13MM四代端子 (5)CableColor B:Black 2.Features *Stableandreliableinperformances *Compactsize *RoHScompliance 3.Applications *IEEE802.11(a/b/g/n) *Hand-helddeviceswhenWIFI(802.11a/b/g/n)functionsareneeded 深圳市亿圣邦科技有限公司第 3 页 4.Description Holybond’sFPCantennaseriesarespeciallydesignedforWIFI(802.11 a/b/g/n)applications.BasedonHolybond’sproprietarydesignandprocesses, thisFPCantennahasexcellentstabilityandsensitivitytoconsistentlyprovide highsignalreceptionefficiency. 5.ElectricalSpecifications 5-1 CharacteristicsSpecificationsUnit OutlineDimensions 25.43x16.19x0.12 mm CenterFrequency 2.4-2.5-5.15-5.85GHz Bandwidth(under-10dBreturnloss) 130minMHz VSWR 3max 5-2 ． VSWRS11 深圳市亿圣邦科技有限公司第 4 页 5-3.WIFI+BTAntennaGain/Efficiency/RadiationPatternof3D Frequency(MHz)Efficiency(dBi)Gain(dBi)Efficiency(%) 2400 -3.97 1.5840.02 2410 -3.95 1.1140.21 2420 -3.85 1.8641.18 2430 -3.86 1.2241.03 2440 -3.84 1.7141.28 2450 -3.89 1.0040.79 2460 -3.68 1.3442.85 2470 -3.87 1.4440.93 2480 -3.94 1.5140.36 2490 -3.89 1.6340.82 2500 -3.73 1.0342.30 5150 -3.70 1.1542.60 5250 -3.67 1.7642.92 5450 -3.49 1.9544.68 5850 -3.50 1.9644.60 深圳市亿圣邦科技有限公司第 5 页 6.AntennaDimensions(unit:mm) 深圳市亿圣邦科技有限公司第 6 页 WIFIAUXAntenna(2516Y2) 1.ExplanationofProductnumber: SLK-ZC-2516Y2-R-300IV-G-1.13 12345 ProductCode: (1)Customer: ZC: 卓创 (2)Project: 2516Y2:SLK-ZC-2516Y2(WIFIAUXantenna) (3)WeldingPosition R:Right (4)CableLength: 300IV:300*1.13MM四代端子 (5)CableColor G:Gray 2.Features *Stableandreliableinperformances *Compactsize *RoHScompliance 3.Applications *IEEE802.11(a/b/g/n) *Hand-helddeviceswhenWIFI(802.11a/b/g/n)functionsareneeded 深圳市亿圣邦科技有限公司第 7 页 4.Description Holybond’sFPCantennaseriesarespeciallydesignedforWIFI(802.11 a/b/g/n)applications.BasedonHolybond’sproprietarydesignandprocesses, thisFPCantennahasexcellentstabilityandsensitivitytoconsistentlyprovide highsignalreceptionefficiency. 5.ElectricalSpecifications 5-1 CharacteristicsSpecificationsUnit OutlineDimensions 25.43x16.19x0.12 mm CenterFrequency 2.4-2.5-5.15-5.85GHz Bandwidth(under-10dBreturnloss) 130minMHz VSWR 3max 5-2 ． VSWRS11 深圳市亿圣邦科技有限公司第 8 页 5-3.WIFIAntennaGain/Efficiency/RadiationPatternof3D Frequency(MHz)Efficiency(dBi)Gain(dBi)Efficiency(%) 2400-4.461.7435.78 2410-4.451.9935.85 2420-4.281.7337.29 2430-4.471.5335.67 2440-4.171.9538.24 2450-4.411.7136.20 2460-4.331.6936.90 2470-4.591.3434.70 2480-4.631.9634.36 2490-4.471.8535.68 2500-4.611.8634.58 5150-3.241.9447.38 5250-3.211.2147.72 5450-3.161.3648.29 5850-3.041.4049.56 深圳市亿圣邦科技有限公司第 9 页 6.AntennaDimensions(unit:mm) 深圳市亿圣邦科技有限公司第 10 页 7.AntennaPicture

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 1 Model: NB15 Body-Worn/Hotspot (Back side) Hotspot (Right edge) Hotspot (Left edge) Hotspot (Bottom edge) 0mm separation distance 0mm separation distance 0mm separation distance 0mm separation distance

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 2 Model: NB15 Radiated Emission Below 1G Above 1G Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 2 Conducted emissions
