2BVVS-ESP32-P4-C64D ESP32-P4 Series Intelligent Display Module

ESP32-C6 WiFi Module SKU: ESP32-P4-C6-WiFi (ESP32-C6 WiFi Add-on Module for 4D Systems ESP32-P4 Display Series) Datasheet Revision 1.0 Copyright © 2026 4D Systems Content may change at any time. Please refer to the resource centre for latest documentation. Contents 31. Description 52. Features 63. Hardware Overview 84. Hardware Interface - Pins 84.1. Serial Ports - 3.3V TTL 84.2. Communications - SDIO 85. Software Development 96. Mechanical Details 96.1. ESP32-P4-C6-WiFi Module 107. Schematic Circuit Details REV 1.1 118. Specifications 129. Revision History 1310. Legal Notice 1310.1. Proprietary Information 1310.2. Disclaimer of Warranties & Limitations of Liabilities 4D Systems DATASHEET Page 2 of 13 1. Description The ESP32-P4-C6-WiFi is an ESP32-C6 WiFi add-on module for the 4D Systems ESP32-P4 display range, and is designed and manufactured by 4D Systems. This WiFi add-on module is designed specifically to directly plug on the back of the ESP32-P4 and ESP32-P4- Round series of display modules from 4D Systems, providing WiFi and BT connectivity to the ESP32-P4 SoC. At the time of writing, this module is directly compatible with the following modules: ESP32-P4-70 ESP32-P4-70CT-CLB ESP32-P4-70CT ESP32-P4-80 ESP32-P4-80CT-CLB ESP32-P4-80CT ESP32-P4-90 ESP32-P4-90CT-CLB ESP32-P4-90CT ESP32-P4-101 ESP32-P4-101CT-CLB ESP32-P4-101CT ESP32-P4-34R-CLB ESP32-P4-34RCT-CLB ESP32-P4-40R-CLB ESP32-P4-40RCT-CLB This WiFi add-on module features the Espressif ESP32-C6-MINI-1U-N4 canned WiFi module, which features the Espressif ESP32-C6 SoC. It features 802.11ax-compliant WiFi, and Bluetooth LE 5.3 certified Bluetooth communications. This WiFi add-on module supports only an external antenna, which is simply connected to the w.FL connector on the ESP32-C6-MINI-1U module directly. A suitable w.FL (IPX-3) to SMA cable and screw on SMA Antenna is supplied with this module. Alternative IPX-3 cables and antennas are freely available on the market if the supplied one is not suitable. • • • • • • • • • • • • • • • • ESP32-C6 WiFi ModuleDescription 4D Systems DATASHEET Page 3 of 13 These WiFi modules can be programmed over the UART, changing the ESP32-C6 application if required. From factory, these ship with the ESP-Hosted slave application running over SDIO supplied by Espressif, which allow direct connection with the ESP32-P4 display modules. However if customisation is required, the ESP32-C6 can be reprograrmmed by the User to suit custom requirements. ESP32-P4-C6-WiFi Module - FrontESP32-P4-C6-WiFi Module - Rear ESP32-C6 WiFi ModuleDescription 4D Systems DATASHEET Page 4 of 13 2. Features Powerful ESP32-C6 RISC-V 32-bit single-core microprocessor, inside ESP32-C6-MINI-1U-N4 module Up to 160Mhz 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, 4MB In-Package Flash UART programming interface 4bit SDIO Bus to ESP32-P4 display modules 30pin female pin header, for direct connect to ESP32-P4 display modules, supplying Power and SDIO Comms Bus etc 4.0V to 6.0V range operation (single supply), 5V recommended. w.FL (IPX-3) Antenna interface w.FL (IPX-3) to SMA cable + SMA Antenna, supplied RoHS and REACH compliant. CE/EMC and UKCA compliance pending. PCB is UL 94V-0 Flammability Rated. Module dimensions: 40.0mm x 30.0mm x 11.2mm Weighing (approximately): 6 g (excluding external antenna) • • • • • • • • • • • • • • • • ESP32-C6 WiFi ModuleFeatures 4D Systems DATASHEET Page 5 of 13 3. Hardware Overview Pinout of 30-way Female connector (Rear view) 30-pin Interface Pinout PinSymbolI/ODescription 15V INPVoltage Supply +ve input pin. The range is 4.0V to 6.0V, nominal 5.0V. 25V INPVoltage Supply +ve input pin. The range is 4.0V to 6.0V, nominal 5.0V. 3GNDPSupply Ground 4GNDPSupply Ground 5N/C-Not Connected / Unused 6N/C-Not Connected / Unused 7N/C-Not Connected / Unused 8N/C-Not Connected / Unused 9N/C-Not Connected / Unused 10N/C-Not Connected / Unused 11N/C-Not Connected / Unused 12N/C-Not Connected / Unused 13N/C-Not Connected / Unused 14N/C-Not Connected / Unused 15N/C-Not Connected / Unused 16N/C-Not Connected / Unused ESP32-C6 WiFi ModuleHardware Overview 4D Systems DATASHEET Page 6 of 13 PinSymbolI/ODescription 17N/C-Not Connected / Unused 18N/C-Not Connected / Unused 19N/C-Not Connected / Unused 20N/C-Not Connected / Unused 21SDIO_CMDI/OSDIO Bus CMD line - Bidirectional 22N/C-Not Connected / Unused 23SDIO_DATA3I/OSDIO Bus DATA 3 line - Bidirectional 24SDIO_CLKISDIO Bus Clock line 25SDIO_DATA1I/OSDIO Bus DATA 1 line - Bidirectional 26SDIO_DATA2I/OSDIO Bus DATA 2 line - Bidirectional 27N/C-Not Connected / Unused 28SDIO_DATA0I/OSDIO Bus DATA 0 line - Bidirectional 29N/C-Not Connected / Unused 30ENI/OReset of the ESP32-C6 from ESP32-P4 - Also connected to the RESET Button I = Input, O = Output, P = Power Please refer to the Espressif ESP32-C4-MINI-1U datasheet for specific detail on the capability of the ESP32-C6, in conjunction with the schematic of this module. Note 1. 2. ESP32-C6 WiFi ModuleHardware Overview 4D Systems DATASHEET Page 7 of 13 4. Hardware Interface - Pins This section describes in detail the hardware interface pins of the module. 4.1. Serial Ports - 3.3V TTL This WiFi add-on module has a single UART, which is connected only to the solderable TH pads on the module, and is used primarily for the reprogramming of the ESP32-C6 firmware by the end user. This is UART0, and is where the boot and debug messages are sent by default, and is useful when diagnosing issues or troubleshooting your code (if using custom firmware). Please refer to the Espressif ESP32-C6-MINI-1U Datasheet for more details. The module can be programmed over UART utilising the RX/TX pads, in conjunction with the BOOT and RESET buttons. It is recommended to unplug the module from the ESP32-P4 display, and power the module via the 3V3 and GND pins, or via the 5V and GND pins on the 30-way female connector. For most applications, reprogramming of this module is not required. 4.2. Communications - SDIO This WiFi add-on module has a dedicated 4-bit …

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road 4D SYSTEMS PTY LTD Level 24, Three International Towers 300 Barangaroo Ave, Barangaroo NSW 2000, Australia Columbia, MD 21046 2026/06/24 U.S. Agent Designation Name and company of U.S. agent: DAME INC 4D SYSTEMS PTY LTDacknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID:2BVVS-ESP32-P4-C6): Physical U.S. address of agent: 19 Preston St, Unit 1, Goffstown NH 03045 NH, NH 3045 United States FRN of U.S. agent: 0036816189 Email address of U.S. agent: [email protected] DAME INCacknowledges their obligation to accept service of process on behalf of 4D SYSTEMS PTY LTD By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7) 4D SYSTEMS PTY LTD with the FRN [0038354312] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. . The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Aknar Sinan Manager 4D SYSTEMS PTY LTD Signature Liangshu Zhang Manager DAME INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

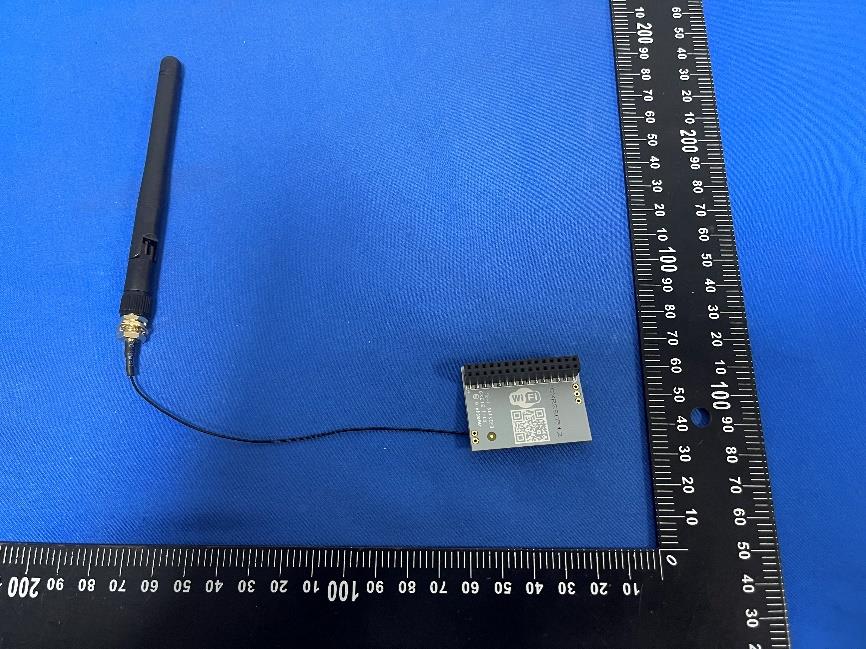

FCC ID: 2BVVS-ESP32-P4-C6 External Photos of the EUT ANT

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BVVS-ESP32-P4-C6

FCC ID: 2BVVS-ESP32-P4-C6 Internal Photos of the EUT FCC ID: 2BVVS-ESP32-P4-C6

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : CTA26060100202 2BVVS-ESP32-P4-C6 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jun. 10, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : 4D SYSTEMS PTY LTD Address............................................ : Level 24, Three International Towers 300 Barangaroo Ave, Barangaroo NSW 2000, Australia Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : 4D ESP32-P4 Series Intelligent Display Module Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen SLS Industrial Co.,Ltd Model/Type reference ...................... : ESP32-P4-C6-WiFi Listed Models ................................... : N/A Rating ............................................... : Input: 5V2A Result ............................................... : PASS Report No.: CTA26060100202 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : 4D ESP32-P4 Series Intelligent Display Module Model /Type : ESP32-P4-C6-WiFi Listed Models : N/A Applicant : 4D SYSTEMS PTY LTD Address : Level 24, Three International Towers 300 Barangaroo Ave, Barangaroo NSW 2000, Australia Manufacturer : Shenzhen SLS Industrial Co.,Ltd Address : 4th Floor, Block 1, DWF Industrial Park, Shengjia Road 2# 518117, Longgang, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26060100202 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 MPE Calculation Method ......................................................................................... 7 4.3 Conducted Power Results ....................................................................................... 8 4.4 Manufacturing tolerance .......................................................................................... 8 4.5 Standalone MPE Result ........................................................................................... 8 4.6 Simultaneous Transmission for MPE Result ........................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA26060100202 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:cta…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type External antenna Model ESP32-P4-C6-WiFi Frequency range 2400-2500MHz Manufacturer 4D SYSTEMS PTY LTD Address Level 24, Three International Towers 300 Barangaroo Ave, Barangaroo NSW 2000, Australia ANT Peak Gain 2.0 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26060100201 2BVVS-ESP32-P4-C6 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jun. 10, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : 4D SYSTEMS PTY LTD Address ............................................ : Level 24, Three International Towers 300 Barangaroo Ave, Barangaroo NSW 2000, Australia Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : 4D ESP32-P4 Series Intelligent Display Module Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen SLS Industrial Co.,Ltd Model/Type reference ...................... : ESP32-P4-C6-WiFi Listed Models ................................... : N/A Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : Input: 5V2A Result ............................................... : PASS Report No.: CTA26060100201 Page 2 of 34 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : 4D ESP32-P4 Series Intelligent Display Module Model /Type : ESP32-P4-C6-WiFi Listed Models : N/A Applicant : 4D SYSTEMS PTY LTD Address : Level 24, Three International Towers 300 Barangaroo Ave, Barangaroo NSW 2000, Australia Manufacturer : Shenzhen SLS Industrial Co.,Ltd Address : 4th Floor, Block 1, DWF Industrial Park, Shengjia Road 2# 518117, Longgang, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26060100201 Page 3 of 34 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .................................................................................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BVVS-ESP32-P4-C6 Company : 4D SYSTEMS PTY LTD EUT : 4D ESP32-P4 Series Intelligent Display Module Model Number : ESP32-P4-C6-WiFi Report No. : CTA26060100201 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.16 2406.92 2417.08 0.5 PASS 2437 10.16 2431.92 2442.08 0.5 PASS 2462 10.16 2456.92 2467.08 0.5 PASS 11G Ant1 2412 15.72 2404.00 2419.72 0.5 PASS 2437 15.68 2429.04 2444.72 0.5 PASS 2462 15.68 2454.28 2469.96 0.5 PASS 11N20SISO Ant1 2412 16.32 2403.44 2419.76 0.5 PASS 2437 15.96 2429.00 2444.96 0.5 PASS 2462 15.20 2454.40 2469.60 0.5 PASS 11N40SISO Ant1 2422 35.12 2404.96 2440.08 0.5 PASS 2437 35.68 2419.24 2454.92 0.5 PASS 2452 35.76 2434.16 2469.92 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.387 2405.2867 2418.6733 --- --- 2437 13.387 2430.2867 2443.6733 --- --- 2462 13.387 2455.2867 2468.6733 --- --- 11G Ant1 2412 16.583 2403.7283 2420.3117 --- --- 2437 17.023 2428.4885 2445.5115 --- --- 2462 16.863 2453.5684 2470.4316 --- --- 11N20SISO Ant1 2412 17.982 2402.9291 2420.9111 --- --- 2437 17.942 2427.9291 2445.8711 --- --- 2462 17.942 2452.9291 2470.8711 --- --- 11N40SISO Ant1 2422 36.124 2403.9381 2440.0619 --- --- 2437 36.044 2419.0180 2455.0619 --- --- 2452 36.124 2433.8581 2469.9820 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Frequency[M Hz] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 15.64 ≤30.00 PASS 2437 15.74 ≤30.00 PASS 2462 15.93 ≤30.00 PASS 11G Ant1 2412 14.35 ≤30.00 PASS 2437 14.49 ≤30.00 PASS 2462 14.75 ≤30.00 PASS 11N20SISO Ant1 2412 14.24 ≤30.00 PASS 2437 14.32 ≤30.00 PASS 2462 14.37 ≤30.00 PASS 11N40SISO Ant1 2422 14.59 ≤30.00 PASS 2437 14.84 ≤30.00 PASS 2452 14.89 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -10.44 ≤8.00 PASS 2437 -10.25 ≤8.00 PASS 2462 -10.00 ≤8.00 PASS 11G Ant1 2412 -17.73 ≤8.00 PASS 2437 -15.79 ≤8.00 PASS 2462 -17.20 ≤8.00 PASS 11N20SISO Ant1 2412 -16.81 ≤8.00 PASS 2437 -16.97 ≤8.00 PASS 2462 -16.86 ≤8.00 PASS 11N40SISO Ant1 2422 -19.52 ≤8.00 PASS 2437 -18.60 ≤8.00 PASS 2452 -19.56 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 2.14 -49.94 ≤-17.86 PASS High 2462 2.77 -52.51 ≤-17.23 PASS 11G Ant1 Low 2412 -2.24 -34.21 ≤-22.24 PASS High 2462 -2.10 -57.4 ≤-22.1 PASS 11N20SIS O Ant1 Low 2412 -2.42 -33.48 ≤-22.42 PASS High 2462 -2.11 -57.29 ≤-22.11 PASS 11N40SIS O Ant1 Low 2422 -5.28 -34.35 ≤-25.28 PASS High 2452 -5.06 -57.27 ≤-25.06 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 23 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 24 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 25 26 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 3.46 3.46 --- PASS 30~1000 3.46 -65.04 ≤-16.54 PASS 1000~26500 3.46 -49.93 ≤-16.54 PASS 2437 Reference 3.50 3.50 --- PASS 30~1000 3.50 -61.44 ≤-16.5 PASS 1000~26500 3.50 -50.39 ≤-16.5 PASS 2462 Reference 3.62 3.62 --- PASS 30~1000 3.62 -64.92 ≤-16.38 PASS 1000~26500 3.62 -51.86 ≤-16.38 PASS 11G Ant1 2412 Reference -2.02 -2.02 --- PASS 30~1000 -2.02 -65.1 ≤-22.02 PASS 1000~26500 -2.02 -56.79 ≤-22.02 PASS 2437 Reference -1.97 -1.97 --- PASS 30~1000 -1.97 -65.09 ≤-21.97 PASS 1000~26500 -1.97 -56.38 ≤-21.97 PASS 2462 Reference -1.80 -1.80 --- PASS 30~1000 -1.80 -62.14 ≤-21.8 PASS 1000~26500 -1.80 -57.27 ≤-21.8 PASS 11N20SISO Ant1 2412 Reference -2.04 -2.04 --- PASS 30~1000 -2.04 -64.37 ≤-22.04 PASS 1000~26500 -2.04 -57.1 ≤-22.04 PASS 2437 Reference -2.09 -2.09 --- PASS 30~1000 -2.09 -64.93 ≤-22.09 PASS 1000~26500 -2.09 -57.64 ≤-22.09 PASS 2462 Reference -1.78 -1.78 --- PASS 30~1000 -1.78 -63.47 ≤-21.78 PASS 1000~26500 -1.78 -57.07 ≤-21.78 PASS 11N40SISO Ant1 2422 Reference -5.17 -5.17 --- PASS 30~1000 -5.17 -62.72 ≤-25.17 PASS 1000~26500 -5.17 -59.48 ≤-25.17 PASS 2437 Reference -4.98 -4.98 --- PASS 30~1000 -4.98 -64.07 ≤-24.98 PASS 1000~26500 -4.98 -59.59 ≤-24.98 PASS 2452 Reference -5.03 -5.03 --- PASS 30~1000 -5.03 -65.12 ≤-25.03 PASS 1000~26500 -5.03 -58.75 ≤-25.03 PASS 27 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 28 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 29 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 30 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 31 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 32 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 33 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 34 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 35 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 36 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 37 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_242…

Text truncated - open the document above for the full version.

FCC ID: 2BVVS-ESP32-P4-C6 Test Setup Photos of the EUT FCC ID: 2BVVS-ESP32-P4-C6
