LN882H-CBU Module Specification Document version:20240514 catalogue Catalogue 1 Product Overview 2 1.1 characteristic ..................................................................................................................................... 2 1.2 application area ................................................................................................................................. 2 1.3 Update Note ..................................................................................................................................... 3 2 Module Interface 4 2.1 Dimension Packaging .................................................................................................................... 4 2.2 Pin Definition ................................................................................................................................. 4 3 Electrical Parameters 7 3.1 Absolute Electrical Parameters .................................................................................................... 7 3.2 normal running conditions ............................................................................................................ 7 3.3 Radio frequency power consumption ............................................................................................ 7 3.4 Working Current ............................................................................................................................. 8 4 Radio Frequency Parameters 9 4.1 Basic Radio Frequency Characteristics ....................................................................................... 9 4.2 Wi-Fi transmission performance .................................................................................................... 9 4.3 Wi-Fi reception performance ........................................................................................................ 10 4.4 Bluetooth transmission performance ....................................................................................... 10 4.5 Bluetooth reception performance ................................................................................................ 10 5 Antenna Information 12 5.1 Antenna type .................................................................................................................................. 12 5 .2 Reduce antenna interference ........................................................................................................ 12 6 Packaging Information and Production Guidelines 13 6.1 Mechanical Dimension ................................................................................................................ 13 6.2 Recommended WL2H-U package ................................................................................................ 16 6.3 Production Guide ......................................................................................................................... 17 6.4 Recommended furnace temperature curve ............................................................................... 18 catalogue 1 / 20 LN882H-CBU is a low-power embedded Wi-Fi module. It consists of a highly integrated wireless RF chip LN8 82H and a few peripheral components, supporting both AP and STA dual-role connections, as well as low-power Bluetooth connectivity. 1 Product Overview 2/ 20 1 Product Overview LN882H-CBU features an 32-bit MCU with an internal operating frequency up to 160 MHz, along with 128 KB ROM and 296 KB RAM. The MCU is specifically designed with signal processing extension instructions, enabling efficient audio encoding and decoding. It offers a rich array of peripherals, including PWM,UART, and SPI. Up to five 32-bit PWM outputs make the chip highly suitable for high-quality LED control. 1.1 Characteristic • Built-in low-power 32-bit CPU that also serves as an application processor • The clock frequency supports 160 MHz • Operating voltage:3.0V~3.6V • Peripherals:5×PWM, 2×UART, 1×SPI •Wi-Fi Connectivity –802.11 b/g/n –[email protected] –SupportsWEP, WPA/WPA2, WPA/WPA2 PSK(AES), and WPA3 security modes –Maximum output powerof+18 dBm under the802.11b mode –Supports STA/AP/STA+APoperating modes –Supports both SmartCon andAPdistribution network configurations(including Android and iOS devices) –Board-mounted PCB antenna –Operating temperature: -40°C to105°C – Board-mounted PCB •Bluetooth Connectivity –Bluetooth mode supports a transmission powerof1dBm –Complete Bluetooth coexistence interface antenna 1.2 Application Area • Smart Building • Smart Home/Home Appliances • Smart socket, smart light • Industrial Wireless Control • Infant surveillance camera 1 Product Overview 3 / 20 • web camera • Intelligent Public Transport 1.3 Update Note Date updated Update Content Updated version V1.0.0 New document 2024-05-14 2 Module Interface 4/ 20 2 Module Interface 2.1 Dimension Packaging LN882H-CBU dimensions: 15.8±0.35mm (W) × 20.3±0.35mm (L) × 2.5±0. 15mm (H).The dimensions are shown below: 2.2 Pin Definition 2 Module Interface 5 / 20 Pin number Symbol IO Type Function 1 GPIOA5 I/O The regular GPIO can be reused as SPI_SCK(corr- esponding to Pin 13 of the IC) 2 GPIOA6 I/O The regular GPIO can be reused as SPI_MOSI(corr- esponding to Pin 14 of the IC) 3 GPIOA4 I/O Ordinary GPIO (corre- sponding to IC's Pin 12 ) 4 GPIOA1 I/O Ordinary GPIO (corre- sponding to IC's Pin 9) 5 G P I O A0 I/O ADC port,corresponding to IC's GPIOA0 (corre- sponding to IC' s Pin 8) 6 GP IO B8 I/O UART_RX1,corresponds to IC's GPIOB8 (corre- sponds to IC' s Pin 29) 7 GP IO B9 I/O UART_TX1,print log port,corresponding to IC's GPIOB9 (corres- ponding to IC' s Pin 30) 8 GPIOA7 I/O Support s hardwar e P WM(cor- responding to IC's Pin 15) 9 GPIOA10 I/O Support s hardwar e P WM(cor- responding to IC's Pin 21) 10 GPIOA11 I/O Support s hardwar e P WM(cor- responding to IC's Pin 22) 11 GPIOA12 I/O Support s hardwar e P WM(cor- responding to IC's Pin 23) 12 GPIOB3 I/O Support s hardwar e P WM(cor- responding …

Text truncated - open the document above for the full version.

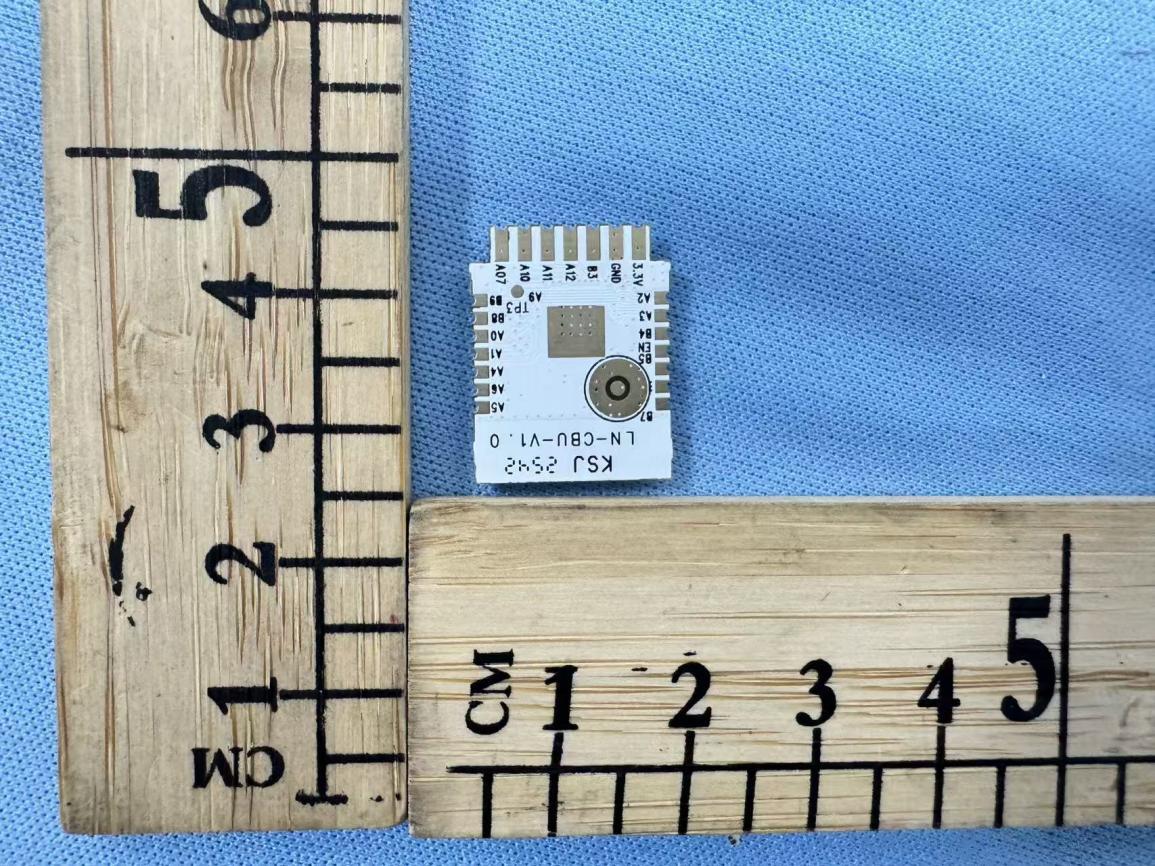

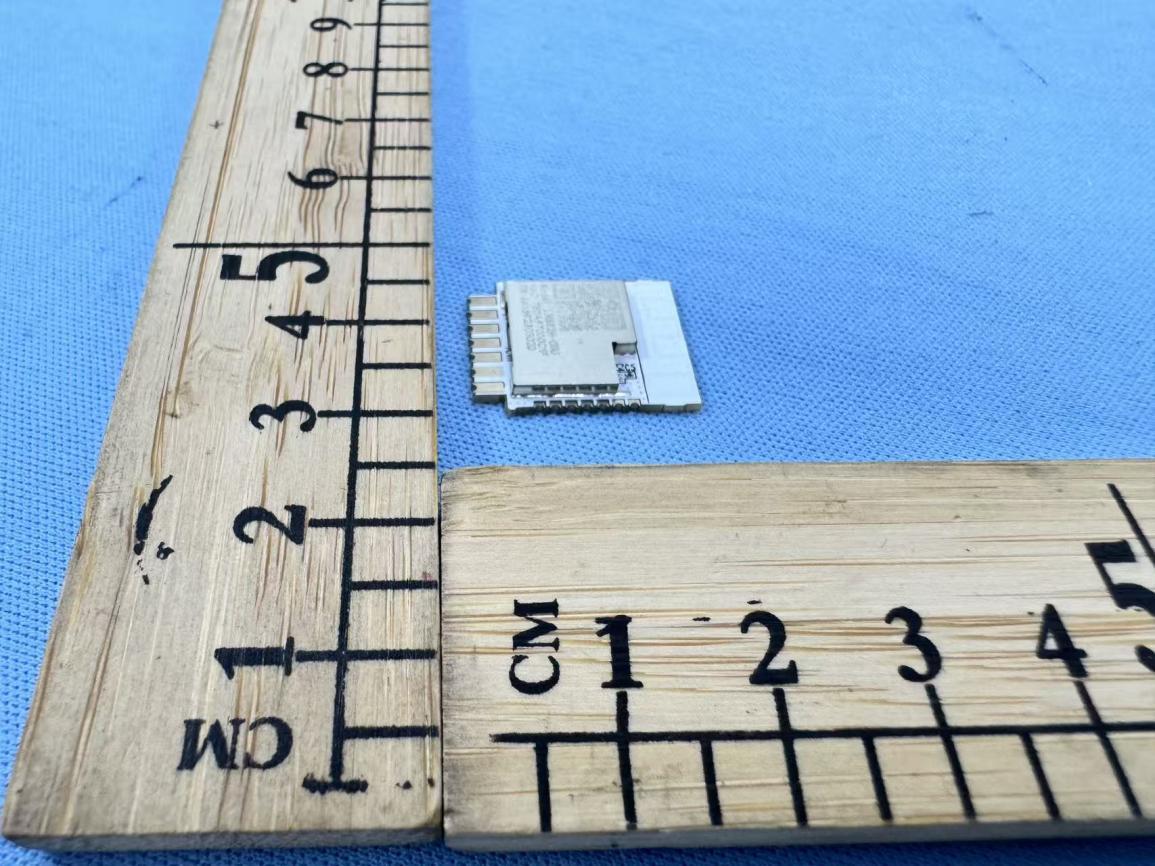

DNT2604141465R02738-P01Page: 1 of 1 PHOTOGRAPHSOFEUT FCCID:2BVW5-LN882H-CBU InternalPhotos InternalPhotos --END--
