2BVWN-Y-01Sports Headband Bluetooth Headphones

User Manual for Sports Headband Bluetooth Earphones Preface Thank you for purchasing this sports headband Bluetooth earphones! This product integrates a sports headband and Bluetooth earphones. Made of soft and skin- friendly fabric, it fits the head firmly without slipping, featuring sweat absorption, breathability, wireless music playback and calling functions. Specially designed for running, fitness, yoga and other sports scenarios, it brings you a comfortable and unrestricted sports audio-visual experience. Please read this manual carefully before use to operate the product correctly and achieve better performance. 1. Product List • Bluetooth earphones (left and right) × 2 • Silicone headband × 1 • Pull straps (three sizes) × 3 • Type-C dual-head charging cable × 1 • Product user manual × 1 2. Product Parameters 1. Bluetooth version: 6.0 2. Transmission distance: 10 meters (in an obstacle-free environment) 3. Battery life: About 8 hours for music playback, 5 hours for calls, 90 hours for standby 4. Charging time: About 1.5-2 hours 5. Working voltage: 3.7V 6. Speaker impedance: 32Ω 7. Waterproof rating: IPX4 (sweat and light rain resistant, not immersible) 8. Product material: High-elastic breathable knitted fabric, eco-friendly silicone 3. Product Components 1. Multi-function button: Power on/off, play/pause, answer/end calls 2. Microphone: High-definition call pickup 3. Type-C charging port: Charging interface of the product 4. Earphone speaker unit: Built-in hidden speaker 5. Elastic headband main body: Absorbs sweat and fixes on the head 4. Usage Tutorial (1) Power On and Bluetooth Pairing 1. Long press the multi-function button for 3 seconds to power on. The indicator flashes red and blue alternately, entering Bluetooth pairing mode. 2. Turn on the Bluetooth settings of your mobile phone/tablet and other devices, search for the device name "Easeburn", and click to complete pairing and connection. 3. After successful connection, the indicator flashes blue slowly and you can use it normally. (2) Power Off Long press the multi-function button for 3 seconds. The indicator lights up red and then goes off, and the product is powered off. (3) Music Playback Control • Play/Pause: Short press the multi-function button (4) Call Control • Answer an incoming call: Short press the multi-function button • End an incoming call: Short press the multi-function button • Reject an incoming call: Long press the multi-function button for 2 seconds (5) Automatic Connection After the product is turned off, it will automatically connect to the paired device when powered on again without re-pairing. 5. Charging Method 1. When the product power is too low, the indicator flashes red to prompt charging. 2. Connect one end of the Type-C charging cable to the product charging port, and the other end to a 5V/1A charger or USB interface. 3. When charging, the indicator stays red; when fully charged, the indicator turns blue and stays on. Unplug the charging cable for use. 6. Wearing Method 1. Unfold the headband Bluetooth earphones, and insert the pull strap and silicone strap into both sides of the earphone card slots respectively. 2. Put it on from the top of your head down, adjust the position of the headband to make the speaker units fit your ears, and fix the headband firmly on your head. 3. During exercise, you can choose high-elastic pull straps of different sizes according to your head circumference to ensure comfortable wearing and no slipping. 7. Notes 1. This product has an IPX4 waterproof rating, which can resist sports sweat and light rain. Do not immerse the product in water or let water enter the charging port to avoid damage. 2. Do not store or use the product in high-temperature, humid, dusty environments, and keep it away from fire sources. 3. Use a compliant 5V/1A charger when charging to avoid damaging the battery with a high-power charger. 4. Do not pull or bend the headband main body vigorously to avoid damaging the internal circuits. 5. If the product is not used for a long time, charge it once a month to avoid battery damage due to power loss. 6. Do not disassemble or modify the product by yourself, otherwise you will lose the warranty qualification. 7. People with ear diseases or hearing impairments should lower the volume during use to avoid hearing damage. 8. When using while cycling, driving, etc., do not turn the volume too high to avoid affecting the perception of surrounding sounds and ensure safety. 8. Cleaning and Maintenance 1. Make sure the product is turned off and the charging port is completely dry before cleaning. 2. Stains on the surface of the headband can be removed by disassembly and washing. 3. After cleaning, place it in a cool and ventilated place to dry, avoiding direct sunlight. 4. Do not squeeze or drop the product to prevent damage to internal components. 9. Common Problems and Solutions 1. Unable to power on/charge Solution: Check if the charging cable is connected properly, recharge for 10 minutes and try to power on again; make sure there is no dust or foreign matter blocking the charging interface. 2. Bluetooth connection failed Solution: Turn off the product Bluetooth and restart it, restart the device Bluetooth; delete the paired records on the device and search for pairing again; ensure the distance between the product and the device is within 10 meters without obstacles. 3. Music playback lags/no sound Solution: Shorten the distance between the product and the Bluetooth device, stay away from interference sources; check the product power and charge in time; restart the product and the Bluetooth device. 4. The other party cannot hear you during a call Solution: Make sure the microphone position is not blocked, adjust the wearing position; check the device call volume and restart the call function. 10. Warm Tips • Place product accessories and packaging out of reach of children to avoid dangers such as ingestion or entanglement. • When wearing for a long t…

Text truncated - open the document above for the full version.

Shenzhen Yipingfan Technology Co., Ltd. Room 510, Building F, Dingfeng Technology Industrial Park, Huafan Road, Dalang Subdistrict, Longhua District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/05/12 U.S. Agent Designation Shenzhen Yipingfan Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BVWN-Y-01): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Phone of U.S. agent: (626) 588-8039 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Shenzhen Yipingfan Technology Co., Ltd. with the FRN [0038358875] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Merry Liu Manager Shenzhen Yipingfan Technology Co., Ltd. Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Shenzhen Yipingfan Technology Co., Ltd. Add: Room 510, Building F, Dingfeng Technology Industrial Park,Huafan Road, Dalang Subdistrict, Longhua District Shenzhen, China Date: 2026-5-12 FCC ID: 2BVWN-Y-01 Dear Sir/Madam, We, Shenzhen Yipingfan Technology Co., Ltd. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of left&right headphones are the same, but the locations of components are different: Product name: Sports Headband Bluetooth Headphones Model no.: Y-01 Refer to the follow photos: Left Right Shenzhen Yipingfan Technology Co., Ltd. Add: Room 510, Building F, Dingfeng Technology Industrial Park,Huafan Road, Dalang Subdistrict, Longhua District Shenzhen, China Sincerely, Name/Title： Merry Liu/Manager Company: Shenzhen Yipingfan Technology Co., Ltd. Address: Room 510, Building F, Dingfeng Technology Industrial Park,Huafan Road, Dalang Subdistrict, Longhua District Shenzhen, China Phone: 18038066871 Fax: E-Mail: [email protected]

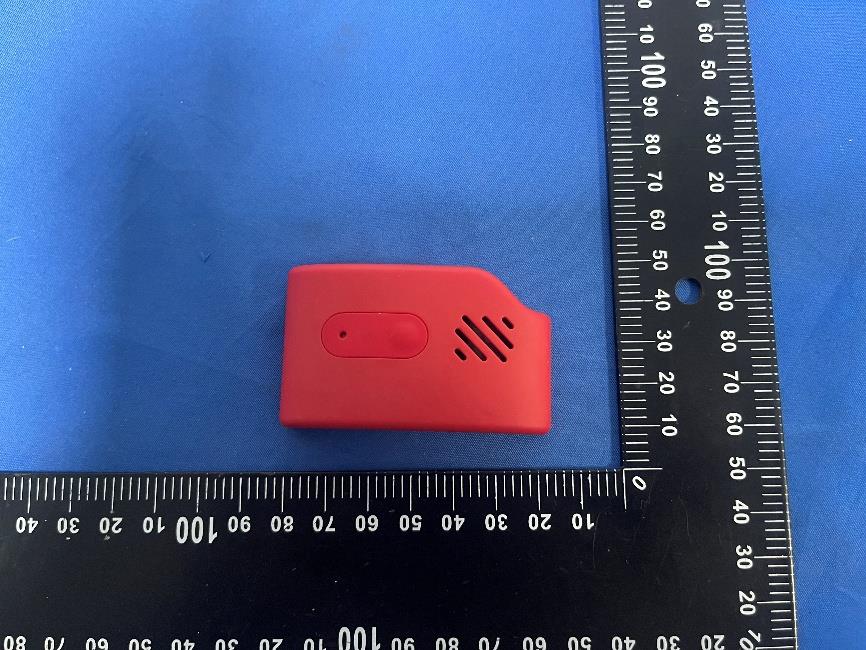

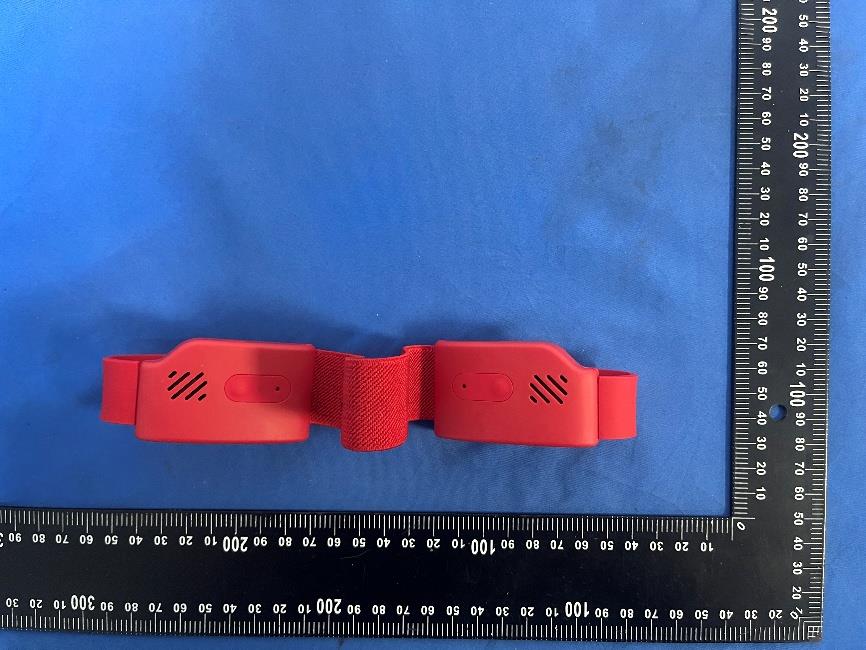

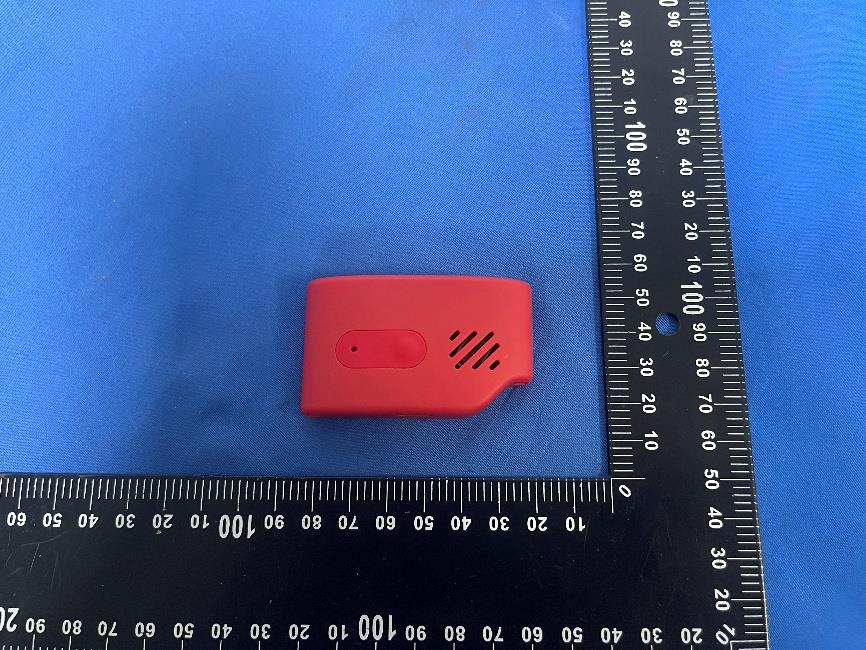

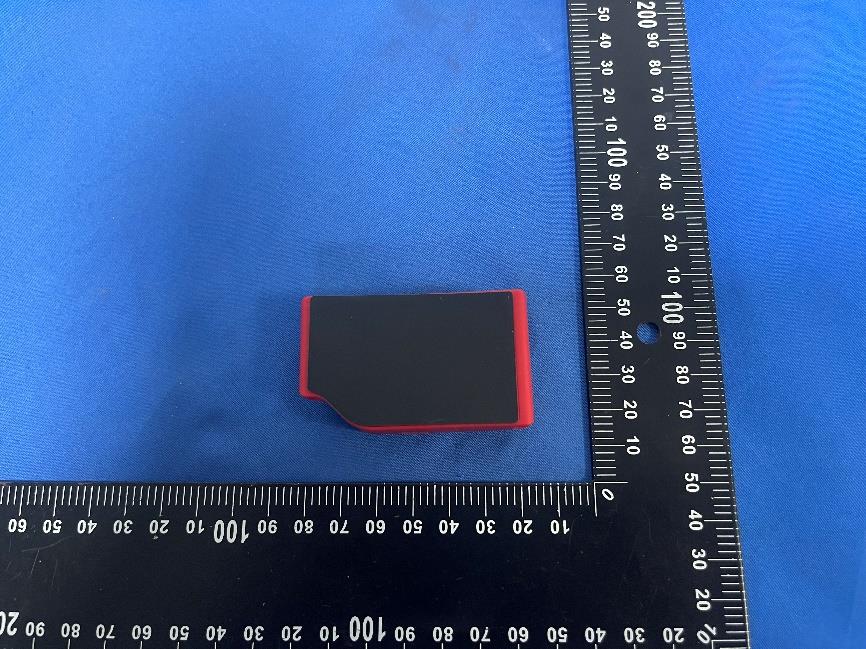

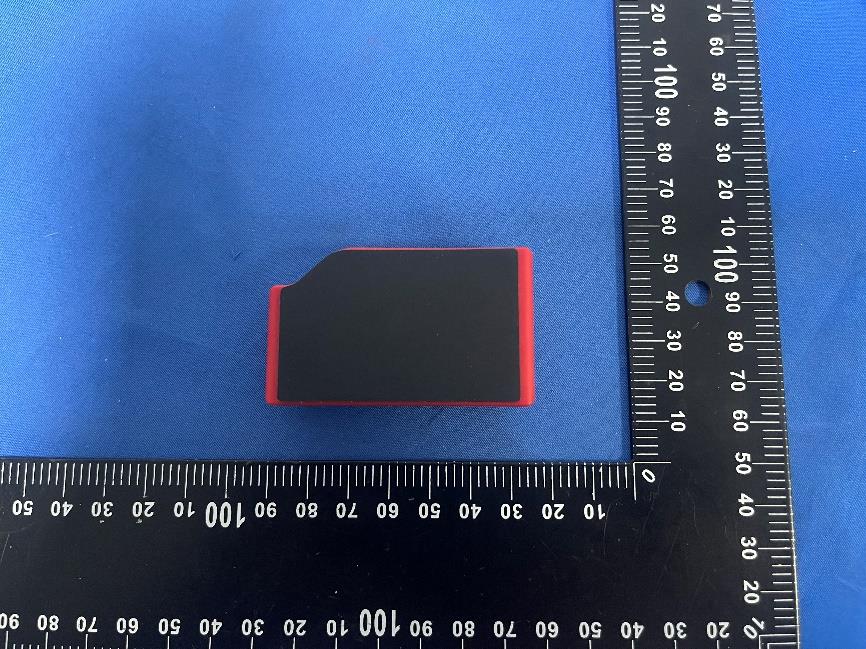

FCC ID: 2BVWN-Y-01 External Photos of the EUT FCC ID: 2BVWN-Y-01 FCC ID: 2BVWN-Y-01 FCC ID: 2BVWN-Y-01 FCC ID: 2BVWN-Y-01

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BVWN-Y-01

FCC ID: 2BVWN-Y-01 Internal Photos of the EUT FCC ID: 2BVWN-Y-01 BT ANT FCC ID: 2BVWN-Y-01 FCC ID: 2BVWN-Y-01 FCC ID: 2BVWN-Y-01

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA26042700202 2BVWN-Y-01 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : May 08, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Yipingfan Technology Co., Ltd. Address............................................ : Room 510, Building F, Dingfeng Technology Industrial Park, Huafan Road, Dalang Subdistrict, Longhua District, Shenzhen, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Sports Headband Bluetooth Headphones Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Yipingfan Technology Co., Ltd. Model/Type reference ...................... : Y-01 Listed Models ................................... : N/A Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA26042700202 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Sports Headband Bluetooth Headphones Model /Type : Y-01 Listed Models : N/A Applicant : Shenzhen Yipingfan Technology Co., Ltd. Address : Room 510, Building F, Dingfeng Technology Industrial Park, Huafan Road, Dalang Subdistrict, Longhua District, Shenzhen, China Manufacturer : Shenzhen Yipingfan Technology Co., Ltd. Address : Room 510, Building F, Dingfeng Technology Industrial Park, Huafan Road, Dalang Subdistrict, Longhua District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26042700202 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 8 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA26042700202 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an Distr…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PCB antenna Model Y-01 Frequency range 2402MHz~2480MHz Manufacturer Shenzhen Yipingfan Technology Co., Ltd. Address Room 510, Building F, Dingfeng Technology Industrial Park, Huafan Road, Dalang Subdistrict, Longhua District, Shenzhen, China ANT Peak Gain 1.28 dBi 2. Antenna Photo: Length: 14.41mm Width: 5.57mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA26042700201 2BVWN-Y-01 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : May 08, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Yipingfan Technology Co., Ltd. Address ............................................ : Room 510, Building F, Dingfeng Technology Industrial Park, Huafan Road, Dalang Subdistrict, Longhua District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Sports Headband Bluetooth Headphones Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Yipingfan Technology Co., Ltd. Model/Type reference ...................... : Y-01 Listed Models ................................... : N/A Modulation ....................................... : GFSK, Π/4DQPSK Frequency ........................................ : From 2402MHz to 2480MHz Ratings ............................................. : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA26042700201 Page 2 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Sports Headband Bluetooth Headphones Model /Type : Y-01 Listed Models : N/A Applicant : Shenzhen Yipingfan Technology Co., Ltd. Address : Room 510, Building F, Dingfeng Technology Industrial Park, Huafan Road, Dalang Subdistrict, Longhua District, Shenzhen, China Manufacturer : Shenzhen Yipingfan Technology Co., Ltd. Address : Room 510, Building F, Dingfeng Technology Industrial Park, Huafan Road, Dalang Subdistrict, Longhua District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26042700201 Page 3 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions ........................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2BVWN-Y-01 Company : Shenzhen Yipingfan Technology Co., Ltd. EUT : Sports Headband Bluetooth Headphones Model Number : Y-01 Report No. : CTA26042700201 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.936 2401.553 2402.489 --- --- 2441 0.954 2440.544 2441.498 --- --- 2480 0.936 2479.556 2480.492 --- --- 2DH5 Ant1 2402 1.287 2401.376 2402.663 --- --- 2441 1.338 2440.337 2441.675 --- --- 2480 1.329 2479.346 2480.675 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 6 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.86636 2401.5784 2402.4447 --- --- 2441 0.87232 2440.5762 2441.4485 --- --- 2480 0.86404 2479.5828 2480.4468 --- --- 2DH5 Ant1 2402 1.1983 2401.4114 2402.6097 --- --- 2441 1.1903 2440.4165 2441.6068 --- --- 2480 1.1881 2479.4174 2480.6055 --- --- 7 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 8 2DH5_Ant1_2402 2DH5_Ant1_2441 9 2DH5_Ant1_2480 10 Appendix C: Maximum conducted output power Test Result Peak Left: Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -6.01 ≤20.97 PASS 2441 -6.06 ≤20.97 PASS 2480 -6.06 ≤20.97 PASS 2DH5 Ant1 2402 -6.85 ≤20.97 PASS 2441 -6.84 ≤20.97 PASS 2480 -6.84 ≤20.97 PASS Right: Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -6.45 ≤20.97 PASS 2441 -6.18 ≤20.97 PASS 2480 -6.36 ≤20.97 PASS 2DH5 Ant1 2402 -6.42 ≤20.97 PASS 2441 -6.31 ≤20.97 PASS 2480 -6.49 ≤20.97 PASS 11 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.006 ≥0.954 PASS 2DH5 Ant1 Hop 0.972 ≥0.892 PASS 12 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 13 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.408 314 0.128 ≤0.4 PASS DH3 Ant1 Hop 1.664 158 0.263 ≤0.4 PASS DH5 Ant1 Hop 2.912 102 0.297 ≤0.4 PASS 2DH1 Ant1 Hop 0.417 318 0.133 ≤0.4 PASS 2DH3 Ant1 Hop 1.668 170 0.284 ≤0.4 PASS 2DH5 Ant1 Hop 2.916 105 0.306 ≤0.4 PASS 14 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 15 DH5_Ant1_Hop 16 2DH1_Ant1_Hop 2DH3_Ant1_Hop 17 2DH5_Ant1_Hop 18 19 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 20 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 21 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -6.94 -57.12 ≤-26.94 PASS High 2480 -6.74 -57.46 ≤-26.74 PASS Low Hop_2402 -10.56 -58.11 ≤-30.56 PASS High Hop_2480 -9.93 -57.02 ≤-29.93 PASS 2DH5 Ant1 Low 2402 -9.46 -57.99 ≤-29.46 PASS High 2480 -11.10 -56.92 ≤-31.1 PASS Low Hop_2402 -11.02 -57.67 ≤-31.02 PASS High Hop_2480 -9.46 -57.38 ≤-29.46 PASS 22 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 23 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 24 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 25 26 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -6.92 -6.92 --- PASS 30~1000 -6.92 -67.66 ≤-26.92 PASS 1000~26500 -6.92 -51.86 ≤-26.92 PASS 2441 Reference -7.21 -7.21 --- PASS 30~1000 -7.21 -67.49 ≤-27.21 PASS 1000~26500 -7.21 -51.42 ≤-27.21 PASS 2480 Reference -7.56 -7.56 --- PASS 30~1000 -7.56 -67.9 ≤-27.56 PASS 1000~26500 -7.56 -50.63 ≤-27.56 PASS 2DH5 Ant1 2402 Reference -10.39 -10.39 --- PASS 30~1000 -10.39 -67.99 ≤-30.39 PASS 1000~26500 -10.39 -56.32 ≤-30.39 PASS 2441 Reference -10.75 -10.75 --- PASS 30~1000 -10.75 -67.81 ≤-30.75 PASS 1000~26500 -10.75 -55.7 ≤-30.75 PASS 2480 Reference -11.91 -11.91 --- PASS 30~1000 -11.91 -67.6 ≤-31.91 PASS 1000~26500 -11.91 -56.29 ≤-31.91 PASS 27 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 28 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 29 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 30 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 31 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference 32 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 33 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 34 35 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.91 3.75 77.60 1.10 --- --- 2DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.91 3.74 77.81 1.09 --- ---

36 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 37 2DH5_Ant1_2402 2DH5_Ant1_2441 38 2DH5_Ant1_2480 39 Appendix J: Emissions in Restricted Bands Test Result TestMode Antenna ChName Freq(M Hz) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict DH5 Ant1 Low 2402 AV 2310.000 -59.56 2.00 1.10 38.74 ≤54 PASS AV 2388.200 -58.49 2.00 1.10 39.81 ≤54 PASS AV 2390.000 -58.97 2.00 1.10 39.33 ≤54 PASS Peak 2310.000 -51.41 2.00 0.00 45.79 ≤74 PASS Peak 2386.310 -47.79 2.00 0.00 49.41 ≤74 PASS Peak 2390.000 -51.3 2.00 0.00 45.90 ≤74 PASS High 2480 AV 2483.500 -58.73 2.00 1.10 39.57 ≤54 PASS AV 2483.920 -57.82 2.00 1.10 40.48 ≤54 PASS AV 2500.000 -59.28 2.00 1.10 39.02 ≤54 PASS Peak 2483.500 -50.16 2.00 0.00 47.04 ≤74 PASS Peak 2492.720 -47.86 2.00 0.00 49.34 ≤74 PASS Peak 2500.000 -50.06 2.00 0.00 47.14 ≤74 PASS 2DH5 Ant1 Low 2402 AV 2310.000 -60.17 2.00 1.09 38.12 ≤54 PASS AV 2379.170 -58.51 2.00 1.09 39.78 ≤54 PASS AV 2390.000 -59.74 2.00 1.09 38.55 ≤54 PASS Peak 2310.000 -51.94 2.00 0.00 45.26 ≤74 PASS Peak 2384.945 -48.86 2.00 0.00 48.34 ≤74 PASS Peak 2390.000 -51.34 2.00 0.00 45.86 ≤74 PASS High 2480 AV 2483.500 -58.49 2.00 1.09 39.80 ≤54 PASS AV 2483.840 -58.15 2.00 1.09 40.14 ≤54 PASS AV 2500.000 -59.26 2.00 1.09 39.03 ≤54 PASS Peak 2483.500 -51.08 2.00 0.00 46.12 ≤74 PASS Peak 2492.560 -48.06 2.00 0.00 49.14 ≤74 PASS Peak 2500.000 -51.87 2.00 0.00 45.33 ≤74 PASS Note： Note： The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 40 Test Graphs DH5_Ant1_Low_2402_AV DH5_Ant1_Low_2402_Peak DH5_Ant1_High_2480_AV 41 DH5_Ant1_High_2480_Peak 2DH5_Ant1_Low_2402_AV 42 2DH5_Ant1_Low_2402_Peak 2DH5_Ant1_High_2480_AV 2DH5_Ant1_High_2480_Peak 43
