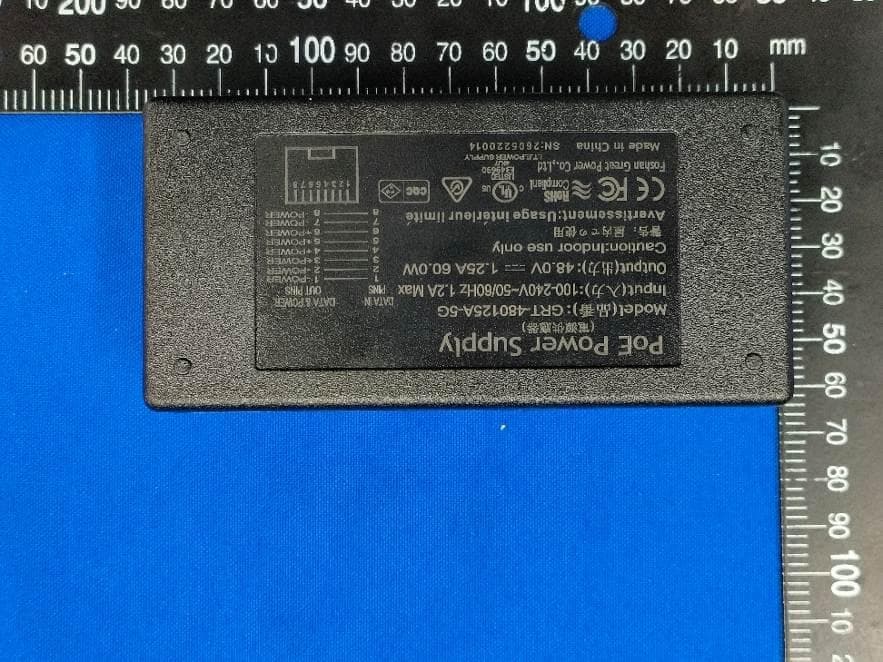

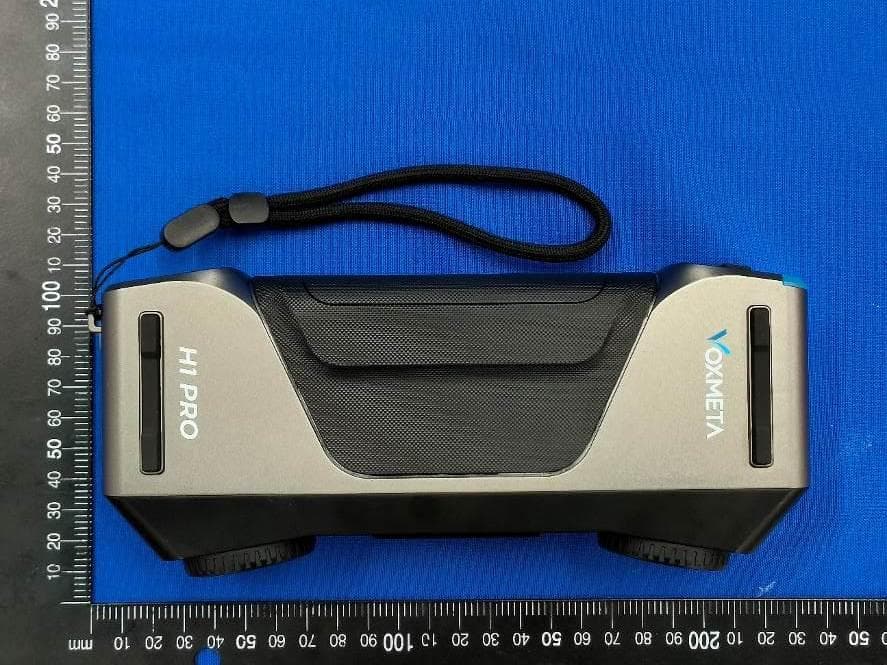

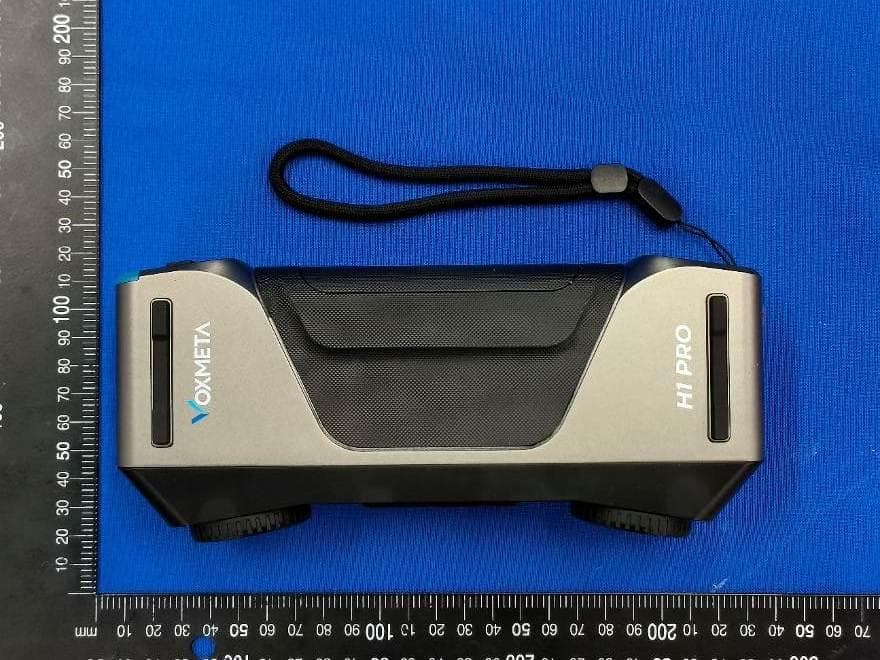

2BW84-VISION3DHandheld Laser 3D Scanner

` Report No.: SUCR260700060903 Page: 1 of 4 AppendixA DetailedSystemCheckResults 1.SystemPerformanceCheck SystemPerformanceCheck5250MHz SystemPerformanceCheck5750MHz Date: 2026/7/26 Test Laboratory: SGS-SAR Lab System Performance Check 5.25GHz Head DUT: D5GHzV2; Type: Dipole; Serial: 1174 Communication System: UID 0, CW (0); Frequency: 5250 MHz;Duty Cycle: 1:1 3 Medium: HSL;Medium parameters used: f = 5250 MHz; σ = 4.685 S/m; ε = 35.752; ρ = 1000 kg/m r Phantom section: Flat Section DASY 5 Configuration: lProbe: EX3DV4 -SN3793; ConvF(5.1, 5.1, 5.1); Calibrated: 2026/4/8 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1374; Calibrated: 2026/2/2 lPhantom: SAM 8; Type: SAM; Serial: 1824 lDASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Body/d=10mm, Pin=100mW, f=5250 MHz/Area Scan (8x8x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 14.7 W/kg Body/d=10mm, Pin=100mW, f=5250 MHz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 67.73 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 33.3 W/kg SAR(1 g) = 7.2 W/kg; SAR(10 g) = 2.06 W/kg Smallest distance from peaks to all points 3 dB below = 7.9 mm Ratio of SAR at M2 to SAR at M1 = 60.1% Maximum value of SAR (measured) = 19.4 W/kg 0 dB = 14.7 W/kg = 11.67 dBW/kg Date: 2026/7/29 Test Laboratory: SGS-SAR Lab System Performance Check 5.75GHz Head DUT: D5GHzV2; Type: Dipole; Serial: 1174 Communication System: UID 0, CW (0); Frequency: 5750 MHz;Duty Cycle: 1:1 Medium: HSL5G;Medium parameters used: f = 5750 MHz; σ = 5.336 S/m; ε r = 34.706; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: lProbe: EX3DV4 -SN3793; ConvF(4.66, 4.66, 4.66); Calibrated: 2026/4/8 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1374; Calibrated: 2026/2/2 lPhantom: SAM 8; Type: SAM; Serial: 1824 lDASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Body/d=10mm, Pin=100mW, f=5750 MHz/Area Scan (8x8x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 15.5 W/kg Body/d=10mm, Pin=100mW, f=5750 MHz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 45.89 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 35.1 W/kg SAR(1 g) = 7.92 W/kg; SAR(10 g) = 2.26 W/kg Smallest distance from peaks to all points 3 dB below = 7.2 mm Ratio of SAR at M2 to SAR at M1 = 61.9% Maximum value of SAR (measured) = 21.0 W/kg 0 dB = 15.5 W/kg = 11.91 dBW/kg ` Report No.: SUCR260700060903 Page: 4 of 4 - End of the Appendix -

Shenzhen Accurate Technology Co., Ltd. No.: 2504U35143E-RF Test Photos Test Photos Page 1 / 3 Photo of Power Line Conducted Emission Measurement Shenzhen Accurate Technology Co., Ltd. No.: 2504U35143E-RF Test Photos Test Photos Page 2 / 3 Radiated Spurious Emissions Test View (9kHz-30MHz) Radiated Spurious Emissions Test View (30MHz- 1GHz) Shenzhen Accurate Technology Co., Ltd. No.: 2504U35143E-RF Test Photos Test Photos Page 3 / 3 Radiated Spurious Emissions Test View (1GHz-18GHz) Radiated Spurious Emissions Test View (Above 18GHz) ***** END *****

Page: 1 of 4 TRF No. SUZSCONN-TRF-CR001A_A_Jun 1 st ,2026 South of No. 6 Plant, No. 1, RunSheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone 215123 t (86-512) 6229 2980 www.sgsgroup.com.cn SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Connectivity Laboratory Member of the SGS Group （SGS SA） Appendix A.3 Test Setup Photo for SUCR2607000609AT Page: 2 of 4 TRF No. SUZSCONN-TRF-CR001A_A_Jun 1 st ,2026 South of No. 6 Plant, No. 1, RunSheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone 215123 t (86-512) 6229 2980 www.sgsgroup.com.cn SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Connectivity Laboratory Member of the SGS Group （SGS SA） Test Setup Photo Conducted Emissions at AC Power Line (150kHz-30MHz) Radiated Emissions (9kHz-30MHz) Page: 3 of 4 TRF No. SUZSCONN-TRF-CR001A_A_Jun 1 st ,2026 South of No. 6 Plant, No. 1, RunSheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone 215123 t (86-512) 6229 2980 www.sgsgroup.com.cn SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Connectivity Laboratory Member of the SGS Group （SGS SA） Radiated Emissions (30MHz-1GHz) Radiated Spurious Emissions (1-18GHz) Page: 4 of 4 TRF No. SUZSCONN-TRF-CR001A_A_Jun 1 st ,2026 South of No. 6 Plant, No. 1, RunSheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone 215123 t (86-512) 6229 2980 www.sgsgroup.com.cn SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Connectivity Laboratory Member of the SGS Group （SGS SA） Radiated Spurious Emissions (18-40GHz) RF Conducted setup - End of the Appendix -

Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 34 of 45 802.11ac40_5190MHz_Chain 0 802.11ac40_5230MHz_Chain 0 802.11ac40_5190MHz_Chain 1 802.11ac40_5230MHz_Chain 1 802.11ac80_5210MHz_Chain 0 802.11ac80_5210MHz_Chain 1 Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 35 of 45 802.11ax20_5180MHz_RU_Full_Chain 0 802.11ax20_5200MHz_RU_Full_Chain 0 802.11ax20_5240MHz_RU_Full_Chain 0 802.11ax20_5180MHz_RU_Full_Chain 1 802.11ax20_5200MHz_RU_Full_Chain 1 802.11ax20_5240MHz_RU_Full_Chain 1 Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 36 of 45 802.11ax40_5190MHz_RU_FULL_Chain 0 802.11ax40_5230MHz_RU_FULL_Chain 0 802.11ax40_5190MHz_RU_FULL_Chain 1 802.11ax40_5230MHz_RU_FULL_Chain 1 802.11ax80_5210MHz_RU_Full_Chain 0 802.11ax80_5210MHz_RU_Full_Chain 1 Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 37 of 45 5725-5850MHz 802.11a_5745MHz_Chain 0 802.11a_5785MHz_Chain 0 802.11a_5825MHz_Chain 0 802.11a_5745MHz_Chain 1 802.11a_5785MHz_Chain 1 802.11a_5825MHz_Chain 1 Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 38 of 45 802.11ac20_5745MHz_Chain 0 802.11ac20_5785MHz_Chain 0 802.11ac20_5825MHz_Chain 0 802.11ac20_5745MHz_Chain 1 802.11ac20_5785MHz_Chain 1 802.11ac20_5825MHz_Chain 1 Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 39 of 45 802.11ac40_5755MHz_Chain 0 802.11ac40_5795MHz_Chain 0 802.11ac40_5755MHz_Chain 1 802.11ac40_5795MHz_Chain 1 802.11ac80_5775MHz_Chain 0 802.11ac80_5775MHz_Chain 1 Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 40 of 45 802.11ax20_5745MHz_RU_Full_Chain 0 802.11ax20_5785MHz_RU_Full_Chain 0 802.11ax20_5825MHz_RU_Full_Chain 0 802.11ax20_5745MHz_RU_Full_Chain 1 802.11ax20_5785MHz_RU_Full_Chain 1 802.11ax20_5825MHz_RU_Full_Chain 1 Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 41 of 45 802.11ax40_5755MHz_RU_FULL_Chain 0 802.11ax40_5795MHz_RU_FULL_Chain 0 802.11ax40_5755MHz_RU_FULL_Chain 1 802.11ax40_5795MHz_RU_FULL_Chain 1 802.11ax80_5775MHz_RU_Full_Chain 0 802.11ax80_5775MHz_RU_Full_Chain 1 Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 42 of 45 Duty Cycle 5150-5250MHz Mode Antenna Test Frequency (MHz) Ton (ms) Ton+Toff (ms) Duty Cycle (%) Duty Cycle Factor(dB) 1/Ton (Hz) VBW Setting (kHz) 802.11a Chain 0 5200 4.123 4.209 97.96 0.09 243 0.300 802.11ac20 Chain 0 5200 2.870 2.897 99.07 / / 0.010 802.11ac40 Chain 0 5190 2.224 2.250 98.84 / / 0.010 802.11ac80 Chain 0 5210 1.043 1.065 97.93 0.09 959 1 802.11ax20_RU_FULL Chain 0 5200 2.794 2.822 99.01 / / 0.010 802.11ax40_RU_FULL Chain 0 5190 1.426 1.452 98.21 / / 0.010 802.11ax80_RU_FULL Chain 0 5210 1.426 1.452 98.21 / / 0.010 5725-5850MHz Mode Antenna Test Frequency (MHz) Ton (ms) Ton+Toff (ms) Duty Cycle (%) Duty Cycle Factor(dB) 1/Ton (Hz) VBW Setting (kHz) 802.11a Chain 0 5785 4.116 4.202 97.95 0.09 243 0.300 802.11ac20 Chain 0 5785 2.870 2.897 99.07 / / 0.010 802.11ac40 Chain 0 5755 2.214 2.240 98.84 / / 0.010 802.11ac80 Chain 0 5775 1.038 1.059 98.02 / / 0.010 802.11ax20_RU_FULL Chain 0 5785 2.788 2.816 99.01 / / 0.010 802.11ax40_RU_FULL Chain 0 5755 2.788 2.815 99.04 / / 0.010 802.11ax80_RU_FULL Chain 0 5775 1.426 1.452 98.21 / / 0.010 Duty Cycle = Ton/(Ton+Toff)*100% Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 43 of 45 5150-5250MHz 802.11a_5200MHz_Chain 0 802.11ac20_5200MHz_Chain 0 802.11ac40_5190MHz_Chain 0 802.11ac80_5210MHz_Chain 0 802.11ax20_5200MHz_RU_FULL_Chain 0 802.11ax40_5190MHz_RU_FULL_Chain 0 Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 44 of 45 5725-5850MHz 802.11ax80_5210MHz_RU_FULL_Chain 0 802.11a_5785MHz_Chain 0 802.11ac20_5785MHz_Chain 0 802.11ac40_5755MHz_Chain 0 802.11ac80_5775MHz_Chain 0 802.11ax20_5785MHz_RU_FULL_Chain 0 Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 45 of 45 802.11ax40_5755MHz_RU_FULL_Chain 0 802.11ax80_5775MHz_RU_FULL_Chain 0

Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 1 of 45 Appendix D(5G WIFI-RF Conducted Test Result) Test Information: Sample No.: 3785-2 Test Date: 2025/08/07~2025/09/05 Test Site: RF Test Mode: Transmitting Tester: Cayde Hou Test Result: Pass Environmental Conditions: Temperature: (°C) 25.8~26.8 Relative Humidity: (%) 49~57 ATM Pressure: (kPa) 99.3~100.2 Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 2 of 45 Emission Bandwidth 26dB Emission Bandwidth 5150-5250MHz Mode Antenna Test Frequency (MHz) Result (MHz) 802.11a Chain 0 5180 21.761 5200 21.752 5240 21.756 Chain 1 5180 21.806 5200 21.713 5240 21.508 802.11ac20 Chain 0 5180 21.651 5200 21.644 5240 21.648 Chain 1 5180 21.546 5200 21.609 5240 21.761 802.11ac40 Chain 0 5190 41.642 5230 41.642 Chain 1 5190 41.542 5230 41.742 802.11ac80 Chain 0 5210 85.686 Chain 1 5210 88.488 802.11ax20_RU_Full Chain 0 5180 21.651 5200 21.648 5240 21.756 Chain 1 5180 21.597 5200 21.651 5240 21.590 802.11ax40_RU_FULL Chain 0 5190 41.642 5230 41.642 Chain 1 5190 41.642 5230 41.441 802.11ax80_RU_Full Chain 0 5210 85.485 Chain 1 5210 85.485 Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 3 of 45 6dB Emission Bandwidth 5725-5850MHz Mode Antenna Test Frequency (MHz) Result (MHz) Limit (MHz) Verdict 802.11a Chain 0 5745 16.466 0.5 Pass 5785 16.466 0.5 Pass 5825 16.466 0.5 Pass Chain 1 5745 16.466 0.5 Pass 5785 16.466 0.5 Pass 5825 16.466 0.5 Pass 802.11ac20 Chain 0 5745 17.818 0.5 Pass 5785 17.868 0.5 Pass 5825 17.818 0.5 Pass Chain 1 5745 17.818 0.5 Pass 5785 17.818 0.5 Pass 5825 17.818 0.5 Pass 802.11ac40 Chain 0 5755 36.737 0.5 Pass 5795 36.737 0.5 Pass Chain 1 5755 36.737 0.5 Pass 5795 36.737 0.5 Pass 802.11ac80 Chain 0 5775 75.475 0.5 Pass Chain 1 5775 75.475 0.5 Pass 802.11ax20_RU_Full Chain 0 5745 19.169 0.5 Pass 5785 19.219 0.5 Pass 5825 19.219 0.5 Pass Chain 1 5745 19.169 0.5 Pass 5785 19.219 0.5 Pass 5825 19.219 0.5 Pass 802.11ax40_RU_FULL Chain 0 5755 38.338 0.5 Pass 5795 38.338 0.5 Pass Chain 1 5755 38.338 0.5 Pass 5795 38.338 0.5 Pass 802.11ax80_RU_Full Chain 0 5775 76.476 0.5 Pass Chain 1 5775 77.077 0.5 Pass Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 4 of 45 5150-5250MHz 802.11a_5180MHz_Chain 0 802.11a_5200MHz_Chain 0 802.11a_5240MHz_Chain 0 802.11a_5180MHz_Chain 1 802.11a_5200MHz_Chain 1 802.11a_5240MHz_Chain 1 Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 5 of 45 802.11ac20_5180MHz_Chain 0 802.11ac20_5200MHz_Chain 0 802.11ac20_5240MHz_Chain 0 802.11ac20_5180MHz_Chain 1 802.11ac20_5200MHz_Chain 1 802.11ac20_5240MHz_Chain 1 Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 6 of 45 802.11ac40_5190MHz_Chain 0 802.11ac40_5230MHz_Chain 0 802.11ac40_5190MHz_Chain 1 802.11ac40_5230MHz_Chain 1 802.11ac80_5210MHz_Chain 0 802.11ac80_5210MHz_Chain 1 Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 7 of 45 802.11ax20_5180MHz_RU_Full_Chain 0 802.11ax20_5200MHz_RU_Full_Chain 0 802.11ax20_5240MHz_RU_Full_Chain 0 802.11ax20_5180MHz_RU_Full_Chain 1 802.11ax20_5200MHz_RU_Full_Chain 1 802.11ax20_5240MHz_RU_Full_Chain 1 Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 8 of 45 802.11ax40_5190MHz_RU_FULL_Chain 0 802.11ax40_5230MHz_RU_FULL_Chain 0 802.11ax40_5190MHz_RU_FULL_Chain 1 802.11ax40_5230MHz_RU_FULL_Chain 1 802.11ax80_5210MHz_RU_Full_Chain 0 802.11ax80_5210MHz_RU_Full_Chain 1 Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 9 of 45 5725-5850MHz 802.11a_5745MHz_Chain 0 802.11a_5785MHz_Chain 0 802.11a_5825MHz_Chain 0 802.11a_5745MHz_Chain 1 802.11a_5785MHz_Chain 1 802.11a_5825MHz_Chain 1 Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 10 of 45 802.11ac20_5745MHz_Chain 0 802.11ac20_5785MHz_Chain 0 802.11ac20_5825MHz_Chain 0 802.11ac20_5745MHz_Chain 1 802.11ac20_5785MHz_Chain 1 802.11ac20_5825MHz_Chain 1 Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 11 of 45 802.11ac40_5755MHz_Chain 0 802.11ac40_5795MHz_Chain 0 802.11ac40_5755MHz_Chain 1 802.11ac40_5795MHz_Chain 1 802.11ac80_5775MHz_Chain 0 802.11ac80_5775MHz_Chain 1 Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 12 of 45 802.11ax20_5745MHz_RU_Full_Chain 0 802.11ax20_5785MHz_RU_Full_Chain 0 802.11ax20_5825MHz_RU_Full_Chain 0 802.11ax20_5745MHz_RU_Full_Chain 1 802.11ax20_5785MHz_RU_Full_Chain 1 802.11ax20_5825MHz_RU_Full_Chain 1 Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 13 of 45 802.11ax40_5755MHz_RU_FULL_Chain 0 802.11ax40_5795MHz_RU_FULL_Chain 0 802.11ax40_5755MHz_RU_FULL_Chain 1 802.11ax40_5795MHz_RU_FULL_Chain 1 802.11ax80_5775MHz_RU_Full_Chain 0 802.11ax80_5775MHz_RU_Full_Chain 1 Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 14 of 45 99% Occupied Bandwidth 5150-5250MHz Mode Antenna Test Frequency (MHz) 99% OBW (MHz) 802.11a Chain 0 5180 16.900 5200 16.900 5240 16.900 Chain 1 5180 16.900 5200 16.950 5240 16.750 802.11ac20 Chain 0 5180 17.850 5200 17.900 5240 17.850 Chain 1 5180 17.850 5200 17.900 5240 17.850 802.11ac40 Chain 0 5190 36.900 5230 36.700 Chain 1 5190 36.800 5230 36.600 802.11ac80 Chain 0 5210 75.600 Chain 1 5210 76 802.11ax20_RU_Full Chain 0 5180 19.100 5200 19.100 5240 19.050 Chain 1 5180 19.100 5200 19.100 5240 19.050 802.11ax40_RU_FULL Chain 0 5190 38 5230 38 Chain 1 5190 38 5230 38 802.11ax80_RU_Full Chain 0 5210 77.600 Chain 1 5210 77.600 Note: The 99% Occupied Bandwidth have not fall into the band 5250-5350MHz, please refer to the test plots of 99% Occupied Bandwidth. Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 15 of 45 5725-5850MHz Mode Antenna Test Frequency (MHz) 99% OBW (MHz) 802.11a Chain 0 5745 16.750 5785 16.800 5825 16.750 Chain 1 5745 16.850 5785 16.850 5825 16.750 802.11ac20 Chain 0 5745 17.900 5785 17.850 5825 17.850 Chain 1 5745 17.800 5785 17.800 5825 17.900 802.11ac40 Chain 0 5…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 1 of 173 Appendix C(5G WIFI-RSE Above 1GHz Test Result) Test Data 1GHz-40GHz Environmental Conditions Temperature: 25.4 to 26.3 °C Relative Humidity: 52 to 57 % ATM Pressure: 99.3 to 100.2 kPa Test Engineer: Kevin Lv Test Date: 2025-08-29 to 2025-09-05 EUT Operation Mode: Transmitting Test Result: Compliance, please refer to the below data. Note 1: For 1GHz-6.6GHz, the fundamental with band reject filter. Note 2: For 18GHz-40GHz, the maximum output power mode and channel: 802.11AX20 MIMO 5745MHz was tested.( Pre-scan) Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 2 of 173 802.11A Low Channel 1GHz-6.6GHz_HORIZONTAL Fundamental Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 3 of 173 802.11A Low Channel 1GHz-6.6GHz_VERTICAL Fundamental Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 4 of 173 802.11A Low Channel 6.6GHz-18GHz_HORIZONTAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 5 of 173 802.11A Low Channel 6.6GHz-18GHz_VERTICAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 6 of 173 802.11A Low Channel Bandedge_HORIZONTAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 7 of 173 802.11A Low Channel Bandedge_VERTICAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 8 of 173 802.11A Middle Channel 1GHz-6.6GHz_HORIZONTAL Fundamental Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 9 of 173 802.11A Middle Channel 1GHz-6.6GHz_VERTICAL Fundamental Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 10 of 173 802.11A Middle Channel 6.6GHz-18GHz_HORIZONTAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 11 of 173 802.11A Middle Channel 6.6GHz-18GHz_VERTICAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 12 of 173 802.11A High Channel 1GHz-6.6GHz_HORIZONTAL Fundamental Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 13 of 173 802.11A High Channel 1GHz-6.6GHz_VERTICAL Fundamental Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 14 of 173 802.11A High Channel 6.6GHz-18GHz_HORIZONTAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 15 of 173 802.11A High Channel 6.6GHz-18GHz_VERTICAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 16 of 173 802.11A High Channel Bandedge_HORIZONTAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 17 of 173 802.11A High Channel Bandedge_VERTICAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 18 of 173 802.11AC20 Low Channel 1GHz-6.6GHz_HORIZONTAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 19 of 173 802.11AC20 Low Channel 1GHz-6.6GHz_VERTICAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 20 of 173 802.11AC20 Low Channel 6.6GHz-18GHz_HORIZONTAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 21 of 173 802.11AC20 Low Channel 6.6GHz-18GHz_VERTICAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 22 of 173 802.11AC20 Low Channel Bandedge_HORIZONTAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 23 of 173 802.11AC20 Low Channel Bandedge_VERTICAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 24 of 173 802.11AC20 Middle Channel 1GHz-6.6GHz_HORIZONTAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 25 of 173 802.11AC20 Middle Channel 1GHz-6.6GHz_VERTICAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 26 of 173 802.11AC20 Middle Channel 6.6GHz-18GHz_HORIZONTAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 27 of 173 802.11AC20 Middle Channel 6.6GHz-18GHz_VERTICAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 28 of 173 802.11AC20 High Channel 1GHz-6.6GHz_HORIZONTAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 29 of 173 802.11AC20 High Channel 1GHz-6.6GHz_VERTICAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 30 of 173 802.11AC20 High Channel 6.6GHz-18GHz_HORIZONTAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 31 of 173 802.11AC20 High Channel 6.6GHz-18GHz_VERTICAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 32 of 173 802.11AC20 High Channel Bandedge_HORIZONTAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 33 of 173 802.11AC20 High Channel Bandedge_VERTICAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 34 of 173 802.11AC40 Low Channel 1GHz-6.6GHz_HORIZONTAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 35 of 173 802.11AC40 Low Channel 1GHz-6.6GHz_VERTICAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 36 of 173 802.11AC40 Low Channel 6.6GHz-18GHz_HORIZONTAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 37 of 173 802.11AC40 Low Channel 6.6GHz-18GHz_VERTICAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 38 of 173 802.11AC40 Low Channel Bandedge_HORIZONTAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 39 of 173 802.11AC40 Low Channel Bandedge_VERTICAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 40 of 173 802.11AC40 High Channel 1GHz-6.6GHz_HORIZONTAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 41 of 173 802.11AC40 High Channel 1GHz-6.6GHz_VERTICAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Page 42 of 173 802.11AC40 High Channel 6.6GHz-18GHz_HORIZONTAL Shenzhen Accurate Technology Co., Ltd. Report No.:2504U35143E-RF-00D Pag…

Text truncated - open the document above for the full version.

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA, or any agency of the Federal Government. The information marked “#” is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included but no need marked. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. Floor 1, KuMaKe Building, Dongzhou Community, Guangming Street, Guangming District, Shenzhen, Guangdong, China. Tel: +86 755-26503290 Web: www.atc-lab.com Rev:A/4.0(2024/11/01) Page 1 of 33 TR-4-E-R027 TEST REPORT Applicant Name : SHENZHEN OFEIXIN TECHNOLOGY LIMITED Address : Room 503, Building A3, Area B, Songbai Industrial Park, Guangming District, Shenzhen, China Report Number : 2504U35143E-RF-00D FCC ID: 2AT5W-O9201SB Test Standard (s) FCC PART 15.407 Sample Description Product Type: O9201SB Model No.: O9201SB Trade Mark: QOGRISYS Date Received: 2025-07-24 Report Date: 2025-09-12 Test Result: The EUT complied with the standards above. Prepared and Checked By: Approved By: Roger.Ling Bob.Liao EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: 2504U35143E-RF-00D Rev:A/4.0(2024/11/01) Page 2 of 33 TR-4-E-R027 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ................................................................................................................ 3 GENERAL INFORMATION ............................................................................................................................ 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ........................................................................ 4 OBJECTIVE ................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................... 4 TEST FACILITY .............................................................................................................................................. 5 MEASUREMENT UNCERTAINTY ....................................................................................................................... 5 SYSTEM TEST CONFIGURATION ............................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................... 6 EUT EXERCISE SOFTWARE AND POWER LEVEL # ............................................................................................ 7 SPECIAL ACCESSORIES ................................................................................................................................. 8 EQUIPMENT MODIFICATIONS .......................................................................................................................... 8 DUTY CYCLE ................................................................................................................................................. 8 SUPPORT EQUIPMENT LIST AND DETAILS ....................................................................................................... 8 EXTERNAL I/O CABLE .................................................................................................................................... 8 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................. 9 SUMMARY OF TEST RESULTS ................................................................................................................. 11 TEST EQUIPMENT LIST ............................................................................................................................. 12 FCC §15.203-ANTENNA REQUIREMENT .................................................................................................. 14 APPLICABLE STANDARD ............................................................................................................................... 14 ANTENNA CONNECTOR CONSTRUCTION ....................................................................................................... 14 FCC §15.407 (B) (8) §15.207 (A)-CONDUCTED EMISSIONS ................................................................... 15 APPLICABLE STANDARD ............................................................................................................................... 15 EUT SETUP ................................................................................................................................................ 15 EMI TEST RECEIVER SETUP ........................................................................................................................ 15 TEST PROCEDURE ...................................................................................................................................... 15 CALCULATION ............................................................................................................................................. 16 TEST DATA ................................................................................................................................................. 16 FCC §15.205 & §15.209 & §15.407(B) (1), (4), (8), (9), (10)-UNDESIRABLE EMISSION ......................... 19 APPLICABLE STANDARD ...............................................................................…

Text truncated - open the document above for the full version.

深圳众城无线技术有限公司 Shenzhenunitywirelesstechnologyco.,ltd Room 1002/1012, Building 7E, Evergrande Fashion Wisdom Valley, Dalang, Longhua District, Shenzhen, China 电话:0755-23285621传真:0755-23285621 承认书 客户名称:武汉惟景三维科技有限公司 客户料号: 客户项目:S17(70线长) 众城料号:01.02.0413 产品描述:FPCWIFI天线L=70mm，0.81黑色，四代端子 日期:2026.6.10 研发确认 结构： 签章： 射频： 品质确认品质: 客户回签 项目/工程部： 签章： 采购部： 深圳众城无线技术有限公司 第 2 页-共11页- 目录 一、封面(Cover)―――――――――――――――――――――1 二、目录(Index)――――――――――――――――――――――2 三、文件制定（Documentformulation）―――――――――――3 四、工程图纸(ProductDrawing)―――――――――――――――4 五、产品参数(ProductParameter)――――――――――――――5~7 六、测试设备(TestEquipment＆Conditions)――――――――――8 七、环境与可靠性测试(reliabilitytesting)―――――――――――9~10 八、包装规范(Packagespecification)―――――――――――――11 深圳众城无线技术有限公司 第 3 页-共11页- 文件制定/修订/废止履历表: 版本:日期日期制定/修订内容制定核准 V1.0 2022.5.31 首次制定物料 初次制定 深圳众城无线技术有限公司 第 4 页-共11页- 工程图纸： 深圳众城无线技术有限公司 第 5 页-共11页- 产品参数： 品名 项目 FPC Model FPC 频率范围 （MHz） 5000-5900 Frequency （MHz） 5000-5900 带宽（MHz）100 Bandwidth（MHz） 100 极化方式线极化 PolarizationType LIEARpolarization 天线增益 （dBi） 2.96Gain（dBi）2.96 电压驻波比≤2 VSWR ≤2 输入阻抗 （Ω） 50 InputImpedance（Ω） 50 同轴线长度 （mm） 70mm Cablelength（mm） 70mm 电缆线颜色黑色 CableColour Black 接口形式四代端子 ConnectorType IPEX4 工作温度 （°C） -40~+85 Operation temperature（°C） -40~+85 存储温度 （°C） -40~+85 Storetemperat （°C） -40~+85 深圳众城无线技术有限公司 第 6 页-共11页- 天线匹配(原天线匹配) E1E2E3 N/A10PFN/A 天线摆放位置： 深圳众城无线技术有限公司 第 7 页-共11页- 我司天线WIFI无源测试数据： 天线苹果图： 深圳众城无线技术有限公司 第 8 页-共11页- 测试设备 量测仪器:微波暗室,网络分析仪,标准天线. 微波暗室说明: 这是本公司设置在深圳的微波暗室，本微波暗室是属于一套远场量测系统,暗室的大小为7.0米x4.0 米x3.0米，静区尺寸(Quietzone)大小为15厘米x15厘米x15厘米。 图.1为微波暗室内的仪器设置及网络分析仪的联接图，发射天线(本暗室所使用发射天线的型号为TRC LPA0860800MHZ-6GHZ)到待测天线(AUT)的距离为1.35米，待测天线放置在旋转平台上,藉由控制转台旋转的 角度可对待测天线做概略性及较为准确的量测。 将待测天线放置于旋转台上,并测得其各个平面(ZY平面及ZX平面)的360度场强数据。再将待测天 线换置成标准偶极天线(本暗室所使用的标准偶极天线型号为TRCADseriesdipoleantenna800MHz~2500MHz) 将其360度的场强数据测出，以作换算增益标准值，经由式1的换算即可获得待测天线的增益值及方向图。 深圳众城无线技术有限公司 第 9 页-共11页- 环境与可靠性测试 项目参考标准、实验条件判断依据 样品数量 /不良数 量(PCS) 试验/ 测试设 备 碰撞GB/T2423.6-1995 加速度：200m/s2 碰撞脉冲持续时间：6ms 每分钟碰撞次数：40~80 次 总碰撞次数：垂直方向400 次，前后、 左右水平方向各300次， 共1000次。 应满足电特性要求，并且机 械性能正常，但外观出现的 碰痕，白化及弯曲等在允许 范围。 5/0碰撞实 验机器 振动GB/T 2423.10-1995试验Fc 频率：10~30；30~50Hz； 谐振点振幅：0.35mm 振幅：0.75mm 持续时间：X,Y&Z每个 方向0.5小时。 周期：1min； 实验完毕放置1小时后测 试。 及固件无松散、部件无破裂 或疲劳； 无原件脱落、无焊锡点断 裂； 电性能指标满足技术规格 要求； 5/0振动测 试机 保持力验证条件：接头与线材两 端各固定在接拔力机台夹 具上，拉拔力归零 验证方法：手动匀速进行 拉拔到产品IPEX接头与线 材脱落 >10N5/0拉拔力 测试机 跌落GB/T2423.8-95 从100cm高度跌落到地板 10次。GB/T2423.8-95 1.外观无显著异常 2.试验后各项电气性能符 合规格要求应满足电特性 要求，并且机械性能正常， 但外观出现的碰痕，白化及 弯曲等在允许范围。 5/0跌落测 试机 深圳众城无线技术有限公司 第 10 页-共11页- 高温储 存 GB/T2423.2-2001 试验B 环境条件：+85±3°Cfor 96H 实验完毕在室温放置24 小时后测试。 表面涂层应无剥落、裂痕起 皱、分离等； 非金属结构件未发生永久 性变形、开裂、脱胶等； 移动元器件无卡死或脱开； 电性能指标满足技术规格 要求 10/0温湿度 循环实 验箱 低温储 存 GB/T2423.1-2001 试验A 环境条件：-40±3°Cfor 96H 实验完毕在室温放置24 小时后测试。 表面涂层应无剥落、裂痕起 皱、分离等； 非金属结构件未发生永久 性变形、开裂、脱胶等； 移动元器件无卡死或脱开； 电性能指标满足技术规格 要求 10/0温湿度 循环实 验箱 高低温 循环 GB/T2423.22-2002 试验N： 放置天线于T1=-40°C恒温 箱中，持续30分钟，然后 用60分钟提高温度到 T2=80°C，然后保持该温度 30分钟，相对湿度为 50%RH，重复该循环20次。 表面涂层应无剥落、裂痕起 皱、分离等； 非金属结构件未发生永久 性变形、开裂、脱胶等； 移动元器件无卡死或脱开； 电性能指标满足技术规格 要求 10/0温湿度 循环实 验箱 湿热试 验 GB/T2423.3-1993试验Ca: 环境条件：40±2°C、相对 湿度80~90%，放置96小 时。 实验完毕在室温放置24 小时后测试。 1.外观无显著异常2.试验 后各项电气性能 符合规格要求机械性能电 性能满足规格范围。 10/0温湿度 循环实 验箱 盐雾试 验 GB/T2423.18-2000试验 Kb 将试验品放置在盐雾试验 箱内，用浓度为（5±1）%， 温度为35°C±1°C，沉降率 为(1-2)ml/50mm2*h的盐 水喷射试验品，48小时后， 检查外观。 无生锈现象，机械性能电性 能满足规格范围。 5/0盐水喷 雾实验 机 深圳众城…

Text truncated - open the document above for the full version.
