2BWAP-ATBRC51remote control

RemoteControlInstructionManual ProductName:RemoteControlProductModel:RC-51 Externaldimensions:Communicationmethod:Bluetooth abasicaccessoryformodernTVsandplaysanindispensableroleinTVs.Whenusing it,youneedtopayattentiontosomebasicoperations.Thefollowingisadetailed instructionmanualforusingaBluetoothvoiceremotecontrol. Buttonfunctionintroduction: 遥控器功能说明(SoftwareFunctionDescription): 1.蓝牙逻辑要求(Bluetoothlogicrequirements):1.1,配对(pair):同时按住遥控器 上的[主页]键和[返回]键约3秒工作指示灯闪烁,表示进入配对模式。打开主机蓝牙-- 点击主机蓝牙--搜索设备--连接"RC-51"设备名并连接。几秒钟后停止闪烁表示配对成 功,若一直无法配对,30秒后快闪2次并熄灭并退出配对模式。Simultaneouslypress andholdthe[Home]and[Return]keysontheremotecontrolforabout3seconds,and theworkindicatorlightwillflash,indicatingthatpairingmodehasbeenentered.Open thehostBluetooth-clickonthehostBluetooth-searchfordevices-connecttothe "RC-51"devicenameandconnect.Stoppingflashingafterafewsecondsindicates successfulpairing.Ifpairingisstillnotpossible,itwillflashtwiceafter30seconds,turn off,andexitpairingmode.蓝牙设备名称(Bluetoothdevicename):RC-51蓝牙设备 ID和识别码(BluetoothdeviceIDandidentificationcode):VID=0x0B7A；PID= 0x0001。1.2,回连(BacktoLink):在有配对信息的的情况下，按任意键，发送回连广 播5s(POWER键和组合键不发送回连广播)。在4m处遥控器和投影仪保持连接至少 2h，不出现断连；在6m处遥控器和投影仪保持连接至少1h，不出现断连。Withpairing informationavailable,pressanykeytosenda5-secondreconnection(POWERkeyand combinationkeydonotsendbacktothebroadcast).broadcastKeeptheremote controlandprojectorconnectedforatleast2hoursatadistanceof4meterswithout anydisconnection;Keeptheremotecontrolandprojectorconnectedforatleast1hour atadistanceof6meterswithoutanydisconnection.1.3,休眠和唤醒(Sleepand wake-up):蓝牙连接时，当遥控器无操作1H后，遥控器进入休眠状态。在休眠模式下， 遥控器按键操作可唤醒系统进入正常工作状态。WhenconnectedviaBluetooth,the remotecontrolenterssleepmodeafter1hourofinactivity.Insleepmode,remote controlbuttonoperationcanwakeupthesystemtoenternormalworkingstate.2.支持 OTA(SupportOTA):要求与电视端完成遥控器的软件升级。在电视机启动时，检测 遥控器升级文件，若存在升级文件，则进行OTA升级，LED指示灯呈呼吸灯闪烁，此 时遥控器任何按键无作用，升级成功后，指示灯停止闪烁，遥控器正常可用。OTA失 败则退回旧版本正常使用，指示灯停止闪烁，待下次开机再检测升级。Requestto completethesoftwareupgradeoftheremotecontrolwiththeTVend.WhentheTVis started,checktheremotecontrolupgradefile.Ifthereisanupgradefile,performOTA upgrade.TheLEDindicatorlightwillflashasabreathinglight,andanybuttonsonthe remotecontrolwillnotwork.Aftertheupgradeissuccessful,theindicatorlightwill stopflashingandtheremotecontrolwillbetheavailablenormally.IfOTAfails,itwillbe returnedtotheoldversionfornormaluse,andindicatorlightwillstopflashing.The upgradewillbecheckedagainwhenthenextpoweristurnedon.3.状态指示要求 (Statusindicationrequirements):3.1,低电报警(Lowpoweralarm):当电池电压 低于2.4V时,每次用户按键，灯以1Hz闪烁3S。Whenthebatteryvoltageisbelow2.4V, thelightflashesfor3secondsat1Hzeverytimetheuserpressesabutton.3.2、指示灯 要求：要求内置LED指示灯，支持通过指示灯显示以下按键状态：Indicatorlight requirements:Itisrequiredtohaveabuilt-inLEDindicatorlightthatsupports displayingthefollowingbuttonstatusesthroughtheindicatorlight:3.3蓝牙配对：蓝 牙配对过程中的指示灯闪烁，如配对成功，指示灯长亮3秒；如30秒后配对失败，指 示灯熄灭；Bluetoothpairing:TheindicatorlightflashesduringtheBluetoothpairing process.Ifthepairingissuccessful,theindicatorlightstaysonfor3seconds;Ifpairing failsafter30seconds,theindicatorlightwillturnoff;3.4.蓝牙回连：回连成功，指示灯 闪烁或长亮3秒；Bluetoothreconnection:successfulreconnection,indicatorlight flashesorstaysonfor3seconds; FCCStatement Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliance couldvoidtheuser'sauthoritytooperatetheequipment. ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital device,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovide reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This equipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnotinstalled andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio communications.However,thereisnoguaranteethatinterferencewillnotoccurina particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,the userisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing measures: --Reorientorrelocatethereceivingantenna. --Increasetheseparationbetweentheequipmentandreceiver. --Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiver isconnected. --Consultthedealeroranexperiencedradio/TVtechnicianforhelp Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowing twoconditions(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemust acceptanyinterferencereceived,includinginterferencethatmaycauseundesired operation. FCCRFExposureWarningStatement: ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolled environment.Thisequipmentcanbeusedinportableexposureconditions.

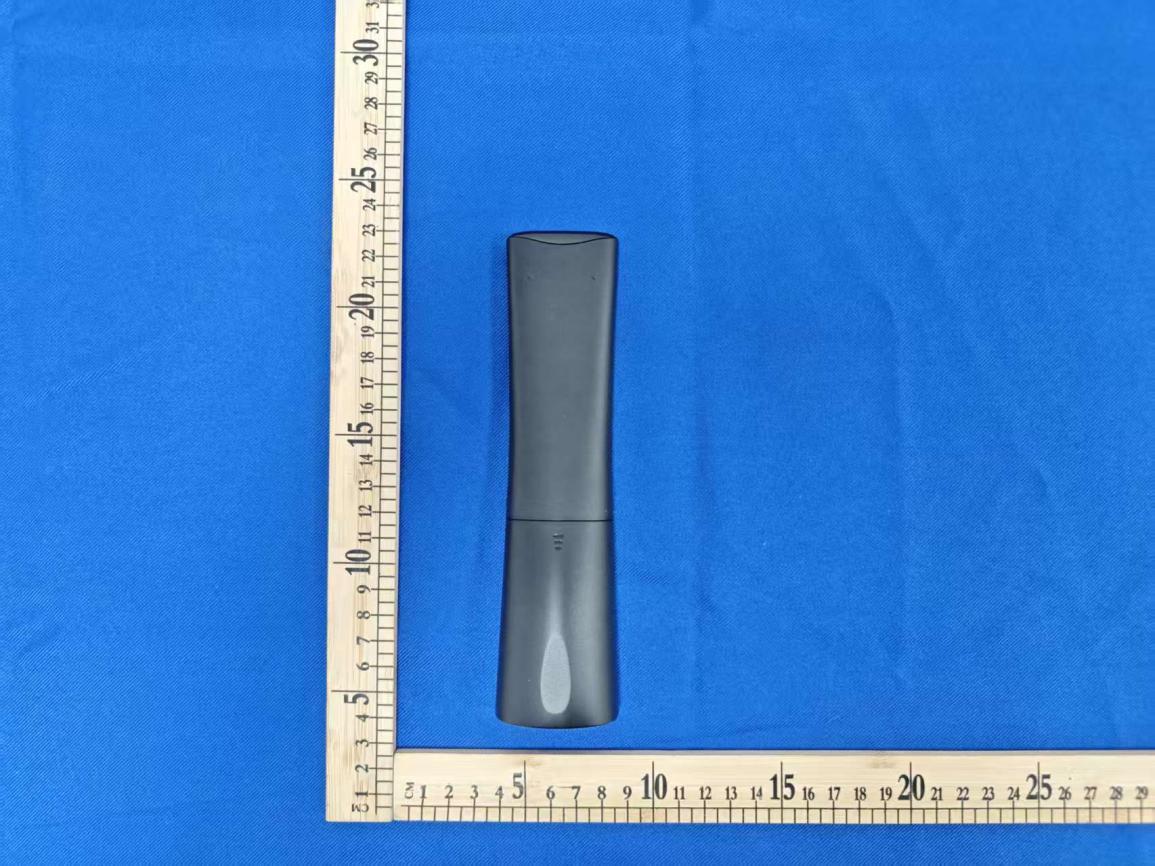

DNT2605151804R05027-P01Page: 1 of 3 PHOTOGRAPHSOFEUT FCCID:2BWAP-ATBRC51 ExternalPhotos ExternalPhotos DNT2605151804R05027-P01Page: 2 of 3 ExternalPhotos ExternalPhotos DNT2605151804R05027-P01Page: 3 of 3 ExternalPhotos ExternalPhotos --END--

FCCID:2BWAP-ATBRC51

DNT2605151804R05027-P01Page: 1 of 3 PHOTOGRAPHSOFEUT FCCID:2BWAP-ATBRC51 InternalPhotos InternalPhotos DNT2605151804R05027-P01Page: 2 of 3 InternalPhotos InternalPhotos DNT2605151804R05027-P01Page: 3 of 3 InternalPhotos --END--

DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] RFExposureEvaluationReport ApplicationNo.: DNT2605151804R05027-06996 Applicant: DongguanHaoruiElectronicCo.,Ltd AddressofApplicant: Room301,Building2,No.3Chuangye3rdRoadMapuao,Fenggang Town,DongguanCity,GuangdongProvince,China EUTDescription: remotecontrol ModelNo.: RC-51 AdditionalModel(s): / FCCID: 2BWAP-ATBRC51 Powersupply: DC3VFromBattery TradeMark: / Standards: 47CFRPart2.1093 FCCKDB447498D04v01 DateofReceipt: 2026/05/15 DateofTest: 2026/05/16to2026/05/30 DateofIssue: 2026/06/02 TestResult:PASS PreparedBy:(TestingEngineer) ReviewedBy:(ProjectEngineer) ApprovedBy:(Manager) Note:Ifthereisanyobjectiontotheresultsinthisreport,pleasesubmitawritteninquirytothecompanywithin15daysfromthedateof receivingthereport.Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,andisissuedbythecompanyinaccordance withtherequirementsofthe"ConditionsofIssuanceofTestReports"printedintheattachedpage.Unlessotherwisestated,theresults presentedinthisreportonlyapplytothesamplestestedthistime.Partialreproductionofthisreportisnotallowedunlessapprovedbythe companyinwriting. ReportNo.:DNT2605151804R05027-06996Date：June2,2026Page： 2 / 8 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] ReportReviseRecord ReportVersionReviseTimeIssuedDateValidVersionNotes V1.0/June2,2026ValidOriginalReport ReportNo.:DNT2605151804R05027-06996Date：June2,2026Page： 3 / 8 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] Contents RFEXPOSUREEVALUATIONREPORT.............................................................................................................................................1 1GENERALINFORMATION..................................................................................................................................................................4 1.1TESTLOCATION.................................................................................................................................................................................4 1.2GENERALDESCRIPTIONOFEUT.....................................................................................................................................................4 1.3TESTFACILITY...................................................................................................................................................................................5 1.4MEASUREMENTUNCERTAINTY(95%CONFIDENCELEVELS,K=2)....................................................................................................5 2RFEXPOSUREEVALUATION............................................................................................................................................................6 2.1RFEXPOSURECOMPLIANCEREQUIREMENT..................................................................................................................................6 ReportNo.:DNT2605151804R05027-06996Date：June2,2026Page： 4 / 8 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1GeneralInformation 1.1TestLocation Company:DongguanDNTestingCo.,Ltd Address: No.1,WestFourthStreet,SouthXinfaRoad,WushaLiwu,Chang＇anTown, DongguanCity,GuangdongP.R.China Testengineer:GaliLin 1.2GeneralDescriptionofEUT Manufacturer: DongguanHaoruiElectronicCo.,Ltd AddressofManufacturer: Room301,Building2,No.3Chuangye3rdRoadMapuao,Fenggang Town,DongguanCity,GuangdongProvince,China EUTDescription: remotecontrol ModelNo.: RC-51 AdditionalModel(s): / PowerSupply:DC3VFromBattery TradeMark:/ HardwareVersion:V1.0 SoftwareVersion:V1.0 ChipType: ATB1113 Serialnumber PR2605151804R05030 SampleType:PortableDevice,Module,MobileDevice AntennaType: External,Integrated AntennaPorts: Ant1,Ant2,Ant3 AntennaGain: Providedbyapplicant 2.47dBi Note: *Sincetheabovedataand/orinformationisprovidedbytheclientrelevantresultsorconclusionsofthis reportareonlymadeforthesedataand/orinformation,DNTisnotresponsiblefortheauthenticity,integrity andresultsofthedataandinformationand/orthevalidityoftheconclusion. ReportNo.:DNT2605151804R05027-06996Date：June2,2026Page： 5 / 8 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1.3TestFacility Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: LabA: •FCC,USA DesignationNumber:CN1348 •A2LA(CertificateNo.7050.01) DONGGUANDNTESTINGCO.,LTD.isaccreditedbytheAmericanAssociationforLaboratory Accreditation(A2LA).CertificateNo.7050.01. •Innovation,ScienceandEconomicDevelopmentCanada DONGGUANDNTESTINGCO.,LTD.EMCLaboratoryhasbeenrecognizedbyISEDasanaccreditedtesting laboratory.CABidentifierisCN0149. IC#:30755. . 1.4MeasurementUncertainty(95%confidencelevels,k=2) No.ItemMeasurementUncertainty 1 20dBEmissionBandwidth±0.0196% 2 CarrierFrequencySeparation±1.9% 3 NumberofHoppingChannel±1.9% 4 TimeofOccupancy±0.028% 5 MaxPeakConductedOutputPower±0.743dB 6 Band-edgeSpuriousEmission±1.328dB 7 ConductedRFSpuriousEmission 9KHz-1GHz:±0.746dB 1GHz-26GHz:±1.328dB No.ItemMeasurementUncertainty 1ConductionEmission±3.0dB(150kHzto30MHz) 2RadiatedEmission ±4.8dB(Below1GHz) ±4.8dB(1GHzto6GHz) ±4.5dB(6GHzto18GHz) ±5.02dB(Above18GHz) ReportNo.:DNT2605151804R05027-06996Date：June2,2026Page： 6 / 8 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.C…

Text truncated - open the document above for the full version.

Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] FCC Test Report Application No.: DNT2605151804R05027-06994 Applicant: Dongguan Haorui Electronic Co., Ltd Address of Applicant: Room 301,Building2,No.3 Chuangye 3rd Road Mapuao,Fenggang Town,Dongguan City,Guangdong Province,China EUT Description: remote control Model No.: RC-51 Additional Model(s): / FCC ID: 2BWAP-ATBRC51 Power Supply: DC 3V From Battery Trade Mark: / Standards: 47 CFR Part 2, Subpart J 47 CFR Part 15, Subpart C ANSI C63.10: 2020 Date of Receipt: 2026/05/15 Date of Test: 2026/05/16 to 2026/05/30 Date of Issue: 2026/06/02 Test Result:PASS Prepared By:(Testing Engineer) Reviewed By:(Project Engineer) Approved By:(Manager) Note: If there is any objection to the results in this report, please submit a written inquiry to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp, and is issued by the company in accordance with the requirements of the "Conditions of Issuance of Test Reports" printed in the attached page. Unless otherwise stated, the results presented in this report only apply to the samples tested this time. Partial reproduction of this report is not allowed unless approved by the company in writing. Report No.: DNT2605151804R05027-06994Date：June 2, 2026Page： 2 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Report Revise Record Report VersionRevise TimeIssued DateValid VersionNotes V1.0/June 2, 2026ValidOriginal Report Report No.: DNT2605151804R05027-06994Date：June 2, 2026Page： 3 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 1 Test Summary Test ItemTest RequirementTest MethodTest ResultResult Antenna Requirement 15.203/247(b/c)--Clause 3.1PASS Duty Cycle----Clause 3.2PASS DTS (6 dB) Bandwidth15.247 (a)(2)ANSI C63.10: 2020Clause 3.3PASS Conducted Output Power15.247 (b)(3)ANSI C63.10: 2020Clause 3.4PASS Power Spectral Density15.247 (e)ANSI C63.10: 2020Clause 3.5PASS Band-edge for RF Conducted Emissions 15.247(d)ANSI C63.10: 2020Clause 3.6PASS RF Conducted Spurious Emissions 15.247(d)ANSI C63.10: 2020Clause 3.7PASS Radiated Spurious Emissions15.247(d);15.205/15.209ANSI C63.10: 2020Clause 3.8PASS Restricted bands around fundamental frequency (Radiated Emission) 15.247(d);15.205/15.209ANSI C63.10: 2020Clause 3.9PASS AC Power Line Conducted Emission 15.207ANSI C63.10: 2020Clause 3.10N/A Note: 1. “N/A” denotes test is not applicable in this test report. Report No.: DNT2605151804R05027-06994Date：June 2, 2026Page： 4 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Contents 1 Test Summary..................................................................................................................................................................3 2 General Information..........................................................................................................................................................5 2.1 Test Location..........................................................................................................................................................5 2.2 General Description of EUT...................................................................................................................................5 2.3 Test Environment...................................................................................................................................................6 2.4 Channel List........................................................................................................................................................... 6 2.5 Power Setting of Test Software............................................................................................................................. 7 2.6 Assistant equipment used for test..........................................................................................................................7 2.7 Description of Support Units.................................................................................................................................. 7 2.8 Test Facility............................................................................................................................................................7 2.9 Equipment List....................................................................................................................................................... 8 2.10 Measurement Uncertainty (95% confidence levels, k=2).................................................................................. 10 3 Test results and Measurement Data..............................................................................................................................11 3.1 Antenna Requirement..........................................................................................................................................11 3.2 Duty Cycle............................................................................................................................................................12 3.3 DTS (6 dB) Bandwidth......................................................................................................................................... 13 3.4 Conducted Output Power.............…

Text truncated - open the document above for the full version.

Report No.: DNT2605151804R05027-06994Date：June 2, 2026Page： 46 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] BLE_2M-Ant1-2480-PASS Report No.: DNT2605151804R05027-06994Date：June 2, 2026Page： 47 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Appendix F: Conducted Spurious Emission Test Result TestModeAntennaFrequency[MHz] FreqRange [MHz] RefLevel [dBm] Result[dBm]Limit[dBm]Verdict BLE_1MAnt124020~Reference-3.04-3.04---PASS BLE_1MAnt1240230~1000-3.04-60.14≤-33.04PASS BLE_1MAnt124021000~26500-3.04-42.91≤-33.04PASS BLE_1MAnt124400~Reference-2.82-2.82---PASS BLE_1MAnt1244030~1000-2.82-60.08≤-32.82PASS BLE_1MAnt124401000~26500-2.82-45.66≤-32.82PASS BLE_1MAnt124800~Reference-2.60-2.60---PASS BLE_1MAnt1248030~1000-2.60-58.95≤-32.6PASS BLE_1MAnt124801000~26500-2.60-45.15≤-32.6PASS BLE_2MAnt124020~Reference-3.27-3.27---PASS BLE_2MAnt1240230~1000-3.27-59.89≤-33.27PASS BLE_2MAnt124021000~26500-3.27-45.91≤-33.27PASS BLE_2MAnt124400~Reference-4.93-4.93---PASS BLE_2MAnt1244030~1000-4.93-60.08≤-34.93PASS BLE_2MAnt124401000~26500-4.93-46.66≤-34.93PASS BLE_2MAnt124800~Reference-3.93-3.93---PASS BLE_2MAnt1248030~1000-3.93-59.81≤-33.93PASS BLE_2MAnt124801000~26500-3.93-47.33≤-33.93PASS Report No.: DNT2605151804R05027-06994Date：June 2, 2026Page： 48 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Test Graphs BLE_1M-Ant1-2402-0~Reference-PASS BLE_1M-Ant1-2402-30~1000-PASS BLE_1M-Ant1-2402-1000~26500-PASS Report No.: DNT2605151804R05027-06994Date：June 2, 2026Page： 49 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] BLE_1M-Ant1-2440-0~Reference-PASS BLE_1M-Ant1-2440-30~1000-PASS BLE_1M-Ant1-2440-1000~26500-PASS Report No.: DNT2605151804R05027-06994Date：June 2, 2026Page： 50 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] BLE_1M-Ant1-2480-0~Reference-PASS BLE_1M-Ant1-2480-30~1000-PASS BLE_1M-Ant1-2480-1000~26500-PASS Report No.: DNT2605151804R05027-06994Date：June 2, 2026Page： 51 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] BLE_2M-Ant1-2402-0~Reference-PASS BLE_2M-Ant1-2402-30~1000-PASS BLE_2M-Ant1-2402-1000~26500-PASS Report No.: DNT2605151804R05027-06994Date：June 2, 2026Page： 52 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] BLE_2M-Ant1-2440-0~Reference-PASS BLE_2M-Ant1-2440-30~1000-PASS BLE_2M-Ant1-2440-1000~26500-PASS Report No.: DNT2605151804R05027-06994Date：June 2, 2026Page： 53 / 53 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] BLE_2M-Ant1-2480-0~Reference-PASS BLE_2M-Ant1-2480-30~1000-PASS BLE_2M-Ant1-2480-1000~26500-PASS The End Report

ShenzhenQiWangKewenTechnologyCo.,Ltd Productantennatuningandtestingreport 1.ProjectOverview Companyaddress:21stFloor,ChanghongTechnologyBuilding,No.18,South 12thRoad,ScienceandTechnology,NanshanDistrict,Shenzhen,Guangdong Province / / 4217Fhead-mountedon-boardantennaKiwonScienceandCulture 2.4G 2400-2500MHz＜3dBi catalogue 4.On-boardantennadiagram 5.Networkanalyzerteststandingwave diagram6.Passivedata 7.Passive2Dand3Ddiagrams Physicalimageofon-boardantenna Networkanalyzerteststandingwavediagram 2.4Gpassivetestdata Frequency Efficiency (%) Gain. (dBi) 2400MHz 38.191.71 2410MHz 39.17 1.99 2420MHz 39.721.74 2430MHz 39.26 1.62 2440MHz 40.74 1.88 2450MHz 42.172.18 2460MHz 41.52.05 2470MHz 41.52.07 2480MHz 42.07 2.47 2490MHz 41.3 2.08 2500MHz 40.09 1.87 Antennatest2D3Ddiagram Phi02D图 2400 Phi902D图 2450 Theta902D图 2500

DNT2605151804R05027-P01Page: 1 of 3 PHOTOGRAPHSOFEUT FCCID:2BWAP-ATBRC51 AntennaTerminalTestView DNT2605151804R05027-P01Page: 2 of 3 RadiatedEmissionTestView(Below1G) RadiatedEmissionTestView(Above1G) DNT2605151804R05027-P01Page: 3 of 3 RadiatedEmissionTestView(Above1G) --END--
