2BWC6LGW915LLoRaWAN Type III Indoor Gateway

LoRaWAN Type III Indoor Gateway Quick Start Guide 1. Packing List 1 Rubber Antenna 3 4G/WIFI/LORA Power Adapter 1 Micro USB Cable 1Fixing Screws 1 set Certificate of Conformity Quick Installation Manual * If any of the above items are damaged, missing, or if you have other accessory requirements, please contact your agent or sales representative promptly. LoRaWAN Type III Indoor Gateway 2. Device Installation 2 Step 1: As shown in the figure, screw the antennas on clockwise. Step 2: Insert the SIM card or connect the Ethernet network cable. Step 3: Fix the mounting ears on the left and right sides of the device using screws (if required). Step 4: Connect the DC 12V power supply. The gateway does not support hot-swapping. Please power off the device before inserting or removing the SIM card. 3 3. Accessing the Gateway Configuration Page 3.1. Connect to the gateway device using USB First, ensure the gateway device is operating normally. There is a reserved Micro USB port on the enclosure. Use the provided Micro USB cable to connect one end to the gateway device and the other end to a computer. Enter the default gateway address 192.168.0.100:8088 in your computer's web browser to access the web configuration page login interface. 3.2. Connect to the gateway device using an Ethernet cable Correctly connect the network cable as shown in Chapter 2. Log in to the device via ADB or use IPCONFIG to obtain the gateway device's IP address. Append the port number “:8088” to the IP address to access the gateway's web configuration page login interface. 3.3. Access the login page After correctly connecting to the gateway device, use the corresponding IP address to access the gateway web page via a computer browser. Example for USB access: “http://192.168.0.100:8088/default/login.html” 4 3.4. Log in to the gateway using the default credentials The default username is: root The default password is: admin FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.

Rev 1/26/2023 AdoModel Tech Inc Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2026-08-05 FCC ID: 2BWC6LGW915L Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing AdoModel Tech Inc certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. AdoModel Tech Inc certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing AdoModel Tech Inc certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Applicant: AdoModel Tech Inc Address: 6679 Peachtree IND BLVD STE N, Peachtree Corners, Georgia, United States 30092-4303 Contact Person: Kun Su Tel.: (973) 641-5178 Email: [email protected] Sincerely, Signature:

Attestation Statements Date: 2026-08-05 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for(FCC ID: 2BWC6LGW915L) AdoModel Tech Inc, the undersigned, hereby authorize AdoModel Tech Inc to act as our designated agent for service of process, AdoModel Tech Inc accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. AdoModel Tech Inc accepts the responsibility to act as designated agent for service of process. Applicant Information： Company name: AdoModel Tech Inc Contact Name: Kun Su Address: 6679 Peachtree IND BLVD STE N, Peachtree Corners, Georgia, United States 30092- 4303 Telephone No: (973) 641-5178 Email: [email protected] FRN: 0038477436 Signature: Kun Su Agent Information: Company Name: AdoModel Tech Inc Address:6679 Peachtree IND BLVD STE N, Peachtree Corners, Georgia, United States 30092- 4303 FRN: 0038477436 Contact Name: Kun Su Telephone No: (973) 641-5178 Email: [email protected] Signature: Kun Su

AdoModel Tech Inc Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 7, 2026 Subject; Request for Confidentiality FCC ID: 2BWC6LGW915L To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Kun Su Title: CEO

Effective Date: April 2, 2020 QSF 7.6.4-8 – Agent Authorization Letter Template Page 1 of 1 Revision Date: Revision: 0 AdoModel Tech Inc Date：2026-08-05 Product Model Number: LGW915L FCC ID：2BWC6LGW915L To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. Signature: By: Kun Su Contact Listed on FCC Wesbite Title: CEO Email: [email protected] On behalf of: AdoModel Tech Inc

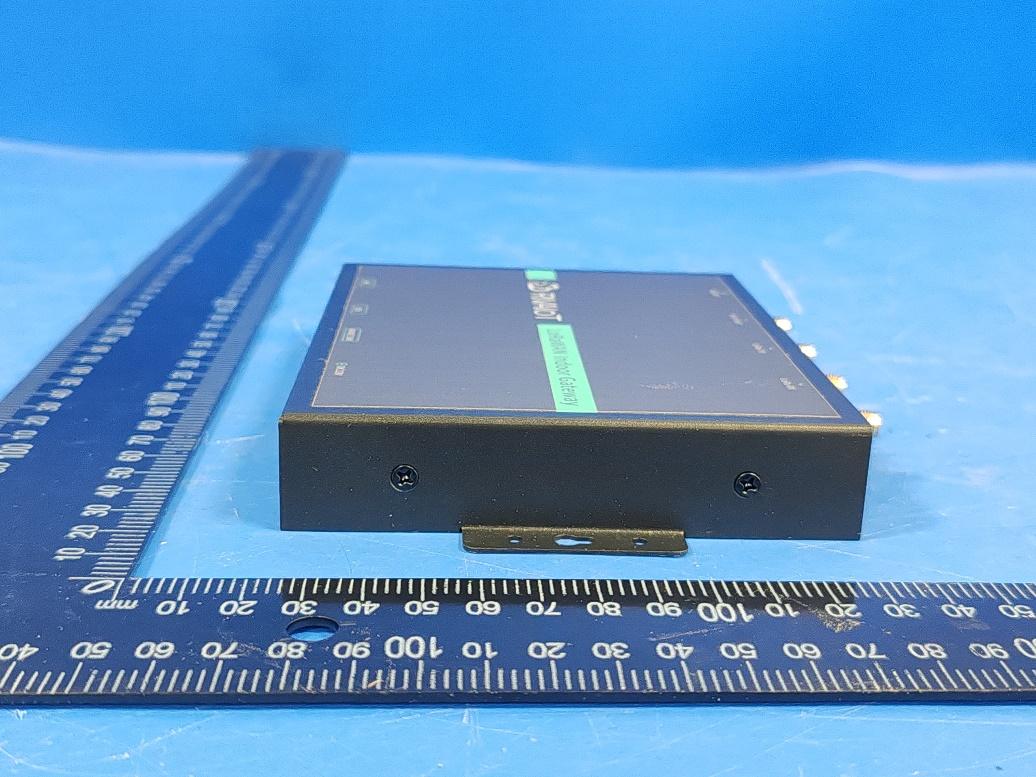

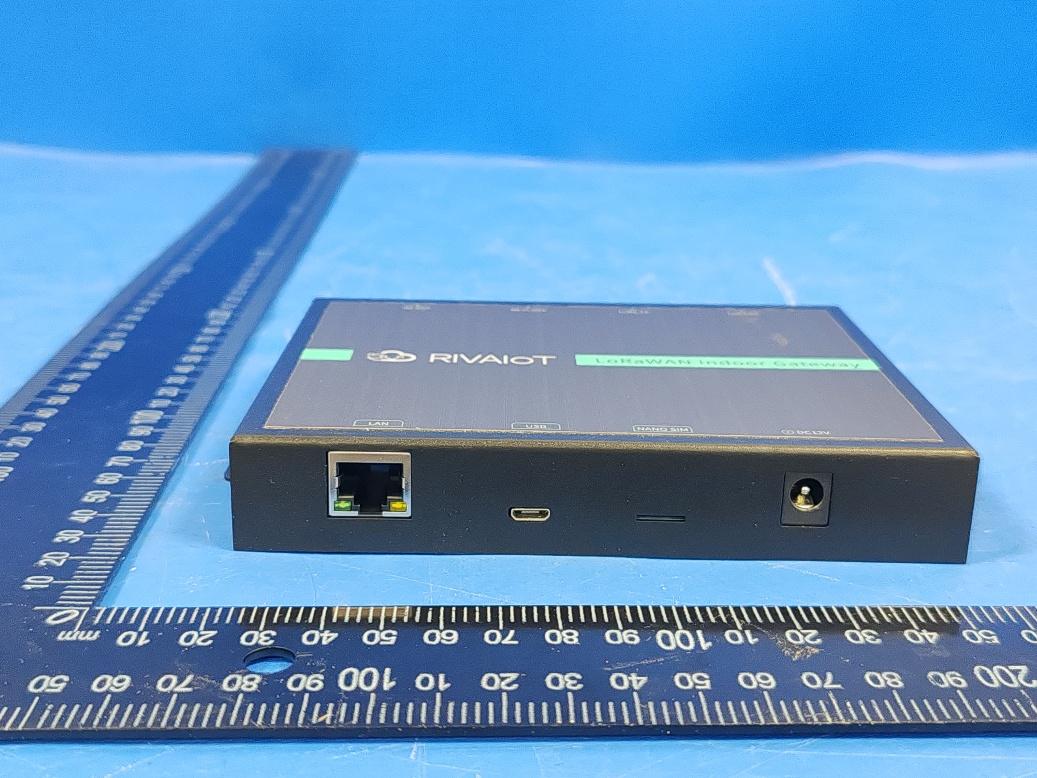

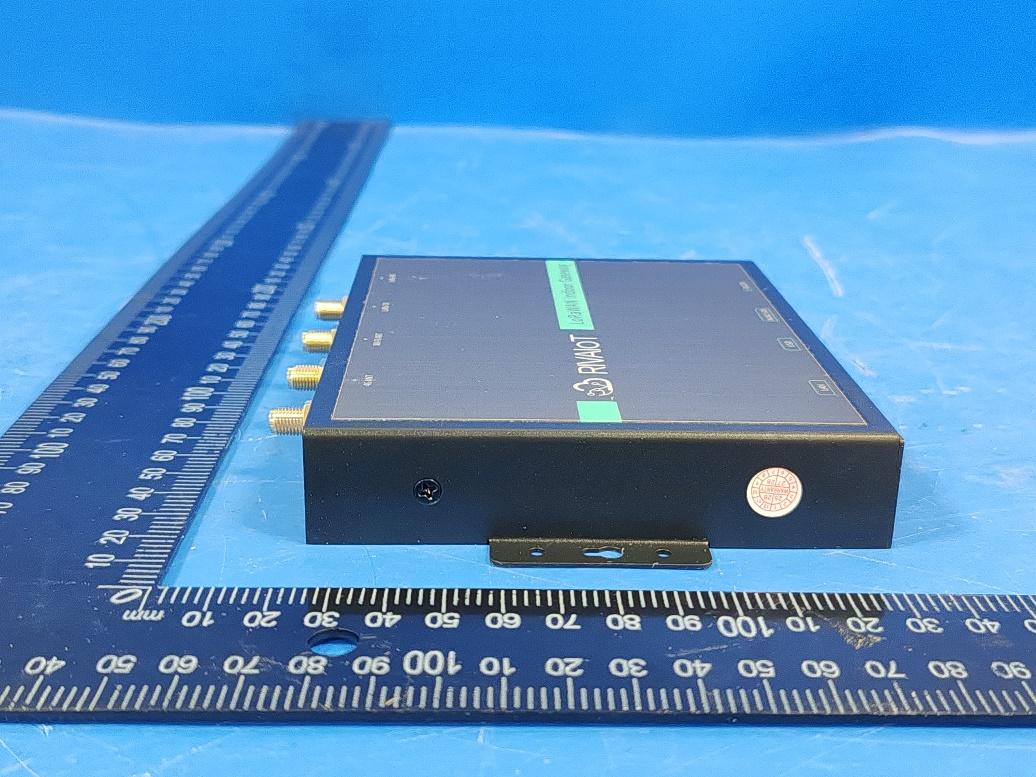

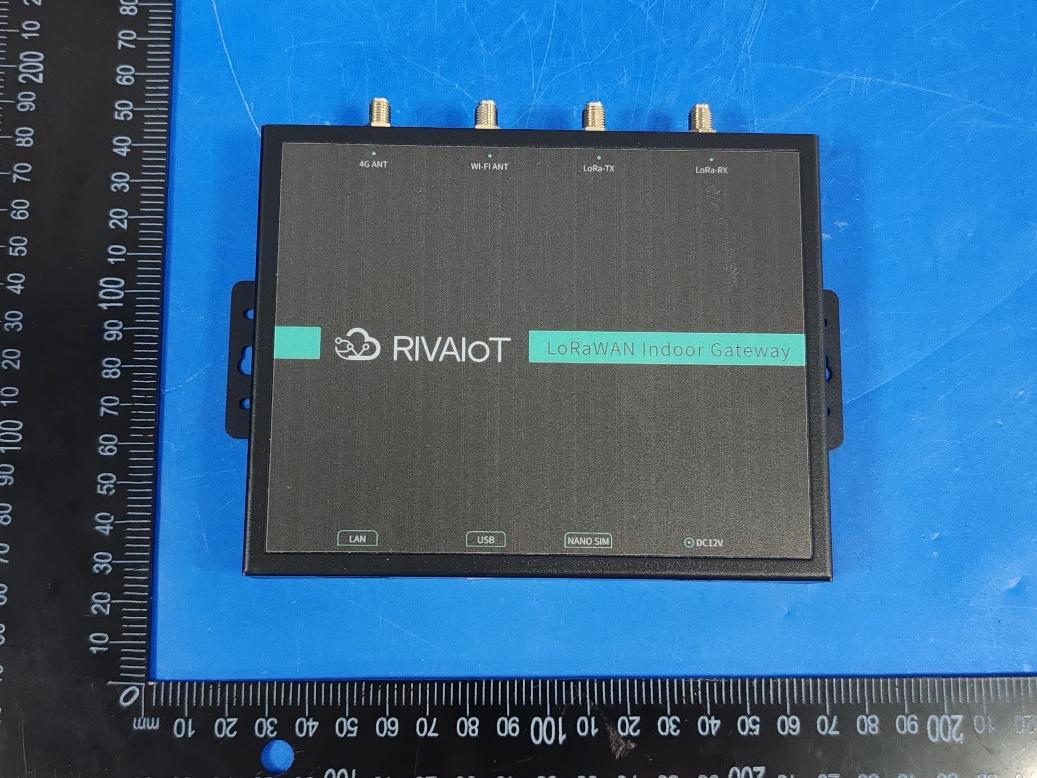

Page 1 of 6 Report No.: LGT26G062 Appendix - External Photographs of EUT Constructional Details Photo 1 Photo 2 Page 2 of 6 Report No.: LGT26G062 Appendix - External Photographs of EUT Constructional Details Photo 3 Photo 4 Page 3 of 6 Report No.: LGT26G062 Appendix - External Photographs of EUT Constructional Details Photo 5 Photo 6 Page 4 of 6 Report No.: LGT26G062 Appendix - External Photographs of EUT Constructional Details Photo 7 Photo 8 Page 5 of 6 Report No.: LGT26G062 Appendix - External Photographs of EUT Constructional Details Photo 9 Photo 10 4G ANT LoRa ANT LoRa ANT Page 6 of 6 Report No.: LGT26G062 Appendix - External Photographs of EUT Constructional Details Photo 11 Photo 12

Label Size: 80*30mm

Page 1 of 3 Report No.: LGT26G062 Appendix - Internal Photographs of EUT Constructional Details Photo 1 Photo 2 WIFI ANT Note: This antenna is not usable. The customer has disabled the WIFI function using the software for the shipment. Page 2 of 3 Report No.: LGT26G062 Appendix - Internal Photographs of EUT Constructional Details Photo 3 Photo 4 Page 3 of 3 Report No.: LGT26G062 Appendix - Internal Photographs of EUT Constructional Details Photo 5

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 8 EMF TEST REPORT Product Name: LoRaWAN Type III Indoor Gateway Model Number: LGW915L FCC ID: 2BWC6LGW915L Issued For : AdoModel Tech Inc 6679 Peachtree IND BLVD STE N, Peachtree Corners, Georgia, United States 30092-4303 Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26G062HA01 Sample Received Date: Jul. 09, 2026 Date of Test: Jul. 09, 2026 ~ Jul. 29, 2026 Date of Issue: Jul. 29, 2026 Report No.: LGT26G062HA01 Page 2 of 8 TEST REPORT CERTIFICATION Applicant: AdoModel Tech Inc Address: 6679 Peachtree IND BLVD STE N, Peachtree Corners, Georgia, United States 30092-4303 Manufacturer: AdoModel Tech Inc Address: 6679 Peachtree IND BLVD STE N, Peachtree Corners, Georgia, United States 30092-4303 Product Name: LoRaWAN Type III Indoor Gateway Trademark: RIVAIOT Model Number: LGW915L Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47 CFR §2.1091 KDB 447498 D01 General RF Exposure Guidance v06 PASS Prepared by: Approved by: Chris Chen Engineer Technical Director Report No.: LGT26G062HA01 Page 3 of 8 TABLE OF CONTENTS 1 . GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST LABORATORY 5 2 . FCC 47CFR §2.1091 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 EUT OPERATION CONDITION 7 2.4 CLASSIFICATION 7 2.5 TEST RESULT 8 Report No.: LGT26G062HA01 Page 4 of 8 Revision History Rev. Issue Date Revisions 00 Jul. 29, 2026 Initial Issue Report No.: LGT26G062HA01 Page 5 of 8 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name: LoRaWAN Type III Indoor Gateway Test Model Number: LGW915L Series Number: N/A Model Difference: N/A Frequency Bands: LORA 915MHz LTE LTE Band 2:1850~1910MHz LTE Band 4:1710~1755MHz LTE Band 5: 824~849MHz LTE Band 12: 699-716MHz LTE Band 17:704~716MHz Adapter: Input: AC 100-240V 50/60Hz 0.8A Output: DC 12.0V 2.0A 24.0W Hardware Version: V4.0 Software Version: 1.1.6 1.2 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 Report No.: LGT26G062HA01 Page 6 of 8 2. FCC 47CFR §2.1091 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 0.3-3.0 614 1.63 *(100) 3.0-30 1842/f 4.89/f *(900/f 2 ) 30-300 61.4 0.163 1.0 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 1.34-30 824/f 2.19/f *(180/f 2 ) 30-300 27.5 0.073 0.2 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 F= Frequency in MHz * = Plane-wave equivalent power density. Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. Report No.: LGT26G062HA01 Page 7 of 8 2.3 EUT OPERATION CONDITION EUT was enabled to transmit and receive at lowest, middle and highest channels. 2.4 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. Report No.: LGT26G062HA01 Page 8 of 8 2.5 TEST RESULT Turn up Result Mode Turn up Power LTE B2 24.5±1dBm LTE B4 22±1dBm LTE B5 24.5±1dBm LTE B12 24.5±1dBm LTE B17 23.5±1dBm LORA -3±1.5dBm The MPE result of worst mode: RF Function Max Turn up Power (dBm) Duty cycle factor Max Power (dBm) Max Power (mW) ANT Gain (dBi) ANT Gain (gain of antenna in linear scale) Power Density (mW/cm ²) Limit (mW/c m²) Ratio Result LTE Band 2 25.5 0 25.5 354.81 3 2.00 0.141 1.000 0.141 Pass LTE Band 4 23 0 23 199.53 3 2.00 0.079 1.000 0.079 Pass LTE Band 5 25.5 0 25.5 354.81 3 2.00 0.141 0.549 0.256 Pass LTE Band 12 25.5 0 25.5 354.81 3 2.00 0.141 0.466 0.302 Pass LTE Band 17 24.5 0 24.5 281.84 3 2.00 0.112 0.469 0.238 Pass RF Function Frequency (MHz) Max Turn up Power (dBm) Max Turn up Power (mW) Power Density (mW/cm²) Limi…

Text truncated - open the document above for the full version.

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 26 RF TEST REPORT Product Name: LoRaWAN Type III Indoor Gateway Model Number: LGW915L FCC ID: 2BWC6LGW915L Issued For : AdoModel Tech Inc 6679 Peachtree IND BLVD STE N, Peachtree Corners, Georgia, United States 30092-4303 Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26G062RF01 Sample Received Date: Jul. 09, 2026 Date of Test: Jul. 09, 2026 ~ Jul. 28, 2026 Date of Issue: Jul. 29, 2026 Report No.: LGT26G062RF01 Page 2 of 26 TEST REPORT CERTIFICATION Applicant: AdoModel Tech Inc Address: 6679 Peachtree IND BLVD STE N, Peachtree Corners, Georgia, United States 30092-4303 Manufacturer: AdoModel Tech Inc Address: 6679 Peachtree IND BLVD STE N, Peachtree Corners, Georgia, United States 30092-4303 Product Name: LoRaWAN Type III Indoor Gateway Trademark: RIVAIOT Model Number: LGW915L Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.249, Subpart C ANSI C63.10-2020 + Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024 PASS Prepared by: Approved by: Chris Chen Vita Li Engineer Technical Director Report No.: LGT26G062RF01 Page 3 of 26 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST LABORATORY 6 1.2 MEASUREMENT UNCERTAINTY 6 2. GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF THE EUT 7 2.2 DESCRIPTION OF THE TEST MODES 8 2.3 TEST SOFTWARE AND POWER LEVEL 8 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 9 2.5 EQUIPMENTS LIST 10 3. EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.2 TEST PROCEDURE 13 3.3 TEST SETUP 13 3.4 EUT OPERATING CONDITIONS 13 3.5 TEST RESULTS 14 4. RADIATED EMISSION MEASUREMENT 16 4.1 RADIATED EMISSION LIMITS 16 4.2 TEST PROCEDURE 17 4.3 TEST SETUP 18 4.4 EUT OPERATING CONDITIONS 18 4.5 FIELD STRENGTH CALCULATION 19 4.6 TEST RESULTS 20 4.7 TEST RESULTS (BAND EDGE REQUIREMENTS) 23 4.8 TEST RESULTS (EIRP REQUIREMENTS) 23 5. BANDWIDTH TEST 24 5.1 TEST PROCEDURE 24 5.2 TEST SETUP 24 5.3 EUT OPERATION CONDITIONS 24 5.4 TEST RESULTS 24 6. ANTENNA REQUIREMENT 25 6.1 STANDARD REQUIREMENT 25 6.2 EUT ANTENNA 25 APPENDIX I - MEASUREMENT PHOTOS 26 Report No.: LGT26G062RF01 Page 4 of 26 Revision History Rev. Issue Date Contents 00 Jul. 29, 2026 Initial Issue Report No.: LGT26G062RF01 Page 5 of 26 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part 15.249, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.249 Radiated Spurious Emission PASS -- 15.205 Restricted Band Edge Emission PASS -- 15.215 20dB Bandwidth Pass -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020 + Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024. Report No.: LGT26G062RF01 Page 6 of 26 1.1 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Occupied Channel Bandwidth ±0.46% 2 RF Output Power, Conducted ±0.71dB 3 Power Spectral Density, Conducted ±1.57dB 4 Unwanted Emission, Conducted ±0.63dB 5 Conducted emission ±2.80dB 6 All Emissions, Radiated (0.009-30MHz) ±2.16dB 7 All Emissions, Radiated (30MHz-1GHz) ±4.61dB 8 All Emissions, Radiated (1GHz-18GHz) ±5.49dB Note: The measurement uncertainty is not included in the test result. Report No.: LGT26G062RF01 Page 7 of 26 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name: LoRaWAN Type III Indoor Gateway Test Model Number: LGW915L Series Number: N/A Model Difference: N/A Product Description: Operation Frequency: 915MHz Modulation Type: FSK Antenna Type: Rod Antenna Antenna Gain(dBi): 5.7 Adapter: Input: AC 100-240V 50/60Hz 0.8A Output: DC 12.0V 2.0A 24.0W Hardware Version: V4.0 Software Version: 1.1.6 Connecting I/O Port(s): Please refer to the Note 1. Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User Manual. 2. The antenna information refers to the manufacturer provide report, applicable only to the tested sample identified in the report. Due to the incorrect antenna information, a series of problems such as the accuracy of the test results will be borne by the customer. 3. Channel List Channel Frequency (MHz) -- -- -- -- 01 915 -- -- -- -- Report No.: LGT26G062RF01 Page 8 of 26 2.2 DESCRIPTION OF THE TEST MODES For conducted test items and radiated spurious emissions Each of these EUT operation mode(s) or test configuration mode(s) mentioned below was evaluated respectively. Worst Mode Description Modulation Mode 1 915MHz FSK Note: (1) All above mode has been measurement, only worst data was reported. (2) We have be tested for all avaiable U.S. voltage and frequency (For 120V,50/60Hz and 240V, 50/60Hz) for which the device is capable of operation, and the worst case of 120V/60Hz is shown in the report. For AC Conducted Emission Test Case AC Conducted Emission Mode 2: Keeping TX 2.3 TEST SOFTWARE AND POWE…

Text truncated - open the document above for the full version.

承认书项目表 内容 页数页码 NO. （Number（Page （ Contents ） ofPage ） Code ） 1 承认书封面（ SpecCover ） 11 2 承认书项目表（ SpecItem ） 12 3 工程成品图（ Drawing ） 13 4 电性测试报告（ TestReports ） 14 5 S 参数测试（ SParameter ） 15 6 增益测试（ GainTest ） 16 7 8 9 10--- 11--- 12--- 东莞市脉讯电子有限公司Tel:0769-33691210Fax:0769-82381572 Dongguan Maxun Electronics Co., Ltd. Address: Room 405, 4th Floor, No. 6, Qilin East Road, Daning Community, Humen Town, Dongguan, Guangdong, China AN03-T07B No. Body1 Description PA+ABS Material Q ty Part Number TITLE:915M 5dBi Antenna PART NO.: AN915-0195Z-01 APPROVED BY DWG NAME: AN915-0195Z-01.dwg DESIDNED BY UNITS: mm Tolerance CHECKED BY SCALE: 1/1 REVISION: A jeff 2011-06 -17 2011-06-17 leon 2011-06 -17 YD X.X ±0.30 X.XX ±0.10 X° ±2 ° ᶡ㧎㜹䇟䴫ᆀᴹ䲀ޜਨ Black Finish SMA194-CCT5AN19 SMA Male Reverse Cu Eletroedeposition AN9201-07B Body2 ABS Black AN9201-04B Body1 TPE Black SIGNDATEDESCRIPTIONAPPROVER 电性测试报告 TestReports SamplePhoto A.ElectricalCharacteristics Frequency900~920MHz S.W.R.<=2.0@900~920MHz AntennaGain5.0±0.7dBi@915MHz PolarizationLinear Impedance50Ohm B.Material&MechanicalCharacteristics MaterialofRadiatorCU MaterialofPlastic Body:TPE Hinge:PA+ABS Holder:PA+ABS CableTypeRG-178 ConnectorTypeSMAMaleReverse ConnectorPullTest>=5Kg ConnectorTorqueTest200~500g.cm C.Environmental OperationTemperature-40 ̊C~+65 ̊C StorageTemperature-40 ̊C~+80 ̊C 东莞市脉讯电子有限公司 Tel:0769-33691210Fax:0769-82381572 S 参数测试 SParameterTest AgilentE5071C 东莞市脉讯电子有限公司Tel:0769-33691210Fax:0769-82381572 增益测试 GainTest Antenna Radiation Pattern VS Gain 东莞市脉讯电子有限公司 Tel:0769-33691210Fax:0769-82381572

Page 1 of 2 Report No.: LGT26G062 Appendix - Test Setup photos Set-up for Radiated Spurious Emission, Below 1GHz Set-up for Radiated Spurious Emission, Above 1GHz Page 2 of 2 Report No.: LGT26G062 Set-up for Conducted Emission
