2BWCX-JTT-511BJacketed Animal Telemetry Transmitter

MappingLab Non-InvasiveTelemetrySystem ProductManual Version:FirstEdition(V1.0) MappingLabLtd. MagdalenCentre,TheOxfordSciencePark Oxford,OX44GA,UnitedKingdom Website:https://www.mappinglab.com/ Email:[email protected] MappingLabNon-InvasiveTelemetrySystem—ProductManual Page 2 TableofContents 1.1Overview...............................................................................................................3 1.2IntendedAudience................................................................................................3 1.3SystemArchitecture..............................................................................................3 Chapter2HardwareEquipment................................................................................4 2.1HardwareComponents.........................................................................................4 2.2DetailedDeviceDescriptions................................................................................4 2.2.1Server.........................................................................................................4 2.2.2Wi-FiRouter................................................................................................4 2.2.3RepeaterRouter.........................................................................................5 2.2.4JacketTelemetryTransmitter.....................................................................5 2.2.5Non-InvasiveBloodPressure(NIBP)Module.............................................5 2.2.6RespirationBandModule...........................................................................6 2.2.7TemperatureSensor...................................................................................6 2.2.8Accessories................................................................................................7 2.3HardwareConnections.........................................................................................9 2.3.1ConnectingtheWi-FiRoutertotheServer.................................................9 2.3.2ConnectingtheJacketTelemetryTransmittertotheServer.......................9 2.3.3SensorConnections...................................................................................9 Chapter3SoftwareOperation—DataAcquisition..................................................11 3.1SoftwareLogin....................................................................................................11 3.2UserLogin..........................................................................................................11 3.3CreatinganExperiment......................................................................................11 3.3.1AddingaDevice........................................................................................11 3.3.2CreatinganExperimentTemplate............................................................12 3.3.3CreatingaNewExperiment......................................................................14 3.4ExperimentDataAcquisitionandViewing..........................................................15 3.4.1Real-TimeDataViewing...........................................................................15 3.4.2MaskRespirationDataAcquisition...........................................................16 3.4.3BloodPressureDataAcquisition..............................................................17 3.5TerminatinganExperiment.................................................................................18 3.6RawDataExport.................................................................................................18 Chapter4SoftwareOperation—DataAnalysis......................................................20 4.1SelectingExperimentData.................................................................................20 4.2SelectingAnalysisParameters...........................................................................20 4.3ECGDataAnalysis.............................................................................................20 4.4RespirationDataAnalysis...................................................................................24 4.4.1MaskRespirationDataAnalysis...............................................................24 4.4.2BandRespirationDataAnalysis...............................................................25 4.5BloodPressureDataAnalysis............................................................................26 4.6SavingAnalysisData..........................................................................................27 4.7ViewingAnalysisData........................................................................................27 Chapter5Glossary..................................................................................................29 MappingLabNon-InvasiveTelemetrySystem—ProductManual Page 3 Chapter1ProductOverview 1.1Overview TheMappingLabNon-InvasiveTelemetrySystemisaphysiologicalparameter telemetrydeviceforanimalresearchdevelopedbyMappingLabLtd.Thesystem enablesreal-timeacquisitionofmultiplephysiologicalparametersincludingECG(11- lead),non-invasivebloodpressure(NIBP),respiration,bodytemperature,and activitylevels,andiswidelyusedinnon-clinicaldrugresearch(GLP)andrelated fields. 1.2IntendedAudience Thismanualisintendedfortechnicalengineersandcustomertechnical personnel,providingguidanceonMappingLabtelemetryhardwaresetupand ATScopesoftwaredataacquisitionandanalysisoperations. 1.3SystemArchitecture Thesystememploysdigitalsignaltransmissioncombinedwithahardware cachingmechanism,effectivelyresistinginterferenceandprovidingupto1hourof dataprotectionintheeventofunexpectedpowerlossorgatewayfailure.Thesystem architectureisillustratedbelow: MappingLabNon-InvasiveTelemetrySystem—ProductManual Page 4 Chapter2HardwareEquipment 2.1HardwareComponents TheMappingLabNon-InvasiveTelemetrySystemconsistsofthefollowing hardwarecomponents: No.DeviceNamePurpose 1ServerReceivesandstorestelemetrydata 2Wi-FiRouter Receivestransmittersignals…

Text truncated - open the document above for the full version.

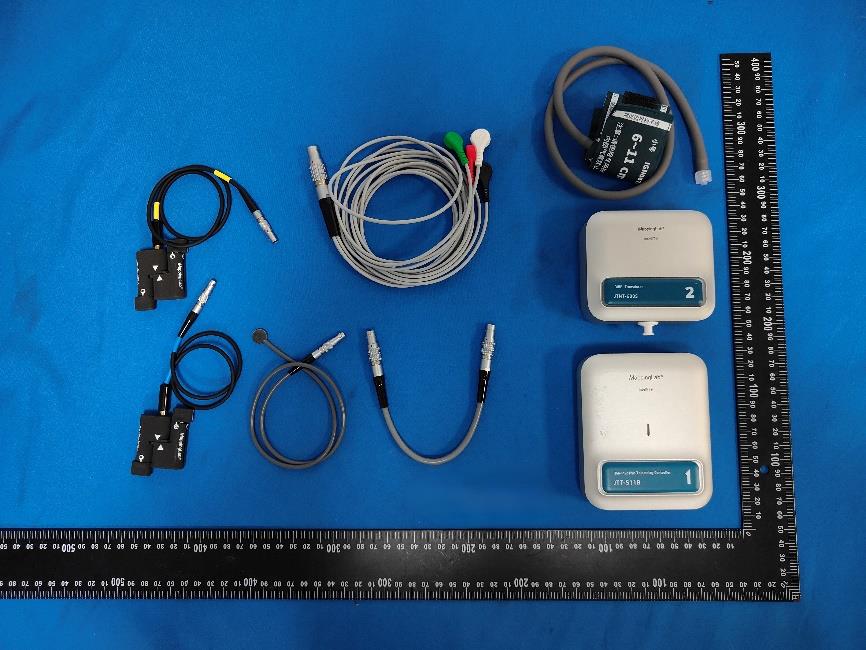

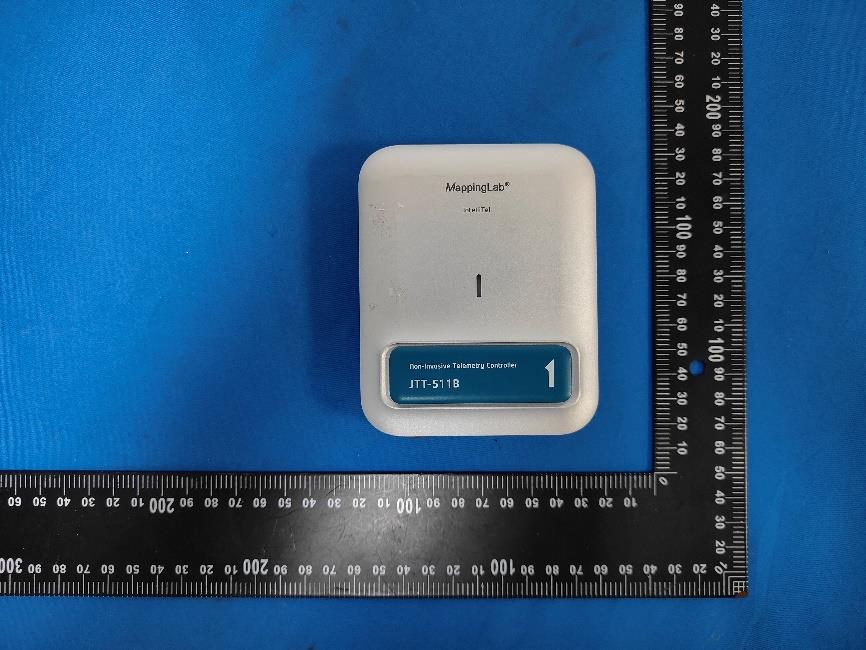

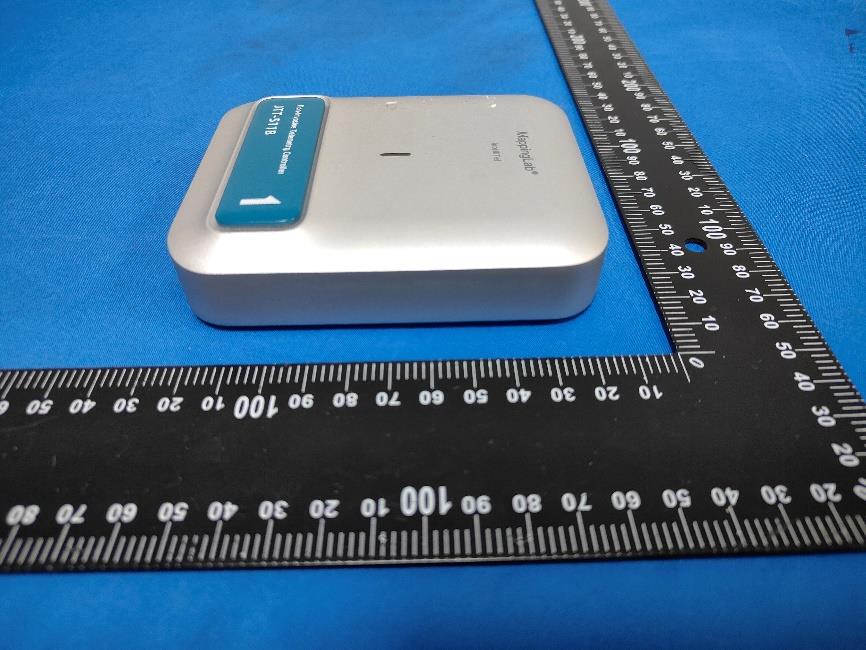

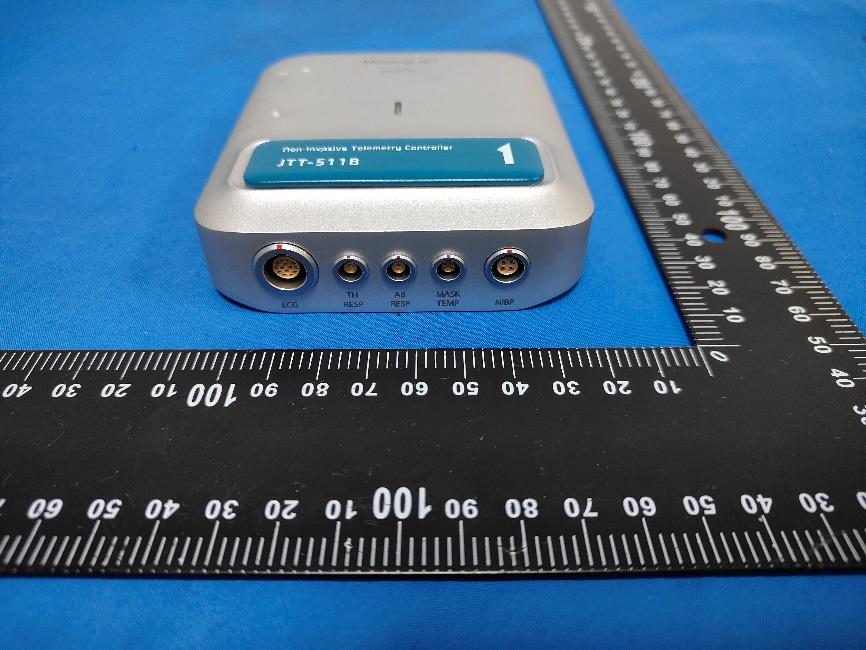

FCC ID: 2BWCX-JTT-511B External Photos of the EUT FCC ID: 2BWCX-JTT-511B FCC ID: 2BWCX-JTT-511B

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BWCX-JTT-511B

FCC ID: 2BWCX-JTT-511B Internal Photos of the EUT FCC ID: 2BWCX-JTT-511B FCC ID: 2BWCX-JTT-511B FCC ID: 2BWCX-JTT-511B Antenna

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : CTA26040804402 2BWCX-JTT-511B Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : May 14, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : MappingLab Limited Address............................................ : Magdalen Centre, The Oxford Science Park, Oxford OX4 4GA, United Kingdom Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Jacketed Animal Telemetry Transmitter Trade Mark ....................................... : MappingLab Manufacturer .................................... : MappingLab Limited Model/Type reference ...................... : JTT-511B Listed Models ................................... : N/A Rating ............................................... : 4.5V 120mA Result ............................................... : PASS Report No.: CTA26040804402 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Jacketed Animal Telemetry Transmitter Model /Type : JTT-511B Listed Models : N/A Applicant : MappingLab Limited Address : Magdalen Centre, The Oxford Science Park, Oxford OX4 4GA, United Kingdom Manufacturer : MappingLab Limited Address : Magdalen Centre, The Oxford Science Park, Oxford OX4 4GA, United Kingdom Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26040804402 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 MPE Calculation Method ......................................................................................... 7 4.3 Conducted Power Results ....................................................................................... 8 4.4 Manufacturing tolerance .......................................................................................... 8 4.5 Standalone MPE Result ........................................................................................... 8 4.6 Simultaneous Transmission for MPE Result ........................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA26040804402 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PCB antenna Model JTT-511B Frequency range 2412 - 2462MHz Manufacturer MappingLab Limited Address Magdalen Centre, The Oxford Science Park, Oxford OX4 4GA, United Kingdom ANT Peak Gain 3.26 dBi 2. Antenna Photo: Length: 15.06mm Width: 4.12mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26040804401 2BWCX-JTT-511B Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : May 14, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : MappingLab Limited Address ............................................ : Magdalen Centre, The Oxford Science Park, Oxford OX4 4GA, United Kingdom Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Jacketed Animal Telemetry Transmitter Trade Mark ....................................... : MappingLab Manufacturer : MappingLab Limited Model/Type reference ...................... : JTT-511B Listed Models ................................... : N/A Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : 4.5V 120mA Result ............................................... : PASS Report No.: CTA26040804401 Page 2 of 34 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Jacketed Animal Telemetry Transmitter Model /Type : JTT-511B Listed Models : N/A Applicant : MappingLab Limited Address : Magdalen Centre, The Oxford Science Park, Oxford OX4 4GA, United Kingdom Manufacturer : MappingLab Limited Address : Magdalen Centre, The Oxford Science Park, Oxford OX4 4GA, United Kingdom Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26040804401 Page 3 of 34 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Test Description .....................................................................................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BWCX-JTT-511B Company : MappingLab Limited EUT : Jacketed Animal Telemetry Transmitter Model Number : JTT-511B Report No. : CTA26040804401 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.200 2406.920 2417.120 0.5 PASS 2437 10.200 2431.920 2442.120 0.5 PASS 2462 10.240 2456.920 2467.160 0.5 PASS 11G Ant1 2412 15.960 2404.000 2419.960 0.5 PASS 2437 15.680 2429.120 2444.800 0.5 PASS 2462 15.600 2454.200 2469.800 0.5 PASS 11N20SISO Ant1 2412 15.600 2404.440 2420.040 0.5 PASS 2437 16.480 2428.720 2445.200 0.5 PASS 2462 16.520 2453.880 2470.400 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.397 2405.3288 2418.7258 --- --- 2437 13.392 2430.3207 2443.7127 --- --- 2462 13.413 2455.3106 2468.7236 --- --- 11G Ant1 2412 16.850 2403.5930 2420.4430 --- --- 2437 16.792 2428.6425 2445.4345 --- --- 2462 16.820 2453.6217 2470.4417 --- --- 11N20SISO Ant1 2412 17.928 2403.0603 2420.9883 --- --- 2437 17.901 2428.0223 2445.9233 --- --- 2462 17.888 2453.0612 2470.9492 --- --- 8 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 9 11G_Ant1_2412 11G_Ant1_2437 10 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11 11N20SISO_Ant1_2462 12 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Frequency[MHz] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 13.93 ≤30.00 PASS 2437 14.11 ≤30.00 PASS 2462 14.23 ≤30.00 PASS 11G Ant1 2412 13.94 ≤30.00 PASS 2437 14.27 ≤30.00 PASS 2462 14.37 ≤30.00 PASS 11N20SISO Ant1 2412 13.70 ≤30.00 PASS 2437 14.11 ≤30.00 PASS 2462 14.12 ≤30.00 PASS 13 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -11.71 ≤8.00 PASS 2437 -11.17 ≤8.00 PASS 2462 -10.93 ≤8.00 PASS 11G Ant1 2412 -17.41 ≤8.00 PASS 2437 -18.30 ≤8.00 PASS 2462 -17.92 ≤8.00 PASS 11N20SISO Ant1 2412 -18.08 ≤8.00 PASS 2437 -17.27 ≤8.00 PASS 2462 -17.91 ≤8.00 PASS 14 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 15 11G_Ant1_2412 11G_Ant1_2437 16 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 17 11N20SISO_Ant1_2462 18 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 2.08 -47.48 ≤-17.92 PASS High 2462 1.72 -54.84 ≤-18.28 PASS 11G Ant1 Low 2412 -2.67 -33.79 ≤-22.67 PASS High 2462 -2.13 -57.91 ≤-22.13 PASS 11N20SIS O Ant1 Low 2412 -2.41 -32.74 ≤-22.41 PASS High 2462 -2.21 -57.23 ≤-22.21 PASS 19 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 20 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 21 11N20SISO_Ant1_High_2462 22 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 1.36 1.36 --- PASS 30~1000 1.36 -67.63 ≤-18.64 PASS 1000~26500 1.36 -55.41 ≤-18.64 PASS 2437 Reference 0.51 0.51 --- PASS 30~1000 0.51 -67.61 ≤-19.49 PASS 1000~26500 0.51 -54.99 ≤-19.49 PASS 2462 Reference 1.70 1.70 --- PASS 30~1000 1.70 -67.94 ≤-18.3 PASS 1000~26500 1.70 -54.33 ≤-18.3 PASS 11G Ant1 2412 Reference -2.77 -2.77 --- PASS 30~1000 -2.77 -67.29 ≤-22.77 PASS 1000~26500 -2.77 -55.71 ≤-22.77 PASS 2437 Reference -2.17 -2.17 --- PASS 30~1000 -2.17 -67.62 ≤-22.17 PASS 1000~26500 -2.17 -54.75 ≤-22.17 PASS 2462 Reference -2.94 -2.94 --- PASS 30~1000 -2.94 -67.4 ≤-22.94 PASS 1000~26500 -2.94 -55.41 ≤-22.94 PASS 11N20SISO Ant1 2412 Reference -2.84 -2.84 --- PASS 30~1000 -2.84 -67.66 ≤-22.84 PASS 1000~26500 -2.84 -55.67 ≤-22.84 PASS 2437 Reference -3.17 -3.17 --- PASS 30~1000 -3.17 -67.78 ≤-23.17 PASS 1000~26500 -3.17 -55.41 ≤-23.17 PASS 2462 Reference -2.85 -2.85 --- PASS 30~1000 -2.85 -67.75 ≤-22.85 PASS 1000~26500 -2.85 -55.48 ≤-22.85 PASS 23 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 24 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 25 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 26 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 27 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 28 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 29 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 30 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 31 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 32 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 33 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 34 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.35 8.39 99.52 0.02 0.12 2437 8.35 8.40 99.40 0.03 0.12 2462 8.35 8.39 99.52 0.02 0.12 11G Ant1 2412 0.14 0.19 73.68 1.33 7.14 2437 0.15 0.19 78.95 1.03 6.67 2462 0.15 0.20 75.00 1.25 6.67 11N20SISO Ant1 2412 0.17 0.22 77.27 1.12 5.88 2437 0.17 0.22 77.27 1.12 5.88 2462 0.17 0.22 77.27 1.12 5.88 35 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 36 11G_Ant1_2412 11G_Ant1_2437

37 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 38 11N20SISO_Ant1_2462 39 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequen cy[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -59.24 3.26 0.02 39.24 ≤54 PASS AV 2385.800 -54.38 3.26 0.02 44.1 ≤54 PASS AV 2390.000 -56.85 3.26 0.02 41.63 ≤54 PASS Peak 2310.000 -51.46 3.26 0.00 47 ≤74 PASS Peak 2386.450 -46.25 3.26 0.00 52.21 ≤74 PASS Peak 2390.000 -47.21 3.26 0.00 51.25 ≤74 PASS High 2462 AV 2483.500 -55.54 3.26 0.02 42.94 ≤54 PASS AV 2488.290 -54.47 3.26 0.02 44.01 ≤54 PASS AV 2500.000 -57.45 3.26 0.02 41.03 ≤54 PASS Peak 2483.500 -48.32 3.26 0.00 50.14 ≤74 PASS Peak 2488.070 -46.65 3.26 0.00 51.81 ≤74 PASS Peak 2500.000 -50.78 3.26 0.00 47.68 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -59.28 3.26 1.33 40.51 ≤54 PASS AV 2387.360 -58.3 3.26 1.33 41.49 ≤54 PASS AV 2390.000 -58.44 3.26 1.33 41.35 ≤54 PASS Peak 2310.000 -52.71 3.26 0.00 45.75 ≤74 PASS Peak 2366.300 -47.89 3.26 0.00 50.57 ≤74 PASS Peak 2390.000 -50.93 3.26 0.00 47.53 ≤74 PASS High 2462 AV 2483.500 -58.04 3.26 1.25 41.67 ≤54 PASS AV 2487.960 -57.92 3.26 1.25 41.79 ≤54 PASS AV 2500.000 -58.65 3.26 1.25 41.06 ≤54 PASS Peak 2483.500 -49.86 3.26 0.00 48.6 ≤74 PASS Peak 2489.280 -47.54 3.26 0.00 50.92 ≤74 PASS Peak 2500.000 -49.94 3.26 0.00 48.52 ≤74 PASS 11N20SI SO Ant1 Low 2412 AV 2310.000 -59.7 3.26 1.12 39.88 ≤54 PASS AV 2371.370 -58.17 3.26 1.12 41.41 ≤54 PASS AV 2390.000 -59.26 3.26 1.12 40.32 ≤54 PASS Peak 2310.000 -52.17 3.26 0.00 46.29 ≤74 PASS Peak 2377.740 -48 3.26 0.00 50.46 ≤74 PASS Peak 2390.000 -48.23 3.26 0.00 50.23 ≤74 PASS High 2462 AV 2483.500 -59.06 3.26 1.12 40.52 ≤54 PASS AV 2496.760 -57.84 3.26 1.12 41.74 ≤54 PASS AV 2500.000 -58.75 3.26 1.12 40.83 ≤54 PASS Peak 2483.500 -50.59 3.26 0.00 47.87 ≤74 PASS Peak 2497.310 -48.11 3.26 0.00 50.35 ≤74 PASS Peak 2500.000 -51.35 3.26 0.00 47.11 ≤74 PASS 40 Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 41 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 42 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 43 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 44 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 45 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak

FCC ID: 2BWCX-JTT-511B Test Setup Photos of the EUT
