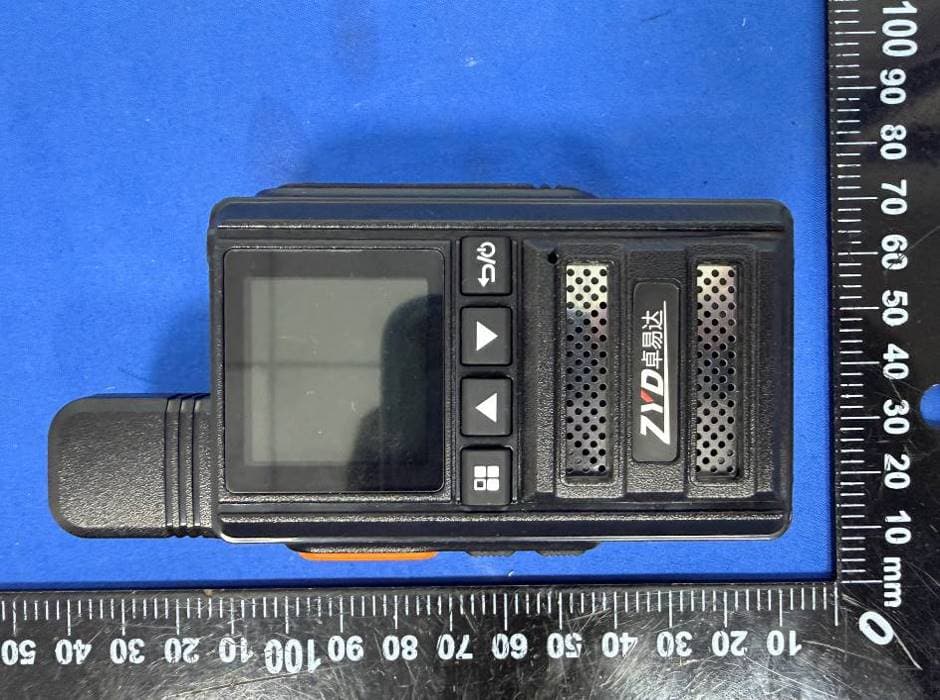

2BWED-ZYD-F68E4G LTE POC RADIO

LTE Band 2: 1850-1910 MHz(TX), 1930-1990 MHz(RX) LTE Band 4: 1710-1755 MHz(TX), 2110-2155 MHz(RX) LTE Band 5: 824-849 MHz(TX), 869-894 MHz(RX) LTE Band 7: 2500-2570 MHz(TX), 2620-2690 MHz(RX) LTE Band 66: 1710-1780 MHz(TX). 2110-2180MHz(RX) FCC Statement: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. SAR tests are conducted using standard operating positions accepted by FCC with the device transmitting at its highest certified power level in all tested frequency bands, although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. Before a new model is a available for sale to sale to public, it must be tested and certified to the FCC that is does not exceed the exposure limit established by the FCC. Tests for each product are performed in positions and locations as required by the FCC. For body worn operation, this device has been tested and meets the FCC RF exposure guidelines when used with and accessory designated for this product or when used with and accessory that contains no metal. To maintain compliance with FCC RF exposure guidelines hold the transmitter and antenna at least 1 inch (2.5 centimeters) from your face and speak in a normal voice, with the antenna pointed up and away from the face. Note: This equipment has been tested and found to comply with the limits for a Class B reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide Quanzhou Zhuoyida Communication Equipment Co., Ltd. 3rd Floor, No.6 Elevator, Shenzhou Tong Building, Nanhuang Road, Licheng District, Quanzhou City, Fujian Province, China

Matching circuit condition JH-F68-LTE V1.0 2026.4.27 2/3/4/5/7/8/28/66 Unmodified 3rd Floor, Building B, Weiye Innovation 18 Industrial Park, Xixiang Street, Bao'an District, Shenzhen Shenzhen Jinhong Wireless Technology Co., Ltd Antenna report Project Name Version Reporting Date frequency bands Manufacturer 18700 19.7 18700 19.7 18900 19.5 18900 19.9 19100 19.4 -95.2 19100 19.4 -94.9 20450 19.1 20450 19.4 20525 19.4 20525 19.6 20600 19.6 -95.0 20600 19.5 -95.0 20050 20.1 20050 19.6 20175 19.6 20175 20.1 20300 19.0 -93.9 20300 19.7 -94.2 20450 20.1 20450 19.6 20525 20.4 20525 20.1 20600 20.7 -95.0 20600 20.0 -95.0 20800 20.1 20800 19.7 21100 19.7 21100 20.1 21400 20.5 -95.2 21400 20.0 -95.0 21500 20.5 21500 19.5 21625 20.2 21625 20.0 21750 20.6 -97.0 21750 20.2 -96.2 27260 17.4 27260 17.2 27430 17.5 27430 17.4 27610 17.9 -95.0 27610 17.7 -94.8 132022 19.6 132022 19.6 132622 19.4 132622 19.4 132297 19.6 -95.1 132297 20.0 -95.6 Band 66 Band 2Band 8 Band 28 Band 28 Band 66 Band 66 Band 2 Band 4 Band 4 Band 5 Band 5 Band 2Band 3Band 4Band 5Band 7Band 8 Band 28 Band 3 Band 3 Band 7 Band 7Band 8 1.21 dBi -0.28 dBi 1.87 dBi1.19 dBi3.03 dBi Gain 2.56 dBi3.03 dBi Band 3.03 dBi channel TRPS(dBm) TIS(dBm) channel LTE OTA Test Report (No.1) LTE OTA Test Report (No.2) Band Band T RPS(dBm ) TISS(dBm) Antenna model： JH-F68-LTE Band 7 Gain:-0.28dBi Antenna 2D diagram H-planeE1 surfaceE2 surface 2300MHz antenna 3D ima ge Antenna 2D diagram H-planeE1 surfaceE2 surface Band 2 Gain:2.56dBi Antenna 2D dia gram H-planeE1 surfaceE2 surface 900 MHz antenna 3D ima ge Antenna 2D diagram H-planeE1 surfaceE2 surface Band 4/LTE Band 66 Gain:3.03dB i Antenna 2D diagram H-planeE1 surfaceE2 surface 700 MHz antenna 3D ima ge Antenna 2D diagram H-planeE1 surfaceE2 surface Band 5 Gain:1.21dBi Antenna 2D dia gram H-planeE1 surfaceE2 surface

Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2607S05707E-RF-TSP Page 1 / 3 EUT SETUP PHOTOS RSE - Front View (30 MHz-1 GHz) RSE - Back View (30 MHz-1 GHz) Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2607S05707E-RF-TSP Page 2 / 3 RSE - Front View (1 GHz-18 GHz) RSE - Back View (1 GHz-18 GHz) Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2607S05707E-RF-TSP Page 3 / 3 RSE - Front View (Above 18 GHz) RSE - Back View (Above 18 GHz)

Report No.: 2607S05707E-RF-01 Page 170 of 174 Band 7, Normal 1RB was the worst case 5MHz_Low_QPSK_1@0(30MHz~26.7GHz) 5MHz_Middle_QPSK_1@0(30MHz~26.7GHz) 5MHz_High_QPSK_1@0(30MHz~26.7GHz) 10MHz_Low_QPSK_1@0(30MHz~26.7GHz) 10MHz_Middle_QPSK_1@0(30MHz~26.7GHz) 10MHz_High_QPSK_1@0(30MHz~26.7GHz) Report No.: 2607S05707E-RF-01 Page 171 of 174 15MHz_Low_QPSK_1@0(30MHz~26.7GHz) 15MHz_Middle_QPSK_1@0(30MHz~26.7GHz) 15MHz_High_QPSK_1@0(30MHz~26.7GHz) 20MHz_Low_QPSK_1@0(30MHz~26.7GHz) 20MHz_Middle_QPSK_1@0(30MHz~26.7GHz) 20MHz_High_QPSK_1@0(30MHz~26.7GHz) Report No.: 2607S05707E-RF-01 Page 172 of 174 Band 66, Normal 1RB was the worst case 1.4MHz_Low_QPSK_1@0(30MHz~18.8GHz) 1.4MHz_Middle_QPSK_1@0(30MHz~18.8GHz) 1.4MHz_High_QPSK_1@0(30MHz~18.8GHz) 3MHz_Low_QPSK_1@0(30MHz~18.8GHz) 3MHz_Middle_QPSK_1@0(30MHz~18.8GHz) 3MHz_High_QPSK_1@0(30MHz~18.8GHz) Report No.: 2607S05707E-RF-01 Page 173 of 174 5MHz_Low_QPSK_1@0(30MHz~18.8GHz) 5MHz_Middle_QPSK_1@0(30MHz~18.8GHz) 5MHz_High_QPSK_1@0(30MHz~18.8GHz) 10MHz_Low_QPSK_1@0(30MHz~18.8GHz) 10MHz_Middle_QPSK_1@0(30MHz~18.8GHz) 10MHz_High_QPSK_1@0(30MHz~18.8GHz) Report No.: 2607S05707E-RF-01 Page 174 of 174 15MHz_Low_QPSK_1@0(30MHz~18.8GHz) 15MHz_Middle_QPSK_1@0(30MHz~18.8GHz) 15MHz_High_QPSK_1@0(30MHz~18.8GHz) 20MHz_Low_QPSK_1@0(30MHz~18.8GHz) 20MHz_Middle_QPSK_1@0(30MHz~18.8GHz) 20MHz_High_QPSK_1@0(30MHz~18.8GHz)

Report No.: 2607S05707E-RF-01 Page 112 of 174 5MHz_Low_QPSK_1@0 5MHz_Low_QPSK_25@0 5MHz_Low_16QAM_1@0 5MHz_Low_16QAM_25@0 5MHz_High_QPSK_1@24 5MHz_High_QPSK_25@0 Report No.: 2607S05707E-RF-01 Page 113 of 174 5MHz_High_16QAM_1@24 5MHz_High_16QAM_25@0 10MHz_Low_QPSK_1@0 10MHz_Low_QPSK_50@0 10MHz_Low_16QAM_1@0 10MHz_Low_16QAM_27@0 Report No.: 2607S05707E-RF-01 Page 114 of 174 10MHz_High_QPSK_1@49 10MHz_High_QPSK_50@0 10MHz_High_16QAM_1@49 10MHz_High_16QAM_27@23 15MHz_Low_QPSK_1@0 15MHz_Low_QPSK_75@0 Report No.: 2607S05707E-RF-01 Page 115 of 174 15MHz_Low_16QAM_1@0 15MHz_Low_16QAM_27@0 15MHz_High_QPSK_1@74 15MHz_High_QPSK_75@0 15MHz_High_16QAM_1@74 15MHz_High_16QAM_27@48 Report No.: 2607S05707E-RF-01 Page 116 of 174 20MHz_Low_QPSK_1@0 20MHz_Low_QPSK_100@0 20MHz_Low_16QAM_1@0 20MHz_Low_16QAM_27@0 20MHz_High_QPSK_1@99 20MHz_High_QPSK_100@0 Report No.: 2607S05707E-RF-01 Page 117 of 174 20MHz_High_16QAM_1@99 20MHz_High_16QAM_27@73 Report No.: 2607S05707E-RF-01 Page 118 of 174 Peak-to-average Ratio(PAR) FCC Part 24E Band 2, Normal Mode Result (dB) Limit (dB) 20MHz_Low_QPSK_1@0 5.19 13 20MHz_Low_QPSK_100@0 5.19 13 20MHz_Low_16QAM_1@0 6 13 20MHz_Low_16QAM_27@0 6.26 13 20MHz_Middle_QPSK_1@0 5.71 13 20MHz_Middle_QPSK_100@0 5.30 13 20MHz_Middle_16QAM_1@0 6.61 13 20MHz_Middle_16QAM_27@0 6.46 13 20MHz_High_QPSK_1@0 4.90 13 20MHz_High_QPSK_100@0 5.25 13 20MHz_High_16QAM_1@0 6 13 20MHz_High_16QAM_27@0 6.12 13 Note:worst case. FCC Part 22H Band 5, Normal Mode Result (dB) Limit (dB) 10MHz_Low_QPSK_1@0 4.87 13 10MHz_Low_QPSK_50@0 5.25 13 10MHz_Low_16QAM_1@0 5.45 13 10MHz_Low_16QAM_27@0 6.23 13 10MHz_Middle_QPSK_1@0 5.04 13 10MHz_Middle_QPSK_50@0 4.84 13 10MHz_Middle_16QAM_1@0 5.71 13 10MHz_Middle_16QAM_27@0 5.88 13 10MHz_High_QPSK_1@0 3.94 13 10MHz_High_QPSK_50@0 5.01 13 10MHz_High_16QAM_1@0 4.72 13 10MHz_High_16QAM_27@0 5.74 13 Note:worst case. Report No.: 2607S05707E-RF-01 Page 119 of 174 FCC Part 27 Band 4, Normal Mode Result (dB) Limit (dB) 20MHz_Low_QPSK_1@0 5.01 13 20MHz_Low_QPSK_100@0 5.28 13 20MHz_Low_16QAM_1@0 5.77 13 20MHz_Low_16QAM_27@0 6.38 13 20MHz_Middle_QPSK_1@0 5.19 13 20MHz_Middle_QPSK_100@0 4.81 13 20MHz_Middle_16QAM_1@0 6.03 13 20MHz_Middle_16QAM_27@0 6.20 13 20MHz_High_QPSK_1@0 4.20 13 20MHz_High_QPSK_100@0 5.10 13 20MHz_High_16QAM_1@0 5.33 13 20MHz_High_16QAM_27@0 5.65 13 Band 7, Normal Mode Result (dB) Limit (dB) 20MHz_Low_QPSK_1@0 4.46 13 20MHz_Low_QPSK_100@0 5.01 13 20MHz_Low_16QAM_1@0 5.19 13 20MHz_Low_16QAM_27@0 5.80 13 20MHz_Middle_QPSK_1@0 4.87 13 20MHz_Middle_QPSK_100@0 4.99 13 20MHz_Middle_16QAM_1@0 5.45 13 20MHz_Middle_16QAM_27@0 6 13 20MHz_High_QPSK_1@0 4.64 13 20MHz_High_QPSK_100@0 5.07 13 20MHz_High_16QAM_1@0 5.59 13 20MHz_High_16QAM_27@0 5.86 13 Report No.: 2607S05707E-RF-01 Page 120 of 174 Band 66, Normal Mode Result (dB) Limit (dB) 20MHz_Low_QPSK_1@0 4.72 13 20MHz_Low_QPSK_100@0 5.10 13 20MHz_Low_16QAM_1@0 5.45 13 20MHz_Low_16QAM_27@0 6.20 13 20MHz_Middle_QPSK_1@0 4.03 13 20MHz_Middle_QPSK_100@0 4.96 13 20MHz_Middle_16QAM_1@0 4.99 13 20MHz_Middle_16QAM_27@0 5.54 13 20MHz_High_QPSK_1@0 5.10 13 20MHz_High_QPSK_100@0 5.10 13 20MHz_High_16QAM_1@0 5.91 13 20MHz_High_16QAM_27@0 6.20 13 Note:worst case. Report No.: 2607S05707E-RF-01 Page 121 of 174 RF Output Power FCC Part 24E Band 2, Normal Mode Average Conducted Power(dBm) EIRP (dBm) EIRP (W) Limit (W) Verdict 1.4MHz_Low_QPSK_1@0 23.73 26.29 0.426 2 Pass 1.4MHz_Low_QPSK_1@3 23.67 26.23 0.420 2 Pass 1.4MHz_Low_QPSK_1@5 23.73 26.29 0.426 2 Pass 1.4MHz_Low_QPSK_3@0 23.53 26.09 0.406 2 Pass 1.4MHz_Low_QPSK_3@1 23.54 26.10 0.407 2 Pass 1.4MHz_Low_QPSK_3@3 23.54 26.10 0.407 2 Pass 1.4MHz_Low_QPSK_6@0 22.59 25.15 0.327 2 Pass 1.4MHz_Low_16QAM_1@0 23.08 25.64 0.366 2 Pass 1.4MHz_Low_16QAM_1@3 23.02 25.58 0.361 2 Pass 1.4MHz_Low_16QAM_1@5 23.02 25.58 0.361 2 Pass 1.4MHz_Low_16QAM_3@0 23.02 25.58 0.361 2 Pass 1.4MHz_Low_16QAM_3@1 23 25.56 0.360 2 Pass 1.4MHz_Low_16QAM_3@3 22.98 25.54 0.358 2 Pass 1.4MHz_Low_16QAM_6@0 21.70 24.26 0.267 2 Pass 1.4MHz_Middle_QPSK_1@0 22.69 25.25 0.335 2 Pass 1.4MHz_Middle_QPSK_1@3 22.62 25.18 0.330 2 Pass 1.4MHz_Middle_QPSK_1@5 22.66 25.22 0.333 2 Pass 1.4MHz_Middle_QPSK_3@0 22.71 25.27 0.337 2 Pass 1.4MHz_Middle_QPSK_3@1 22.70 25.26 0.336 2 Pass 1.4MHz_Middle_QPSK_3@3 22.70 25.26 0.336 2 Pass 1.4MHz_Middle_QPSK_6@0 21.86 24.42 0.277 2 Pass 1.4MHz_Middle_16QAM_1@0 21.73 24.29 0.269 2 Pass 1.4MHz_Middle_16QAM_1@3 21.71 24.27 0.267 2 Pass 1.4MHz_Middle_16QAM_1@5 21.78 24.34 0.272 2 Pass 1.4MHz_Middle_16QAM_3@0 22.08 24.64 0.291 2 Pass 1.4MHz_Middle_16QAM_3@1 22.10 24.66 0.292 2 Pass 1.4MHz_Middle_16QAM_3@3 22.07 24.63 0.290 2 Pass 1.4MHz_Middle_16QAM_6@0 21.19 23.75 0.237 2 Pass 1.4MHz_High_QPSK_1@0 23.02 25.58 0.361 2 Pass 1.4MHz_High_QPSK_1@3 23.17 25.73 0.374 2 Pass Report No.: 2607S05707E-RF-01 Page 122 of 174 Mode Average Conducted Power(dBm) EIRP (dBm) EIRP (W) Limit (W) Verdict 1.4MHz_High_QPSK_1@5 23.09 25.65 0.367 2 Pass 1.4MHz_High_QPSK_3@0 23.09 25.65 0.367 2 Pass 1.4MHz_High_QPSK_3@1 23.11 25.67 0.369 2 Pass 1.4MHz_High_QPSK_3@3 23.14 25.70 0.372 2 Pass 1.4MHz_High_QPSK_6@0 22.14 24.70 0.295 2 Pass 1.4MHz_High_16QAM_1@0 21.84 24.40 0.275 2 Pass 1.4MHz_High_16QAM_1@3 22.06 24.62 0.290 2 Pass 1.4MHz_High_16QAM_1@5 22.16 24.72 0.296 2 Pass 1.4MHz_High_16QAM_3@0 22.23 24.79 0.301 2 Pass 1.4MHz_High_16QAM_3@1 22.29 24.85 0.305 2 Pass 1.4MHz_High_16QAM_3@3 22.42 24.98 0.315 2 Pass 1.4MHz_High_16QAM_6@0 21.31 23.87 0.244 2 Pass 3MHz_Low_QPSK_1@0 23.72 26.28 0.425 2 Pass 3MHz_Low_QPSK_1@8 23.70 26.26 0.423 2 Pass 3MHz_Low_QPSK_1@14 23.74 26.30 0.427 2 Pass 3MHz_Low_QPSK_8@0 22.82 25.38 0.345 2 Pass 3MHz_Low_QPSK_8@4 22.88 25.44 0.350 2 Pass 3MHz_Low_QPSK_8@7 22.77 25.33 0.341 2 Pass 3MHz_Low_QPSK_15@0 22.82 25.38 0.345 2 Pass 3MHz_Low_16QAM_1@0 22.54 25.10 0.324 2 Pass 3MHz_Low_16QAM_1@8 22.64 25.20 0.331 2 Pass 3MHz_Low_16QAM_1@14 22.55 25.11 0.324 2 Pass 3MHz_Low_16QAM_8@0 21.91 24.47 0.280 2 Pass 3MHz_Low_16QAM_8@4 21.96 24.52 0.283 2 Pass 3MHz_Low_16QAM_8@7 21.99 24.55 0.285 2 Pass 3MHz_Low_16QAM_15@…

Text truncated - open the document above for the full version.

Report No.: 2607S05707E-RF-01 Page 103 of 174 20MHz_Low_16QAM_1@0 20MHz_Low_16QAM_27@0 20MHz_High_QPSK_1@99 20MHz_High_QPSK_100@0 20MHz_High_16QAM_1@99 20MHz_High_16QAM_27@73 Report No.: 2607S05707E-RF-01 Page 104 of 174 Band 7, Normal 5MHz_Low_QPSK_1@0 5MHz_Low_QPSK_25@0 5MHz_Low_16QAM_1@0 5MHz_Low_16QAM_25@0 5MHz_High_QPSK_1@24 5MHz_High_QPSK_25@0 Report No.: 2607S05707E-RF-01 Page 105 of 174 5MHz_High_16QAM_1@24 5MHz_High_16QAM_25@0 10MHz_Low_QPSK_1@0 10MHz_Low_QPSK_50@0 10MHz_Low_16QAM_1@0 10MHz_Low_16QAM_27@0 Report No.: 2607S05707E-RF-01 Page 106 of 174 10MHz_High_QPSK_1@49 10MHz_High_QPSK_50@0 10MHz_High_16QAM_1@49 10MHz_High_16QAM_27@23 15MHz_Low_QPSK_1@0 15MHz_Low_QPSK_75@0 Report No.: 2607S05707E-RF-01 Page 107 of 174 15MHz_Low_16QAM_1@0 15MHz_Low_16QAM_27@0 15MHz_High_QPSK_1@74 15MHz_High_QPSK_75@0 15MHz_High_16QAM_1@74 15MHz_High_16QAM_27@48 Report No.: 2607S05707E-RF-01 Page 108 of 174 20MHz_Low_QPSK_1@0 20MHz_Low_QPSK_100@0 20MHz_Low_16QAM_1@0 20MHz_Low_16QAM_27@0 20MHz_High_QPSK_1@99 20MHz_High_QPSK_100@0 Report No.: 2607S05707E-RF-01 Page 109 of 174 20MHz_High_16QAM_1@99 20MHz_High_16QAM_27@73 Band 66, Normal 1.4MHz_Low_QPSK_1@0 1.4MHz_Low_QPSK_6@0 1.4MHz_Low_16QAM_1@0 1.4MHz_Low_16QAM_6@0 Report No.: 2607S05707E-RF-01 Page 110 of 174 1.4MHz_High_QPSK_1@5 1.4MHz_High_QPSK_6@0 1.4MHz_High_16QAM_1@5 1.4MHz_High_16QAM_6@0 3MHz_Low_QPSK_1@0 3MHz_Low_QPSK_15@0 Report No.: 2607S05707E-RF-01 Page 111 of 174 3MHz_Low_16QAM_1@0 3MHz_Low_16QAM_15@0 3MHz_High_QPSK_1@14 3MHz_High_QPSK_15@0 3MHz_High_16QAM_1@14 3MHz_High_16QAM_15@0

Report No.: 2607S05707E-RF-01 Page 82 of 174 20MHz_Low_16QAM_1@0 20MHz_Low_16QAM_27@0 20MHz_High_QPSK_1@99 20MHz_High_QPSK_100@0 20MHz_High_16QAM_1@99 20MHz_High_16QAM_27@73 Report No.: 2607S05707E-RF-01 Page 83 of 174 FCC Part 22H Band 5, Normal Mode Result (dBm) Limit Verdict 1.4MHz_Low_QPSK_1@0 -24.27 See Graphs Pass 1.4MHz_Low_QPSK_6@0 -31.83 See Graphs Pass 1.4MHz_Low_16QAM_1@0 -26.21 See Graphs Pass 1.4MHz_Low_16QAM_6@0 -31.59 See Graphs Pass 1.4MHz_High_QPSK_1@5 -26.55 See Graphs Pass 1.4MHz_High_QPSK_6@0 -33.21 See Graphs Pass 1.4MHz_High_16QAM_1@5 -27.03 See Graphs Pass 1.4MHz_High_16QAM_6@0 -33.12 See Graphs Pass 3MHz_Low_QPSK_1@0 -20.53 See Graphs Pass 3MHz_Low_QPSK_15@0 -32.37 See Graphs Pass 3MHz_Low_16QAM_1@0 -20.47 See Graphs Pass 3MHz_Low_16QAM_15@0 -32.26 See Graphs Pass 3MHz_High_QPSK_1@14 -22.31 See Graphs Pass 3MHz_High_QPSK_15@0 -32.29 See Graphs Pass 3MHz_High_16QAM_1@14 -22.23 See Graphs Pass 3MHz_High_16QAM_15@0 -33.07 See Graphs Pass 5MHz_Low_QPSK_1@0 -17.13 See Graphs Pass 5MHz_Low_QPSK_25@0 -31.19 See Graphs Pass 5MHz_Low_16QAM_1@0 -18.21 See Graphs Pass 5MHz_Low_16QAM_25@0 -31.93 See Graphs Pass 5MHz_High_QPSK_1@24 -19.48 See Graphs Pass 5MHz_High_QPSK_25@0 -31.63 See Graphs Pass 5MHz_High_16QAM_1@24 -18.84 See Graphs Pass 5MHz_High_16QAM_25@0 -32.73 See Graphs Pass 10MHz_Low_QPSK_1@0 -20.80 See Graphs Pass 10MHz_Low_QPSK_50@0 -34.33 See Graphs Pass 10MHz_Low_16QAM_1@0 -20.79 See Graphs Pass 10MHz_Low_16QAM_27@0 -32.42 See Graphs Pass 10MHz_High_QPSK_1@49 -22.74 See Graphs Pass 10MHz_High_QPSK_50@0 -34.79 See Graphs Pass Report No.: 2607S05707E-RF-01 Page 84 of 174 Mode Result (dBm) Limit Verdict 10MHz_High_16QAM_1@49 -23.07 See Graphs Pass 10MHz_High_16QAM_27@23 -34.16 See Graphs Pass Report No.: 2607S05707E-RF-01 Page 85 of 174 Band 5, Normal 1.4MHz_Low_QPSK_1@0 1.4MHz_Low_QPSK_6@0 1.4MHz_Low_16QAM_1@0 1.4MHz_Low_16QAM_6@0 1.4MHz_High_QPSK_1@5 1.4MHz_High_QPSK_6@0 Report No.: 2607S05707E-RF-01 Page 86 of 174 1.4MHz_High_16QAM_1@5 1.4MHz_High_16QAM_6@0 3MHz_Low_QPSK_1@0 3MHz_Low_QPSK_15@0 3MHz_Low_16QAM_1@0 3MHz_Low_16QAM_15@0 Report No.: 2607S05707E-RF-01 Page 87 of 174 3MHz_High_QPSK_1@14 3MHz_High_QPSK_15@0 3MHz_High_16QAM_1@14 3MHz_High_16QAM_15@0 5MHz_Low_QPSK_1@0 5MHz_Low_QPSK_25@0 Report No.: 2607S05707E-RF-01 Page 88 of 174 5MHz_Low_16QAM_1@0 5MHz_Low_16QAM_25@0 5MHz_High_QPSK_1@24 5MHz_High_QPSK_25@0 5MHz_High_16QAM_1@24 5MHz_High_16QAM_25@0 Report No.: 2607S05707E-RF-01 Page 89 of 174 10MHz_Low_QPSK_1@0 10MHz_Low_QPSK_50@0 10MHz_Low_16QAM_1@0 10MHz_Low_16QAM_27@0 10MHz_High_QPSK_1@49 10MHz_High_QPSK_50@0 Report No.: 2607S05707E-RF-01 Page 90 of 174 10MHz_High_16QAM_1@49 10MHz_High_16QAM_27@23 Report No.: 2607S05707E-RF-01 Page 91 of 174 FCC Part 27 Band 4, Normal Mode Result (dBm) Limit Verdict 1.4MHz_Low_QPSK_1@0 -18.68 See Graphs Pass 1.4MHz_Low_QPSK_6@0 -26.87 See Graphs Pass 1.4MHz_Low_16QAM_1@0 -20.49 See Graphs Pass 1.4MHz_Low_16QAM_6@0 -29.55 See Graphs Pass 1.4MHz_High_QPSK_1@5 -25.10 See Graphs Pass 1.4MHz_High_QPSK_6@0 -33.56 See Graphs Pass 1.4MHz_High_16QAM_1@5 -25.96 See Graphs Pass 1.4MHz_High_16QAM_6@0 -32.77 See Graphs Pass 3MHz_Low_QPSK_1@0 -22.27 See Graphs Pass 3MHz_Low_QPSK_15@0 -24.83 See Graphs Pass 3MHz_Low_16QAM_1@0 -21.95 See Graphs Pass 3MHz_Low_16QAM_15@0 -27.53 See Graphs Pass 3MHz_High_QPSK_1@14 -23.86 See Graphs Pass 3MHz_High_QPSK_15@0 -31.69 See Graphs Pass 3MHz_High_16QAM_1@14 -24.29 See Graphs Pass 3MHz_High_16QAM_15@0 -29.67 See Graphs Pass 5MHz_Low_QPSK_1@0 -18.45 See Graphs Pass 5MHz_Low_QPSK_25@0 -29.88 See Graphs Pass 5MHz_Low_16QAM_1@0 -20.36 See Graphs Pass 5MHz_Low_16QAM_25@0 -29.88 See Graphs Pass 5MHz_High_QPSK_1@24 -21.07 See Graphs Pass 5MHz_High_QPSK_25@0 -33.36 See Graphs Pass 5MHz_High_16QAM_1@24 -20.12 See Graphs Pass 5MHz_High_16QAM_25@0 -32.52 See Graphs Pass 10MHz_Low_QPSK_1@0 -23.04 See Graphs Pass 10MHz_Low_QPSK_50@0 -33.80 See Graphs Pass 10MHz_Low_16QAM_1@0 -22.91 See Graphs Pass 10MHz_Low_16QAM_27@0 -33.30 See Graphs Pass 10MHz_High_QPSK_1@49 -23.81 See Graphs Pass 10MHz_High_QPSK_50@0 -35.25 See Graphs Pass Report No.: 2607S05707E-RF-01 Page 92 of 174 Mode Result (dBm) Limit Verdict 10MHz_High_16QAM_1@49 -24.59 See Graphs Pass 10MHz_High_16QAM_27@23 -36.74 See Graphs Pass 15MHz_Low_QPSK_1@0 -26.45 See Graphs Pass 15MHz_Low_QPSK_75@0 -33.49 See Graphs Pass 15MHz_Low_16QAM_1@0 -27.40 See Graphs Pass 15MHz_Low_16QAM_27@0 -32.08 See Graphs Pass 15MHz_High_QPSK_1@74 -28.51 See Graphs Pass 15MHz_High_QPSK_75@0 -34.26 See Graphs Pass 15MHz_High_16QAM_1@74 -28.10 See Graphs Pass 15MHz_High_16QAM_27@48 -36.79 See Graphs Pass 20MHz_Low_QPSK_1@0 -37.30 See Graphs Pass 20MHz_Low_QPSK_100@0 -36.62 See Graphs Pass 20MHz_Low_16QAM_1@0 -37.75 See Graphs Pass 20MHz_Low_16QAM_27@0 -35.48 See Graphs Pass 20MHz_High_QPSK_1@99 -37.14 See Graphs Pass 20MHz_High_QPSK_100@0 -36.03 See Graphs Pass 20MHz_High_16QAM_1@99 -37.09 See Graphs Pass 20MHz_High_16QAM_27@73 -36.34 See Graphs Pass Band 7, Normal Mode Result (dBm) Limit Verdict 5MHz_Low_QPSK_1@0 -18.23 See Graphs Pass 5MHz_Low_QPSK_25@0 -23.90 See Graphs Pass 5MHz_Low_16QAM_1@0 -18.81 See Graphs Pass 5MHz_Low_16QAM_25@0 -24.19 See Graphs Pass 5MHz_High_QPSK_1@24 -20.33 See Graphs Pass 5MHz_High_QPSK_25@0 -26.12 See Graphs Pass 5MHz_High_16QAM_1@24 -21.65 See Graphs Pass 5MHz_High_16QAM_25@0 -26.36 See Graphs Pass 10MHz_Low_QPSK_1@0 -25.95 See Graphs Pass 10MHz_Low_QPSK_50@0 -27.49 See Graphs Pass 10MHz_Low_16QAM_1@0 -26.10 See Graphs Pass 10MHz_Low_16QAM_27@0 -25.68 See Graphs Pass 10MHz_High_QPSK_1@49 -27.80 See Graphs Pass Report No.: 2607S05707E-RF-01 Page 93 of 174 Mode Result (dBm) Limit Verdict 10MHz_High_QPSK_50@0 -28.94 See Graphs Pass 10MHz_High_16QAM_1@49 -28.14 See Graphs Pass 10MHz_High_16QAM_27@23 -27.00 See Graphs Pass 15MHz_Low_QPSK_1@0 -32.44 See Graphs Pass 15MHz_Low_QPSK_75@0 -27.28 See Graphs Pass 15MHz_Low_16QAM_1@0 -32.72 See Graphs Pass 15MHz_Low_16QAM_27@0 -25.27 See Graphs Pass 15MHz_High_QPSK_1@74 -32.30 See Graphs Pass 15MHz_High_QPSK_…

Text truncated - open the document above for the full version.

Report No.: 2607S05707E-RF-01 Page 66 of 174 5MHz_Middle_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_High_QPSK_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_High_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 67 of 174 10MHz_Low_QPSK_50@0 Occupied Bandwidth 26dB Bandwidth 10MHz_Low_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth 10MHz_Middle_QPSK_50@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 68 of 174 10MHz_Middle_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth 10MHz_High_QPSK_50@0 Occupied Bandwidth 26dB Bandwidth 10MHz_High_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 69 of 174 15MHz_Low_QPSK_75@0 Occupied Bandwidth 26dB Bandwidth 15MHz_Low_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth 15MHz_Middle_QPSK_75@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 70 of 174 15MHz_Middle_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth 15MHz_High_QPSK_75@0 Occupied Bandwidth 26dB Bandwidth 15MHz_High_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 71 of 174 20MHz_Low_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth 20MHz_Low_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth 20MHz_Middle_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 72 of 174 20MHz_Middle_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth 20MHz_High_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth 20MHz_High_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 73 of 174 Out of band emission,Band Edge FCC Part 24E Band 2, Normal Mode Result (dBm) Limit Verdict 1.4MHz_Low_QPSK_1@0 -19.71 See Graphs Pass 1.4MHz_Low_QPSK_6@0 -27.50 See Graphs Pass 1.4MHz_Low_16QAM_1@0 -22.08 See Graphs Pass 1.4MHz_Low_16QAM_6@0 -29.18 See Graphs Pass 1.4MHz_High_QPSK_1@5 -17.33 See Graphs Pass 1.4MHz_High_QPSK_6@0 -23.51 See Graphs Pass 1.4MHz_High_16QAM_1@5 -17.96 See Graphs Pass 1.4MHz_High_16QAM_6@0 -24.18 See Graphs Pass 3MHz_Low_QPSK_1@0 -22.02 See Graphs Pass 3MHz_Low_QPSK_15@0 -24.34 See Graphs Pass 3MHz_Low_16QAM_1@0 -21.79 See Graphs Pass 3MHz_Low_16QAM_15@0 -25.40 See Graphs Pass 3MHz_High_QPSK_1@14 -20.47 See Graphs Pass 3MHz_High_QPSK_15@0 -18.51 See Graphs Pass 3MHz_High_16QAM_1@14 -20.62 See Graphs Pass 3MHz_High_16QAM_15@0 -19.41 See Graphs Pass 5MHz_Low_QPSK_1@0 -18.60 See Graphs Pass 5MHz_Low_QPSK_25@0 -26.01 See Graphs Pass 5MHz_Low_16QAM_1@0 -20.04 See Graphs Pass 5MHz_Low_16QAM_25@0 -26.14 See Graphs Pass 5MHz_High_QPSK_1@24 -19.51 See Graphs Pass 5MHz_High_QPSK_25@0 -22.22 See Graphs Pass 5MHz_High_16QAM_1@24 -19.32 See Graphs Pass 5MHz_High_16QAM_25@0 -23.64 See Graphs Pass 10MHz_Low_QPSK_1@0 -22.97 See Graphs Pass 10MHz_Low_QPSK_50@0 -29.04 See Graphs Pass 10MHz_Low_16QAM_1@0 -23.61 See Graphs Pass 10MHz_Low_16QAM_27@0 -28.13 See Graphs Pass 10MHz_High_QPSK_1@49 -23.32 See Graphs Pass 10MHz_High_QPSK_50@0 -26.57 See Graphs Pass Report No.: 2607S05707E-RF-01 Page 74 of 174 Mode Result (dBm) Limit Verdict 10MHz_High_16QAM_1@49 -23.34 See Graphs Pass 10MHz_High_16QAM_27@23 -24.76 See Graphs Pass 15MHz_Low_QPSK_1@0 -25.74 See Graphs Pass 15MHz_Low_QPSK_75@0 -29.26 See Graphs Pass 15MHz_Low_16QAM_1@0 -26.00 See Graphs Pass 15MHz_Low_16QAM_27@0 -28.51 See Graphs Pass 15MHz_High_QPSK_1@74 -24.97 See Graphs Pass 15MHz_High_QPSK_75@0 -28.40 See Graphs Pass 15MHz_High_16QAM_1@74 -26.21 See Graphs Pass 15MHz_High_16QAM_27@48 -24.85 See Graphs Pass 20MHz_Low_QPSK_1@0 -35.46 See Graphs Pass 20MHz_Low_QPSK_100@0 -30.98 See Graphs Pass 20MHz_Low_16QAM_1@0 -35.83 See Graphs Pass 20MHz_Low_16QAM_27@0 -28.59 See Graphs Pass 20MHz_High_QPSK_1@99 -36.79 See Graphs Pass 20MHz_High_QPSK_100@0 -30.77 See Graphs Pass 20MHz_High_16QAM_1@99 -37.37 See Graphs Pass 20MHz_High_16QAM_27@73 -24.99 See Graphs Pass Report No.: 2607S05707E-RF-01 Page 75 of 174 Band 2, Normal 1.4MHz_Low_QPSK_1@0 1.4MHz_Low_QPSK_6@0 1.4MHz_Low_16QAM_1@0 1.4MHz_Low_16QAM_6@0 1.4MHz_High_QPSK_1@5 1.4MHz_High_QPSK_6@0 Report No.: 2607S05707E-RF-01 Page 76 of 174 1.4MHz_High_16QAM_1@5 1.4MHz_High_16QAM_6@0 3MHz_Low_QPSK_1@0 3MHz_Low_QPSK_15@0 3MHz_Low_16QAM_1@0 3MHz_Low_16QAM_15@0 Report No.: 2607S05707E-RF-01 Page 77 of 174 3MHz_High_QPSK_1@14 3MHz_High_QPSK_15@0 3MHz_High_16QAM_1@14 3MHz_High_16QAM_15@0 5MHz_Low_QPSK_1@0 5MHz_Low_QPSK_25@0 Report No.: 2607S05707E-RF-01 Page 78 of 174 5MHz_Low_16QAM_1@0 5MHz_Low_16QAM_25@0 5MHz_High_QPSK_1@24 5MHz_High_QPSK_25@0 5MHz_High_16QAM_1@24 5MHz_High_16QAM_25@0 Report No.: 2607S05707E-RF-01 Page 79 of 174 10MHz_Low_QPSK_1@0 10MHz_Low_QPSK_50@0 10MHz_Low_16QAM_1@0 10MHz_Low_16QAM_27@0 10MHz_High_QPSK_1@49 10MHz_High_QPSK_50@0 Report No.: 2607S05707E-RF-01 Page 80 of 174 10MHz_High_16QAM_1@49 10MHz_High_16QAM_27@23 15MHz_Low_QPSK_1@0 15MHz_Low_QPSK_75@0 15MHz_Low_16QAM_1@0 15MHz_Low_16QAM_27@0 Report No.: 2607S05707E-RF-01 Page 81 of 174 15MHz_High_QPSK_1@74 15MHz_High_QPSK_75@0 15MHz_High_16QAM_1@74 15MHz_High_16QAM_27@48 20MHz_Low_QPSK_1@0 20MHz_Low_QPSK_100@0

Report No.: 2607S05707E-RF-01 Page 51 of 174 20MHz_Low_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth 20MHz_Low_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth 20MHz_Middle_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 52 of 174 20MHz_Middle_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth 20MHz_High_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth 20MHz_High_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 53 of 174 Band 7, Normal 5MHz_Low_QPSK_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_Low_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_Middle_QPSK_25@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 54 of 174 5MHz_Middle_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_High_QPSK_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_High_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 55 of 174 10MHz_Low_QPSK_50@0 Occupied Bandwidth 26dB Bandwidth 10MHz_Low_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth 10MHz_Middle_QPSK_50@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 56 of 174 10MHz_Middle_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth 10MHz_High_QPSK_50@0 Occupied Bandwidth 26dB Bandwidth 10MHz_High_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 57 of 174 15MHz_Low_QPSK_75@0 Occupied Bandwidth 26dB Bandwidth 15MHz_Low_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth 15MHz_Middle_QPSK_75@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 58 of 174 15MHz_Middle_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth 15MHz_High_QPSK_75@0 Occupied Bandwidth 26dB Bandwidth 15MHz_High_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 59 of 174 20MHz_Low_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth 20MHz_Low_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth 20MHz_Middle_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 60 of 174 20MHz_Middle_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth 20MHz_High_QPSK_100@0 Occupied Bandwidth 26dB Bandwidth 20MHz_High_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 61 of 174 Band 66, Normal 1.4MHz_Low_QPSK_6@0 Occupied Bandwidth 26dB Bandwidth 1.4MHz_Low_16QAM_6@0 Occupied Bandwidth 26dB Bandwidth 1.4MHz_Middle_QPSK_6@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 62 of 174 1.4MHz_Middle_16QAM_6@0 Occupied Bandwidth 26dB Bandwidth 1.4MHz_High_QPSK_6@0 Occupied Bandwidth 26dB Bandwidth 1.4MHz_High_16QAM_6@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 63 of 174 3MHz_Low_QPSK_15@0 Occupied Bandwidth 26dB Bandwidth 3MHz_Low_16QAM_15@0 Occupied Bandwidth 26dB Bandwidth 3MHz_Middle_QPSK_15@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 64 of 174 3MHz_Middle_16QAM_15@0 Occupied Bandwidth 26dB Bandwidth 3MHz_High_QPSK_15@0 Occupied Bandwidth 26dB Bandwidth 3MHz_High_16QAM_15@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 65 of 174 5MHz_Low_QPSK_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_Low_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_Middle_QPSK_25@0 Occupied Bandwidth 26dB Bandwidth

Report No.: 2607S05707E-RF-01 Page 32 of 174 3MHz_Middle_16QAM_15@0 Occupied Bandwidth 26dB Bandwidth 3MHz_High_QPSK_15@0 Occupied Bandwidth 26dB Bandwidth 3MHz_High_16QAM_15@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 33 of 174 5MHz_Low_QPSK_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_Low_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_Middle_QPSK_25@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 34 of 174 5MHz_Middle_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_High_QPSK_25@0 Occupied Bandwidth 26dB Bandwidth 5MHz_High_16QAM_25@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 35 of 174 10MHz_Low_QPSK_50@0 Occupied Bandwidth 26dB Bandwidth 10MHz_Low_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth 10MHz_Middle_QPSK_50@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 36 of 174 10MHz_Middle_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth 10MHz_High_QPSK_50@0 Occupied Bandwidth 26dB Bandwidth 10MHz_High_16QAM_27@0 Occupied Bandwidth 26dB Bandwidth Report No.: 2607S05707E-RF-01 Page 37 of 174 FCC Part 27 Band 4, Normal Mode 99% OBW (MHz) 26dB BW (MHz) 1.4MHz_Low_QPSK_6@0 1.075 1.228 1.4MHz_Low_16QAM_6@0 1.084 1.259 1.4MHz_Middle_QPSK_6@0 1.075 1.247 1.4MHz_Middle_16QAM_6@0 1.089 1.253 1.4MHz_High_QPSK_6@0 1.086 1.253 1.4MHz_High_16QAM_6@0 1.078 1.261 3MHz_Low_QPSK_15@0 2.682 2.907 3MHz_Low_16QAM_15@0 2.682 2.895 3MHz_Middle_QPSK_15@0 2.682 2.913 3MHz_Middle_16QAM_15@0 2.682 2.913 3MHz_High_QPSK_15@0 2.682 2.895 3MHz_High_16QAM_15@0 2.682 2.889 5MHz_Low_QPSK_25@0 4.460 4.855 5MHz_Low_16QAM_25@0 4.470 4.825 5MHz_Middle_QPSK_2…
