2BWF6-SW077Remote control for Outdoor wall lamp

SW077 Product Function Specification (Revised Dec. 09, 2025) 1. Functional Requirements 1. Waterproof Type-C charging port 2. Single control button: short press & long press operation 3. Battery capacity: 9000 mAh; 5 V / 2 A wired charging, compatible with solar charging (max. input voltage ≤ 9 V); rated power 4.5 W / 600 lm 4. Dual color temperature light source: 2700 K warm white + 5000 K cool white; 3 adjustable brightness levels and 3 color temperature options 5. Working Modes: • ON: Constant light on • Auto: Light off in daytime, light on at night • Motion Sensor 40s: Light turns on for 40 seconds when human motion detected, turns off after people leave • Motion Sensor 90s: Light turns on for 90 seconds when human motion detected, turns off after people leave 6. Motion sensor parameters: detection angle ≥ 120°, detection distance 3–5 m; maximize sensing range while avoiding false triggering caused by wind swaying plants 7. Built-in light sensor: light will not activate in bright ambient, only triggers under dim/dark conditions 8. Compatible with 433 MHz remote control, supports remote operation indoors 9. Designed for outdoor cooking lighting; low brightness output is not acceptable 2. Button Operation Rules 1. Short press to cycle through modes in sequence: ON (constant on, no light sensor) → Auto (off by day, on at night) → 40s motion mode → 90s motion mode → Power Off • Brightness defaults to 100% when switching modes; mode indicator light illuminates while the lamp is on, extinguishes 5 seconds after lamp turns off; indicator turns off immediately upon power-off. • Auto mode defaults to stay lit for 5 seconds after activation via button. • If the lamp is fully powered off, remote control inputs are invalid. • Note: Temporary standby (lamp off via button/remote) draws ~1.6 mA average operating current; full power-off cuts most circuits with static current ~100 μA, recommended for long-term storage or transportation to reduce power drain. 1. Long press to cycle 3 color temperatures: 2700 K warm white → 50% warm + 50% neutral white → 5000 K cool white 3. Remote Control Functions 1. Remote pairing procedure: With the main unit powered off, short press the button to power on. Within 15 seconds after the light turns on, long press the remote ON key for 1 second to complete pairing; the lamp flashes 3 times to confirm successful pairing. 2. Remote button definitions: • ON: Turn on constant light mode (no light sensor, memorizes last brightness setting) • OFF: Power off (any mode switches to constant light state then shuts down) • Brightness + / Brightness –: Adjust brightness across 3 fixed levels (100% → 80% → 60%) • WW: 2700 K warm white • NW: 50% warm + 50% neutral white • CW: 5000 K cool white • 40S: 40-second motion sensor mode • 90S: 90-second motion sensor mode • Auto: Automatic mode (remains off in daylight, auto-on at night; defaults to 5-second light-up after remote activation) • 2H / 4H: Timing function; lamp flashes once to confirm timing set 4. Human Body Induction Function 1. All motion modes trigger fixed-duration auto-off after detection. Repeated human detection within the timed period resets the countdown timer. Brightness and color temperature can be adjusted via button or remote during active lighting. Two timing options available: 40 seconds / 90 seconds. 2. Motion sensor is disabled in bright daylight; only activates at night when human movement is detected. 5. Charging, Battery Life & Indicator Lights 1. Battery specification: 9000 mAh, rated output 4.15 V / 4.5 W; no power derating during long-time continuous operation, linear power output from battery. 2. Charging indicator: Steady red light during charging, steady green light when fully charged. The lamp can be switched on while charging; wired charging input: 5 V / 2 A. 3. Low battery alert: At ~3.2 V, mode indicator flashes red every 0.5 seconds. At critical low voltage (~2.8 V), the lamp powers off automatically into ultra-low power mode; button and remote control functions become disabled at this stage. Production Test Procedure 1. Sampling inspection of static current 2. Sampling inspection of full-power operating current 3. Full assembly function test: button operation, remote control, light color output, indicator light status 4. Human body induction & light sensor function test 5. Charging performance test: verify charging current and charging indicator behavior 6. Power off via main button before packaging; confirm all lights extinguish after shutdown FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance…

Text truncated - open the document above for the full version.

Rev 1/26/2023 Foshan Shengwei Lighting Technology CO.,LTD Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 07-23-2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BWF6-SW077 [Foshan Shengwei Lighting Technology CO.,LTD] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Foshan Shengwei Lighting Technology CO.,LTD] certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (Applicant signature) (Applicant printed name) Kang Yang Rev 1/26/2023 Foshan Shengwei Lighting Technology CO.,LTD Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 07-23-2026 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BWF6-SW077 [Foshan Shengwei Lighting Technology CO.,LTD] ce8rtifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Kang Yang

Foshan Shengwei Lighting Technology CO.,LTD U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: July 23, 2026 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BWF6-SW077 Foshan Shengwei Lighting Technology CO.,LTD (“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Company Name: Foshan Shengwei Lighting Technology CO.,LTD FRN: 0038496303 Address: 6th Floor, Workshop 3, Handuo, No.4 Bojin Avenue, Hardware Industrial Zone, Danzao Town, Nanhai District, Foshan City, Guangdong Province, 528216, China Signature: Contact Person: Kang Yang Tel: +86-13202964548 Email: [email protected]

Foshan Shengwei Lighting Technology CO.,LTD Date: July 23, 2026 Product Model Number: SW077 FCC ID: 2BWF6-SW077 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. By: Kang Yang Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: +86-13202964548 On behalf of: Foshan Shengwei Lighting Technology CO.,LTD

Foshan Shengwei Lighting Technology CO.,LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: July 24, 2026 Subject; Request for Confidentiality FCC ID: 2BWF6-SW077 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Kang Yang Title: Manager

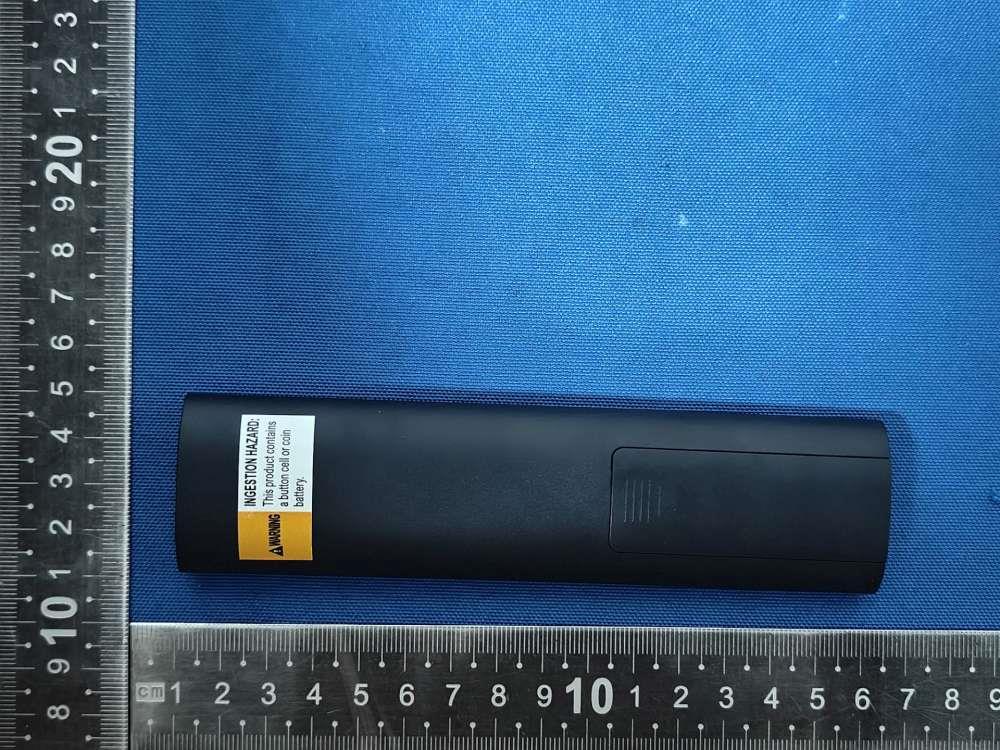

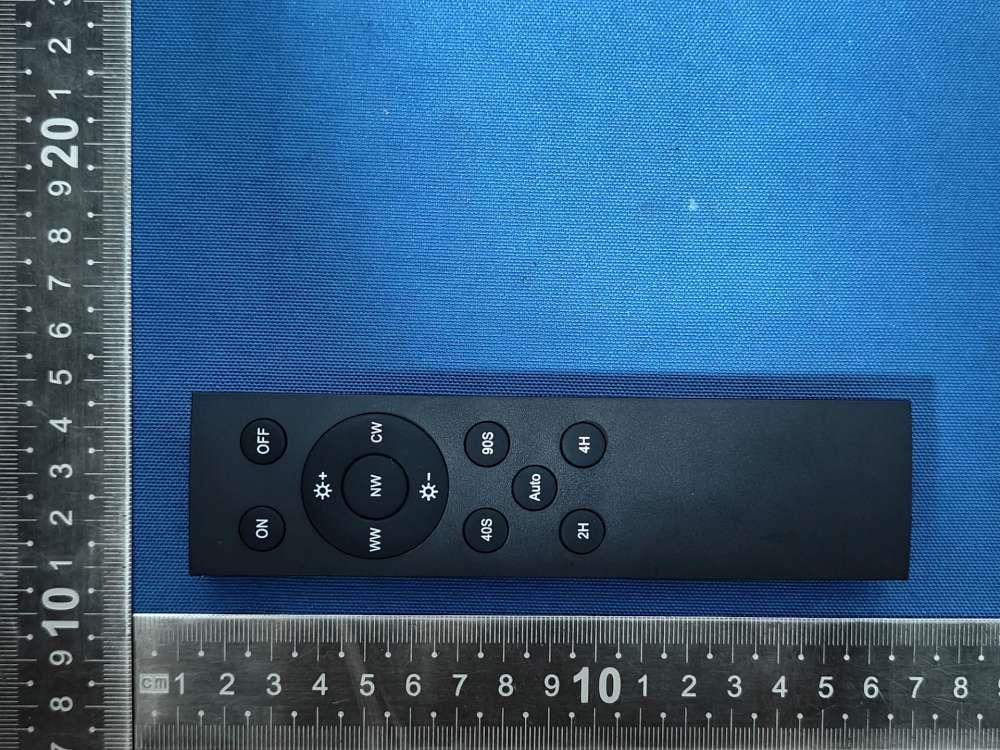

Report No: SSP26040132-1E FCC ID: 2BWF6-SW077 Annex of Test Report Annex A. EUT External Photos Model: SW077 EUT View 1 EUT View 2 Report No: SSP26040132-1E FCC ID: 2BWF6-SW077 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP26040132-1E FCC ID: 2BWF6-SW077 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP26040132-1E FCC ID: 2BWF6-SW077 Annex of Test Report EUT View 7 EUT View 8

Report No: SSP26040132-1E FCC ID: 2BWF6-SW077 Annex of Test Report Annex D. Label and Information FCC Label Sample Label Size:1.5cm*0.3cm FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

Report No: SSP26040132-1E FCC ID: 2BWF6-SW077 Annex of Test Report Annex B. EUT Internal Photos Model: SW077 EUT Internal View 1 EUT Internal View 2 PCB Antenna Report No: SSP26040132-1E FCC ID: 2BWF6-SW077 Annex of Test Report EUT Internal View 3

FCC ID: 2BWF6-SW077 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Frequency (MHz) Power (dBuV/m) Power (dBm) Power (mW) Limit (mW) 433.92 81.65 -13.55 0.044 1 Notes: 81.65dBuV/m-95.2=-13.55dBm So a SAR test is not required

Page 1 of 3 1. General Information 1.1 Product Information Manufacturer: Foshan Shengwei Lighting Technology CO.,LTD Address of Manufacturer: 6th Floor, Workshop 3, Handuo, No.4 Bojin Avenue, Hardware Industrial Zone, Danzao Town, Nanhai District, Foshan City, Guangdong Province, 528216, China Product Name: 2.4G Antenna Model Name: SW077 Frequency Range: 433.92MHz Type of Antenna: PCB Antenna Antenna Gain: 3dBi (Max.) Impedance: 50 ohm Antenna View: Length * Width (5.6cm * 0.2cm) Page 2 of 3 2. OTA Test 2.1 Gain Frequency Peak Gain (dBi) Polarity 433.92MHz 3 Horizontal 433.92MHz 1.99 Vertical Page 3 of 3 2.2 Radiation Pattern View

Report No: SSP26040132-1E FCC Test Report Page 1 of 23 FCC TEST REPORT FCC ID: 2BWF6-SW077 Report No. : SSP26040132-1E Applicant : Foshan Shengwei Lighting Technology CO.,LTD Product Name : Remote control for Outdoor wall lamp Model Name : SW077 Test Standard : FCC Part 15.231 Date of Issue : 2026-06-03 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP26040132-1E FCC Test Report Page 2 of 23 Test Report Basic Information Applicant..................................: Foshan Shengwei Lighting Technology CO.,LTD Address of Applicant...............: 6th Floor, Workshop 3, Handuo, No.4 Bojin Avenue, Hardware Industrial Zone, Danzao Town, Nanhai District, Foshan City, Guangdong Province, 528216, China Manufacturer..........................: Foshan Shengwei Lighting Technology CO.,LTD Address of Manufacturer........: 6th Floor, Workshop 3, Handuo, No.4 Bojin Avenue, Hardware Industrial Zone, Danzao Town, Nanhai District, Foshan City, Guangdong Province, 528216, China Product Name.........................: Remote control for Outdoor wall lamp Brand Name.............................: - Main Model..............................: SW077 Series Models..........................: - Test Standard..........................: FCC Part 15 Subpart C ANSI C63.4-2014 ANSI C63.10-2020 + Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024 Date of Test .............................: 2026-04-08 to 2026-06-01 Test Result...............................: PASS Tested By ................................: (Coke Huang) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP26040132-1E FCC Test Report Page 3 of 23 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................5 1.3 Compliance Standards ...........................................................................................................................................6 1.4 Test Facilities ........................................................................................................................................................6 1.5 List of Measurement Instruments ..........................................................................................................................7 1.6 Measurement Uncertainty .....................................................................................................................................7 2. Summary of Test Results .............................................................................................................................................8 3. Antenna Requirement .................................................................................................................................................9 3.1 Standard and Limit................................................................................................................................................9 3.2 Test Result ............................................................................................................................................................9 4. Conducted Emissions ................................................................................................................................................ 10 4.1 Standard and Limit.............................................................................................................................................. 10 4.2 Test Procedure.................................................................................................................................................... 10 4.3 Test Data and Results .......................................................................................................................................... 11 5. Radiated Emissions ................................................................................................................................................... 12 5.1 Standard and Limit.............................................................................................................................................. 12 5.2 Test Procedure.................................................................................................................................................... 12 5.3 Test Data and Results .......................................................................................................................................... 14 6. Occupied Bandwidth ................................................................................................................................................. 18 6.1 Standard and Limit.............................................................................................................................................. 18 6.2 Test Procedure......................................................................................................................................…

Text truncated - open the document above for the full version.

Report No: SSP26040132-1E FCC ID: 2BWF6-SW077 Annex of Test Report Annex C. Test Photos Radiated Emission Test View Below 1GHz Radiated Emission Test View Above 1GHz
