2BWGT-KW008LVBLE5 .0 Attitude Sensor

WT9011DCL-BT5.0 | Datasheet v23-0608 | www.wit-motion.com - 1 - WitMotion Shenzhen Co., Ltd | Datasheet Bluetooth AHRS IMU sensor | WT9011DCL-BT5.0 The Robust Acceleration, Angular velocity, Angle & Magnetic filed Detector The WT9011DCL-BTL5.0 is a Bluetooth 5.0 multi-sensor device, detecting acceleration, angular velocity, angle as well as magnetic filed. The robust housing and the small outline makes it perfectly suitable for industrial applications such as condition monitoring and predictive maintenance. Configuring the device enables the customer to address a broad variety of application by interpreting the sensor data by smart algorithms and Kalman filtering. BUILT-IN SENSORS Accelerometer Gyroscope Magnetometer WT9011DCL-BT5.0 | Datasheet v23-0608 | www.wit-motion.com - 2 - Tutorial Link Google Drive Link to instructions DEMO: WITMOTION Youtube Channel WT9011DCL-BT5.0 Playlist If you have technical problems or cannot find the information that you need in the provided documents, please contact our support team. Our engineering team is committed to providing the required support necessary to ensure that you are successful with the operation of our AHRS sensors. Contact Technical Support Contact Info Application ● Unmanned/Assisted Driving ● Large-scale farming automated farming ● Safety monitoring for working at heights ● Unmanned aerial vehicle ● Industrial attitude monitoring ● Human motion tracking/capture ● Robot, Automated Guided Transporter ● Pedestrian Navigation ● Truck-mounted Satellite Antenna Equipment WT9011DCL-BT5.0 | Datasheet v23-0608 | www.wit-motion.com - 3 - Contents Tutorial Link ........................................................................ - 2 - Contact .............................................................................. - 2 - Application ......................................................................... - 2 - Contents ............................................................................ - 3 - 1 Overview ......................................................................... - 4 - 2 Features .......................................................................... - 5 - 3 Specification .................................................................... - 6 - 3.1 Parameter ................................................................ - 6 - 3.2 Size......................................................................... - 8 - 3.3 Axial Direction .......................................................... - 9 - 4 Port Definition ................................................................ - 10 - 5 Casing Specification ........................................................ - 11 - 6 Communication Protocol .................................................. - 12 - 6.1 Data Format ........................................................... - 12 - 6.1.1 Data Packet(Default) ....................................... - 12 - 6.1.2 Single Return Register Data Packet .................... - 15 - 6.2 Commands ............................................................. - 19 - 6.2.1 Read Register Value ......................................... - 19 - 6.2.2 Calibration ...................................................... - 19 - 6.2.3 Save Settings ................................................. - 20 - 6.2.4 Return Rate .................................................... - 20 - 6.3 Register Address ..................................................... - 21 - WT9011DCL-BT5.0 | Datasheet v23-0608 | www.wit-motion.com - 4 - 1 Overview WT9011DCL-BT5.0’s scientific name is AHRS IMU sensor. A sensor measures 3-axis angle, angular velocity, acceleration, magnetic field. Its strength lies in the algorithm which can calculate three-axis angle accurately. WT9011DCL-BT5.0 is an CE certified accelerometer. It is employed where the highest measurement accuracy is required. WT9011DCL-BT5.0 offers several advantages over competing sensor: • Heated for best data availability: new WITMOTION patented zero-bias automatic detection calibration algorithm outperforms traditional accelerometer sensor • High precision Roll Pitch Yaw (X Y Z axis) Acceleration + Angular Velocity + Angle + Magnetic Field output • Low cost of ownership: remote diagnostics and lifetime technical support by WITMOTION service team • Developed tutorial: providing manual, datasheet, demo video, free software for Windows computer, APP for Android smartphones, iOS APP for iPhone, communication protocol for project development • WITMOTION sensors have been praised by thousands of engineers as a recommended attitude measurement solution WT9011DCL-BT5.0 | Datasheet v23-0608 | www.wit-motion.com - 5 - 2 Features  The sensor integrates high-precision gyroscope, accelerometer and geomagnetic field sensor, and adopts high-performance microprocessor and advanced dynamic calculation and Kalman dynamic filtering algorithm, which can quickly solve the current real-time motion attitude of the sensor.  The advanced digital filtering technology can effectively reduce the measurement noise and improve the measurement accuracy.  The sensor is integrated with the attitude solver and the dynamic Kalman filter algorithm, which can accurately output the current attitude of the sensor in the dynamic environment. The attitude measurement accuracy is 0.2 degree, the stability is extremely high, and the performance is even better than some professional inclination meter.  The Z-axis heading angle is added to the filter fusion of the geomagnetic sensor, which solves the cumulative error caused by the drift of the gyroscope integral in the 6-axis algorithm, and can output the heading angle data stably for a long time. Note: Due to the magnetic field detection, it needs to be calibrated before use, and it needs to be at least 20cm away from magnetic interference areas, electronic equipment, magnets, speakers and other hard magnetic objects.  Working current: ≈ 14mA, standby current 14uA-30uA.  Data inte…

Text truncated - open the document above for the full version.

Kinetrio, LLC registration No. 40203735588 Add: Penkules street 79 Marupe LV2167 Latvia Covered Equipment Certification Attestation Letter Date: 2026-6-6 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BWGT-KW008LV Kinetrio, LLC registration No. 40203735588 (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Kinetrio, LLC registration No. 40203735588 (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Kinetrio, LLC registration No. 40203735588 (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Sincerely, Name/Title： WanJun Liang/Manager Company: Kinetrio, LLC registration No. 40203735588 Address: Penkules street 79 Marupe LV2167 Latvia Phone: 13450174749 Fax: N/A E-Mail: [email protected]

Kinetrio, LLC registration No. 40203735588 Penkules street 79 Marupe, LV2167, Latvia Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/06/08 U.S. Agent Designation Kinetrio, LLC registration No. 40203735588 acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BWGT-KW008LV): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Phone of U.S. agent: (626) 588-8039 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Kinetrio, LLC registration No. 40203735588 with the FRN [0038501037] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature WanJun Liang Manager Kinetrio, LLC registration No. 40203735588 Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Kinetrio, LLC registration No. 40203735588 Add: Penkules street 79 Marupe LV2167 Latvia Date: 2026-6-6 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint SHENZHEN CTA TESTING TECHNOLOGY CO., LTD.,Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community,Fuhai Street, Bao‘an District, Shenzhen, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Kinetrio, LLC registration No. 40203735588,Penkules street 79 Marupe LV2167 Latvia (Applicant Name and address) Sincerely, Name/Title： WanJun Liang/Manager Company: Kinetrio, LLC registration No. 40203735588 Address: Penkules street 79 Marupe LV2167 Latvia Phone: 13450174749 Fax: N/A E-Mail: [email protected]

Kinetrio, LLC registration No. 40203735588 Add: Penkules street 79 Marupe LV2167 Latvia Date: 2026-6-6 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, Name/Title： WanJun Liang/Manager Company: Kinetrio, LLC registration No. 40203735588 Address: Penkules street 79 Marupe LV2167 Latvia Phone: 13450174749 Fax: N/A E-Mail: [email protected]

Kinetrio, LLC registration No. 40203735588 Add: Penkules street 79 Marupe LV2167 Latvia Date: 2026-6-6 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BWGT-KW008LV Product Name: BLE5.0 Attitude Sensor Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Sincerely, Name/Title： WanJun Liang/Manager Company: Kinetrio, LLC registration No. 40203735588 Address: Penkules street 79 Marupe LV2167 Latvia Phone: 13450174749 Fax: N/A E-Mail: [email protected]

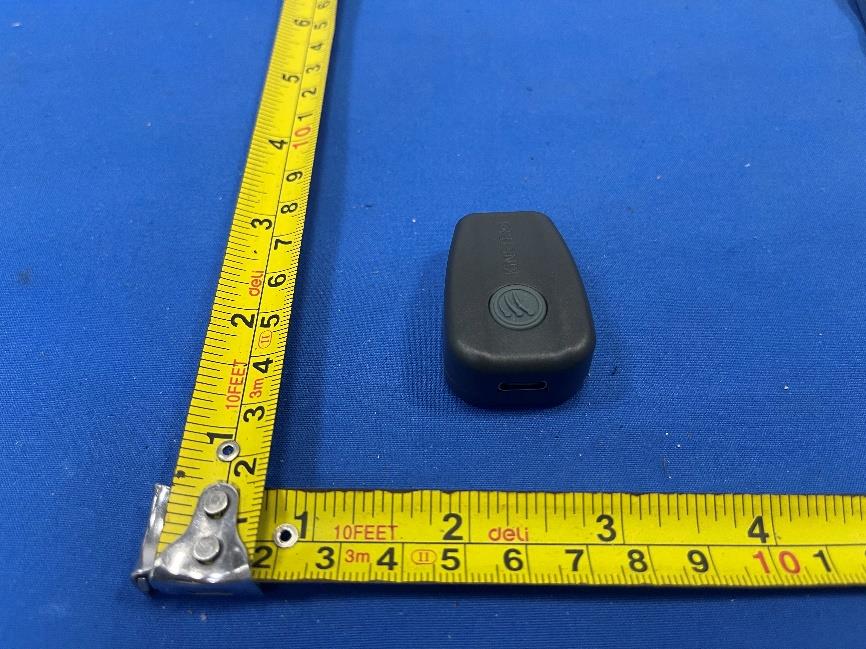

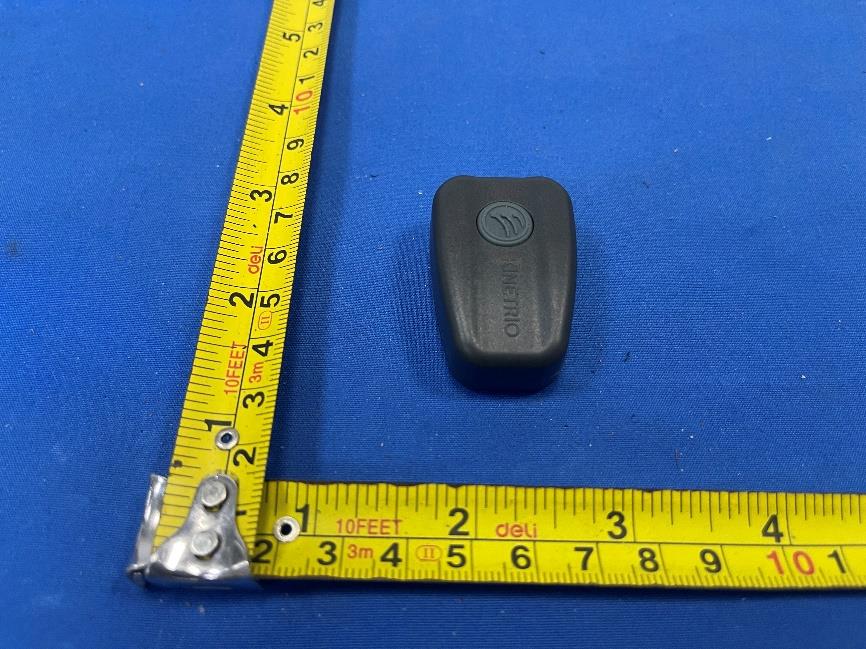

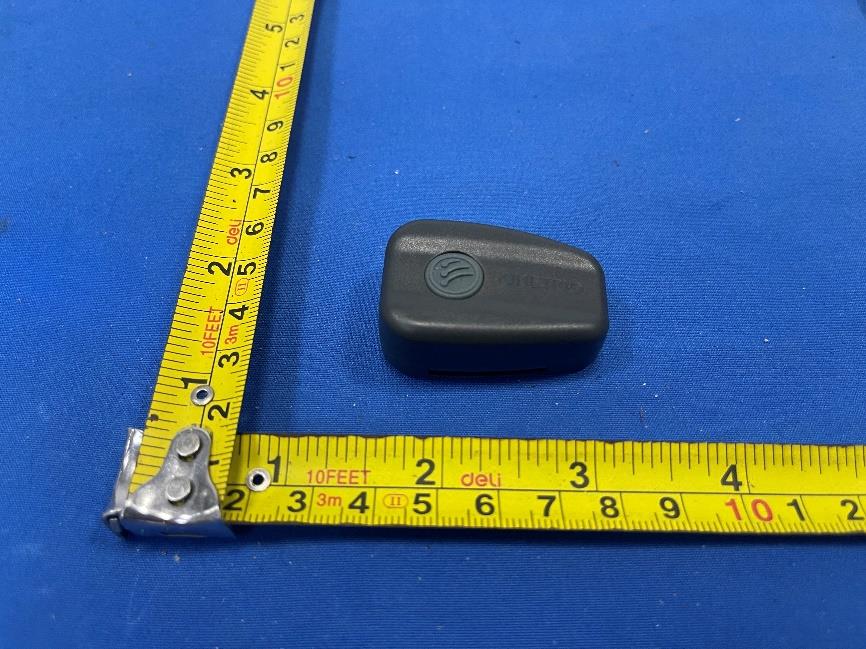

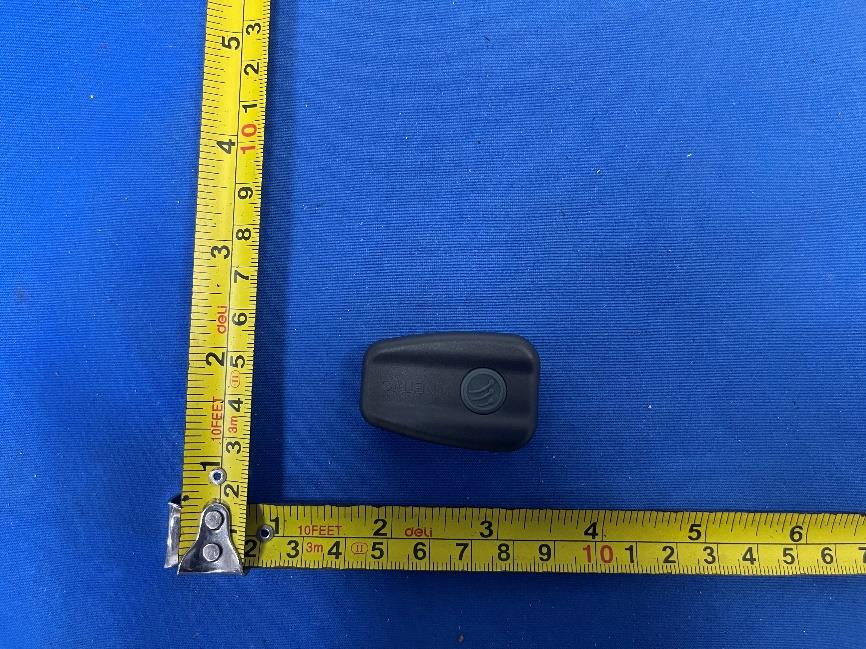

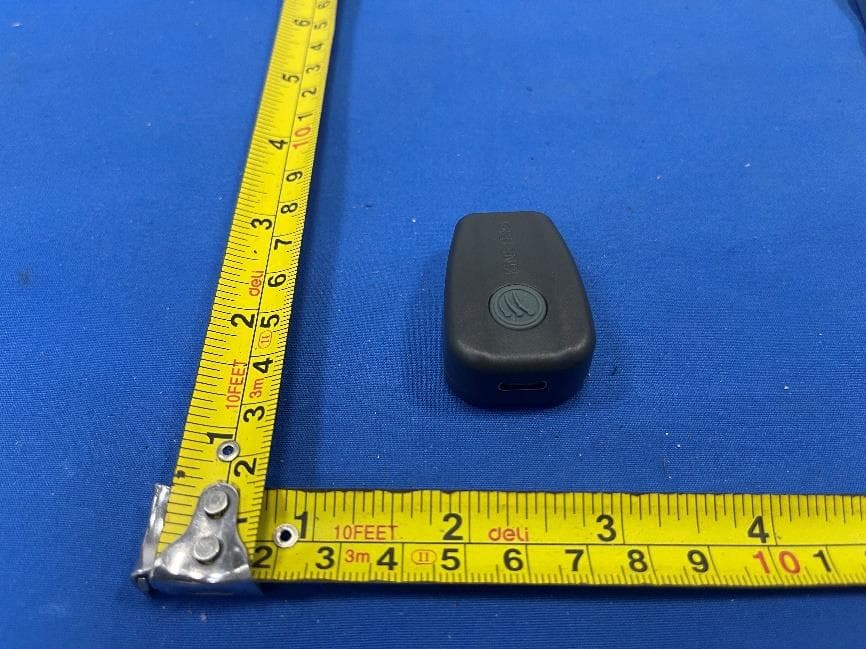

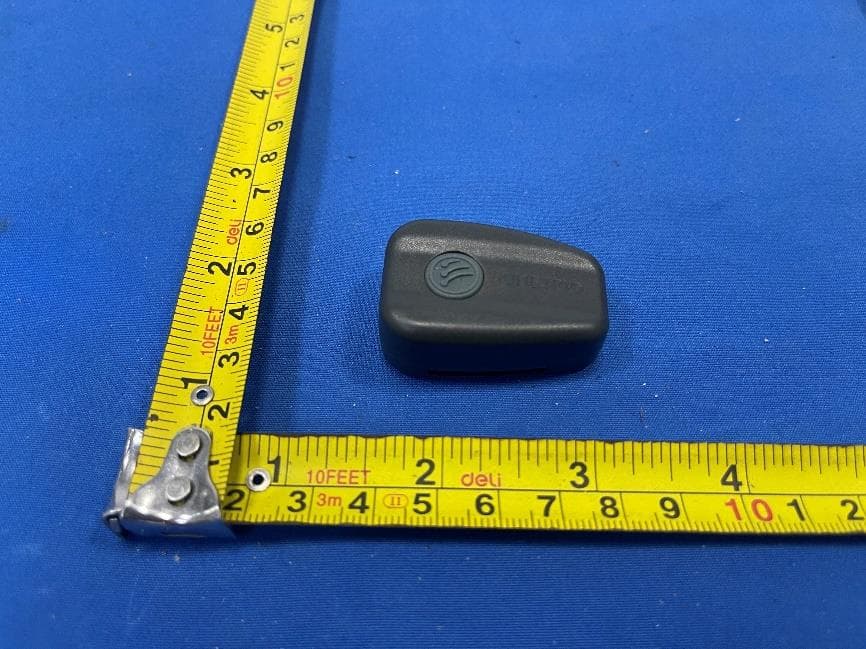

FCC ID: 2BWGT-KW008LV External Photos of the EUT FCC ID: 2BWGT-KW008LV
