2BWH9-H5Headphone

H5 SAFETY & CARE INSTRUCTIONS Do NOT expose any portion of this product to liquid,humidity,moisture,sharp objects or extreme temperatures as this can damage it and void the warranty. Do NOT attempt to disassemble or modify the headphones in any way Spot Clean ONLY. Keep out of reach of children. This product is not a toy. CONTENTS: 1x Wireless Headphone, 1x Charging Cable, 1x AUX Cable, 1x Manual CHARGING YOUR HEADPHONES 1. Use the charging cable provided and plug into the port on the LEFT ear cup. 2. Plug the other end into any USB charging port. 3. LED indicator near the USB input will turn red while charging. Once charging is fully complete, LED will turn off. NOTE: To prevent damage, it is recommended to use the charging cable that is provided. POWERING ON & OFF Press and hold the power button for 3 seconds to turn on or off. BLUETOOTH PAIRING WITH YOUR DEVICE 1. Fully charge your headphones then press and hold the POWER button for until the LED lights fash red and blue. H5will automatically enter pairing mode. 2. Pairing mode will last for 2 minutes. While in pairing mode, turn ON the Bluetooth Connection on your device, Search & select H5. 3. Once paired, H5 will voice prompt 'connected ' NOTE: Power on H5 and they will automatically connect to the last connected deviceif available within the BT range. SPECIFICATION Bluetooth Operating Distance Driver Unit Impedance Sensitivity Version 5.4 >33ft/10m 40mm 32Ω 95+3dB Battery 200mAh Battery Type Li-Polymer Play Time 12 Hours Input 5v 1A- Type C Usb Frequency 20Hz-20KHz FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

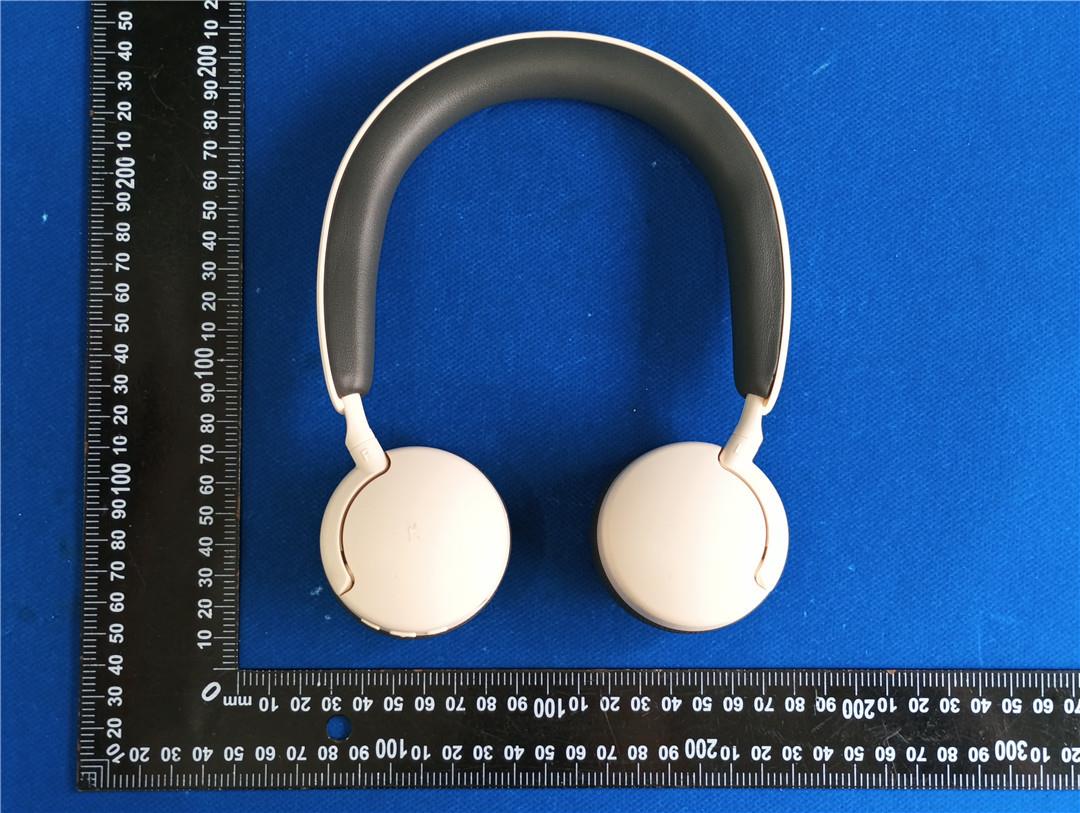

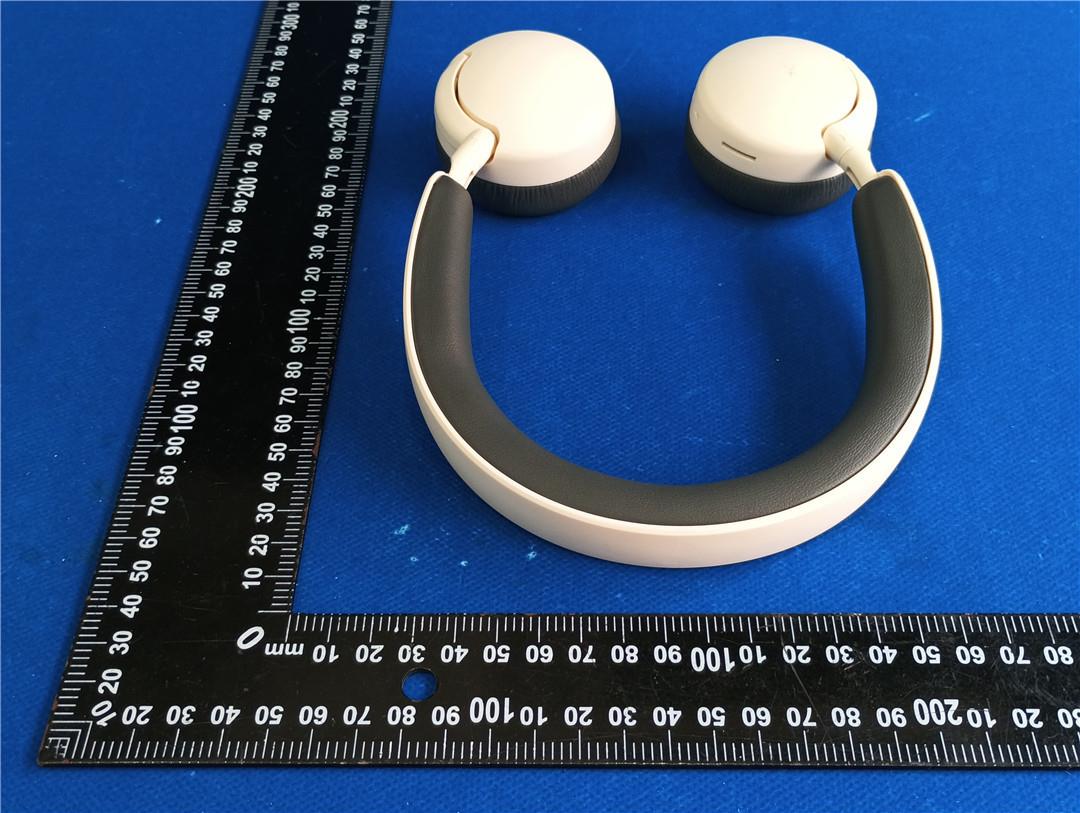

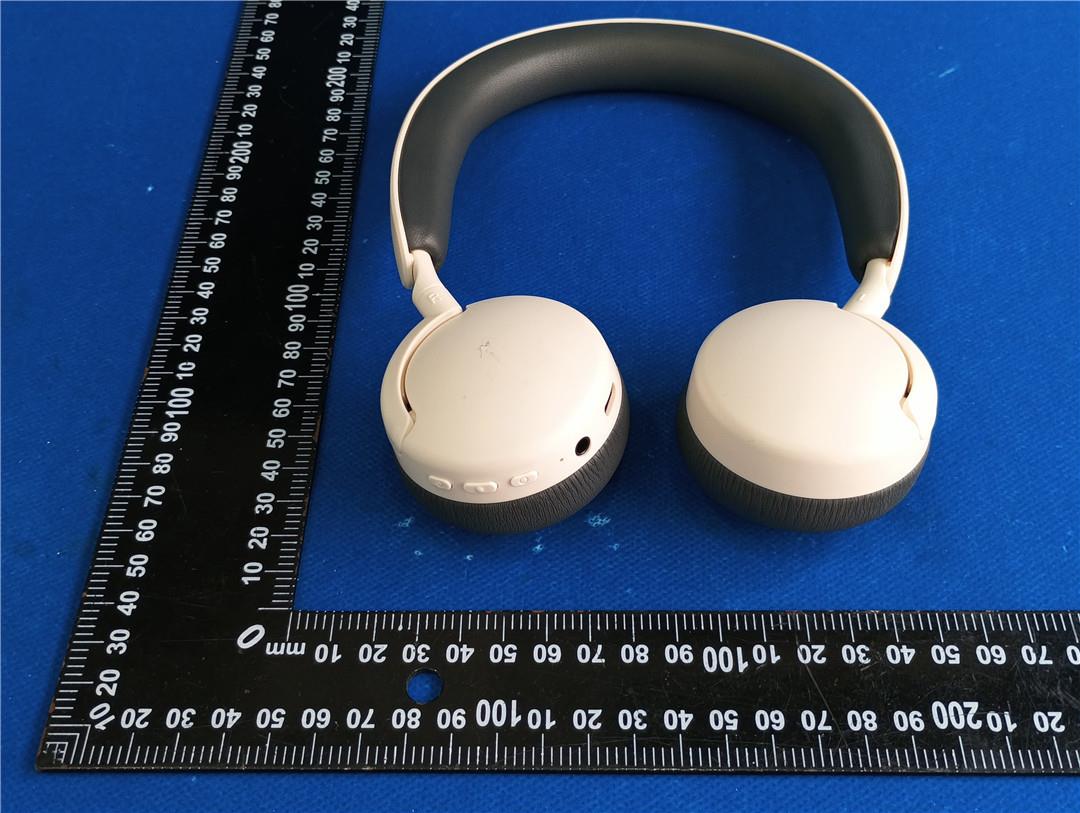

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202605503 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: Headphone Model No.: H5 EUT Constructional Details External Photo Report No.: HTT202605503 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 Report No.: HTT202605503 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------

Label and Location Size: L: 1.0cm*W: 0.2cm Label and Location FCC ID : 2BWH9-H5

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202605503 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 2 Product Name: Headphone Model No.: H5 EUT Constructional Details Internal Photo Report No.: HTT202605503 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 2 ------End------ ANTENNA

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 1 of 8 RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : HTT202605503F02 2BWH9-H5 Compiled by ( position+printed name+signature) . : File administrators Heber He Supervised by ( position+printed name+signature) . : Project Engineer Bruce Zhu Approved by ( position+printed name+signature) . : RF Manager Kevin Yang Date of issue .................................... : May. 25, 2026 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Shantou Chaoyang Yueshiying Electronics Co.,Ltd Address ............................................ : Building 16, Migrant Workers’ Entrepreneurship Park, Xin’an Town, Pingguo City, Guangxi Province. Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Headphone Manufacturer .................................... : Shantou Chaoyang Yueshiying Electronics Co.,Ltd Trade Mark ........................................ N/A Model/Type reference ...................... : H5 Rating ............................................... : DC 3.7V From Battery and DC 5V From External Circuit Result ............................................... : PASS Report No.: HTT202605503F02 Page 2 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 8 T E S T R E P O R T Equipment under Test : Headphone Model /Type : H5 Listed Models : N/A Applicant : Shantou Chaoyang Yueshiying Electronics Co.,Ltd Address : Building 16, Migrant Workers’ Entrepreneurship Park, Xin’an Town, Pingguo City, Guangxi Province. Manufacturer : Shantou Chaoyang Yueshiying Electronics Co.,Ltd Address : Building 16, Migrant Workers’ Entrepreneurship Park, Xin’an Town, Pingguo City, Guangxi Province. Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202605503F02 Page 3 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 8 Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Special Accessories 5 2.4 Modifications 5 3 T E S T E N V I R O N M E N T 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Statement of the measurement uncertainty 6 4 T E S T L I M I T 7 4.1 Requirement 7 4.2 Conducted Power Results 8 4.3 Manufacturing tolerance 8 4.4 Evaluation Result 8 4.5 Simultaneous Transmission for SAR Exclusion 8 5 C O N C L U S I O N 8 Report No.: HTT202605503F02 Page 4 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 4 of 8 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices Report No.: HTT202605503F02 Page 5 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 5 of 8 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : May. 18, 2026 Testing commenced on : May. 18, 2026 Testing concluded on : May. 25, 2026 2.2 Product Description Product description: Headphone Model/Type reference: H5 Power supply: DC 3.7V From Battery and DC 5V From External Circuit Adapter Information (Auxiliary test provided by the lab): Model: GS-0500200 Input: AC100-240V, 50/60Hz, 0.3A max Output: DC 5V, 2A Testing sample ID： HTT202605503-1# (Engineer sample) HTT202605503-2# (Normal sample) Hardware version: / Software version: / Bluetooth : Supported Type: Bluetooth BR/EDR Modulation: GFSK, π/4DQPSK Operation frequency: 2402MHz~2480MHz Channel number: 79 Channel separation: 1MHz Antenna type: PCB Antenna Antenna gain: 1.5 dBi 2.3 Special Accessories The following is the EUT test of the auxiliary equipment provided by the labora…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PCB antenna Model 2.4G Frequency range 2400-2500MHz Manufacturer Shantou Chaoyang Yueshiying Electronics Co.,Ltd Address Building 16, Migrant Workers’ Entrepreneurship Park, Xin’an Town, Pingguo City, Guangxi Province. ANT Peak Gain 1.50 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

1 Appendix RF Test Data for BT Company: : Shantou Chaoyang Yueshiying Electronics Co.,Ltd EUT : Headphone FCC ID: : 2BWH9-H5 Model Number : H5 Report No. : HTT202605503F01 Reviewed By : Heber He 2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) GFSK SISO 2402 DH5 2.893 3.749 77.17 1.13 0.01 2441 DH5 2.893 3.749 77.17 1.13 0.01 2480 DH5 2.893 3.749 77.17 1.13 0.01 Pi/4DQPSK SISO 2402 2DH5 2.900 3.750 77.33 1.12 0.01 2441 2DH5 2.898 3.749 77.30 1.12 0.01 2480 2DH5 2.899 3.751 77.29 1.12 0.03 3 1.2 Test Graph 1.2.1 Ant1 GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV 4 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 5 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 6 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) Packet Type ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.917 / Pass 2441 DH5 1 0.941 / Pass 2480 DH5 1 0.954 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.208 / Pass 2441 2DH5 1 1.215 / Pass 2480 2DH5 1 1.229 / Pass 2.1.2 20dB BW Mode TX Type Frequency (MHz) Packet Type ANT 20dB Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.997 / Pass 2441 DH5 1 1.020 / Pass 2480 DH5 1 1.023 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.287 / Pass 2441 2DH5 1 1.319 / Pass 2480 2DH5 1 1.353 / Pass 7 2.2 Test Graph 2.2.1 OBW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV 8 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 9 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 10 2.2.2 20dB BW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV 11 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 12 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 13 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Packet Type Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit GFSK SISO 2402 DH5 1.85 <=30 Pass 2441 DH5 2.40 <=20.97 Pass 2480 DH5 2.31 <=20.97 Pass Pi/4DQPSK SISO 2402 2DH5 2.70 <=20.97 Pass 2441 2DH5 3.18 <=20.97 Pass 2480 2DH5 3.11 <=20.97 Pass 14 4. Carrier Frequency Separation 4.1 Test Result 4.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Channel Separation (MHz) 20dB Bandwidth (MHz) Limit (MHz) Verdict GFSK SISO HOPP DH5 1.000 1.023 >=0.682 Pass Pi/4DQPSK SISO HOPP 2DH5 1.001 1.353 >=0.902 Pass 15 4.2 Test Graph 4.2.1 Ant1 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 16 5. Number of Hopping Frequencies 5.1 Test Result 5.1.1 HoppNum Mode TX Type Frequency (MHz) Packet Type Num of Hopping Frequencies Verdict ANT1 Limit GFSK SISO HOPP DH5 79 >=15 Pass Pi/4DQPSK SISO HOPP 2DH5 79 >=15 Pass 17 5.2 Test Graph 5.2.1 HoppNum GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 18 6. Time of Occupancy (Dwell Time) 6.1 Test Result 6.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Duration of Single Pulse (ms) Observation Period (s) Num of Pulse in Observation Period Dwell Time (ms) Limit (ms) Verdict GFSK SISO HOPP DH1 0.392 31.600 318 124.656 <=400 Pass DH3 1.648 31.600 154 253.792 <=400 Pass DH5 2.898 31.600 113 327.474 <=400 Pass Pi/4DQPSK SISO HOPP 2DH1 0.394 31.600 320 126.080 <=400 Pass 2DH3 1.654 31.600 158 261.332 <=400 Pass 2DH5 2.900 31.600 108 313.200 <=400 Pass 19 6.2 Test Graph 6.2.1 Ant1 GFSK_DH1_HOPP_Ant1_NTNV GFSK_DH1_HOPP_Ant1_NTNV 20 GFSK_DH3_HOPP_Ant1_NTNV GFSK_DH3_HOPP_Ant1_NTNV 21 GFSK_DH5_HOPP_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV 22 Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV 23 Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV 24 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 25 7. Unwanted Emissions In Non-restricted Frequency Bands 7.1 Test Result 7.1.1 Ref Mode TX Type Frequency (MHz) Packet Type ANT Level of Reference (dBm) GFSK SISO 2402 DH5 1 1.66 2441 DH5 1 2.00 2480 DH5 1 2.14 HOPP DH5 1 2.15 2.15 Pi/4DQPSK SISO 2402 2DH5 1 1.58 2441 2DH5 1 1.99 2480 2DH5 1 2.11 HOPP 2DH5 1 2.20 2.20 7.1.2 CSE Mode TX Type Frequency (MHz) Packet Type ANT Level of Reference (dBm) Limit (dBm) Verdict GFSK SISO 2402 DH5 1 1.66 -18.34 Pass 2441 DH5 1 2.00 -18.00 Pass 2480 DH5 1 2.14 -17.86 Pass HOPP DH5 1 2.15 -17.85 Pass 2.15 -17.85 Pass Pi/4DQPSK SISO 2402 2DH5 1 1.58 -18.42 Pass 2441 2DH5 1 1.99 -18.01 Pass 2480 2DH5 1 2.11 -17.89 Pass HOPP 2DH5 1 2.20 -17.80 Pass 2.20 -17.80 Pass 26 7.2 Test Graph 7.2.1 Ref GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV 27 GFSK_DH5_HCH_2480MHz_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV 28 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 29 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 30 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 31 7.2.2 CSE GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_LCH_2402MHz_Ant1_NTNV 32 GFSK_DH5_MCH_2441MHz_Ant1_NTNV GFSK_DH5_HCH_2480MHz_Ant1_NTNV 33 GFSK_DH5_HCH_2480MHz_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV 34 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV 35 Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV 36 Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV 37 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : HTT202605503F01 2BWH9-H5 Compiled by ( position+printed name+signature) . : File administrators Heber He Supervised by ( position+printed name+signature) . : Project Engineer Bruce Zhu Approved by ( position+printed name+signature) . : RF Manager Kevin Yang Date of issue .................................... : May. 25, 2026 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ........................... : Shantou Chaoyang Yueshiying Electronics Co.,Ltd Address ............................................ : Building 16, Migrant Workers’ Entrepreneurship Park, Xin’an Town, Pingguo City, Guangxi Province. Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Headphone Trade Mark ....................................... : N/A Manufacturer .................................. : Shantou Chaoyang Yueshiying Electronics Co.,Ltd Model/Type reference ...................... : H5 Listed Models ................................... : N/A Modulation ....................................... : GFSK, Π/4DQPSK Frequency ......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 3.7V From Battery and DC 5V From External Circuit Result ............................................... : PASS Report No.: HTT202605503F01 Page 2 of 36 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China T E S T R E P O R T Equipment under Test : Headphone Model /Type : H5 Listed Models : N/A Applicant : Shantou Chaoyang Yueshiying Electronics Co.,Ltd Address : Building 16, Migrant Workers’ Entrepreneurship Park, Xin’an Town, Pingguo City, Guangxi Province. Manufacturer : Shantou Chaoyang Yueshiying Electronics Co.,Ltd Address : Building 16, Migrant Workers’ Entrepreneurship Park, Xin’an Town, Pingguo City, Guangxi Province. Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202605503F01 Page 3 of 36 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Contents 1 TEST STANDARDS .......................................................................................................................................... 4 2 SUMMARY ........................................................................................................................................................ 5 2.1 General Remarks .................................................................................................................................... 5 2.2 Product Description ................................................................................................................................. 5 2.3 Equipment Under Test ............................................................................................................................ 5 2.4 Short description of the Equipment under Test (EUT) ............................................................................ 5 2.5 EUT configuration .................................................................................................................................... 6 2.6 EUT operation mode ............................................................................................................................... 6 2.7 Block Diagram of Test Setup .................................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) .............................................................................................................. 6 2.9 Modifications ........................................................................................................................................... 6 3 TEST ENVIRONMENT ...................................................................................................................................... 7 3.1 Address of the test laboratory ................................................................................................................. 7 3.2 Test Facility ............................................................................................................................................. 7 3.3 Environmental conditions ........................................................................................................................ 7 3.4 Summary of measurement results .........…

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202605503 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 2 Product Name: Headphone Model No.: H5 Test Setup Photo Radiated Emission Report No.: HTT202605503 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 2 Conducted Emission RF Test ------End------
