2BWHBSENSORPlant sensor

Scan for languages other than English This guide provides important safety, regulatory, and warranty information that you should read before setting up your Willow Sensor. Willow Sensor This product is warranted against defects in materials and workmanship for a period of one (1) year from the date of purchase. If the product fails during this period, it will be repaired or replaced, at the option of the manufacturer, free of charge. This warranty does not cover damage caused by misuse, abuse, accident, or alteration. To make amisuse, abuse, accident, or alteration. To make a warranty claim, please contact PW Willow Pty Ltd. In addition to the above, Australian consumers are also entitled to certain rights under the Australian Consumer Law (ACL). The ACL guarantees that consumers will receive products that are of acceptable quality, and free from major defects. If a product does not meet these requirements, If a product does not meet these requirements, consumers may be entitled to a refund, repair, or replacement, depending on the circumstances. https://www.plantwithwillow.com.au/warranty Hereby PW Willow Pty Ltd declares that this radio equipment type, Bluetooth Devices, is in compliance with the requirements of Directive 2014/53/EU © 2025 by PW Willow Pty Ltd. All rights reserved. Wireless Connectivity: BT 5.2 Battery: CR 2477 Ingress Protection: IP 54 AU Certification: RCM compliant EU Certification: CE compliant SPECIFICATIONS WARRANTY Note: Android 5+ or iOS 14+ and a 2.4 GHz Wi-Fi connection is required for setup. Please scan the QR code below or visit https://www.plantwithwillow.com.au/setup Your Willow Sensor is designed to require minimum maintenance. Please observe the following precautions: • Do not pour water directly onto the device. The sensor contains sensitive electronics that can be damaged. • Do not drop or mishandle the sensor. • Do not drop or mishandle the sensor. • Use a clean, soft, and damp cloth to clean the moisture probes on occasion. Do not use any chemical agents. CARE AND MAINTENANCE This device is not a toy. It contains small parts that may cause a choking hazard. The Willow Sensor contains a button cell battery. Please observe precautions: • Keep batteries out of the reach of children. If swallowed, seek immediate medical attention. • Do not heat, crush, or immerse the battery in liquids. battery in liquids. • Do not dispose with household waste. Check with your local authority for recycling advice. • When replacing the battery, ensure that the correct specification is used (CR2477). Failure to do so may cause the sensor to malfunction and is not sensor to malfunction and is not warranted. Please ensure the screw is secured back in place. SAFETY WARNINGS Let’s get started FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. RF Exposure Information The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

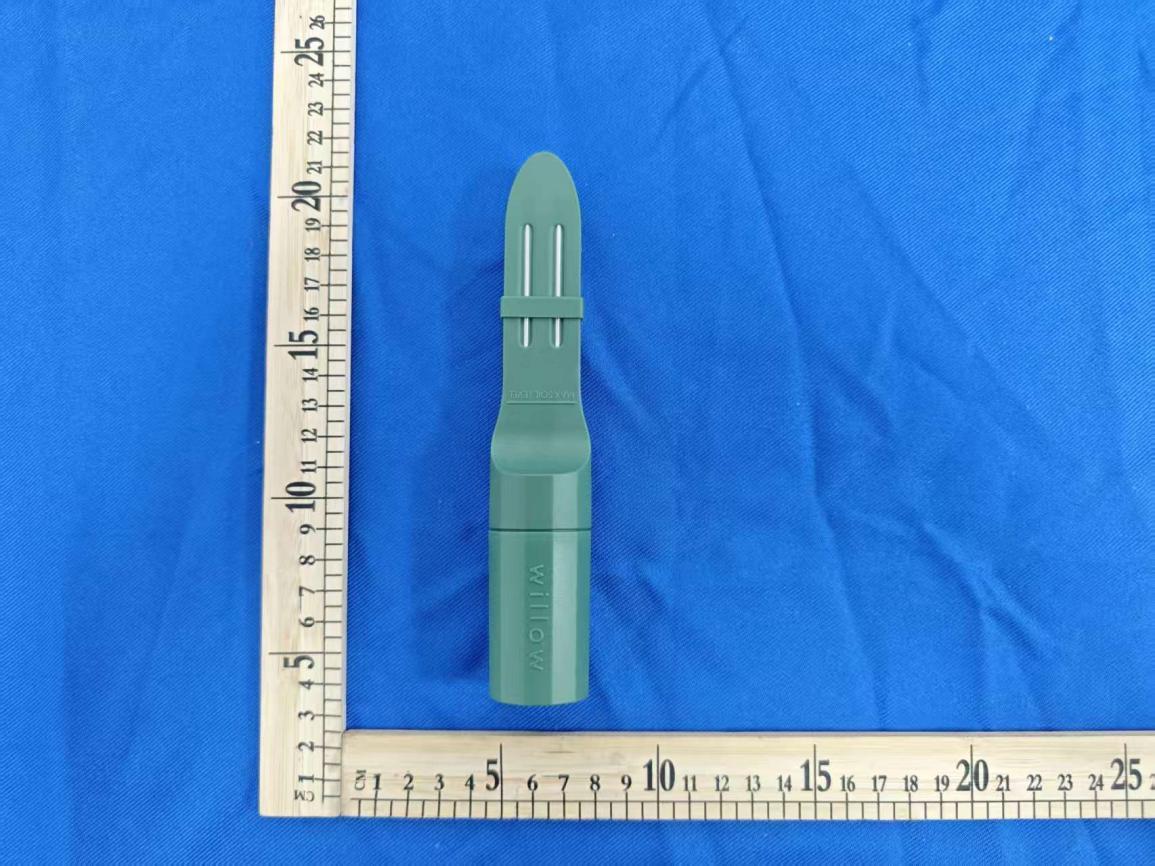

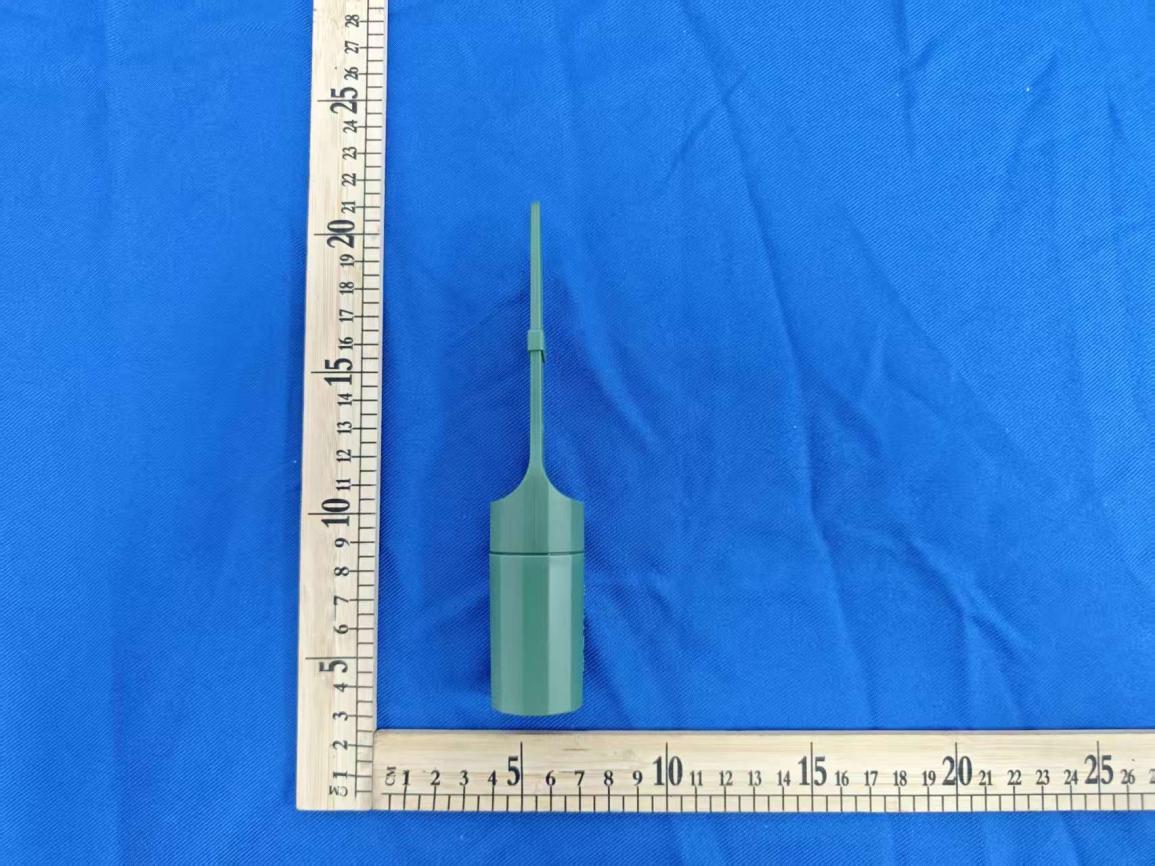

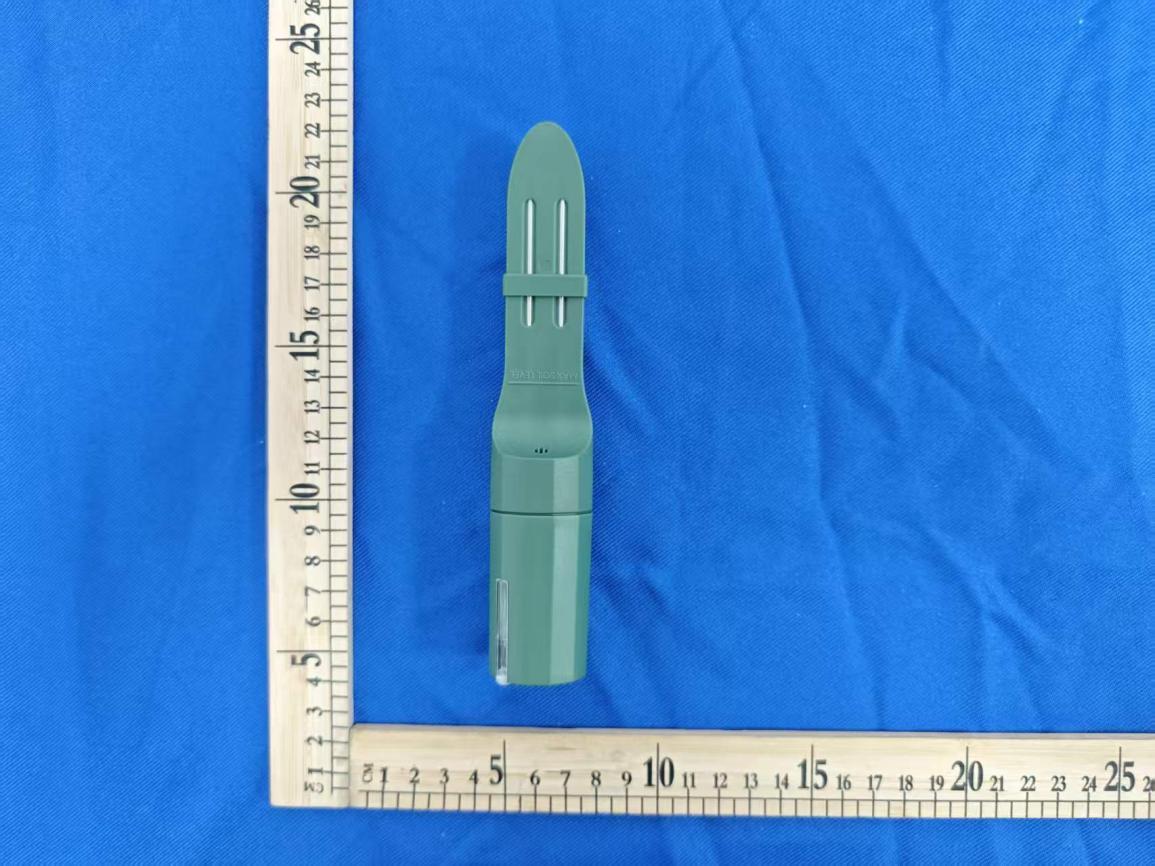

DNT2604282078R03991-P01Page: 1 of 3 PHOTOGRAPHSOFEUT FCCID:2BWHBSENSOR ExternalPhotos ExternalPhotos DNT2604282078R03991-P01Page: 2 of 3 ExternalPhotos ExternalPhotos DNT2604282078R03991-P01Page: 3 of 3 ExternalPhotos ExternalPhotos --END--

FCCID:2BWHBSENSOR

DNT2604282078R03991-P01Page: 1 of 3 PHOTOGRAPHSOFEUT FCCID:2BWHBSENSOR InternalPhotos InternalPhotos DNT2604282078R03991-P01Page: 2 of 3 InternalPhotos InternalPhotos DNT2604282078R03991-P01Page: 3 of 3 InternalPhotos --END--

GuangdongDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] RFExposureEvaluationReport ApplicationNo.: DNT2604282078R03991-05311 Applicant: PWWillowPtyLtd AddressofApplicant: Level6,102JamesStreet,NorthbridgeWAAustralia6003 EUTDescription: Plantsensor ModelNo.: 026507-SENSOR-S FCCID: 2BWHBSENSOR Powersupply: DC3VFromBattery TradeMark: / Standards: 47CFRPart2.1093 FCCKDB447498D04v01 DateofReceipt: 2026/04/28 DateofTest: 2026/04/28to2026/05/13 DateofIssue: 2026/05/27 TestResult:PASS PreparedBy:(TestingEngineer) ReviewedBy:(ProjectEngineer) ApprovedBy:(Manager) Note:Ifthereisanyobjectiontotheresultsinthisreport,pleasesubmitawritteninquirytothecompanywithin15daysfromthedateof receivingthereport.Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,andisissuedbythecompanyinaccordance withtherequirementsofthe"ConditionsofIssuanceofTestReports"printedintheattachedpage.Unlessotherwisestated,theresults presentedinthisreportonlyapplytothesamplestestedthistime.Partialreproductionofthisreportisnotallowedunlessapprovedbythe companyinwriting. ReportNo.:DNT2604282078R03991-05311Date：May27,2026Page： 2 / 8 Guangdong DNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] ReportReviseRecord ReportVersionReviseTimeIssuedDateValidVersionNotes V1.0/May27,2026ValidOriginalReport ReportNo.:DNT2604282078R03991-05311Date：May27,2026Page： 3 / 8 Guangdong DNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] Contents RFEXPOSUREEVALUATIONREPORT.............................................................................................................................................1 1GENERALINFORMATION..................................................................................................................................................................4 1.1TESTLOCATION.................................................................................................................................................................................4 1.2GENERALDESCRIPTIONOFEUT.....................................................................................................................................................4 1.3TESTFACILITY...................................................................................................................................................................................5 1.4MEASUREMENTUNCERTAINTY(95%CONFIDENCELEVELS,K=2)....................................................................................................5 2RFEXPOSUREEVALUATION............................................................................................................................................................6 2.1RFEXPOSURECOMPLIANCEREQUIREMENT..................................................................................................................................6 ReportNo.:DNT2604282078R03991-05311Date：May27,2026Page： 4 / 8 Guangdong DNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1GeneralInformation 1.1TestLocation Company:GuangdongDNTestingCo.,Ltd Address: No.1,WestFourthStreet,SouthXinfaRoad,WushaLiwu,Chang’anTown, DongguanCity,GuangdongP.R.China Testengineer:GaliLin 1.2GeneralDescriptionofEUT Manufacturer: DongguanAgilianTechnologyCo.,Ltd AddressofManufacturer: Room203,2 nd floor,No.3DongyiStreet,XingfaCommunity,WushaLiwu, Chang’anTown,DonguanCity,GuangdongProvince Factory: DongguanAgilianTechnologyCo.,Ltd AddressofFactoryr: Room203,2 nd floor,No.3DongyiStreet,XingfaCommunity,WushaLiwu, Chang’anTown,DonguanCity,GuangdongProvince EUTDescription: Plantsensor ModelNo.: 026507-SENSOR-S AdditionalModel(s):/ PowerSupply:DC3VFromBattery TradeMark:/ HardwareVersion:V1.0 SoftwareVersion:0.1.20A ChipType:N52833 Serialnumber:PR2604282078R03991 SampleType:PortableDevice,Module,MobileDevice AntennaType: External,Integrated AntennaPorts: Ant1,Ant2,Ant3 AntennaGain: Providedbyapplicant 2.5dBi Note: *Sincetheabovedataand/orinformationisprovidedbytheclientrelevantresultsorconclusionsofthis reportareonlymadeforthesedataand/orinformation,DNTisnotresponsiblefortheauthenticity,integrity andresultsofthedataandinformationand/orthevalidityoftheconclusion. ReportNo.:DNT2604282078R03991-05311Date：May27,2026Page： 5 / 8 Guangdong DNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1.3TestFacility Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: LabA: •FCC,USA DesignationNumber:CN1348 •A2LA(CertificateNo.7050.01) DONGGUANDNTESTINGCO.,LTD.isaccreditedbytheAmericanAssociationforLaboratory Accreditation(A2LA).CertificateNo.7050.01. •Innovation,ScienceandEconomicDevelopmentCanada DONGGUANDNTESTINGCO.,LTD.EMCLaboratoryhasbeenrecognizedbyISEDasanaccreditedtesting laboratory.CABidentifierisCN0149. IC#:30755. . 1.4MeasurementUncertainty(95%confidencelevels,k=2) No.ItemMeasurementUncertainty 1 20dBEmissionBandwidth±0.0196% 2 CarrierFrequencySeparation±1.9% 3 NumberofHoppingChannel±1.9% 4 TimeofOccupancy±0.028% 5 MaxPeakConductedOutputPower±0.743dB 6 Band-edgeSpuriousEmission±1.328dB 7 ConductedRFSpuriousEmission 9KHz-1GHz:±0.746dB 1GHz-26GHz:±1.328dB No.ItemMeasurementUncertainty 1ConductionEmission±3.0dB(150kHzto30MHz) 2RadiatedEmission ±4.8dB(Below1GHz) ±4.8dB(1GHzto6GHz) ±4.5dB(6GHzto18GHz) ±5.02dB(Above18GHz) ReportNo.:DNT2604282078R03991-05311Date：May27,2026Page： 6 / 8 Guangd…

Text truncated - open the document above for the full version.

Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] FCC Test Report Application No.: DNT2604282078R03991-05313 Applicant: PW Willow Pty Ltd Address of Applicant: Level 6, 102 James Street, Northbridge WA Australia 6003 EUT Description: Plant sensor Model No.: 026507-SENSOR-S FCC ID: 2BWHBSENSOR Power Supply: DC 3V From Battery Trade Mark: / Standards: 47 CFR Part 2, Subpart J 47 CFR Part 15, Subpart C ANSI C63.10: 2020 Date of Receipt: 2026/04/28 Date of Test: 2026/04/28 to 2026/05/13 Date of Issue: 2026/05/27 Test Result:PASS Prepared By:(Testing Engineer) Reviewed By:(Project Engineer) Approved By:(Manager) Note: If there is any objection to the results in this report, please submit a written inquiry to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp, and is issued by the company in accordance with the requirements of the "Conditions of Issuance of Test Reports" printed in the attached page. Unless otherwise stated, the results presented in this report only apply to the samples tested this time. Partial reproduction of this report is not allowed unless approved by the company in writing. Report No.: DNT2604282078R03991-05313Date：May 27, 2026Page： 2 / 54 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Report Revise Record Report VersionRevise TimeIssued DateValid VersionNotes V1.0/ May 27, 2026 ValidOriginal Report Report No.: DNT2604282078R03991-05313Date：May 27, 2026Page： 3 / 54 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 1 Test Summary Test ItemTest RequirementTest MethodTest ResultResult Antenna Requirement 15.203/247(b)--Clause 3.1PASS Duty Cycle----Clause 3.2PASS DTS (6 dB) Bandwidth15.247 (a)(2)ANSI C63.10: 2020Clause 3.3PASS Conducted Output Power15.247 (b)(3)ANSI C63.10: 2020Clause 3.4PASS Power Spectral Density15.247 (e)ANSI C63.10: 2020Clause 3.5PASS Band-edge for RF Conducted Emissions 15.247(d)ANSI C63.10: 2020Clause 3.6PASS RF Conducted Spurious Emissions 15.247(d)ANSI C63.10: 2020Clause 3.7PASS Radiated Spurious Emissions15.247(d);15.205/15.209ANSI C63.10: 2020Clause 3.8PASS Restricted bands around fundamental frequency (Radiated Emission) 15.247(d);15.205/15.209ANSI C63.10: 2020Clause 3.9PASS AC Power Line Conducted Emission 15.207ANSI C63.10: 2020Clause 3.10N/A Note: 1. “N/A” denotes test is not applicable in this test report. Report No.: DNT2604282078R03991-05313Date：May 27, 2026Page： 4 / 54 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Contents 1 Test Summary..................................................................................................................................................................3 2 General Information..........................................................................................................................................................5 2.1 Test Location..........................................................................................................................................................5 2.2 General Description of EUT...................................................................................................................................5 2.3 Test Environment...................................................................................................................................................6 2.4 Channel List........................................................................................................................................................... 6 2.5 Power Setting of Test Software............................................................................................................................. 7 2.6 Assistant equipment used for test..........................................................................................................................7 2.7 Description of Support Units.................................................................................................................................. 7 2.8 Test Facility............................................................................................................................................................7 2.9 Equipment List....................................................................................................................................................... 8 2.10 Measurement Uncertainty (95% confidence levels, k=2).................................................................................. 10 3 Test results and Measurement Data..............................................................................................................................11 3.1 Antenna Requirement..........................................................................................................................................11 3.2 Duty Cycle............................................................................................................................................................12 3.3 DTS (6 dB) Bandwidth......................................................................................................................................... 13 3.4 Conducted Output Power.........................................................................................…

Text truncated - open the document above for the full version.

Report No.: DNT2604282078R03991-05313Date：May 27, 2026Page： 45 / 54 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2480-PASS BLE_2M-Ant1-2402-PASS Report No.: DNT2604282078R03991-05313Date：May 27, 2026Page： 46 / 54 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] BLE_2M-Ant1-2480-PASS Report No.: DNT2604282078R03991-05313Date：May 27, 2026Page： 47 / 54 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Appendix F: Conducted Spurious Emission Test Result TestModeAntennaFreq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm]Limit[dBm]Verdict BLE_1MAnt1 2402 Reference-2.57-2.57---PASS 30~1000-2.57-37.96≤-32.57PASS 1000~26500-2.57-48.56≤-32.57PASS 2440 Reference-5.04-5.04---PASS 30~1000-5.04-40.51≤-35.04PASS 1000~26500-5.04-42.23≤-35.04PASS 2480 Reference-7.46-7.46---PASS 30~1000-7.46-39.62≤-37.46PASS 1000~26500-7.46-47.99≤-37.46PASS BLE_2MAnt1 2402 Reference-5.60-5.60---PASS 30~1000-5.60-40.65≤-35.6PASS 1000~26500-5.60-43.09≤-35.6PASS 2440 Reference-7.66-7.66---PASS 30~1000-7.66-39.99≤-37.66PASS 1000~26500-7.66-49.31≤-37.66PASS 2480 Reference-8.62-8.62---PASS 30~1000-8.62-39.04≤-38.62PASS 1000~26500-8.62-49.81≤-38.62PASS Report No.: DNT2604282078R03991-05313Date：May 27, 2026Page： 48 / 54 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Test Graphs BLE_1M-Ant1-2402-0~Reference-PASS BLE_1M-Ant1-2402-30~1000-PASS BLE_1M-Ant1-2402-1000~26500-PASS Report No.: DNT2604282078R03991-05313Date：May 27, 2026Page： 49 / 54 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] BLE_1M-Ant1-2440-0~Reference-PASS BLE_1M-Ant1-2440-30~1000-PASS BLE_1M-Ant1-2440-1000~26500-PASS Report No.: DNT2604282078R03991-05313Date：May 27, 2026Page： 50 / 54 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] BLE_1M-Ant1-2480-0~Reference-PASS BLE_1M-Ant1-2480-30~1000-PASS BLE_1M-Ant1-2480-1000~26500-PASS Report No.: DNT2604282078R03991-05313Date：May 27, 2026Page： 51 / 54 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] BLE_2M-Ant1-2402-0~Reference-PASS BLE_2M-Ant1-2402-30~1000-PASS BLE_2M-Ant1-2402-1000~26500-PASS Report No.: DNT2604282078R03991-05313Date：May 27, 2026Page： 52 / 54 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] BLE_2M-Ant1-2440-0~Reference-PASS BLE_2M-Ant1-2440-30~1000-PASS BLE_2M-Ant1-2440-1000~26500-PASS Report No.: DNT2604282078R03991-05313Date：May 27, 2026Page： 53 / 54 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] BLE_2M-Ant1-2480-0~Reference-PASS BLE_2M-Ant1-2480-30~1000-PASS BLE_2M-Ant1-2480-1000~26500-PASS Report No.: DNT2604282078R03991-05313Date：May 27, 2026Page： 54 / 54 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] The End Report

Ver.7.1 TDK Corporation Dec. 2024 P/N: MultilayerAntenna For2.4GHz W-LAN & Bluetooth ANT Series ANT016008LCS2442MA2 1.6x0.8mm [EIA 0603]TYPE All specifications are subject to change without notice. Before using these products, be sure to request the delivery specifications. Manufacturer: TDK Corporation Manufacturer's address: Chuo ku, Tokyo, Japan Ver.7.1 TDK Corporation Dimensions (mm) LWTabcdef 1.600.800.400.2150.250.20(0.10)0.63(0.10) +/-0.10+/-0.10Max+/-0.10+/-0.10+/-0.10 +/-0.10 Terminal functions (1)(6) (2) (3) (4) (5) Material Au plate ■ SHAPES AND DIMENSIONS ANT016008LCS2442MA2 Dummy pad Dummy padRadiator electrode Dummy pad Dummy pad Feed point Dec. 2024 ■ TERMINATION FINISH All specifications are subject to change without notice. Before using these products, be sure to request the delivery specifications. Ver.7.1 TDK Corporation Min.Typ.Max. VSWR2400to2484-1.603.0 Antenna Gain (dBi)**2400to2484-2.5- Polarization PCB Size (mm) Antenna keep-out Area (mm) Characteristic Impedance (ohm) * This is typical antenna performance with the standard PCB. ** Reference value Note: Tested antenna has been soldered. Evaluation board size is 50x10x1 mm. Efficiency and VSWR Dec. 2024 ■ FREQUENCY CHARACTERISTICS 50 (Nominal) ■ ELECTRICAL CHARACTERISTICS ParameterFrequency (MHz) TDK Spec ( Measurement ) ANT016008LCS2442MA2 Linear 50 x 10 6 x 2.5 All specifications are subject to change without notice. Before using these products, be sure to request the delivery specifications. Ver.7.1 TDK Corporation Power Handling (W) *1 CW Human Body Model : HBM@Each Port (V) 100pF / 1500ohm Machine Model : MM@Each Port (V) 200pF / 0ohm Charged Device Model : CDM@Each Port (V) Humidity : 60%RH max *1 : Refer to 3GPP TS 38.101-1 V15.2.0 +/-1000 +/-150 +/-500 Operating temperature (°C) –40 to +85 °C Storage temperature (°C) –40 to +85 °C 0.8 Dec. 2024 ANT016008LCS2442MA2 ■ MAXIMUM RATINGS ParameterTDK SpecConditions All specifications are subject to change without notice. Before using these products, be sure to request the delivery specifications. Ver.7.1 TDK Corporation PCB size : 50mm x 10mm x 1mm Antenna area : 6 x 2.5 mm Measurement condition for Radiation pattern Dec. 2024 Ft-1 2.0nH(MLG0603P2N0:TDK) Mt 3.0nH(MLG0603P3N0:TDK) ANT016008LCS2442MA2 ■ EVALUATION BOARD Component P/N Z Y X   ｂ E E Er PCB ANT016008LCS2442MA2 Ft-1 Mt Chip antenna All specifications are subject to change without notice. Before using these products, be sure to request the delivery specifications. Ver.7.1 TDK Corporation Note: Tested antenna has been soldered. Evaluation board size is 50x10x1 mm. 2.4GHz band ANT016008LCS2442MA2 ■ Radiation Pattern Dec. 2024 Frequency(GHz)2.42.4422.484Frequency(GHz)2.42.4422.484 Average[dBi]-16.1-16.0-16.4Average[dBi]-1.4-0.8-1.6 Maximum[dBi]-10.5-11.3-11.7Maximum[dBi]-0.50.0-0.9 Minimum[dBi]-26.9-26.5-31.9Minimum[dBi]-2.4-2.1-3.0 Frequency(GHz)2.42.4422.484Frequency(GHz)2.42.4422.484 Average[dBi]-4.3-3.6-4.2Average[dBi]-17.5-16.8-17.0 Maximum[dBi]1.62.52.0Maximum[dBi]-11.1-10.4-10.4 Minimum[dBi]-21.9-24.0-25.5Minimum[dBi]-30.4-36.3-53.3 Frequency(GHz)2.42.4422.484Frequency(GHz)2.42.4422.484 Average[dBi]-3.9-3.3-4.0Average[dBi]-18.7-18.6-19.8 Maximum[dBi]-0.50.2-0.3Maximum[dBi]-14.8-15.0-16.7 Minimum[dBi]-29.4-28.7-34.7Minimum[dBi]-26.3-25.3-29.1 -50 -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi -50 -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi Horizontal PolarizationVertical Polarization -50 -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi -50 -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi Vertical Polarization Horizontal Polarization -50 -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi -50 -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi Vertical PolarizationHorizontal Polarization 0° 270° 90° Y Z X 0 270°90° X Z Y 0° 270° 90° Z X Y 2.400GHz 2.442GHz 2.484GHz 2.400GHz 2.442GHz 2.484GHz 2.400GHz 2.442GHz 2.484GHz All specifications are subject to change without notice. Before using these products, be sure to request the delivery specifications. Ver.7.1 TDK Corporation Center line of Chip antenna Antenna keep out area (All Layer GND off) Ft : Frequency tuning component Mt : Impedance matching component Antenna Pattern VIA : Φ0.2mm GND [ Unit : mm ] ANT016008LCS2442MA2 ■ RECOMMENDED LAND PATTERN Dec. 2024 6 2.5 Recommend land pattern and solder resist pattern < Land pattern > < Solder resist pattern > Center line of Chip Land Pattern Resist Pattern Recommend aperture size of metal mask for solder Center line of Chip Aperture of metal Example of Antenna pattern layout (TDK Standard PCB) <Top Layer (Parts mounted side) > <Bottom Layer ><Inner Layer > Feeding line: 50 ohm All specifications are subject to change without notice. Before using these products, be sure to request the delivery specifications. Ver.7.1 TDK Corporation RoHS Statement RoHS Compliance ANT016008LCS2442MA2 ■ ENVIROMENT INFORMATION Dec. 2024 All specifications are subject to change without notice. Before using these products, be sure to request the delivery specifications. TDK Corporation T1T2 150°C200°C * t3 : Time within 5°C of actual peak temperature The maximum number of reflow is 3. Note:Lead free solder is recommended. Recommended solder is Sn-3.0Ag-0.5Cu. (M705 by Senju Metal Industry) t1T3t2T4t3 * 60 to 120sec217°C60 to 120sec240 to 260°C30 sec Max Time ■ RECOMMENDED REFLOW PROFILE Preheating Soldering Critical zone (T3 to T4)Peak Temp.TimeTemp.TimeTemp. 6 o C/sec or lower 3 o C/sec or lower All specifications are subject to change without notice. Before using these products, be sure to request the delivery specifications. Ver.7.1 TDK Corporation Reel Dimensions Carrier Tape Dimensions (mm) ABCDEFGHJKt 0.971.88.03.51.754.02.04.01.50.550.25 +/-0.05+/-0.05+/-0.2+/-0.05+/-0.1+/-0.1+/-0.05+/-0.1+0.1/-0MAX+/-0.05 Dec. 2024 4,000 ANT016008LCS2442MA2 ■ PACKAGING STYLE STANDARD PACKAGE QUANTITY ( pieces/reel ) Material of the carrier tape : PS E D C H G F Sprocket hole Loading Direction A B K J t B All…

Text truncated - open the document above for the full version.

DNT2604282078R03991-P01Page: 1 of 3 PHOTOGRAPHSOFEUT FCCID:2BWHBSENSOR AntennaTerminalTestView DNT2604282078R03991-P01Page: 2 of 3 RadiatedEmissionTestView|(Below1G) RadiatedEmissionTestView|(Above1G) DNT2604282078R03991-P01Page: 3 of 3 RadiatedEmissionTestView|(Above1G) --END--
