2BWHR-NH1PHeadsets

Connect the receiver to a USB-A or USB-C port. The NU31 NH1 Pro Wireless receiver works with devices that have either Type-A or Type-C connectors. 1 Turn on the headset by holding the power button for 3 seconds until you hear the power-on sound. 2 All set! Your NU31 NH1 Pro Wireless headset is connected via Dongle and ready to use. 3 FIRST POWERUP AND CONNECTING WITH 2.4G FIRST POWERUP AND BLUETOOTH CONNECTION FIRST POWERUP AND WIRED CONNECTIONVOLUME AND MEDIA CONTROLSWITCHING EQUALIZER MODES CALL MANAGEMENT Volume up (next track) Volume down (previous track) Headset on/o (equalizer mode switch) Microphone on/o (Dongle mode / Bluetooth switch) Detachable microphone Status and charge indicator Type-C port for charging and wired connection MAIN PARTS 3 sec 3 sec 3 sec Turn on the headset by holding down the power button for 3 seconds until you hear the power-on sound. 11 Double-press the headset power button to switch the equalizer mode. 1 You’ll hear the mode switch sound. Clear – equalizer mode with a smooth, studio-monitor-like sound, high quality and detail. Great for most tasks, from gaming to audio work. Game – equalizer mode designed mainly for gaming. We cut the lows and boost the mids to make footsteps easier to hear, while keeping explosions and gunshots from masking your position. The highs remain unchanged. Bass – equalizer mode for bass lovers. It emphasizes the low frequencies, while mids and highs stay close to their default values. Vocal – equalizer mode with more emphasis on high frequencies. We’ve raised the highs to make voices more expressive. The lows and mids remain unchanged. If you want more detailed sound control, we recommend installing the NU31 software. It lets you adjust the EQ, microphone noise reduction, and many other headset features. 2 The equalizer modes cycle as follows: Clear > Game > Bass > Vocal. Switching between modes is cyclical: after Vocal, Clear is activated again. 3 Pause playback with a quick press of the power button, then press it again to resume. To answer a call, simply press the headset power button once (a quick press). Important: Answering calls with the headset is only possible when it’s connected via BT. Here are a few tips to help extend the life of your new headset: Do not connect the headset to an electrical outlet or other high-voltage power sources. This may damage the device’s circuit board and render the headset inoperable. We recommend charging the headset only from the USB port of your computer or laptop. Do not use the headset in wet environments (in the rain or during sports). If moisture gets into the headset, turn it o (disconnect) immediately and contact a service center. We strongly recommend using the supplied cable for wired connections. Keep your headset clean and take care of it regularly. This will help extend the life of your device. If you decide to replace the ear pads with the ones included in the set, we’ve designed the headset to accommodate this. Replacing the ear pads does not aect the warranty, so you can swap in the included pads without any problems and still retain your warranty. The warranty period is 12 months from the date of purchase. If you have questions or problems after the warranty expires, please contact our technical support team. We’re happy to help resolve any issues, even after the warranty period has ended. Please take good care of your headset. We really aimed to make the NU31 NH1 Pro Wireless the best option and invested a lot of time, eort, and money into developing this new headset line. We built it the way we’d want to use it ourselves 1 2 3 4 5 6 7 Skip to the next track by holding the volume up button for 2 seconds. Power on the headset by pressing and holding the power button for 3 seconds until you hear the power-on sound. Connect the headset to the device with the Type-C cable. 2 Done! The headset is connected in wired mode. You can use the headset and charge it at the same time. 3 Double-click the «microphone on/o» button to switch the headset to Bluetooth mode. Wait for the mode switch sound. 2 In the settings of the device you want to connect to, select the NU31 NH1 Pro Wireless headset. 3 After successful pairing, you will hear the device paired sound. The NU31 NH1 Pro Wireless headset is connected. 4 х2 If you’re having connection issues or questions, contact our tech support. We’re happy to help. х1 х2 х1 To reject a call, press the headset power button twice (in quick succession). х2 To end the call, press the headset power button once (during the call). х1 2 sec Go back to the previous track by holding the volume down button for 2 seconds. 2 sec EQ NH1 PRO WIRELESS user manual NU31 NH1 Pro Wireless MY DEVICES Connected NU31 NH1 Pro Wireless OTHER DEVICES NU31 NH1 Pro Wireless NU31 NH1 Pro Wired mode х2 To switch back to Dongle mode, press the «microphone on/o» button twice again. You will hear the mode switch sound. 6 8 sec If pairing fails, press and hold the «on/o» button for 8 seconds. All previously connected Bluetooth devices will be reset. Then repeat starting from step 1. 5 Congrats on getting your hands on the agship NU31 NH1 Pro Wireless gaming headset! We’ve poured our heart, energy, and years of experience into making this device. We listened to what gamers wanted, ran countless tests and tweaks, and spent over a year crafting the NU31 NH1 Pro Wireless just for you. Inside, you’ll nd cutting-edge tech and a whole lineup of upgrades. We packed in a agship sound chip for premium audio detail, made the ear cushions thicker and comer (and yeah, we added two extra sets in the box), and gave the battery one of the biggest capacities out there — meaning 80+ hours of nonstop gameplay. And that’s just the start — you’ll discover the rest of the awesome features right here in this manual. Thanks for believing in NU31 — it means the world to us! We know you’ll love the NH1 Pro Wireless as much as we loved making it. Built with passion, just like we’d build…

Text truncated - open the document above for the full version.

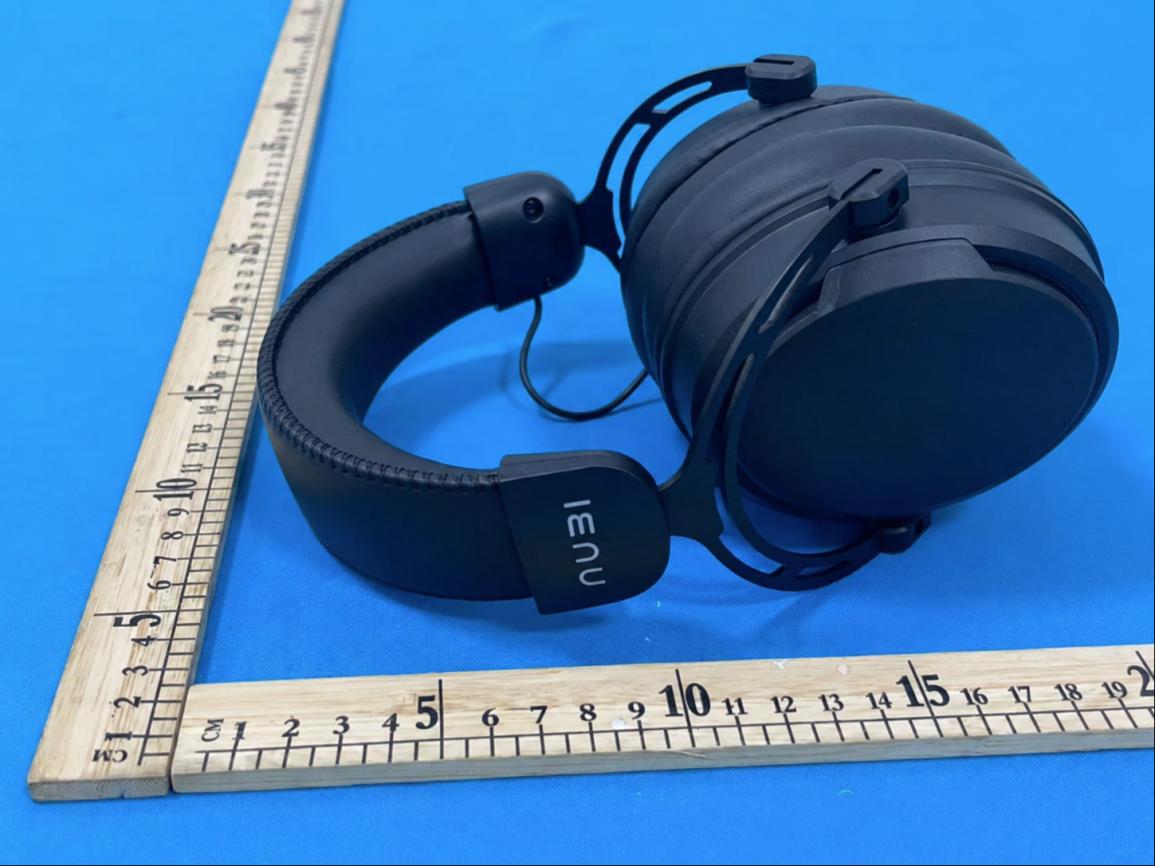

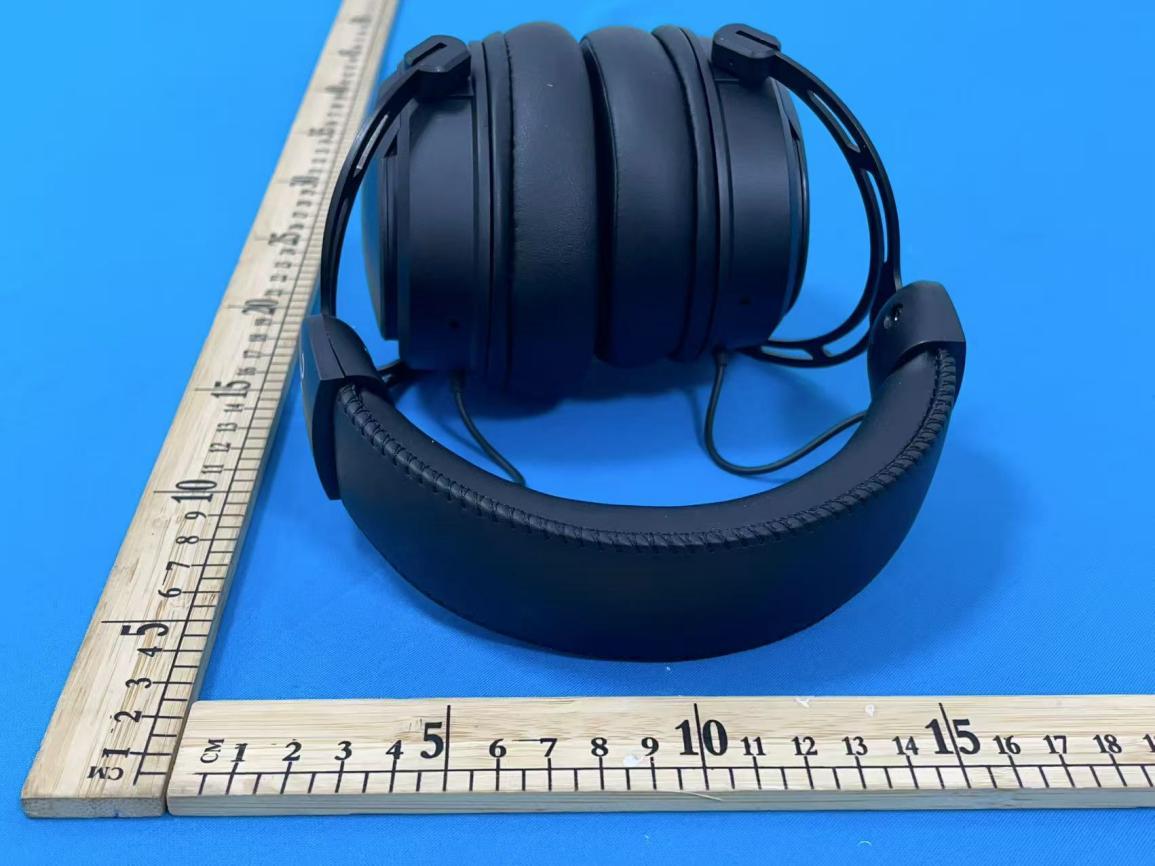

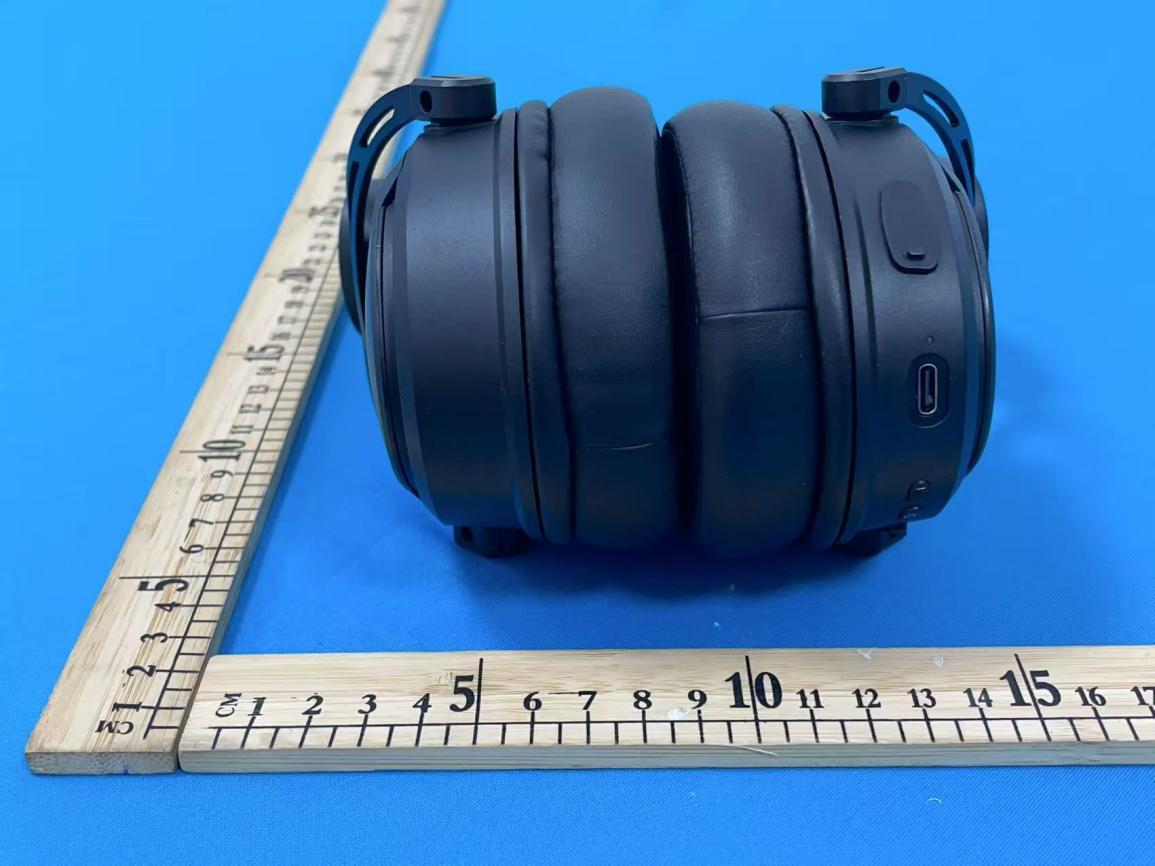

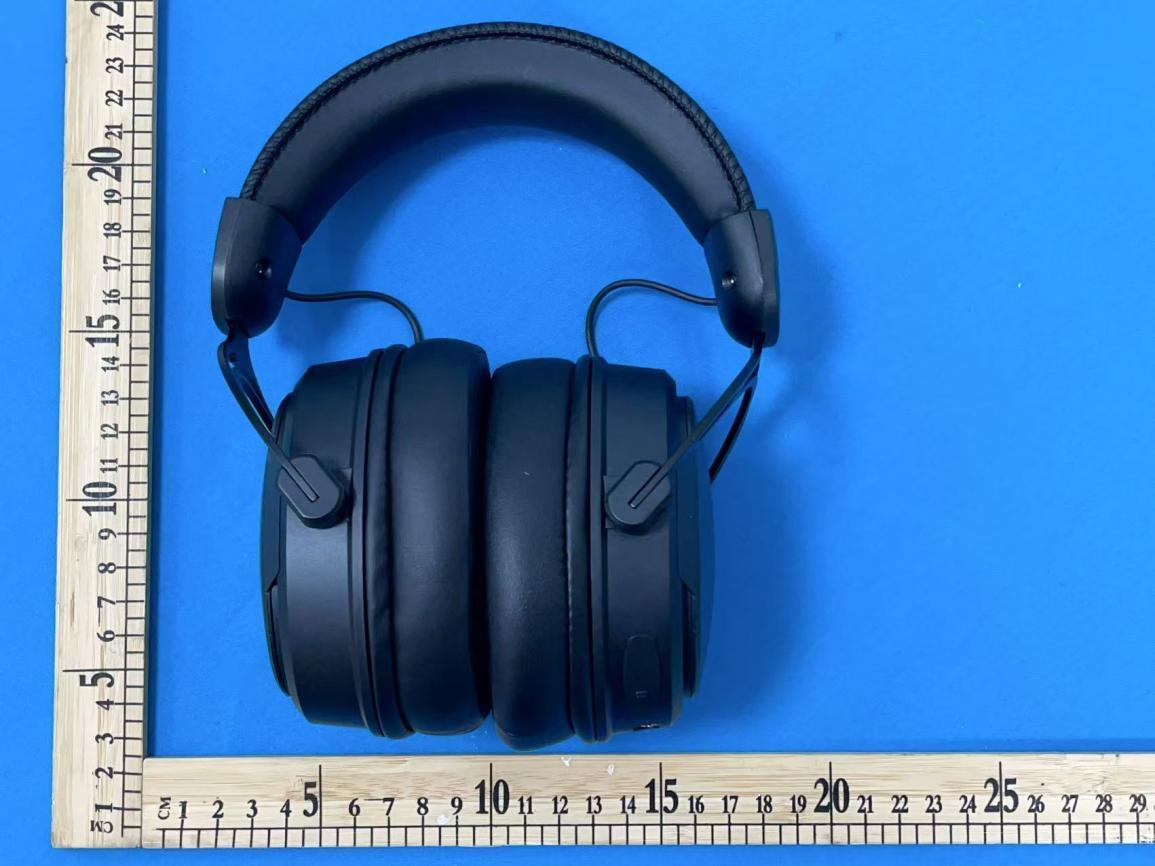

DNT2606113688R07145-P01Page: 1 of 4 PHOTOGRAPHSOFEUT FCCID:2BWHR-NH1P ExternalPhotos ExternalPhotos DNT2606113688R07145-P01Page: 2 of 4 ExternalPhotos ExternalPhotos DNT2606113688R07145-P01Page: 3 of 4 ExternalPhotos ExternalPhotos DNT2606113688R07145-P01Page: 4 of 4 ExternalPhotos ExternalPhotos --END--

FCCID:2BWHR-NH1P

DNT2606113688R07145-P01Page: 1 of 4 PHOTOGRAPHSOFEUT FCCID:2BWHR-NH1P InternalPhotos InternalPhotos DNT2606113688R07145-P01Page: 2 of 4 InternalPhotos InternalPhotos DNT2606113688R07145-P01Page: 3 of 4 InternalPhotos InternalPhotos DNT2606113688R07145-P01Page: 4 of 4 InternalPhotos InternalPhotos --END--

GuangdongDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Tel:+86-769-88087383E-mail:[email protected] RFExposureEvaluationReport ApplicationNo.: DNT2606113688R07145-10529 Applicant: NUBILIMITED AddressofApplicant: OFFICE3906,39THTHECTR99QUEEN'SRDCENTRALCENTRAL HONGKONG EUTDescription: Headsets ModelNo.: NH1ProWireless FCCID: 2BWHR-NH1P Powersupply: InputDC5V;DC3.7Vfromrechargeablelithium-ionbattery TradeMark: NU31 Standards: 47CFRPart2.1093 FCCKDB447498D04v01 DateofReceipt: 2026/06/11 DateofTest: 2026/06/12to2026/07/07 DateofIssue: 2026/07/08 TestResult:PASS PreparedBy:(TestingEngineer) ReviewedBy:(ProjectEngineer) ApprovedBy:(Manager) Note:Ifthereisanyobjectiontotheresultsinthisreport,pleasesubmitawritteninquirytothecompanywithin15daysfromthedateof receivingthereport.Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,andisissuedbythecompanyinaccordance withtherequirementsofthe"ConditionsofIssuanceofTestReports"printedintheattachedpage.Unlessotherwisestated,theresults presentedinthisreportonlyapplytothesamplestestedthistime.Partialreproductionofthisreportisnotallowedunlessapprovedbythe companyinwriting. ReportNo.:DNT2606113688R07145-10529Date：July8,2026Page： 2 / 8 GuangdongDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Tel:+86-769-88087383E-mail:[email protected] ReportReviseRecord ReportVersionReviseTimeIssuedDateValidVersionNotes V1.0/July8,2026ValidOriginalReport ReportNo.:DNT2606113688R07145-10529Date：July8,2026Page： 3 / 8 GuangdongDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Tel:+86-769-88087383E-mail:[email protected] Contents RFEXPOSUREEVALUATIONREPORT.............................................................................................................................................1 1GENERALINFORMATION..................................................................................................................................................................4 1.1TESTLOCATION.................................................................................................................................................................................4 1.2GENERALDESCRIPTIONOFEUT.....................................................................................................................................................4 1.3TESTFACILITY...................................................................................................................................................................................5 1.4MEASUREMENTUNCERTAINTY(95%CONFIDENCELEVELS,K=2)....................................................................................................5 2RFEXPOSUREEVALUATION............................................................................................................................................................6 2.1RFEXPOSURECOMPLIANCEREQUIREMENT..................................................................................................................................6 ReportNo.:DNT2606113688R07145-10529Date：July8,2026Page： 4 / 8 GuangdongDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Tel:+86-769-88087383E-mail:[email protected] 1GeneralInformation 1.1TestLocation Company:GuangdongDNTestingCo.,Ltd Address: No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity,GuangdongP.R.China Testengineer:GaliLin 1.2GeneralDescriptionofEUT Manufacturer: ShenzhenBolukeElectronicTechnologyCo.,Ltd. AddressofManufacturer: 4A,BuildingF3,TianyouMakerIndustrialPark,No.2LixinRoad,FuyongStreet, Bao'anDistrict,Shenzhen Factory: ShenzhenBolukeElectronicTechnologyCo.,Ltd. AddressofFactory: 4A,BuildingF3,TianyouMakerIndustrialPark,No.2LixinRoad,FuyongStreet, Bao'anDistrict,Shenzhen EUTDescription: Headsets ModelNo.: NH1ProWireless AdditionalModel(s): / PowerSupply: InputDC5V;DC3.7Vfromrechargeablelithium-ionbattery TradeMark: NU31 HardwareVersion:V1.0 SoftwareVersion:V1.0 ChipType: CM2025 Serialnumber PR2606113688R07145 SampleType:PortableDevice,Module,MobileDevice AntennaType: External,Integrated AntennaPorts: Ant1,Ant2,Ant3 AntennaGain: Providedbyapplicant 2.19dBi Note: *Sincetheabovedataand/orinformationisprovidedbytheclientrelevantresultsorconclusionsofthis reportareonlymadeforthesedataand/orinformation,DNTisnotresponsiblefortheauthenticity,integrity andresultsofthedataandinformationand/orthevalidityoftheconclusion. ReportNo.:DNT2606113688R07145-10529Date：July8,2026Page： 5 / 8 GuangdongDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Tel:+86-769-88087383E-mail:[email protected] 1.3TestFacility Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: LabA: •FCC,USA DesignationNumber:CN1348 •A2LA(CertificateNo.7050.01) GUANGDONGDNTESTINGCO.,LTD.isaccreditedbytheAmericanAssociationforLaboratory Accreditation(A2LA).CertificateNo.7050.01. •Innovation,ScienceandEconomicDevelopmentCanada GUANGDONGDNTESTINGCO.,LTD.EMCLaboratoryhasbeenrecognizedbyISEDasanaccreditedtesting laboratory.CABidentifierisCN0149. IC#:30755. . 1.4MeasurementUncertainty(95%confidencelevels,k=2) No.ItemMeasurementUncertainty 1 20dBEmissionBandwidth±0.0196% 2 CarrierFrequencySeparation±1.9% 3 NumberofHoppingChannel±1.9% 4 TimeofOccupancy±0.028% 5 MaxPeakConductedOutputPower±0.743dB 6 Band-edgeSpuriousEmission±1.328dB 7 ConductedRFSpuriousEmission 9KHz-1GHz:±0.746dB 1GHz-26GHz:±1.328dB No.ItemMeasurementUncertainty 1ConductionEmission±3.0dB(150kHzto30MHz) 2RadiatedEmission ±4.8dB(Below1GHz) ±4.8dB(1GHzto6GHz) ±4.5dB(6GHzto18GHz) ±5.02dB(Above18GHz) ReportNo.:DNT2606113688R07145-10529Date：July8,2026Page： 6 / 8 GuangdongDNTestingCo.,Ltd. Add:No.1,WestFourth…

Text truncated - open the document above for the full version.

Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] FCC Test Report Application No.: DNT2606113688R07145-10531 Applicant: NUBI LIMITED Address of Applicant: OFFICE 3906, 39TH THE CTR 99 QUEEN'S RD CENTRAL CENTRAL HONG KONG EUT Description: Headsets Model No.: NH1 Pro Wireless FCC ID: 2BWHR-NH1P Power Supply: Input DC 5V; DC 3.7V from rechargeable lithium-ion battery Trade Mark: NU31 Standards: 47 CFR Part 2, Subpart J 47 CFR Part 15, Subpart C ANSI C63.10: 2020 Date of Receipt: 2026/06/11 Date of Test: 2026/06/12 to 2026/07/07 Date of Issue: 2026/07/08 Test Result:PASS Prepared By:(Testing Engineer) Reviewed By:(Project Engineer) Approved By:(Manager) Note: If there is any objection to the results in this report, please submit a written inquiry to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp, and is issued by the company in accordance with the requirements of the "Conditions of Issuance of Test Reports" printed in the attached page. Unless otherwise stated, the results presented in this report only apply to the samples tested this time. Partial reproduction of this report is not allowed unless approved by the company in writing. Report No.: DNT2606113688R07145-10531Date：July 8, 2026Page： 2 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] Report Revise Record Report VersionRevise TimeIssued DateValid VersionNotes V1.0/July 8, 2026ValidOriginal Report Report No.: DNT2606113688R07145-10531Date：July 8, 2026Page： 3 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] 1 Test Summary Test ItemTest RequirementTest MethodTest ResultResult Antenna Requirement15.203/247(b)--Clause 3.1PASS 20dB Emission Bandwidth15.247 (a)(1)ANSI C63.10: 2020Clause 3.2PASS Conducted Peak Output Power 15.247 (b)(1)ANSI C63.10: 2020Clause 3.3PASS Carrier Frequencies Separation 15.247 (a)(1)ANSI C63.10: 2020Clause 3.4PASS Dwell Time15.247 (a)(1)ANSI C63.10: 2020Clause 3.5PASS Hopping Channel Number15.247 (a)(1)ANSI C63.10: 2020Clause 3.6PASS Band-edge for RF Conducted Emissions 15.247(d)ANSI C63.10: 2020Clause 3.7PASS RF Conducted Spurious Emissions 15.247(d)ANSI C63.10: 2020Clause 3.8PASS Radiated Spurious emissions 15.247(d); 15.205/15.209 ANSI C63.10: 2020Clause 3.9PASS Restricted bands around fundamental frequency (Radiated Emission) 15.247(d); 15.205/15.209 ANSI C63.10: 2020Clause 3.10PASS AC Power Line Conducted Emission 15.207ANSI C63.10: 2020Clause 3.11PASS Note: 1. “N/A” denotes test is not applicable in this test report. Report No.: DNT2606113688R07145-10531Date：July 8, 2026Page： 4 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] Contents 1 Test Summary..................................................................................................................................................................3 2 General Information..........................................................................................................................................................5 2.1 Test Location..........................................................................................................................................................5 2.2 General Description of EUT...................................................................................................................................5 2.3 Test Environment...................................................................................................................................................6 2.4 Channel List........................................................................................................................................................... 6 2.5 Power Setting of Test Software............................................................................................................................. 7 2.6 Assistant equipment used for test..........................................................................................................................7 2.7 Description of Support Units.................................................................................................................................. 7 2.8 Test Facility............................................................................................................................................................7 2.9 Equipment List....................................................................................................................................................... 8 2.10 Measurement Uncertainty (95% confidence levels, k=2).................................................................................. 10 3 Test results and Measurement Data..............................................................................................................................11 3.1 Antenna Requirement..........................................................................................................................................11 3.2 20dB Emission Bandwidth................................................................................................................................... 12 3.3 Conducted Output Power.....................................................................................................................................13 3.4 Carrier Frequencies Separation..........................…

Text truncated - open the document above for the full version.

Report No.: DNT2606113688R07145-10531Date：July 8, 2026Page： 49 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Report No.: DNT2606113688R07145-10531Date：July 8, 2026Page： 50 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] Appendix F: Band edge measurements Test Result TestModeAntennaChNameFreq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 Low2402-3.82-57.33≤-23.82PASS High2480-0.07-58.93≤-20.07PASS LowHop_24021.35-55.98≤-18.65PASS HighHop_24800.23-58.56≤-19.77PASS 2DH5Ant1 Low2402-5.49-55.63≤-25.49PASS High2480-2.12-55.13≤-22.12PASS LowHop_2402-2.47-58.63≤-22.47PASS HighHop_2480-0.32-53.54≤-20.32PASS 3DH5Ant1 Low2402-5.78-54.82≤-25.78PASS High2480-4.59-58.34≤-24.59PASS LowHop_24020.29-56.12≤-19.71PASS HighHop_24801.61-58.11≤-18.39PASS Report No.: DNT2606113688R07145-10531Date：July 8, 2026Page： 51 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 Report No.: DNT2606113688R07145-10531Date：July 8, 2026Page： 52 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 Report No.: DNT2606113688R07145-10531Date：July 8, 2026Page： 53 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 Report No.: DNT2606113688R07145-10531Date：July 8, 2026Page： 54 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] 3DH5_Ant1_High_2480 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 Report No.: DNT2606113688R07145-10531Date：July 8, 2026Page： 55 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] Appendix G: Conducted Spurious Emission Test Result TestModeAntennaFreq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 2402 Reference2.222.22---PASS 30~10002.22-61.42≤-17.78PASS 1000~265002.22-25.95≤-17.78PASS 2441 Reference1.661.66---PASS 30~10001.66-60.93≤-18.34PASS 1000~265001.66-24.64≤-18.34PASS 2480 Reference2.162.16---PASS 30~10002.16-60.62≤-17.84PASS 1000~265002.16-25.86≤-17.84PASS 2DH5Ant1 2402 Reference2.052.05---PASS 30~10002.05-57.58≤-17.95PASS 1000~265002.05-31.33≤-17.95PASS 2441 Reference1.601.60---PASS 30~10001.60-58.56≤-18.4PASS 1000~265001.60-30.66≤-18.4PASS 2480 Reference0.910.91---PASS 30~10000.91-56.8≤-19.09PASS 1000~265000.91-30.07≤-19.09PASS 3DH5Ant1 2402 Reference2.072.07---PASS 30~10002.07-57.62≤-17.93PASS 1000~265002.07-32.35≤-17.93PASS 2441 Reference0.810.81---PASS 30~10000.81-61.4≤-19.19PASS 1000~265000.81-29.78≤-19.19PASS 2480 Reference1.991.99---PASS 30~10001.99-59.71≤-18.01PASS 1000~265001.99-31.16≤-18.01PASS Report No.: DNT2606113688R07145-10531Date：July 8, 2026Page： 56 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 Report No.: DNT2606113688R07145-10531Date：July 8, 2026Page： 57 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 DH5_Ant1_2441_1000~26500 Report No.: DNT2606113688R07145-10531Date：July 8, 2026Page： 58 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 DH5_Ant1_2480_1000~26500 Report No.: DNT2606113688R07145-10531Date：July 8, 2026Page： 59 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] 2DH5_Ant1_2402_0~Reference 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 Report No.: DNT2606113688R07145-10531Date：July 8, 2026Page： 60 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] 2DH5_Ant1_2441_0~Reference 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 Report No.: DNT2606113688R07145-10531Date：July 8, 2026Page： 61 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 Report No.: DNT2606113688R07145-10531Date：July 8, 2026Page： 62 / 64 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdo…

Text truncated - open the document above for the full version.

ThistestreportbelongstoShenZhenNQInetworkcommunicationltd.andrelatedclientsto file,pleasekeepingitpropely,withoutourcompanyandrelatedclientsallowed,anybodyhas norightstorevalittopublic. Antenna test Report For Parking lotRoject GM013 Version: CustomerBolukeProject. GM0 13 Band.BTColor. IssuedbyWWLCheckedby ConfirmedbyDate. 2025.6.23 一．T.ItisAndInstrumentationandItem (Testequipmentandprojects) ThistestreportbelongstoShenZhenNQInetworkcommunicationltd.andrelatedclientsto file,pleasekeepingitpropely,withoutourcompanyandrelatedclientsallowed,anybodyhas norightstorevalittopublic. Category (Class) Testitems(Testitem.)Equipment(AndEquipment) 1.Smallsize Parameter 1.Returnloss(RL) Two.StationaryWaveRatio (VSWR) 3.Smithchart(Smithchart) NetworkScore(VNA):AgilentE5071B R&S.ZVB8. ProtectA333. Two.Coupling test( CentigradeOupli ngtesting) 1.Transmissionpower (MAXPower) Two.Receivingsensitivity (MINSens) .1.2G/3GTester.:Agilent8960 Two.Thecouplingbox:TESCOMTC-5060A. Three.3D.Chamber.:ETS3D.Chamber. (5UnknownThreeX3) 3.3Dpassive test(Passive Test) 1.Efficiency (AndFfeciency) Two.Gain(Gain) 3.Radiationdirectionmap (Radiationpattern) 1.3D.Chamber.:TEM243D.Cham. Ber(FiveUnknown5Unknow n5) ETS.3D.Chamber. (5UnknownThreeX3) 2.NetworkScore(VNA):AgilentE5071B R&S.ZVB8. 4.3Dactivetest (ActiveTest) 1.3Dpower(TRP) Two.3DSensitivity(TIS) 3.Throughputrate (T.HroughputRate) 1.3D.Chamber.:TEM243D.Chamber(5 Unknown5Unknown5) ETS.3D.Chamber. (5UnknownThreeX3) 2.2G/3GTester.:Agilent8960 3.4GTester.:MT8820C/CMW500. Four.WIFI/BT/NB-iotTester.:CMW500 5.5GenerationTester.:SP9500-CTS. 6.Head: HEAD-P10(FACE-P10) ThistestreportbelongstoShenZhenNQInetworkcommunicationltd.andrelatedclientsto file,pleasekeepingitpropely,withoutourcompanyandrelatedclientsallowed,anybodyhas norightstorevalittopublic. 二．Chamber.CoordinateAxis (Darkroomcoordinates) ThistestreportbelongstoShenZhenNQInetworkcommunicationltd.andrelatedclientsto file,pleasekeepingitpropely,withoutourcompanyandrelatedclientsallowed,anybodyhas norightstorevalittopublic. 三．Definitions (Definition) VSWR.:VoltageStandingWaveRate RL:Returnloss TRP:totalradiatedpower TIS:totalistropicsensitivity 四．Cell-PhonePhotoandDealingMethod .(Mobilephonepicturesand environmentalprocessing) 五．MatchingCircuitDescription(Matchingdescription) ThistestreportbelongstoShenZhenNQInetworkcommunicationltd.andrelatedclientsto file,pleasekeepingitpropely,withoutourcompanyandrelatedclientsallowed,anybodyhas norightstorevalittopublic. 六．Passivetest(Apassivetest) FreqEffiGain (MHz)(%)(DBi) 240047.531.91 241043.951.6 242044.061.46 243042.360.94 244044.260.57 245046.130.93 246050.471.74 247052.122.19 248050.472.13 .249052.241.72 250053.951.6 七.RL./VSWR.(Returnloss/stationarywaveratio) ThistestreportbelongstoShenZhenNQInetworkcommunicationltd.andrelatedclientsto file,pleasekeepingitpropely,withoutourcompanyandrelatedclientsallowed,anybodyhas norightstorevalittopublic. 八.TRP&TIS NQI.ANTTRP&TISparameterSummaryofW900 Freespace TestBluetoothTRP Result03978 TRP(dBm)7.557.628.52 TIS(dBm)-91.75-91.87-92.92 NQI.ANTTRP&TISparameterSummaryofW900. Second- generation headearmold TestBluetoothTRP Result03978 TRP(dBm)7.286.637.35 TIS(dBm)-92.01-91.41-92.98 ThistestreportbelongstoShenZhenNQInetworkcommunicationltd.andrelatedclientsto file,pleasekeepingitpropely,withoutourcompanyandrelatedclientsallowed,anybodyhas norightstorevalittopublic. Productstructurediagram： ThistestreportbelongstoShenZhenNQInetworkcommunicationltd.andrelatedclientsto file,pleasekeepingitpropely,withoutourcompanyandrelatedclientsallowed,anybodyhas norightstorevalittopublic. Antennasupplier: ShenzhenBolukeElectronicTechnologyCo.,Ltd. ------------------------------------------------------- ---------- Address:4A,BuildingF3,TianyouMakerIndustrialPark,No. 2LixinRoad,FuyongStreet,Bao'anDistrict,Shenzhen

DNT2606113688R07145-P01Page: 1 of 3 PHOTOGRAPHSOFEUT FCCID:2BWHR-NH1P AntennaTerminalTestView DNT2606113688R07145-P01Page: 2 of 3 ConductedEmissionTestView RadiatedEmissionTestView|(Below1G) DNT2606113688R07145-P01Page: 3 of 3 RadiatedEmissionTestView|(Above1G) RadiatedEmissionTestView|(Above1G) --END--
