2BWHX-VBOTTAG001Tag

English translation of the Vbot Tag user manual Vbot Tag 001 User Manual 1 Product Introduction The Tag is a lightweight portable control device specially planned and designed for Vita Dynamics robotic dogs. Based on UWB + Bluetooth communication technology, the product supports use with the robotic dog to enable active functions and voice interaction, providing users with a more natural, intuitive, and safe robotic dog control experience. The product adopts an ergonomic design, can be held with one hand or worn with a lanyard, and is suitable for various living scenarios such as home and outdoor use. 2 Package Contents • Tag x 1 • User Manual x 1 • Lanyard x 1 3 Product Appearance and Component Description 1. Front View English translation of the Vbot Tag user manual 2. Side View 3. Bottom View 4 Functions and Button Description The Tag mainly supports control of the robotic dog’s active movement functions and voice interaction. 1. Active movement function control: After the robotic dog is connected to the Tag, double-clicking the main button of the Tag can enable and disable active movement modes such as path exploration; when the active movement mode is running, single-clicking the main button can pause or resume the active movement function; when the active movement mode is not running, single-clicking the main button can enable or disable the power-assisted leash function. (The specific function experience may change due to version iteration updates. The actual functional version shall prevail.) 2. Voice control: After the robotic dog is connected to the Tag, press and hold the main button and speak to the Tag to have voice interaction with the robotic dog body. * The Tag microphone is located on the back side of the button. Please take care not to cover or block the microphone hole. English translation of the Vbot Tag user manual Button Supported Operation Corresponding Function Power on/off button Short press The Tag indicator light displays the Tag battery level (3 seconds). Power on/off button Long press Turn the Tag on/off. Power on/off button Short press + long press Enter pairing mode. Main button Single click Pause or resume the active movement function. Main button Double click Enable or disable the active movement function. Main button Long press Conduct voice interaction with the robotic dog. 5 First Use Instructions When using the Tag for the first time, you need to complete pairing between the Tag and the robotic dog through the mobile App according to the following operation process. The specific process is as follows: 1. Long press the power button on the side of the Tag for 3 seconds to power it on. After power-on, the Tag indicator light lights up and displays a purple breathing light effect. 2. In the App, enter the [Robot - Settings - Tag] interface. After tapping [Scan], the robotic dog will display the surrounding Tags. 3. On the mobile App, select the corresponding Tag and tap the operation to complete pairing. 6 Indicator Light Status Description Scenario Indicator Light Performance Tag After the Tag is turned on, short press the power button once; the indicator light will display the current battery level. Red light flashes quickly 5 times 0-10% Red light stays on for 3 seconds 10-25% Yellow light stays on for 3 seconds 25-50% Green light stays on for 3 seconds 50-75% Blue light stays on for 3 seconds 75-100% Display battery level during charging Red breathing light effect cycles 0-25% Yellow breathing light effect cycles 25-50% Green breathing light effect cycles 50-75% Blue breathing light effect cycles 75-99% Blue light stays on 100% Low power mode Blue breathing light effect cycles / Pairing mode Purple breathing light effect cycles / Active movement mode Green breathing light effect cycles / OTA upgrade Blue light flashes / Voice transmission mode Yellow breathing light effect cycles / 7 Buzzer Prompt Description Button Buzzer Performance Enter pairing mode Long beep 500 ms Long press to trigger voice conversation Long beep 500 ms Pairing successful Short beep 2 times; short-beep interval 100 ms Multi-click takes effect Continuous short beep 2 times or 3 times; short-beep interval 100 ms Communication disconnection reminder Short beep 5 times; short-beep interval 100 ms 8 Charging Instructions 1. Use the Type-C port for charging. 2. It is recommended to use a 5V 1A power adapter. 3. During charging, the indicator light will display the current battery level status. English translation of the Vbot Tag user manual 9 Product Parameters Item Specification Product name Tag Charging time About 1.5 hours when charging at 5V 1A Product net weight About 38 g Charging port Type-C Communication distance About 15 m in an unobstructed environment Product dimensions 52 43 x 17 mm 10.Precautions 1.Do not use in environments with strong metal shielding or strong electromagnetic interference. 2.When the Tag exceeds the maximum communication distance, it will automatically disconnect from the robotic dog and can automatically reconnect after returning within the effective range. 3.Please avoid drops, water ingress, or use in high-temperature environments. 4.Non-professionals should not disassemble the product by themselves. 11 After-sales and Support If you encounter problems during use, please contact the Vbot Vita Dynamics user service team or obtain support through the official App. You can scan the QR code above with WeChat, or search for [Vbot Vita Dynamics] on WeChat, to learn more brand and product information. FCC Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment ha…

Text truncated - open the document above for the full version.

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BWHX-VBOTTAG001 Vbot Tag 001 We, Applicant Company Name: Vita Dynamics (Beijing) Technology Co., Ltd. Address: Room 101, 3rd Floor, Building 20, Courtyard 1, Baosheng South Road, Haidian District, Beijing 100192, China Phone: +86-15810279470 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc. or any of ist successors and assignees. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-07-07 Signature Date Name / Title: Qiang Han / QM Company: Vita Dynamics (Beijing) Technology Co., Ltd. Address: Room 101, 3rd Floor, Building 20, Courtyard 1, Baosheng South Road, Haidian District, Beijing 100192, China Phone: +86-15810279470 Fax: +86-10-53351338 E-Mail: [email protected]

Due Diligence Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern FCC ID Model name 2BWHX-VBOTTAG001 Vbot Tag 001 Pursuant to KDB 986446 D01 Covered Equipment Guidance the evaluation of the product above shows compliance for the following reasons: Compliance Evaluation process Results Inherent compliance The chipset(s) used is not capable of running the cybersecurity and/or anti-virus software Compliance The memory used does not allow the running the cybersecurity and/or anti-virus software Compliance The storage capacity does not allow the running the cybersecurity and/or anti-virus software Compliance The operating system used is not capable of running the cybersecurity and/or anti-virus software Compliance No inherent compliance Based on software bill of material Based on scan for running software on the device Based on filesystem scan for cybersecurity and/or anti-virus software The equipment for which authorization is sought complies with the rules and fulfils the requirements as detailed in the above mentioned KDB. Evaluation performed by Company Name: Shenzhen LCS Compliance Testing Laboratory Ltd. Contact Name: Martion Lee Address: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Phone: +86-755-82591330 Email: [email protected] Signature: Date: 2026-07-02

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2BWHX-VBOTTAG001 Vbot Tag 001 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-07-07 Signature Date Name / Title: Qiang Han / QM Company: Vita Dynamics (Beijing) Technology Co., Ltd. Address: Room 101, 3rd Floor, Building 20, Courtyard 1, Baosheng South Road, Haidian District, Beijing 100192, China Phone: +86-15810279470 Fax: +86-10-53351338 E-Mail: [email protected]

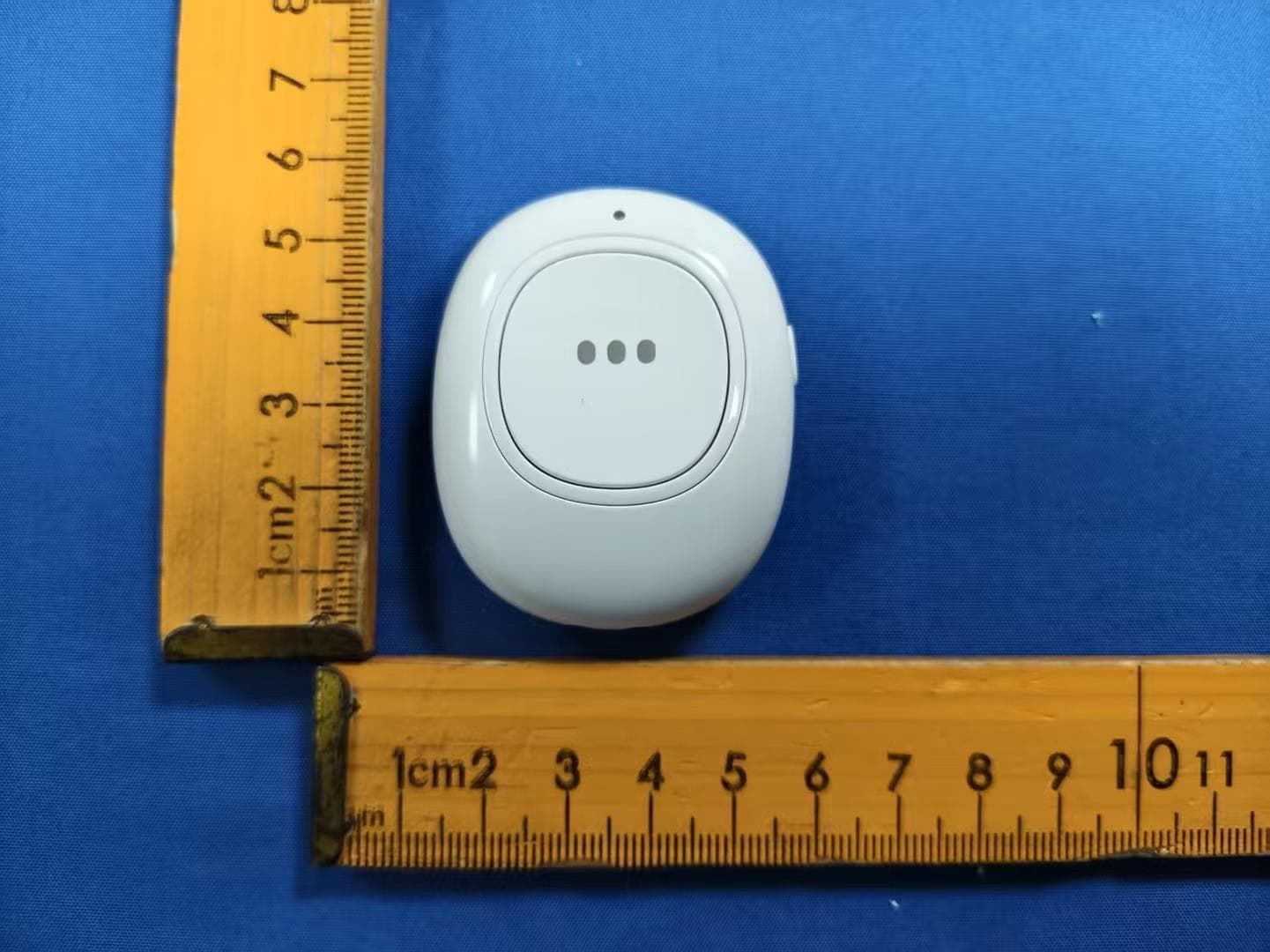

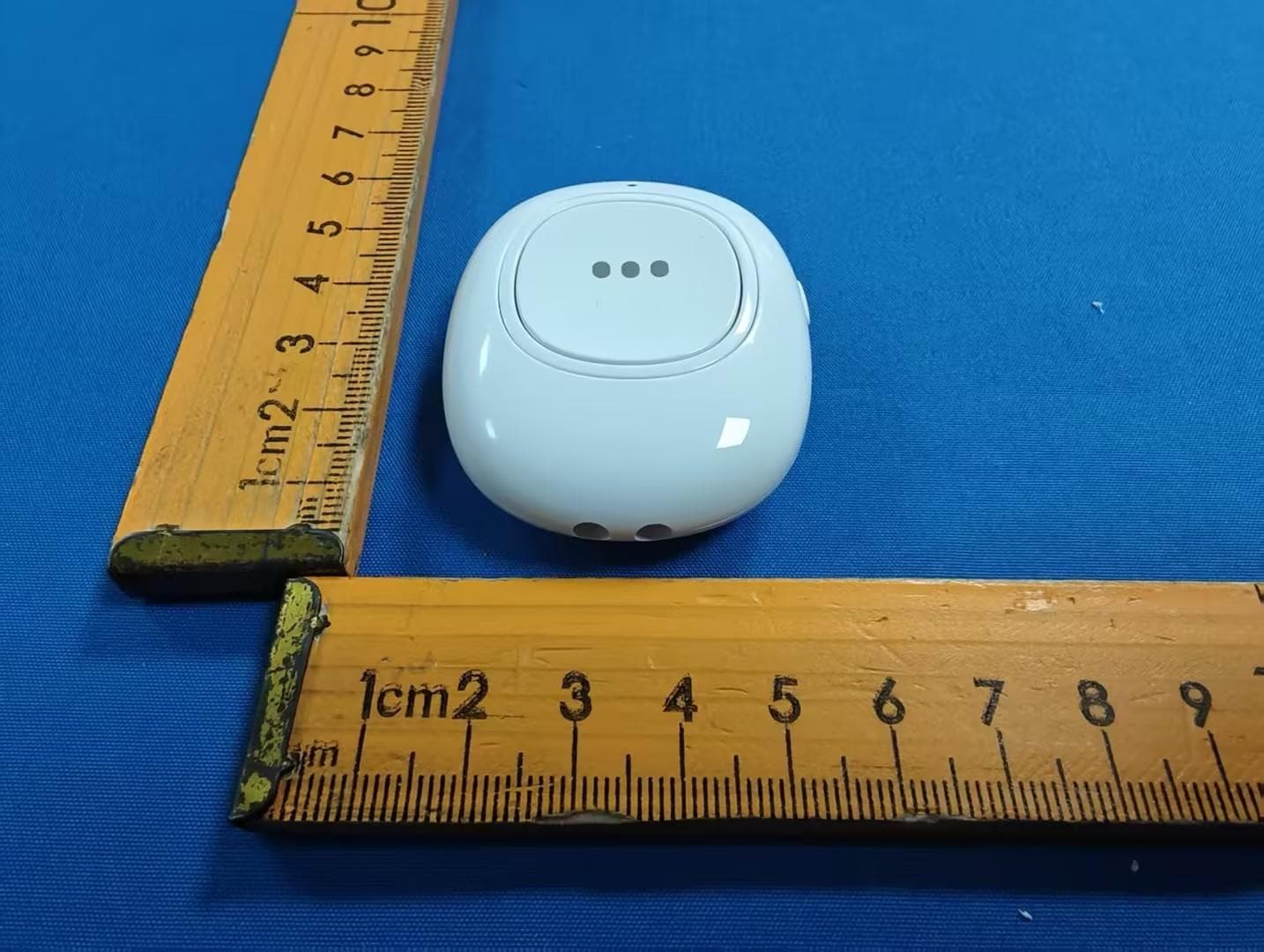

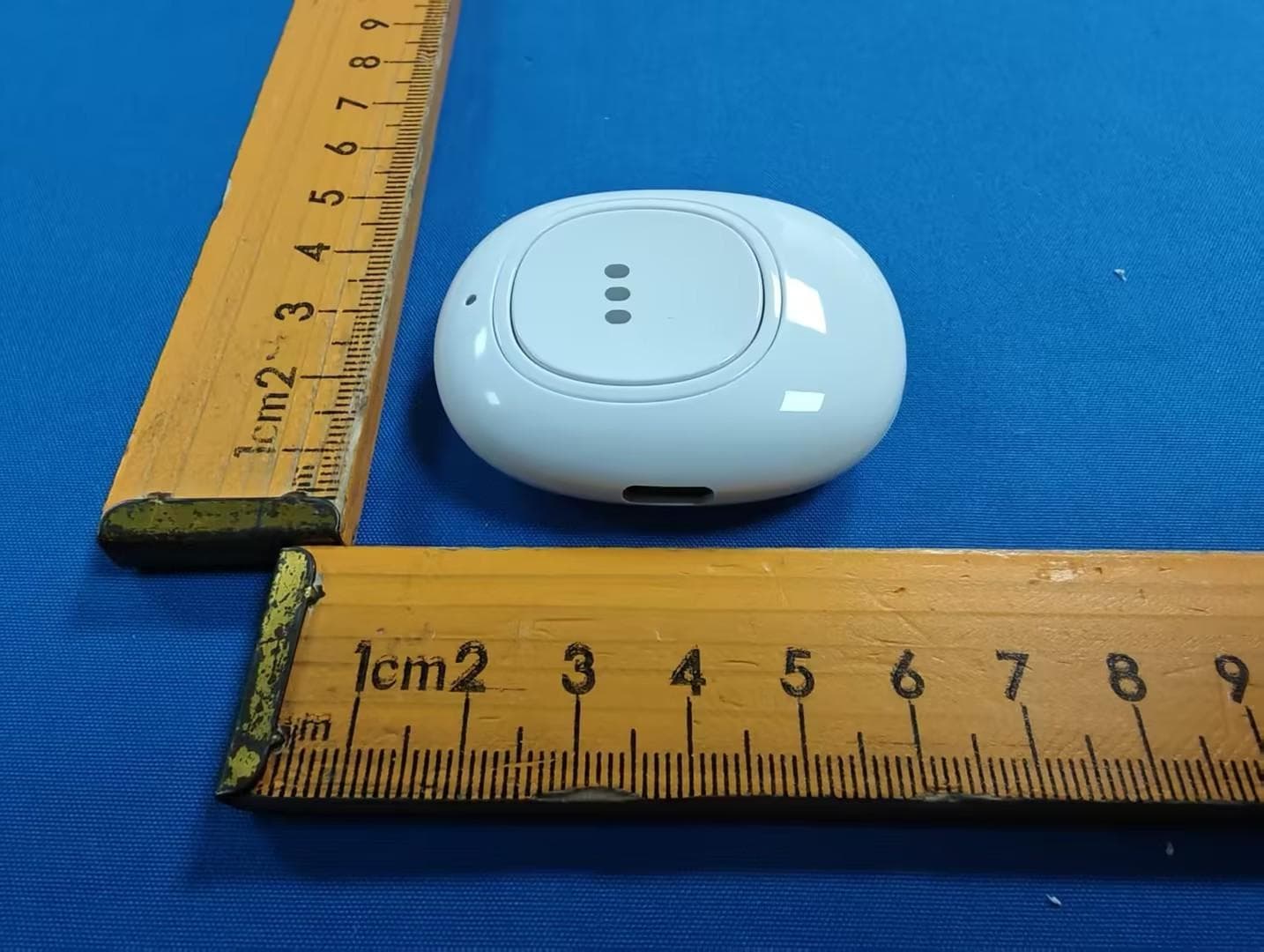

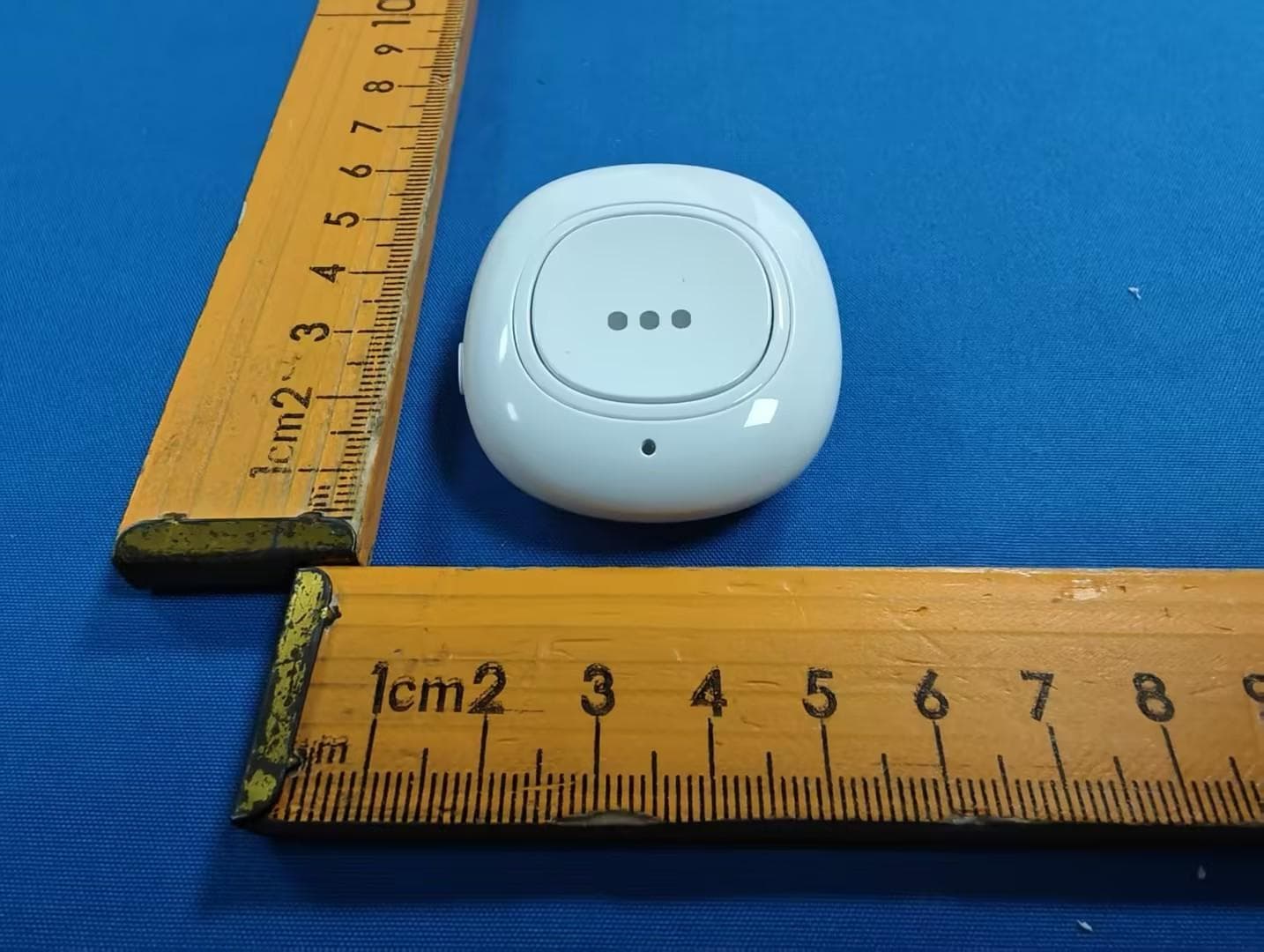

Page1of3FCCID:2BWHX-VBOTTAG001 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of3FCCID:2BWHX-VBOTTAG001 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of3FCCID:2BWHX-VBOTTAG001 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6

Page1of1FCCID:2BWHX-VBOTTAG001 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION (Size:L1.5cmxW0.5cm) LabelLocation Tag Model:VbotTag001 FCCID:2BWHX-VBOTTAG001

Page1of3FCCID:2BWHX-VBOTTAG001 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity InternalPhotosoftheEUT Fig.1 Fig.2 BLEantenna UWBantenna Page2of3FCCID:2BWHX-VBOTTAG001 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of3FCCID:2BWHX-VBOTTAG001 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6

Page 1 of 13 FCC ID: 2BWHX-VBOTTAG001 Report No.: LCSA06056017ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity RF Exposure Evaluation For Vita Dynamics (Beijing) Technology Co., Ltd. Tag Test Model: Vbot Tag 001 Prepared for : Vita Dynamics (Beijing) Technology Co., Ltd. Address : Room 101, 3rd Floor, Building 20, Courtyard 1, Baosheng South Road, Haidian District, Beijing Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : June 08, 2026 Number of tested samples : 2 Sample No. : A260604045-1, A260604045-2 Serial number : Prototype Date of Test : June 08, 2026 ~ July 01, 2026 Date of Report : July 02, 2026 Page 2 of 13 FCC ID: 2BWHX-VBOTTAG001 Report No.: LCSA06056017ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity RF Exposure Evaluation Report Reference No. ...................... : LCSA06056017ED Date of Issue ........................................ : July 02, 2026 Testing Laboratory Name .................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ................................................ : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location Procedure ................. : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .............................. : Vita Dynamics (Beijing) Technology Co., Ltd. Address ................................................ : Room 101, 3rd Floor, Building 20, Courtyard 1, Baosheng South Road, Haidian District, Beijing Test Specification Standard .............................................. : KDB447498 D04 Interim General RF Exposure Guidance D04 Test Report Form No. ........................ : TRF-4-E-215 A0 TRF Originator ..................................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .......................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ............................... : Tag Trade Mark .......................................... : Vbot Test Model ........................................... : Vbot Tag 001 Ratings ................................................. : Please Refer to Page 6 Result ............................................. : Pass Compiled by: Supervised by: Approved by: Li Huan/ Administrator Kevin Huang/ RF Manager Gavin Liang/ Manager Page 3 of 13 FCC ID: 2BWHX-VBOTTAG001 Report No.: LCSA01235028ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity RF Exposure Evaluation Test Model.......................... : Vbot Tag 001 EUT.................................... : Tag Applicant........................... : Vita Dynamics (Beijing) Technology Co., Ltd. Address.............................. : Room 101, 3rd Floor, Building 20, Courtyard 1, Baosheng South Road, Haidian District, Beijing Telephone.......................... : / Fax..................................... : / : Manufacturer..................... : Vita Dynamics (Beijing) Technology Co., Ltd. Address.............................. : Room 101, 3rd Floor, Building 20, Courtyard 1, Baosheng South Road, Haidian District, Beijing Telephone.......................... : / Fax..................................... : / : Factory.............................. : UbiTraq Technology Co., Ltd. Address.............................. : No. 35 Wanchun Road, Economic and Technological Development Zone, Wuhu, Anhui Province, China Telephone.......................... : / Fax..................................... : / Test Result Pass The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSA06056017ED July 02, 2026 Date of issue Page 4 of 13 FCC ID: 2BWHX-VBOTTAG001 Report No.: LCSA01235028ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Revision History Report Version Issue Date Revision Content Revised By 000 July 02, 2026 Initial Issue -- Page 5 of 13 FCC ID: 2BWHX-VBOTTAG001 Report No.: LCSA01235028ED Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: webma…

Text truncated - open the document above for the full version.

SPECIFICATION APPLICATIONFORAPPROVAL Manufacturer:UbiTraqTechnology,Co.,Ltd. No.35WanchunRoad,EconomicandTechnologicalDevelopmentZone, Wuhu,AnhuiProvince,China CUSTP/N: PARTNAME:BluetoothAntenna DEVENO: REVISION REV.NO.DATEDESCRIPTION Customer Approvedby DrawnbyCheckedbyApprovedby 1、Electricalparameters Frequency2.4~2.48GHz Impedance50 ± 2Ohm S.W.R. ＜ 2.0 MaxInputPower>=0.0005W 2、Mechanicalparameters ConnectorType CableType Packaging 3、Operating/StorageTemperature OperatingTemperature -30°C~65°C StorageTemperature -30°C~65°C 4 ： Productdrawings 5 ： Testreport 5.1 ： VSWR 5.2 ： Gain&Efficiency Freq(MHZ)Effi(%)Gain(dBi) 239026.3-3.29 244042.6-1.17 249032.5-2.35 5.3 ： 2Ddirectionaldiagram

Page1of34FCCID:2BWHX-VBOTTAG001ReportNo.:LCSA06056017EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity AppendixA RFTestDataforBTLE(ConductedMeasurement) ProductName:Tag TestModel:VbotTag001 EnvironmentalConditions Temperature: 23.7C RelativeHumidity: 52.3% ATMPressure: 100.0kPa TestEngineer: JerryChu Supervisedby: NickPeng Page2of34FCCID:2BWHX-VBOTTAG001ReportNo.:LCSA06056017EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.1-6dBBandwidth ConditionModeFrequency(MHz)Antenna-6dBBandwidth(MHz)Limit-6dBBandwidth(MHz)Verdict NVNTBLE1M2402Ant10.66010.5Pass NVNTBLE1M2440Ant10.65910.5Pass NVNTBLE1M2480Ant10.65880.5Pass Page3of34FCCID:2BWHX-VBOTTAG001ReportNo.:LCSA06056017EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity -6dBBandwidthNVNTBLE1M2402MHzAnt1 Page4of34FCCID:2BWHX-VBOTTAG001ReportNo.:LCSA06056017EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity -6dBBandwidthNVNTBLE1M2440MHzAnt1 Page5of34FCCID:2BWHX-VBOTTAG001ReportNo.:LCSA06056017EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity -6dBBandwidthNVNTBLE1M2480MHzAnt1 Page6of34FCCID:2BWHX-VBOTTAG001ReportNo.:LCSA06056017EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.2MaximumPeakConductedOutputPower ConditionModeFrequency (MHz) AntennaConductedPower (dBm) LimitConducted(dBm)Verdict NVNTBLE1M2402Ant13.830Pass NVNTBLE1M2440Ant14.2130Pass NVNTBLE1M2480Ant13.1430Pass Page7of34FCCID:2BWHX-VBOTTAG001ReportNo.:LCSA06056017EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PeakPowerNVNTBLE1M2402MHzAnt1 Page8of34FCCID:2BWHX-VBOTTAG001ReportNo.:LCSA06056017EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PeakPowerNVNTBLE1M2440MHzAnt1 Page9of34FCCID:2BWHX-VBOTTAG001ReportNo.:LCSA06056017EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PeakPowerNVNTBLE1M2480MHzAnt1 Page10of34FCCID:2BWHX-VBOTTAG001ReportNo.:LCSA06056017EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.3MaximumPowerSpectralDensityLevel ConditionModeFrequency(MHz)AntennaConductedPSD (dBm/3kHz) Limit(dBm/3kHz)Verdict NVNTBLE1M2402Ant1-12.728Pass NVNTBLE1M2440Ant1-12.338Pass NVNTBLE1M2480Ant1-13.348Pass Page11of34FCCID:2BWHX-VBOTTAG001ReportNo.:LCSA06056017EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PSDNVNTBLE1M2402MHzAnt1 Page12of34FCCID:2BWHX-VBOTTAG001ReportNo.:LCSA06056017EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PSDNVNTBLE1M2440MHzAnt1 Page13of34FCCID:2BWHX-VBOTTAG001ReportNo.:LCSA06056017EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PSDNVNTBLE1M2480MHzAnt1 Page14of34FCCID:2BWHX-VBOTTAG001ReportNo.:LCSA06056017EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.4BandEdge ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant1-59.39-20Pass NVNTBLE1M2480Ant1-59.73-20Pass Page15of34FCCID:2BWHX-VBOTTAG001ReportNo.:LCSA06056017EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity BandEdgeNVNTBLE1M2402MHzAnt1Ref Page16of34FCCID:2BWHX-VBOTTAG001ReportNo.:LCSA06056017EA ShenzhenLCSComp…

Text truncated - open the document above for the full version.

Page 1 of 34 FCCID:2BWHX-VBOTTAG001ReportNo.:LCSA06056017EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT For VitaDynamics(Beijing)TechnologyCo.,Ltd. Tag TestModel:VbotTag001 Preparedfor:VitaDynamics(Beijing)TechnologyCo.,Ltd. Address:Room101,3rdFloor,Building20,Courtyard1,BaoshengSouth Road,HaidianDistrict,Beijing Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:June08,2026 Numberoftestedsamples:2 SampleNo.:A260604045-1,A260604045-2 Serialnumber:Prototype DateofTest:June08,2026~July01,2026 DateofReport:July02,2026 Page 2 of 34 FCCID:2BWHX-VBOTTAG001ReportNo.:LCSA06056017EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCSA06056017EA DateofIssue.......................................:July02,2026 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China TestingLocationProcedure.............:FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:VitaDynamics(Beijing)TechnologyCo.,Ltd. Address................................................:Room101,3rdFloor,Building20,Courtyard1,BaoshengSouth Road,HaidianDistrict,Beijing TestSpecification Standard..............................................: FCCCFR47PART15C(15.247) TestReportFormNo......................:TRF-4-E-145A0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceof thematerial.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. EUTDescription...............................:Tag TradeMark..........................................:Vbot TestModel...........................................:VbotTag001 Ratings.................................................:PleaseRefertoPage6 Result..................................................:Pass Compiledby:Supervisedby:Approvedby: LiHuan/AdministratorKevinHuang/RFManagerGavinLiang/Manager Page 3 of 34 FCCID:2BWHX-VBOTTAG001ReportNo.:LCSA06056017EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCC--TESTREPORT TestModel..........................:VbotTag001 EUT....................................:Tag Applicant...........................:VitaDynamics(Beijing)TechnologyCo.,Ltd. Address..............................:Room101,3rdFloor,Building20,Courtyard1,Baosheng SouthRoad,HaidianDistrict,Beijing Telephone..........................:/ Fax.....................................:/ : Manufacturer.....................:VitaDynamics(Beijing)TechnologyCo.,Ltd. Address..............................:Room101,3rdFloor,Building20,Courtyard1,Baosheng SouthRoad,HaidianDistrict,Beijing Telephone..........................:/ Fax.....................................:/ : Factory..............................:UbiTraqTechnologyCo.,Ltd. Address..............................:No.35WanchunRoad,EconomicandTechnological DevelopmentZone,Wuhu,AnhuiProvince,China Telephone..........................:/ Fax.....................................:/ TestResultPass Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCSA06056017EA July02,2026 Dateofissue Page 4 of 34 FCCID:2BWHX-VBOTTAG001ReportNo.:LCSA06056017EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,S…

Text truncated - open the document above for the full version.
