2BWJV-LX10SCar navigation Player(CarPlay Linux Monitor)

Linux Lexus Product ManualLinu 1. Safety instructions.......................................01 2. Main interface functions.............................02 3. Eyebrow status bar function.......................03 4. Original car function....................................04 5. Music function.............................................05 6. Video function.............................................06 8. Carplay function.......................................11-13 9. Android auto function.................................14 10. Airplay function...........................................15 11. Miracast function.......................................16 12. Setup function........................................17-18 13. Product specifications..................................19 Catalogue 1.Safety instructions -01 - . Disclaimer : . Please do not install or repair your navigation system by yourself. Installation or repair of this guide by unauthorized and trained personnelThe aviation system may cause danger. . Watching video programs and related operations while driving are prohibited by the laws of some countries. For you and othersPersonal safety, please do not watch videos, picture programs and do related operations when driving a car. . Do not expose the system to liquid. The liquid may cause damage to the system, smoke from the machine and short circuit.Road and so on. . The navigation function (and optional functions) of this product is only an auxiliary when you drive the vehicle, and is notIt means that you can be distracted, careless or lose judgment when driving; the resulting safety accident and the publicIt has nothing to do with the company. . The pictures used in this manual are for reference only.Misunderstandings have nothing to do with the company. . If this product does not work properly, please consult the car dealer. 2.Main interface functions . Function description of the main interface: . Original car, mobile phone interconnection, music, video, recorder, settings -02 - 3.Eyebrow status bar function . Function description of the status bar in the main interface .【】Back to the main interface display icon .【】Signal display icon .【】Plug-in USB1 reading display icon .【】Plug-in USB2 display icon .【】Turn off the screen display icon .【】Back to the previous display icon -03 - 4.Original car interface function . Function operation instructions of the original car interface: .Touch the [original car] icon on the main interface to enter the original car interface. .The original car display can be displayed in [full screen] and [half screen] display. -04 - 5.Music features . Operating instructions for music function: .Touch the [Music] icon on the main interface to enter the music interface, and touch the return button [ ] through the main interface.You can exit the music interface. .This function can play 2 USB-(USB1/USB2). . The music formats supported by this product include: MP3, FLAC, WAV, ,OGG, ACC, etc. .【】Switch to the previous song .【】Toggle song order playback .【】Switch to the next song .【】Toggle single loops .【】Toggle Pause/Play .【】Switch songs for random playback .【】Switch the song list interface (USB1/USB2 file songs can be selected) -05 - 6.Video function . How-to instructions for video functions: .Touch the [Video] icon on the main interface to enter the video interface and touch the return button through the main interface [ ]You can exit the video interface. . This function can play 2 USB videos -(USB1/USB2). The video formats supported by this product include: MP4, AVI HD, etc. .【】Switch to the previous video to play .【】Switch to the next video playback .【】Toggle video pause/playback .【】Switch video picture proportion adjustment/adjustable 1, 0.8, 0.5 pictures .【】Toggle the video playlist interface -06 - 7. Mobile phone interconnection function . Instructions for the operation of mobile phone interconnection function: .Touch the [Settings] icon on the main interface to enter the settings interface. Select the [Mobile Internet] option to enter [MobileInterconnection Type] Select the corresponding mobile phone connection option. ( As shown in the left picture) .This product supports: Carpaly, AndroidAuto, HiCar, Airplay, Miracast mobile phone interconnectionYes. ( As shown in the picture on the right) -10 - 8.Carplay function connection . Wireless Carplay connection operation instructions: .This product can support wireless Carpaly and wired Carplay. .Touch the [mobile phone interconnection] icon on the main interface to enter the interconnection interface. Please make sure that the car is in the Carplay.The surface option can be connected, otherwise Carplar cannot be connected. As shown in the picture on the left) .If you are not in the Carplay option, you can click the [Settings] interface and click the [Mobile Internet] option to select. -11 - Select the Carplayoption 8.1.Carplay function connection -12 - . How-to instructions for wireless Carplay connection: .Wireless Carplay connection(iPhone) .You only need to connect CarPlay.The machine displays the Carplay application screen. (Figure 3) Carplayhas connected the screen . Instructions for Android auto connection: . This product supports wireless Android auto and wired Android auto connection functions. .Touch the [mobile phone interconnection] icon in the main interface to enter the interconnection interface. Please make sure that the car is in the Android auto world.Only the face option can be connected, otherwise Android auto cannot be connected. (As shown in the figure on the left) 9. Android auto connection function -14- . Airplay connection operation instructions: .Touch the [mobile phone interconnection] icon on the main interface to enter the interconnection interface. Please make sure that the car is in the Airplay world.The surface option can only be connected, otherwise Airplay cannot be connected. (As shown in Figure 1) . Please turn on the wireless hotspot with your iPhone and click the car WIFI icon…

Text truncated - open the document above for the full version.

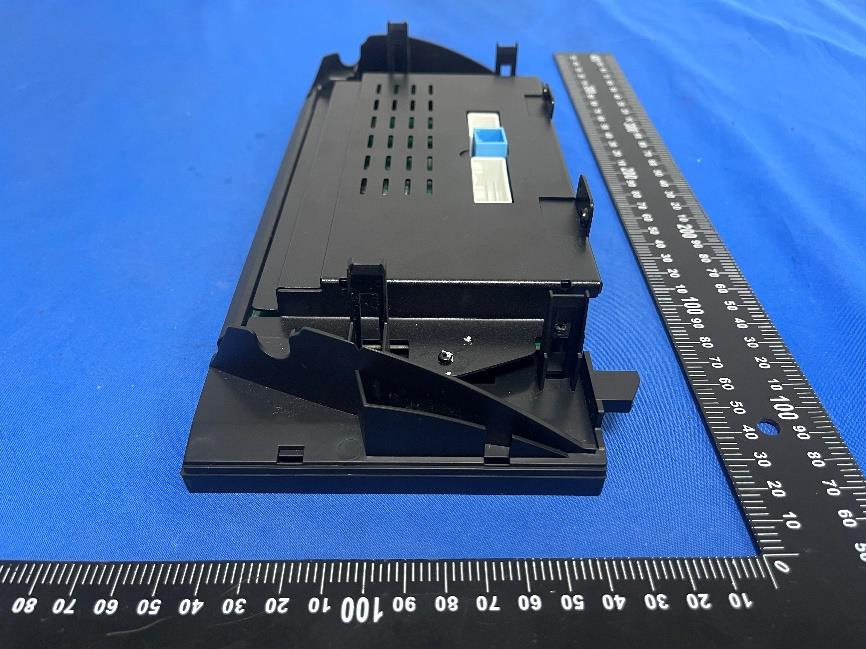

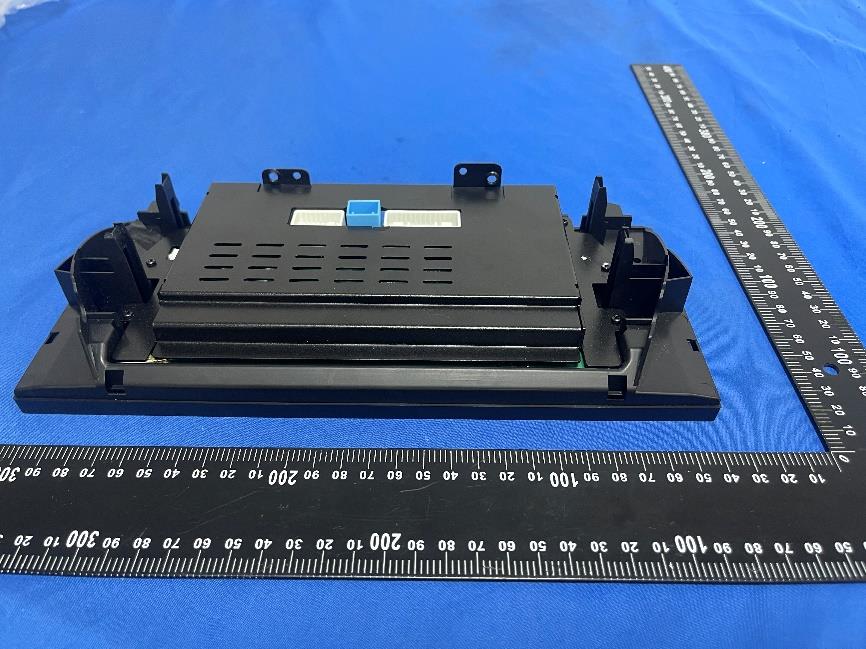

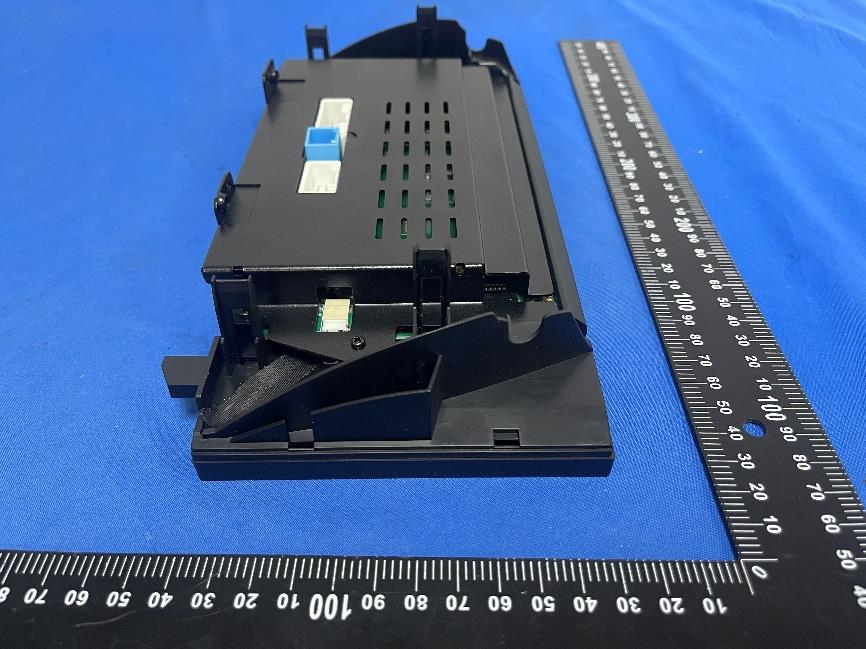

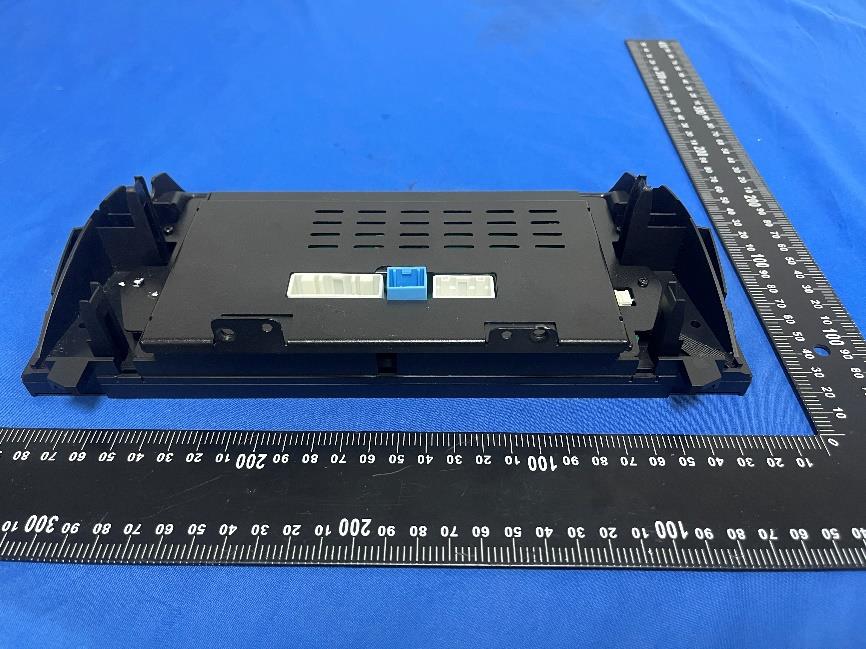

FCC ID: 2BWJV-LX10S External Photos of the EUT FCC ID: 2BWJV-LX10S FCC ID: 2BWJV-LX10S

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID: 2BWJV-LX10S

FCC ID: 2BWJV-LX10S Internal Photos of the EUT Antenna FCC ID: 2BWJV-LX10S FCC ID: 2BWJV-LX10S

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : CTA26040100102 2BWJV-LX10S Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jun. 01, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Lexion Electronics Co., Ltd. Address............................................ : B-1107, 6, Jiphyeonjungang 7-ro, Sejong-si, South Korea Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Car navigation Player(CarPlay Linux Monitor) Trade Mark ....................................... : Lexion Manufacturer .................................... : Shenzhen Xinhangdao Car Electronics Technology Co., Ltd Model/Type reference ...................... : LX10S Listed Models ................................... : N/A Rating ............................................... : Input: 12V Result ............................................... : PASS Report No.: CTA26040100102 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Car navigation Player(CarPlay Linux Monitor) Model /Type : LX10S Listed Models : N/A Applicant : Lexion Electronics Co., Ltd. Address : B-1107, 6, Jiphyeonjungang 7-ro, Sejong-si, South Korea Manufacturer : Shenzhen Xinhangdao Car Electronics Technology Co., Ltd Address : 2/F, Building No.3 , The second Industrial Park, Xinwei,Dalang Street, Longhua New District，Shenzhen City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26040100102 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 MPE Calculation Method ......................................................................................... 7 4.3 Conducted Power Results ....................................................................................... 8 4.4 Manufacturing tolerance .......................................................................................... 8 4.5 Standalone MPE Result ........................................................................................... 8 4.6 Simultaneous Transmission for MPE Result ........................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA26040100102 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 232…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PCB antenna Model LX10S Frequency range 2412 - 2462MHz Manufacturer Lexion Electronics Co., Ltd. Address B-1107, 6, Jiphyeonjungang 7-ro, Sejong-si, South Korea ANT Peak Gain 1.83 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument Length: 25.03mm Width: 6.90mm VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26040100101 2BWJV-LX10S Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jun. 01, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Lexion Electronics Co., Ltd. Address ............................................ : B-1107, 6, Jiphyeonjungang 7-ro, Sejong-si, South Korea Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Car navigation Player(CarPlay Linux Monitor) Trade Mark ....................................... : Lexion Manufacturer .................................... : Shenzhen Xinhangdao Car Electronics Technology Co., Ltd Model/Type reference ...................... : LX10S Listed Models ................................... : N/A Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : Input: 12V Result ............................................... : PASS Report No.: CTA26040100101 Page 2 of 33 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Car navigation Player(CarPlay Linux Monitor) Model /Type : LX10S Listed Models : N/A Applicant : Lexion Electronics Co., Ltd. Address : B-1107, 6, Jiphyeonjungang 7-ro, Sejong-si, South Korea Manufacturer : Shenzhen Xinhangdao Car Electronics Technology Co., Ltd Address : 2/F, Building No.3 , The second Industrial Park, Xinwei,Dalang Street, Longhua New District，Shenzhen City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26040100101 Page 3 of 33 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions ................................................................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BWJV-LX10S Company : Lexion Electronics Co., Ltd. EUT : Car navigation Player(CarPlay Linux Monitor) Model Number : LX10S Report No. : CTA26040100101 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.240 2406.920 2417.160 0.5 PASS 2437 10.200 2431.920 2442.120 0.5 PASS 2462 10.200 2456.920 2467.120 0.5 PASS 11G Ant1 2412 15.400 2404.320 2419.720 0.5 PASS 2437 15.880 2429.120 2445.000 0.5 PASS 2462 15.680 2454.080 2469.760 0.5 PASS 11N20SISO Ant1 2412 16.960 2403.440 2420.400 0.5 PASS 2437 16.040 2429.120 2445.160 0.5 PASS 2462 16.720 2453.480 2470.200 0.5 PASS 11N40SISO Ant1 2422 35.840 2404.240 2440.080 0.5 PASS 2437 35.200 2419.640 2454.840 0.5 PASS 2452 35.440 2434.480 2469.920 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.413 2405.3167 2418.7297 --- --- 2437 13.414 2430.3070 2443.7210 --- --- 2462 13.432 2455.2938 2468.7258 --- --- 11G Ant1 2412 16.919 2403.5872 2420.5062 --- --- 2437 16.842 2428.6274 2445.4694 --- --- 2462 16.860 2453.5897 2470.4497 --- --- 11N20SISO Ant1 2412 17.903 2403.0578 2420.9608 --- --- 2437 17.843 2428.1018 2445.9448 --- --- 2462 17.917 2453.0431 2470.9601 --- --- 11N40SISO Ant1 2422 36.063 2404.0663 2440.1293 --- --- 2437 36.068 2419.0864 2455.1544 --- --- 2452 36.007 2434.0848 2470.0918 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Frequency[M Hz] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 15.45 ≤30.00 PASS 2437 15.70 ≤30.00 PASS 2462 15.81 ≤30.00 PASS 11G Ant1 2412 13.79 ≤30.00 PASS 2437 14.03 ≤30.00 PASS 2462 14.14 ≤30.00 PASS 11N20SISO Ant1 2412 13.76 ≤30.00 PASS 2437 13.82 ≤30.00 PASS 2462 13.98 ≤30.00 PASS 11N40SISO Ant1 2422 14.02 ≤30.00 PASS 2437 14.40 ≤30.00 PASS 2452 14.26 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -10.99 ≤8.00 PASS 2437 -9.45 ≤8.00 PASS 2462 -10.12 ≤8.00 PASS 11G Ant1 2412 -17.62 ≤8.00 PASS 2437 -17.32 ≤8.00 PASS 2462 -17.10 ≤8.00 PASS 11N20SISO Ant1 2412 -16.49 ≤8.00 PASS 2437 -17.62 ≤8.00 PASS 2462 -17.87 ≤8.00 PASS 11N40SISO Ant1 2422 -20.41 ≤8.00 PASS 2437 -20.65 ≤8.00 PASS 2452 -20.45 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 3.21 -46.71 ≤-16.79 PASS High 2462 3.73 -51.61 ≤-16.27 PASS 11G Ant1 Low 2412 -3.00 -35.35 ≤-23 PASS High 2462 -2.32 -57.96 ≤-22.32 PASS 11N20SIS O Ant1 Low 2412 -2.74 -33.6 ≤-22.74 PASS High 2462 -2.37 -57.12 ≤-22.37 PASS 11N40SIS O Ant1 Low 2422 -5.96 -33.57 ≤-25.96 PASS High 2452 -5.66 -57.42 ≤-25.66 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 23 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 24 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 25 26 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 2.46 2.46 --- PASS 30~1000 2.46 -67.69 ≤-17.54 PASS 1000~26500 2.46 -53.14 ≤-17.54 PASS 2437 Reference 3.30 3.30 --- PASS 30~1000 3.30 -68.62 ≤-16.7 PASS 1000~26500 3.30 -53.6 ≤-16.7 PASS 2462 Reference 3.60 3.60 --- PASS 30~1000 3.60 -67.26 ≤-16.4 PASS 1000~26500 3.60 -52.46 ≤-16.4 PASS 11G Ant1 2412 Reference -3.49 -3.49 --- PASS 30~1000 -3.49 -68.33 ≤-23.49 PASS 1000~26500 -3.49 -55.37 ≤-23.49 PASS 2437 Reference -2.60 -2.60 --- PASS 30~1000 -2.60 -67.97 ≤-22.6 PASS 1000~26500 -2.60 -55.63 ≤-22.6 PASS 2462 Reference -2.39 -2.39 --- PASS 30~1000 -2.39 -68.09 ≤-22.39 PASS 1000~26500 -2.39 -55.71 ≤-22.39 PASS 11N20SISO Ant1 2412 Reference -2.62 -2.62 --- PASS 30~1000 -2.62 -67.75 ≤-22.62 PASS 1000~26500 -2.62 -55.61 ≤-22.62 PASS 2437 Reference -3.26 -3.26 --- PASS 30~1000 -3.26 -67.63 ≤-23.26 PASS 1000~26500 -3.26 -55.77 ≤-23.26 PASS 2462 Reference -2.75 -2.75 --- PASS 30~1000 -2.75 -68.56 ≤-22.75 PASS 1000~26500 -2.75 -55.63 ≤-22.75 PASS 11N40SISO Ant1 2422 Reference -6.17 -6.17 --- PASS 30~1000 -6.17 -67.39 ≤-26.17 PASS 1000~26500 -6.17 -55.49 ≤-26.17 PASS 2437 Reference -6.41 -6.41 --- PASS 30~1000 -6.41 -67.46 ≤-26.41 PASS 1000~26500 -6.41 -55.33 ≤-26.41 PASS 2452 Reference -5.78 -5.78 --- PASS 30~1000 -5.78 -67.99 ≤-25.78 PASS 1000~26500 -5.78 -55.87 ≤-25.78 PASS 27 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 28 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 29 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 30 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 31 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 32 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 33 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 34 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000

35 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 36 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 37 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 38 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 39 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 40 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 41 11N40SISO_Ant1_2452_1000~26500 42 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.35 8.40 99.40 0.03 0.12 2437 8.35 8.39 99.52 0.02 0.12 2462 8.35 8.40 99.40 0.03 0.12 11G Ant1 2412 0.15 0.20 75.00 1.25 6.67 2437 0.15 0.20 75.00 1.25 6.67 2462 0.15 0.20 75.00 1.25 6.67 11N20SISO Ant1 2412 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.23 78.26 1.06 5.56 2462 0.18 0.23 78.26 1.06 5.56 11N40SISO Ant1 2422 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.23 78.26 1.06 5.56 2452 0.18 0.23 78.26 1.06 5.56 43 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 44 11G_Ant1_2412 11G_Ant1_2437 45 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 46 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 47 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 48 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequen cy[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -59.93 2.00 0.03 37.30 ≤54 PASS AV 2386.060 -52.36 2.00 0.03 44.87 ≤54 PASS AV 2390.000 -55.16 2.00 0.03 42.07 ≤54 PASS Peak 2310.000 -52.29 2.00 0.00 44.91 ≤74 PASS Peak 2385.800 -44.67 2.00 0.00 52.53 ≤74 PASS Peak 2390.000 -48 2.00 0.00 49.20 ≤74 PASS High 2462 AV 2483.500 -53.52 2.00 0.03 43.71 ≤54 PASS AV 2487.850 -52.52 2.00 0.03 44.71 ≤54 PASS AV 2500.000 -57.96 2.00 0.03 39.27 ≤54 PASS Peak 2483.500 -45.35 2.00 0.00 51.85 ≤74 PASS Peak 2487.630 -44.46 2.00 0.00 52.74 ≤74 PASS Peak 2500.000 -51.03 2.00 0.00 46.17 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -60.29 2.00 1.25 38.16 ≤54 PASS AV 2389.180 -58.32 2.00 1.25 40.13 ≤54 PASS AV 2390.000 -58.8 2.00 1.25 39.65 ≤54 PASS Peak 2310.000 -52.59 2.00 0.00 44.61 ≤74 PASS Peak 2381.900 -49.06 2.00 0.00 48.14 ≤74 PASS Peak 2390.000 -52.4 2.00 0.00 44.80 ≤74 PASS High 2462 AV 2483.500 -59.24 2.00 1.25 39.21 ≤54 PASS AV 2483.780 -58.22 2.00 1.25 40.23 ≤54 PASS AV 2500.000 -59.55 2.00 1.25 38.90 ≤54 PASS Peak 2483.500 -52.04 2.00 0.00 45.16 ≤74 PASS Peak 2494.230 -48.88 2.00 0.00 48.32 ≤74 PASS Peak 2500.000 -50.51 2.00 0.00 46.69 ≤74 PASS 11N20SI SO Ant1 Low 2412 AV 2310.000 -60.64 2.00 1.06 37.62 ≤54 PASS AV 2389.310 -58.47 2.00 1.06 39.79 ≤54 PASS AV 2390.000 -59.58 2.00 1.06 38.68 ≤54 PASS Peak 2310.000 -52.35 2.00 0.00 44.85 ≤74 PASS Peak 2386.580 -47.77 2.00 0.00 49.43 ≤74 PASS Peak 2390.000 -51.73 2.00 0.00 45.47 ≤74 PASS High 2462 AV 2483.500 -58.39 2.00 1.06 39.87 ≤54 PASS AV 2484.000 -58.32 2.00 1.06 39.94 ≤54 PASS AV 2500.000 -59.1 2.00 1.06 39.16 ≤54 PASS Peak 2483.500 -49.63 2.00 0.00 47.57 ≤74 PASS Peak 2492.250 -48.61 2.00 0.00 48.59 ≤74 PASS Peak 2500.000 -50.25 2.00 0.00 46.95 ≤74 PASS 49 11N40SI SO Ant1 Low 2422 AV 2310.000 -59.39 2.00 1.06 38.87 ≤54 PASS AV 2387.450 -57.63 2.00 1.06 40.63 ≤54 PASS AV 2390.000 -58.42 2.00 1.06 39.84 ≤54 PASS Peak 2310.000 -52.64 2.00 0.00 44.56 ≤74 PASS Peak 2383.250 -47.76 2.00 0.00 49.44 ≤74 PASS Peak 2390.000 -49.82 2.00 0.00 47.38 ≤74 PASS High 2452 AV 2483.500 -57.81 2.00 1.06 40.45 ≤54 PASS AV 2483.875 -57.74 2.00 1.06 40.52 ≤54 PASS AV 2500.000 -59.25 2.00 1.06 39.01 ≤54 PASS Peak 2483.500 -49.91 2.00 0.00 47.29 ≤74 PASS Peak 2489.125 -48.25 2.00 0.00 48.95 ≤74 PASS Peak 2500.000 -50.46 2.00 0.00 46.74 ≤74 PASS Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 50 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 51 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 52 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 53 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 54 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak 11N40SISO_Ant1_Low_2422_AV 55 11N40SISO_Ant1_Low_2422_Peak 11N40SISO_Ant1_High_2452_AV 56 11N40SISO_Ant1_High_2452_Peak

FCC ID: 2BWJV-LX10S Test Setup Photos of the EUT
