2BWKR-C99carplay wireless adapter

I. Descripción del producto Este adaptador inalámbrico puede actualizar el sistema CarPlay o Android Auto con cable original del vehículo a una conexión inalámbrica. Simplemente conecte el adaptador al puerto USB del vehículo y empareje su teléfono a través de Bluetooth para usar las funciones inalámbricas de CarPlay o Android Auto. II. Instrucciones de uso 1.Inserción del adaptador Una vez que el sistema del vehículo haya terminado de cargarse, conecte el adaptador inalámbrico CarPlay & Android Auto al puerto USB-A o Type-C del automóvil. (Asegúrese de conectar el adaptador al puerto utilizado para CarPlay o Android Auto por cable). 2.Conectar el teléfono Método de conexión para iPhone (1) Active el Bluetooth del teléfono. (2) Vaya a Configuración → General → CarPlay. (3) Busque el dispositivo "smartBox-xxxx". (4) Haga clic en Emparejar (Pair). (5) Permita la conexión de CarPlay y espere a que el teléfono se conecte exitosamente al dispositivo. Método de conexión para teléfonos Android (1) Active el Bluetooth del teléfono. (2)Busque "smartBox-xxxx" en la lista de Bluetooth. (3)Haga clic en Emparejar y siga las instrucciones para completar la conexión. Manual de usuario Adaptador CarPlay inalámbrico III.Precauciones del producto 1.Requisitos del dispositivo y del vehículo Antes de usarlo, asegúrese de que la luz indicadora de alimentación del adaptador inalámbrico CarPlay & Android Auto esté encendida. CarPlay inalámbrico requiere un iPhone 6 o modelo posterior, con sistema iOS 10 o superior. 2.Bluetooth y conexión Android Auto inalámbrico requiere un teléfono Android que admita la función más reciente de Android Auto, con sistema Android 11 o superior. Confirme que su vehículo sea compatible con la función CarPlay o Android Auto por cable. Asegúrese de que el Bluetooth del teléfono estén activados y no estén ocupados por otros dispositivos. Si no puede conectarse o falla la reconexión automática, elimine los registros de emparejamiento, reinicie el teléfono y vuelva a emparejarlo. El adaptador puede emparejarse con varios teléfonos, pero solo admite un dispositivo a la vez y se reconectará automáticamente al último teléfono utilizado. Si Android Auto no se inicia en el primer uso, utilice primero un cable USB para conectar el teléfono y activar la función Android Auto, y asegúrese de que el teléfono tenga instalada la versión más reciente de la aplicación Android Auto. 3.Audio y llamadas Desconecte el teléfono de otros dispositivos Bluetooth, como auriculares o relojes, para evitar interferencias. Durante las llamadas, asegúrese de que la salida de audio esté configurada en CarPlay o Android Auto. 4.Estado del dispositivo Después de apagar el vehículo, la luz indicadora del adaptador puede tardar en apagarse, lo cual es normal. El 5.Limitaciones de funciones consumo de energía es extremadamente bajo y no descargará la batería del automóvil. Este adaptador no es compatible con YouTube ni otras funciones de reproducción de video. 6.Declaración de compatibilidad Este producto es compatible con el 99% de los vehículos que tienen un sistema CarPlay por cable original. Las siguientes marcas o modelos pueden no ser compatibles: BMW, Tesla, Subaru, Mitsubishi. Los vehículos fabricados antes de 2016 pueden necesitar reemplazar la unidad original o instalar un sistema de posventa para poder utilizarlo. Método 1: Conecte su iPhone o teléfono Android al automóvil mediante un cable USB y compruebe si aparece el logotipo de conexión en la pantalla del vehículo. Método 2: Consulte la lista de compatibilidad a continuación o comuníquese con el fabricante de su automóvil para confirmar si su vehículo cuenta con esta función. Cómo confirmar si su vehículo es compatible con Apple CarPlay o Android Auto por cable Si el adaptador funciona correctamente, significa que la versión actual del firmware es compatible con su vehículo, por lo que no se recomienda actualizar el firmware. Solo se recomienda intentar una actualización de firmware si el problema persiste después de seguir las instrucciones del manual. 1. Inserte el adaptador CarPlay/Android Auto en el puerto USB de comunicación del automóvil. 2. Active del teléfono y conéctese a “smartBox-xxxx”, ingresando la contraseña: 88888888. 3. Abra el navegador web del teléfono e ingrese la dirección . 4. En la página OTA, haga clic en “Actualización en línea”. 5. Durante la actualización, no salga de la página OTA para evitar interrumpir el proceso. Cuando el progreso de la actualización alcance el 70%, el adaptador saldrá automáticamente de la interfaz CarPlay/Android Auto. Actualización OTA: 6. Una vez completada la actualización, la página OTA indicará que la actualización se ha finalizado. Será necesario desconectar y volver a conectar CarPlay/Android Auto para mostrar la versión actualizada. En este momento, debe eliminar la conexión Bluetooth existente y luego emparejarla nuevamente para usar el producto normalmente. Información de advertencia de seguridad: No manipule ni ajuste el adaptador mientras conduce.Siempre mantenga la atención en la conducción segura. ! 3. Indicador LED Encendido: Modo CP (CarPlay) / Modo AA (Android Auto): Luz azul clara fija. Esperando emparejamiento Bluetooth: Modo CP: Luz verde parpadeando. Modo AA: Luz azul oscura parpadeando. Conectado: Modo CP: Luz verde fija. Modo AA: Luz azul oscura fija. 4.Cambio de teléfono (Cambio de modo) Desactive simultáneamente el Bluetooth del teléfono actualmente conectado y seleccione Olvidar dispositivo. Desenchufe y vuelva a conectar el adaptador. (Importante) Active el Bluetooth del otro teléfono, busque y empareje el Bluetooth del dispositivo SmartBox-xxxx. Si aparece el mensaje de que el Bluetooth está ocupado, intente emparejar varias veces para completar el cambio. I. Description du produit Cet adaptateur sans fil permet de mettre à niveau le système CarPlay ou Android Auto filaire d'origine du véhicule vers une connexion sans fil. Il vous suffit de brancher l'adaptateur sur le port USB…

Text truncated - open the document above for the full version.

Rev 1/26/2023 Yikai International Trade Co., Limited Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 06-18-2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BWKR-C99 [Yikai International Trade Co., Limited] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Yikai International Trade Co., Limited]certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). √ Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BWKR-C99 [Yikai International Trade Co., Limited]certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) Mr. Zhang

Attestation Statements Date: 2026-06-18 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for(FCC ID: 2BWKR-C99) Yikai International Trade Co., Limited, the undersigned, hereby authorize FCC US Agent, LLC to act as our designated agent for service of process, Yikai International Trade Co., Limited accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. FCC US Agent, LLC accepts the responsibility to act as designated agent for service of process. Applicant Information： Company name: Yikai International Trade Co., Limited Contact Name: Mr. Zhang Address: 4th Floor, Huayuan Dadu, 149, Queen’s Avenue, Central, Hong Kong Telephone No: 15711997078 Email: [email protected] FRN: 0038529921 Signature: Mr. Zhang Agent Information: Company Name: FCC US Agent, LLC Address:3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN: 0033402884 Contact Name: Tim Payne Telephone No: 708-571-3148 Email: [email protected] Signature: Tim Payne

Yikai International Trade Co., Limited Declaration Letter of Model Difference Date: 2026-06-18 FCC ID: 2BWKR-C99 Tested Model Number: C99 Adding Model Number(s): C18, C20, C22, C60, C68, C80, C88, C6, C8, C1, C53 All Adding Model Number(s) is/are same electrically identical as Tested Model Number. Only the model is different. Yours Sincerely, Applicant: Yikai International Trade Co., Limited Address: 4th Floor, Huayuan Dadu, 149, Queen’s Avenue, Central, Hong Kong Contact Person: Mr. Zhang Tel.: 15711997078 Email: [email protected] Sincerely, Signature:

Yikai International Trade Co., Limited Date：06-18-2026 Product Model Number: C99, C18, C20, C22, C60, C68, C80, C88, C6, C8, C1, C53 FCC ID: 2BWKR-C99 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Title: CEO Email: [email protected] Telephone: 15711997078 On behalf of: Yikai International Trade Co., Limited

Yikai International Trade Co., Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: June 22, 2026 Subject; Request for Confidentiality FCC ID: 2BWKR-C99 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. √ Schematic Diagram √ Block Diagram Parts List √ Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Mr. Zhang Title:CEO

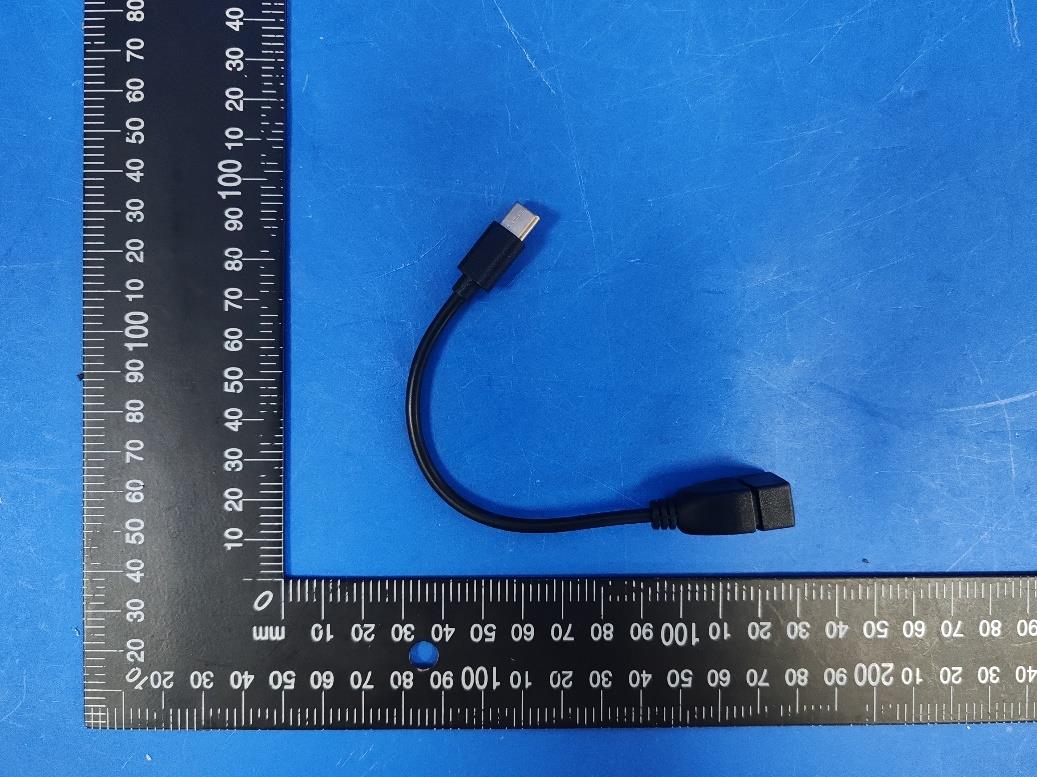

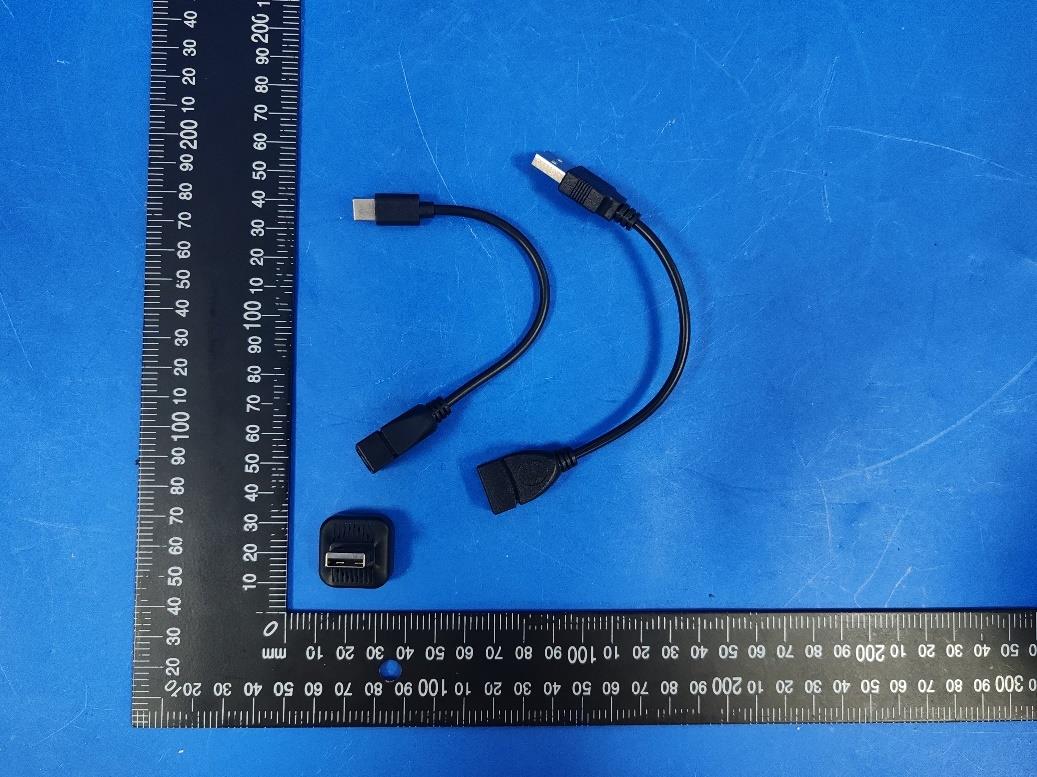

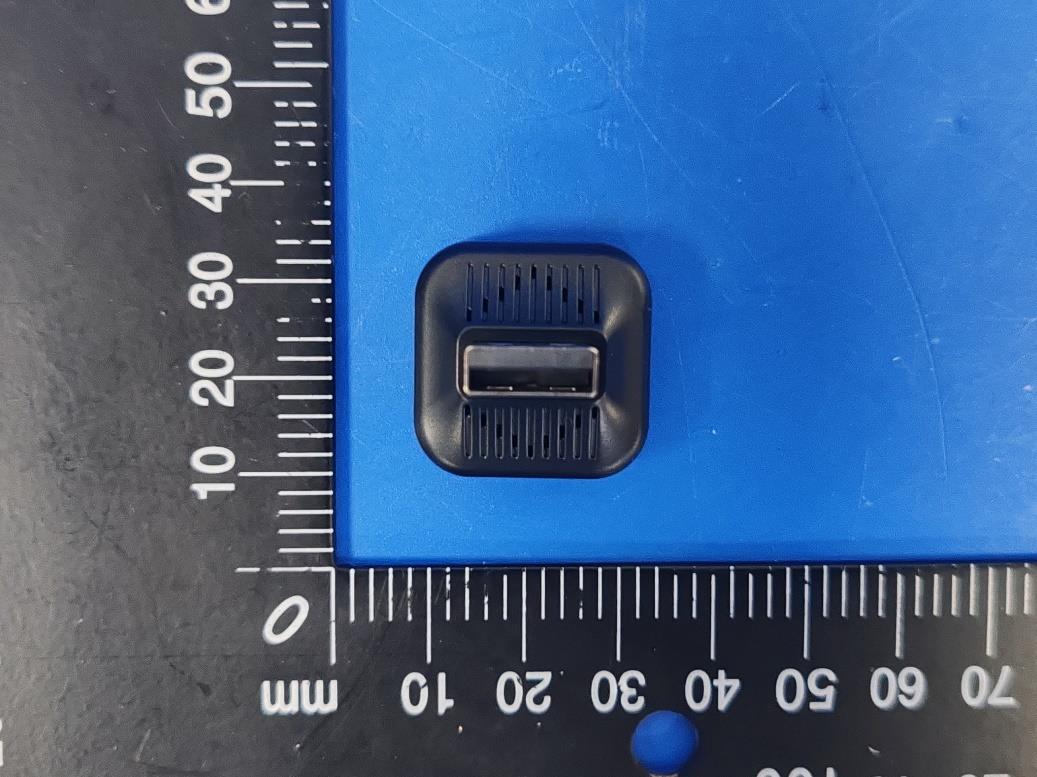

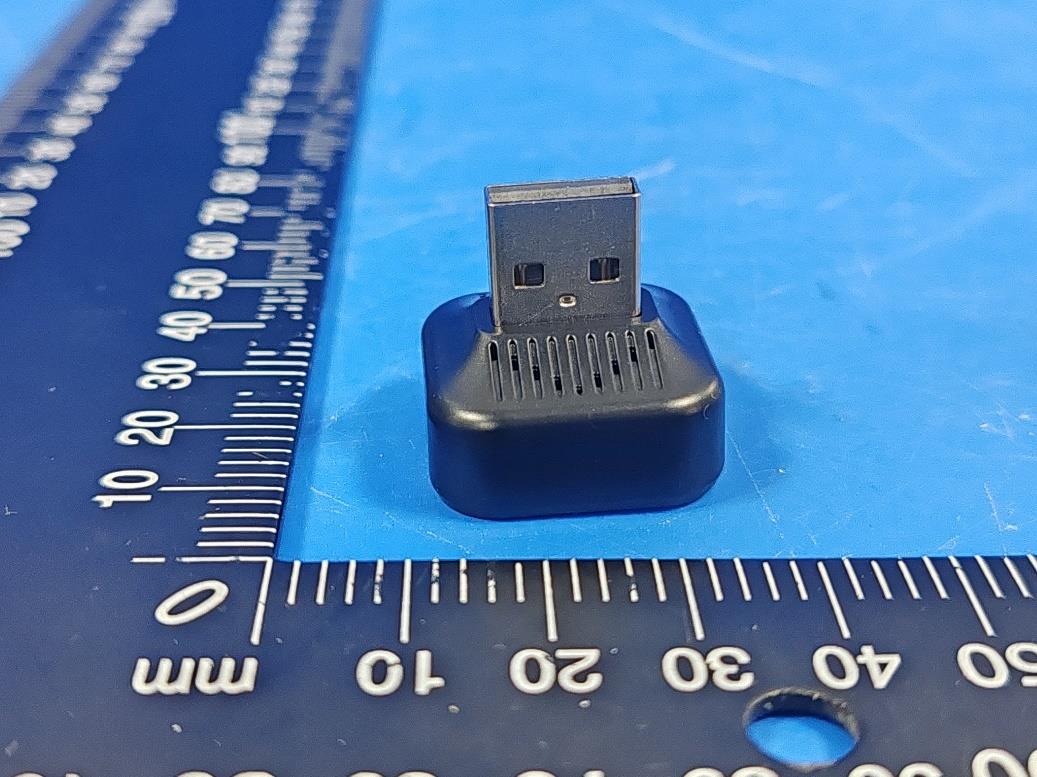

Page 1 of 5 Report No.: LGT26F049 Appendix - External Photographs of EUT Constructional Details Photo 1 Photo 2 Page 2 of 5 Report No.: LGT26F049 Appendix - External Photographs of EUT Constructional Details Photo 3 Photo 4 Page 3 of 5 Report No.: LGT26F049 Appendix - External Photographs of EUT Constructional Details Photo 5 Photo 6 Page 4 of 5 Report No.: LGT26F049 Appendix - External Photographs of EUT Constructional Details Photo 7 Photo 8 Page 5 of 5 Report No.: LGT26F049 Appendix - External Photographs of EUT Constructional Details Photo 9

Label Size: 8*10mm FCC ID: 2BWKR-C99

Page 1 of 4 Report No.: LGT26F049 Appendix - Internal Photographs of EUT Constructional Details Photo 1 Photo 2 ANT Page 2 of 4 Report No.: LGT26F049 Appendix - Internal Photographs of EUT Constructional Details Photo 3 Photo 4 Page 3 of 4 Report No.: LGT26F049 Appendix - Internal Photographs of EUT Constructional Details Photo 5 Photo 6 Page 4 of 4 Report No.: LGT26F049 Appendix - Internal Photographs of EUT Constructional Details Photo 7 Photo 8

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 8 EMF TEST REPORT Product Name: carplay wireless adapter Model Number: C99, C18, C20, C22, C60, C68, C80, C88, C6, C8, C1, C53 FCC ID: 2BWKR-C99 Issued For : Yikai International Trade Co., Limited 4th Floor, Huayuan Dadu, 149, Queen's Avenue, Central, Hong Kong Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26F049HA01 Sample Received Date: Jun. 04, 2026 Date of Test: Jun. 04, 2026 ~ Jun. 12, 2026 Date of Issue: Jun. 12, 2026 Report No.: LGT26F049HA01 Page 2 of 8 TEST REPORT CERTIFICATION Applicant: Yikai International Trade Co., Limited Address: 4th Floor, Huayuan Dadu, 149, Queen's Avenue, Central, Hong Kong Manufacturer: Yikai International Trade Co., Limited Address: 4th Floor, Huayuan Dadu, 149, Queen’s Avenue, Central, Hong Kong Product Name: carplay wireless adapter Trademark: N/A Model Number: C99, C18, C20, C22, C60, C68, C80, C88, C6, C8, C1, C53 Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47 CFR §2.1093 KDB 447498 D01 General RF Exposure Guidance v06 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT26F049HA01 Page 3 of 8 TABLE OF CONTENTS 1 . GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST LABORATORY 5 2 . FCC 47CFR §2.1093 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 8 Report No.: LGT26F049HA01 Page 4 of 8 Revision History Rev. Issue Date Revisions 00 Jun. 12, 2026 Initial Issue Report No.: LGT26F049HA01 Page 5 of 8 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name: carplay wireless adapter Test Model Number: C99 Series Number: C18, C20, C22, C60, C68, C80, C88, C6, C8, C1, C53 Model Difference: Only the model is different. Frequency Bands: Bluetooth 2402-2480MHz Rating: Input: DC 5V Hardware Version: N/A Software Version: N/A 1.2 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 Report No.: LGT26F049HA01 Page 6 of 8 2. FCC 47CFR §2.1093 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in KDB 447498 D01 General RF Exposure Guidance v06 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. Report No.: LGT26F049HA01 Page 7 of 8 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz. Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Report No.: LGT26F049HA01 Page 8 of 8 2.3 TEST RESULT Turn up Result Mode Turn up Power BLE 1M-GFSK 5.5±1dBm BLE 2M-GFSK 5±1dBm The MPE result of worst mode: RF Function Frequency (MHz) Max Turn up Power (dBm) Max Turn up Power (mW) Estimated SAR Limit Ratio Result BLE 2480 6.50 4.47 1.407 3 0.469 Pass Note: 1. The Maximum Power Density is less than the limit, complies with the exemption requirements. ※※※※※END OF THE REPORT※※※※※

Shenzhen Ning Yi Technology Co., Ltd AX13Antenna Customerliao yuan Project AX13 Antenna Type Product DescriptionPCB Product No t PCB Antanna Shenzhen Ning Yi Technology Co., Ltd Product Overview & Dimension 4 Shenzhen Ning Yi Technology Co., Ltd 2.Test System Sequence Number Test Itemequipment S parameterVSWRAgilent 5071C & HP 8753 OTA TestTRP&TISCMW500 &CMW270 ETS& FT SG24 Gain & Efficiency Gain & Efficiency ETS&FT SG24 Agilent 5071C Test Result Sample status & coordinates Shenzhen Ning Yi Technology Co., Ltd Shenzhen Ning Yi Technology Co., Ltd S11 OTA DATA--2.4G/5G Shenzhen Ning Yi Technology Co., Ltd Frequency ID1 2 3 4 5 6 7 8 9 10 11 Frequency (MHz)2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0 Gain (dBi)2.92 3.20 2.83 2.89 3.15 3.74 4.04 4.29 3.83 4.02 3.99 Efficiency (%)24.79 25.68 26.13 28.35 28.77 29.77 30.65 29.63 27.37 27.64 28.22 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 5150.0 5200.0 5250.0 5300.0 5350.0 5400.0 5450.0 5500.0 5550.0 5600.0 5650.0 5700.0 5750.0 5800.0 5850.0 0.60 0.57 0.60 0.67 0.66 0.31 0.50 1.18 1.91 2.23 1.76 2.67 2.61 2.42 2.31 23.32 24.39 26.96 25.75 27.13 28.18 29.81 29.20 34.32 38.25 35.10 38.69 32.04 21.14 27.85 OTA DATA- Shenzhen Ning Yi Technology Co., Ltd 2.4G OTA DATA--5G, Shenzhen Ning Yi Technology Co., Ltd Thanks for your comment! Shenzhen Ning Yi Technology Co., Ltd 1 2 0 2 B , B u i l d i n g C 6 , H e n g f e n g I n d u s t r i a l C i t y, X i x i a n g , B a o ' a n D i s t r i c t , S h e n z h e n Shenzhen Ning Yi Technology Co., Ltd

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 56 RF TEST REPORT Product Name: carplay wireless adapter Model Number: C99, C18, C20, C22, C60, C68, C80, C88, C6, C8, C1, C53 FCC ID: 2BWKR-C99 Issued For : Yikai International Trade Co., Limited 4th Floor, Huayuan Dadu, 149, Queen's Avenue, Central, Hong Kong Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26F049RF01 Sample Received Date: Jun. 04, 2026 Date of Test: Jun. 04, 2026 ~ Jun. 12, 2026 Date of Issue: Jun. 12, 2026 Report No.: LGT26F049RF01 Page 2 of 56 TEST REPORT CERTIFICATION Applicant: Yikai International Trade Co., Limited Address: 4th Floor, Huayuan Dadu, 149, Queen's Avenue, Central, Hong Kong Manufacturer: Yikai International Trade Co., Limited Address: 4th Floor, Huayuan Dadu, 149, Queen’s Avenue, Central, Hong Kong Product Name: carplay wireless adapter Trademark: N/A Model Number: C99, C18, C20, C22, C60, C68, C80, C88, C6, C8, C1, C53 Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247, Subpart C ANSI C63.10-2020 + Cor.1-2023 PASS Prepared by: Approved by: Chris Chen Vita Li Engineer Technical Director Report No.: LGT26F049RF01 Page 3 of 56 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST LABORATORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 9 2.3 TEST SOFTWARE AND POWER LEVEL 9 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 10 2.5 EQUIPMENTS LIST 11 3. EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.2 TEST PROCEDURE 14 3.3 TEST SETUP 14 3.4 EUT OPERATING CONDITIONS 14 3.5 TEST RESULTS 15 4. RADIATED EMISSION MEASUREMENT 17 4.1 RADIATED EMISSION LIMITS 17 4.2 TEST PROCEDURE 19 4.3 TEST SETUP 19 4.4 EUT OPERATING CONDITIONS 20 4.5 FIELD STRENGTH CALCULATION 20 4.6 TEST RESULTS (BAND EDGE REQUIREMENTS) 25 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 27 5.1 LIMIT 27 5.2 TEST PROCEDURE 27 5.3 TEST SETUP 27 5.4 EUT OPERATION CONDITIONS 27 5.5 TEST RESULTS 27 6. POWER SPECTRAL DENSITY TEST 28 6.1 LIMIT 28 6.2 TEST PROCEDURE 28 6.3 TEST SETUP 28 6.4 EUT OPERATION CONDITIONS 28 Report No.: LGT26F049RF01 Page 4 of 56 6.5 TEST RESULTS 28 7. BANDWIDTH TEST 29 7.1 LIMIT 29 7.2 TEST PROCEDURE 29 7.3 TEST SETUP 29 7.4 EUT OPERATION CONDITIONS 29 7.5 TEST RESULTS 29 8. PEAK OUTPUT POWER TEST 30 8.1 LIMIT 30 8.2 TEST PROCEDURE 30 8.3 TEST SETUP 30 8.4 EUT OPERATION CONDITIONS 30 8.5 TEST RESULTS 30 9. ANTENNA REQUIREMENT 31 9.1 STANDARD REQUIREMENT 31 9.2 EUT ANTENNA 31 APPENDIX I - TEST RESULTS 32 DUTY CYCLE 32 MAXIMUM PEAK CONDUCTED OUTPUT POWER 35 -6DB BANDWIDTH 38 OCCUPIED CHANNEL BANDWIDTH 41 MAXIMUM POWER SPECTRAL DENSITY LEVEL 44 BAND EDGE 47 CONDUCTED RF SPURIOUS EMISSION 51 APPENDIX II - MEASUREMENT PHOTOS 56 Report No.: LGT26F049RF01 Page 5 of 56 Revision History Rev. Issue Date Revisions 00 Jun. 12, 2026 Initial Issue Report No.: LGT26F049RF01 Page 6 of 56 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 Part 15.247 Meas Guidance v05r02. FCC Part 15.247, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/ Part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020 + Cor.1-2023. Report No.: LGT26F049RF01 Page 7 of 56 1.1 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Occupied Channel Bandwidth ±0.46% 2 RF Output Power, Conducted ±0.71dB 3 Power Spectral Density, Conducted ±1.57dB 4 Unwanted Emission, Conducted ±0.63dB 5 Conducted emission ±2.80dB 6 All Emissions, Radiated (0.009-30MHz) ±2.16dB 7 All Emissions, Radiated (30MHz-1GHz) ±4.61dB 8 All Emissions, Radiated (1GHz-18GHz) ±5.49dB 9 All Emissions, Radiated (18GHz-40GHz) ±4.31dB 10 Temperature ±0.5°C 11 Humidity ±2% 12 Duty Cycle ±2.3% Note: The measurement uncertainty is not included in the test result. Report No.: LGT26F049RF01 Page 8 of 56 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name: carplay wireless adapter Test Model Number: C99 Series Number: C18, C20, C22, C60, C68, C80, C88, C6, C8, C1, C53 Model Difference: Only the model is different. Product Description: Operation Frequency: 2402~2480 MHz Modulation Type: GFSK Radio Technology: BLE Bluetooth Configuration: BLE (1M PHY, 2M PHY) Number Of Channel: 40 Antenna Designation: PCB Antenna Antenna Gain (dBi) 4.29 Channel List: Please refer to the Note 3. Rating: Input: DC 5V Hardware Version: N/A Software Version: N/A Connecting I/O Port(s): Please refer …

Text truncated - open the document above for the full version.

Page 1 of 2 Report No.: LGT26F049 Appendix - Test Setup photos Set-up for Radiated Spurious Emission, Below 1GHz Set-up for Radiated Spurious Emission, Above 1GHz Page 2 of 2 Report No.: LGT26F049 Set-up for Conducted Emission
