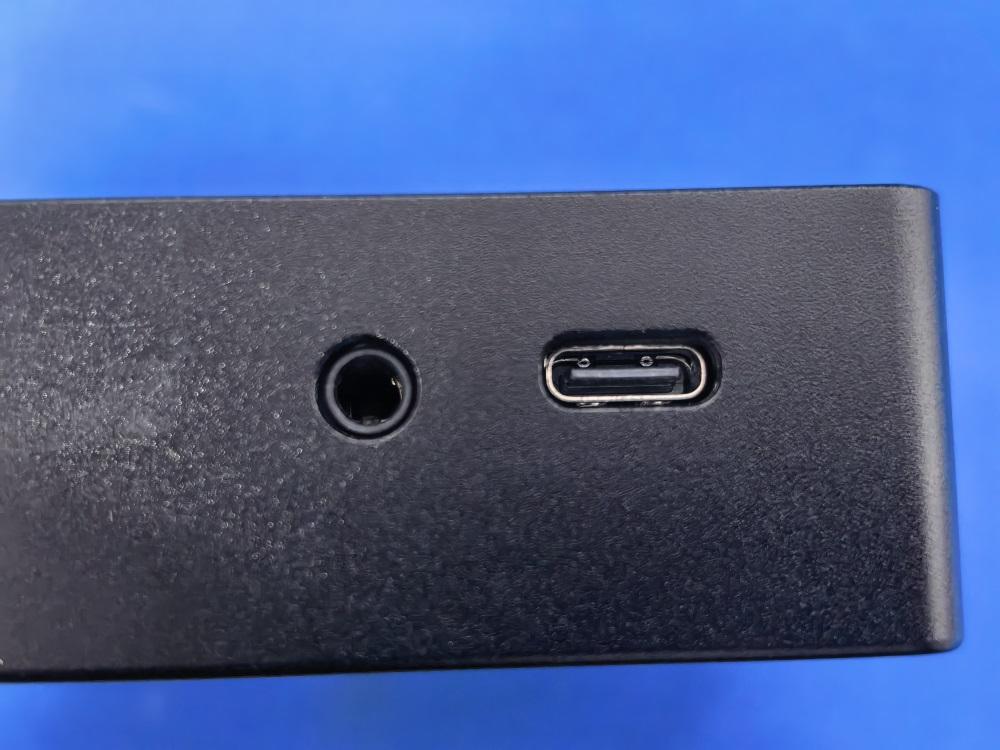

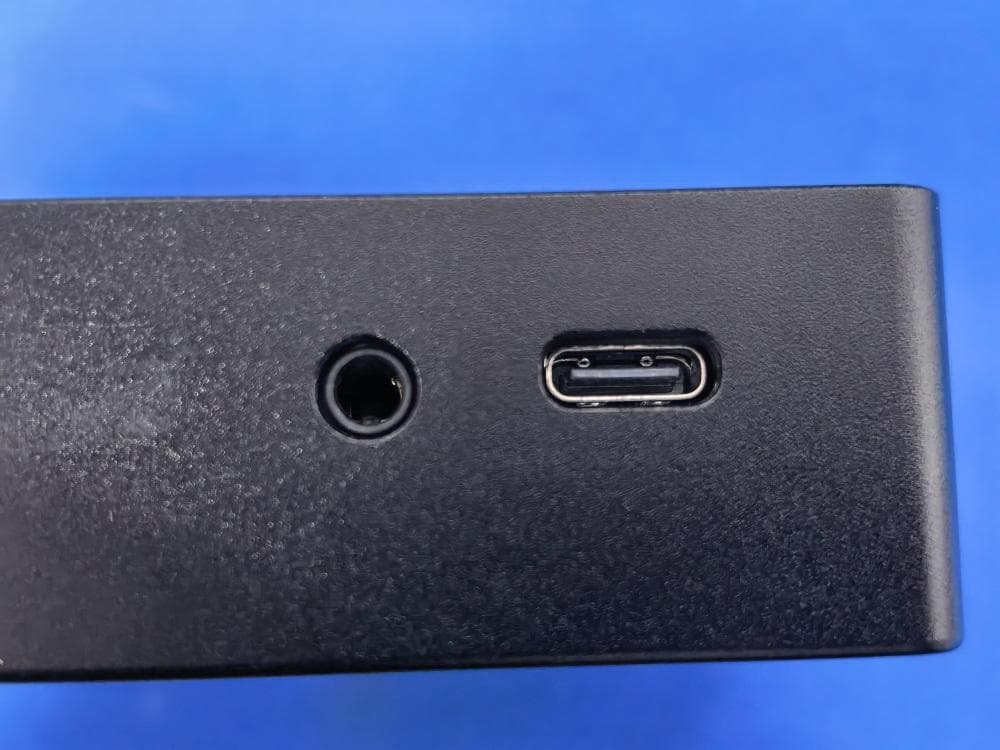

2BWMA-SN0010401Square Display

深圳凯拓创视科技有限公司 方屏显示器 SquareDisplay 技术规格说明书 TechnicalSpecification 制表|Lister： 审核|Check： 批准|Approve： 客户确认 | CustomerConfirm： 深圳凯拓创视科技有限公司 第 1 页共4页 ShenzhenClientopTechnologyCo.,Ltd 特征与优点|Features&Benefits： 1.1:1正方形比例，无黑边完整显示唱片方形专辑封面，画面无拉伸变形。 1:1squareratio,fullydisplayssquarealbumcoverswithoutblackbordersorimagedistortion. 2.高清分辨率，色彩还原真实，精准还原专辑印刷美术效果。 Highresolutionwithauthenticcolorreproductiontorestorealbumprintingart. 3.IPS广视角，多角度观看无偏色，室内可视效果清晰。 IPSwideviewingangle,nocolorshiftfromallviewingdirections,clearindoors. 4.体积小巧便携，尺寸接近CD盒，节省设备内部结构空间。 Compactandportable,similarsizetoCDcases,savesinternaldevicespace. 5.低功耗背光，长时间静态显示不易烧屏，续航表现良好。 Lowpowerbacklight,anti-screenburnforlongstaticdisplay,longbatterylife. 6.界面布局对称简洁，可同时展示封面、曲目、歌词，操作直观。 Symmetric&simpleUIlayout,showscover,tracklistandlyricsclearly. 应用场景|Applicationscenarios： 1.桌面Hi-Fi音乐播放器：居家书房、音响机柜，离线专辑播放。 DesktopHi-Fimusicplayers:Study,audiocabinet,offlinealbumplaybackathome. 2.便携随身音乐设备：通勤、短途出行阴凉室内环境使用。 Portablemusicplayers:Commuting,shorttripsincoolindoorenvironments. 3.桌面迷你装饰相框：静态展示专辑、方形艺术照片。 Minidesktopdigitalphotoframes:Staticdisplayofalbumart&squarephotos. 4.小型智能控制面板：床头、玄关灯光、温控简易操作屏。 Smallsmartcontrolpanels:Bedside&entrancelight/temperaturecontrolscreens. 5.小型工业检测仪表：电源、电池测试设备人机交互界面。 Compactindustrialtesters:Human-machineinterfaceforpowersupply&batterytestequipment. 订购信息|OrderInformation： 产品名称产品描述版本号 SquareDisplay 产品尺寸|Productsize：4”;分辨率|Resolution：720(H) x720(V)； V1.0 深圳凯拓创视科技有限公司 第 2 页共4页 ShenzhenClientopTechnologyCo.,Ltd 技术参数|TechnicalSpecification： 产品型号|Model SN0010401 液晶面板规格 |LCD Specifications 屏幕尺寸|ScreenSize4” 显示分辨率|DisplayResolution720*720 亮度(cd/m²)/Brightness(cd/m²)300nits 可视角/ViewingAngle85/85Degrees(AllDirections) 对比度/ContrastRatio1000:1 支持颜色/SupportedColors16.7M 主板规格|MainboardSpecifications CPURK3566,主频高达1.8GHz/RK3566,Upto1.8GHzClock Speed GPUMali-G52-2EE高性能GPU/Mali-G52-2EEHigh PerformanceGPU NPU0.8T 内存/Memory(RAM)256G Type-c5V充电+数据/5VCharging+DataTransfer 音频/Audio3.5mm耳机口/3.5mmHeadphoneJack 无线/WirelessFunctionsWIFI5G/BT5.4双模/DualMode:WiFi5G/Bluetooth 5.4 编解码/Code视频解码:1080P/H.265(4K2K)/H.264/VideoDecoding: 1080P/H.265(4K2K)/H.264 系统/OperatingSystem安卓11/Android11；英文/English 电池/Battery3.7V2750mA 深圳凯拓创视科技有限公司 第 3 页共4页 ShenzhenClientopTechnologyCo.,Ltd 功耗/PowerConsumption<=4W 工作温度|Operatingtemperature0°C～50°C 存储温度|Storagetemperature-10°C～50°C 质保|Warranty1year 产品认证|ProductcertificationFCCCE 外形尺寸|Dimensions： 深圳凯拓创视科技有限公司 第 4 页 共4页 ShenzhenClientopTechnologyCo.,Ltd 变更记录| ChangeRecord： 版本变更内容变更日期 1. 0 初始版本 深圳凯拓创视科技有限公司/ShenzhenClientopTechnologyCo.,Ttd保留下述权利：在不另行通知的情况下更改或更新本文所载任何信息；在不另行通知的情况下更改任何产品的设计、 结构、材料、工艺流程或规格；及中断或限制任何产品的生产或分销。 FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Shenzhen Global Test Service Co.,Ltd. Room No. 101, Building 1, and Room No. 101, Building 3, No. 88 Jinkang Road, Jinsha Community, Kengzi Sub-district, Pingshan District, Shenzhen City, Guangdong ,China RF Exposure evaluation Report Reference No. .................... : FCC ID. ............................................ : GTS20260529017-1-05 2BWMA-SN0010401 Compiled by ( position+printed name+signature) .. : File administrators Peter Xiao Supervised by ( position+printed name+signature) .. : Test Engineer Evan Ouyang Approved by ( position+printed name+signature) .. : Manager Jason Hu Date of issue ..................................... : Jun.15, 2026 Representative Laboratory Name : Shenzhen Global Test Service Co.,Ltd. Address ............................................. : Room No. 101, Building 1, and Room No. 101, Building 3, No. 88 Jinkang Road, Jinsha Community,Kengzi Sub-district, Pingshan District, Shenzhen City, Guangdong ,China Applicant’s name ............................ : Sleevenote Ltd Address ............................................. : Unit 4 100-102 Northdown Road Margate Kent CT9 2RE United Kingdom Test specification .......................... : Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ....................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Square Display Trade Mark ....................................... : N/A Manufacturer ..................................... : Clientop Technology Co., Ltd. (shenzhen) Model/Type reference ....................... : SN0010401 Listed Models ................................... : SN0010402, SN0010403, SN0010404, SN0010405, SN0010701 Exposure category ............................ : GFSK EUT Type .......................................... : From 2402MHz to 2480MHz Hardware Version ............................ : N/A Software Version .............................. : N/A Rating ............................................... : DC 3.7V by battery Recharged by DC 5.0V Result ................................................ : PASS Report No.: GTS20260529017-1-05 Page 2 of 15 T E S T R E P O R T Test Report No. : GTS20260529017-1-05 Jun.15, 2026 ______________________________________________________________________________________________ Date of issue Equipment under Test : Square Display Model /Type : SN0010401 Listed model : SN0010402, SN0010403, SN0010404, SN0010405, SN0010701 Applicant : Sleevenote Ltd Address : Unit 4 100-102 Northdown Road Margate Kent CT9 2RE United Kingdom Manufacturer : Clientop Technology Co., Ltd. (shenzhen) Address : Floor 1-3, Building 5, Cross-Border E-Commerce Industrial Park, No. 28 Longsheng 1 Road Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20260529017-1-05 Page 3 of 15 Contents 1. S U M M A R Y .................................................................................. 4 1.1. Product Description .................................................................................................................................... 4 2. T E S T E N V I R O N M E N T ................................................................... 6 2.1. Address of the test laboratory ................................................................................................................... 6 2.2. Test Facility .................................................................................................................................................. 6 2.3. Environmental conditions .......................................................................................................................... 6 2.4. Statement of the measurement uncertainty ............................................................................................. 6 3 . M E T H O D O F M E A S U R EM E N T ......................................................... 7 3.1. Applicable Standard .................................................................................................................................... 7 3.2. Evaluation Method and Limit...................................................................................................................... 7 4. C O N D U C T E D P O W E R R E S U L T S ...................................................... 8 5. M A N U F A C T U R I N G T O L E R ANCE ..................................................... 10 6 . E V A L U A T I O N R E S U L T S ............................................................... 13 6.1. Standalone Evaluation .............................................................................................................................. 13 7. C O N C L U S I O N ............................................................................ 15 Report No.: GTS20260529017-1-05 Page 4 of 15 1. S U M M A R Y 1.1. Product Description Product Name: Square Display Trade Mark: N/A Model/Type reference: SN0010401 List Model: SN0010402, SN0010403, SN0010404, SN0010405, SN0010701 Model Declaration Changes in the numbers refer to the internal and channel codes of the manufacturing enterprise and do not affect the product's safety and electromagnetic compatibility Power supply: DC 3.7V by battery Recharged by DC…

Text truncated - open the document above for the full version.

FCC ID: 2BWMA-SN0010401 _______________________________________________________________________________________________ Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 FCC ID: 2BWMA-SN0010401 _______________________________________________________________________________________________ Page 2 of 2 Photo of Conducted Emission Measurement Fig. 3 Fig. 4

Shenzhen Global Test Service Co.,Ltd. Room No. 101, Building 1, and Room No. 101, Building 3, No. 88 Jinkang Road, Jinsha Community, Kengzi Sub-district, Pingshan District, Shenzhen City, Guangdong, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.407 Report Reference No. ..................... : FCC ID............................................. : GTS20260529017-1-04 2BWMA-SN0010401 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Evan Ouyang Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Jun.15, 2026 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : Room No. 101, Building 1, and Room No. 101, Building 3, No. 88 Jinkang Road, Jinsha Community,Kengzi Sub-district, Pingshan District, Shenzhen City, Guangdong ,China Applicant’s name ............................ : Sleevenote Ltd Address ............................................ : Unit 4 100-102 Northdown Road Margate Kent CT9 2RE United Kingdom Test specification ........................... : Standard ........................................... : FCC Part 15.407: General technical requirements TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Square Display Trade Mark ....................................... : N/A Manufacturer .................................... : Clientop Technology Co., Ltd. (shenzhen) Model/Type reference ...................... : SN0010401 Listed Models .................................. : SN0010402, SN0010403, SN0010404, SN0010405, SN0010701 Operation Frequency ........................ : From 5180MHz to 5240MHz/ 5745MHz to 5825MHz Hardware Version ............................ : N/A Software Version .............................. : N/A Rating ............................................... : DC 3.7V by battery Recharged by DC 5.0V Result ............................................... : PASS Report No.: GTS20260529017-1-04 Page 2 of 30 T E S T R E P O R T Test Report No. : GTS20260529017-1-04 Jun.15, 2026 ____________________________________________________________________________________ Date of issue Equipment under Test : Square Display Model /Type : SN0010401 Listed model : SN0010402, SN0010403, SN0010404, SN0010405, SN0010701 Applicant : Sleevenote Ltd Address : Unit 4 100-102 Northdown Road Margate Kent CT9 2RE United Kingdom Manufacturer : Clientop Technology Co., Ltd. (shenzhen) Address : Floor 1-3, Building 5, Cross-Border E-Commerce Industrial Park, No. 28 Longsheng 1 Road Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20260529017-1-04 Page 3 of 30 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 5 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 7 2.5. EUT operation mode .............................................................................................................................. 7 2.6. Block Diagram of Test Setup ................................................................................................................. 8 2.7. Related Submittal(s) / Grant (s) ............................................................................................................. 8 2.8. EUT Exercise Software .......................................................................................................................... 8 2.9. Special Accessories ............................................................................................................................... 8 2.10. External I/O Cable ................................................................................................................................ 8 2.11. Modifications ........................................................................................................................................ 8 3. TEST ENVIRONMENT ..................................................................................................................................... 9 3.1. Address of the test laboratory ................................................................................................................ 9 3.2. Test Facility ............................................................................................................................................ 9 3.3. Environmental condi…

Text truncated - open the document above for the full version.

FCCID:2BWMA-SN0010401 38 Appendix E.6:Band edge measurements Test Result B4 TestMode Antenna ChName Freq(MHz) FreqRange [MHz] Result [dBm] Limit [dBm] Verdict 11A Ant1 Low 5745 5650~5700 -40.47 ≤-26.79 PASS 5700~5720 -39.33 ≤10.18 PASS 5720~5725 -39.53 ≤15.82 PASS 5760~5650 -38.54 ≤-27 PASS High 5825 5850~5855 -39.18 ≤16.03 PASS 5855~5875 -37.69 ≤11.15 PASS 5875~5925 -39.3 ≤-26.71 PASS 5925~5935 -38.01 ≤-27 PASS 11N20SI SO Ant1 Low 5745 5650~5700 -40.25 ≤-26.96 PASS 5700~5720 -36.86 ≤10.60 PASS 5720~5725 -38.51 ≤16.87 PASS 5760~5650 -38.3 ≤-27 PASS High 5825 5850~5855 -38.67 ≤16.65 PASS 5855~5875 -37.76 ≤10.47 PASS 5875~5925 -38.69 ≤-25.91 PASS 5925~5935 -37.81 ≤-27 PASS 11N40SI SO Ant1 Low 5755 5650~5700 -40.51 ≤-26.80 PASS 5700~5720 -38.35 ≤10.67 PASS 5720~5725 -37.16 ≤16.04 PASS 5780~5650 -39.47 ≤-27 PASS High 5795 5850~5855 -40.05 ≤15.66 PASS 5855~5875 -38.21 ≤10.34 PASS 5875~5925 -38.22 ≤-26.71 PASS 5925~5935 -38.08 ≤-27 PASS 11AC20S ISO Ant1 Low 5745 5650~5700 -41.17 ≤-26.87 PASS 5700~5720 -38.47 ≤11.18 PASS 5720~5725 -35.15 ≤17.39 PASS 5760~5650 -39.66 ≤-27 PASS High 5825 5850~5855 -38.49 ≤15.73 PASS 5855~5875 -37.91 ≤10.85 PASS 5875~5925 -37.97 ≤-26.61 PASS 5925~5935 -37.98 ≤-27 PASS 11AC40S ISO Ant1 Low 5755 5650~5700 -39.81 ≤-25.51 PASS 5700~5720 -38.58 ≤10.55 PASS 5720~5725 -38.63 ≤16.04 PASS 5780~5650 -38.87 ≤-27 PASS FCCID:2BWMA-SN0010401 39 High 5795 5850~5855 -39.72 ≤15.66 PASS 5855~5875 -38.31 ≤10.02 PASS 5875~5925 -37.96 ≤-26.34 PASS 5925~5935 -38.55 ≤-27 PASS 11AX20SI SO Ant1 Low 5745 5650~5700 -39.85 ≤-26.19 PASS 5700~5720 -39.05 ≤10.31 PASS 5720~5725 -29.15 ≤23.16 PASS 5760~5650 -39.66 ≤-27 PASS High 5825 5850~5855 -38.81 ≤16.03 PASS 5855~5875 -36.97 ≤10.63 PASS 5875~5925 -36.96 ≤-26.41 PASS 5925~5935 -37.92 ≤-27 PASS 11AX40SI SO Ant1 Low 5755 5650~5700 -40.18 ≤-26.80 PASS 5700~5720 -38.96 ≤10.17 PASS 5720~5725 -35.62 ≤15.74 PASS 5780~5650 -40.07 ≤-27 PASS High 5795 5850~5855 -38.32 ≤17.16 PASS 5855~5875 -38.02 ≤10.89 PASS 5875~5925 -39.7 ≤-26.95 PASS 5925~5935 -38.36 ≤-27 PASS FCCID:2BWMA-SN0010401 40 Test GraphsB4 11A_Ant1_Low_5745 11A_Ant1_High_5825 11N20SISO_Ant1_Low_5745 FCCID:2BWMA-SN0010401 41 11N20SISO_Ant1_High_5825 11N40SISO_Ant1_Low_5755 FCCID:2BWMA-SN0010401 42 11N40SISO_Ant1_High_5795 11AC20SISO_Ant1_Low_5745 11AC20SISO_Ant1_High_5825 FCCID:2BWMA-SN0010401 43 11AC40SISO_Ant1_Low_5755 11AC40SISO_Ant1_High_5795 FCCID:2BWMA-SN0010401 44 11AX20SISO_Ant1_Low_5745 11AX20SISO_Ant1_High_5825 11AX40SISO_Ant1_Low_5755 FCCID:2BWMA-SN0010401 45 11AX40SISO_Ant1_High_5795 FCCID:2BWMA-SN0010401 46 Appendix E.7:Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant1 5745 30~5650 3308.15 -40.39 ≤-27 PASS 5925~27000 26568.67 -31.96 ≤-27 PASS 5785 30~5650 2418.13 -40.09 ≤-27 PASS 5925~27000 23548.62 -31.22 ≤-27 PASS 5825 30~5650 5431.01 -40.06 ≤-27 PASS 5925~27000 26513.17 -31.84 ≤-27 PASS 11N20SISO Ant1 5745 30~5650 2666.9 -39.9 ≤-27 PASS 5925~27000 24239.18 -31.19 ≤-27 PASS 5785 30~5650 3157.53 -40.31 ≤-27 PASS 5925~27000 26055.84 -31.31 ≤-27 PASS 5825 30~5650 3032.77 -40.13 ≤-27 PASS 5925~27000 24274.3 -30.99 ≤-27 PASS 11N40SISO Ant1 5755 30~5650 2657.35 -39.63 ≤-27 PASS 5925~27000 26164.73 -31.99 ≤-27 PASS 5795 30~5650 4992.65 -40.23 ≤-27 PASS 5925~27000 24985.93 -30.57 ≤-27 PASS 11AC20SISO Ant1 5745 30~5650 5445.24 -40.66 ≤-27 PASS 5925~27000 25993.32 -31.05 ≤-27 PASS 5785 30~5650 5456.67 -40.52 ≤-27 PASS 5925~27000 26969.79 -31.15 ≤-27 PASS 5825 30~5650 3158.47 -39.36 ≤-27 PASS 5925~27000 24359.3 -31.34 ≤-27 PASS 11AC40SISO Ant1 5755 30~5650 3047 -40.33 ≤-27 PASS 5925~27000 26918.51 -31.66 ≤-27 PASS 5795 30~5650 5477.28 -39.29 ≤-27 PASS 5925~27000 24792.04 -31.57 ≤-27 PASS 11AX20SISO Ant1 5745 30~5650 2550.2 -40.32 ≤-27 PASS 5925~27000 23607.63 -31.92 ≤-27 PASS 5785 30~5650 2655.48 -40.57 ≤-27 PASS 5925~27000 24257.44 -31.69 ≤-27 PASS 5825 30~5650 3329.13 -40.34 ≤-27 PASS 5925~27000 23570.4 -31.37 ≤-27 PASS 11AX40SISO Ant1 5755 30~5650 3143.29 -40.69 ≤-27 PASS 5925~27000 24811.71 -31.37 ≤-27 PASS 5795 30~5650 3308.15 -39.15 ≤-27 PASS 5925~27000 25173.5 -30.11 ≤-27 PASS FCCID:2BWMA-SN0010401 47 Test Graphs 11A_Ant1_5745_30~5650 11A_Ant1_5745_5925~27000 11A_Ant1_5785_30~5650 FCCID:2BWMA-SN0010401 48 11A_Ant1_5785_5925~27000 11A_Ant1_5825_30~5650 FCCID:2BWMA-SN0010401 49 11A_Ant1_5825_5925~27000 11N20SISO_Ant1_5745_30~5650 11N20SISO_Ant1_5745_5925~27000 FCCID:2BWMA-SN0010401 50 11N20SISO_Ant1_5785_30~5650 11N20SISO_Ant1_5785_5925~27000 FCCID:2BWMA-SN0010401 51 11N20SISO_Ant1_5825_30~5650 11N20SISO_Ant1_5825_5925~27000 11N40SISO_Ant1_5755_30~5650 FCCID:2BWMA-SN0010401 52 11N40SISO_Ant1_5755_5925~27000 11N40SISO_Ant1_5795_30~5650 FCCID:2BWMA-SN0010401 53 11N40SISO_Ant1_5795_5925~27000 11AC20SISO_Ant1_5745_30~5650 11AC20SISO_Ant1_5745_5925~27000 FCCID:2BWMA-SN0010401 54 11AC20SISO_Ant1_5785_30~5650 11AC20SISO_Ant1_5785_5925~27000 FCCID:2BWMA-SN0010401 55 11AC20SISO_Ant1_5825_30~5650 11AC20SISO_Ant1_5825_5925~27000 11AC40SISO_Ant1_5755_30~5650 FCCID:2BWMA-SN0010401 56 11AC40SISO_Ant1_5755_5925~27000 11AC40SISO_Ant1_5795_30~5650 FCCID:2BWMA-SN0010401 57 11AC40SISO_Ant1_5795_5925~27000 11AX20SISO_Ant1_5745_30~5650 11AX20SISO_Ant1_5745_5925~27000 FCCID:2BWMA-SN0010401 58 11AX20SISO_Ant1_5785_30~5650 11AX20SISO_Ant1_5785_5925~27000 FCCID:2BWMA-SN0010401 59 11AX20SISO_Ant1_5825_30~5650 11AX20SISO_Ant1_5825_5925~27000 11AX40SISO_Ant1_5755_30~5650 FCCID:2BWMA-SN0010401 60 11AX40SISO_Ant1_5755_5925~27000 11AX40SISO_Ant1_5795_30~5650 FCCID:2BWMA-SN0010401 61 11AX40SISO_Ant1_5795_5925~27000 FCCID:2BWMA-SN0010401 62 Appendix E.8:Emissions in Restricted Bands Test Result TestMode Antenna ChName Freq (MHz) Detector Freq [MHz] Result [dBm] Limit [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict 11A Ant1 Low 5745 Peak 5650.000 -39.418 ≤-27.00 --- --- PASS Peak 5700.000 -38.32 ≤10.00 --- --- PASS Peak 5720.000 -37.76 ≤15.60 --- --- PASS Peak 5725.000 -33.98 ≤27.00 - -- - -- PASS High 5825 Peak 5850.000 -36.81…

Text truncated - open the document above for the full version.

FCCID:2BWMA-SN0010401 1 Case No. :GTS20260529017-1-04 Ambient Condition: 25 °C, 62 %RH According Standard: ■Part15E Test Date:2026.5.11-2026.6.12Test Engineer: Evan ouyang Appendix E.1: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 17.981 5735.8591 5753.8401 --- --- 5785 17.921 5775.8409 5793.7619 --- --- 5825 17.893 5815.8475 5833.7405 --- --- 11N20SISO Ant1 5745 19.074 5735.3759 5754.4499 --- --- 5785 19.020 5775.3110 5794.3310 --- --- 5825 19.046 5815.4026 5834.4486 --- --- 11N40SISO Ant1 5755 37.630 5736.1348 5773.7648 --- --- 5795 37.679 5776.0220 5813.7010 --- --- 11AC20SISO Ant1 5745 19.010 5735.4449 5754.4549 --- --- 5785 18.995 5775.3479 5794.3429 --- --- 5825 19.052 5815.3880 5834.4400 --- --- 11AC40SISO Ant1 5755 37.720 5736.0584 5773.7784 --- --- 5795 37.655 5776.0130 5813.6680 --- --- 11AX20SISO Ant1 5745 19.789 5735.0845 5754.8735 --- --- 5785 19.630 5775.1030 5794.7330 --- --- 5825 19.658 5815.1755 5834.8335 --- --- 11AX40SISO Ant1 5755 38.538 5735.6579 5774.1959 --- --- 5795 38.632 5775.6151 5814.2471 --- --- FCCID:2BWMA-SN0010401 2 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCCID:2BWMA-SN0010401 3 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 FCCID:2BWMA-SN0010401 4 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCCID:2BWMA-SN0010401 5 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 FCCID:2BWMA-SN0010401 6 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCCID:2BWMA-SN0010401 7 11AX20SISO_Ant1_5745 11AX20SISO_Ant1_5785 FCCID:2BWMA-SN0010401 8 11AX20SISO_Ant1_5825 11AX40SISO_Ant1_5755 11AX40SISO_Ant1_5795 FCCID:2BWMA-SN0010401 9 FCCID:2BWMA-SN0010401 10 Appendix E.2: Min emission bandwidth Test Result B4 TestMode Antenna Freq(MHz) 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 16.400 5736.720 5753.120 0.5 PASS 5785 16.400 5776.720 5793.120 0.5 PASS 5825 16.400 5816.720 5833.120 0.5 PASS 11N20SISO Ant1 5745 17.600 5736.120 5753.720 0.5 PASS 5785 17.600 5776.120 5793.720 0.5 PASS 5825 17.600 5816.120 5833.720 0.5 PASS 11N40SISO Ant1 5755 36.320 5736.760 5773.080 0.5 PASS 5795 36.320 5776.760 5813.080 0.5 PASS 11AC20SISO Ant1 5745 17.640 5736.120 5753.760 0.5 PASS 5785 17.600 5776.120 5793.720 0.5 PASS 5825 17.640 5816.120 5833.760 0.5 PASS 11AC40SISO Ant1 5755 36.320 5736.760 5773.080 0.5 PASS 5795 36.320 5776.760 5813.080 0.5 PASS 11AX20SISO Ant1 5745 19.000 5735.440 5754.440 0.5 PASS 5785 19.000 5775.400 5794.400 0.5 PASS 5825 19.040 5815.440 5834.480 0.5 PASS 11AX40SISO Ant1 5755 38.240 5735.800 5774.040 0.5 PASS 5795 38.080 5775.800 5813.880 0.5 PASS FCCID:2BWMA-SN0010401 11 Test Graphs B4 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCCID:2BWMA-SN0010401 12 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 FCCID:2BWMA-SN0010401 13 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCCID:2BWMA-SN0010401 14 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 FCCID:2BWMA-SN0010401 15 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCCID:2BWMA-SN0010401 16 11AX20SISO_Ant1_5745 11AX20SISO_Ant1_5785 FCCID:2BWMA-SN0010401 17 11AX20SISO_Ant1_5825 11AX40SISO_Ant1_5755 11AX40SISO_Ant1_5795 FCCID:2BWMA-SN0010401 18 FCCID:2BWMA-SN0010401 19 Appendix E.3: Duty Cycle Test Result TestMode Antenna Freq(MHz) Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] 1/T Factor[KHz] 11A Ant1 5745 2.03 2.26 89.82 0.47 0.49 5785 2.04 2.27 89.87 0.46 0.49 5825 2.03 2.24 90.63 0.43 0.49 11N20SISO Ant1 5745 1.89 2.11 89.57 0.48 0.53 5785 1.89 2.16 87.50 0.58 0.53 5825 1.89 2.13 88.73 0.52 0.53 11N40SISO Ant1 5755 0.93 1.23 75.61 1.21 1.08 5795 0.93 1.16 80.17 0.96 1.08 11AC20SISO Ant1 5745 1.72 1.89 91.01 0.41 0.58 5785 1.90 2.13 89.20 0.50 0.53 5825 1.90 2.11 90.05 0.46 0.53 11AC40SISO Ant1 5755 0.94 1.12 83.93 0.76 1.06 5795 0.94 1.12 83.93 0.76 1.06 11AX20SISO Ant1 5745 1.46 1.69 86.39 0.64 0.68 5785 1.46 1.76 82.95 0.81 0.68 5825 1.45 1.69 85.80 0.67 0.69 11AX40SISO Ant1 5755 0.76 0.99 76.77 1.15 1.32 5795 0.76 0.94 80.85 0.92 1.32 FCCID:2BWMA-SN0010401 20 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCCID:2BWMA-SN0010401 21 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 FCCID:2BWMA-SN0010401 22 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCCID:2BWMA-SN0010401 23 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 FCCID:2BWMA-SN0010401 24 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCCID:2BWMA-SN0010401 25 11AX20SISO_Ant1_5745 11AX20SISO_Ant1_5785 FCCID:2BWMA-SN0010401 26 11AX20SISO_Ant1_5825 11AX40SISO_Ant1_5755 11AX40SISO_Ant1_5795 FCCID:2BWMA-SN0010401 27 FCCID:2BWMA-SN0010401 28 Appendix E.4: Maximum conducted output power Test Result Channel Power Test Mode Antenna Freq (MHz) Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5745 4.84 89.82 0.47 5.31 ≤30.00 PASS 5785 4.99 89.87 0.46 5.45 ≤30.00 PASS 5825 3.97 90.63 0.43 4.40 ≤30.00 PASS 11N20SISO Ant1 5745 4.67 89.57 0.48 5.15 ≤30.00 PASS 5785 4.95 87.50 0.58 5.53 ≤30.00 PASS 5825 4.22 88.73 0.52 4.74 ≤30.00 PASS 11N40SISO Ant1 5755 4.47 75.61 1.21 5.68 ≤30.00 PASS 5795 4.19 80.17 0.96 5.15 ≤30.00 PASS 11AC20SISO Ant1 5745 4.89 70.90 1.49 6.38 ≤30.00 PASS 5785 5.11 89.20 0.50 5.61 ≤30.00 PASS 5825 4.49 90.05 0.46 4.95 ≤30.00 PASS 11AC40SISO Ant1 5755 4.57 83.93 0.76 5.33 ≤30.00 PASS 5795 4.25 83.93 0.76 5.01 ≤30.00 PASS 11AX20SISO Ant1 5745 4.86 86.39 0.64 5.50 ≤30.00 PASS 5785 5.00 82.95 0.81 5.81 ≤30.00 PASS 5825 4.46 85.80 0.67 5.13 ≤30.00 PASS 11AX40SISO Ant1 5755 4.48 76.77 1.15 5.63 ≤30.00 PASS 5795 4.06 80.85 0.92 4.98 ≤30.00 PASS FCCID:2BWMA-SN0010401 29 Appendix E.5: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result [dBm/MHz] Limit[dBm/MHz] Verdict 11A Ant1 5745 -9.28 ≤30.00 PASS 5785 -9.01 ≤30.00 PASS 5825 -9.91 ≤30.00 PASS 11N20SISO Ant1 5745 -9.56 ≤30.00 PASS 5785 -8.99 ≤30.00 PASS 5825 -9.80 ≤30.00 PASS 11N40SISO Ant1 5755 -11.82 ≤30.00 PASS 5795 -11.74 ≤30.00 PASS 11AC20SIS…

Text truncated - open the document above for the full version.

FCCID:2BWMA-SN0010401 38 Appendix D.6:Band edge measurements Test Result B1 TestMode Antenna ChName Freq(MHz) Result[dBm] Limit[dBm] Verdict 11A Ant1 Low 5180 -37.25 ≤-27 PASS High 5240 -37.07 ≤-27 PASS 11N20SISO Ant1 Low 5180 -37.16 ≤-27 PASS High 5240 -37.53 ≤-27 PASS 11N40SISO Ant1 Low 5190 -37.2 ≤-27 PASS High 5230 -37.11 ≤-27 PASS 11AC20SISO Ant1 Low 5180 -37.4 ≤-27 PASS High 5240 -36.95 ≤-27 PASS 11AC40SISO Ant1 Low 5190 -37.44 ≤-27 PASS High 5230 -37.69 ≤-27 PASS 11AX20SISO Ant1 Low 5180 -37.27 ≤-27 PASS High 5240 -36.91 ≤-27 PASS 11AX40SISO Ant1 Low 5190 -37.17 ≤-27 PASS High 5230 -36.37 ≤-27 PASS FCCID:2BWMA-SN0010401 39 Test GraphsB1 11A_Ant1_Low_5180 11A_Ant1_High_5240 11N20SISO_Ant1_Low_5180 FCCID:2BWMA-SN0010401 40 11N20SISO_Ant1_High_5240 11N40SISO_Ant1_Low_5190 FCCID:2BWMA-SN0010401 41 11N40SISO_Ant1_High_5230 11AC20SISO_Ant1_Low_5180 11AC20SISO_Ant1_High_5240 FCCID:2BWMA-SN0010401 42 11AC40SISO_Ant1_Low_5190 11AC40SISO_Ant1_High_5230 FCCID:2BWMA-SN0010401 43 11AX20SISO_Ant1_Low_5180 11AX20SISO_Ant1_High_5240 11AX40SISO_Ant1_Low_5190 FCCID:2BWMA-SN0010401 44 11AX40SISO_Ant1_High_5230 FCCID:2BWMA-SN0010401 45 Appendix D.7:Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant1 5180 30…

Text truncated - open the document above for the full version.
