2BWNC-M1Vision Perception Exoskeleton

Read this manual carefully before use and keep it in a safe place for future reference. Model: M1 Neo/M1 Pure/M1 Pro/M1 Ultra Vision Perception Exoskeleton Product User Manual Contents 1 Safety Information............................................................................................... 1 1.1 Safety Information.................................................................................... 1 1.2 Non-suitable User Population.................................................................. 1 1.3 Usage Restrictions ................................................................................... 1 2 What‘s in the Box................................................................................................. 1 3 Product Overview................................................................................................ 2 3.1 Parts Description...................................................................................... 2 3.2 technical specifications ........................................................................... 3 4 Quick Start Guide................................................................................................. 4 4.1 Prepare the IRMO App.............................................................................. 4 4.2 Assembly ................................................................................................. 4 4.3 Product Wearing ....................................................................................... 7 4.4 Doffing Guide............................................................................................ 9 4.5 Disassembly Guide.................................................................................10 5 How to Use.........................................................................................................11 5.1 Power On.................................................................................................12 5.2 Start to use .............................................................................................12 5.3 Pause .....................................................................................................13 5.4 Resume ...................................................................................................13 5.5 Check Battery Level................................................................................13 5.6 Adjust Assistance Level.........................................................................13 5.7 Power Off ................................................................................................13 5.8 Firmware Update ....................................................................................13 5.9 Fault Indication .......................................................................................13 5.10 Mode Switching....................................................................................14 5.11 Connect to App.....................................................................................14 6 Fit & Adjustment................................................................................................15 6.1 How to Achieve the Best Fit...................................................................15 6.2 Common Fit Issues ................................................................................15 6.3 Compatibility ..........................................................................................15 7 Battery and Charging........................................................................................15 7.1 Battery Installation and Removal .........................................................15 7.2 Charging Instructions.............................................................................16 7.3 Running time reference .........................................................................16 7.4 Battery Life and Maintenance................................................................17 7.5 Air Travel .................................................................................................17 8 Maintenance and Care......................................................................................17 8.1 Cleaning ..................................................................................................17 8.2 Strap Cleaning and Replacement ..........................................................17 8.3 Product Storage......................................................................................18 9 Troubleshooting.................................................................................................18 9.1 Common Issues .....................................................................................18 9.2 Error Codes .............................................................................................19 10 Compliance and Environmental Information................................................19 10.1 FCC Statement (USA) ..........................................................................20 10.2 Canada Statement ...............................................................................21 10.3 CE Declaration (EU) ..............................................................................21 10.4 WEEE Compliance ................................................................................22 10.5 Battery Recycling..................................................................................22 10.6 RoHS Compliance ................................................................................22 10.7 Packaging Recycling ............................................................................22 11 Warranty and Support.....................................................................................23 11.1 Warranty Policy.....................................................................................23 11.2 Warranty Coverage .......................................…

Text truncated - open the document above for the full version.

Report No.: BTL-FCC SAR-1-2606C022 Report Version: R00 Page 1 of 28 FCC SAR Test Report FCC ID: 2BWNC-M1 Project No. : 2606C022 Equipment : Vision Perception Exoskeleton Brand Name : IRMO Model Name : M1 Pure, M1 Neo, M1 Pro, M1 Ultra Date of Receipt : Jun. 03, 2026 Date of Test : Jun. 03, 2026 ~ Jun. 29, 2026 Issued Date : Jul. 10, 2026 Test Sample : Engineering Sample No.: DG920260602296 Standard(s) : Please refer to page 2. Applicant : IRMO BOT LIMITED Address : RM 2C-P11, 2/F, HUNG TO CTR.,94-96 HOW MING ST., KWUN TONG HONG KONG Manufacturer : Shenzhen Shenmo Robot Co., Ltd. Address : Room 1105B, Building 3, Meinian International Plaza, No. 1115 Nanhai Avenue, Taohuayuan Community, Zhaoshang Subdistrict, Nanshan District, Shenzhen, Guangdong Province, P.R. China The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. (Dongguan). Prepared by : Justin Huang Approved by : Herbort Liu No.3, Jinshagang 1st Road, Dalang, Dongguan, Guangdong People’s Republic of China. Te l : + 8 6-769-8318-3000 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCC SAR-1-2606C022 Report Version: R00 Page 2 of 28 Standard(s) : IEEE Std C95.1:2019 IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 kHz to 300 GHz IEEE Std 1528 TM -2013 IEEE Recommended Practice for Determining the Peak Spatial- Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques KDB865664 D01 SAR measurement 100 MHz to 6 GHz v01r04 Test Method : KDB865664 D02 SAR Reporting v01r02 KDB447498 D04 Interim General RF Exposure Guidance v01 Report No.: BTL-FCC SAR-1-2606C022 Report Version: R00 Page 3 of 28 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacturer’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL assumes no responsibility for the data provided by the customer, any statements, inferences or generalizations drawn by the customer or others from the reports issued by BTL. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025: 2017 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCC SAR-1-2606C022 Report Version: R00 Page 4 of 28 Table of Contents Page REVISION HISTORY 6 1 . GENERAL INFORMATION 7 1.1 STATEMENT OF COMPLIANCE 7 1.2 LABORATORY ENVIRONMENT 7 1.3 GENERAL DESCRIPTION OF EUT 8 1.4 MAIN TEST INSTRUMENTS 9 2 . RF EMISSIONS MEASUREMENT 10 2.1 TEST FACILITY 10 2.2 MEASUREMENT UNCERTAINTY 10 3 . SAR MEASUREMENTS SYSTEM CONFIGURATION 11 3.1 SAR MEASUREMENT SET-UP 11 3.1.1 TEST SETUP LAYOUT 11 3.2 DASY E-FIELD PROBE SYSTEM 12 3.2.1 PROBE SPECIFICATION 12 3.2.2 E-FIELD PROBE CALIBRATION 13 3.2.3 OTHER TEST EQUIPMENT 14 3.2.4 SCANNING PROCEDURE 15 4 . SYSTEM VERIFICATION PROCEDURE 17 4.1 TISSUE VERIFICATION 17 4.2 SYSTEM CHECK 18 4.3 SYSTEM CHECK PROCEDURE 18 5 . OPERATIONAL CONDITIONS DURING TEST 19 5.1 TEST POSITION 19 5.2 TEST CONFIGURATION 20 6 . TEST RESULT 22 6.1 CONDUCTED POWER RESULTS 22 6.1.1 CONDUCTED POWER MEASUREMENTS OF BLUETOOTH 22 6.1.2 CONDUCTED POWER MEASUREMENTS OF WIFI 2.4G 22 6.2 SAR TEST RESULTS 23 6.2.1 SAR MEASUREMENT RESULT 24 7 MULTIPLE TRANSMITTER EVALUATION 25 7.1 SIMULTANEOUS TRANSMISSION CONDITIONS 25 7.2 SAR SUMMATION SCENARIO 26 APPENDIX 27 Report No.: BTL-FCC SAR-1-2606C022 Report Version: R00 Page 5 of 28 Table of Contents Page 1. TEST LAYOUT 27 Appendix A. SAR Plots of System Verification Appendix B. SAR Plots of SAR Measurement Appendix C. Calibration Certificate Appendix D. Photographs of the Test Set-Up Report No.: BTL-FCC SAR-1-2606C022 Report Version: R00 Page 6 of 28 REVISION HISTORY Report No. Version Description Issued Date Note BTL-FCC SAR-1-2606C022 R00 Original Report. Jul. 10, 2026 Valid Report No.: BTL-FCC SAR-1-2606C022 Report Version: R00 Page 7 of 28 1. GENERAL INFORMATION 1.1 STATEMENT OF COMPLIANCE Mode Highest Body-worn SAR-1g (W/kg) WiFi 2.4G 1.23 Bluetooth 0.40 Note: The device is in compliance with Specific Absorption Rate (SAR) for general population uncontrolled exposure limits according to the FCC rule §2.1093, the ANSI/IEEE C95.1, the NCRP Report Number 86 for uncontrolled environment, and had been tested in accordance with the measurement methods and procedures specified in IEEE Std 1528 TM . 1.2 LABORATORY ENVIRONMENT Te mperature Min. = 18ºC, Max. = 25ºC Relative humidity Min. = 30%, Max. = 70% Groun…

Text truncated - open the document above for the full version.

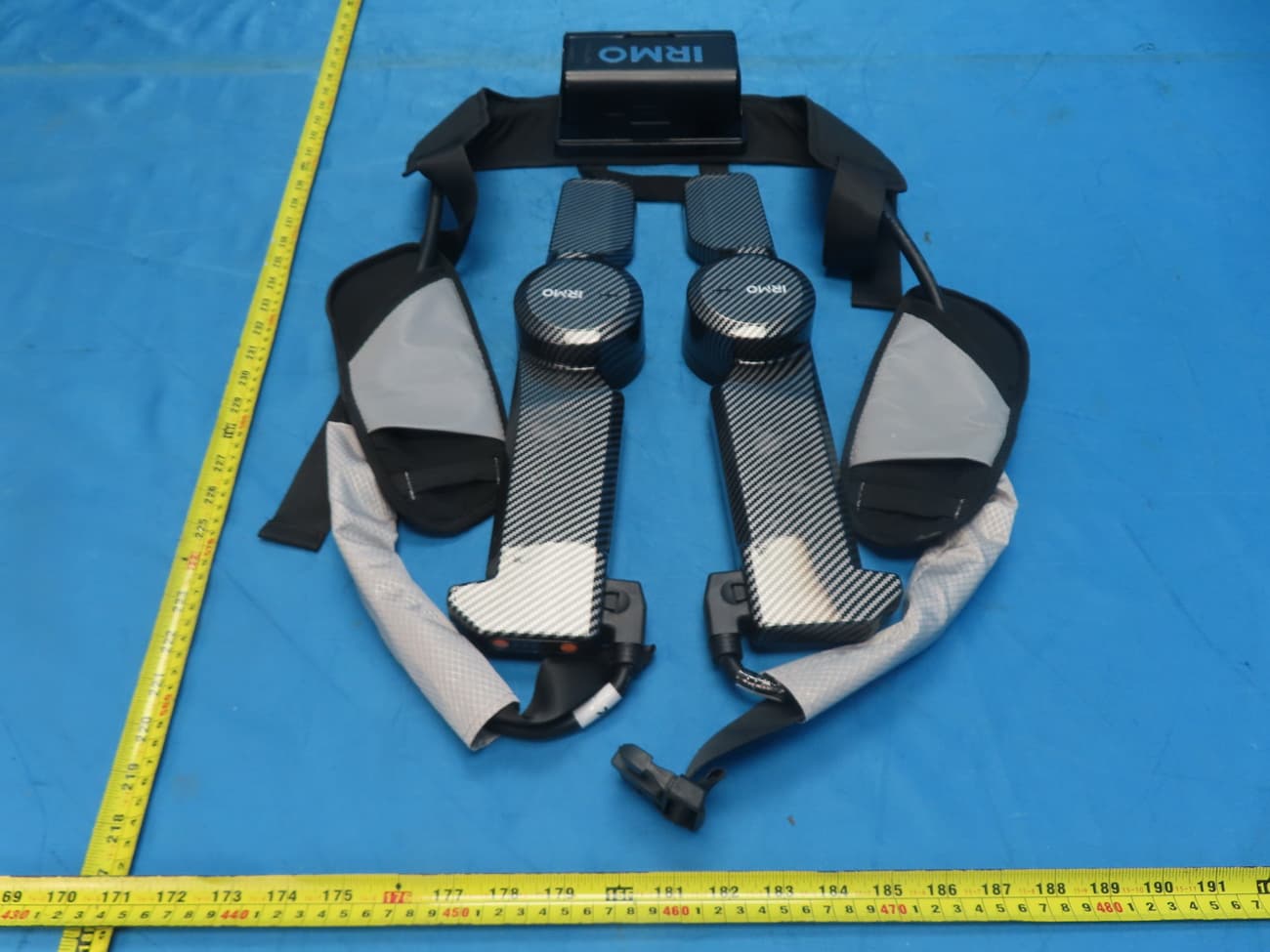

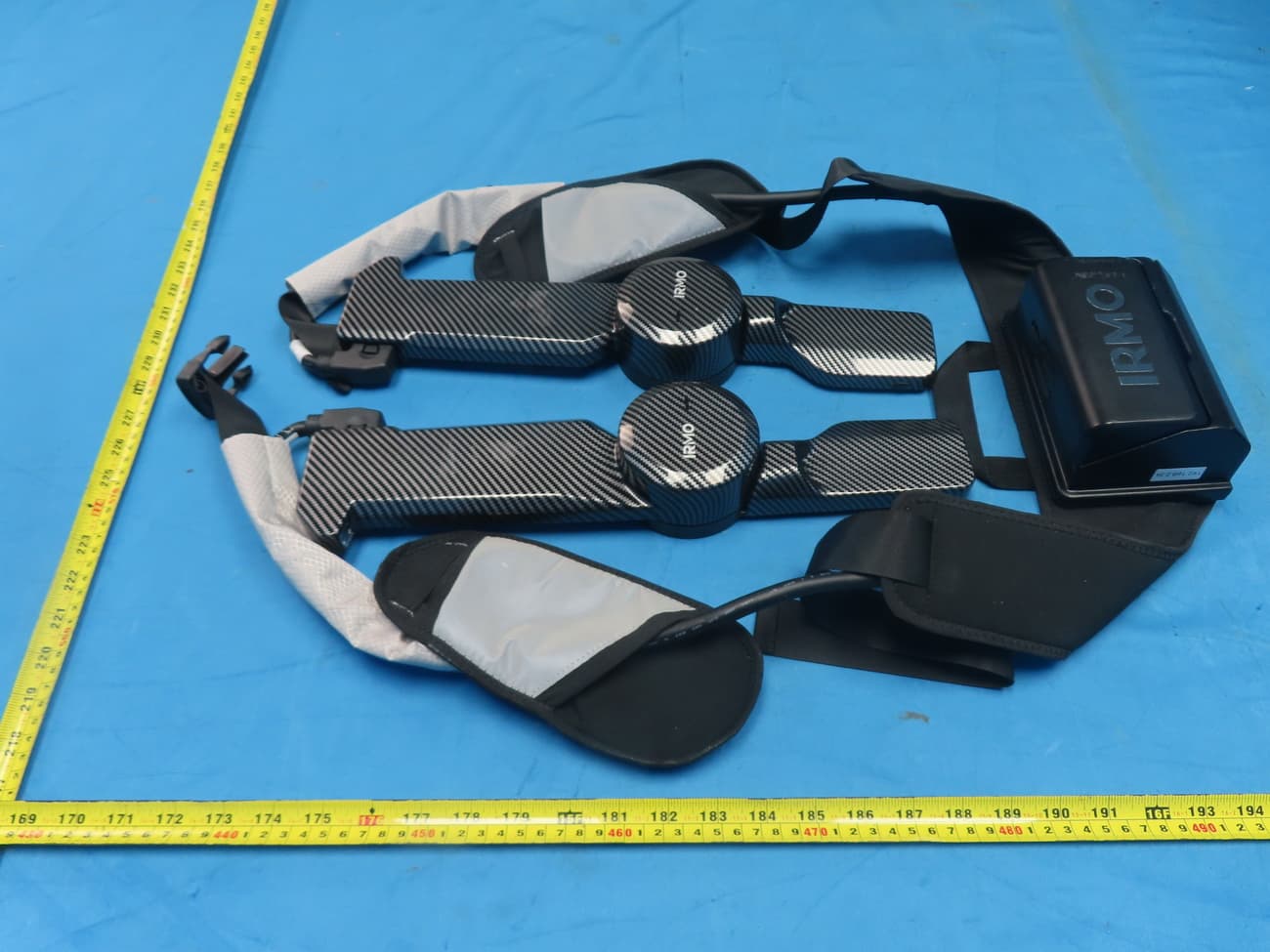

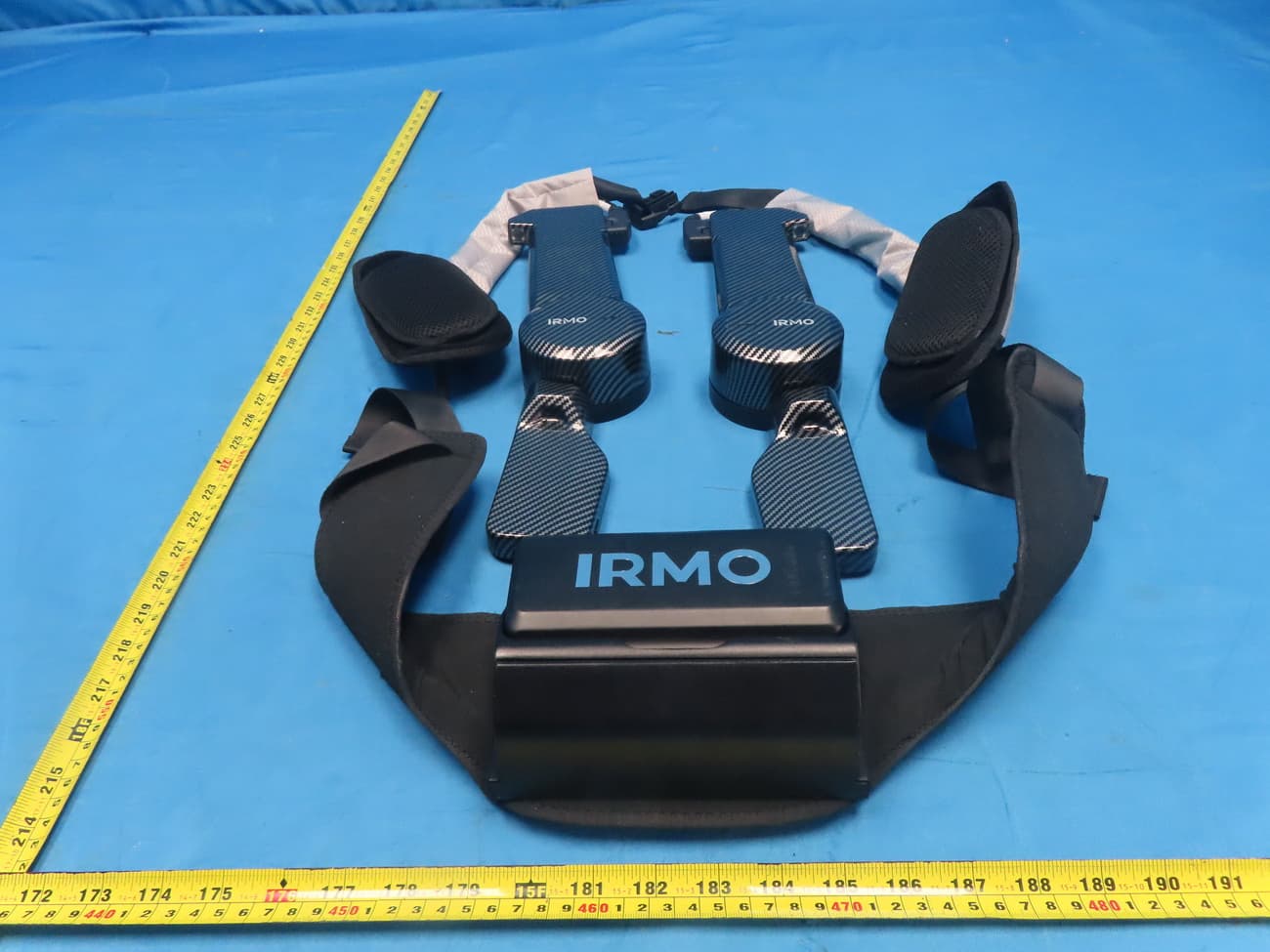

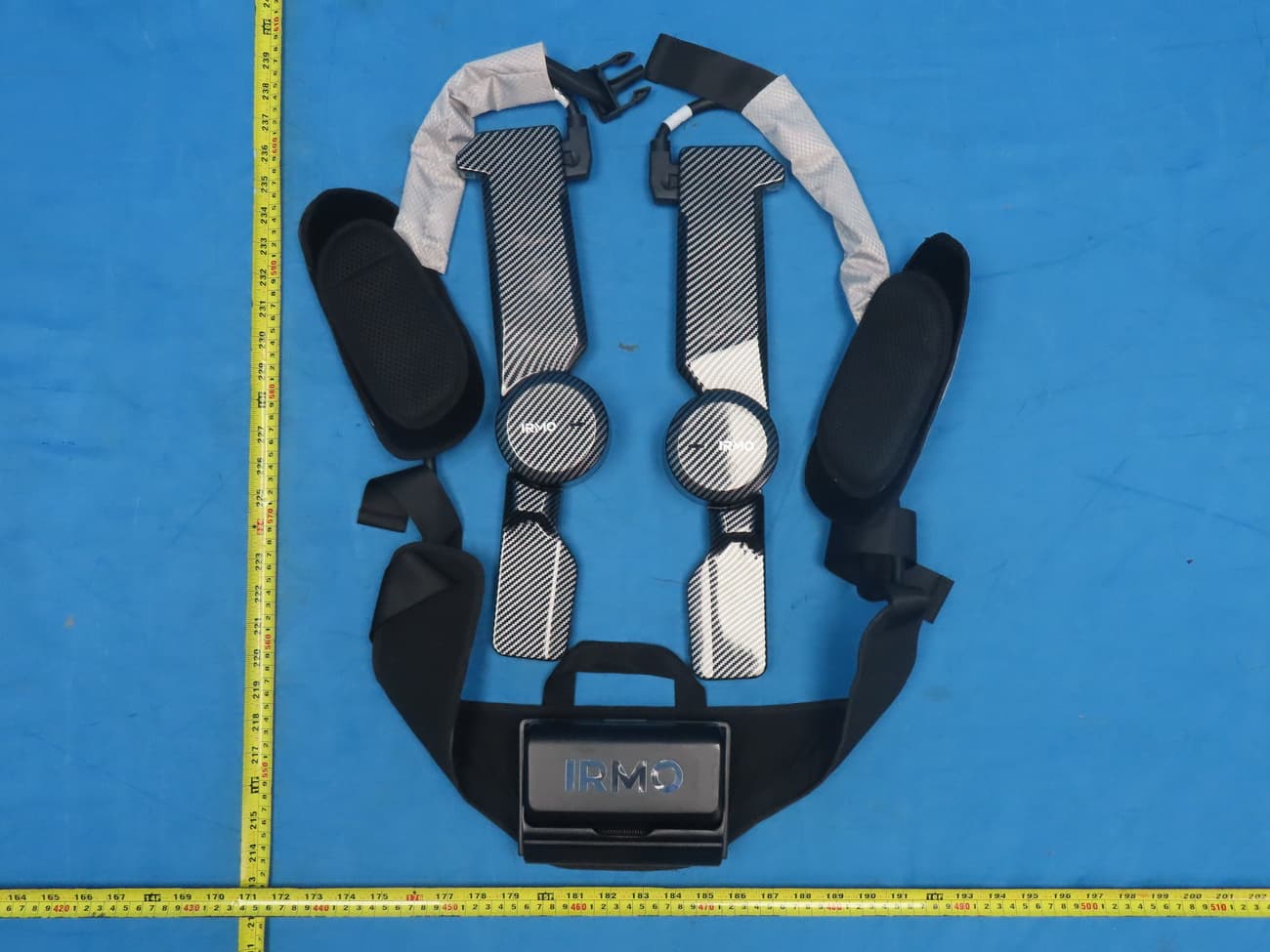

Report No.: BTL-FCC SAR-1-2606C022_Appendix D. Page 1 of 2 Appendix D. Photographs of the Test Set-Up Photo 1: Front Side_0mm Photo 2: Back Side_0mm Photo 3: Left Side_0mm Photo 4: Right Side_0mm Photo 5: Top Side_0mm Photo 6: Bottom Side_0mm Report No.: BTL-FCC SAR-1-2606C022_Appendix D. Page 2 of 2 Photo 7: EUT Photo_Front View Photo 8: EUT Photo_Rear View

Report No.:BTL-FCCP-1-2606C022 Report Version: R01 Page 30 of 73 10.1. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.:BTL-FCCP-1-2606C022 Report Version: R01 Page 31 of 73 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.:BTL-FCCP-1-2606C022 Report Version: R01 Page 32 of 73 Radiated Emissions Test Photos 30 MHz to 1000 MHz Report No.:BTL-FCCP-1-2606C022 Report Version: R01 Page 33 of 73 Radiated Emissions Test Photos Band edge & Harmonic(1 GHz to 18 GHz) Report No.:BTL-FCCP-1-2606C022 Report Version: R01 Page 34 of 73 Radiated Emissions Test Photos Harmonic(18 GHz to 26.5 GHz) Report No.:BTL-FCCP-1-2606C022 Report Version: R01 Page 35 of 73 Conducted Test Photos

R & D, productionand sales of professionalwirelessterminalantenna SPECIFICATION FOR APPROVAL Customer Name： Hangzhou Hangmo Robot Co., Ltd. Product Model： IRMO M1 CustomerP/N ： XINHENGYANGP/N ：CP.21.0000508CP.21.0000509CP.21.0000510 SPECIFFCATIONS:2400MHZ-2500MHZ/5150MHZ-5850MHZφ1.13 双锡线黑色同轴线L=110MM Productiondate ：202 6.0 7.07 SampleVersion：V1 （XINHENGYANG） （FICTION）（SE ）（R&D） 张文翰何亮亮唐师荣 （Customer） （PUR ）（SE ）（R&D ） Manufacturer： SHENZHENXINHENGYANGTECHNOLOGYCO ., LTD Address:1st Floor,BuildingB, AerospaceMicromotorBuilding,No. 7 Langshan2 nd Road,XiliStreet,NanshanDistrict,Shenzhen Phone：0755-83600916email：[email protected] Website：https://www.XHY-2008.com R&D,productionandsalesofprofessionalwirelessterminalantenna Index 一、（Cover）—————————————————————1 二、（Index）—————————————————————2 三、（Changehistory）———————————————3 四、（Thebasicparameters）————————————4 五、（TestEquipment&Conditions）—————————5 六、（Performancetesting）—————————————6-11 七、（ProductDrawing）——————————————12 八、（RoHS）———————————————————13 九、（Productpackaginginstructions）——————13 R&D,productionandsalesofprofessionalwirelessterminalantenna 三、（Changehistory） Number EffectivedateChangerecord V12026.07.7Initialrelease R&D,productionandsalesofprofessionalwirelessterminalantenna 四、（Thebasicparameters） A.ElectricalCharacteristics Frequency2400MHZ-2500MHZ 5150MHZ-5850MHZ VSWRMAIN<2.5AUX<3BT<4.5 AvgEfficiency MAIN2400MHZ-2500MHZ>40% AUX2400MHZ-2500MHZ>50%5150MHZ-5850MHZ>50% BT2400MHZ-2500MHZ>50% PolarizationLinear PeakGain MAIN2400MHZ-2500MHZ:2.77dBi AUX2400MHZ-2500MHZ:5.17dBi5150MHZ-5850MHZ:5.43dBi BT2400MHZ-2500MHZ:3.13dBi B.Material&MechanicalCharacteristics MaterialofRadiatorFPCBlack CableType MAIN:Φ1.13双锡线黑色同轴线L=110MMblack AUX:Φ1.13双锡线黑色同轴线L=110MMblack BT:Φ1.13双锡线黑色同轴线L=110MMblack Dimension35.0MM*16.0MM±0.15MM C.Environmental OperationTemperature-20 ̊ C~+60 ̊ C StorageTemperature-20 ̊C~+60 ̊C R&D,productionandsalesofprofessionalwirelessterminalantenna 五、Introduction: Microwavedarkroomandnoreflectionchamber,absorbingshortwavedarkroom darkroom.Microwavedarkroombyelectromagneticshieldingroom,filteringand isolation,groundingdevice,theventilationduct,indoordistributionsystem, monitoringsystem,ceilingwavematerialpart.Itisbasedonthewaveabsorbing materialastheliningoftheshieldroom,itcanabsorbthemostofthe electromagneticenergyintothesixwallisabettersimulationofthefree spaceconditions. Themainworkingprincipleofmicrowaveanechoicchamberisaccordingtothe electromagneticwaveinthemediumfromthelowmagneticguidemagnetic directionofpropagationrules,absorbingmaterialstoguidethe electromagneticwaveusinghighpermeability,throughresonance,asubstantial absorptionofelectromagneticwaveradiationenergy,bycouplingthe electromagneticenergyintoheatenergy. mainperformance： Frequencyrange:400MHz~6GHzceilingreflectedwavelossmaterials:400MHz~ 6GHzisequaltoormorethan15dB(microwaveabsorbingmaterialbycomposite waveabsorbingmaterials,namelytaperedcontainingcarbonspongesuctionwave materialpasteinferrite). R&D,productionandsalesofprofessionalwirelessterminalantenna 六、（TestReport） Thosespecificationswerespeciallydefinedfor外骨骼M1model. 1.Antennapicture: R&D,productionandsalesofprofessionalwirelessterminalantenna 2.VSWR 1.MeasuringMethod A50Ωcoaxialcableisconnectedtotheantenna.Thenthiscableis connectedtoanetworkanalyzertomeasuretheVSWR. Keepingthisjigawayfrommetalatleast20cm MeasurementfrequencypointsandVSWRvalue B-AUX R&D,productionandsalesofprofessionalwirelessterminalantenna BT R&D,productionandsalesofprofessionalwirelessterminalantenna A=MAIN R&D,productionandsalesofprofessionalwirelessterminalantenna 3.2D/3Dfieldpatterndiagram R&D,productionandsalesofprofessionalwirelessterminalantenna R&D,productionandsalesofprofessionalwirelessterminalantenna R&D,productionandsalesofprofessionalwirelessterminalantenna R&D,productionandsalesofprofessionalwirelessterminalantenna R&D,productionandsalesofprofessionalwirelessterminalantenna R&D,productionandsalesofprofessionalwirelessterminalantenna 4.Passiveefficiency&Gain R&D,productionandsalesofprofessionalwirelessterminalantenna R&D,productionandsalesofprofessionalwirelessterminalantenna 七、（ProductDrawing） R&D,productionandsalesofprofessionalwirelessterminalantenna R&D,productionandsalesofprofessionalwirelessterminalantenna R&D,productionandsalesofprofessionalwirelessterminalantenna 八、RoHS Antenna CP.21.0000508CP.21.0000509CP.21.0000510 meetsRoHS requirementsSeeelectronicfilefordetails. 九、Productpackaginginstructions A.packingshouldmeetthemoistureproof,vibration,pressureand mildewproof,etc. B.thesmallestpackingunitlogomusthavethemanufacturertrademarks, productmodel,name,codeandquantity. C.intheattachedpackinglist,certificateofapproval,andthefactory inspectionreport. ***************************END****************************

Report No.:BTL-FCCP-1-2606C022 Report Version: R01 Page 1 of 73 FCC Radio Test Report FCC ID: 2BWNC-M1 This report concerns: Original Grant Project No. : 2606C022 Equipment : Vision Perception Exoskeleton Brand Name : IRMO Model Name : M1 Pure, M1 Neo, M1 Pro, M1 Ultra Applicant : IRMO BOT LIMITED Address : RM 2C-P11, 2/F, HUNG TO CTR.,94-96 HOW MING ST., KWUN TONG HONG KONG Manufacturer : Shenzhen Shenmo Robot Co., Ltd. Address : Room 1105B, Building 3, Meinian International Plaza, No. 1115 Nanhai Avenue, Taohuayuan Community, Zhaoshang Subdistrict, Nanshan District, Shenzhen, Guangdong Province, P.R. China Date of Receipt : Jun. 03, 2026 Date of Test : Jun. 03, 2026 ~ Jun. 30, 2026 Issued Date : Jul. 10, 2026 Test Sample : Engineering Sample No.: DG920260603514 for conducted, DG920260602293 for others. Standard(s) : FCC CFR Title 47, Part 15, Subpart C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. (Dongguan) Prepared by : Parker Yang Approved by : Chay Cai No.3, Jinshagang 1st Road, Dalang, Dongguan, Guangdong People’s Republic of China. Te l : + 8 6-769-8318-3000 Web: www.newbtl.com Service mail: [email protected] Report No.:BTL-FCCP-1-2606C022 Report Version: R01 Page 2 of 73 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacturer's responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL assumes no responsibility for the data provided by the customer, any statements, inferences or generalizations drawn by the customer or others from the reports issued by BTL. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025: 2017 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.:BTL-FCCP-1-2606C022 Report Version: R01 Page 3 of 73 Table of Contents Page REVISION HISTORY 6 1 . APPLICABLE STANDARDS 7 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 2.3 TEST ENVIRONMENT CONDITIONS 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 12 3.3 PARAMETERS OF TEST SOFTWARE 13 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 14 3.5 SUPPORT UNITS 15 3.6 CUSTOMER INFORMATION DESCRIPTION 15 4 . AC POWER LINE CONDUCTED EMISSIONS 16 4.1 LIMIT 16 4.2 TEST PROCEDURE 16 4.3 DEVIATION FROM TEST STANDARD 16 4.4 TEST SETUP 17 4.5 EUT OPERATING CONDITIONS 17 4.6 TEST RESULTS 17 5 . RADIATED EMISSIONS 18 5.1 LIMIT 18 5.2 TEST PROCEDURE 19 5.3 DEVIATION FROM TEST STANDARD 20 5.4 TEST SETUP 20 5.5 EUT OPERATING CONDITIONS 22 5.6 TEST RESULT - 9 KHZ TO 30 MHZ 22 5.7 TEST RESULT - 30 MHZ TO 1000 MHZ 22 5.8 TEST RESULT - ABOVE 1000 MHZ 22 6 . BANDWIDTH 23 6.1 LIMIT 23 Report No.:BTL-FCCP-1-2606C022 Report Version: R01 Page 4 of 73 Table of Contents Page 6.2 TEST PROCEDURE 23 6.3 DEVIATION FROM STANDARD 23 6.4 TEST SETUP 23 6.5 EUT OPERATION CONDITIONS 23 6.6 TEST RESULTS 23 7 . MAXIMUM OUTPUT POWER 24 7.1 LIMIT 24 7.2 TEST PROCEDURE 24 7.3 DEVIATION FROM STANDARD 24 7.4 TEST SETUP 24 7.5 EUT OPERATION CONDITIONS 24 7.6 TEST RESULTS 24 8 . CONDUCTED SPURIOUS EMISSION 25 8.1 LIMIT 25 8.2 TEST PROCEDURE 25 8.3 DEVIATION FROM STANDARD 26 8.4 TEST SETUP 26 8.5 EUT OPERATION CONDITIONS 26 8.6 TEST RESULTS 26 9 . POWER SPECTRAL DENSITY 27 9.1 LIMIT 27 9.2 TEST PROCEDURE 27 9.3 DEVIATION FROM STANDARD 27 9.4 TEST SETUP 27 9.5 EUT OPERATION CONDITIONS 27 9.6 TEST RESULTS 27 10 . MEASUREMENT INSTRUMENTS LIST 28 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 36 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 39 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 44 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 47 APPENDIX E - BANDWIDTH 62 Report No.:BTL-FCCP-1-2606C022 Report Version: R01 Page 5 of 73 Table of Contents Page APPENDIX F - MAXIMUM OUTPUT POWER 65 APPENDIX G - CONDUCTED SPURIOUS EMISSION 68 APPENDIX H - POWER SPECTRAL DENSITY 71 Report No.:BTL-FCCP-1-2606C022 Report Version: R01 Page 6 of 73 REVISION HISTORY Report No. Version Description Issued Date Note BTL-FCCP-1-2606C022 R00 Original Report. Jul. 07, 2026 Invalid BTL-FCCP-1-2606C022 R00 This report only updated the manufacturer information of the antenna on page 11. It is a revision of the report BTL-FCCP-1-2606C022 R00. This is a newly released report, replacing the BTL-FCCP-1-2606C022 R00 report. Jul. 10, 2026 Valid Report No.:BTL-FCCP-1-2606C022 Report Version: R01 Page 7 of 73 1. APPLICABLE STANDARDS According to the specifications of the manufacturer,…

Text truncated - open the document above for the full version.

Report No.:BTL-FCCP-2-2606C022 Report Version: R02 Page 87 of 91 Test Mode TX N(HT20) Mode Reference Level-CH01 Reference Level-CH06 Reference Level-CH11 Bandedge-CH01 Bandedge-CH11 Harmonic-CH01 Harmonic-CH06 Harmonic-CH11 Report No.:BTL-FCCP-2-2606C022 Report Version: R02 Page 88 of 91 Test Mode TX N(HT40) Mode Reference Level-CH03 Reference Level-CH06 Reference Level-CH09 Bandedge-CH03 Bandedge-CH09 Harmonic-CH03 Harmonic-CH06 Harmonic-CH09 Report No.:BTL-FCCP-2-2606C022 Report Version: R02 Page 89 of 91 APPENDIX H - POWER SPECTRAL DENSITY Report No.:BTL-FCCP-2-2606C022 Report Version: R02 Page 90 of 91 Test Mode TX B Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -2.81 8.00 Pass 06 2437 -2.71 8.00 Pass 11 2462 -3.03 8.00 Pass CH01 CH06 CH11 Test Mode TX G Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -4.75 8.00 Pass 06 2437 -4.62 8.00 Pass 11 2462 -4.89 8.00 Pass CH01 CH06 CH11 Report No.:BTL-FCCP-2-2606C022 Report Version: R02 Page 91 of 91 Test Mode TX N(HT20) Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -6.93 8.00 Pass 06 2437 -8.03 8.00 Pass 11 2462 -7.62 8.00 Pass CH01 CH06 CH11 Test Mode TX N(HT40) Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -8.99 8.00 Pass 06 2437 -10.02 8.00 Pass 09 2452 -9.92 8.00 Pass CH03 CH06 CH09 End of Test Report

Report No.:BTL-FCCP-2-2606C022 Report Version: R02 Page 1 of 91 FCC Radio Test Report FCC ID: 2BWNC-M1 This report concerns: Original Grant Project No. : 2606C022 Equipment : Vision Perception Exoskeleton Brand Name : IRMO Model Name : M1 Pure, M1 Neo, M1 Pro, M1 Ultra Applicant : IRMO BOT LIMITED Address : RM 2C-P11, 2/F, HUNG TO CTR.,94-96 HOW MING ST., KWUN TONG HONG KONG Manufacturer : Shenzhen Shenmo Robot Co., Ltd. Address : Room 1105B, Building 3, Meinian International Plaza, No. 1115 Nanhai Avenue, Taohuayuan Community, Zhaoshang Subdistrict, Nanshan District, Shenzhen, Guangdong Province, P.R. China Date of Receipt : Jun. 03, 2026 Date of Test : Jun. 03, 2026 ~ Jul. 01, 2026 Issued Date : Jul. 14, 2026 Test Sample : Engineering Sample No.: DG920260603514 for conducted, DG920260602293 for others. Standard(s) : FCC CFR Title 47, Part 15, Subpart C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. (Dongguan) Prepared by : Parker Yang Approved by : Chay Cai No.3, Jinshagang 1st Road, Dalang, Dongguan, Guangdong People’s Republic of China. Te l : + 8 6-769-8318-3000 Web: www.newbtl.com Service mail: [email protected] Report No.:BTL-FCCP-2-2606C022 Report Version: R02 Page 2 of 91 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacturer's responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL assumes no responsibility for the data provided by the customer, any statements, inferences or generalizations drawn by the customer or others from the reports issued by BTL. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025: 2017 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.:BTL-FCCP-2-2606C022 Report Version: R02 Page 3 of 91 Table of Contents Page REVISION HISTORY 6 1 . APPLICABLE STANDARDS 7 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 2.3 TEST ENVIRONMENT CONDITIONS 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 11 3.3 PARAMETERS OF TEST SOFTWARE 12 3.4 DUTY CYCLE 13 3.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 15 3.6 SUPPORT UNITS 16 3.7 CUSTOMER INFORMATION DESCRIPTION 16 4 . AC POWER LINE CONDUCTED EMISSIONS 17 4.1 LIMIT 17 4.2 TEST PROCEDURE 17 4.3 DEVIATION FROM TEST STANDARD 17 4.4 TEST SETUP 18 4.5 EUT OPERATION CONDITIONS 18 4.6 TEST RESULTS 18 5 . RADIATED EMISSIONS 19 5.1 LIMIT 19 5.2 TEST PROCEDURE 20 5.3 DEVIATION FROM TEST STANDARD 21 5.4 TEST SETUP 21 5.5 EUT OPERATION CONDITIONS 23 5.6 TEST RESULTS - 9 KHZ TO 30 MHZ 23 5.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 23 5.8 TEST RESULTS - ABOVE 1000 MHZ 23 6 . BANDWIDTH 24 6.1 LIMIT 24 Report No.:BTL-FCCP-2-2606C022 Report Version: R02 Page 4 of 91 Table of Contents Page 6.2 TEST PROCEDURE 24 6.3 DEVIATION FROM STANDARD 24 6.4 TEST SETUP 24 6.5 EUT OPERATION CONDITIONS 24 6.6 TEST RESULTS 24 7 . MAXIMUM OUTPUT POWER 25 7.1 LIMIT 25 7.2 TEST PROCEDURE 25 7.3 DEVIATION FROM STANDARD 25 7.4 TEST SETUP 25 7.5 EUT OPERATION CONDITIONS 25 7.6 TEST RESULTS 25 8 . CONDUCTED SPURIOUS EMISSIONS 26 8.1 LIMIT 26 8.2 TEST PROCEDURE 26 8.3 DEVIATI…

Text truncated - open the document above for the full version.
