2BWND-AG03SMART AI GLASSES

AI眼镜AG03 使用说明书 （一）外观说明 （二）包装内容 智能眼镜、眼镜布、眼镜袋、磁吸充电线、说明书及其他可能所需配件 （三）使用说明 1.开关机 开机：关机状态下，长按按键①3秒开机 关机：开机状态下，同时长按按键①和按键②，3秒关机 2.拍照 开机状态下，短按按键①1次可拍摄照片，照片会自动存储在产品的本地内存， 可连接APP后导入手机； 3.录像 开机状态下，长按按键①3秒开启录像功能，录像过程中，再长按3秒结束本 次录像，拍摄的视频会自动存储在产品本地内存，可连接APP后导入到手机； 4.录音 开机状态下，长按按键②3秒，开启录音功能，录音过程中，再长按2秒结束 本次录音，录制的音频会自动存储在产品本地内存，可连接APP后导入手机； 5.AI识图 开机状态下，快速短按按键①2次，开启拍照识物功能；同时请保持头部静止， 摄像头会对眼前物体进行拍照，并同步到APP进行分析，结果须在APP的AI 板块里查看。 6.AI语音助手 开机状态下，短按按键②1次，唤醒AI语音助手，可与AI语音助手进行对话， 此操作需让OneGlance应用程序保持在前端显示； 7.隐私提示灯 白色灯闪烁一次:拍照提示 白色灯常亮:录像/直播/视频通话中 8.状态提示灯 红色指示灯闪烁:提示设备电量不足，请及时为设备充电。 蓝色指示灯亮:表示设备已充电完成。 （四）连接设备 1. 扫描下方二维码或进入网站https://oneglance.cn/apk/og.html，下载并安 装本产品眼镜APP 2.也可在GooglePlay或iPhone的AppStore搜索“OneGlance”下 载并安装到手机； 3.打开本产品眼镜APP，按提示完成注册； 选择【眼镜】，点击添加设备； 选择搜索到的本设备名称【AG03】； 听到“connected”声时，AI眼镜与手机连接成功。 （五）控制眼镜 1.使用触控及实体按键 手指放在触摸按键导引点后侧： 单指前滑：音量+ 单指后滑：音量- 单指长按：下一首（媒体） 单指双击：播放/暂停（媒体） 单指三击：上一首（媒体） 2.使用APP软件OneGlance 可通过APP设置眼镜工作模式、控制眼镜工作并使用其它相关功能。详情请登 录APP并参考使用导引。 （六）温馨提示 ·本产品支持拍照和录像，但电量低于20%时，设备将停用拍照和录像功能并暂 停向手机传输数据，充电后可恢复使用； ·本产品支持WiFi传输数据至手机并保存，需要手机允许APP使用相关权限 方可实现。 ·本智能眼镜是单机产品，许多功能需与手机连接后进行使用。 （七）关键安全提示 使用产品前请仔细阅读本说明书，并妥善保管。 •本产品不防水蒸汽，请勿在洗澡/淋浴/汗蒸等高湿环境下使用或充电 •请使用本产品配套的充电线充电； •充电时，如佩戴设备感觉温度异常，请立即取下并停止使用。 •若设备未佩戴，但出现过热或无响应的情况，请及时断开充电线，避免损坏 设备。 •为了防止可能的听力损伤，请勿长时间使用高音量。 •进行剧烈运动时，请勿使用本产品，以免因意外带来人身伤害。 •本产品支持拍照、录像功能，使用本产品时，请遵守隐私保护原则，避免未 经许可录音、录像或拍摄他人，以免侵犯隐私权。请在使用前了解并遵守当地规 定。请确保符合当地法规要求，避免违规使用。 （八）免责声明 使用说明书中的产品、配件、用户界面等插图均为说明参考示意图，与产品实物 可能略有差异，请以实物为准。 因产品的升级可能您拿到的产品部分显示内容或功能会与说明书有所区别，具体 以实物为准。 因产品的升级可能随时对本说明节中的印刷错误、不准确的信息进行必要更改， 或对程序/设备进行改进，不做另行通知，但是，此类更改将纳入到本说明的新 版本中。 AIGlassesAG03 UserManual (I)Appearance (II)PackageContents Smartglasses,cleaningcloth,glassespouch,magneticchargingcable,manual,andotherpossibly neededaccessories (III)UsageInstructions 1.PowerOn/Off PowerOn:LongpressButton①for3secondsinpower-offstatetoturnonthedevice. PowerOff:LongpressbothButton①andButton②simultaneouslyfor3secondsinpower-on statetoturnoffthedevice. 2.TakePhotos Inpower-onstate,shortpressButton①oncetotakeaphoto.Photosareautomaticallysavedto theproduct'slocalmemoryandcanbeimportedtoyourmobilephoneafterconnectingtothe APP. 3.RecordVideos Inpower-onstate,longpressButton①for3secondstoactivatethevideorecordingfunction. Duringrecording,longpressagainfor3secondstostoprecording.Recordedvideosare automaticallysavedtotheproduct'slocalmemoryandcanbeimportedtoyourmobilephone afterconnectingtotheAPP. 4.RecordAudio Inpower-onstate,longpressButton②for3secondstoactivatetheaudiorecordingfunction. Duringrecording,longpressagainfor2secondstostoprecording.Recordedaudiofilesare automaticallysavedtotheproduct'slocalmemoryandcanbeimportedtoyourmobilephone afterconnectingtotheAPP. 5.AIImageRecognition Inpower-onstate,doubleshortpressButton①quicklytoactivatetheimagerecognition function.Pleasekeepyourheadstillatthesametime;thecamerawilltakeaphotooftheobject infrontofyouandsyncittotheAPPforanalysis.ResultscanonlybeviewedintheAIsectionof theAPP. 6.AIVoiceAssistant Inpower-onstate,shortpressButton②oncetowakeuptheAIVoiceAssistantandyoucan haveaconversationwithit.ThisoperationrequirestheOneGlanceapplicationtobedisplayedin theforeground. 7.PrivacyIndicatorLight Whitelightflashesonce:Phototakingprompt Whitelightstayson:Videorecording/Livestreaming/Videocallinprogress 8.StatusIndicatorLight Redindicatorlightflashes:Lowbatteryalert,pleasechargethedeviceinatimelymanner. Blueindicatorlightstayson:Indicatesthedeviceisfullycharged. (IV)ConnecttoDevice 1.ScantheQRcodebeloworgotothewebsitehttps://oneglance.cn/apk/og.htmltodownload andinstalltheeyewearAPPofthisproduct. 2.Youcanalsosearchfor"OneGlance"onGooglePlayortheiPhoneAppStoretodownloadand installitonyourmobilephone. 3.OpentheGlassesAPPofthisproductandcompletetheregistrationasprompted. •Select[Glasses]andclickAddDevice. •Selectthedetecteddevicename[AG03]. •TheAIGlassesaresuccessfullyconnectedtothemobilephonewhenyouhearthevoice prompt"connected". (V)ControltheGlasses 1.UseTouchandPhysicalButtons PlaceyourfingerontherearsideoftheTouchButtonGuidePoint: •Singlefingerswipeforward:Volume+ •Singlefingerswipebackward:Volume- •Singlefingerlongpress:Nexttrack(Media) •Singlefingerdoubletap:Play/Pause(Media) •Singlefingertripletap:Previoustrack(Media) 2.UsetheAPPSoftware(OneGlance) Youcansettheworkingmodeoftheglasses,controltheiroperationanduseotherrelated functionsthroughtheAPP.Fordetails,logintotheAPPandrefertotheuserguide. (VI)Tips •Thisproductsupportsphototakingandvideorecording,butwhenthebatterylevelisbelow 20%,thedevicewilldisablethephototakingandvideorecordingfunctionsandsuspenddata transmissiontothemobilephone,whichcanberestoredaftercharging. •ThisproductsupportsWiFidatatransmissiontoandstorageonthemobilephone,which requiresthemobilephonetogranttherelevantpermissionstotheAPP. •Thissmartglassesisastandalonedevice,andmanyfunctionsneedtobeusedafterconnecting toamobilephone. (VII)ImportantSafetyWarnings Pleasereadthisusermanualcarefullybeforeusingtheproductandkeepitproperlyforfuture reference. •Thisproductisnotresistanttowatervapor.Donotuseorchargeitinhigh-humidity environmentssuchasbathing/showering/sauna. •Pleaseusethededicatedchargingcableprovidedwiththisproductforcharging. •Ifyoufeelabnormaltemperatureonthedevicewhilechargingwithitworn,pleaseremoveit immediatelyandstopusingit. •Ifthedeviceoverheatsorbecomesunresponsivewhennotworn,pleasedisconnectthe chargingcableinatimelymannertoavoiddevicedamage. •Topreventpotentialhearingdamage,donotusehighvolumeforalongtime. •Donotusethisproductduringstrenuousexercisetoavoidpersonalinjurycausedbyaccidents. •Thisproductsupportsphototakingandvideorecordingfunctions.Whenusingthisproduct, pleaseabidebytheprivacyprotectionprinciples,avoidrecordingaudio/videosortakingphotos ofotherswithoutpermissiontopreventinfringementofprivacyrights.Pleaseunderstandand complywithlocalregulationsbeforeuseandensurecompliancewithlocallegalrequirementsto avoidunauthorizeduse. (VIII)Disclaimer FCC Caution This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) …

Text truncated - open the document above for the full version.

ShenzhenNAMIOTTechnologyCo.Ltd. 2.911(d)(7)USAAgentv1.4 Section2.911(d)(7)USAAgentforServiceofProcess Companyname:ShenzhenNAMIOTTechnologyCo.Ltd. Address:501-1,BuildingA1,HongyuanSciencePark,No.28ShijingRoad,Fumin Community,FuchengSubdistrict,LonghuaDistrict,Shenzhen,Guangdong,China ProductName:SMARTAIGLASSES FCCID:2BWND-AG03 Model(s):AG03 2.911(d)(7)USADesignatedAgentforServiceofProcess We,[ShenzhenNAMIOTTechnologyCo.Ltd.](“theapplicant”)designate[CELLT INC.] NOTE1 forthepurposeofacceptingserviceofprocessonbehalfoftheapplicant. Applicantconsent:WeAcknowledgeourconsenttoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipment,andatthephysicalU.S. addressandemailaddressofthedesignatedagentandacknowledgeour acceptanceofourobligationtomaintainanagentforserviceofprocessintheUnited Statesfornolessthanoneyearaftereitherthegranteehaspermanentlyterminated allmarketingandimportationoftheapplicableequipmentwithintheU.S.,orthe conclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolving theequipment,whicheverislater. Agentobligation:WeAcknowledgeourobligationtoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipmentatourphysicalU.S. addressandemailaddressfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipment withintheU.S.,ortheconclusionofanyCommission-relatedadministrativeorjudicial proceedinginvolvingtheequipment,whicheverislater. USAAgent Companyname:CELLTINC. Address:140121STST#12958 SACRAMENTO,CA95811,USA FRN:0036412567 ContactName:ThompsonLim TelephoneNo:001-424-3474188 Applicant Companyname:ShenzhenNAMIOT TechnologyCo.Ltd. Address:501-1,BuildingA1,Hongyuan SciencePark,No.28ShijingRoad,Fumin Community,FuchengSubdistrict, LonghuaDistrict,Shenzhen,Guangdong, China FCCGranteeCode:2A4MT-2BWND ShenzhenNAMIOTTechnologyCo.Ltd. 2.911(d)(7)USAAgentv1.4 Email:[email protected]:FengXie TelephoneNo:+8615818581699 Email:[email protected] Signature: Title:Manager Signature: Title:Manager Date:2026.07.10Date:2026.07.10 NOTE1:AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforservice ofprocess. Reference;FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

ShenzhenNAMIOTTechnologyCo.Ltd. 2026-6-17 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(i)requestforFCCID:2BWND-AG03 [ShenzhenNAMIOTTechnologyCo.Ltd.](“theapplicant”)certifiesthattheequipment forwhichauthorizationissoughtisnot“covered”equipmentprohibitedfromreceiving anequipmentauthorizationpursuanttosection2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,theequipmentdoes notutilizecyber-securityoranti-virussoftwarefromKasperskyLab,Inc,oranyofits successorsandassignees,whichisalsoonthe“coveredlist”. Sincerely, Applicantsignature Applicantprintedname:FengXie Title:CEO Company:ShenzhenNAMIOTTechnologyCo.Ltd. ShenzhenNAMIOTTechnologyCo.Ltd. 2026-6-17 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(ii)requestforFCCID:2BWND-AG03 [FengXie](“theapplicant”)certifiesthat,asofthedateofthefilingoftheapplication, theapplicantisnotidentifiedontheCoveredListasanentityproducing“covered” equipment. Sincerely, Applicantsignature Applicantprintedname:FengXie Title:CEO Company:ShenzhenNAMIOTTechnologyCo.Ltd.

ShenzhenNAMIOTTechnologyCo.,Ltd. 2026-6-17 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:CONFIDENTIALITYREQUESTFOR(SMARTAIGLASSES/AG03/FCC ID:2BWND-AG03) ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459 ofCFR47.Wehaverequestedthatthe(BlockDiagram,Schematics, OperationalDescription)requiredtobesubmittedwiththisapplicationbepermanently withheldfrompublicreview. Theaboveexhibitscontaintradesecretsand/orproprietaryinformationthatarenotpubliclyavailable andmaterialsthattheApplicanthasspentconsiderableeffortsindeveloping.Publicdisclosureof thesemaybeharmfultotheApplicantandgiveanunfairadvantagetocompetitorsonthemarket. Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely, Applicantsignature Applicantprintedname:FengXie Title:CEO Company:ShenzhenNAMIOTTechnologyCo.Ltd.

ShenzhenNAMIOTTechnologyCo.,Ltd. 2026-6-17 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorizeShenzhenNTTTestingTechnologyCo.,Ltd.toactonour behalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthesigningof alldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseAct of1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, Applicantsignature Applicantprintedname:FengXie Title:CEO Company:ShenzhenNAMIOTTechnologyCo.Ltd.

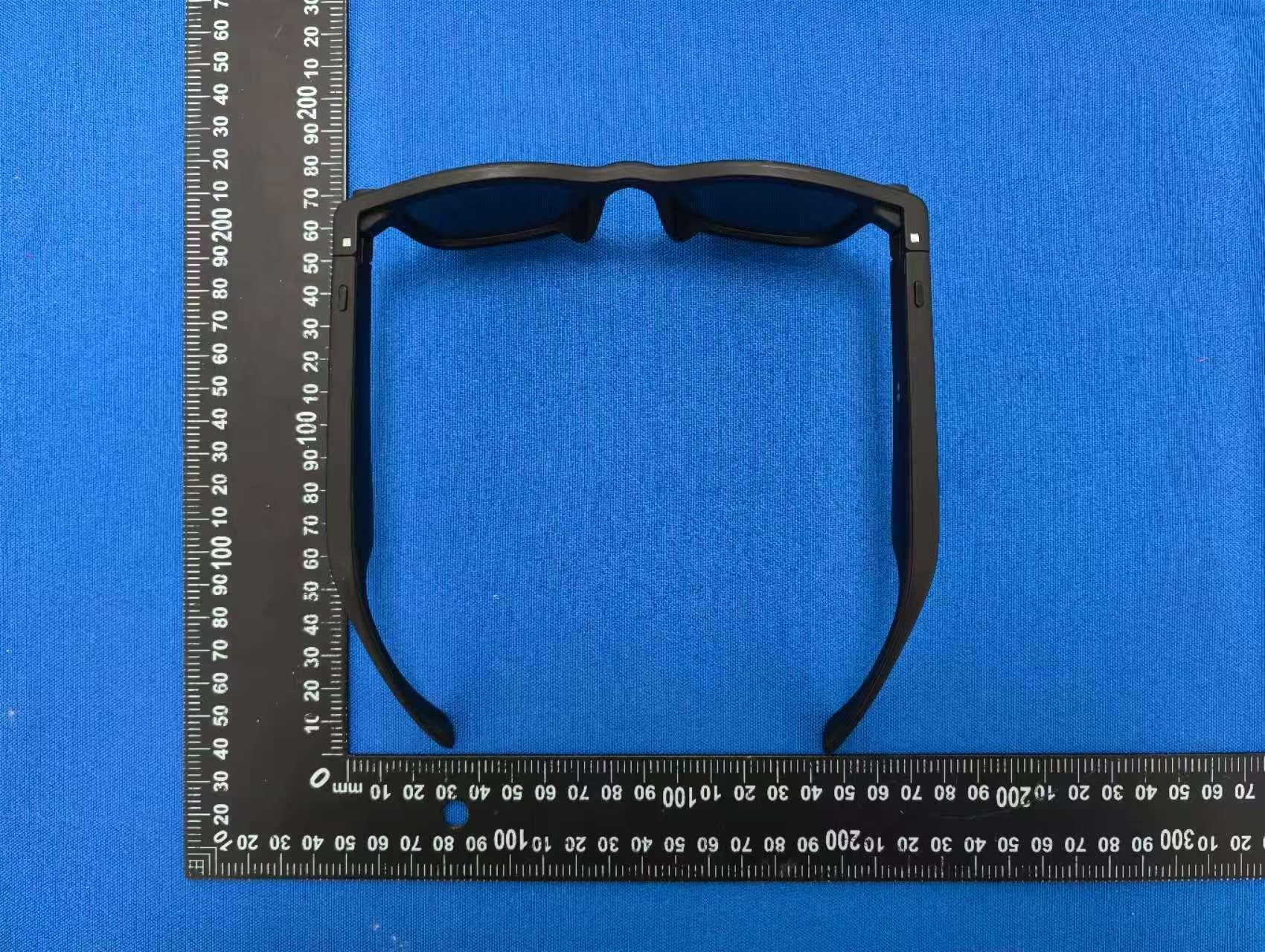

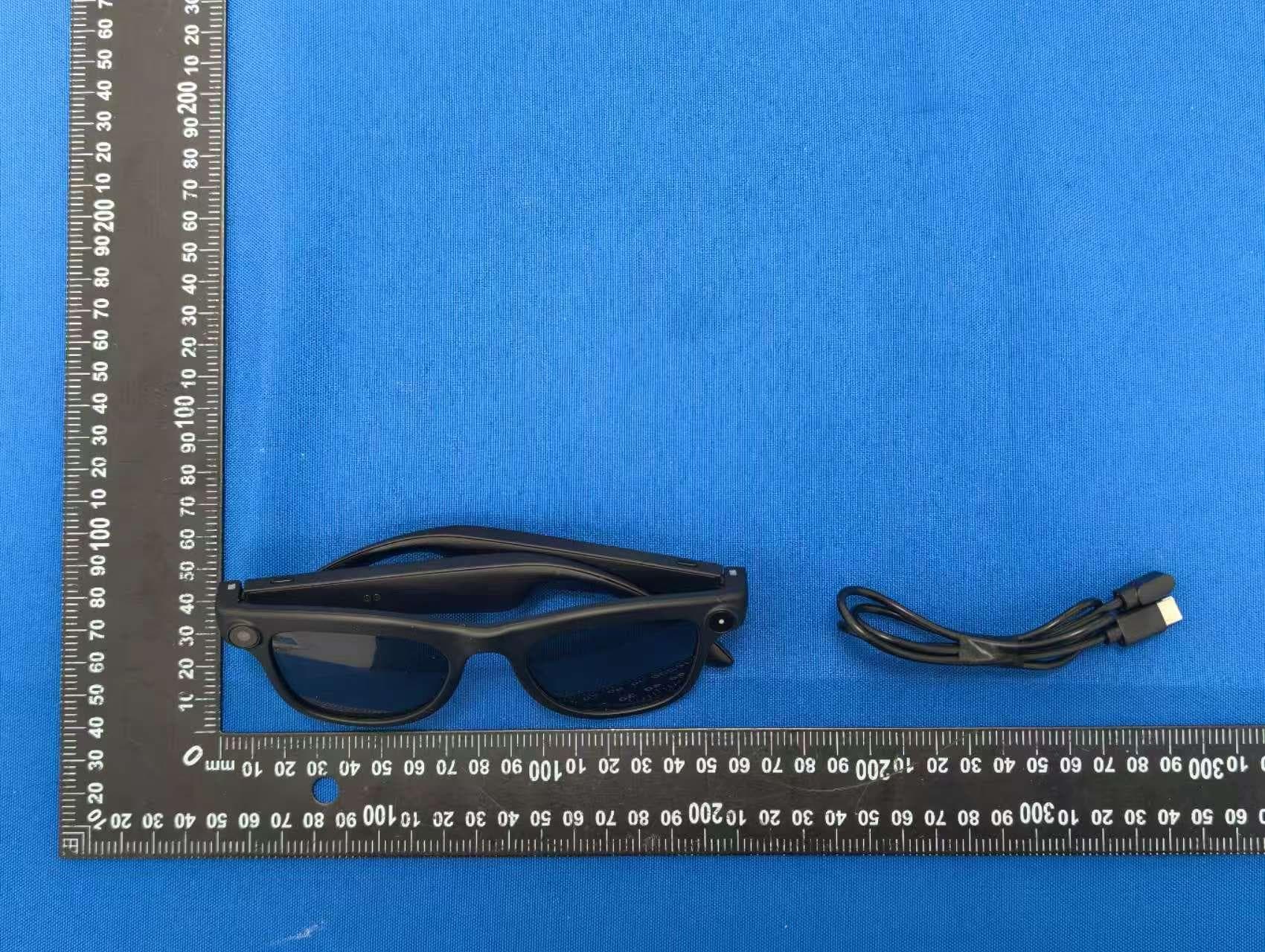

Page 1 of 4 FCCID:2BWND-AG03 ExternalPhotos Page 2 of 4 Page 3 of 4 Page 4 of 4 **************End*************

Label&labellocation Model ： AG03 FCCID:2BWND-AG03 The information on the label will be engraved onto product

Page 1 of 3 FCCID:2BWND-AG03 InternalPhotos Page 2 of 3 BTANT WIFIANT Page 3 of 3 *****************END***************

FCCID:2BWND-AG03 RFExposureEvaluation AccordingtoKDB447498D01GeneralRFExposureGuidancev06andpart2.1093 ， UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone 1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposure conditions,bymeasurementornumericalsimulation,isnotrequiredwhenthe correspondingSARTestExclusionThresholdcondition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤5mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f (GHz) ]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f (GHz) istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Here, BT(BR+EDR) Mode Freque ncy (MHz) Max Power (dBm) Targetpower W/tolerance (dBm) Maxtune uppower tolerance (dBm) MaxPower (mW) Min. Distance (mm) Calc. thresholds limit GFSK 2402 1.44 1.5±1.02.51.7785.000.5513.0 2441 1.06 1.0±1.02.01.5845.000.4943.0 2480 0.19 0.0±1.0 1.01.2595.000.3973.0 Π/4-DQP SK 2402 2.34 2.0±1.0 3.01.9955.000.6183.0 2441 1.95 2.0±1.03.01.9955.000.6233.0 2480 0.97 1.0±1.02.01.5845.000.4993.0 8DPSK 2402 2.76 3.0±1.0 4.02.5115.000.7783.0 2441 2.37 2.0±1.0 3.01.9955.000.6233.0 2480 1.41 1.0±1.02.01.5845.000.4993.0 BT(BLE) 1M GFSK 2402 1.66 1.5±1.0 2.51.7785.000.3103.0 2440 1.24 1.0±1.02.01.5845.000.4953.0 2480 0.32 0.0±1.01.01.2595.000.3973.0 2M GFSK 2402 1.71 1.5±1.0 2.51.7785.000.3103.0 2440 1.33 1.0±1.02.01.5845.000.4953.0 2480 0.35 0.0±1.01.01.2595.000.3973.0 Remark：1.BTAntennagainis-1.61dBi,wifi2.4gAntennagainis-1.61dBi BTandwificantransmitatthesametime 2.InthecaseofsimultaneouslaunchesforwifiandBT: TheMaxCalc.Thresholds:BT:0.778,BLE:0.495,Wifi:1.573 BT+Ble+Wifi:0.778/3+0.495/3+1.573/3=0.945≤1 SoaSARtestisnotrequired WIFI2.4G Mode Frequen cy (MHz) Max Power (dBm) Targetpower W/tolerance (dBm) Maxtune uppower tolerance (dBm) MaxPower (mW) Min. Distance (mm) Calc. thresholds limit 802.11b 2412 6.20 6.0±1.07.05.0125.001.5573.0 2437 6.08 6.0±1.0 7.0 5.0125.001.5653.0 2462 6.03 6.0±1.0 7.0 5.0125.001.5733.0 802.11g 2412 6.29 6.0±1.0 7.0 5.0125.001.5573.0 2437 5.88 6.0±1.0 7.0 5.0125.001.5653.0 2462 5.72 5.5±1.0 6.54.4675.001.4023.0 802.11n (HT20) 2412 5.84 6.0±1.0 7.05.0125.001.5573.0 2437 5.74 5.5±1.0 6.5 4.467 5.001.3943.0 2462 5.76 5.5±1.0 6.5 4.467 5.001.4023.0

CableTest ReportNo.:959+ Page1/49 1.DutyCycle 1.1TestResult 1.1.1Ant1 Ant1 Mode TX Type Frequency (MHz) DutyCycle (%) 802.11bSISO 2412100 2437100 2462100 802.11gSISO 2412100 2437100 2462100 802.11n (HT20) SISO 2412100 2437100 2462100 CableTest ReportNo.:959+ Page2/49 2.Bandwidth 2.1TestResult 2.1.1OBW Mode TX Type Frequency (MHz) ANT 99%OccupiedBandwidth(MHz) Verdict ResultLimit 802.11bSISO 2412112.991/Pass 2437112.914/Pass 2462112.943/Pass 802.11gSISO 2412116.585/Pass 2437116.568/Pass 2462116.586/Pass 802.11n (HT20) SISO 2412117.777/Pass 2437117.763/Pass 2462117.772/Pass 2.1.26dBBW Mode TX Type Frequency (MHz) ANT 6dBBandwidth(MHz) Verdict ResultLimit 802.11bSISO 241219.409>=0.5Pass 243719.373>=0.5Pass 246219.392>=0.5Pass 802.11gSISO 2412117.102>=0.5Pass 2437117.169>=0.5Pass 2462117.235>=0.5Pass 802.11n (HT20) SISO 2412118.074>=0.5Pass 2437118.095>=0.5Pass 2462118.079>=0.5Pass CableTest ReportNo.:959+ Page3/49 2.2TestGraph 2.2.1OBW 802.11b_LCH_2412MHz_Ant1(SISO)_NTNV 802.11b_MCH_2437MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page4/49 CableTest ReportNo.:959+ Page5/49 802.11b_HCH_2462MHz_Ant1(SISO)_NTNV 802.11g_LCH_2412MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page6/49 802.11g_MCH_2437MHz_Ant1(SISO)_NTNV 802.11g_HCH_2462MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page7/49 802.11n(HT20)_LCH_2412MHz_Ant1(SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page8/49 802.11n(HT20)_HCH_2462MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page9/49 2.2.26dBBW 802.11b_LCH_2412MHz_Ant1(SISO)_NTNV 802.11b_MCH_2437MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page10/49 CableTest ReportNo.:959+ Page11/49 802.11b_HCH_2462MHz_Ant1(SISO)_NTNV 802.11g_LCH_2412MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page12/49 802.11g_MCH_2437MHz_Ant1(SISO)_NTNV 802.11g_HCH_2462MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page13/49 802.11n(HT20)_LCH_2412MHz_Ant1(SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page14/49 802.11n(HT20)_HCH_2462MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page15/49 3.MaximumPeakConductedOutputPower 3.1TestResult 3.1.1Power Mode TX Type Frequency (MHz) MaximumPeakConductedOutputPower(dBm) Verdict ANT1Limit 802.11bSISO 24126.20<=30Pass 24376.08<=30Pass 24626.03<=30Pass 802.11gSISO 24126.29<=30Pass 24375.88<=30Pass 24625.72<=30Pass 802.11n (HT20) SISO 24125.84<=30Pass 24375.74<=30Pass 24625.76<=30Pass Note1:AntennaGain:Ant1:3.00dBi; CableTest ReportNo.:959+ Page16/49 4.MaximumPowerSpectralDensity 4.1TestResult 4.1.1PSD Mode TX Type Frequency (MHz) MaximumPSD(dBm) Verdict ANT1,100kHzANT1,3kHzLimit 802.11bSISO 2412-4.90-20.13<=8Pass 2437-5.03-20.26<=8Pass 2462-5.09-20.32<=8Pass 802.11gSISO 2412-12.94-28.17<=8Pass 2437-13.34-28.57<=8Pass 2462-13.42-28.65<=8Pass 802.11n (HT20) SISO 2412-13.84-29.73<=8Pass 2437-13.50-28.73<=8Pass 2462-13.58-28.81<=8Pass Note1:WhenconvertingfromRBW=100kHztoRBW=3kHz,thereadingtheoreticallyneedstobedirectlysubtractedby 15.23dB CableTest ReportNo.:959+ Page17/49 4.2TestGraph 4.2.1PSD 802.11b_LCH_2412MHz_Ant1(SISO)_NTNV 802.11b_MCH_2437MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page18/49 CableTest ReportNo.:959+ Page19/49 802.11b_HCH_2462MHz_Ant1(SISO)_NTNV 802.11g_LCH_2412MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page20/49 802.11g_MCH_2437MHz_Ant1(SISO)_NTNV 802.11g_HCH_2462MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page21/49 802.11n(HT20)_LCH_2412MHz_Ant1(SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page22/49 802.11n(HT20)_HCH_2462MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page23/49 5.UnwantedEmissionsInNon-restrictedFrequencyBands 5.1TestResult 5.1.1Ref Mode TX Type Frequency (MHz) ANT LevelofReference (dBm) 802.11bSISO 24121-0.82 24371-0.32 24621-0.05 802.11gSISO 24121-3.26 24371-2.87 24621-2.74 802.11n (HT20) SISO 24121-3.68 24371-2.99 24621-3.18 5.1.2CSE Mode TX Type Frequency (MHz) ANT LevelofReference (dBm) Limit (dBm) Verdict 802.11bSISO 24121-0.05-20.05Pass 24371-0.05-20.05Pass 24621-0.05-20.05Pass 802.11gSISO 24121-2.74-22.74Pass 24371-2.74-22.74Pass 24621-2.74-22.74Pass 802.11n (HT20) SISO 24121-2.99-22.99Pass 24371-2.99-22.99Pass 24621-2.99-22.99Pass CableTest ReportNo.:959+ Page24/49 5.2TestGraph 5.2.1Ref 802.11b_LCH_2412MHz_Ant1(SISO)_NTNV 802.11b_MCH_2437MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page25/49 CableTest ReportNo.:959+ Page26/49 802.11b_HCH_2462MHz_Ant1(SISO)_NTNV 802.11g_LCH_2412MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page27/49 802.11g_MCH_2437MHz_Ant1(SISO)_NTNV 802.11g_HCH_2462MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page28/49 802.11n(HT20)_LCH_2412MHz_Ant1(SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page29/49 802.11n(HT20)_HCH_2462MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page30/49 5.2.2CSE 802.11b_LCH_2412MHz_Ant1(SISO)_NTNV 802.11b_LCH_2412MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page31/49 CableTest ReportNo.:959+ Page32/49 802.11b_MCH_2437MHz_Ant1(SISO)_NTNV 802.11b_HCH_2462MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page33/49 802.11b_HCH_2462MHz_Ant1(SISO)_NTNV 802.11g_LCH_2412MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page34/49 802.11g_LCH_2412MHz_Ant1(SISO)_NTNV 802.11g_MCH_2437MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page35/49 802.11g_HCH_2462MHz_Ant1(SISO)_NTNV 802.11g_HCH_2462MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page36/49 802.11n(HT20)_LCH_2412MHz_Ant1(SISO)_NTNV 802.11n(HT20)_LCH_2412MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page37/49 802.11n(HT20)_MCH_2437MHz_Ant1(SISO)_NTNV 802.11n(HT20)_HCH_2462MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page38/49 802.11n(HT20)_HCH_2462MHz_Ant1(SISO)_NTNV CableTest ReportNo.:959+ Page39/49 6.UnwantedEmissionsInRestrictedFrequencyBands 6.1TestResult 6.1.1RSE Mode TX Type Frequency (MHz) ANT LevelofUnwantedEmissions(dBm) Verdict ResultLimit 802.11bSISO 24121ReferToTestGraphPass 24371ReferToTestGraphPass 24621ReferToTestGraphPass 802.11gSISO 24121ReferToTestGraphPass 24371ReferToTestGraphPass 24621ReferToTestGraphPass 802.11n …

Text truncated - open the document above for the full version.

Page1/31 1.Bandwidth 1.1TestResult 1.1.1OBW Mode TX Type Frequency (MHz) ANT 99%OccupiedBandwidth(MHz) Verdict ResultLimit 1MSISO 240210.972/Pass 244010.972/Pass 248010.972/Pass 2MSISO 240211.961/Pass 244011.962/Pass 248011.957/Pass 1.1.26dBBW Mode TX Type Frequency (MHz) ANT 6dBBandwidth(MHz) Verdict ResultLimit 1MSISO 240210.507>=0.5Pass 244010.512>=0.5Pass 248010.507>=0.5Pass 2MSISO 240210.856>=0.5Pass 244010.855>=0.5Pass 248010.853>=0.5Pass Page2/31 1.2TestGraph 1.2.1OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page3/31 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page4/31 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page5/31 1.2.26dBBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page6/31 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page7/31 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page8/31 2.MaximumConductedOutputPower 2.1TestResult 2.1.1Power Mode TX Type Frequency (MHz) MaximumPeakConductedOutputPower(dBm) Verdict ANT1Limit 1MSISO 24021.66<=30Pass 24401.24<=30Pass 24800.32<=30Pass 2MSISO 24021.71<=30Pass 24401.33<=30Pass 24800.35<=30Pass Note1:AntennaGain:Ant1:2.00dBi; Page9/31 2.2TestGraph 2.2.1Power 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page10/31 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page11/31 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page12/31 3.MaximumPowerSpectralDensity 3.1TestResult 3.1.1PSD Mode TX Type Frequency (MHz) MaximumPSD Verdict ANT1 （dBm/100KHz） ANT1 （dBm/3KHz） Limit 1MSISO 24021.37-13.86<=8dBm/3KHzPass 24400.99-14.24<=8dBm/3KHzPass 24800.02-15.21<=8dBm/3KHzPass 2MSISO 24021.37-13.86<=8dBm/3KHzPass 24400.98-14.25<=8dBm/3KHzPass 24800.01-15.22<=8dBm/3KHzPass Note1:WhenconvertingfromRBW=100kHztoRBW=3kHz,thereadingtheoreticallyneedstobedirectlysubtractedby 15.23dB Page13/31 3.2TestGraph 3.2.1PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page14/31 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page15/31 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page16/31 4.UnwantedEmissionsInNon-restrictedFrequencyBands 4.1TestResult 4.1.1Ref Mode TX Type Frequency (MHz) ANT LevelofReference (dBm) 1MSISO 240211.37 244010.99 248010.00 2MSISO 240211.35 244010.96 24801-0.02 4.1.2CSE Mode TX Type Frequency (MHz) ANT LevelofReference (dBm) Limit (dBm) Verdict 1MSISO 240211.37-18.63Pass 244011.37-18.63Pass 248011.37-18.63Pass 2MSISO 240211.35-18.65Pass 244011.35-18.65Pass 248011.35-18.65Pass Page17/31 4.2TestGraph 4.2.1Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page18/31 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page19/31 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page20/31 4.2.2CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV Page21/31 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Page22/31 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page23/31 2M_LCH_2402MHz_Ant1_NTNV 2M_MCH_2440MHz_Ant1_NTNV Page24/31 2M_HCH_2480MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page25/31 5.UnwantedEmissionsInRestrictedFrequencyBands 5.1TestResult 5.1.1RSE Mode TX Type Frequency (MHz) ANT LevelofUnwantedEmissions(dBm) Verdict ResultLimit 1MSISO 24021ReferToTestGraphPass 24401ReferToTestGraphPass 24801ReferToTestGraphPass 2MSISO 24021ReferToTestGraphPass 24401ReferToTestGraphPass 24801ReferToTestGraphPass Page26/31 5.2TestGraph 5.2.1RSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV Page27/31 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Page28/31 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page29/31 2M_LCH_2402MHz_Ant1_NTNV 2M_MCH_2440MHz_Ant1_NTNV Page30/31 2M_HCH_2480MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page31/31 6.Form731 6.1TestResult 6.1.1Form731 LowerFreq(MHz)HighFreq(MHz)MAXPower(W)MAXPower(dBm) 240224800.00151.71

Dimension (mm) L2.05+-0.15 W1.20+-0.15 T0.85+-0.10 No.Terminal Name 1Feeding/GNG 2GND Application: WLAN, 802.11b/g, Bluetooth, WLAN, etc... Features SMD, high reliability, ultra Impact, Omni-directional... Part number Information RANT2012F245X5 (A)(B)(C)(D)(E)(F) (A)Product TypeChip Antenna (B) Size Code2.0x1.2mm(+-0.2mm) (C) MaterialHigh K material (D) Frequency2.4 ~ 2.5GHz (E) Feeding modePIFA & Single Feeding (F) Antenna typeType=5 Electrical Specification Working Frequency Range2400 ~2500 MHz Bandwidth84 (Min.) Peak Gain 2 dBi (Typ.) Impedance50 Ohm Return loss10 dB ( Min) PolarizationLinear Azimuth BeamwidthOmni-directional Operation Temperature( °C )-40 ~85 °C Resistance to Soldering Heats 10sec. ( @ 280°C) TerminationNi / Au (Leadless) The specification is defined on EVB. Dimension and Terminal Configuration RAIN International Technology Co., Ltd. TEL: 13530576606 Evaluation BoardReference PCB DimensionAntenna Layout Reference Unit :mm Electrical Characteristics Return Loss Return Loss & Radiation 1 Frequency(MHz) S11 (dB) 2400-10.77 2450-24.81 2500-10.243 Radiation Z Y X 2400MHz2450MHz2500MHz Efficiency70.56%75.25%71.01% Peak Gain1.72 dBi2.00 dBi1.69 dBi Directivity TapingSpecifications Reel and TapingSpecification Reel Specification TYPESIZEABCD 20127”5K/Reel 9.0 ±0.5 60 ±213.5 ±0.5178 ±2 TappingSpecification PackagingTypeABWEFGHTDP Paper Type2012 1.50±0.202.30±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.101.57±0.104.0±0.1 ReliabilityTable Test ItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfillthe electrical specification UserSpec. Thermal Shock 1. Preconditioning: 50 ± 10°C/ 1 hr , then keepfor 24 ± 1 hrs at roomtemp. 2. Initialmeasure:Spec:refer Initialspec. 3. Rapidchangeof temperaturetest: -30°Cto +85°C; 100 cycles; 15 minutesat Lowercategorytemperature; 15 minutesat Uppercategorytemperature. No VisibleDamage. Fulfillthe electrical specification. MIL-STD-202 107 Temperature Cycling 1. Initialmeasure:Spec:refer Initialspec. 2. 100 Cycles(-30°Cto +85°C), SoakMode=1(2 Cycle/hours). 3. Measurementat 24 ± 2Hoursafter test condition. No VisibleDamage. Fulfillthe electrical specification. JESD22 JA104 High Temperature Exposure 1. Initialmeasure:Spec:refer Initialspec. 2. Unpowered;500hours@ T=+85°C. 3. Measurementat 24 ± 2 hoursafter test. No VisibleDamage. Fulfillthe electrical specification. MIL-STD-202 108 Low Temperature Storage 1. Initialmeasure:Spec:refer Initialspec. 2. Unpowered:500hours@ T= -30°C. 3. Measurementat 24 ± 2 hoursafter test. No VisibleDamage. Fulfillthe electrical specification. MIL-STD-202 108 Solderability (SMD BottomSide) Dippingmethod: a. Temperature:235 ±5°C b. Dippingtime:3 ± 0.5s The soldershouldcover over 95% of the critical area of bottomside. IEC 60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150 ± 10 °C. Preheatingtime:1~2 min. Soldertemperature:260 ± 5°C. Dippingtime:5 ± 0.5s No VisibleDamage.IEC 60384-21/22 4.10 Vibration5g's for 20 min.,12 cycleseachof 3 orientations Note:Use 8"X5"PCB .031"thick 7 securepointson, one long side and 2 securepointsat cornersof oppositesides.Parts mountedwithin2" from any securepoint.Test from 10-2000 Hz. No VisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksin eachdirectionshall be appliedalongthe three mutuallyperpendicularaxesof the test specimen(18 shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4 ft/s Waveform:Half-sine No VisibleDamage.MIL-STD-202 Method213 Humidity Bias 1. Humidity:85% R.H.,Temperature:85 ± 2°C. 2. Time:500 ± 24 hours. 3. Measurementat 24 ± 2hrs after testcondition. No VisibleDamage. Fulfillthe electrical specification. MIL-STD-202 Method106 2.4GHz2012 Chip Antenna:RANT2012F245X5 _ Board Flex (SMD) 1. Mountingmethod: IR-Reflow.PCB Size (L:100× W:40× T:1.6mm) 2. Applythe load in directionof the arrowuntil bendingreaches 2 mm. No VisibleDamage.AEC-Q200 005 AdhesionForceof 1.8Kgfor 60 seconds.No VisibleDamage Magnificationof 20X or greatermay be employed for inspectionof the mechanicalintegrityof the devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Any applicablemethodusingx10 magnification,micrometers, calipers,gauges,contourprojectors,or othermeasuring equipment,capableof determiningthe actualspecimen dimensions. In accordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 120 20 /10/15New Datasheet

ShenzhenNTTTestingTechnologyCo.,Ltd.ReportNo.:SZNTT26024005E1-1 SZNTT-TR828-0Tel:0755-27889935Web:http://www.ntt-testing.comPage1of28 TESTREPORT Applicant:ShenZhenNAMIOTTechnologyCo.,Ltd. Address: Room501-1,BuildingA1,HongyuanSciencePark,No.28Shijing Road,FuminCommunity,FuchengSubdistrict,LonghuaDistrict, Shenzhen Manufacturer:ShenZhenNAMIOTTechnologyCo.,Ltd. Address: Room501-1,BuildingA1,HongyuanSciencePark,No.28Shijing Road,FuminCommunity,FuchengSubdistrict,LonghuaDistrict, Shenzhen ProductName:SMARTAIGLASSES ModelNumber:AG03 Trademark: / FCCID:2BWND-AG03 TestDate: Apr.13,2026toJun.23,2026 DateofReport: Jun.23,2026 TestResult: ThisdevicedescribedabovehasbeentestedbyNTT,andthetest resultsshowthattheequipmentundertest(EUT)isincompliance withtheStandardrequirements.Anditisapplicableonlytothetested sampleidentifiedinthereport. TestProcedureUsed: Standards:FCCCFRTitle47Part15SubpartCSection15.247 ANSIC63.10-2020+Cor1+2023 Preparedby(TestEngineer): ZhaoDi Approved(Manager): KenWu Approved(Manager): AbelYu ShenzhenNTTTestingTechnologyCo.,Ltd.ReportNo.:SZNTT26024005E1-1 SZNTT-TR828-0Tel:0755-27889935Web:http://www.ntt-testing.comPage2of28 TABLEOFCONTENT 1.GeneralInformation......................................................................................4 1.1.DescriptionofDevice(EUT).......................................................................................................................4 1.2.ChannelList..................................................................................................................................................4 1.3.Summaryoftestresult................................................................................................................................5 1.4.SpecialAccessoriesandAuxiliaryEquipment........................................................................................5 1.5.Testmode................................................................…
