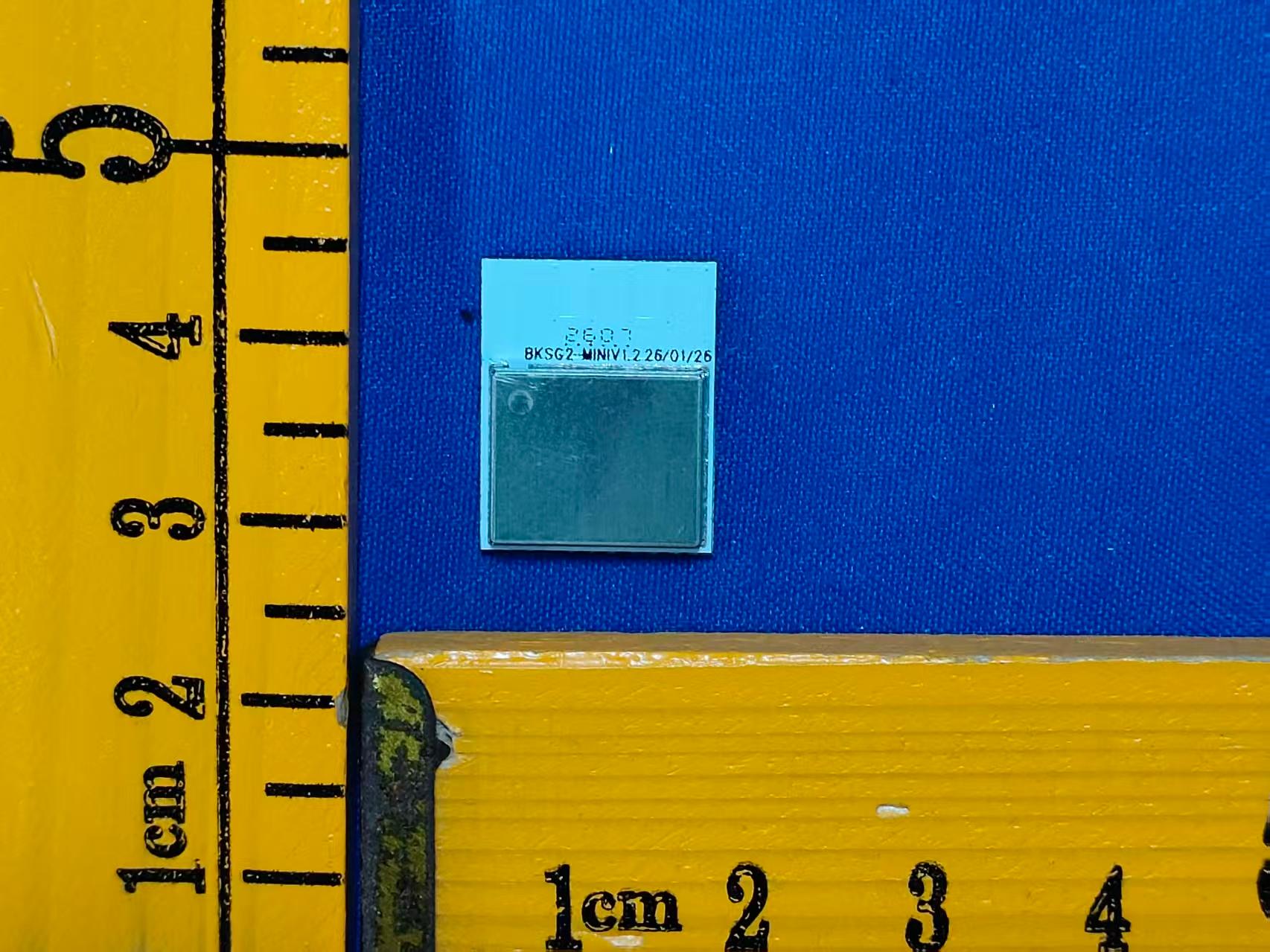

2BWNW-BKSG2-MINIWIFI Module

Shenzhen Xinzhongxin Technology Co., Ltd

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jul 02, 2026
Application Purpose: Original Equipment
Equipment Note: WIFI Module
Frequency Range: 2402.00000000 - 2480.00000000
Company: Shenzhen Xinzhongxin Technology Co., Ltd
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

www.bekencorp.com © BKSG2-MINI Datasheet DS-BKSG2-MINI-E03 V1.2 2026/5/19 Contents © 2026 Beken Corporation 2 DS-BKSG2-MINI-E03 V1.2 Contents Contents ............................................................................................................................................................................. 2 1. Module Overview ....................................................................................................................................................... 4 2. Module Outline ........................................................................................................................................................... 5 2.1 2.2 2.3 Module Laser Marking ................................................................................................................................................................. Module Dimensions......................................................................................................................................................................5 Module Outline With Designators...............................................................................................................................................6 6 2.4 Module PCB Solder Mask ........................................................................................................................................................... 6 2.5 Module PCB Antenna .................................................................................................................................................................. 7 2.6 Schematic ...................................................................................................................................................................................... 7 4.1 3.Pin Descriptions.........................................................................................................................................................8 4.Electrical Characteristics..........................................................................................................................................11 4.2 4.3 4.4 Current Consumption ................................................................................................................................................................. Recommended Operating Conditions.....................................................................................................................................11 Digital I/O Characteristics........................................................................................................................................................... Absolute Maximum Ratings......................................................................................................................................................11 11 12 4.5 4.6 4.7 4.8 4.9 WLAN RF Transmitter Characteristics ..................................................................................................................................... ESD Ratings................................................................................................................................................................................14 WLAN RF Receiver Characteristics......................................................................................................................................... CEN Timing.................................................................................................................................................................................13 Moisture Sensitivity Level...........................................................................................................................................................14 14 16 4.10 Bluetooth LE RF Receiver Characteristics .............................................................................................................................. 17 4.11 Bluetooth LE RF Transmitter Characteristics .......................................................................................................................... 19 4.12 AUX ADC Characteristics .......................................................................................................................................................... 21 4.13 I2C Characteristics ..................................................................................................................................................................... 21 4.14 PWM Characteristics .................................................................................................................................................................. 22 4.15 NTC Characteristics ................................................................................................................................................................... 22 Contents © 2026 Beken Corporation 3 DS-BKSG2-MINI-E03 V1.2 5. Module Burning and Test Mode ............................................................................................................................. 23 5.1 Firmware Download ................................................................................................................................................................... 23 5.2 Enter Test Mode .......................................................................................................................................................................... 24 6. Packge information and ordering number ............................................................................................................. 25 6.1 Packge information ..................................................................................................................................................................... 25 6.2 Ordering number .........................................................................................................…

Text truncated - open the document above for the full version.

RF Exposure Info

ReportNo.:AB26050242FW03 AiboStandardTechnology(Shenzhen)Co.,Ltd. 101,BuildingB,TuoriNewEnergyIndustrialPark,High-techPark,TianliaoCommunity,YutangStreet, GuangmingDistrict,ShenzhenCity,GuangdongProvince,China Tel.:+8675585250797E-mail:[email protected]:www.aibonorm.com FCCTESTREPORT ReportNo..............................................:AB26050242FW03 FCCID ................................................... :2BWNW-BKSG2-MINI Applicant................................................:ShenzhenXinzhongxinTechnologyCo.,Ltd Address.................................................: Floor1~3ofBlock2,DongHuanIndustrialPark,NanPuRoad No.293,ShangLiaoCommunity,XinQiaoStreet,BaoAnDistrict, ShenzhenCity,GuangdongProvince,PRC. Manufacturer......................................:ShenzhenXinzhongxinTechnologyCo.,Ltd Address..............................................: Floor1~3ofBlock2,DongHuanIndustrialPark,NanPuRoad No.293,ShangLiaoCommunity,XinQiaoStreet,BaoAnDistrict, ShenzhenCity,GuangdongProvince,PRC. ProductName ...................................... :WIFIModule TradeMark ............................................ :/ TestModel ............................................. :BKSG2-MINI AdditionalModel(s)..............................: / Standard ................................................ : FCCPart2(Section2.1091) KDB447498D01 IEEEC95.1 DateofReceipt .................................... :2026.05.15 DateofTestDate.................................:2026.05.15-2026.06.03 DateofIssue........................................:2026.06.03 TestResult ............................................ :Pass Compiledby: (PrintedName+Signature) HuaijieLi Supervisedby: (PrintedName+Signature) DavidHuang Approvedby: (PrintedName+Signature) JayLiu TestingLaboratoryName ................... :AiboStandardTechnology(Shenzhen)Co.,Ltd. Address.................................................:101,BuildingB,TuoriNewEnergyIndustrialPark,High-techPark, TianliaoCommunity,YutangStreet,GuangmingDistrict,Shenzhen City,GuangdongProvince,China Thistestreportmaybeduplicatedcompletelyforlegalusewiththeapprovaloftheapplicant.Itshouldnotbe reproducedexceptinfull,withoutthewrittenapprovalofourlaboratory.Theclientshouldnotuseittoclaim productendorsementbyAibo.Thetestresultsinthereportonlyapplytothetestedsample.Thetestreport shallbeinvalidwithoutallthesignaturesoftestingengineers,reviewerandapprover.Anyobjectionsmustbe raisedtoAibowithin15dayssincethedatewhenthereportisreceived.Itwillnotbetakenintoconsideration beyondthislimit.Thetestreportmerelycorrespondtothetestsample. ReportNo.:AB26050242FW03 Page2of8 AiboStandardTechnology(Shenzhen)Co.,Ltd FCCTESTREPORT TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. EUT......................................... : WIFIModule TestModel.............................. : BKSG2-MINI Applicant...............................:ShenzhenXinzhongxinTechnologyCo.,Ltd Address...................................:Floor1~3ofBlock2,DongHuanIndustrialPark,NanPuRoad No.293,ShangLiaoCommunity,XinQiaoStreet,BaoAnDistrict, ShenzhenCity,GuangdongProvince,PRC. Manufacturer......................... : ShenzhenXinzhongxinTechnologyCo.,Ltd Address...................................:Floor1~3ofBlock2,DongHuanIndustrialPark,NanPuRoad No.293,ShangLiaoCommunity,XinQiaoStreet,BaoAnDistrict, ShenzhenCity,GuangdongProvince,PRC. ReportNo.:AB26050242FW03 Page3of8 AiboStandardTechnology(Shenzhen)Co.,Ltd REPORTVERSION VersionNo.IssueDateDescription 012026.06.03InitialIssue ReportNo.:AB26050242FW03 Page4of8 AiboStandardTechnology(Shenzhen)Co.,Ltd TABLEOFCONTENTS 1.GENERALINFORMATION.........................................................................................................................................5 1.1.GENERALDESCRIPTIONOFEUT.........................................................................................................................5 1.2.DESCRIPTIONOFTESTFACILITY........................................................................................................................6 2.RFEXPOSUREEVALUATION...................................................................................................................................7 2.1LIMIT.................................................................................................................................................................................7 2.2EVALUATIONRESULT......................................................................................................................................................8 ReportNo.:AB26050242FW03 Page5of8 AiboStandardTechnology(Shenzhen)Co.,Ltd 1.GENERALINFORMATION 1.1.GENERALDESCRIPTIONOFEUT ProductName:WIFIModule TradeMark:/ TestModel:BKSG2-MINI AdditionalModel(s):/ HardwareVersion:/ SoftwareVersion:/ PowerSupply:DC5V EUTSupportsFunction: (Providedbythecustomer) 2.4GHzISMBands TestSample(s)Number:AB26050241-01(EngineerSample) RadioSpecificationSubjecttothisReport BluetoothVersion:BluetoothLE FrequencyRange:2402MHz~2480MHz ModulationType:GFSK ChannelSpacing:2MHz ChannelNumber(s):40 AntennaType:PCBAntenna AntennaGain:-0.71dBi RadioSpecificationSubjecttothisReport RadioSpecification:IEEE802.11b/g/n FrequencyRange: 2412MHz~2462MHzforIEEE802.11b/g/n(HT20) 2422MHz~2452MHzforIEEE802.11n(HT40) ModulationType: IEEE802.11b:DSSS(CCK,DQPSK,DBPSK) IEEE802.11g:OFDM(64-QAM,16-QAM,QPSK,BPSK) IEEE802.11n-HT20:OFDM(64-QAM,16-QAM,QPSK,BPSK) IEEE802.11n-HT40:OFDM(64-QAM,16-QAM,QPSK,BPSK) ChannelSpacing:5MHz ChannelNumber(s):11ChannelsforIEEE802.11b/g/n(HT20) 7ChannelsforIEEE802.11n(HT40) AntennaType:PCBAntenna AntennaGain:-0.71dBi ReportNo.:AB26050242FW03 Page6of8 AiboStandardTechnology(Shenzhen)Co.,Ltd 1.2.DESCRIPTIONOFTESTFACILITY TestLab:AiboStandardTechnology(Shenzhen)Co.,Ltd. Address:101,BuildingB,TuoriNewEnergyIndustrialPark,High-techPark,TianliaoCommunity,YutangStreet, GuangmingDistrict,Sh…

Text truncated - open the document above for the full version.

Test Setup Photos

ReportNo.:AB26050242 Page1of4 AppendixATestPhotos ACPowerLineConductedEmissionsTestView ReportNo.:AB26050242 Page2of4 RadiatedSpuriousEmissionTestView1 ReportNo.:AB26050242 Page3of4 RadiatedSpuriousEmissionTestView ReportNo.:AB26050242 Page4of4 RFTestView

Test Report

BKSG2-MINIPCBBoard-MountAntennaSpecifications Manufacturer: ShenzhenXinzhongxinTechnologyCo.,Ltd Address:Floor1~3ofBlock2,DongHuanIndustrialPark,NanPuRoadNo.293, ShangLiaoCommunity，XinQiaoStreet,BaoAnDistrict,ShenzhenCity，Guangdong Province,PRC. Model：1 TYPE:PCBAntenna MAXAntennaGain:-0.71dBi 一.Antennadimensionsandspecifications: 1.Topviewoftheantenna: 2.Perspectiveviewofthebottomlayeroftheantenna: 3.Antennabodysize(toplayerpart,unit=mm): 4.Antennabodysize(Bottomlayerpart,unit=mm): 5.PCBboardthickness: ThethicknessofthePCBboard(theholesizefromthetoplayeroftheantennatothe bottomlayer)=0.8mm 三，averagegainandefficiencyofeachchannel: 四，Directionalradiationmap: 1，channel=2412Mhz： 2，channel=2442Mhz： 3，channel=2472Mhz：

Test Report

ReportNo.:AB26050242FW02 AiboStandardTechnology(Shenzhen)Co.,Ltd. 101,BuildingB,TuoriNewEnergyIndustrialPark,High-techPark,TianliaoCommunity,YutangStreet, GuangmingDistrict,ShenzhenCity,GuangdongProvince,China Tel.:+8675585250797E-mail:[email protected]:www.aibonorm.com FCCTESTREPORT ReportNo. ............................................. :AB26050242FW02 FCCID ................................................... :2BWNW-BKSG2-MINI Applicant................................................:ShenzhenXinzhongxinTechnologyCo.,Ltd Address ................................................. : Floor1~3ofBlock2,DongHuanIndustrialPark,NanPuRoad No.293,ShangLiaoCommunity,XinQiaoStreet,BaoAnDistrict, ShenzhenCity,GuangdongProvince,PRC. Manufacturer......................................:ShenzhenXinzhongxinTechnologyCo.,Ltd Address..............................................: Floor1~3ofBlock2,DongHuanIndustrialPark,NanPuRoad No.293,ShangLiaoCommunity,XinQiaoStreet,BaoAnDistrict, ShenzhenCity,GuangdongProvince,PRC. ProductName.......................................:WIFIModule TradeMark............................................:/ TestModel ............................................. :BKSG2-MINI AdditionalModel(s) .............................. :/ Standard................................................: FCC47CFRPart15SubpartC(Part15.247) ANSI C63.10-2020+Cor.1-2023+C63.10a-2024+Erratato C63.10a-2024 DateofReceipt .................................... :2026.05.15 DateofTestDate.................................:2026.05.15-2026.06.03 DateofIssue........................................:2026.06.03 TestResult............................................:Pass Compiledby: (PrintedName+Signature) HuaijieLi Supervisedby: (PrintedName+Signature) DavidHuang Approvedby: (PrintedName+Signature) JayLiu TestingLaboratoryName...................:AiboStandardTechnology(Shenzhen)Co.,Ltd. Address ................................................. :101,BuildingB,TuoriNewEnergyIndustrialPark,High-techPark, TianliaoCommunity,YutangStreet,GuangmingDistrict,Shenzhen City,GuangdongProvince,China Thistestreportmaybeduplicatedcompletelyforlegalusewiththeapprovaloftheapplicant.Itshouldnotbe reproducedexceptinfull,withoutthewrittenapprovalofourlaboratory.Theclientshouldnotuseittoclaim productendorsementbyAibo.Thetestresultsinthereportonlyapplytothetestedsample.Thetestreport shallbeinvalidwithoutallthesignaturesoftestingengineers,reviewerandapprover.Anyobjectionsmustbe raisedtoAibowithin15dayssincethedatewhenthereportisreceived.Itwillnotbetakenintoconsideration beyondthislimit.Thetestreportmerelycorrespondtothetestsample. ReportNo.:AB26050242FW02 Page2of31 AiboStandardTechnology(Shenzhen)Co.,Ltd. FCCTESTREPORT TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. EUT......................................... : WIFIModule TestModel.............................. : BKSG2-MINI Applicant...............................:ShenzhenXinzhongxinTechnologyCo.,Ltd Address...................................:Floor1~3ofBlock2,DongHuanIndustrialPark,NanPuRoad No.293,ShangLiaoCommunity,XinQiaoStreet,BaoAnDistrict, ShenzhenCity,GuangdongProvince,PRC. Manufacturer......................... : ShenzhenXinzhongxinTechnologyCo.,Ltd Address...................................:Floor1~3ofBlock2,DongHuanIndustrialPark,NanPuRoad No.293,ShangLiaoCommunity,XinQiaoStreet,BaoAnDistrict, ShenzhenCity,GuangdongProvince,PRC. ReportNo.:AB26050242FW02 Page3of31 AiboStandardTechnology(Shenzhen)Co.,Ltd. REPORTVERSION VersionNo.IssueDateDescription 012026.06.03InitialIssue ReportNo.:AB26050242FW02 Page4of31 AiboStandardTechnology(Shenzhen)Co.,Ltd. TABLEOFCONTENTS 1.GENERALINFORMATION.........................................................................................................................................6 1.1.GENERALDESCRIPTIONOFEUT.....................................................................................................................................6 1.2.DESCRIPTIONOFSUPPORTEQUIPMENT........................................................................................................................6 1.3.DESCRIPTIONOFEXTERNALI/O.....................................................................................................................................6 1.4.GENERALDESCRIPTIONOFAPPLIEDSTANDARDS.........................................................................................................7 1.5.DESCRIPTIONOFTESTFACILITY.....................................................................................................................................7 1.6.MEASUREMENTUNCERTAINTY......................................................................................................................................8 1.7.ENVIRONMENTALCONDITIONS.....................................................................................................................................8 1.8.DESCRIPTIONOFTESTMODES.......................................................................................................................................9 2.SUMMARYOFTESTRESULT................................................................................................................................11 3.MEASUREMENTINSTRUMENTSLIST.................................................................................................................12 4.ANTENNAREQUIREMENT ......................................................................................................................................13 5.CONDUCTEDOUTPUTPOWER.............................................................................................................................14 5.1.LIMIT.............................................................................................................................................................................14 5.2.TESTSETUP...........…

Text truncated - open the document above for the full version.

Test Report

ReportNo.:AB26050242FW01 AiboStandardTechnology(Shenzhen)Co.,Ltd. 101,BuildingB,TuoriNewEnergyIndustrialPark,High-techPark,TianliaoCommunity,YutangStreet, GuangmingDistrict,ShenzhenCity,GuangdongProvince,China Tel.:+8675585250797E-mail:[email protected]:www.aibonorm.com FCCTESTREPORT ReportNo. ............................................. :AB26050242FW01 FCCID ................................................... :2BWNW-BKSG2-MINI Applicant................................................:ShenzhenXinzhongxinTechnologyCo.,Ltd Address.................................................:Floor1~3ofBlock2,DongHuanIndustrialPark,NanPuRoad No.293,ShangLiaoCommunity,XinQiaoStreet,BaoAnDistrict, ShenzhenCity,GuangdongProvince,PRC. Manufacturer......................................:ShenzhenXinzhongxinTechnologyCo.,Ltd Address..............................................:Floor1~3ofBlock2,DongHuanIndustrialPark,NanPuRoad No.293,ShangLiaoCommunity,XinQiaoStreet,BaoAnDistrict, ShenzhenCity,GuangdongProvince,PRC. ProductName.......................................:WIFIModule TradeMark............................................:/ TestModel.............................................:BKSG2-MINI AdditionalModel(s)..............................:/ Standard ................................................ :FCC47CFRPart15SubpartC(Part15.247) ANSI C63.10-2020+Cor.1-2023+C63.10a-2024+Erratato C63.10a-2024 DateofReceipt....................................:2026.05.15 DateofTestDate.................................:2026.05.15-2026.06.03 DateofIssue........................................:2026.06.03 TestResult............................................:Pass Compiledby: (PrintedName+Signature) HuaijieLi Supervisedby: (PrintedName+Signature) DavidHuang Approvedby: (PrintedName+Signature) JayLiu TestingLaboratoryName ................... :AiboStandardTechnology(Shenzhen)Co.,Ltd. Address ................................................. :101,BuildingB,TuoriNewEnergyIndustrialPark,High-techPark, TianliaoCommunity,YutangStreet,GuangmingDistrict,Shenzhen City,GuangdongProvince,China Thistestreportmaybeduplicatedcompletelyforlegalusewiththeapprovaloftheapplicant.Itshouldnot bereproducedexceptinfull,withoutthewrittenapprovalofourlaboratory.Theclientshouldnotuseitto claimproductendorsementbyAibo.Thetestresultsinthereportonlyapplytothetestedsample.Thetest reportshallbeinvalidwithoutallthesignaturesoftestingengineers,reviewerandapprover.Anyobjections mustberaisedtoAibowithin15dayssincethedatewhenthereportisreceived.Itwillnotbetakeninto considerationbeyondthislimit.Thetestreportmerelycorrespondtothetestsample. ReportNo.:AB26050242FW01 Page2of29 AiboStandardTechnology(Shenzhen)Co.,Ltd. FCCTESTREPORT TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. EUT......................................... : WIFIModule TestModel.............................. : BKSG2-MINI Applicant...............................:ShenzhenXinzhongxinTechnologyCo.,Ltd Address...................................:Floor1~3ofBlock2,DongHuanIndustrialPark,NanPuRoad No.293,ShangLiaoCommunity,XinQiaoStreet,BaoAnDistrict, ShenzhenCity,GuangdongProvince,PRC. Manufacturer......................... : ShenzhenXinzhongxinTechnologyCo.,Ltd Address...................................:Floor1~3ofBlock2,DongHuanIndustrialPark,NanPuRoad No.293,ShangLiaoCommunity,XinQiaoStreet,BaoAnDistrict, ShenzhenCity,GuangdongProvince,PRC. ReportNo.:AB26050242FW01 Page3of29 AiboStandardTechnology(Shenzhen)Co.,Ltd. REPORTVERSION VersionNo.IssueDateDescription 012026.06.03InitialIssue ReportNo.:AB26050242FW01 Page4of29 AiboStandardTechnology(Shenzhen)Co.,Ltd. TABLEOFCONTENTS 1.GENERALINFORMATION.........................................................................................................................................5 1.1.GENERALDESCRIPTIONOFEUT.....................................................................................................................................5 1.2.DESCRIPTIONOFSUPPORTEQUIPMENT........................................................................................................................5 1.3.DESCRIPTIONOFEXTERNALI/O.....................................................................................................................................5 1.4.GENERALDESCRIPTIONOFAPPLIEDSTANDARDS.........................................................................................................6 1.5.DESCRIPTIONOFTESTFACILITY.....................................................................................................................................6 1.6.MEASUREMENTUNCERTAINTY......................................................................................................................................7 1.7.ENVIRONMENTALCONDITIONS.....................................................................................................................................7 1.8.DESCRIPTIONOFTESTMODES.......................................................................................................................................8 2.SUMMARYOFTESTRESULT..................................................................................................................................9 3.MEASUREMENTINSTRUMENTSLIST.................................................................................................................10 4.ANTENNAREQUIREMENT ......................................................................................................................................11 5.CONDUCTEDOUTPUTPOWER.............................................................................................................................12 5.1.LIMIT.............................................................................................................................................................................12 5.2.TESTSETUP.................…

Text truncated - open the document above for the full version.

Test Report

ReportNo.:AB26050242FW02 42 / 44 BandEdgeNVNTn202462MHzAnt1Ref BandEdgeNVNTn202462MHzAnt1Emission ReportNo.:AB26050242FW02 43 / 44 BandEdgeNVNTn402422MHzAnt1Ref BandEdgeNVNTn402422MHzAnt1Emission ReportNo.:AB26050242FW02 44 / 44 BandEdgeNVNTn402452MHzAnt1Ref BandEdgeNVNTn402452MHzAnt1Emission

Test Report

ReportNo.:AB26050242FW02 21 / 44 -6dBBandwidthNVNTn402437MHzAnt1 -6dBBandwidthNVNTn402452MHzAnt1 ReportNo.:AB26050242FW02 22 / 44 OccupiedChannelBandwidth ConditionModeFrequency(MHz)Antenna99%OBW(MHz) NVNTb2412Ant113.085 NVNTb2437Ant113.105 NVNTb2462Ant113.094 NVNTg2412Ant115.54 NVNTg2437Ant115.542 NVNTg2462Ant115.505 NVNTn202412Ant116.058 NVNTn202437Ant116.09 NVNTn202462Ant116.064 NVNTn402422Ant132.046 NVNTn402437Ant132.166 NVNTn402452Ant132.042 ReportNo.:AB26050242FW02 23 / 44 TestGraphs OBWNVNTb2412MHzAnt1 OBWNVNTb2437MHzAnt1 ReportNo.:AB26050242FW02 24 / 44 OBWNVNTb2462MHzAnt1 OBWNVNTg2412MHzAnt1 ReportNo.:AB26050242FW02 25 / 44 OBWNVNTg2437MHzAnt1 OBWNVNTg2462MHzAnt1 ReportNo.:AB26050242FW02 26 / 44 OBWNVNTn202412MHzAnt1 OBWNVNTn202437MHzAnt1 ReportNo.:AB26050242FW02 27 / 44 OBWNVNTn202462MHzAnt1 OBWNVNTn402422MHzAnt1 ReportNo.:AB26050242FW02 28 / 44 OBWNVNTn402437MHzAnt1 OBWNVNTn402452MHzAnt1 ReportNo.:AB26050242FW02 29 / 44 MaximumPowerSpectralDensityLevel ConditionModeFrequency (MHz) AntennaConductedPSD (dBm/100kHz) ConductedPSD (dBm/3kHz) DutyFactor (dB) TotalPSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNTb2412Ant1-11.65-26.880.05-26.838Pass NVNTb2437Ant1-11.6-26.830.05-26.788Pass NVNTb2462Ant1-11.41-26.640.04-26.68Pass NVNTg2412Ant1-14.18-29.410.06-29.358Pass NVNTg2437Ant1-13.96-29.190.05-29.148Pass NVNTg2462Ant1-13.33-28.560.05-28.518Pass NVNTn202412Ant1-12.82-28.050.1-27.958Pass NVNTn202437Ant1-11.9-27.130.1-27.038Pass NVNTn202462Ant1-12.21-27.440.1-27.348Pass NVNTn402422Ant1-13.31-28.540.17-28.378Pass NVNTn402437Ant1-13.4-28.630.17-28.468Pass NVNTn402452Ant1-12.57-27.80.08-27.728Pass ReportNo.:AB26050242FW02 30 / 44 TestGraphs PSDNVNTb2412MHzAnt1 PSDNVNTb2437MHzAnt1 ReportNo.:AB26050242FW02 31 / 44 PSDNVNTb2462MHzAnt1 PSDNVNTg2412MHzAnt1 ReportNo.:AB26050242FW02 32 / 44 PSDNVNTg2437MHzAnt1 PSDNVNTg2462MHzAnt1 ReportNo.:AB26050242FW02 33 / 44 PSDNVNTn202412MHzAnt1 PSDNVNTn202437MHzAnt1 ReportNo.:AB26050242FW02 34 / 44 PSDNVNTn202462MHzAnt1 PSDNVNTn402422MHzAnt1 ReportNo.:AB26050242FW02 35 / 44 PSDNVNTn402437MHzAnt1 PSDNVNTn402452MHzAnt1 ReportNo.:AB26050242FW02 36 / 44 BandEdge ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTb2412Ant1-50.27-30Pass NVNTb2462Ant1-50.56-30Pass NVNTg2412Ant1-46.67-30Pass NVNTg2462Ant1-48.55-30Pass NVNTn202412Ant1-47.41-30Pass NVNTn202462Ant1-47.73-30Pass NVNTn402422Ant1-45.5-30Pass NVNTn402452Ant1-45.04-30Pass ReportNo.:AB26050242FW02 37 / 44 TestGraphs BandEdgeNVNTb2412MHzAnt1Ref BandEdgeNVNTb2412MHzAnt1Emission ReportNo.:AB26050242FW02 38 / 44 BandEdgeNVNTb2462MHzAnt1Ref BandEdgeNVNTb2462MHzAnt1Emission ReportNo.:AB26050242FW02 39 / 44 BandEdgeNVNTg2412MHzAnt1Ref BandEdgeNVNTg2412MHzAnt1Emission ReportNo.:AB26050242FW02 40 / 44 BandEdgeNVNTg2462MHzAnt1Ref BandEdgeNVNTg2462MHzAnt1Emission ReportNo.:AB26050242FW02 41 / 44 BandEdgeNVNTn202412MHzAnt1Ref BandEdgeNVNTn202412MHzAnt1Emission

Test Report

ReportNo.:AB26050242FW02 1 / 44 AppendixE_2.4GWIFI DutyCycle ConditionModeFrequency(MHz)AntennaDutyCycle(%)CorrectionFactor(dB)1/T(kHz) NVNTb2412Ant198.960.050.12 NVNTb2437Ant198.960.050.12 NVNTb2462Ant198.990.040.12 NVNTg2412Ant198.720.060.72 NVNTg2437Ant198.870.050.72 NVNTg2462Ant198.870.050.72 NVNTn202412Ant197.650.16.02 NVNTn202437Ant197.650.16.02 NVNTn202462Ant197.620.16.1 NVNTn402422Ant196.150.1710 NVNTn402437Ant196.150.1710 NVNTn402452Ant198.10.084.85 ReportNo.:AB26050242FW02 2 / 44 TestGraphs DutyCycleNVNTb2412MHzAnt1 DutyCycleNVNTb2437MHzAnt1 ReportNo.:AB26050242FW02 3 / 44 DutyCycleNVNTb2462MHzAnt1 DutyCycleNVNTg2412MHzAnt1 ReportNo.:AB26050242FW02 4 / 44 DutyCycleNVNTg2437MHzAnt1 DutyCycleNVNTg2462MHzAnt1 ReportNo.:AB26050242FW02 5 / 44 DutyCycleNVNTn202412MHzAnt1 DutyCycleNVNTn202437MHzAnt1 ReportNo.:AB26050242FW02 6 / 44 DutyCycleNVNTn202462MHzAnt1 DutyCycleNVNTn402422MHzAnt1 ReportNo.:AB26050242FW02 7 / 44 DutyCycleNVNTn402437MHzAnt1 DutyCycleNVNTn402452MHzAnt1 ReportNo.:AB26050242FW02 8 / 44 MaximumConductedOutputPower ConditionModeFrequency(MHz)AntennaConductedPower(dBm)DutyFactor(dB)TotalPower(dBm)Limit(dBm)Verdict NVNTb2412Ant15.190.055.2430Pass NVNTb2437Ant15.430.055.4830Pass NVNTb2462Ant15.540.045.5830Pass NVNTg2412Ant14.670.064.7330Pass NVNTg2437Ant14.990.055.0430Pass NVNTg2462Ant15.250.055.330Pass NVNTn202412Ant15.160.15.2630Pass NVNTn202437Ant15.420.15.5230Pass NVNTn202462Ant15.170.15.2730Pass NVNTn402422Ant15.330.175.530Pass NVNTn402437Ant15.470.175.6430Pass NVNTn402452Ant15.570.085.6530Pass ReportNo.:AB26050242FW02 9 / 44 TestGraphs PowerNVNTb2412MHzAnt1 PowerNVNTb2437MHzAnt1 ReportNo.:AB26050242FW02 10 / 44 PowerNVNTb2462MHzAnt1 PowerNVNTg2412MHzAnt1 ReportNo.:AB26050242FW02 11 / 44 PowerNVNTg2437MHzAnt1 PowerNVNTg2462MHzAnt1 ReportNo.:AB26050242FW02 12 / 44 PowerNVNTn202412MHzA…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Yuan Feng

[email protected]Fax: 0755-84736169

Technical Contact

HOORAY INDUSTRY LLCCindy WU

[email protected]

1408 Pinon Place Fullerton,CA92835 United States · United States

Test Firm

Aibo Standard Technology (Shenzhen) Co.,Ltd.Bo Jiang

[email protected]

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	764.00 µW
2	15C	2.41 GHz - 2.46 GHz	3.67 mW

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Single Modular Approval. Power listed is the maximum conducted output power. This device contains 20 and 40 MHz signal bandwidth. The antennas used with this transmitter must be installed to provide a minimum separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. End-users must be provided with operating procedures for satisfying RF exposure compliance.
