2BWRJ-GM7-A1Ai smart glasses

包装清单 1、GM7智能蓝牙眼镜 2、磨砂PE袋 3、一托二充电线 4、眼镜布 5、使用说明书 6、眼镜收纳袋 Packing list 1 、GM7 Smart Glasses 2 、Matte PE bag 1 piece 3 、One to two charging line 1 item 4 、Glasses cloth 5 、User Manual 1 copy 6 、Glasses storage bag 1 piece 产品型号： GM7 蓝牙版本： V5.4 电池规格： 3.7V 55mAh 信号距离： ≥10米 播放时间： 约4小时 通话时间： 约4小时 待机时间： 约140小时 充电时间：约2小时 充电触点 指示灯 麦克风 Product Model：GM7 Bluetooth version：V5.4 Battery specifications： 3.7V 55mAh Distance：≥10 meters Play time：About 4 hours Talk time：About 4 hours Standby time：About 140 hours Charging time：About 2 hours 长按两侧凸起触摸位3秒开机。 长按两侧凸起触摸位4秒关机。 （注：眼镜上有汗水会影响触摸效果，请注意清洁） Long press the protruding touch positions on both sides will turn on in 3 seconds. Long press the protruding touch positions on both sides will turn off in 4 seconds. (Note: Sweat on glasses can affect the touch effect, please pay attention to cleaning) 1.智能眼镜开机后左右腿橙绿灯交替闪烁， 进入双腿搜索配对状态，配对成功后左腿指 示灯熄灭右腿橙绿灯交替闪烁，同时播放配 对成功提示音。 2.启动手机或者其它设备的蓝牙功能，搜索 到设备名“GM7”后点击连接，连接成功后 右腿指示灯熄灭同时播放连接成功提示音。 3.当连接成功后，第二次开机时眼镜会优先 进入回连状态自动回连已连接过的手机。 1. After turning on the smart glasses, the orange and green lights on the left and right legs flash alternately, entering the search pairing state. After successful pairing, the left leg indicator light goes out and the orange and green lights on the right leg alternate, while playing a pairing success prompt sound. 2. Turn on the Bluetooth function of your phone or other device, search for the device name "GM7" and click on connect. After successful connection, the right leg indicator light will turn off and a successful connection prompt sound will be played. 3. After successful connection, the glasses will first enter the reconnection state and automatically reconnect to the connected phone when turned on again. 触摸左腿或右腿凸起位2下可播放/暂停 音乐。 触摸左腿凸起位1下切换到上一曲，触摸 右腿凸起位1下切换到下一曲。 触摸左腿凸起位3下加大音量，触摸右腿 凸起位3下减小音量。 Touch the protruding position of the left or right leg twice to play/pause music. Touch the left leg protrusion 1 to switch to the previous track, and touch the right leg protrusion 1 to switch to the next track. Touch the left leg protrusion 3 times to increase the volume, and touch the right leg protrusion 3 times to decrease the volume. 来电时，触摸左腿或右腿凸起位2下可接听电话。 通话时，触摸左腿或右腿凸起位2下可挂断电话。 来电时，触摸左腿或右腿凸起位2秒可拒接来电。 When calling, touch the protruding position of the left or right leg twice to answer the call. When making a call, touch the protruding position of the left or right leg twice to hang up the phone. When receiving a call, touch the protruding position of the left or right leg for 2 seconds to reject the call. 先将手机进入相机拍照模式，触摸左腿或 右腿凸起位2下可进行拍照。 触摸左腿或右腿凸起位2秒可启动苹果Siri或 First, enter the camera mode on your phone and touch the protruding position on your left or right leg twice to take a photo. 谷歌语音助手进行语音控制手机操作。 Touch the protruding position of the left or right leg for 2 seconds to activate Apple Siri or Google Voice Assistant for voice control of mobile phone operations. 将一托二充电线USB端插入DC5V/1A充电 器的USB口，另一端两个磁吸头分别对着 眼镜两只腿的充电点吸上去（注：眼镜腿 上有汗水会影响接触效果，请注意清洁）， 充电时橙色指示灯长亮，充满后熄灭（充 电时间约2小时）。 当电池电量不足时，间隔1分钟播放一次电 量不足提示音，直至低电关机。 Insert the USB end of the one to two charging line into the USB port of the DC5V/1A charger, and use two magnetic suction heads on the other end to suction onto the charging points of the two legs of the glasses (note: sweat on the legs of the glasses can affect the contact effect, please pay attention to cleaning). The orange indicator light will stay on during charging and turn off after being fully charged (charging time is about 2 hours). When the battery is low, play a low battery warning sound every minute until it shuts down due to low battery. Charging contact 触摸位 Touch position Microphone Pilot light 1 piece FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

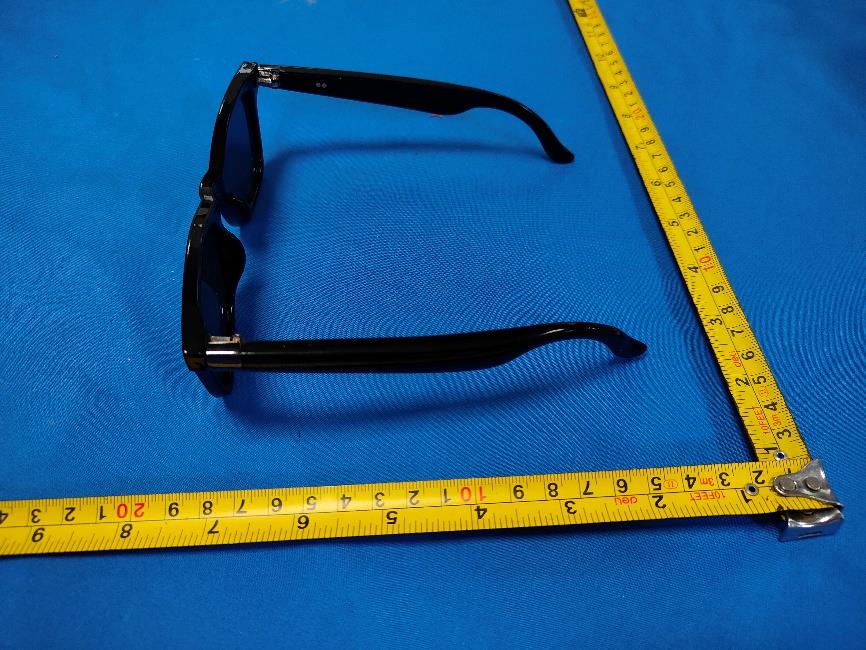

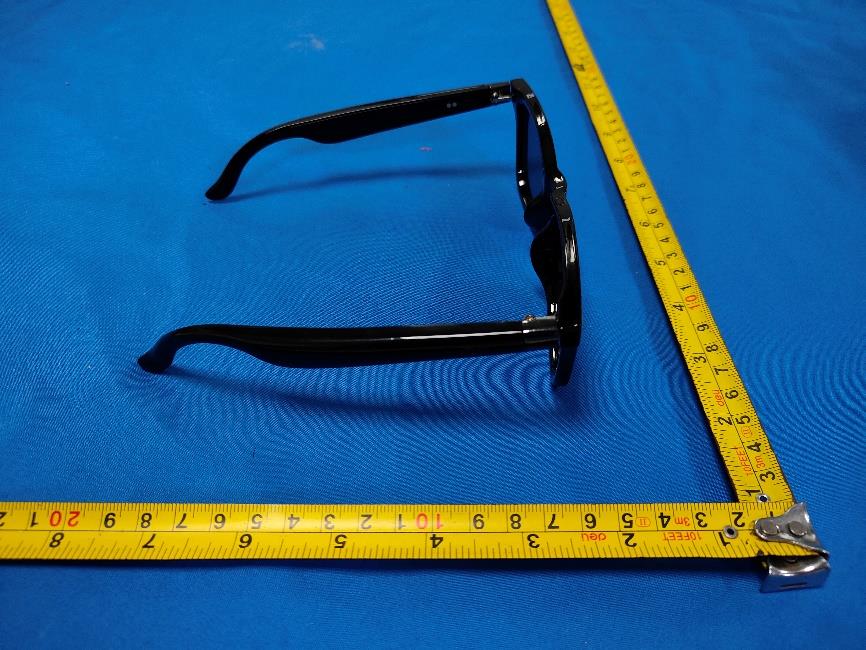

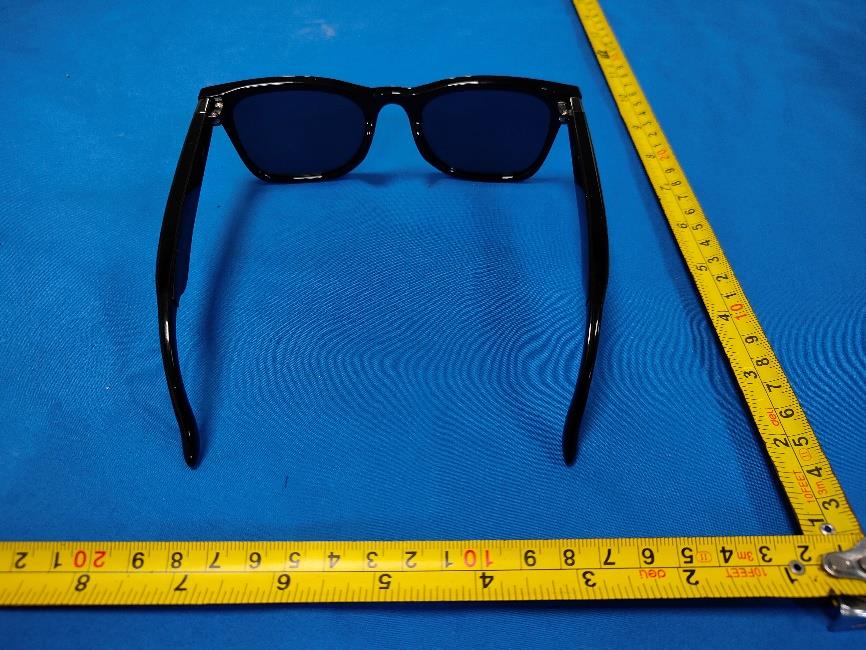

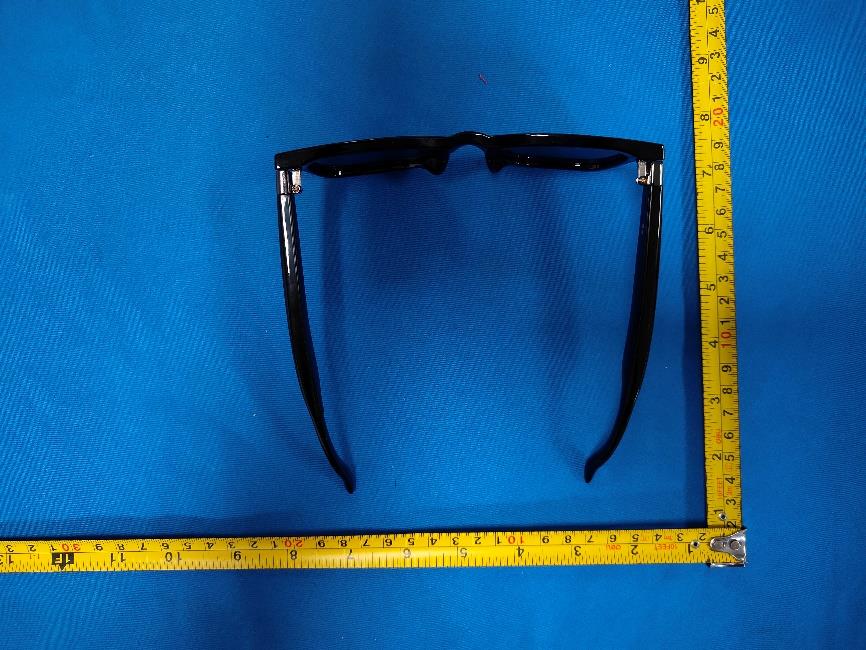

FCC ID: 2BWRJ-GM7-A1 External Photos of the EUT GM7-D2 GM7-D1 GM7-C2 GM7-B2 GM7-E GM7-C1 GM7-B1 GM7-A1 GM7-A2 FCC ID: 2BWRJ-GM7-A1 FCC ID: 2BWRJ-GM7-A1 FCC ID: 2BWRJ-GM7-A1

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID : 2BWRJ-GM7-A1

FCC ID: 2BWRJ-GM7-A1 Internal Photos of the EUT FCC ID: 2BWRJ-GM7-A1 Antenna FCC ID: 2BWRJ-GM7-A1 FCC ID: 2BWRJ-GM7-A1 Antenna FCC ID: 2BWRJ-GM7-A1

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA26060901802 2BWRJ-GM7-A1 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jun. 12, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Ningbo Hanshi Technology Co., Ltd. Address............................................ : Building 1-1, West Zone, New Materials Innovation Center, 2560 Yongjiang Ave, Ningbo, Zhejiang, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Ai smart glasses Trade Mark ....................................... : N/A Manufacturer .................................... : Ningbo Hanshi Technology Co., Ltd. Model/Type reference ...................... : GM7-A1 Listed Models ................................... : GM7-A2, GM7-B1, GM7-B2, GM7-C1, GM7-C2, GM7-D1, GM7-D2, GM7-E Rating ............................................... : Input: DC 5V Battery: 3.7V 55mAh 0.2035Wh Result ............................................... : PASS Report No.: CTA26060901802 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Ai smart glasses Model /Type : GM7-A1 Listed Models : GM7-A2, GM7-B1, GM7-B2, GM7-C1, GM7-C2, GM7-D1, GM7-D2, GM7-E Model difference : The PCB board, circuit, structure and internal of these models are the same, only model number and appearance are different for these model. So the tests were performed on model GM7-A1 and the test results for the main test model can cover the listed models. Applicant : Ningbo Hanshi Technology Co., Ltd. Address : Building 1-1, West Zone, New Materials Innovation Center, 2560 Yongjiang Ave, Ningbo, Zhejiang, China Manufacturer : Ningbo Hanshi Technology Co., Ltd. Address : Building 1-1, West Zone, New Materials Innovation Center, 2560 Yongjiang Ave, Ningbo, Zhejiang, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26060901802 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 7 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ............................................…

Text truncated - open the document above for the full version.

2.4GHz1608ChipAntenna:RANT0603F245S5 _ Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT0603F245S5 (A)(B)(C)(D)(E)(F) ElectricalSpecification DimensionandTerminalConfiguration No.TerminalName 1Feeding/GNG 2GND/Feeding (A)ProductTypeChipAntenna (B)SizeCode 1.6x0.8mm( ± 0.1mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=5 WorkingFrequencyRange2400~2500MHz Bandwidth120MHz(Min.) PeakGain2.7dBi(Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature(°C)-40~85°C ResistancetoSolderingHeats 10sec.(@280°C) TerminationNi/Au(Leadless) Dimension(mm) L 1.60±0.10 W 0.80±0.10 T 0.45±0.10 咏成 國 際 科 技 有限 公 司 電 話 : 1 35305 7 6606 RAINIn t e rn a t i o n a lT ec hn o l o gy C o . , L t d . TEL : 1 35305 7 6606 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz1608ChipAntenna:RANT0603F245S5 _ 1 EvaluationBoardReference PCBDimensionUnit:mm ReturnLoss&Radiation 2.4GHz1608ChipAntenna:RANT0603F245S5 _ 2.4GHz1608ChipAntenna:RANT0603F245S5 _ TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 16087”4K/Reel 4.0±0.5 4.0±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTψDP PaperType1608 1.90±0.203.50±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.10 1.50±0.10 4.0±0.1 2.4GHz1608ChipAntenna:RANT0603F245S5 _ ReliabilityTable TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 2.4GHz1608ChipAntenna:RANT0603F245S5 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12019/03/01NewDatasheet 22020/02/22Add2Dradiationcharacteristic

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA26060901801 2BWRJ-GM7-A1 Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Jun. 12, 2026 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: Ningbo Hanshi Technology Co., Ltd. Address ...........................................: Building 1-1, West Zone, New Materials Innovation Center, 2560 Yongjiang Ave, Ningbo, Zhejiang, China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Ai smart glasses Trade Mark ......................................: N/A Manufacturer ...................................: Ningbo Hanshi Technology Co., Ltd. Model/Type reference .....................: GM7-A1 Listed Models ..................................: GM7-A2, GM7-B1, GM7-B2, GM7-C1, GM7-C2, GM7-D1, GM7-D2, GM7-E Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: Input: DC 5V Battery: 3.7V 55mAh 0.2035Wh Result ..............................................: PASS Report No.: CTA26060901801 Page 2 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Ai smart glasses Model /Type : GM7-A1 Listed Models : GM7-A2, GM7-B1, GM7-B2, GM7-C1, GM7-C2, GM7-D1, GM7-D2, GM7-E Model difference : The PCB board, circuit, structure and internal of these models are the same, only model number and appearance are different for these model. So the tests were performed on model GM7-A1 and the test results for the main test model can cover the listed models. Applicant : Ningbo Hanshi Technology Co., Ltd. Address : Building 1-1, West Zone, New Materials Innovation Center, 2560 Yongjiang Ave, Ningbo, Zhejiang, China Manufacturer : Ningbo Hanshi Technology Co., Ltd. Address : Building 1-1, West Zone, New Materials Innovation Center, 2560 Yongjiang Ave, Ningbo, Zhejiang, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26060901801 Page 3 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test …

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BLE FCC ID : 2BWRJ-GM7-A1 Company : Ningbo Hanshi Technology Co., Ltd. EUT : Ai smart glasses Model Number : GM7-A1 Report No. : CTA26060901801 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.644 2401.696 2402.340 0.5 PASS 2440 0.624 2439.700 2440.324 0.5 PASS 2480 0.640 2479.696 2480.336 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0070 2401.5188 2402.5258 --- --- 2440 1.0066 2439.5174 2440.5240 --- --- 2480 1.0051 2479.5192 2480.5243 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 0.18 ≤30 PASS 2440 0.12 ≤30 PASS 2480 -0.15 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -15.29 ≤8.00 PASS 2440 -16.09 ≤8.00 PASS 2480 -16.28 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -0.33 -52.87 ≤-20.33 PASS High 2480 -0.47 -51 ≤-20.47 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -0.35 -0.35 --- PASS 30~1000 -0.35 -68.83 ≤-20.35 PASS 1000~26500 -0.35 -39.75 ≤-20.35 PASS 2440 Reference -0.07 -0.07 --- PASS 30~1000 -0.07 -68.27 ≤-20.07 PASS 1000~26500 -0.07 -41.29 ≤-20.07 PASS 2480 Reference -1.10 -1.10 --- PASS 30~1000 -1.10 -69.16 ≤-21.1 PASS 1000~26500 -1.10 -44.45 ≤-21.1 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.62 0.6613 66.13 1.80 --- --- 2440 0.41 0.62 0.6613 66.13 1.80 --- --- 2480 0.41 0.62 0.6613 66.13 1.80 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21 22 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Freq(MH z) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -60.99 2.7 1.80 38.71 ≤54 PASS AV 2363.630 -59.18 2.7 1.80 40.52 ≤54 PASS AV 2390.000 -60.13 2.7 1.80 39.57 ≤54 PASS Peak 2310.000 -51.43 2.7 0.00 46.47 ≤74 PASS Peak 2377.070 -49.06 2.7 0.00 48.84 ≤74 PASS Peak 2390.000 -50.41 2.7 0.00 47.49 ≤74 PASS High 2480 AV 2483.500 -57.86 2.7 1.80 41.84 ≤54 PASS AV 2484.080 -57.68 2.7 1.80 42.02 ≤54 PASS AV 2500.000 -59.53 2.7 1.80 40.17 ≤54 PASS Peak 2483.500 -50.62 2.7 0.00 47.28 ≤74 PASS Peak 2484.960 -44.46 2.7 0.00 53.44 ≤74 PASS Peak 2500.000 -51.47 2.7 0.00 46.43 ≤74 PASS Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 23 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV 24 BLE_1M_Ant1_High_2480_Peak

FCC ID: 2BWRJ-GM7-A1 Test Setup Photos of the EUT FCC ID: 2BWRJ-GM7-A1
