2BWRX-FWDZJ-16LED Floating Shelf Bracket

Shenzhen Ou Dicsong trade Co.,LTD
LED Floating Shelf Bracket - FCC ID 2BWRX-FWDZJ-16 - Shenzhen Ou Dicsong trade Co.,LTD
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Jul 06, 2026
Application Purpose
Original Equipment
Equipment Note
LED Floating Shelf Bracket
Frequency Range
433.92000000 - 433.92000000
Company
Shenzhen Ou Dicsong trade Co.,LTD
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

LED Floating Shelf Bracket User Manual •12V DC ONLY: Never connect this product directly to high-voltage AC power (110V/120V). You must use a 12V DC Constant Voltage LED Driver. •CERTIFICATION: To prevent fire or electric shock, ensure your external power supply (Driver/Adapter) is NRTL certified (e.g., UL, ETL) and rated for use in your region. •WATTAGE CHECK: The rated wattage of your power supply must be greater than the total wattage of all connected shelves combined. (See "Power Selection" for details). •INSTALLATION: We strongly recommend having this product installed by a certified electrician, especially if wiring inside walls. The manufacturer assumes no liability for improper installation or electrical work. IMPORTANT SAFETY INSTRUCTIONS Power Selection (NOTE: LED Driver / Power Adapter is NOT included. You must purchase one separately based on your setup.) Option 2: External Power Adapter (Plug-in) Select a 12V DC Adapter appropriate for the shelf's wattage. Use one adapter per shelf. Connect using the standard DC 3.5mm plug. Option 1: Hardwired Driver ▪Single Shelf: Choose a 12V DC driver that matches the wattage rating in the chart below. ▪Multiple Shelves: If connecting multiple shelves to one driver, the driver's wattage must handle the TOTAL power of all shelves. Calculation Example (How to choose a driver): lf you are installing two 40-inch shelves: 1.Check chart: One 40" shelf = 10 Watts 2.Total Power: 10W + 10W = 20 Watts. Shelf Length Voltage Rated Power Color Temp Lumens 18 inchDC 12V4.5 W2700K360LM 22 inchDC 12V5.5 W2700K440LM 28 inchDC 12V7.0 W2700K560LM 34 inchDC 12V8.5 W2700K680LM 40 inchDC 12V10.0 W2700K800LM 46 inchDC 12V11.5 W2700K920LM Specifications Chart 3.Result: You need a 12V DC Driver rated for at least 20W (we recommend 24W or higher). Wiring Diagram AC(L) AC(N) 12V Driver  AC(L) AC(N) 12V Driver 12V Driver 12V DC Adapter(Not included) 3.5mm Plug Packing list Prepare Your Shelf (Drilling & Routing) Tools You’ll Need 1.Attach the Routing Jig Align the Routing Jig with the back edge of your wood shelf. Center it perfectly. Secure it using the provided short screws (KA4.0*30mm). 2.Attach the Drilling Jig Insert the Drilling Jig into the slot of the Routing Jig. Align the notch/tab to lock it in place. Secure with short screws (KA4.0*30mm). Tools You’ll Need Tools You’ll NeedTools You’ll Need 3.Drill the Rod Holes Using a power drill and the provided Auger Bit (16x300mm), drill holes into the wood for the bracket rods. Repeat Steps 1-3 for all rod holes before proceeding. B racket Rod4 inch6 inch8 inch Hole5 inch7 inch9 inch 21.9mm(approx. 7/8") 4. Install Router Bit Remove the Drilling Jig. Install the provided Router Bit (3/4" Dia x 5/8" Deep) into your router. Adjust the bit height to exactly 21.9mm (approx. 7/8"). Cross Screwdriver Required Tools (Not Included) Measuring Tape Drill Pencil Stud Finder Level Router LED Shelf Bracket Auger Bit Routing Jig Long Screws Router Bit Short Screws Installation Guide Drilling Ji g Remote Control Tools You’ll NeedTools You’ll Need Finished 6.Test-Fit the Bracket Remove all jigs. Insert the bracket into the routed recess and holes. It should sit flush (flat) against the wood surface. 5.Route the Recess Use the router to carve out the recess for the bracket's backplate inside the Routing Jig area. Make several shallow passes for a clean and safe cut. Recess depth: 15.9mm (5/8") Tools You’ll Need Mounting the Bracket to the Wall 3.Mount the Bracket Feed the power wires through the newly drilled hole. Align the bracket with your wall studs and reference line. Secure it to the studs using the Long Screws (KA M4*50). 2.Drill Wiring Hole in Bracket Mark the wiring connection position on the brack- et. Use the provided Metal Drill Bit to drill a hole through the bracket at the marked location to allow wires to pass through. Note: Skip this step if using the Plug-in Power Adapter. Pro Tip: If the pre-drilled slots on the bracket do not align with your wall studs, use the provided Metal Drill Bit to drill new mounting holes in the bracket backplate that align with your studs. Tools You’ll Need 1. Mark Wall Location Determine your desired shelf height. Use a Level to mark a horizontal reference line. Use a Stud Finder to locate and mark your wall studs. Tools You’ll Need Tools You’ll Need 5.Test Light Turn on the power. Use the remote control to turn the light on and off, verifying that the system works properly. 4.Electrical Connection Connect your power supply wires to the shelf wires using the wire connectors. WARNING: Check Polarity! Ensure you connect the Positive (+) wire from the driver to the Positive (+) shelf wire, and Negative (-) to Negative (-). Note: If using the Plug-in Power Adapter, skip this step. Simply plug the adapter into the shelf in Step 5. Tools You’ll Need 6.Final Installation Once confirmed, slide the wood shelf onto the bracket rods until it sits flush against the wall. Ensure the shelf is stable and perfectly level. Tools You’ll Need Finished Remote Control Installation (Note: Mount on smooth, flat surfaces only) 1.Determine the loca- tion. Clean the surface to ensure it is free of dirt and dust. 2.Peel off the protec- tive film from the metal plate. 3.Stick the metal plate to your desired loca- tion. 4.Attach the remote control to the metal plate, it holds magneti- cally. Using the Remote Control 30Min 1H 3H 2H 1H2H3H Brightness Adjustment Short press "+": Increase brightness in steps (10 levels). Long press "+": Stepless dimming - The brightness smoothly increases until you release. Short press "-": Decrease brightness in steps (10 levels). Long press "-": Stepless dimming - The brightness smoothly decreases until you release. Power Buttons Turn the light on. Power Buttons Turn the light off.฀ One-Time Timer Press 30Min, 1H, 2H, or 3H. The light will automatically turn off after the selected time elapses. The indicator light flashes once to confirm. Transparent film: Remove before use.฀฀ Dai…

Text truncated - open the document above for the full version.

Attestation Statements

Rev 1/26/2023 Shenzhen Ou Dicsong trade Co.,LTD Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 07-02-2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BWRX-FWDZJ-16 [Shenzhen Ou Dicsong trade Co.,LTD] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Shenzhen Ou Dicsong trade Co.,LTD] certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (Applicant signature) (Applicant printed name) Wanwan Chi Rev 1/26/2023 Shenzhen Ou Dicsong trade Co.,LTD Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 07-02-2026 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BWRX-FWDZJ-16 [Shenzhen Ou Dicsong trade Co.,LTD] ce8rtifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Wanwan Chi

Attestation Statements

Shenzhen Ou Dicsong trade Co.,LTD U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: July 02, 2026 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BWRX-FWDZJ-16 Shenzhen Ou Dicsong trade Co.,LTD (“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Company Name: Shenzhen Ou Dicsong trade Co.,LTD FRN: 0038581641 Address: Room#912, iSteelAsia Mansion , Fu An road , Ping Hu street, Shenzhen city, Guangdong province, China Signature: Contact Person: Wanwan Chi Tel: +86-18476358203 Email: [email protected]

Cover Letter(s)

Shenzhen Ou Dicsong trade Co.,LTD Date: July 02, 2026 Product Model Number: YK-FWDZJ-16, YK-FWDZJ-18, YK-FWDZJ-22, YK-FWDZJ- 28, YK-FWDZJ-34, YK-FWDZJ-40, YK-FWDZJ-46, YK-FWDZJ-56, YK-FWDZJ-70, YK-FWDZJ-X FCC ID: 2BWRX-FWDZJ-16 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. By: Wanwan Chi Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: +86-18476358203 On behalf of: Shenzhen Ou Dicsong trade Co.,LTD

Cover Letter(s)

Shenzhen Ou Dicsong trade Co.,LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: July 2, 2026 Subject; Request for Confidentiality FCC ID: 2BWRX-FWDZJ-16 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Wanwan Chi Title: Manager

Cover Letter(s)

Shenzhen Ou Dicsong trade Co.,LTD Model Difference Statement DATE: July 02, 2026 FCC ID: 2BWRX-FWDZJ-16 Dear Sir/Madam, Added models YK-FWDZJ-18, YK-FWDZJ-22, YK-FWDZJ-28, YK-FWDZJ-34, YK-FWDZJ-40, YK-FWDZJ-46, YK-FWDZJ-56, YK-FWDZJ-70, YK-FWDZJ-X asis of the original product YK-FWDZJ-16 The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Sincerely, Name: Wanwan Chi Title: Manager Company name: Shenzhen Ou Dicsong trade Co.,LTD Address: Room#912, iSteelAsia Mansion , Fu An road , Ping Hu street, Shenzhen city, Guangdong province, China

External Photos

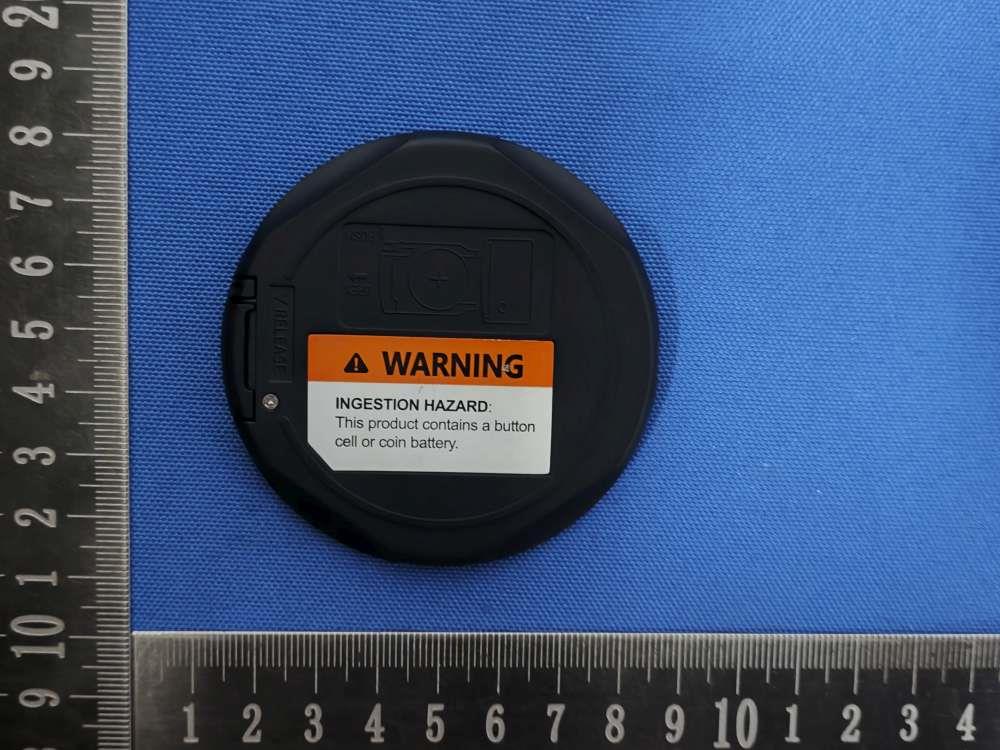

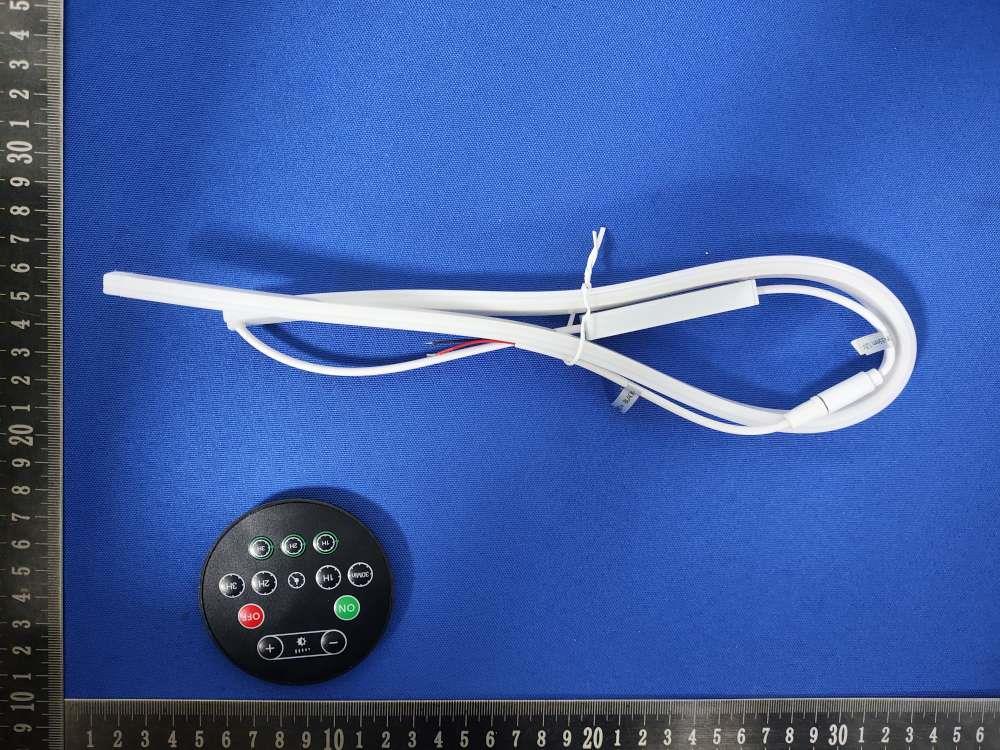

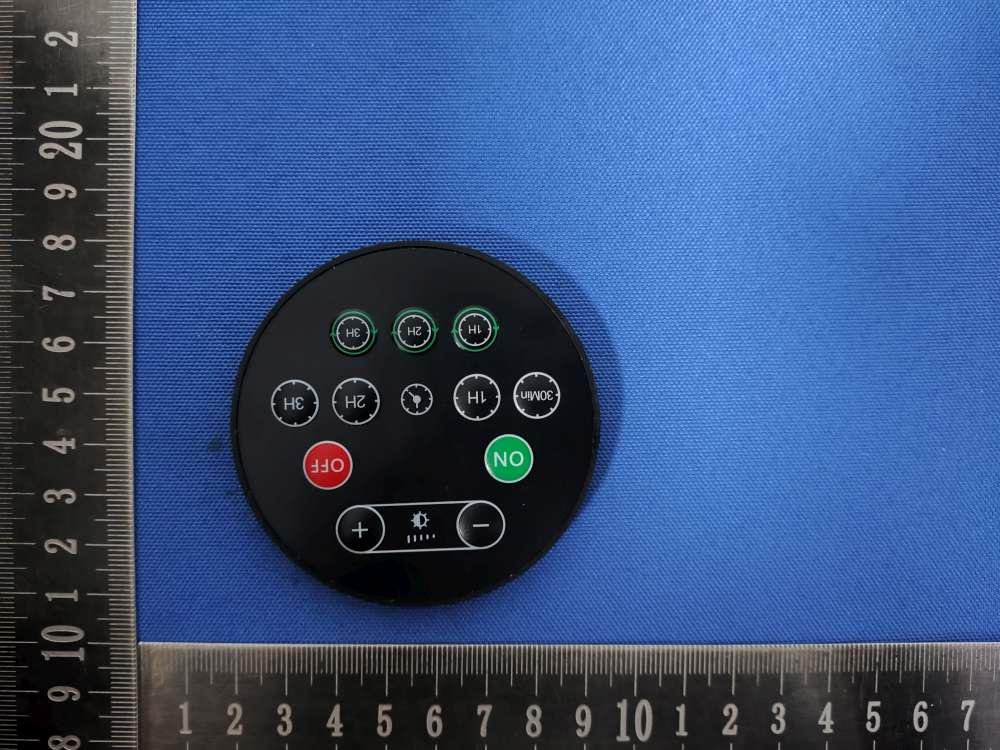

Report No: SSP26060169-1E FCC ID: 2BWRX-FWDZJ-16 Annex of Test Report Annex A. EUT External Photos Model: YK-FWDZJ-16 EUT View 1 EUT View 2 Report No: SSP26060169-1E FCC ID: 2BWRX-FWDZJ-16 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP26060169-1E FCC ID: 2BWRX-FWDZJ-16 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP26060169-1E FCC ID: 2BWRX-FWDZJ-16 Annex of Test Report EUT View 7

ID Label/Location Info

Report No: SSP26060169-1E FCC ID: 2BWRX-FWDZJ-16 Annex of Test Report Annex D. Label and Information FCC Label Sample Label Size:1cm*0.3cm FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

Internal Photos

Report No: SSP26060169-1E FCC ID: 2BWRX-FWDZJ-16 Annex of Test Report Annex B. EUT Internal Photos Model: YK-FWDZJ-16 EUT Internal View 1 EUT Internal View 2 PCB Antenna Report No: SSP26060169-1E FCC ID: 2BWRX-FWDZJ-16 Annex of Test Report EUT Internal View 3 EUT Internal View 4

RF Exposure Info

FCC ID: 2BWRX-FWDZJ-16 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093,Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Frequency (MHz) Power (dBuV/m) Power (dBm) Power (mW) Limit (mW) 433.92 81.38 -13.82 0.041 1 Notes: 81.38dBuV/m-95.2=-13.82dBm So a SAR test is not required

Test Report

Report No: SSP26060169-1E FCC Test Report Page 1 of 23 FCC TEST REPORT FCC ID: 2BWRX-FWDZJ-16 Report No. : SSP26060169-1E Applicant : Shenzhen Ou Dicsong trade Co.,LTD Product Name : LED Floating Shelf Bracket Model Name : YK-FWDZJ-16 Test Standard : FCC Part 15.231 Date of Issue : 2026-06-24 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP26060169-1E FCC Test Report Page 2 of 23 Test Report Basic Information Applicant..................................: Shenzhen Ou Dicsong trade Co.,LTD Address of Applicant...............: Room#912, iSteelAsia Mansion , Fu An road , Ping Hu street, Shenzhen city, Guangdong province, China Manufacturer..........................: Shenzhen Ou Dicsong trade Co.,LTD Address of Manufacturer........: Room#912, iSteelAsia Mansion , Fu An road , Ping Hu street, Shenzhen city, Guangdong province, China Product Name.........................: LED Floating Shelf Bracket Brand Name.............................: - Main Model..............................: YK-FWDZJ-16 Series Models..........................: See section 1.1 (Page 5) Test Standard..........................: FCC Part 15 Subpart C ANSI C63.4-2014 ANSI C63.10-2020 + Cor.1-2023 Date of Test .............................: 2026-06-08 to 2026-06-22 Test Result...............................: PASS Tested By ................................: (Coke Huang) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP26060169-1E FCC Test Report Page 3 of 23 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................5 1.3 Compliance Standards ...........................................................................................................................................6 1.4 Test Facilities ........................................................................................................................................................6 1.5 List of Measurement Instruments ..........................................................................................................................7 1.6 Measurement Uncertainty .....................................................................................................................................7 2. Summary of Test Results .............................................................................................................................................8 3. Antenna Requirement .................................................................................................................................................9 3.1 Standard and Limit................................................................................................................................................9 3.2 Test Result ............................................................................................................................................................9 4. Conducted Emissions ................................................................................................................................................ 10 4.1 Standard and Limit.............................................................................................................................................. 10 4.2 Test Procedure.................................................................................................................................................... 10 4.3 Test Data and Results .......................................................................................................................................... 11 5. Radiated Emissions ................................................................................................................................................... 12 5.1 Standard and Limit.............................................................................................................................................. 12 5.2 Test Procedure.................................................................................................................................................... 12 5.3 Test Data and Results .......................................................................................................................................... 14 6. Occupied Bandwidth ................................................................................................................................................. 18 6.1 Standard and Limit.............................................................................................................................................. 18 6.2 Test Procedure.................................................................................................................................................... 18 6.3 Test Data and Results ...............................................................................................................…

Text truncated - open the document above for the full version.

Test Report

Page 1 of 3 1. General Information 1.1 Product Information Manufacturer: Shenzhen Ou Dicsong trade Co.,LTD Address of Manufacturer: Room#912, iSteelAsia Mansion , Fu An road , Ping Hu street, Shenzhen city, Guangdong province, China Product Name: 2.4G Antenna Model Name: YK-FWDZJ-16 Frequency Range: 433.92MHz Type of Antenna: PCB Antenna Antenna Gain: 0dBi (Max.) Impedance: 50 ohm Antenna View: Length * Width (2.4cm * 0.2cm) Page 2 of 3 2. OTA Test 2.1 Gain Frequency Peak Gain (dBi) Polarity 433.92MHz 0 Horizontal 433.92MHz -0.48 Vertical Page 3 of 3 2.2 Radiation Pattern View

Test Setup Photos

Report No: SSP26060169-1E FCC ID: 2BWRX-FWDZJ-16 Annex of Test Report Annex C. Test Photos Radiated Emission Test View Below 1GHz Radiated Emission Test View Above 1GHz

Contact Information

Applicant

Wanwan Chi
[email protected]Fax: +86-18476358203

Technical Contact

CLF Import and Export LimitedDavid Chen
[email protected]

1312 17th Street #692 · United States

Test Firm

Shenzhen CCUT Quality Technology Co., Ltd.Lahm Peng
[email protected]

Technical Specifications

#Rule PartsFrequency RangePower Output
115.231433.92 MHz - 433.92 MHz-
Confidentiality
Long Term
