2BWU4-SCPFPURPLE001AI Plush Companion Toy

AI Smart Plush Pendant SCPF-PURPLE001 (�)Scan the QR code or search for the "Tuya" app in the app store to download it. SCPF-PURPLE001 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure statement The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Shenzhen MOBUDDY Intelligence Technology Co., Ltd. Covered Equipment Certification Attestation Letter 7/13/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BWU4-SCPFPURPLE001 Shenzhen MOBUDDY Intelligence Technology Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shenzhen MOBUDDY Intelligence Technology Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Shenzhen MOBUDDY Intelligence Technology Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). <Signature>: Name: Jack Bu Title: Manager Company: Shenzhen MOBUDDY Intelligence Technology Co., Ltd. Date: 7/13/2026

Shenzhen MOBUDDY Intelligence Technology Co., Ltd. * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 7/1/2026 TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTN.: Reviewing Engineer FCC ID: 2BWU4-SCPFPURPLE001 FRN of applicant: 0038606869 Per section 2.911(d)(7) of the FCC rules, [Shenzhen MOBUDDY Intelligence Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: Herland International Trading Inc FCC Registration Number (FRN): 0036324101 Physical U.S. Company Address: 1370 Valley Vista Dr Ste 200 Diamond Bar, CA 91765 Contact Person: Jianfeng Gao Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Signed: Printed name: Jack bu Title: Manager Company Name: Shenzhen MOBUDDY Intelligence Technology Co., Ltd. Date: 7/1/2026 Agent Signed (if different from Applicant): Signed: Printed name: Jianfeng Gao Title: Manager Company Name: Herland International Trading Inc Date: 7/1/2026

Shenzhen MOBUDDY Intelligence Technology Co., Ltd. 2025-7-13 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen DL Testing Technology Co., Ltd.（101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China）to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Shenzhen MOBUDDY Intelligence Technology Co., Ltd. （Room 2307-2308, 23rd Floor, International Science and Technology Building, No. 3007 Shennan Middle Road, Futian District, Shenzhen, Guangdong） <Signature>: Name: Jack Bu Title: Manager Company: Shenzhen MOBUDDY Intelligence Technology Co., Ltd.

Shenzhen MOBUDDY Intelligence Technology Co., Ltd. 2025-7-13 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature>: Name: Jack Bu Title: Manager Company: Shenzhen MOBUDDY Intelligence Technology Co., Ltd.

Shenzhen MOBUDDY Intelligence Technology Co., Ltd. 2026-6-29 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BWU4-SCPFPURPLE001 Product Name: AI Smart Plush Pendant Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>: Name: Jack Bu Title: Manager Company: Shenzhen MOBUDDY Intelligence Technology Co., Ltd.

Shenzhen MOBUDDY Intelligence Technology Co., Ltd. FCC ID: 2BWU4-SCPFPURPLE001 Product Similarity Declaration Applicant: Shenzhen MOBUDDY Intelligence Technology Co., Ltd. Address: Room 2307-2308, 23rd Floor, International Science and Technology Building, No. 3007 Shennan Middle Road, Futian District, Shenzhen, Guangdong Manufacturer: Shenzhen MOBUDDY Intelligence Technology Co., Ltd. Address: Room 2307-2308, 23rd Floor, International Science and Technology Building, No. 3007 Shennan Middle Road, Futian District, Shenzhen, Guangdong Product Name: AI Smart Plush Pendant Trade Mark: N/A Model Number: SCPF-PURPLE001, SCPF-PINK002, SCPF-GREEN003, SCPF-BROWN004, SCCB- GREY001, SCCB-PINK002, SCCB-PURPLE003, SCCB-BLACK004, SCCB-BROWN005, SCCB-GREEN006 We (Shenzhen MOBUDDY Intelligence Technology Co., Ltd.) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), All models are the same as the samples except for the model name and appearance color. <Signature>: Name: Jack Bu Title: Manager Company: Shenzhen MOBUDDY Intelligence Technology Co., Ltd.

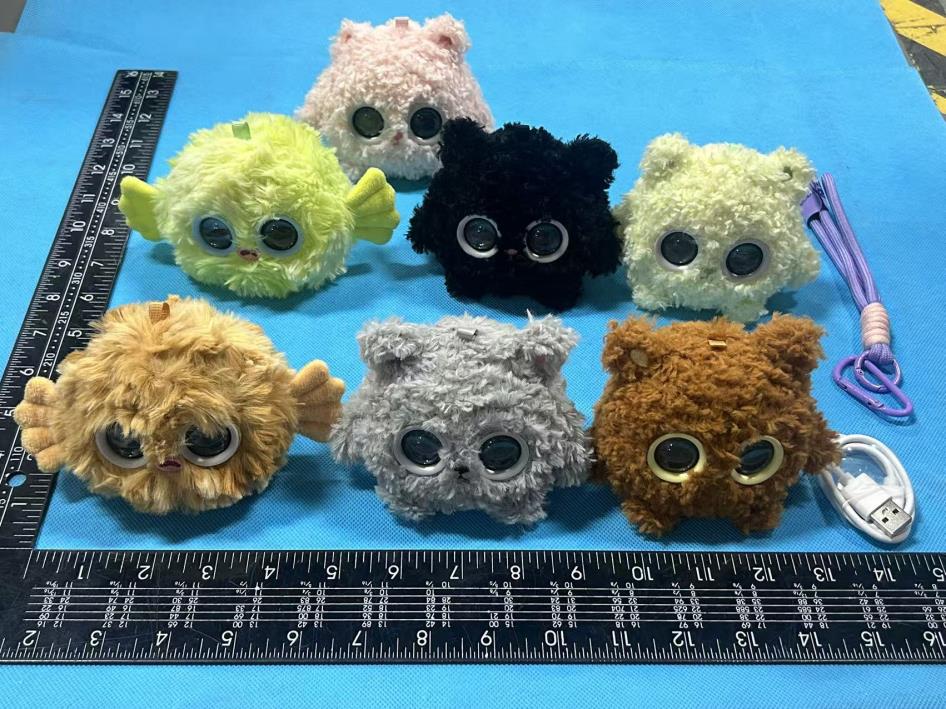

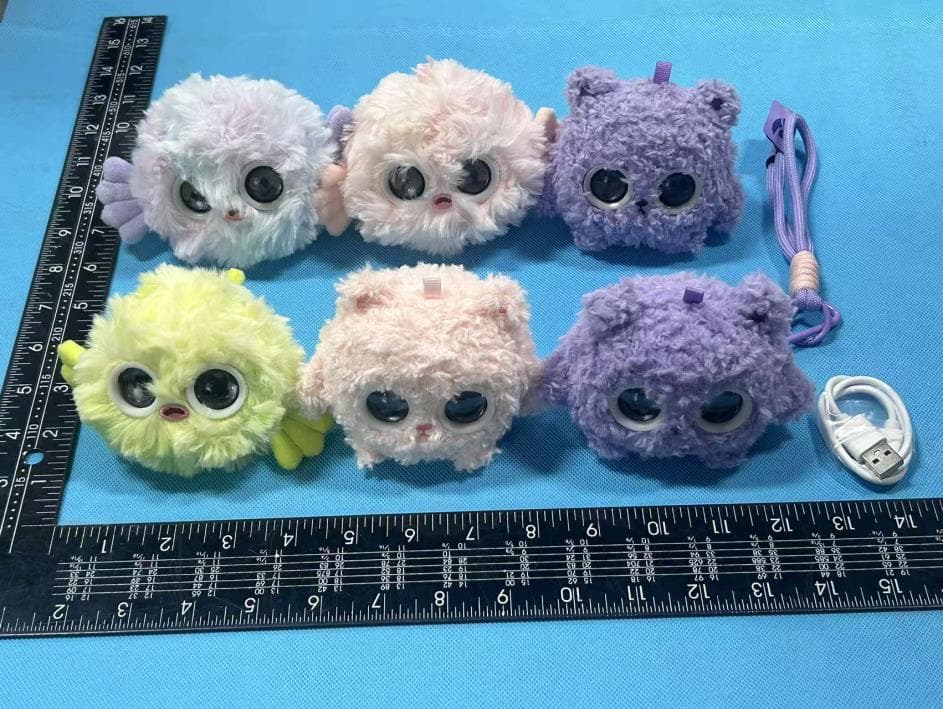

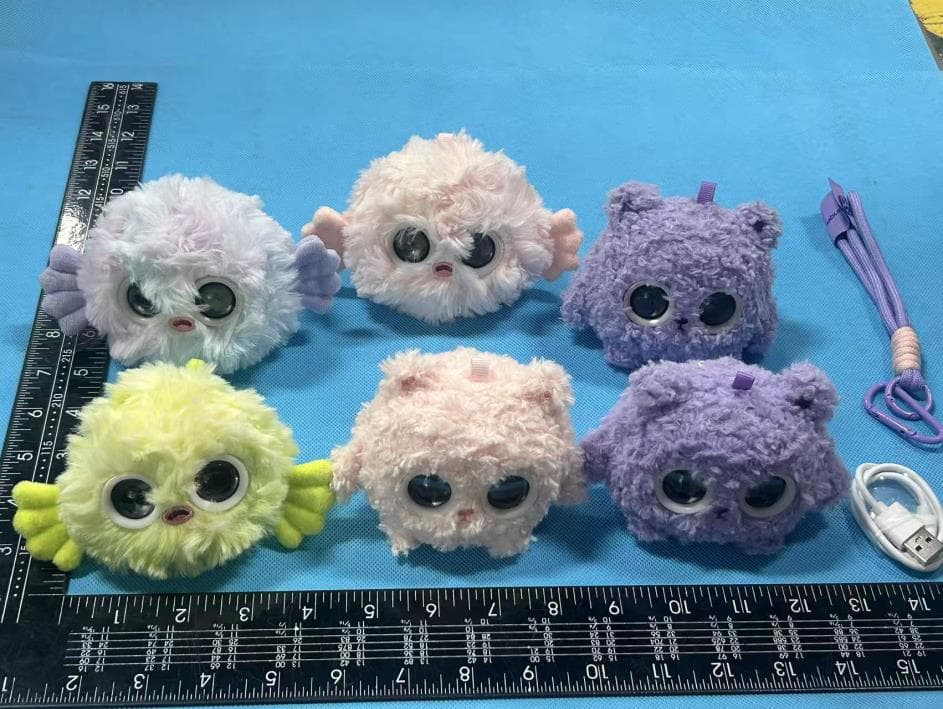

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(External Photos) Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※

Size:28*12mm M/N: SCPF-PURPLE001 FCCID: 2BWU4-SCPFPURPLE001 Label location

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(Internal Photos) Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. ANT Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※

FCC ID: 2BWU4-SCPFPURPLE001 RF Exposure Evaluation According to KDB 447498 D01 V06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison EIRP=E Meas +20log(d Meas )-104.7 EIRP is the equivalent isotropically radiated power, in dBm E Meas is the field strength of the emission at the measurement distance, in dBμV/m d Meas is the measurement distance, in m Here, Conducted output power (dBm) Max tune-up (mW) Frequency (MHz) Min. distance(mm) Calc. thresholds limit 7.97 6.3 2462 5 1.97 3.0 So a SAR test is not required

Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 48 FCC ID: 2BWU4-SCPFPURPLE001 Applicant: Shenzhen MOBUDDY Intelligence Technology Co., Ltd. Address: Room 2307-2308, 23rd Floor, International Science and Technology Building, No. 3007 Shennan Middle Road, Futian District, Shenzhen, Guangdong Manufacturer: Shenzhen MOBUDDY Intelligence Technology Co., Ltd. Address: Room 2307-2308, 23rd Floor, International Science and Technology Building, No. 3007 Shennan Middle Road, Futian District, Shenzhen, Guangdong Product Name: AI Smart Plush Pendant Trade Mark: N/A Model Number: SCPF-PURPLE001, SCPF-PINK002, SCPF-GREEN003, SCPF-BROWN004, SCCB- GREY001, SCCB-PINK002, SCCB-PURPLE003, SCCB-BLACK004, SCCB-BROWN005, SCCB-GREEN006 Date of Receipt: Jun. 11, 2026 Test Date: Jun. 11, 2026 - Jul. 01, 2026 Date of Report: Jul. 01, 2026 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China Applicable Standards: FCC PART 15 C 15.247 ANSI C63.10:2020+Cor.1:2023 Test Result: Pass Report Number: DLE-260611045R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 48 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 802.11b SISO 2412 0.937 0.974 96.20 0.17 0.07 802.11g SISO 2412 0.179 0.221 81.00 0.92 0.15 802.11n (HT20) SISO 2412 0.167 0.209 79.90 0.97 0.08 802.11n (HT40) SISO 2422 0.103 0.145 71.03 1.49 0.10 Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 48 1.2 Test Graph 1.2.1 Ant1 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 48 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 48 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 12.890 / Pass 2437 1 12.136 / Pass 2462 1 12.772 / Pass 802.11g SISO 2412 1 16.727 / Pass 2437 1 16.363 / Pass 2462 1 16.633 / Pass 802.11n (HT20) SISO 2412 1 17.789 / Pass 2437 1 17.499 / Pass 2462 1 17.741 / Pass 802.11n (HT40) SISO 2422 1 36.833 / Pass 2437 1 35.713 / Pass 2452 1 36.335 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 8.257 >=0.5 Pass 2437 1 7.645 >=0.5 Pass 2462 1 8.346 >=0.5 Pass 802.11g SISO 2412 1 16.317 >=0.5 Pass 2437 1 15.457 >=0.5 Pass 2462 1 16.367 >=0.5 Pass 802.11n (HT20) SISO 2412 1 17.579 >=0.5 Pass 2437 1 15.456 >=0.5 Pass 2462 1 17.491 >=0.5 Pass 802.11n (HT40) SISO 2422 1 36.472 >=0.5 Pass 2437 1 29.096 >=0.5 Pass 2452 1 35.523 >=0.5 Pass Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 6 of 48 2.2 Test Graph 2.2.1 OBW 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 7 of 48 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 8 of 48 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 9 of 48 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 10 of 48 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 11 of 48 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 12 of 48 2.2.2 6dB BW 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 13 of 48 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 14 of 48 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 15 of 48 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 16 of 48 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 17 of 48 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 18 of 48 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Average Conducted Output Power (dBm) Verdict ANT1 Limit 802.11b SISO 2412 7.21 <=30 Pass 2437 7.50 <=30 Pass 2462 7.49 <=30 Pass 802.11g SISO 2412 7.04 <=30 Pass 2437 7.95 <=30 Pass 2462 7.97 <=30 Pass 802.11n (HT20) SISO 2412 6.92 <=30 Pass 2437 7.78 <=30 Pass 2462 7.75 <=30 Pass 802.11n (HT40) SISO 2422 7.56 <=30 Pass 2437 7.96 <=30 Pass 2452 7.63 <=30 Pass Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 19 of 48 3.2 Test Graph 3.2.1 Power 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 20 of 48 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_A…

Text truncated - open the document above for the full version.

Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260611045R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 34 FCC Part 15C Test Report FCC ID: 2BWU4-SCPFPURPLE001 Applicant: Shenzhen MOBUDDY Intelligence Technology Co., Ltd. Address: Room 2307-2308, 23rd Floor, International Science and Technology Building, No. 3007 Shennan Middle Road, Futian District, Shenzhen, Guangdong Manufacturer: Shenzhen MOBUDDY Intelligence Technology Co., Ltd. Address: Room 2307-2308, 23rd Floor, International Science and Technology Building, No. 3007 Shennan Middle Road, Futian District, Shenzhen, Guangdong Product Name: AI Smart Plush Pendant Trade Mark: N/A Model Number: SCPF-PURPLE001, SCPF-PINK002, SCPF-GREEN003, SCPF-BROWN004, SCCB-GREY001, SCCB-PINK002, SCCB-PURPLE003, SCCB-BLACK004, SCCB-BROWN005, SCCB-GREEN006 Date of Receipt: Jun. 11, 2026 Test Date: Jun. 11, 2026 - Jul. 01, 2026 Date of Report: Jul. 01, 2026 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China Applicable Standards: FCC PART 15 C 15.247 ANSI C63.10:2020+Cor.1:2023 Test Result: Pass Report Number: DLE-260611045R Prepared (Test Engineer): Alisa Song Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260611045R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 34 Table of Contents Page 1. . SUMMARY OF TEST RESULTS 4 1.1. MEASUREMENT UNCERTAINTY 4 2. . GENERAL INFORMATION 5 2.1. GENERAL DESCRIPTION OF EUT 5 2.2. DESCRIPTION OF TEST MODES 6 2.3. BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 6 2.4. DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 7 2.5. TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 7 2.6. EQUIPMENTS LIST FOR ALL TEST ITEMS 8 3. . EMC EMISSION TEST 9 3.1. CONDUCTED EMISSION MEASUREMENT 9 3.1.1. POWER LINE CONDUCTED EMISSION LIMITS 9 3.1.2. TEST PROCEDURE 9 3.1.3. DEVIATION FROM TEST STANDARD 9 3.1.4. TEST SETUP 10 3.1.5. EUT OPERATING CONDITIONS 10 3.1.6. TEST RESULTS 10 3.2. RADIATED EMISSION MEASUREMENT 13 3.2.1. RADIATED EMISSION LIMITS 13 3.2.2. TEST PROCEDURE 14 3.2.3. DEVIATION FROM TEST STANDARD 14 3.2.4. TEST SETUP 14 3.2.5. EUT OPERATING CONDITIONS 15 3.2.6. TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 16 3.2.7. TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 17 3.2.8. TEST RESULTS (1GHZ~25GHZ) 19 3.3 RADIATED BAND EMISSION MEASUREMENT 23 3.3.1 TEST REQUIREMENT: 23 3.3.2 TEST PROCEDURE 23 3.3.3 DEVIATION FROM TEST STANDARD 23 3.3.4 TEST SETUP 24 3.3.5 EUT OPERATING CONDITIONS 24 3.4 CONDUCTED BAND EDGE EMISSION&CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 29 3.4.1 APPLICABLE STANDARD 29 3.4.2 TEST PROCEDURE 29 3.4.3 DEVIATION FROM STANDARD 29 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260611045R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 34 Table of Contents Page 3.4.4 TEST SETUP 29 3.4.5 EUT OPERATION CONDITIONS 29 3.4.6 TEST RESULTS 29 4. . AVERAGE OUTPUT POWER 30 4.1. APPLIED PROCEDURES / LIMIT 30 4.1.1. TEST PROCEDURE 30 4.1.2. DEVIATION FROM STANDARD 30 4.1.3. TEST SETUP 30 4.1.4. EUT OPERATION CONDITIONS 30 4.1.5. TEST RESULTS 30 5. . POWER SPECTRAL DENSITY TEST 31 5.1. APPLIED PROCEDURES / LIMIT 31 5.1.1. TEST PROCEDURE 31 5.1.2. DEVIATION FROM STANDARD 31 5.1.3. TEST SETUP 31 5.1.4. EUT OPERATION CONDITIONS 31 5.1.5. TEST RESULTS 31 6. . 6DB BANDWIDTH TEST 32 6.1. APPLIED PROCEDURES / LIMIT 32 6.1.1. TEST PROCEDURE 32 6.1.2. DEVIATION FROM STANDARD 32 6.1.3. TEST SETUP 32 6.1.4. EUT OPERATION CONDITIONS 32 6.1.5. TEST RESULTS 32 7. . DUTY CYCLE TEST SIGNAL 33 7.1. APPLIED PROCEDURES / LIMIT 33 7.1.1. TEST PROCEDURE 33 7.1.2. DEVIATION FROM STANDARD 33 7.1.3. TEST SETUP 33 7.1.4. EUT OPERATION CONDITIONS 33 7.1.5. TEST RESULTS 33 8. . ANTENNA REQUIREMENT 34 8.1. STANDARD REQUIREMENT 34 8.2. EUT ANTENNA 34 9. . TEST SEUUP PHOTO 34 10. . EUT PHOTO 34 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260611045R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 34 1.. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.205, 15.209, 15.247(d) Radiated Spurious Emission PASS 15.209, 15.205 Band Edge Emission PASS 15.247(d) Conducted Spurious Emissions PASS 15.247(b) Average Output Power PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Test lab: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China FCC Test Firm Registration Number: 854456 Designation Number: CN1307 IC Registered No.: 27485 CAB ID.: CN0118 1.1. MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±2.56dB 2 RF power,conducted ±0.42dB 3 Spurious emissions,conducted ±2.76dB 4 All emissions,radiated(<1G) ±3.65dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% 8 6dB Bandwidth ±0.2% 9 Power Spectral Density ±2.45dBm Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260611045R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 34 2.. G…

Text truncated - open the document above for the full version.

AntennaSpecification Manufacture：TUYA ProductName：T5-E1Antenna AntennaType：PCB TestDate：2024.6.28 Testedby：ZhangYinhua Approvedby：Licco Content 1.GeneralDescription.................................................................................1 2.TestConfigurations...................................................................................2 2.1TestEnvironment............................................................................2 2.2TestEquipment...............................................................................2 2.3TestPrinciple...................................................................................2 3.TestResults..............................................................................................3 3.1GainandEfficiency..........................................................................3 3.2RadiationPattern............................................................................4 4.AntennaDimensions................................................................................6 5.EUTPhoto................................................................................................6 6.TestSetupPhoto......................................................................................7 1 1.GeneralDescription ManufacturerHangzhouTuyaInformationTechnologyCo.,Ltd Address Room301,Building1,HuaceCenter,XihuDistrict, HangzhouCity,ZhejiangProvince,China TestLocation Room106,Building3,LetongSciencePark,No.500, QiuyiRoad,BinjiangDistrict,Hangzhou ProductNameT5-E1Antenna Productmodel T5-E1 AntennaType PCBAntenna TestItems Gain;Efficiency;RadiationPattern TestFrequency 2400-2500MHz TestStandard ANSI/IEEEStd149-1979 2 2.TestConfigurations 2.1TestEnvironment Temperature(°C)25 Humidity(%RH)60 AtmosphericPressure(kPa)100.5 2.2TestEquipment TestSystemTEM24Multi-probeMicrowaveChamber TestInstrumentAgilentE5071B 2.3TestPrinciple 3 3.TestResults 3.1GainandEfficiency Frequency(MHz)PeakGain(dBi)Efficiency(%) 24002.9861.8 24103.2566.83 24203.0163.97 24303.1664.12 24402.3957.28 24502.1463.53 24602.5961.94 24702.4359.02 24802.2255.34 24902.4358.61 25002.3758.34 4 3.2RadiationPattern Phi02D Phi902D Theta902D 5 2400MHz3D 2450MHz3D 2500MHz3D 6 4.AntennaDimensions Unit:mm 5.EUTPhoto 7 6.TestSetupPhoto

Shenzhen DL Testing Technology Co., Ltd. EUT TEST PHOTO Radiated Measurement Photos Shenzhen DL Testing Technology Co., Ltd. Conducted Measurement Photos ※※※※※ END OF REPORT ※※※※※
