MPD207 1. :Mode selection / Play / Pause :Long press to switch modes: USB,MicroSD,FM,BT; Short press to play/pause;Short press to start auto channel search under FM mode; When an incoming call arrives: short press to answer or hang up; double-tap to reject the call or redial the last number. 2. - :Volume Down / Previous Track :Long press to decrease the volume, short press to play the previous track; short press to switch to the previous channel under FM mode. 3. + :Volume Up / Next Track :Long press to increase volume, short press for next track; Short press to switch to the next channel under FM mode. 4. :RGB mode / TWS mode:Short press to switch light effects; there are five light modes in total;Long press to enter TWS mode. 5. :Power on/off :Switch power on / power off. 6.DC 5V:Charging Port: It's for charging. 7.TF:Insert the TF card to play MP3 music. 8.USB:Music playback on USB stick. 1.Power On/Off 3. TWS Connection 4. Volume Control 6. Music Card 7. Power Saving 8. Charging 5. LED Lighting Mode 2. BT Mode Just toggle the power switch. 1. When you turn on the Speaker, it will already be in the BT mode and ready to pair to your mobile device/smart device. After turning on the device, short press the M key to switch the RGB lighting modes (Mode 1, Mode 2, Mode 3, Mode 4, RGB-OFF) Insert the music card into the corresponding interface to play music MP3 is supported. LED mode Speaker will power off automatically to save battery when nothing is connected after 10 minutes. Q1: What kind of charger should we use for the speaker? A: All common USB chargers can be used, while we suggest the ones 5V/500mA or above 500mA. Q2: What if there is noise or discontinuous sound during playing? A: The speaker can be normally used within 10m under no obstruction environment. If it is beyond 10m or with obstruction, there might be noise or discontinuous sound. Q3: Why the speaker power off automatically after power on without any operation? AWhen there is no bluetooth pairing in 10 minutes, the speaker will shut down automatically to reduce power consumption. Q4Why does the speaker cannot connect the once-paired cellphone? A: First, remove the speaker's paired name from the cellphone's Bluetooth list and then restart pairing. Q5: When speaker can not be turned on or used normally. A: Please charge it for some time, then long press power on button 10-30s to reset. Notes: 1. Please read this manual carefully before use and keep it properly. 2. For the first use, please fully charge the product. 3. Pls use certificated adapter that has passed national safety certification. 4. If you do not use the product for a long time, be sure to charge it once within a month at least to maintain its performance. 5. Do not use this product in an extremely cold or hot environment, such as temperature beyond the range of 5-35. If use it beyond the above range, the product may stop automatically to protect the i nternal circuit. 6. When charging it in a high temperature environment, the product may automatically stop charging to protect the battery. At this time, the charging indicator usually ashes quickly to indicate that the charging environmental temperature or the product internal temperature is too high. 7. Storage environment temperature: -5~35 RH<70% (recommended 25±5). This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this device not expressly approved by Universal Electronics, Inc. may void the FCC authorization to operate this device.Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. RF exposure statement:This device complies with FCC RF radiation exposure limits set forth for anuncontrolled environment. The device is installed and operated withoutrestriction. FCC ID Important safety instructions: 1. Do not disassemble or repair this speaker personally, otherwise it may cause product damage or personal injury. 2. Do not use it in dusty, humid, dry, and high-temperature environment. 3. Do not place this product near a heat source, or a place with direct sunlight, a lot of dust, or mechanical vibration. 4. In order to reduce the risk of fire, please do not cover this product with newspapers, tablecloths, curtains etc., during use. 5. When the product is damaged (such as the power cord or plug is damaged, liquid enters or objects fall into the device, unable to operate normally or falls), it must be repaired. 6. When the product is fully charged, do not connect it to the charger for further long time charging. 7. The maximum ambient tempe…

Text truncated - open the document above for the full version.

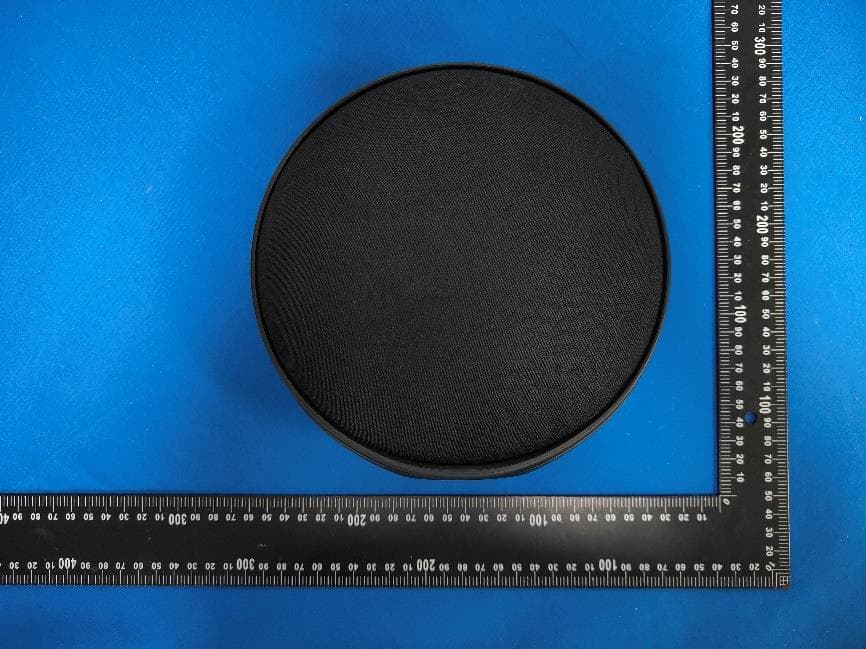

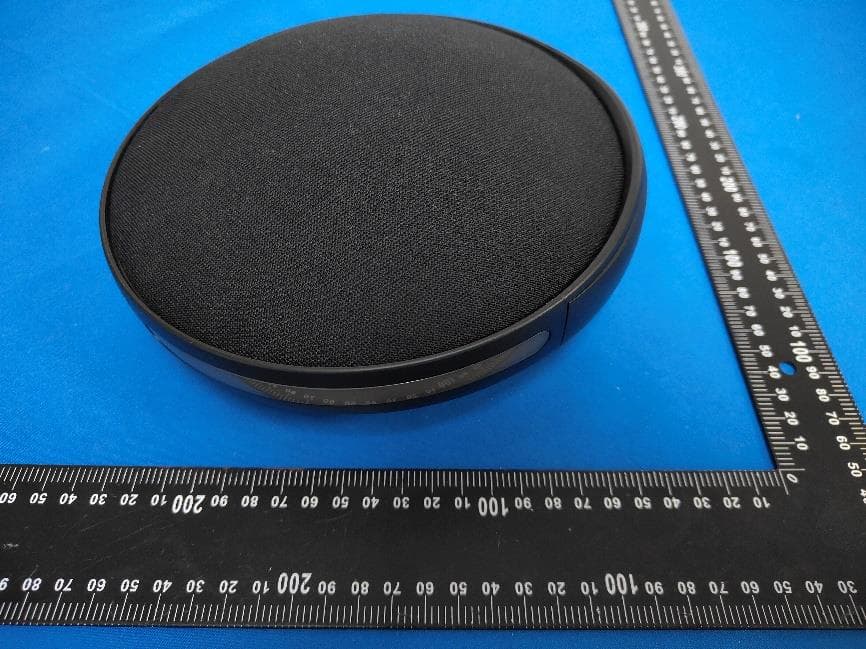

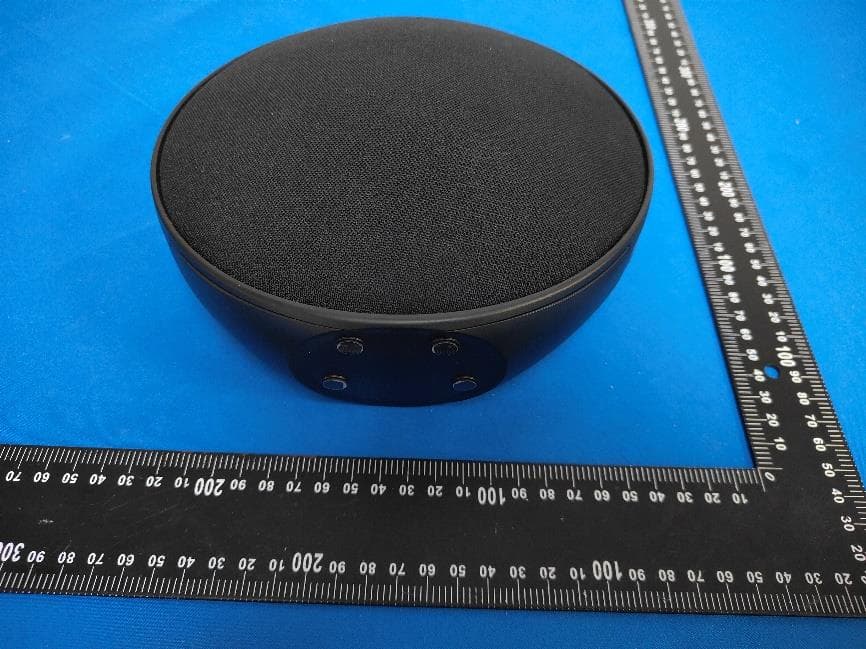

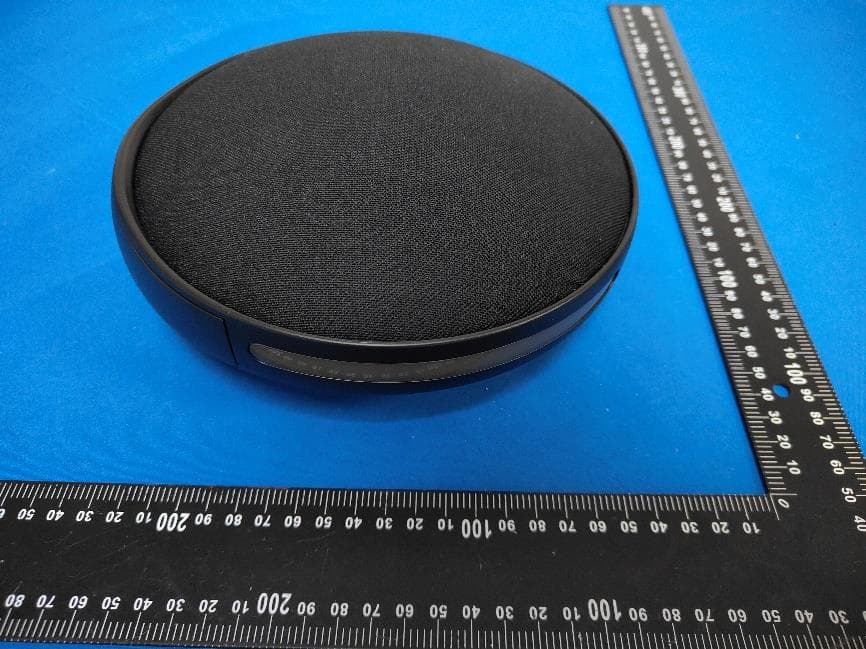

FCC ID:2BWWA-MPD207 External Photos of the EUT FCC ID:2BWWA-MPD207

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BWWA-MPD207

FCC ID:2BWWA-MPD207 Internal Photos of the EUT FCC ID:2BWWA-MPD207 Antenna FCC ID:2BWWA-MPD207 FCC ID:2BWWA-MPD207

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA26070102402 2BWWA-MPD207 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jul. 11, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Dognguan Welte Electronic Technology Co.,Ltd Address............................................ : Room 405,Building 8,Youchuang Space,Julong Road,Shigu Tangxia Town, Dongguan, Guangdong Sheng, 523000 China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Wireless Speaker Trade Mark ....................................... : maxpower Manufacturer .................................... : Dognguan Welte Electronic Technology Co.,Ltd Model/Type reference ...................... : MPD207 Listed Models ................................... : MPD17, MPD412, MPD210, MPD235, MPD12MG Rating ............................................... : Input: DC 5V Battery: 3.7V 1500mAh 5.55Wh Result ............................................... : PASS Report No.: CTA26070102402 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Wireless Speaker Model /Type : MPD207 Listed Models : MPD17, MPD412, MPD210, MPD235, MPD12MG Model difference : The PCB board, circuit, structure and internal of these models are the same, only model number and colour are different for these models. So the tests were performed on model MPD207 and the test results for the main test model can cover the listed models. Applicant : Dognguan Welte Electronic Technology Co.,Ltd Address : Room 405,Building 8,Youchuang Space,Julong Road,Shigu Tangxia Town, Dongguan, Guangdong Sheng, 523000 China Manufacturer : Dognguan Welte Electronic Technology Co.,Ltd Address : Room 405,Building 8,Youchuang Space,Julong Road,Shigu Tangxia Town, Dongguan, Guangdong Sheng, 523000 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26070102402 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 7 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ..............................…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA26070102401 2BWWA-MPD207 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jul. 11, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Dognguan Welte Electronic Technology Co.,Ltd Address ............................................ : Room 405,Building 8,Youchuang Space,Julong Road,Shigu Tangxia Town, Dongguan, Guangdong Sheng, 523000 China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Wireless Speaker Trade Mark ....................................... : maxpower Manufacturer .................................... : Dognguan Welte Electronic Technology Co.,Ltd Model/Type reference ...................... : MPD207 Listed Models ................................... : MPD17, MPD412, MPD210, MPD235, MPD12MG Modulation ....................................... : GFSK, Π/4DQPSK Frequency ........................................ : From 2402MHz to 2480MHz Ratings ............................................. : Input: DC 5V Battery: 3.7V 1500mAh 5.55Wh Result ............................................... : PASS Report No.: CTA26070102401 Page 2 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Wireless Speaker Model /Type : MPD207 Listed Models : MPD17, MPD412, MPD210, MPD235, MPD12MG Model difference : The PCB board, circuit, structure and internal of these models are the same, only model number and colour are different for these models. So the tests were performed on model MPD207 and the test results for the main test model can cover the listed models. Applicant : Dognguan Welte Electronic Technology Co.,Ltd Address : Room 405,Building 8,Youchuang Space,Julong Road,Shigu Tangxia Town, Dongguan, Guangdong Sheng, 523000 China Manufacturer : Dognguan Welte Electronic Technology Co.,Ltd Address : Room 405,Building 8,Youchuang Space,Julong Road,Shigu Tangxia Town, Dongguan, Guangdong Sheng, 523000 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26070102401 Page 3 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory .................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2BWWA-MPD207 Company : Dognguan Welte Electronic Technology Co.,Ltd EUT : Wireless Speaker Model Number : MPD207 Report No. : CTA26070102401 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.936 2401.550 2402.486 --- --- 2441 0.960 2440.544 2441.504 --- --- 2480 0.945 2479.550 2480.495 --- --- 2DH5 Ant1 2402 1.287 2401.379 2402.666 --- --- 2441 1.290 2440.379 2441.669 --- --- 2480 1.347 2479.337 2480.684 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 6 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.86266 2401.5798 2402.4424 --- --- 2441 0.86742 2440.5793 2441.4467 --- --- 2480 0.87134 2479.5778 2480.4491 --- --- 2DH5 Ant1 2402 1.1878 2401.4168 2402.6046 --- --- 2441 1.1816 2440.4236 2441.6052 --- --- 2480 1.1904 2479.4175 2480.6079 --- --- 7 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 8 2DH5_Ant1_2402 2DH5_Ant1_2441 9 2DH5_Ant1_2480 10 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -3.29 ≤20.97 PASS 2441 -3.35 ≤20.97 PASS 2480 -3.59 ≤20.97 PASS 2DH5 Ant1 2402 -0.68 ≤20.97 PASS 2441 -0.78 ≤20.97 PASS 2480 -1.09 ≤20.97 PASS 11 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.02 ≥0.960 PASS 2DH5 Ant1 Hop 0.982 ≥0.898 PASS 12 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 13 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.407 320 0.13 ≤0.4 PASS DH3 Ant1 Hop 1.662 164 0.273 ≤0.4 PASS DH5 Ant1 Hop 2.910 108 0.314 ≤0.4 PASS 2DH1 Ant1 Hop 0.415 317 0.132 ≤0.4 PASS 2DH3 Ant1 Hop 1.667 160 0.267 ≤0.4 PASS 2DH5 Ant1 Hop 2.915 120 0.35 ≤0.4 PASS 14 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 15 DH5_Ant1_Hop 16 2DH1_Ant1_Hop 2DH3_Ant1_Hop 17 2DH5_Ant1_Hop 18 19 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 20 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 21 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -4.16 -57.61 ≤-24.16 PASS High 2480 -4.61 -57.22 ≤-24.61 PASS Low Hop_2402 -4.52 -57.71 ≤-24.52 PASS High Hop_2480 -4.36 -57.31 ≤-24.36 PASS 2DH5 Ant1 Low 2402 -3.66 -58.04 ≤-23.66 PASS High 2480 -5.02 -57.57 ≤-25.02 PASS Low Hop_2402 -5.79 -58.31 ≤-25.79 PASS High Hop_2480 -4.81 -57.7 ≤-24.81 PASS 22 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 23 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 24 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 25 26 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -3.68 -3.68 --- PASS 30~1000 -3.68 -68.63 ≤-23.68 PASS 1000~26500 -3.68 -45.82 ≤-23.68 PASS 2441 Reference -4.48 -4.48 --- PASS 30~1000 -4.48 -67.05 ≤-24.48 PASS 1000~26500 -4.48 -43.92 ≤-24.48 PASS 2480 Reference -3.76 -3.76 --- PASS 30~1000 -3.76 -68.18 ≤-23.76 PASS 1000~26500 -3.76 -46.25 ≤-23.76 PASS 2DH5 Ant1 2402 Reference -5.96 -5.96 --- PASS 30~1000 -5.96 -68.58 ≤-25.96 PASS 1000~26500 -5.96 -42.97 ≤-25.96 PASS 2441 Reference -4.76 -4.76 --- PASS 30~1000 -4.76 -67.92 ≤-24.76 PASS 1000~26500 -4.76 -46.69 ≤-24.76 PASS 2480 Reference -5.06 -5.06 --- PASS 30~1000 -5.06 -68.92 ≤-25.06 PASS 1000~26500 -5.06 -46.38 ≤-25.06 PASS 27 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 28 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 29 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 30 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 31 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference 32 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 33 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 34 35 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.91 3.75 77.60 1.10 --- --- 2DH5 Ant1 2402 2.92 3.76 77.66 1.10 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.92 3.75 77.87 1.09 --- ---

36 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 37 2DH5_Ant1_2402 2DH5_Ant1_2441 38 2DH5_Ant1_2480 39 Appendix J: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Freq(MH z) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict DH5 Ant1 Low 2402 AV 2310.000 -60.39 2.00 1.10 37.91 ≤54 PASS AV 2389.460 -58.94 2.00 1.10 39.36 ≤54 PASS AV 2390.000 -59.58 2.00 1.10 38.72 ≤54 PASS Peak 2310.000 -51.86 2.00 0.00 45.34 ≤74 PASS Peak 2376.020 -48.74 2.00 0.00 48.46 ≤74 PASS Peak 2390.000 -50.62 2.00 0.00 46.58 ≤74 PASS High 2480 AV 2483.500 -59.07 2.00 1.10 39.23 ≤54 PASS AV 2483.600 -58.04 2.00 1.10 40.26 ≤54 PASS AV 2500.000 -59.06 2.00 1.10 39.24 ≤54 PASS Peak 2483.500 -48.88 2.00 0.00 48.32 ≤74 PASS Peak 2486.640 -48.44 2.00 0.00 48.76 ≤74 PASS Peak 2500.000 -51.31 2.00 0.00 45.89 ≤74 PASS 2DH5 Ant1 Low 2402 AV 2310.000 -60.75 2.00 1.10 37.55 ≤54 PASS AV 2372.765 -58.98 2.00 1.10 39.32 ≤54 PASS AV 2390.000 -59.68 2.00 1.10 38.62 ≤54 PASS Peak 2310.000 -52.67 2.00 0.00 44.53 ≤74 PASS Peak 2369.825 -48.78 2.00 0.00 48.42 ≤74 PASS Peak 2390.000 -50.61 2.00 0.00 46.59 ≤74 PASS High 2480 AV 2483.500 -58.63 2.00 1.09 39.66 ≤54 PASS AV 2484.160 -58.07 2.00 1.09 40.22 ≤54 PASS AV 2500.000 -59.7 2.00 1.09 38.59 ≤54 PASS Peak 2483.500 -51.47 2.00 0.00 45.73 ≤74 PASS Peak 2484.720 -45.83 2.00 0.00 51.37 ≤74 PASS Peak 2500.000 -51.38 2.00 0.00 45.82 ≤74 PASS Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 40 Test Graphs DH5_Ant1_Low_2402_AV DH5_Ant1_Low_2402_Peak DH5_Ant1_High_2480_AV 41 DH5_Ant1_High_2480_Peak 2DH5_Ant1_Low_2402_AV 42 2DH5_Ant1_Low_2402_Peak 2DH5_Ant1_High_2480_AV 2DH5_Ant1_High_2480_Peak 43

1. Antenna Description: Antenna type PCB antenna Model MPD207 Frequency range 2400-2500MHz Manufacturer Dognguan Welte Electronic Technology Co.,Ltd Address Room 405, Building 8, Youchuang Space, Julong Road,Shigu Tangxia Town, Dongguan, Guangdong Sheng, 523000 China ANT Peak Gain 1.67 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz
