2BWYT-QCG18F30Data transmission module

Rainbow Dynamics Inc 8314 Sherwick Ct, Jessup, MD 20794, United States QCG18F30 User Manual General QCG18F30 is a highly integrated, cost-effective, high-power 16-channel full-duplex data transmission module. It features a built-in high-speed micro-controller, high-performance RF transceiver chip, and RF power amplifier. The module provides a standard serial port for communication, enabling easy and quick parameter settings and control of the transmit/receive functions. Users can achieve data transmission simply by connecting the module to the serial port. Its ultra-compact size allows for easy and fast integration into various handheld devices, enhancing the overall performance of terminal products, making this module widely applicable. QCG18F30 is a 16-way full-duplex wireless data communication module that can achieve up to 16 transmitters transmitting simultaneously without interfering with each other. It is designed for scenarios where multiple transmitters operate concurrently in complex environments, minimizing the likelihood of re-transmissions and significantly reducing interference and the chances of being interfered with. The combination of LoRa modulation with 1W output power, along with its low-power design for receiving and sleep modes, makes it ideal for long-distance wireless IoT applications. 2 Parameters List Power supply: 3.3V DC Frequency band: 902.125-917.125MHz Channel Number: 16 Channel Separation: 1MHz Modulation: LoRa Max. peak power: [email protected] Antenna: Permanently attached folding rod antenna, 2.15dBi Module Dimensions: 3 Reset Timing Diagram Power-on Reset Timing Diagram Operating State Reset Timing Diagram Communication protocol The module provides a user-friendly interface (standard serial port), allowing users to send commands via the serial port to control the module and read its parameters. 4 Pin Definition Pin NO. Pin name I/O Description 1 TXLED O Transmitting indicator, connected with external led, turn on by low level output when data is transmitting , (suggest 1K ohm resistor for current limitation) 2 RESET I Module reset pin: Pulling it low for more than 5 ms will reset the module 3,6,10,12,15,19 GND Connect to the power supply ground 4，5，7，8 NC 9 RESER VED Module test pin: Leave unconnected (floating) for users 11 +3.3V OUT 3.3V output, capable of driving an external load of up to 50mA 13 ANT RF signal output, connect to a 50-ohm antenna 14 VCC Connect to the positive power supply 16,17,18,20,21 NC 22 TXD O Module serial port transmit pin 23 RXD I Module serial port receive pin 24 NC 25 RXLED O External receive indicator light: Lights up on low level, normal high level output (requires an external current-limiting resistor of approximately 1K ohms) 26 CS I Module sleep pin: High level for operation, low level for sleep.Internally pulled up, defaults to high level。 5 FCC regulatory compliance statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This Module complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Labelling Instruction for Host Product Integrator Please notice that if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC ID: 2BWYT-QCG18F30” any similar wording that expresses the same meaning may be used. Installation Notice to Host Product Manufacturer The OEM integrator is responsible for ensuring that the end-user has no manual instruction to remove or install module. The module is limited to installation in mobile application, a separate approval is required for all other operating configurations, including portable configurations with respect to §2.1093 and difference antenna configurations. Antenna Change Notice to Host manufacturer If you desire to increase antenna gain and either change antenna type or use same antenna type certified, a Class II permissive change application is required to be filed by us, or you (host manufacturer) can take responsibility through the change in FCC ID (new application) procedure followed by a Class II permissive change application. FCC other Parts, Part 15B Compliance Requirements for Host product manufacturer This modular transmitter is only FCC authorized for the specific rule parts listed on our grant, host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. 6 Host manufacturer in any case shall ensure host product which is installed and operating with the module is in compliant with Part 15B requirements. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or…

Text truncated - open the document above for the full version.

Rainbow Dynamics Inc 092723-17 rev 10 Certification Application Attestation Statements Date: July 23, 2026 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) _____Rainbow Dynamics Inc______ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) ______Rainbow Dynamics Inc______ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is / ☒ - is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates – see KDB 986446 Question 5) as an entity producing “covered” equipment. The applicant also certifies that the device does not have cybersecurity and/or anti-virus software produced by Kaspersky Lab, Inc or any of its successors and assignees identified on the covered list installed on the device, nor will it be installed by the applicant at any time after certification. Thank you, By: __________________________ ______Nan Zhang________ (Signature 2 ) (Print name) Title: ____________CFO______________ Company: ______Rainbow Dynamics Inc___ Telephone: _______(716) 628-5723________ 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters must be placed on appropriate letterhead.

Rainbow Dynamics Inc U.S. Agent Designation for Service of Process (Applicant is Both Grantee and U.S. Agent) TO: American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information This letter is to confirm that the Applicant will also serve as the U.S. Agent for Service of Process as required by 47 CFR 2.911(d)(7). The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The Applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information changes. Applicant Company name: Rainbow Dynamics Inc FRN #: 0038633905 Grantee Code: 2BWYT Contact Name: Nan Zhang Street Address: 8314 Sherwick Ct City/Province/Zip: Jessup / MD / 20794 / United States Telephone No: (716) 628-5723 Email: [email protected] Applicant Signature 1 : Date: July 20, 2026 Signed by (Printed Name/Title): Nan Zhang 1 - Letters must be placed on appropriate letterhead. The signee for the applicant must be one of the following: Applicant (grantee) contact of record in the FCC’s authorization system, or authorized officers or employee of the applicant (grantee).

Rainbow Dynamics Inc 041521-14 Authority to Act as Agent Date: July 20, 2026 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______Intertek Testing Service (Shanghai FTZ) Co., Ltd______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: _____July 19, 2027_____ By: Nan Zhang (Signature 1 ) (Print name) Title: CFO On behalf of: Rainbow Dynamics Inc (Company Name) Telephone: (716) 628-5723

Rainbow Dynamics Inc 041521-14 Request for Confidentiality Date: Subject: Confidentiality Request for: ____2BWYT-QCG18F30______ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☐ Short Term External Photos ☐ Short Term ☐ Permanent * 1 Internal Photos ☐ Short Term ☒ Permanent Operation Description ☐ Short Term ☒ Permanent Schematics ☐ Short Term Test Setup Photos ☐ Short Term ☐ Permanent * 3 User’s Manual ____Rainbow Dynamics Inc______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Nan Zhang (Signature/Title 2 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests.

Rainbow Dynamics Inc 070920-02b Request for Modular/Limited Modular Approval Date: July 31, 2026 Subject: Manufacturer’s Declaration for ☒ - Modular Approval ☐ - Split Modular Approval ☐ - Limited Modular Approval ☐ - Limited Split Modular Approval Confidentiality Request for: ______2BWYT-QCG18F30______ 8 Basic Requirements – FCC Part 15.212(a)(1) For Items Marked “NO(*)”, the Limited Module Description Must be Filled Out on the Following Pages Modular Approval Requirement Requirement Met 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with FCC limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. The physical crystal and tuning capacitors may be located external to the shielded radio elements. 15.212(a)(1)(i) ☒ - YES ☐ - NO(*) Details: The module contains a metal shield which covers all RF components and circuitry. The shield is located on the top of the board next to antenna connector. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with FCC requirements under conditions of excessive data rates or over-modulation. 15.212(a)(1)(ii) ☒ - YES ☐ - NO(*) Details: Data to the modulation circuit is buffered as described in the operational description provided with the application. 3. The modular transmitter must have its own power supply regulation on the module. This is intended to ensure that the module will comply with FCC requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. 15.212(a)(1)(iii) ☒ - YES ☐ - NO(*) Details: The module contains own power supply regulation. Please refer to schematic filed with this application. 4. The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b), 15.204(c), 15.212(a), and 2.929(b). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph 15.212(b). 15.212(a)(1)(iv) ☒ - YES ☐ - NO(*) Details: The module uses permanently attached straight rod antenna. Please refer to the internal photos for details. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). 15.212(a)(1)(v) ☒ - YES ☐ - NO(*) Details: The module was tested stand-alone as shown in test setup photographs filed with this application. Rainbow Dynamics Inc 070920-02b Modular Approval Requirement Requirement Met 6. The modular transmitter must be labeled with its own FCC ID number, or use an electron display (see KDB Publication 784748). If using a permanently affixed label with its own FCC ID number, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 15.212(a)(1)(vi) ☒ - YES ☐ - NO(*) Details: There is a label on the module as shown in the labeling exhibit filed with this application. Host specific labeling instructions are shown in the installation manual .filed with this application. 7. The modular transmitter must comply with all specific rule or operating requirements applicable to the transmitter, including all the conditions provided in the integration instructions by th…

Text truncated - open the document above for the full version.

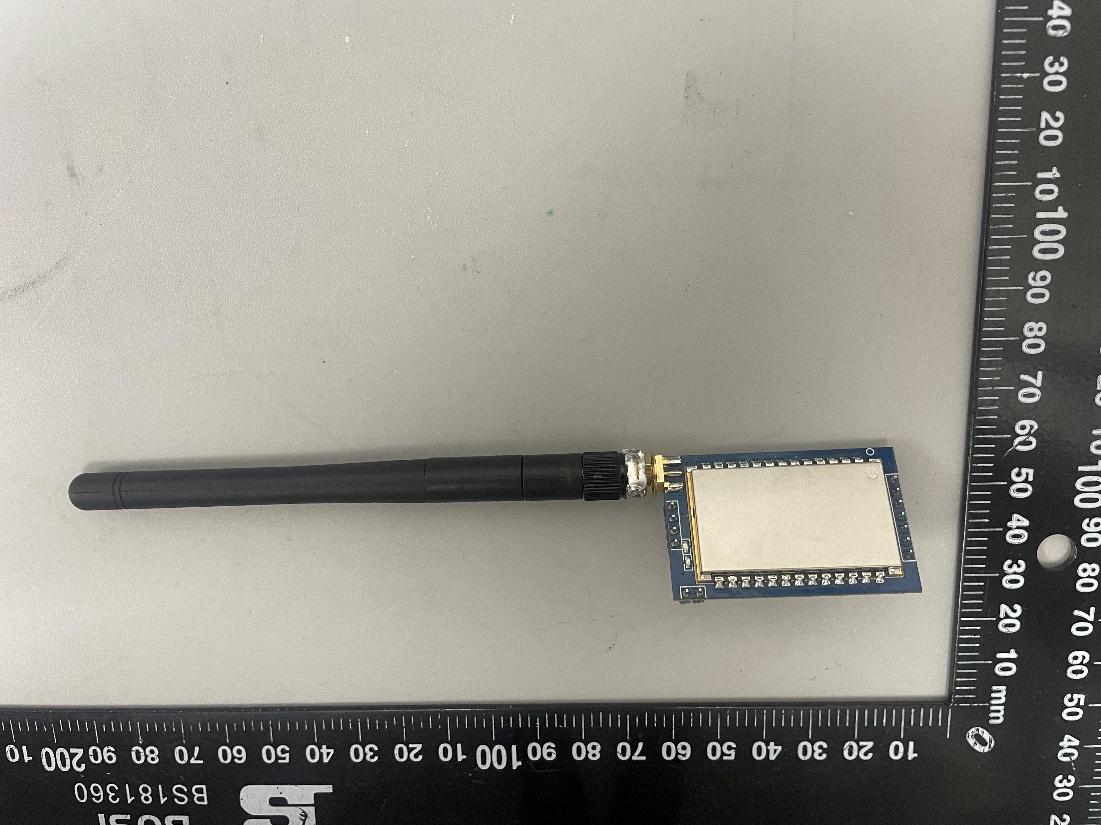

Page 1 of 2 External Photos Page 2 of 2

Page 1 of 2 Internal Photos Page 2 of 2

Rainbow Dynamics Inc MPE ASSESSMENT REPORT Report Type: FCC MPE assessment report MODEL: QCG18F30 REPORT NUMBER: 260600021SHA-002 ISSUE DATE: July 14, 2026 DOCUMENT CONTROL NUMBER: TTRFFCCMPE-01_V1 © 2018 Intertek Intertek Testing Services (Shanghai FTZ) Co., Ltd Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCCMPE-01_V1© 2018 Intertek Page 2 of 8 Report no.: 260600021SHA-002 Applicant: Rainbow Dynamics Inc 8314 Sherwick Ct, Jessup, MD 20794, United States Manufacturer: ZHEJIANG RAINBOW DYNAMICS CO., LTD. 1501, Building 4, No.88, West Wuxing Road, CaoeStreet, Shangyu, Shaoxing, Zhejiang, China Factory: ZHEJIANG RAINBOW DYNAMICS CO., LTD. 1501, Building 4, No.88, West Wuxing Road, CaoeStreet, Shangyu, Shaoxing, Zhejiang, China Product Name: Data transmission module Type/Model: QCG18F30 FCC ID: 2BWYT-QCG18F30 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: KDB447498 D01 General RF Exposure Guidance v06 FCC Part2.1091, FCC Part2.1093 FCC Part1.1307(b) PREPARED BY: REVIEWED BY: Project Engineer Scout Gong Reviewer Eric Li Report No.: 260600021SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 3 of 8 Revision History Report No. Version Description Issued Date 260600021SHA-002 Rev. 01 Initial issue of report July 14, 2026 Report No.: 260600021SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 4 of 8 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test (EUT) Product name: Data transmission module Type/Model: QCG18F30 Description of EUT: EUT is a data transmission module which supports 902-928MHz LoRa non-hopping Tx/Rx function. Rating: 3.3V DC Category of EUT: Class B EUT type: Table top Floor standing Software Version: V1.1 Hardware Version: V2.3 Serial numbers: A260523-22-001 Sample received date: May 23, 2026 Date of test: May 23, 2026, to July 14, 2026 1.2 Technical Specification Frequency Band: 902MHz – 928MHz Type of Modulation: LoRa Operating Frequency: 902.125MHz – 917.125MHz Channel Number: 16 Channel Separation: 1 MHz Report No.: 260600021SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 5 of 8 1.3 Description of Test Facility Name: Intertek Testing Services (Shanghai FTZ) Co., Ltd Address: Building 86, No. 1198 Qinzhou Road (North), Shanghai 200233, P.R. China Telephone: 86 21 61278200 Telefax: 86 21 54262353 The test facility is recognized, certified, or accredited by these organizations: CNAS Accreditation Lab Registration No. CNAS L21189 FCC Accredited Lab Designation Number: CN0175 IC Registration Lab CAB identifier.: CN0014 VCCI Registration Lab Registration No.: R-14243, G-10845, C-14723, T-12252 A2LA Accreditation Lab Certificate Number: 3309.02 Report No.: 260600021SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 6 of 8 2 MPE Assessment Test Result: Pass 2.1 MPE Assessment Limit Mobile device exposure for standalone operations: Frequency range E-field strength (V/m) H-field strength (A/m) B-field (uT) Equivalent plane wave power density S eq (W/m 2 ) 0-1 Hz - 3,2 × 10 4 4 × 10 4 - 1-8 Hz 10 000 3,2 × 10 4 /f 2 4 × 10 4 /f 2 - 8-25 Hz 10 000 4 000/f 5 000/f - 0,025-0,8 kHz 250/f 4/f 5/f - 0,8-3 kHz 250/f 5 6,25 - 3-150 kHz 87 5 6,25 - 0,15-1 MHz 87 0,73/f 0,92/f - 1-10 MHz 87/f 1/2 0,73/f 0,92/f - 10-400 MHz 28 0,073 0,092 2 400-2 000 MHz 1,375 f 1/2 0,0037 f 1/2 0,0046 f 1/2 f/200 2-300 GHz 61 0,16 0,20 10 Mobile device exposure for simultaneous transmission operations: the sum of the MPE ratios for all simultaneously transmitting antennas incorporated in a host device is ≤ 1.0 Report No.: 260600021SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 7 of 8 2.2 Assessment Results Power density (S) is calculated according to the formula: S = PG / (4πR²) Where S = power density in mW/cm² P = Radiated transmit power in mW G = numeric gain of transmit antenna R = distance (cm) As we can see from the test report 260600021SHA-001: The calculations in the table below use the highest gain of antenna for client EUT. These Calculations represent worst case in terms of the exposure levels. Note: 0.4510 mW/cm 2 from 1.310 Table 1 (f = 902 MHz), the maximum rate of MPE is: 0.2014 ≤ 0.4510 Mode Work Frequency Power Antenna Gain R S Limits (MHz) dBm mW dBi (Numeric) (cm) (mW/cm2) (mW/cm2) LoRa 902 – 928 27.902 616.88 2.15 1.64 20 0.2014 0.4510 Report No.: 260600021SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 8 of 8 Appendix I Definition below must be outlined in the User Manual: To satisfy FCC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recommended. *************************************END*************************************

-1- www.nicerf.comSW915-ZD115 NiceRFWirelessTechnologyCo.,Ltd.Rev2.0 [email protected] -2- Catalogue 1.Description.................................................................................................................................................................-3- 2.TechnicalParameter...................................................................................................................................................-3- 3.Size.............................................................................................................................................................................-3- 4.VSWRChart..............................................................................................................................................................-3- Note:RevisionHistory RevisionDateComment V1.02018-10Firstrelease V2.02022-5Sizeupdated www.nicerf.comSW915-ZD115 NiceRFWirelessTechnologyCo.,Ltd.Rev2.0 [email protected] -3- 1.Description SW915-ZD115,afoldingrodantenna,designedspeciallyfor915MHzwirelesscommunication.It hasgoodVSWR,ingeniousstructure,stableperformance,withgoodanti-vibration andanti-agingability. 2.TechnicalParameter FrequencyRange:915 ± 10MHz VSWR:≤1.5 Gain:2.15dBi Inputimpedance:50Ω Maxpower:10W Polarization:verticalpolarization Height:116 ± 1mm Leadwire:none AntennaColor:black Weight:10g 3.Size 3.VSWRChart AntennashavebeentestedunderwirelesssimulatedenvironmentbyNetworkAnalyzer.

Rainbow Dynamics Inc RF TEST REPORT Report Type: FCC Part 15.247 RF report MODEL: QCG18F30 REPORT NUMBER: 260600021SHA-001 ISSUE DATE: July 14, 2026 DOCUMENT CONTROL NUMBER: TTRF15.247-03_V1 © 2018 Intertek Intertek Testing Services (Shanghai FTZ) Co., Ltd Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRF15.247-03_V1 © 2018 Intertek Page 2 of 48 Report no.: 260600021SHA-001 Applicant: Rainbow Dynamics Inc 8314 Sherwick Ct, Jessup, MD 20794, United States Manufacturer: ZHEJIANG RAINBOW DYNAMICS CO., LTD. 1501, Building 4, No.88, West Wuxing Road, CaoeStreet, Shangyu, Shaoxing, Zhejiang, China Factory: ZHEJIANG RAINBOW DYNAMICS CO., LTD. 1501, Building 4, No.88, West Wuxing Road, CaoeStreet, Shangyu, Shaoxing, Zhejiang, China Product Name: Data transmission module Type/Model: QCG18F30 FCC ID: 2BWYT-QCG18F30 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: 47CFR Part 15 (2024): Radio Frequency Devices (Subpart C) C63.10-2020 +Cor. 1-2023 +C63.10a-2024 +Errata to C63.10a-2024: American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Device – Corrigendum 1 PREPARED BY: REVIEWED BY: Project Engineer Scout Gong Reviewer Eric Li Report No.: 260600021SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 3 of 48 Content REVISION HISTORY................................................................................................................................................ 5 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 6 1 GENERAL INFORMATION ............................................................................................................................. 7 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ................................................................................................ 7 1.2 TECHNICAL SPECIFICATION ................................................................................................................................ 8 1.3 ANTENNA INFORMATION .................................................................................................................................. 8 1.4 DESCRIPTION OF TEST FACILITY ......................................................................................................................... 9 2 TEST SPECIFICATIONS .........................................................…
