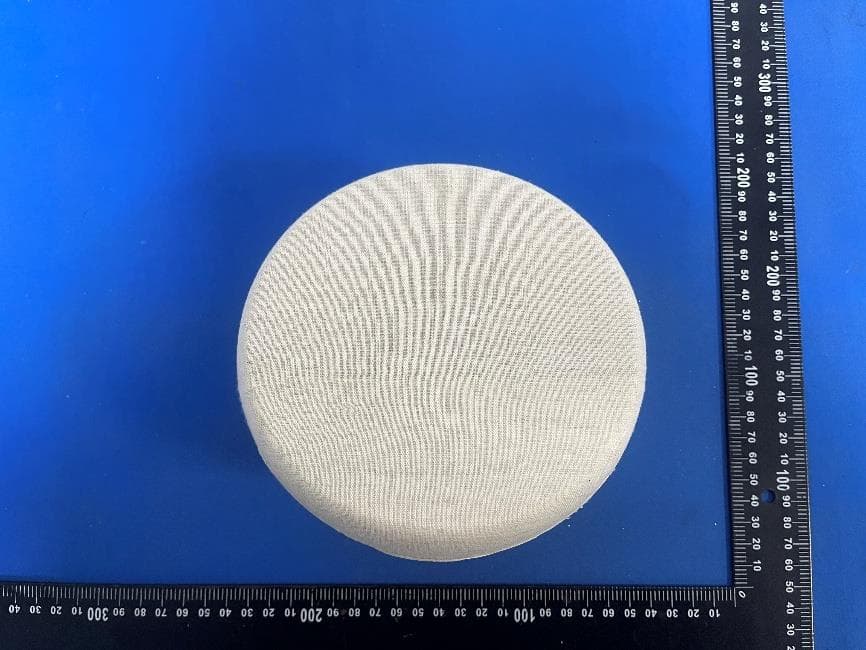

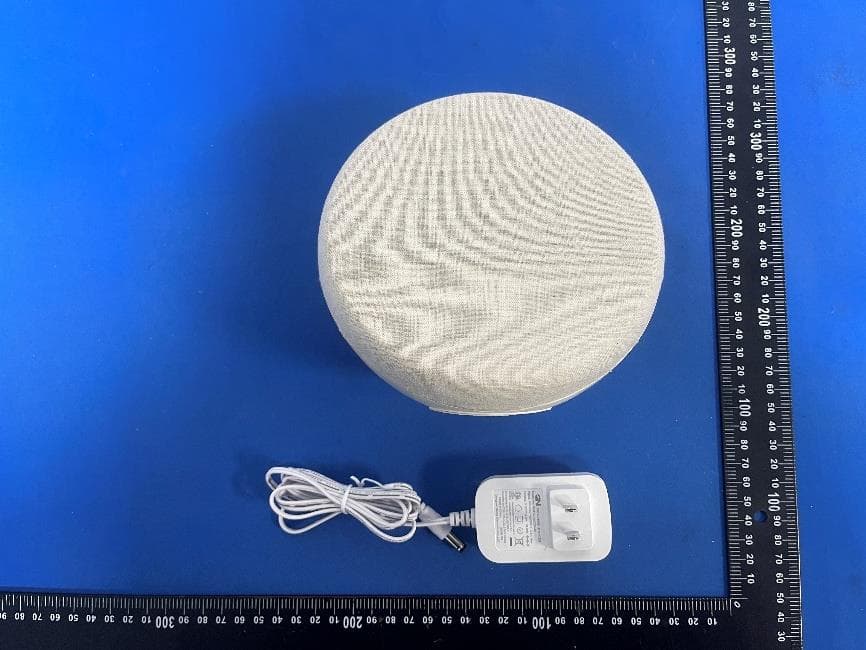

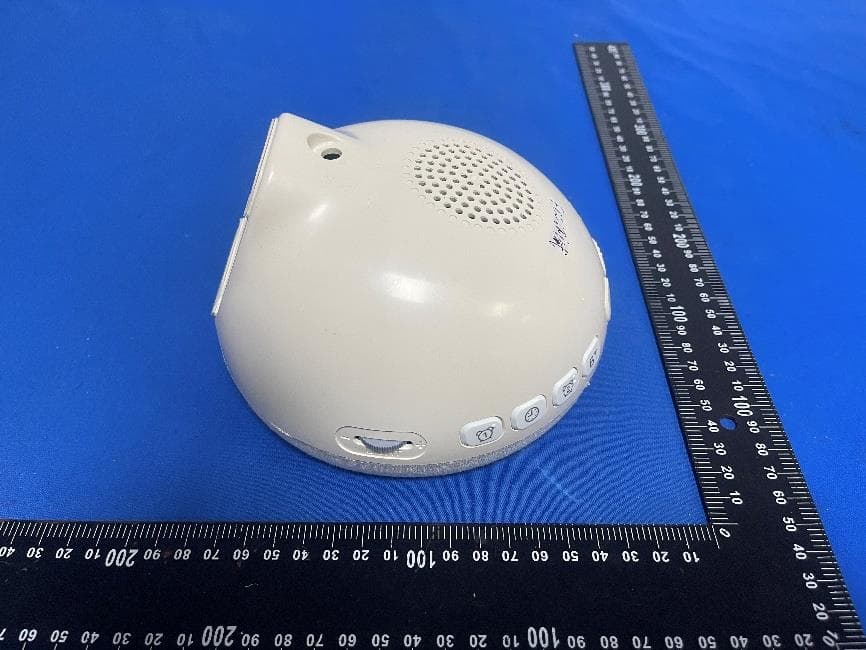

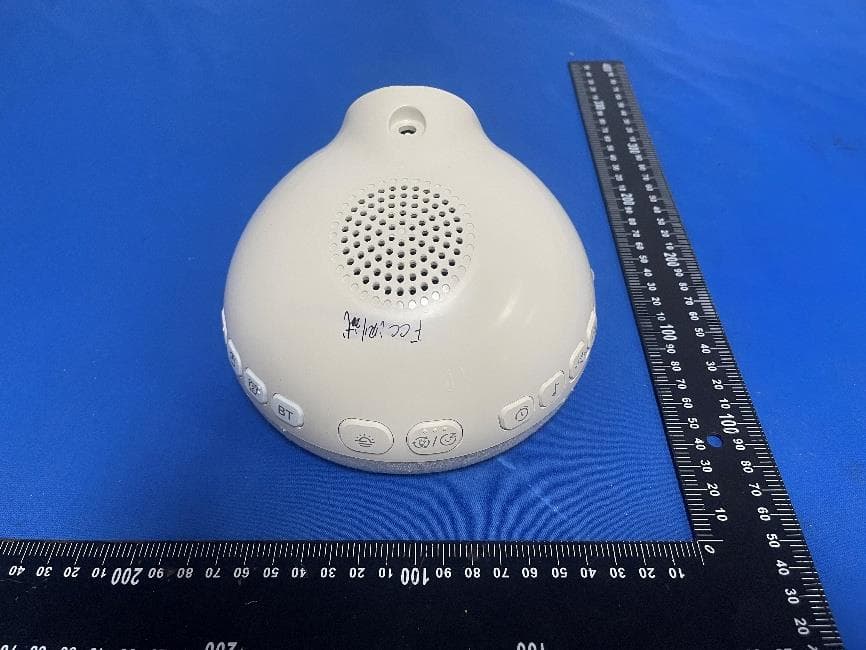

FCC ID: 2BX54-ZH172 External Photos of the EUT FCC ID: 2BX54-ZH172 FCC ID: 2BX54-ZH172

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : 2BX54-ZH172

FCC ID: 2BX54-ZH172 Internal Photos of the EUT FCC ID: 2BX54-ZH172 FCC ID: 2BX54-ZH172 FCC ID: 2BX54-ZH172 ANT FCC ID: 2BX54-ZH172

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : CTA26082500103 2BX54-ZH172 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Sep. 04, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : ShenZhen YiChuangWeiLai KeJiYouXianGongSi Address............................................ : ShenZhenShi LongGangQu BanTianJieDao MaAnTangSheQu BuLongLu 571Hao JunYaJu B Zuo1303, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Sunrise Alarm ClockORB300S Trade Mark ....................................... : N/A Manufacturer .................................... : ShenZhen YiChuangWeiLai KeJiYouXianGongSi Model/Type reference ...................... : ZH172 Listed Models ................................... : N/A Rating ............................................... : Input: 9V2A or 3V (2x1.5V AAA dry batteries) Result ............................................... : PASS Report No.: CTA26082500103 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Sunrise Alarm ClockORB300S Model /Type : ZH172 Listed Models : N/A Applicant : ShenZhen YiChuangWeiLai KeJiYouXianGongSi Address : ShenZhenShi LongGangQu BanTianJieDao MaAnTangSheQu BuLongLu 571Hao JunYaJu B Zuo1303, China Manufacturer : ShenZhen YiChuangWeiLai KeJiYouXianGongSi Address : ShenZhenShi LongGangQu BanTianJieDao MaAnTangSheQu BuLongLu 571Hao JunYaJu B Zuo1303, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26082500103 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 MPE Calculation Method ......................................................................................... 7 4.3 Conducted Power Results ....................................................................................... 8 4.4 Manufacturing tolerance .......................................................................................... 8 4.5 Standalone MPE Result ........................................................................................... 8 4.6 Simultaneous Transmission for MPE Result ........................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA26082500103 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhe…

Text truncated - open the document above for the full version.

2.4G-2.48G频段板载PIFA天线测试报告 2.4G-2.48GInvertedFAntennaSpecification SPECIFICATIONS Frequency（MHz）2400-2480 PeakGain（dBi）2.499 AverageGain（dBi）＞-4 VSWR＜3.2 Impedance（Ω）50Ω AntennaTypePlannarInvertedFAntennaonboard PolarizationLinear ManufactureZHUHAIJIELITECHNOLOGYCO.,LTD Address: No.333KexingRoad,NanpingSciencePark,XiangzhouDistrict, Zhuhai TestequipmentHWA-TECH AntennaPhoto&Length(mm) 天线无源S参数： AntennapassiveS-parameters: 驻波比（ VSWR ）、回波损耗（ ReturnLoss ）及史密斯圆图（ Smith ） 天线效率及增益： Antennaefficiencyandgain ： Frequency（MHz）Gain（dBi）Effciency（%）AverageGain（dBi）Efficiency（dB） 24001.43359.329%-2.717-2.267 24100.92751.861%-3.416-2.852 24200.82952.112%-3.166-2.831 24300.88149.299%-3.258-3.072 24401.19250.672%-3.144-2.952 24501.68853.067%-2.735-2.752 24602.19459.423%-2.276-2.260 24702.11856.680%-2.438-2.466 24802.49961.727%-2.112-2.095 Average1.52954.908%-2.806-2.616 Peak2.49961.727%-2.112-2.095 天线2440MHz2D-ThetaPattern 天线2440MHz2D-PhiPattern 天线2440MHz3D-HorizontalPattern 天线2440MHz3D-VerticalPattern 2440MHz3D-TotalPattern

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA26082500101 2BX54-ZH172 Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Sep. 04, 2026 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: ShenZhen YiChuangWeiLai KeJiYouXianGongSi Address ...........................................: ShenZhenShi LongGangQu BanTianJieDao MaAnTangSheQu BuLongLu 571Hao JunYaJu B Zuo1303, China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Sunrise Alarm ClockORB300S Trade Mark ......................................: N/A Manufacturer ...................................: ShenZhen YiChuangWeiLai KeJiYouXianGongSi Model/Type reference .....................: ZH172 Listed Models ..................................: N/A Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: Input: 9V2A or 3V (2x1.5V AAA dry batteries) Result ..............................................: PASS Report No.: CTA26082500101 Page 2 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Sunrise Alarm ClockORB300S Model /Type : ZH172 Listed Models : N/A Applicant : ShenZhen YiChuangWeiLai KeJiYouXianGongSi Address : ShenZhenShi LongGangQu BanTianJieDao MaAnTangSheQu BuLongLu 571Hao JunYaJu B Zuo1303, China Manufacturer : ShenZhen YiChuangWeiLai KeJiYouXianGongSi Address : ShenZhenShi LongGangQu BanTianJieDao MaAnTangSheQu BuLongLu 571Hao JunYaJu B Zuo1303, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26082500101 Page 3 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Summary of measurement results ................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BLE FCC ID : 2BX54-ZH172 Company : ShenZhen YiChuangWeiLai KeJiYouXianGongSi EUT : Sunrise Alarm ClockORB300S Model Number : ZH172 Report No. : CTA26082500101 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.660 2401.680 2402.340 0.5 PASS 2440 0.644 2439.692 2440.336 0.5 PASS 2480 0.652 2479.684 2480.336 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0011 2401.5216 2402.5227 --- --- 2440 1.0110 2439.5168 2440.5278 --- --- 2480 1.0130 2479.5142 2480.5272 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -3.57 ≤30 PASS 2440 -3.63 ≤30 PASS 2480 -3.93 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -19.35 ≤8.00 PASS 2440 -19.41 ≤8.00 PASS 2480 -19.88 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -3.55 -54.4 ≤-23.55 PASS High 2480 -4.28 -55.78 ≤-24.28 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -5.69 -5.69 --- PASS 30~1000 -5.69 -68.31 ≤-25.69 PASS 1000~26500 -5.69 -46.84 ≤-25.69 PASS 2440 Reference -5.19 -5.19 --- PASS 30~1000 -5.19 -68.24 ≤-25.19 PASS 1000~26500 -5.19 -45.3 ≤-25.19 PASS 2480 Reference -6.00 -6.00 --- PASS 30~1000 -6.00 -68.48 ≤-26 PASS 1000~26500 -6.00 -46.41 ≤-26 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.62 0.6613 66.13 1.80 --- --- 2440 0.41 0.62 0.6613 66.13 1.80 --- --- 2480 0.41 0.62 0.6613 66.13 1.80 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21 22 Appendix H: Emissions in Restricted Bands Test Result TestMode Antenna ChName Freq(MHz) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -60.79 2.499 1.80 38.709 ≤54 PASS AV 2380.325 -59.31 2.499 1.80 40.189 ≤54 PASS AV 2390.000 -60.6 2.499 1.80 38.899 ≤54 PASS Peak 2310.000 -53.49 2.499 0.00 44.209 ≤74 PASS Peak 2357.120 -48.51 2.499 0.00 49.189 ≤74 PASS Peak 2390.000 -51.68 2.499 0.00 46.019 ≤74 PASS High 2480 AV 2483.500 -58.41 2.499 1.80 41.089 ≤54 PASS AV 2483.520 -58.41 2.499 1.80 41.089 ≤54 PASS AV 2500.000 -59.4 2.499 1.80 40.099 ≤54 PASS Peak 2483.500 -50.8 2.499 0.00 46.899 ≤74 PASS Peak 2484.720 -46.37 2.499 0.00 51.329 ≤74 PASS Peak 2500.000 -50.73 2.499 0.00 46.969 ≤74 PASS Note： The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 23 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV 24 BLE_1M_Ant1_High_2480_Peak
