2BXCN-W10W5NDash camera

USER MANUAL Ver:1 product features: 4 cameras: 3 cameras on the machine +1 rear pull camera There is no gap between the archives and the archives. 3.0, inch screen High definition wide-angle camera Video file format: AVI Built-in microphone (speaker) Support high capacity TF (micro SD) memory card Supports overvoltage protection for the car start pulse One-click emergency data protection G-sensor collision sensing lock function Supports the rear camera function Supports voltage reduction line function (optional) Built-in WIFI function product description product mix Key and function description： 1) Work indicator light: the red indicator light is on after starting up, the blue indicator light flashes during recording, and the red indicator light is on during charging 2) Menu key: Short press this key to call up the function setting menu; Short press this key during recording to add to the current video file Lock, save as non-deleteable file, long press this button to switch between shooting mode, photo mode and playback mode 3) Upward key: Select the function key upward in the menu option. In standby or recording state, this key is the infrared light on/off function, and long press can open/close WiFi. 4) Down arrow: Select the function key in the menu option. Short press this key to switch the screen camera display; 5) OK key: video confirmation key. In camera mode, short press this key to start video recording, and press again to stop video recording. In photo mode, press this key to take photos. In playback mode and menu mode, it is the confirmation key 6) Power button: short press to turn on, long press to turn off, standby state, short press to turn off the screen. 7) Reset hole: Dead reset button hole 8) Power interface: used to connect the external vehicle charging power or voltage reduction line to provide working power for the machine; 9) Rear camera interface: rear view lens video input port 10) TF card slot: memory card slot 11) Infrared lamp: night vision light 12) Left camera: left view window 13) Right camera: the right view window 14) Speaker: an amplification hole for playing video or audio files, with sound reminders 15) Front camera: front view window 16) Bracket opening: the slot for installing the bracket Special function description： 1) G-sensor function: When the gravity acceleration (1g=9.80 m/s^2) occurs, the machine will automatically lock and save the video of the accident as an undeliverable file; G-sensor gravity sensor can be selected in the menu. The device has four sensitivity options: off, low, medium and high. The factory default is off; 2) One-click lock function: During the recording process, short press the menu button, and the machine will lock the current video and save it as an undelable file. 3) Automatic on/off: support the car power supply to automatically start the video recording after the car starts, and automatically save and shut down after the car shuts off; 4) Parking Mode: When parking mode is activated, if the vehicle is turned off or the ignition is turned off, and the dashcam enters an automatic shutdown program, the camera will activate to record for 30 seconds before automatically shutting down. If the vehicle detects another vibration, it will restart the recording function. The video from the parking surveillance camera will be automatically locked. Note: The parking mode function must be activated when the driving recorder is automatically turned off. After manual start or shutdown, the parking monitoring will not work; This function is not available when the battery or car battery is completely dead 5) Time-Lapse Recording (This option requires a voltage drop cable to function; car charging does not support this feature): Enter the time-lapse recording settings: You can choose: Off / 2 hours / 4 hours / 8 hours / 24 hours. Once this function is enabled, the system will continue to record for the selected duration after the engine is turned off (ACC power loss). The system defaults to being off. Note: This function cannot be used when the car battery is completely drained. Basic operation instructions for video/camera taking: 1) Power On and Off: Short press the power button to turn on; the power indicator light will turn on. After turning on, long press the power button to turn off; this light will turn off. 2) Camera Mode: Short press the OK button to start recording. During recording, a red dot will start flashing on the screen, and the blue indicator light will also start flashing, entering the recording mode; 3) Photo mode: Long press the menu button to switch to photo mode, and the photo icon will be displayed in the upper left corner of the screen; Short press the OK button to take a picture, when taking a picture, hear a "click", indicating that the photo is completed; 4) Video/photo playback: Long press the menu button, the playback icon will be displayed in the upper left corner of the screen. Press the up/down key to select the camera file to view, and short press the OK key to play the selected video file; 5) Menu Settings: In standby mode, short press the menu key to call up the setting menu; by short pressing the up or down keys, you can cycle through the settings; select the setting item that needs to be changed, and enter the change by short pressing the OK key; 6) Exit the Settings menu: Short press the menu button to exit the Settings state; Four: Time and date Settings In standby mode, press the menu button to enter the Settings item. Press the up/down keys to select the date/time setting option. Press OK to enter. Press OK to switch between year/month/day/hour/min/sec. Adjust the required value by pressing the up/down keys. Press OK to confirm the modification and exit the time setting. Note: When this product is used due to improper operation, it will crash Phenomenon, you can reset the key and then start up, you can return to normal. Installation Guide: 1. Turn off the car engine. 2. Insert the TF card into t…

Text truncated - open the document above for the full version.

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BXCN-W10W5N W10, W10 Pro, W5N We, Applicant Company Name: Shenzhen Jusheng Times Electronics Co., Ltd Address: 301, Building F, No.1 Lingxia Road, Fenghuang Community, Fuyong Street, Bao'an District, Shenzhen, Guangdong, China Phone: +86-13603042877 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc. or any of ist successors and assignees. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-08-08 Signature Date Name / Title: Yuanwen Dai / General Manager Company: Shenzhen Jusheng Times Electronics Co., Ltd Address: 301, Building F, No.1 Lingxia Road, Fenghuang Community, Fuyong Street, Bao'an District, Shenzhen, Guangdong, China Phone: +86-13603042877 Fax: +86-755-29607776 E-Mail: [email protected]

Due Diligence Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern FCC ID Model name 2BXCN-W10W5N W10, W10 Pro, W5N Pursuant to KDB 986446 D01 Covered Equipment Guidance the evaluation of the product above shows compliance for the following reasons: Compliance Evaluation process Results Inherent compliance The chipset(s) used is not capable of running the cybersecurity and/or anti-virus software Compliance The memory used does not allow the running the cybersecurity and/or anti-virus software Compliance The storage capacity does not allow the running the cybersecurity and/or anti-virus software Compliance The operating system used is not capable of running the cybersecurity and/or anti-virus software Compliance No inherent compliance Based on software bill of material Based on scan for running software on the device Based on filesystem scan for cybersecurity and/or anti-virus software The equipment for which authorization is sought complies with the rules and fulfils the requirements as detailed in the above mentioned KDB. Evaluation performed by Company Name: Shenzhen LCS Compliance Testing Laboratory Ltd. Contact Name: Martion Lee Address: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Phone: +86-755-82591330 Email: [email protected] Signature: Date: 2026-08-03

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2BXCN-W10W5N W10, W10 Pro, W5N For the products listed above, we request permanent confidentiality for all applicable exhibits as there are:  the Operational Description  the Block Diagram  the Schematics  the Part List  the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-08-08 Signature Date Name / Title: Yuanwen Dai / General Manager Company: Shenzhen Jusheng Times Electronics Co., Ltd Address: 301, Building F, No.1 Lingxia Road, Fenghuang Community, Fuyong Street, Bao'an District, Shenzhen, Guangdong, China Phone: +86-13603042877 Fax: +86-755-29607776 E-Mail: [email protected]

Page 1 of 1 Rev.2.0 Shenzhen Jusheng Times Electronics Co., Ltd WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2BXCN-W10W5N Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo- location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name / Title: Yuanwen Dai / General Manager Signature: Phone: +86-13603042877 Email: [email protected] Date: 2026-08-08

Shenzhen Jusheng Times Electronics Co., Ltd 301, Building F, No.1 Lingxia Road, Fenghuang Community, Fuyong Street, Bao'an District, Shenzhen, Guangdong, China Date: August 8, 2026 FCC ID: 2BXCN-W10W5N Model Number: W10, W10 Pro, W5N To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Shenzhen Jusheng Times Electronics Co., Ltd hereby declare that our product (Dash camera) Model Number: W10, W10 Pro, W5N board, Schematic, Hardware version, Software version, structure and internal photos are same, Model named differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Yuanwen Dai / General Manager Company: Shenzhen Jusheng Times Electronics Co., Ltd Address: 301, Building F, No.1 Lingxia Road, Fenghuang Community, Fuyong Street, Bao'an District, Shenzhen, Guangdong, China Phone: +86-13603042877 Fax: +86-755-29607776 E-Mail: [email protected]

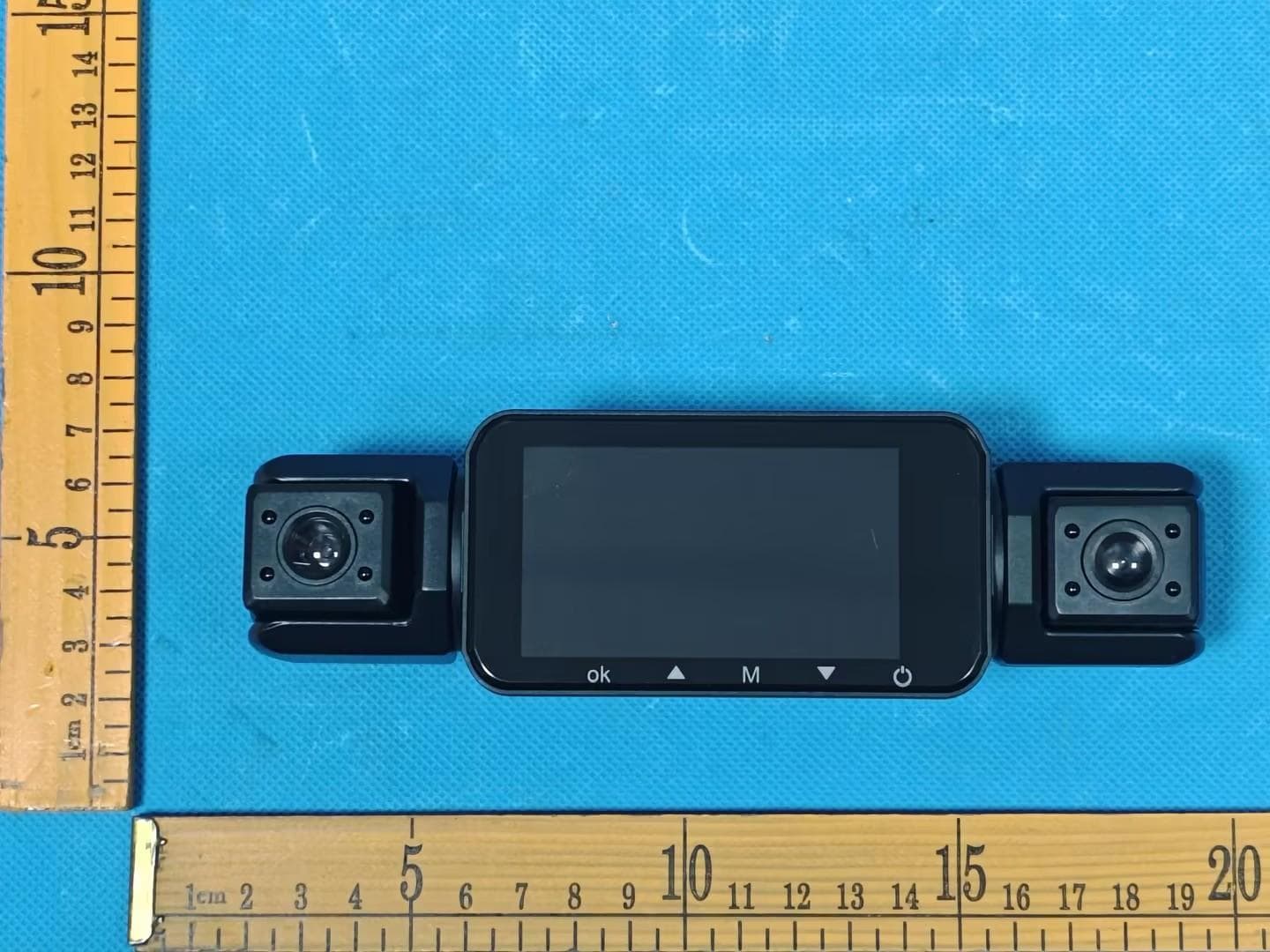

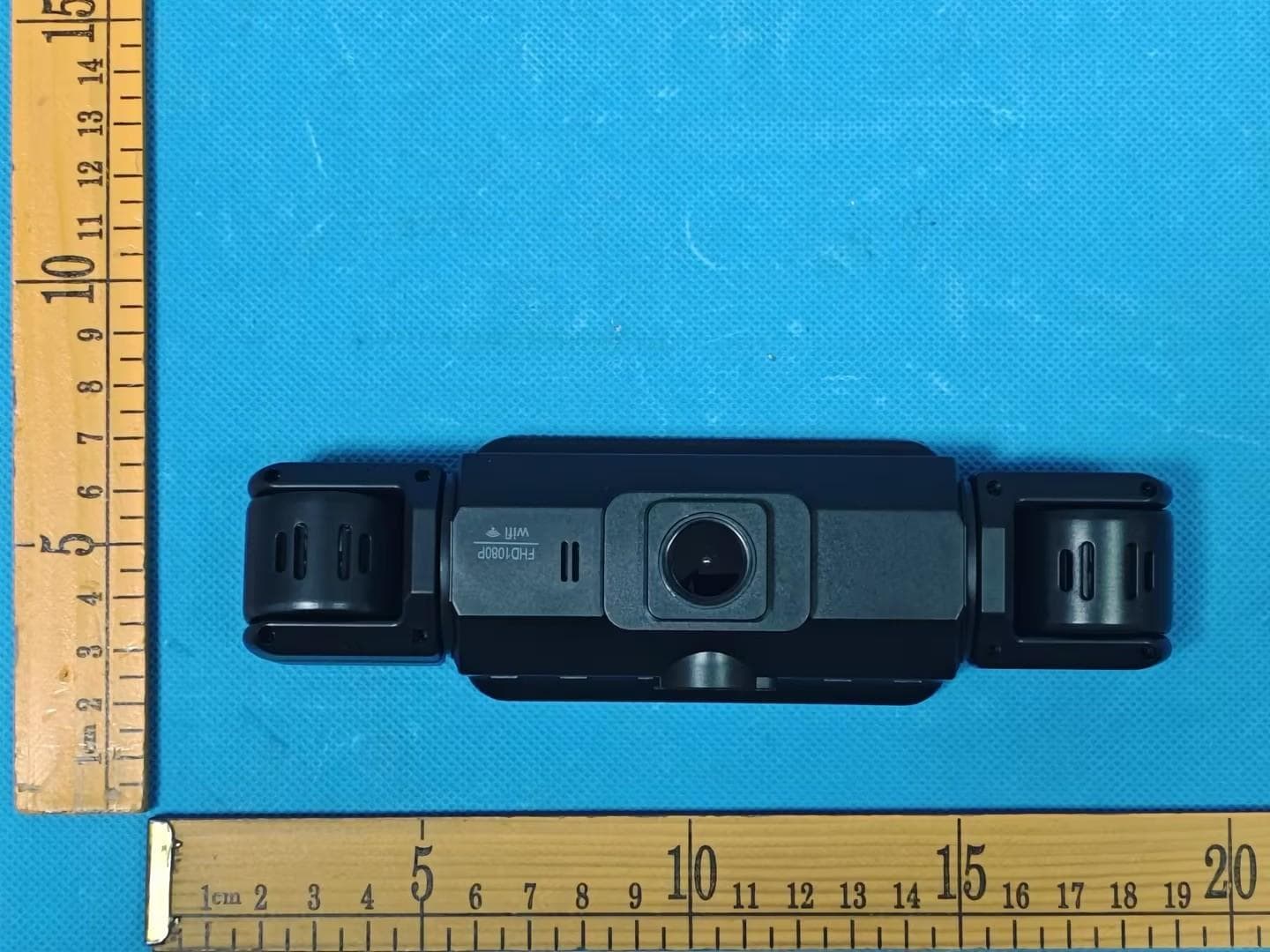

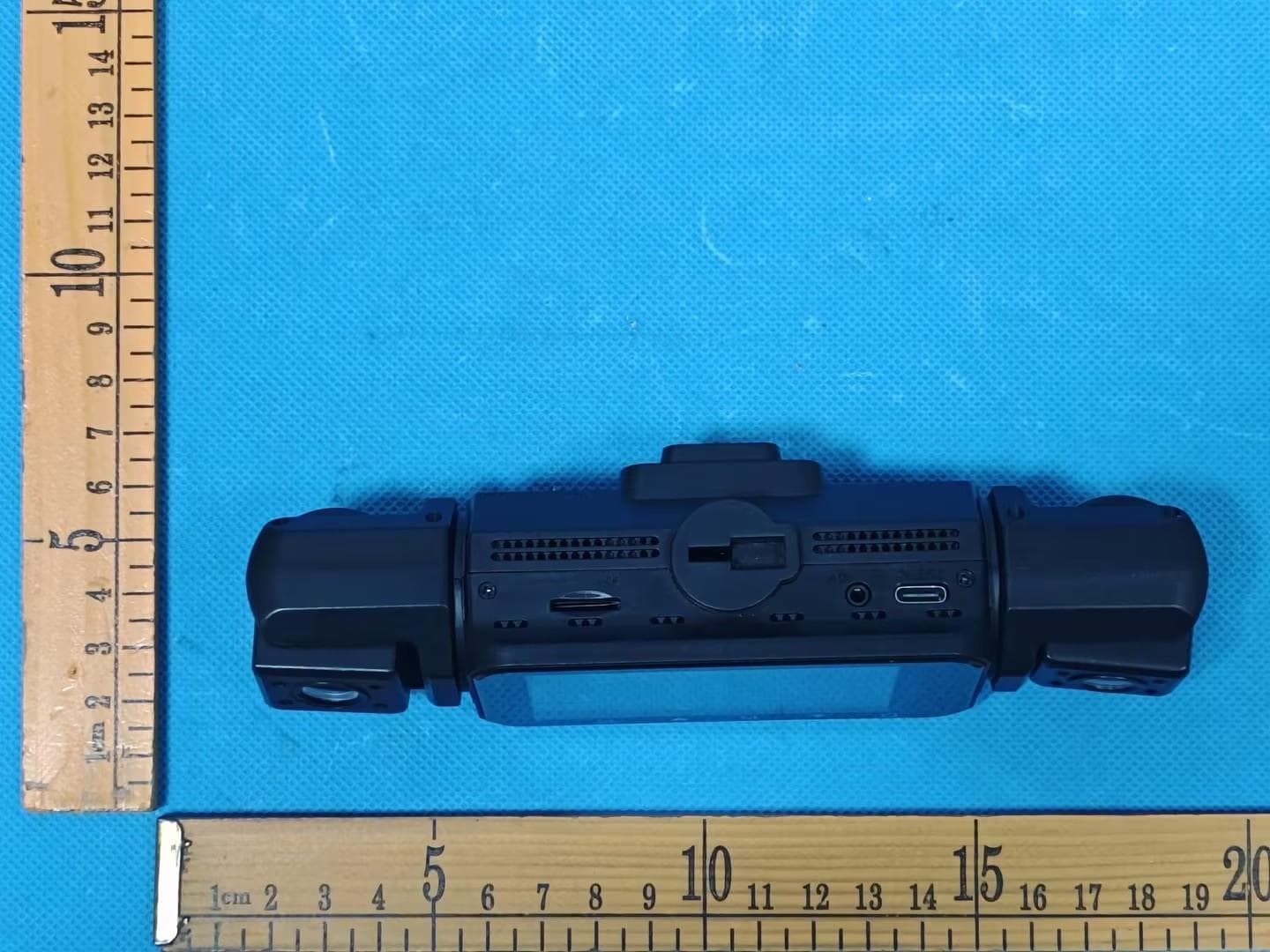

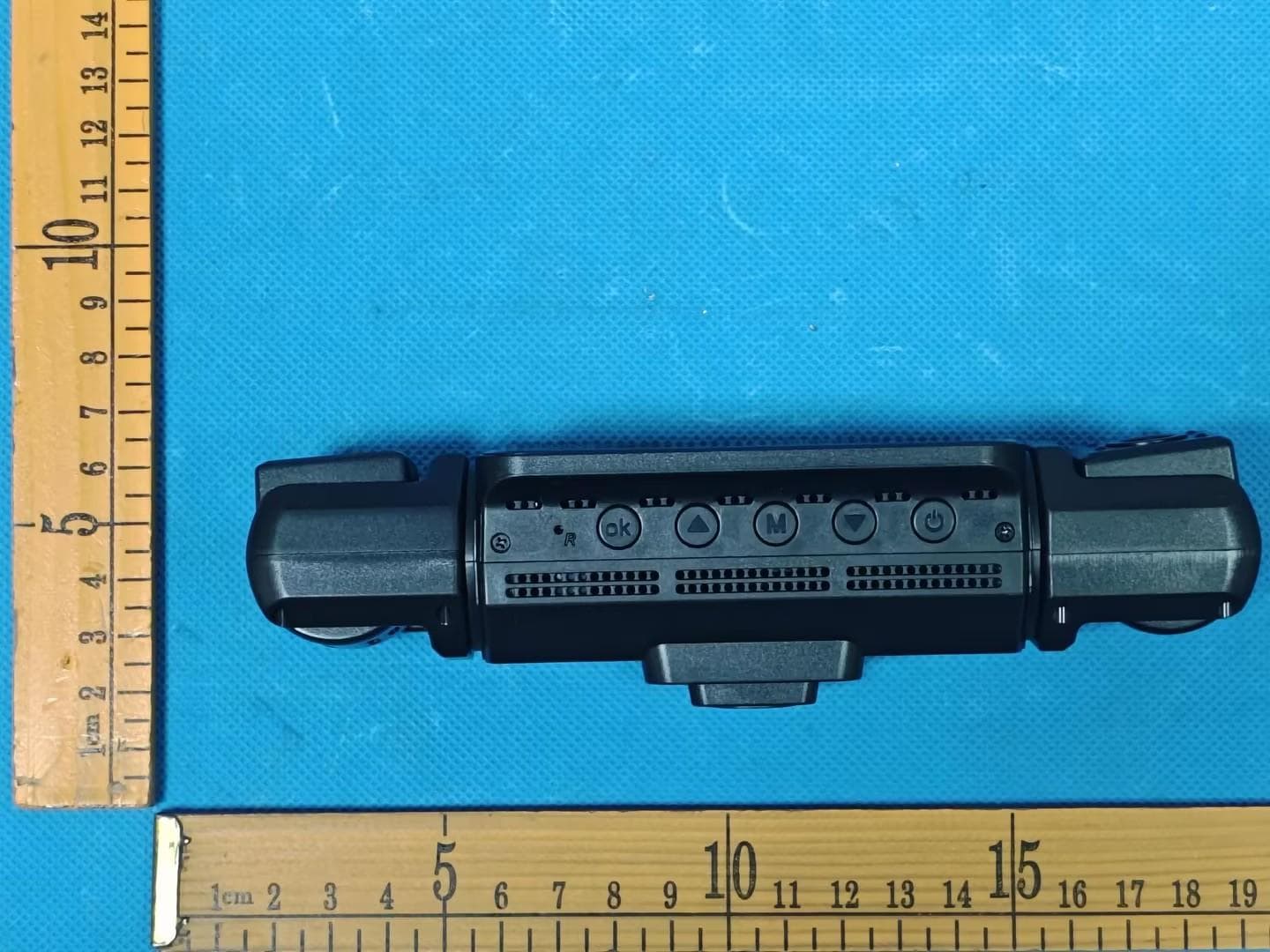

Page 1 of 10 FCC ID: 2BXCN-W10W5N Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com External Photos of the EUT Test model: W10 Fig. 1 Fig. 2 Page 2 of 10 FCC ID: 2BXCN-W10W5N Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 3 Fig. 4 Page 3 of 10 FCC ID: 2BXCN-W10W5N Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 5 Fig. 6 Page 4 of 10 FCC ID: 2BXCN-W10W5N Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 7 Fig. 8 Page 5 of 10 FCC ID: 2BXCN-W10W5N Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 9 Page 6 of 10 FCC ID: 2BXCN-W10W5N Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Additional model: W5N Fig. 10 Fig. 11 Page 7 of 10 FCC ID: 2BXCN-W10W5N Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 12 Fig. 13 Page 8 of 10 FCC ID: 2BXCN-W10W5N Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 14 Fig. 15 Page 9 of 10 FCC ID: 2BXCN-W10W5N Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 16 Fig. 17 Page 10 of 10 FCC ID: 2BXCN-W10W5N Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 18

Page 1 of 1 FCC ID: 2BXCN-W10W5N Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com LABEL AND LOCATION (Size: L2.0cm x 1.0cm) Label Location Dash camera Model: W10 FCC ID: 2BXCN-W10W5N

Page 1 of 6 FCC ID: 2BXCN-W10W5N Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Internal Photos of the EUT Fig. 1 Fig. 2 Page 2 of 6 FCC ID: 2BXCN-W10W5N Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 3 Fig. 4 Page 3 of 6 FCC ID: 2BXCN-W10W5N Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 5 Fig. 6 Page 4 of 6 FCC ID: 2BXCN-W10W5N Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 7 Fig. 8 Page 5 of 6 FCC ID: 2BXCN-W10W5N Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 9 Fig. 10 Antenna Page 6 of 6 FCC ID: 2BXCN-W10W5N Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig. 11

Page 1 of 10 FCC ID: 2BXCN-W10W5N Report No.: LCSC07216007EB TRF-4-E-214 A/0 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity RF Exposure Evaluation For Shenzhen Jusheng Times Electronics Co., Ltd. Dash camera Test Model: W10 Additional Model No.: Please Refer to Page 6 Prepared for : Shenzhen Jusheng Times Electronics Co., Ltd. Address : Room 301, Building F, Factory Building No.1, Lingxia Road, Fenghuang Community, Fuyong Street, Bao’an District, Shenzhen Prepared by : Guangzhou LCS Compliance Testing Laboratory Ltd. Address : No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel : (+86) 020-39166689 Fax : (+86) 020-39166619 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : July 22, 2026 Number of tested samples : 2 Sample No. : C260721007-1, C260721007-2 Serial number : Prototype Date of Test : July 22, 2026 ~ July 31, 2026 Date of Report : August 03, 2026 Page 2 of 10 FCC ID: 2BXCN-W10W5N Report No.: LCSC07216007EB TRF-4-E-214 A/0 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity RF Exposure Evaluation Report Reference No. ................. : LCSC07216007EB Date of Issue................................... : August 03, 2026 Testing Laboratory Name ............ : Guangzhou LCS Compliance Testing Laboratory Ltd. Address ........................................... : No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Shenzhen Jusheng Times Electronics Co., Ltd. Address ........................................... : Room 301, Building F, Factory Building No.1, Lingxia Road, Fenghuang Community, Fuyong Street, Bao’an District, Shenzhen Test Specification Standard ......................................... : FCC KDB publication 447498 D01 General RF Exposure Guidance v06 FCC CFR 47 part1 1.1310 FCC CFR 47 part2 2.1091 TRF Originator ................................ : Guangzhou LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Guangzhou LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Guangzhou LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Guangzhou LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Dash camera Trade Mark...................................... : N/A Test Model ...................................... : W10 Ratings ............................................ : Please Refer to Page 6 Result ........................................... : Pass Compiled by: Supervised by: Approved by: Lifeng Le/ Administrators Justin Zhu/ Technique Director Gavin Liang/ Manager Page 3 of 10 FCC ID: 2BXCN-W10W5N Report No.: LCSC07216007EB TRF-4-E-214 A/0 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity RF Exposure Evaluation Test Model............................... : W10 EUT......................................... : Dash camera Applicant............................... : Shenzhen Jusheng Times Electronics Co., Ltd. Address.................................. : Room 301, Building F, Factory Building No.1, Lingxia Road, Fenghuang Community, Fuyong Street, Bao’an District, Shenzhen Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Jusheng Times Electronics Co., Ltd. Address................................... : Room 301, Building F, Factory Building No.1, Lingxia Road, Fenghuang Community, Fuyong Street, Bao’an District, Shenzhen Telephone............................... : Fax.......................................... : Factory................................... : Shenzhen Jusheng Times Electronics Co., Ltd. Address................................... : Room 301, Building F, Factory Building No.1, Lingxia Road, Fenghuang Community, Fuyong Street, Bao’an District, Shenzhen Telephone............................... : / Fax.......................................... : / Test Result Pass The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSC07216007EB August 03, 2026 Date of issue Page 4 of 10 FCC ID: 2BXCN-W10W5N Report No.: LCSC07216007EB TRF-4-E-214 A/0 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Revision History Report Version Issue Date Revision Content Revised By 000 August 03, 2026 Initial Issue --- Page 5 of 10 FCC ID: 2BXCN-W10W5N Report No.: LCSC07216007EB TRF-4-E-214 A/0 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.…
