2BXET-AUSTA-A9Portable Wireless Display Monitor

User Manual (Universal) Contents Product Overview 03 Product Features04-06 Settings07-10 CarPlay / Android Auto11-12 FAQ13-19 Compliance & Legal20-21 02 Product Overview Product Specifications Item Operating Voltage Max Operating Current Standby Current Operating Temperature Operating Humidity System Connectivity Smartphone Integration Specification 10V-16V DC <15A <10 mA -20°C~+70°C 0%-80% Android OS Wi-Fi/ Bluetooth / GPS Wireless /Wired CarPlay (Bluetooth ConnectionOnly) / Android Auto 03 Product Features Multimedia FM/AM Radio Music and Video Playback USB Media Support Bluetooth Music Streaming Navigation GPS Navigation Google Maps Support Online Navigation Apps Integrated infotainment system delivering seamless multimedia experience and intelligent navigation capabilities for modern driving. All features designed for safe, intuitive in-vehicle interaction. 04 Product Features Connectivity Features Bluetooth Hands-Free Calling Wi-Fi Internet Access Smartphone Screen Mirroring Apple CarPlay Android Auto Vehicle Integration Steering Wheel Control Learning Backup Camera Support CANBUS Support (Model Dependent) 05 Software Application Entertainment Radio Music Video Bluetooth BT Music Navigation & System Maps Steering Wheel Learning File Manager Theme Equalizer (EQ) Smart Connectivity CarPlay Android Auto Screen Mirroring App Store Play Store 06 Settings CategoryFunctionDescription Click on the WIFl icon, then start the search. In the list,find the desired WIFI and perform the connection operation. Click on the "Hotspot" icon, select "Wi-Fi hotspot", turn on the hotspot, you can share the local hotspot, and you can also modify the hotspot name and password. Click on the SIMs icon, for network data managementand settings. Note: The icon will only be effective when a SIM card is inserted. The system shows the font size adjustment settings. The driving warning is turned off. You can watch videos while driving. Display Display Font size More display Setting of static logo and dynamic logo. Click on the APP icon, then select "See all apps". In the list, find the desired APP and you can view its version,clear the cache and uninstall it, etc. Brightness and Display: Brightness adjustment for daytime mode and nighttime mode. 07 DisplayPower logo Brightness regulate Network Display APPs Network Network Network WIFI Hotspot SIMs Settings CategoryFunctionDescription Set the date and time. The system will update automatically by default and no settings are required. Add applications that allow for long-term operation in the background. Google Account Management. System language and input method settings. Person Person Person Person Person WhiteList Google & Account Languages & input Date & time Navigation Settings Click on the APP icon, then select "See all apps". In the list, find the desired APP and you can view its version,clear the cache and uninstall it, etc. Learning of steering wheel buttons: Method: Click the "Start Learning" button, then press the buttons on the steering wheel for 1 second. After that, a prompt will appear asking you to select the buttons you want to learn. When the icon lights up, it indicates that the learning is successful. Repeat this process for each other button until all are learned. Then, click "End Learning" to complete. Receiver area and channel search/ stop sensitivity settings. Device Device Radio settings Steering Wheel learning 08 The navigation shortcut keys can be customized. The default setting is Goolge Maps. Settings CategoryFunctionDescription Restore the default system volume setting upon startup. The default volume setting for Bluetooth calls. The volume setting for the navigation function. Setting for reducing the volume when reversing the vehicle. The sound of the screen touch response, to turn on or off. Sound Sound Sound Sound Sound Default Volume Navi Volume Beep BT Phone Volume BackCar Volume Reduction Setting of static logo and dynamic logo. Enable and disable the auxiliary lines and trajectory lines for the camera. CAN bus settings: Select the CAN box supplier, choose the vehicle series, select the specific model, and then make corresponding selections based on the year and configuration. Device Device Camera settings More settings 09 CategoryFunctionDescription MCU version information. Core board system version information. It has been set up by default at the factory and is not accessible to users. When personal settings are in disorder or the system is malfunctioning, you can try to restore the factory settings to make the device return to normal. System System System System MCU Version APP Version Factory setting Reset Settings 10 1: Turn on your phone's Hotspot and Bluetooth, then simply connect via Bluetooth. 2: Tap the Bluetooth icon on the car stereo, tap (Search Device) Select your phone name from the device list, then tap connect via Bluetooth.Enter the pairing code 0000 on your phone, or tap Pair/Confirm when prompted.After confirming the connection, the Bluetooth pairing will be completed. Within 3-5 seconds, the system will automatically switch to the smartphone connectivity interface. 3:In the connectivity interface, you can use your phone's Bluetooth calling, navigation, music, andother functions. 4:To exit the connectivity interface, tap the Exit, Back, or Car icon on the application screen. 5:To remove the connection, delete the paired device from the Bluetooth device list, then go to Setting Network Settings and turn off the hotspot. CarPlay / Android Auto Supported Mobile Devices Android smartphones (Android Auto) iPhone (Apple CarPlay) Connection Method Method: 11 CarPlay / Android Auto Android Interface CarPlay Interface 12 Bluetooth Pairing Interface 1.Please press the "RST" button on the panel to reset the machine. If it stil fails to start, please follow the steps below to troubleshoot. 2.Please check if all the connection lines are properly inserted and fully engaged, and reinsert and re-extract them. 3. Please measure …

Text truncated - open the document above for the full version.

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BXET-AUSTA-A9 AUSTA-A9 We, Applicant Company Name: Foshan Chentu Changxing Technology Co., Ltd. Address: Room 401-2, 4th Floor, Workshop, No.26 North Lake 2nd Road, Shishan Town, Nanhai District, Foshan City Guangdong 528200, China Phone: +86-18870172388 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc. or any of ist successors and assignees. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-08-12 Signature Date Name / Title: Jun'an He / Legal Representative Company: Foshan Chentu Changxing Technology Co., Ltd. Address: Room 401-2, 4th Floor, Workshop, No.26 North Lake 2nd Road, Shishan Town, Nanhai District, Foshan City Guangdong 528200, China Phone: +86-18870172388 Fax: +86-18870172388 E-Mail: [email protected]

Due Diligence Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern FCC ID Model name 2BXET-AUSTA-A9 AUSTA-A9 Pursuant to KDB 986446 D01 Covered Equipment Guidance the evaluation of the product above shows compliance for the following reasons: Compliance Evaluation process Results Inherent compliance The chipset(s) used is not capable of running the cybersecurity and/or anti-virus software The memory used does not allow the running the cybersecurity and/or anti-virus software The storage capacity does not allow the running the cybersecurity and/or anti-virus software The operating system used is not capable of running the cybersecurity and/or anti-virus software No inherent compliance Based on software bill of material Compliance Based on scan for running software on the device Based on filesystem scan for cybersecurity and/or anti-virus software The equipment for which authorization is sought complies with the rules and fulfils the requirements as detailed in the above mentioned KDB. Evaluation performed by Company Name: Shenzhen LCS Compliance Testing Laboratory Ltd. Contact Name: Martion Lee Address: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Phone: +86-755-82591330 Email: [email protected] Signature: Date: 2026-07-22

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2BXET-AUSTA-A9 AUSTA-A9 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-08-12 Signature Date Name / Title: Jun'an He / Legal Representative Company: Foshan Chentu Changxing Technology Co., Ltd. Address: Room 401-2, 4th Floor, Workshop, No.26 North Lake 2nd Road, Shishan Town, Nanhai District, Foshan City Guangdong 528200, China Phone: +86-18870172388 Fax: +86-18870172388 E-Mail: [email protected]

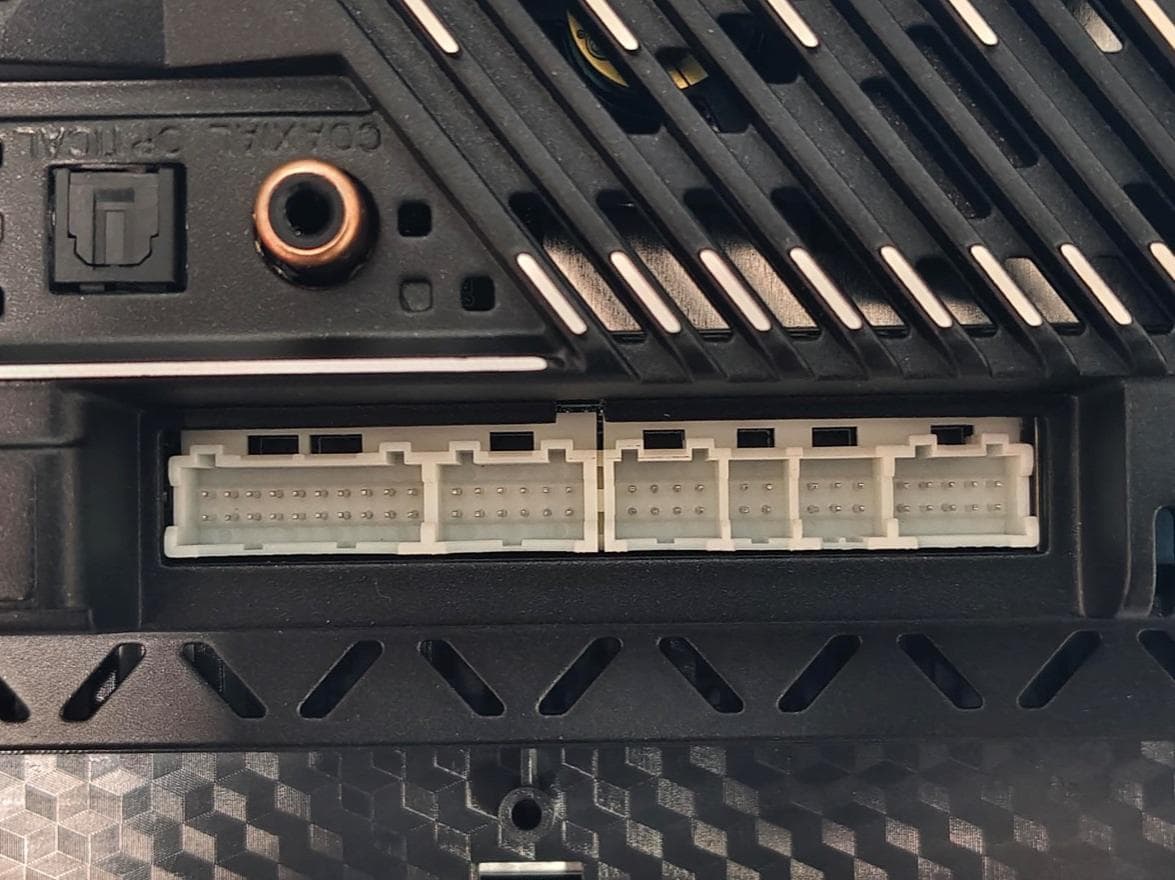

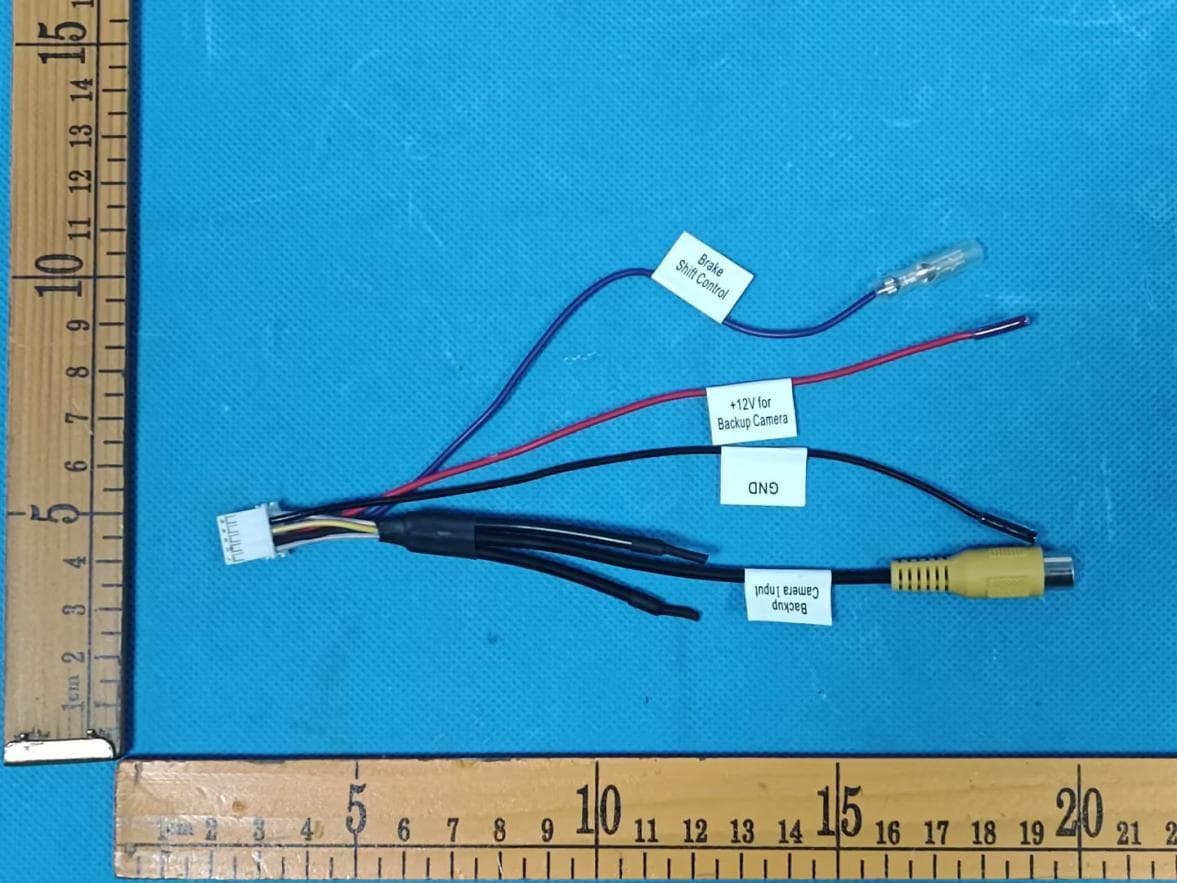

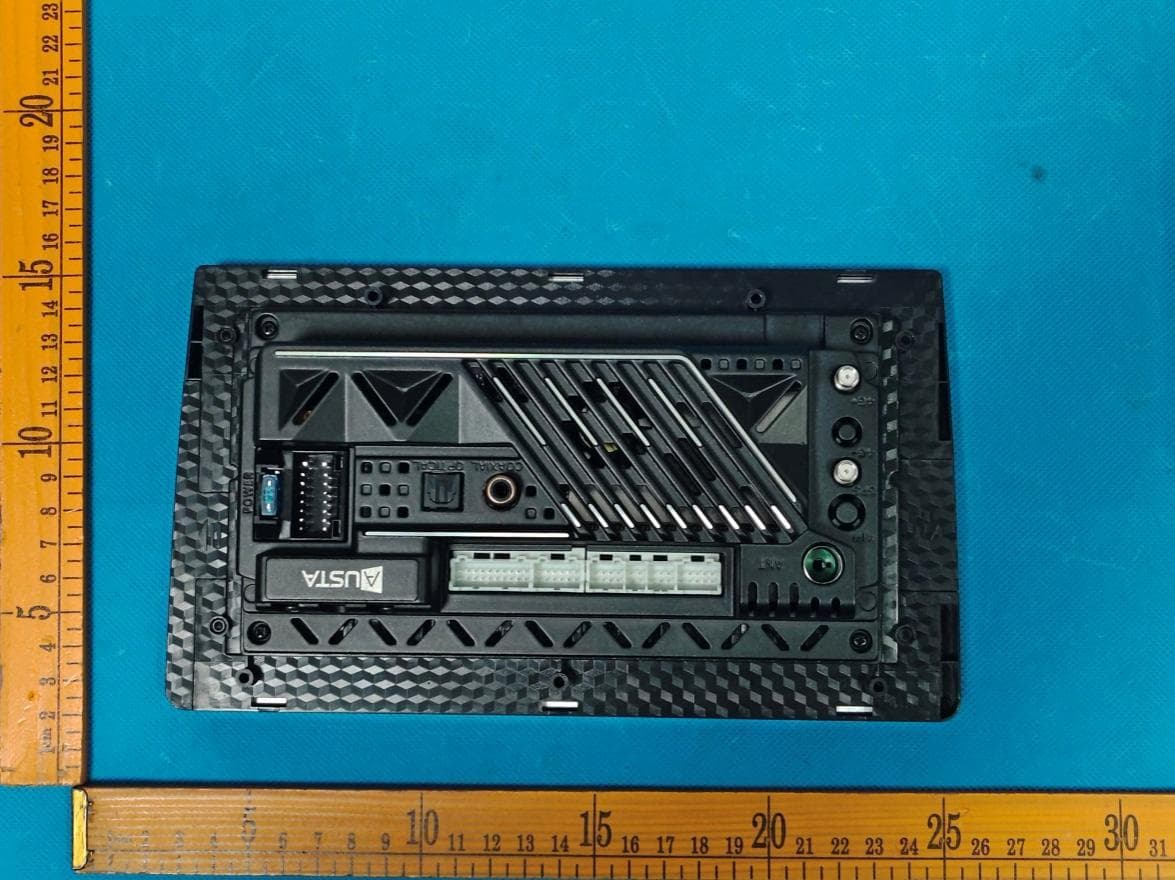

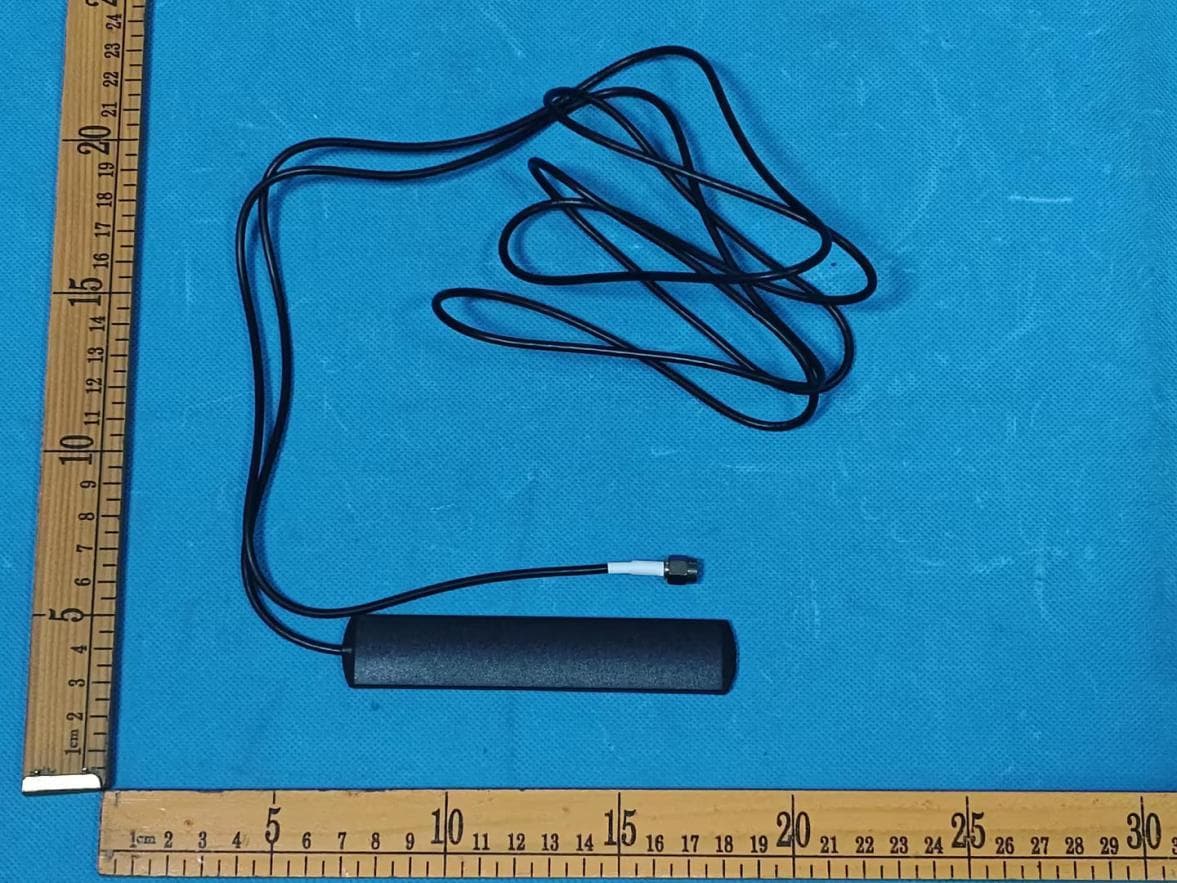

Page1of8FCCID:2BXET-AUSTA-A9 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of8FCCID:2BXET-AUSTA-A9 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.3 Fig.4 Page3of8FCCID:2BXET-AUSTA-A9 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.5 Fig.6 Page4of8FCCID:2BXET-AUSTA-A9 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.7 Fig.8 Page5of8FCCID:2BXET-AUSTA-A9 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.9 Fig.10 Page6of8FCCID:2BXET-AUSTA-A9 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.11 Fig.12 LTEAntenna Page7of8FCCID:2BXET-AUSTA-A9 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.13 Fig.14 Page8of8FCCID:2BXET-AUSTA-A9 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.15 Fig.16 BT/2.4GWIFIAntenna 5GWIFIAntenna

Page1of1FCCID:2BXET-AUSTA-A9 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com LABELANDLOCATION (Size:L4.0cmx2.0cm) LabelLocation PortableWirelessDisplayMonitor Model:AUSTA-A9 FCCID:2BXET-AUSTA-A9

Page1of12FCCID:2BXET-AUSTA-A9 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com InternalPhotosoftheEUT Fig.1 Fig.2 Page2of12FCCID:2BXET-AUSTA-A9 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.3 Fig.4 Page3of12FCCID:2BXET-AUSTA-A9 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.5 Fig.6 Page4of12FCCID:2BXET-AUSTA-A9 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.7 Fig.8 Page5of12FCCID:2BXET-AUSTA-A9 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.9 Fig.10 Page6of12FCCID:2BXET-AUSTA-A9 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.11 Fig.12 Page7of12FCCID:2BXET-AUSTA-A9 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.13 Fig.14 Page8of12FCCID:2BXET-AUSTA-A9 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.15 Fig.16 Page9of12FCCID:2BXET-AUSTA-A9 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.17 Fig.18 Page10of12FCCID:2BXET-AUSTA-A9 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.19 Fig.20 Page11of12FCCID:2BXET-AUSTA-A9 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.21 Fig.22 Page12of12FCCID:2BXET-AUSTA-A9 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.23 Fig.24

Page 1 of 15 FCCID:2BXET-AUSTA-A9ReportNo.:LCSC06036005EG GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RFExposureEvaluation FOR FoshanChentuChangxingTechnologyCo.,Ltd. PortableWirelessDisplayMonitor TestModel:AUSTA-A9 Preparedfor:FoshanChentuChangxingTechnologyCo.,Ltd. Address: Room401-2,4thFloor,Workshop,No.26NorthLake2ndRoad, ShishanTown,NanhaiDistrict,FoshanCity,Guangdong,China Preparedby:GuangzhouLCSComplianceTestingLaboratoryLtd. Address: No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou, Guangdong,China Tel:(+86)020-39166689 Fax:(+86)020-39166619 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:June17,2026 Numberoftestedsamples:2 SampleNo.：C260608004-1,C260608004-2 Serialnumber:Prototype DateofTest:June17,2026~July21,2026 DateofReport:July22,2026 Page 2 of 15 FCCID:2BXET-AUSTA-A9ReportNo.:LCSC06036005EG GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RFExposureEvaluation ReportReferenceNo......................:LCSC06036005EG DateofIssue.......................................:July22,2026 TestingLaboratoryName..............:GuangzhouLCSComplianceTestingLaboratoryLtd. Address................................................: No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou, Guangdong,China TestingLocation/Procedure............ : FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................: FoshanChentuChangxingTechnologyCo.,Ltd. Address................................................: Room401-2,4thFloor,Workshop,No.26NorthLake2ndRoad, ShishanTown,NanhaiDistrict,FoshanCity,Guangdong,China TestSpecification Standard..............................................:FCCKDBpublication447498D01GeneralRFExposureGuidancev06 FCCCFR47part11.1310 FCCCFR47part22.1091 TestReportFormNo.........................:TRF-4-E-214A/0 TRFOriginator....................................:GuangzhouLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 GuangzhouLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe GuangzhouLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.GuangzhouLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoitsplacement andcontext. TestItemDescription.....................:PortableWirelessDisplayMonitor TradeMark..........................................:N/A TestModel...........................................:AUSTA-A9 Ratings.................................................:PleaseRefertoPage6 Result..................................................:Pass Compiledby:Supervisedby:Approvedby: LifengLe/AdministratorsJustinZhu/TechniqueDirectorGavinLiang/Manager Page 3 of 15 FCCID:2BXET-AUSTA-A9ReportNo.:LCSC06036005EG GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RFExposureEvaluation TestResultPass Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCSC06036005EG July22,2026 Dateofissue EUT......................................... : PortableWirelessDisplayMonitor TestModel............................... : AUSTA-A9 Applicant...............................:FoshanChentuChangxingTechnologyCo.,Ltd. Address...................................:Room401-2,4thFloor,Workshop,No.26NorthLake2nd Road,ShishanTown,NanhaiDistrict,FoshanCity, Guangdong,China Telephone...............................:/ Fax..........................................:/ Manufacturer.........................: FoshanChentuChangxingTechnologyCo.,Ltd. Address...................................:Room401-2,4thFloor,Workshop,No.26NorthLake2nd Road,ShishanTown,NanhaiDistrict,FoshanCity, Guangdong,China Telephone...............................:/ Fax..........................................:/ Factory...................................: FoshanChentuChangxingTechnologyCo.,Ltd. Address...................................:Room401-2,4thFloor,Workshop,No.26NorthLake2nd Road,ShishanTown,NanhaiDistrict,FoshanCity, Guangdong,China Telephone...............................:/ Fax..........................................:/ Page 4 of 15 FCCID:2BXET-AUSTA-A9ReportNo.:LCSC06036005EG GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RevisionHistory ReportVersionIssueDateRevisionContentRevisedBy 000July22,2026InitialIssue--- Page 5 of 15 FCCID:2BXET-AUSTA-A9ReportNo.:LCSC06036005EG GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com TABLEOFCONTENTS DescriptionPage 1.ProductInformation............................................................................................................................................6 2.EvaluationMethod..............................................................................................................................................8 3.Limit........................................................................................................................................................................8 4.MPECalculationMethod.....................................................................................…

Text truncated - open the document above for the full version.

样品承认书 SPECIFICATION FOR APPROVAL 客户名称：诺达方舟 产品名称： BT&2.4/5.8G WIFI 天线 产品型号：SPH2.0-10PIN 承 认 栏 Acknowledgment Section 拟定 Drafting审核 Review客户确认 Confirm 陈 放 厂址：深圳市宝安区松岗芙蓉路8号鑫伟润高新科技园A栋二楼 Factory location: 2nd floor, Building A, Xinyuerun High-tech Industrial Park, No. 8, Fengyu Road, Songgang District, Shenzhen City Tel: 0755-33262800 FAX: 0755- 332622900 联系人:方琴 139 2659 5396 E-mail: [email protected] CUSTOMER NAME PAPT NAME PAPT MODEL Nuoda Ark BT&2.4/5.8G WIFI Antenna 一、 电气性能 Electrical factor 1. 频率范围 Frenquency range2400~ 2500 MHz/5150~5800 MHZ 2. 输入阻抗 Impedance50Ω 3. 驻波比 VSWR≧ 1.5 4. 增益 Gain＜3.74dBi 5.极化方式 Polarization水平极化 6.辐射方向 Radiation全向 7.功率容量 Maximun power lnput-watts50W 二、 机械特性 Mechanical performance 1.线长 Dimension95±10mm 2.接头 ConnectorSPH2.0-10PIN 3.材料 Radome material同轴线 4.外观颜色 Radome color黑色+白色芯 5.工作温度 Working temperature-20~75度 6.存放温度 Storage temperature-40~85度 三、 实物样品 Sample 四、 图纸 Drawings 五、 性能测试 Performance test 1.1：2.4G BT-Antenna，Standing wave diagram 2.4G BT Standing wave pattern2.4G BT Standing wave return loss graph 1.2：BT-Antenna，Test data Passive Test For BT2.4 1.3：2.4G BT-Antenna 3D -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 2400.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 2410.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 2420.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 2430.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 2440.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 2450.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 2460.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 2470.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 2480.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 2490.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 2500.00MHz 2.1：2.4G WIFI-Antenna，Standing wave diagram 2.4G WIFI Standing wave pattern 2.4G WIFI Standing wave return loss graph 2.2：2.4G WIFI-Antenna，Test data 2.3：2.4G WIFI-Antenna，3D -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 2400.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 2410.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 2420.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 2430.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 2440.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 2450.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 2460.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 2470.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 2480.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 2490.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 2500.00MHz 3.1：5.8G WIFI-Antenna，Standing wave diagram 5.8G WIFI Standing wave pattern 5.8G WIFI Standing wave return loss graph 3.2：5.8G WIFI-Antenna，Test data 3.3：5.8G WIFI-Antenna，3D -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5150.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 5170.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 5190.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 5210.00MHz -13.00 -19.00 -7.00 -1.00 5.00 330 270 240 210 180 150 120 90 60 30 300 5230.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5250.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5270.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5300.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5320.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5350.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5400.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5420.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5440.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5460.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5500.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5530.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5550.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5570.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5590.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5620.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5650.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5670.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5690.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5720.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5750.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5770.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5800.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5830.00MHz -18.00 -24.00 -12.00 -6.00 0.00 330 270 240 210 180 150 120 90 60 30 300 5850.00MHz 规格书 SPECIFICATIONFORAPPROVAL 深圳市创引科技有限公司 ShenzhenChuangyinTechnologyCo.,Ltd. 客户Customer 项目名Project SMA-4Gantenna 频段Band 600-2800MHz CY料号Partnumber R2JZ-4G-1-H 版本Version A0 射频RF 结构ME 业务Sale 日期Date 2025-9-12 客户项目名称Customerprojectname 客户料号Customerpartnumber 承认人签章 Signatur…

Text truncated - open the document above for the full version.

Page 1 of 51 FCC ID:2BXET-AUSTA-A9 Report No.: LCSC06036005EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Appendix A RF Test Data for BT (Conducted Measurement) Product Name: Portable Wireless Display Monitor Test Model: AUSTA-A9 Environmental Conditions Temperature: 24.6C Relative Humidity: 53.4% ATM Pressure: 100.0 kPa Test Engineer: Zhang hai Supervised by: Fengliu Tang Page 2 of 51 FCC ID:2BXET-AUSTA-A9 Report No.: LCSC06036005EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.1 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.954 2401.535 2402.489 --- --- 2441 0.957 2440.532 2441.489 --- --- 2480 0.963 2479.532 2480.495 --- --- 2DH5 Ant1 2402 1.284 2401.361 2402.645 --- --- 2441 1.284 2440.361 2441.645 --- --- 2480 1.293 2479.358 2480.651 --- --- 3DH5 Ant1 2402 1.281 2401.352 2402.633 --- --- 2441 1.281 2440.346 2441.627 --- --- 2480 1.293 2479.346 2480.639 --- --- Page 3 of 51 FCC ID:2BXET-AUSTA-A9 Report No.: LCSC06036005EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Page 4 of 51 FCC ID:2BXET-AUSTA-A9 Report No.: LCSC06036005EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 Page 5 of 51 FCC ID:2BXET-AUSTA-A9 Report No.: LCSC06036005EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 3DH5_Ant1_2402 3DH5_Ant1_2441 3DH5_Ant1_2480 Page 6 of 51 FCC ID:2BXET-AUSTA-A9 Report No.: LCSC06036005EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Page …
